EMB3500S - Blender ELECTROLUX - Free user manual and instructions

Product Type	Personal Blender
Brand	Electrolux
Model	EMB3500S
Power Consumption	350 W
Capacity	0.5 L (500 ml)
Material	Plastic body, stainless steel blades
Speed Settings	2 speeds + pulse
Dimensions (H x W x D)	25 cm x 12 cm x 12 cm
Weight	1.2 kg
Cord Length	80 cm
Voltage / Frequency	220-240 V, 50/60 Hz
Safety Features	Non-slip base, safety lock lid
Dishwasher Safe Parts	Jug and lid
Maintenance	Clean after each use; do not submerge motor base
Repairability Index	6.5 / 10
Spare Parts Available	Blade assembly, jug, lid, seal ring
Warranty	2 years
Intended Use	Home use: smoothies, sauces, shakes
Noise Level	Approx. 75 dB

Frequently Asked Questions - EMB3500S ELECTROLUX

How do I clean the Electrolux EMB3500S blender?

Rinse the jug immediately after use. Add warm water and a drop of dish soap, blend for 30 seconds, then rinse thoroughly. The jug and lid are dishwasher safe. Wipe the motor base with a damp cloth; never submerge it.

Can I crush ice with this blender?

Yes, the EMB3500S can crush ice. Use the pulse function in short bursts for best results. Do not overload the jug.

What is the blender's capacity?

The jug has a maximum capacity of 0.5 liters (500 ml). Do not exceed the max fill line to avoid spills.

Is the blender BPA-free?

The jug is made from BPA-free plastic, safe for food contact.

How do I replace the blending blade?

Turn the jug upside down, unscrew the blade assembly counterclockwise. Replace with a compatible Electrolux blade unit and tighten firmly.

Why does the blender stop working suddenly?

The motor has a thermal overload protection that shuts off if overheated. Let it cool for 15 minutes before retrying. Also check the power cord and outlet.

Can I blend hot liquids?

No, allow hot liquids to cool to room temperature before blending. Hot liquids can create pressure and cause the lid to pop off.

What speed settings are available?

The blender has two speed settings (low and high) and a pulse function for controlled chopping.

Does the blender come with a recipe book?

Some packages include a small recipe booklet. You can also find many recipes on the Electrolux website.

How long is the warranty?

The Electrolux EMB3500S comes with a 2-year limited warranty. Register your product online to activate it.

USER MANUAL EMB3500S ELECTROLUX

Sport Blender EMB3500S

EN INSTRUCTION BOOK

CNS 说明书

CNT 說明手冊

KR사용 설명서

ID Buku Panduan

1

2

3

INSTRUCTION MANUAL

Graphics and drawings in this manual are solely for illustration purposes and are subject to variations from actual product.

Read all instructions carefully before using the appliance for the first time.

Keep this manual for future reference.

SAFETY ADVICE

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Keep the appliance and its power cord out of reach of children. Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be performed by children without supervision.
• The appliance can only be connected to a power supply which voltage and frequency comply with the specifications on the rating plate.
• Never use or pick up the appliance if
• the power cord is damaged, or
• the housing is damaged.
• If the appliance or its power cord is damaged, it must be replaced by the Electrolux or its service agent in order to avoid hazard.
• Do not immerse the appliance, its power cord or plug in water or any liquid.
• Do not attempt to bypass the safety interlock system that powers the appliance.
• Do not use or place the appliance near edge of the table or counter, near hot gas, stove, electric burner or heated oven. Always place the appliance on a flat, level and dry surface.
• Always switch off the appliance and disconnect it from the supply if it is left unattended and before changing of accessories, cleaning or maintenance.
• The blades and inserts are very sharp. Danger of injury. Care shall be taken when changing accessories, after use and during cleaning and maintenance.
• Never touch the blades or inserts with your hand or with any utensils while the appliance is plugged in and/or during operation.
• Do not attempt to remove the blade assembly.
• Keep hands and utensils away from the appliance during operation to avoid the risk of severe injury to persons or damage to the appliance.
• Ensure that the appliance is switched off before removing the bottle from the motor base.
• Do not operate the appliance without food or liquid in the bottle.
• Never operate the appliance without the lid.
• Do not use the appliance continuously for more than 1 minute when processing heavy loads. After using for 1 minute with heavy loads, the appliance should be left to cool for at least 10 minutes before restarting.
• The appliance cannot be used for crushing ice or blending hard and dry substances, such as nuts or candy. Otherwise, the blade could become blunt.
• Be careful if hot liquid is poured into the appliance, as it can be ejected out of the appliance due to sudden steaming.
• Never process boiling liquids (max 90°C).
• Do not exceed the maximum filling volume as indicated on the appliance.
• Do not use this appliance to stir paint. Danger: could result in an explosion.
• Do not let the power cord come into contact with hot surfaces or hang over the edge of a table or counter.
• Never use accessories or parts made by other manufacturers that are not recommended or sold by Electrolux, as this may cause a risk of injury to persons.
• Do not use the appliance for any purpose other than its intended use. This appliance is for indoor use only.
• This appliance is intended for domestic use only. Electrolux will not accept any liability for possible damage caused by improper or incorrect use.

COMPONENTS

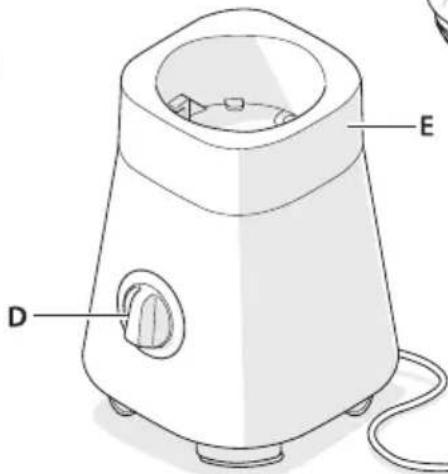

A. Spill-proof drinking lid with carry handle B. Blend bottle C. Blender blade assembly D. Speed selector E. Blender base

F. Power cord G. Mini bottle/grinder jar* H. Grinder blade assembly* I. Cooling stick J. Cooling stick cap K. Chopper base*

L. Chopper base shaft* M. Chopper blades* N. Chopper jar*

* Certain models only

GETTING STARTED* (* CERTAIN MODELS ONLY)

1 Before first use: Clean the blender according to the instructions in "Cleaning and Care". Fill the bottle with ingredients. Caution! Do not exceed the maximum filling volume: 600 ml for the blend bottle (B) and 300 ml for the mini bottle/grinder jar (G*). Do not mix dough, mashed potatoes, meat etc.

2 Fill the ingredients in either bottle. Fasten the blender blade assembly (C) on the open end of the bottle by turning it clockwise.

Caution! The blades and inserts are very sharp!

3 Place the blender base on a flat, level surface. Plug into a power outlet.

4 Turn the bottle upside down. Push down the bottle into the blender base (E) and rotate it clockwise to lock.

Note: When locked, the symbol ▼ on the blender blade assembly should be aligned with the symbol 🔒 on the blender base.

Caution! To reduce risk of injury, never place the blade assembly on the base without the bottle properly attached.

5 Turn the speed selector (D) to 1 or 2 according to the recipe/preference. Turn the speed selector to "PULSE" for short bursts of power.

Caution! If the motor stalls, turn the blender off immediately, unplug the appliance and let it cool for at least 10 minutes.

6 When the ingredients are fully mixed: Turn the speed selector to "OFF" to stop mixing. Make sure the motor has stopped completely, then press the bottle down and turn it counter-clockwise to release it. Remove the bottle from the blender base and turn it upside down. Replace the blade assembly with the drinking lid (A).

USING THE COOLING STICK (* CERTAIN MODELS ONLY)

The cooling stick cools down and maintains the temperature of your freshly prepared blends.

7 Unscrew the cap (J) of the cooling stick (I) and fill it with tap water until the MAX mark. Screw the cap back on the cooling stick and place it in the freezer until the water freezes.

8 Screw the frozen cooling stick on the drinking lid with carry handle (A). Attach it on the blend bottle (B). The cooling stick can be cleaned in a dishwasher.

Note! The cooling stick does not fit the mini bottle (G*).

USING THE GRINDER* (* CERTAIN MODELS ONLY)

9 Fill the ingredients in the mini bottle/grinder jar (G*). Fasten the grinder blade assembly (H*) on the open end of the bottle by turning it clockwise.

Caution! The blades and inserts are very sharp!

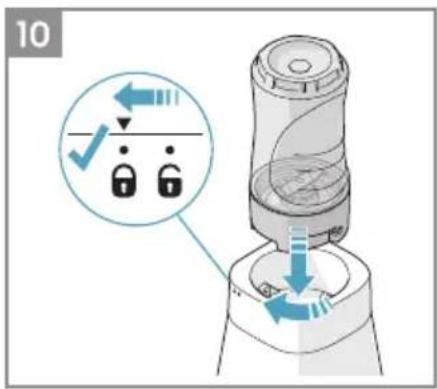

10 Turn the bottle upside down. Push down the bottle into the blender base (E) and rotate it clockwise to lock. Note: When locked, the symbol ▼ on the grinder blade assembly should be aligned with the symbol 🔒 on the blender base. Caution! To reduce risk of injury, never place the blade assembly on the base without the bottle properly attached.

USING THE CHOPPER* (* CERTAIN MODELS ONLY)

11 Attach the chopper blades (M*) on the chopper base shaft (L*) by pushing it down until the blades click into position. Fill the ingredients in the chopper jar (N*). Attach the chopper base (K*) on the chopper jar by turning it clockwise until the chopper jar clicks into position.

12 Turn the chopper upside down. Push down the chopper into the blender base (E) and rotate it clockwise to lock.

Note: When locked, the symbol ▼ on the chopper base should be aligned with the symbol 🔒 on the blender base.

Caution! To reduce risk of injury, never place the blade assembly on the base without the chopper jar properly attached.

CLEANING AND CARE (* CERTAIN MODELS ONLY)

13 Unplug the appliance. Accessories are dishwasher safe, except for the blender blade assembly (C), the grinder blade assembly (H*) and the chopper base (K*). Let all parts dry thoroughly. Caution! The blades and inserts are very sharp!

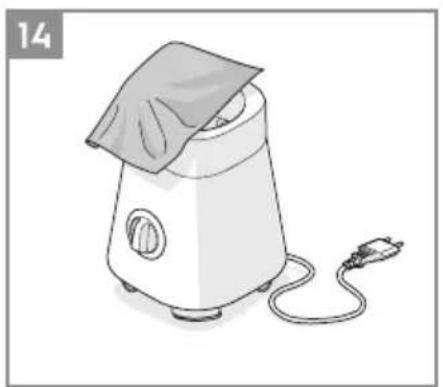

14 Clean the blender base with a damp cloth.

Caution! Never immerse the blender base in water!

Do not use abrasive cleaners or scouring pads when cleaning the appliance.

Enjoy your new Electrolux product!

RECIPES

MAXIMUM PROCESSING TIME WITH HEAVY LOAD	MAXIMUM CAPACITY
1 min 600 ml (Blend bottle)	300 ml (Mini bottle)

RECOMMENDED BLENDING SPEED
Recipe Ingredients Quantity Unit Time/Speed
Pureeing raw vegetables	Carrots	40	g	10 sec x (2-3) timesSpeed: 2
	Potatos	40	g
	Onions	40	g
	Water	80	ml
Pureeing cooked vegetables	Onions	25	g	10 sec x (2-3) timesSpeed: 1
	Carrots	50	g
	Potato	50	g
	Zucchini	50	g
	Water	100	ml
Dragon fruit and cauliflower	Water	120	ml	10 sec x (4-6) timesSpeed: 2
	Dragon fruit	1/4 - 1/2	pcs
	Carrots	1/4 - 1/2	pcs
	Cauliflower	30	g

RECOMMENDED BLENDING SPEED

Recipe Ingredients Quantity Unit Time/Speed
Pineapple-apricots Smoothie	Pineapple in slices	60	g	10 sec x (4-6) timesSpeed: 1
	Dried Apricots	10	g
	Yoghurt	75	g
Banana Smoothie	Fresh banana 240 g			30 sec/Speed: 2Milk 330 ml
	Water 30 ml
Apple and cauliflower	Apple	1/4 - 1/2	ml	10 sec x (4-6) timesSpeed: 2
	Cauliflower	30-50	g
	Lemon	1/4	pcs
	Water	120	ml
Vitamine	Apple	40 g		10 sec x (4-6) timesSpeed: 2
	Banana	50 g
	Papaya	100	g
	Milk	150	ml
Celery and tomato	Celery	200 g		10 sec x (4-6) timesSpeed: 1
	Tomato	1/2	pcs
	Water	120	ml

RECOMMENDED CHOPPING SPEED*

Recipe Ingredients Quantity Unit	Time/Speed
Chopped onions	Onions	200	g	10 sec/Speed: 2
Dry shrimp		30	g	20 sec/Speed: 1
Garlic		60	g	5 sec/Speed: 1
Chopped almonds	Almonds	100	g	10 sec/Speed: 2
Chopped beef	Beef	250	ml	Max 20 sec/Speed: 2
Dry pepper		30	g	20 sec/Speed: 1
Fresh red small pepper		30	g	20 sec/Speed: 1
The rated power of the chopper is 185W.
Pesto	Grated parmesan	1/2 cup		90 secSpeed: 1
	Fresh basil leaves	2	cup
	Garlic	3	cloves
	Pine nuts	1/3	cup
	Extra virgin olive oil	1/2 cup
	Salt
	Black pepper
	Method1. Grate parmesan in chopper.2. Add basil, garlic cloves and pine nuts. Chop and mix in with parmesan.3. Add 1/3 of the olive oil and mix until even. Gradually add the rest of the oil until the texture becomes creamy.4. Add salt and pepper to taste.
* Recommendation: Juicy fruits and vegetable should be processed in the blender instead of the chopper.Note: Maximum capacity for chopping beef: 250ml and indicated on the cup.

RECOMMENDED GRINDING SPEED*

Recipe Ingredients Quantity Unit Time/Speed
Coffee	Coffee beans Min 20 g		20-30 sec/Speed: 2
Nuts	Nuts 100 g		20-30 sec/Speed: 2
* Recommendation: Juicy fruits and vegetable should be processed in the blender instead of the chopper.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE	SOLUTION
The appliance does not turn on.	The appliance is not connected to a power source.	Connect the appliance to a power source.
	The bottle and blade assembly is not installed correctly in the blender base. The safety interlock system prevents the machine to power on.	Install the bottle and according to instructions in “Operating instructions”.
The motor stalls during operation.		If the motor stalls, turn the blender off immediately, unplug the appliance and let it cool for at least 10 minutes.
	Ingredients are too large. Cut all firm fruits and vegetables into pieces no larger than 1.8 cm2 to 2.5 cm2 .
	Wrong ingredients. The appliance intended use is production of beverages. Add fruits, vegetables or similar.Never mix ingredients such as dough, mashed potatoes, meat or similar.
For any further problems, contact an authorized Electrolux service centre.

DISPOSAL

Recycle the materials with the symbol. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances.

Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal minice.

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate.

Due to the Electrolux policy of continual product development; specifications, colours, and details of our products and those mentioned in this manual are subject to change without notice.
