LE-247000 - Television AudioSonic - Free user manual and instructions

Product Type	LED TV
Brand	AudioSonic
Model	LE-247000
Screen Size	24 inches (diagonal)
Resolution	1366 x 768 pixels (HD Ready)
Refresh Rate	60 Hz
Dimensions (without stand)	550 x 340 x 80 mm (approx.)
Weight (without stand)	3.5 kg (approx.)
Power Supply	100-240V AC, 50/60Hz
Power Consumption	30W (typical)
Standby Power	< 0.5W
Built-in Speakers	2 x 3W
Input Ports	HDMI, VGA, USB, AV, RF
Output Ports	Headphone jack
Additional Functions	Teletext, sleep timer, parental lock
Cleaning Instructions	Wipe with a soft, dry cloth; avoid liquid cleaners
Safety	Keep away from water; do not insert objects; use only certified power cord
Wall Mount Compatibility	VESA 100 x 100 mm
Spare Parts Availability	Contact AudioSonic support for remote control, stand, etc.
Manual Languages	English, French, German, Spanish, Italian, Dutch (multiple options)

Frequently Asked Questions - LE-247000 AudioSonic

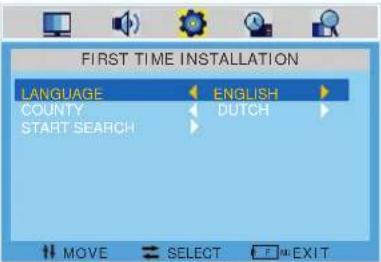

How do I set up my AudioSonic LE-247000 TV for the first time?

Connect the power cord, attach the stand or mount on a VESA wall bracket, and press the power button. Follow the on-screen setup wizard to select language, region, and scan for channels.

What type of remote control does the LE-247000 use?

It uses a standard IR remote control with buttons for power, volume, channel, menu, and input selection. Batteries are typically AAA (not included).

How can I connect external devices like a gaming console or Blu-ray player?

Use an HDMI cable to connect the device to one of the TV's HDMI ports. Select the corresponding HDMI input using the 'Source' button on the remote.

Why is there no picture or sound?

Check that the power cord is securely plugged in and the TV is turned on. Ensure the correct input source is selected. If still no picture, try a power reset: unplug for 30 seconds and plug back in.

How do I clean the TV screen safely?

Use a soft, lint-free microfiber cloth dry or slightly dampened with water (not wet). Do not use alcohol, ammonia, or paper towels, as they may damage the screen.

Can I mount this TV on a wall?

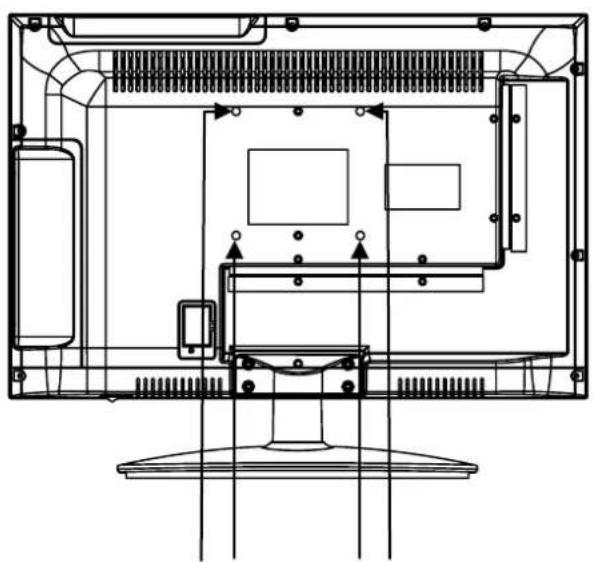

Yes. The LE-247000 supports VESA 100 x 100 mm wall mounts. Use appropriate screws and ensure the wall can support the TV's weight (about 3.5 kg).

What should I do if the remote control stops working?

Replace the batteries with fresh ones. Ensure there are no obstacles between the remote and the TV sensor. If still not working, try using the buttons on the TV itself (usually a joystick or buttons on the back).

How do I access the USB media player?

Insert a USB drive with compatible files (e.g., MP4, JPEG, MP3) into the USB port. Press 'Source' on the remote and select 'USB' or 'Media Player'. Use the remote to browse and play content.

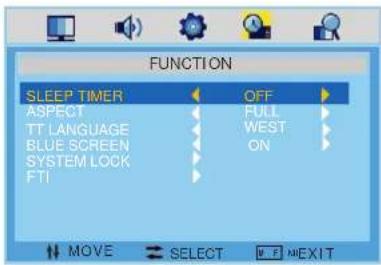

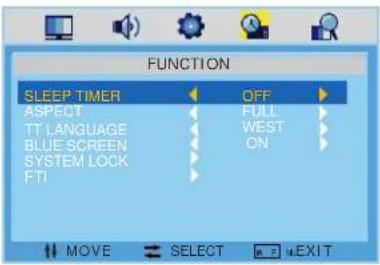

Is there a sleep timer function?

Yes. Press the 'Menu' button, navigate to 'Settings' > 'Timer' > 'Sleep Timer', and select the desired time (e.g., 30, 60, 90, 120 minutes). The TV will automatically turn off after that period.

What should I do if the TV does not find any channels?

Ensure the antenna or cable is properly connected. Go to 'Settings' > 'Channel' > 'Auto Tuning' and select your region. If still no channels, check the antenna signal or contact your service provider.

USER MANUAL LE-247000 AudioSonic

1- Important Safety Precaution

Incorrect usage will cause fire or electric shock. To prevent this, please do as required when you are installing, using and cleaning this machine. To insure your safety and extend the life span of LED-TV, please read the following items carefully before using:

The On/Off key on this product does not fully disconnect the TV from the main power supply. Unplug the power cord from the AC outlet before connecting any Audio / Video cables to the LED TV.

Do not place the LED TV on any unstable surface or furniture. Which may cause the product to fall, resulting in serious personal injuries and damage the product. Only place on stable furniture, recommended for LED TV by its manufacturer.

The LED panel used in this product is made of glass. Do not drop or impact the product with other objects, it may cause the panel broken. Be careful with the broken glasses in case the panel is broken.

The vents and openings at the back of the products are designed for ventilation. Do not cover or block these vents and openings. Insufficient ventilation may cause overheating and / or shorten the life of the product. Do not insert any foreign objects (metals or flammable objects) into the TV, which may cause electric shock or fire.

Do not place the LED TV close to other furniture, furnishing or electronic products. This product is not designed for built-in installation; do not place in an enclosed place without proper ventilation.

Keep this product away from direct sunlight or any heat sources such as radiator, heaters, stoves, and other heat generating products (including adaptors and amplifiers).

Do not use this product in wet and moist area or near water, such as kitchen sink, bathtub, washbasin, laundry tub, swimming pool or a wet basement.

Do not place any water container on top of this product. The water may spill onto the product causing electric shock or fire.

Do not place any type of candle or naked flames on the top or near the LED TV, which may cause fire.

To clean the cabinet and LED panel, unplug the Power cord, use only a clean soft moistened cloth and gently wipe the display panel. Hard cloth may scratch the panel surface. Never use dirty cloth, liquid cleaners or chemical cloth to clean it; such materials may damage the LED panel.

Do not remove cover; there are no serviceable parts inside. Refer servicing to qualified services personnel only.

2- Main functions

1- Can be connected with analog RGB input
2- Can be connected with CVBS and YPBPR input
3- Can be connected with HDMI input
4- Can receive SCART signal
5- Can receive TV signal
6- 2 x 2 Watt RMS (2 x 5 Watt MUSIC), 2 sets audio input
7- Full function Infra-red remote control

3- Fitting the Remote Control Batteries

The remote unit is operated with 2 x AAA size batteries.

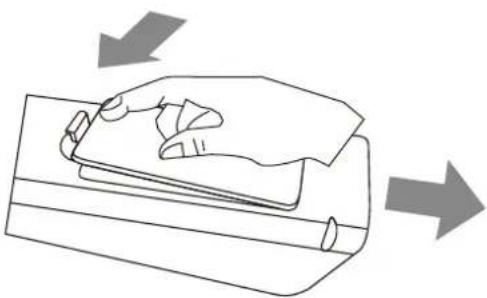

1. Push and hold the hook, the battery cover is opened.
2. Insert batteries according to the polarity marks.
3. Replace the cover.

Line drawing of a hand pressing down on a device with an arrow indicating motion (no text or symbols)

Technical line drawing of a battery pack with internal components and mounting holes (no text or symbols)

Illustration of a hand pressing down on a rolled document with directional arrows indicating motion (no text or symbols)

Remarks:

Battery replacement is necessary when the remote control fail to operate the TV set.

Battery Cautions

Incorrect use of batteries can cause chemical leakage, which will corrode the Remote Control Unit or cause the batteries to burst.

1. always replace batteries as a pair. Always use new batteries when replacing the old set.

2. Do not combine a used battery with a new one or mix battery type (Zinc Carbon with Alkaline).

3. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.
4. Dispose the used batteries according to your local authorities guidelines. Do not put it into your household waste.

4- Product Overview

Front view of a black CRT monitor with 'AudioSonic' branding on the front panel (no additional text or symbols visible)

5- Control Panel Overview

1. Control Panel Functions:

1- INPUT - Select the input signals: ATV/HDMI/SCART/YPbPr/AV/VGA
2- MENU - Enter into MENU
3- ◀ VOL – Volume down / Left orientation
4- VOL ▶ – Volume up / Right orientation
5- ◀CH. - TV channel down
6- CH.▶ - TV channel up
7- STANDBY – Switches the TV to standby and on again

Indicator Light Status

When the unit is on, the indicator light turns green. The indicator light is red when the TV is in standby mode.

(3) Illustration of Connectors

Connector's descriptions

1. DC 12V power input for the LED TV, connect power supply adaptor here.
2. High Quality Audio/Video input socket for connecting an external device fitted with an HDMI output.
3. DB15 VGA interface.
4. Audio input for VGA mode, connect to your PC audio output.
5. Scart input interface; connect your AV system with Scart output.
6. Headphone output
7. YPBPR/Component input, connect video input from external device here.
8. CVBS / Composite video inputs, connect your AV system.
9. Right/Left Audio Channel input for Composite video & component mode.
10. 75 Ω aerial input, connect antenna connector or aerial interface here to receive cable / aerial signal.

6- Remote Control Overview

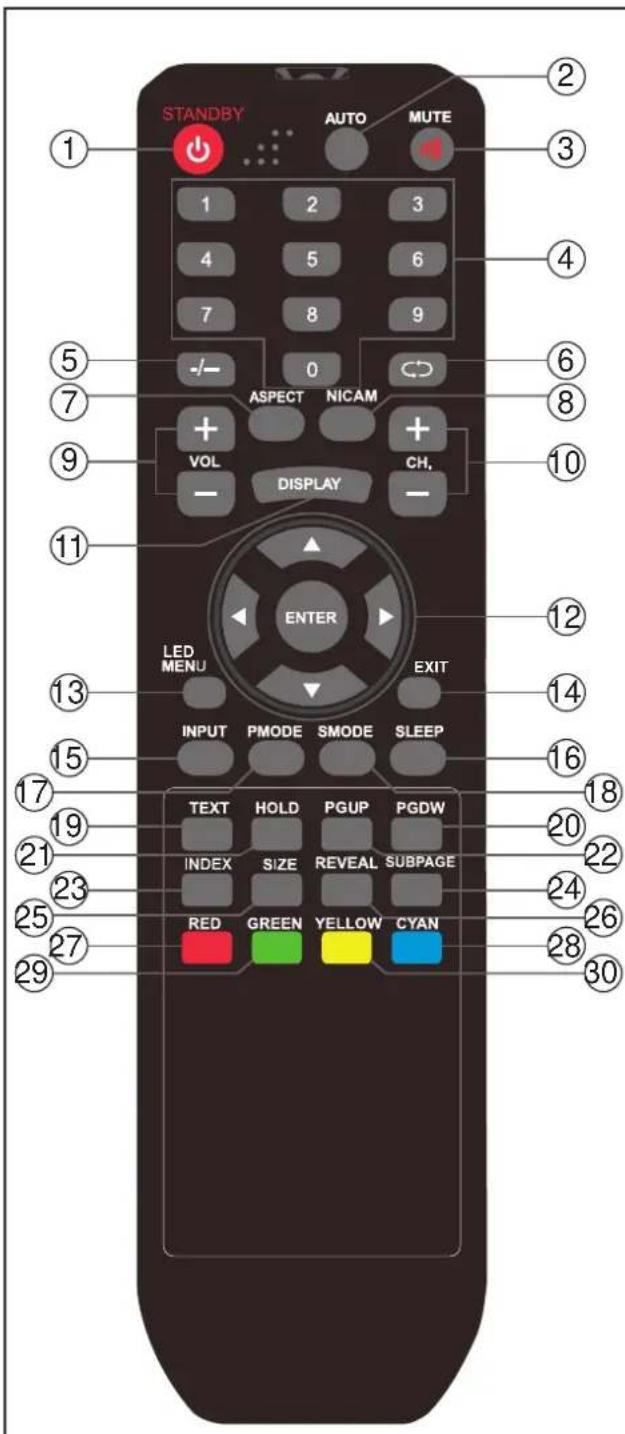

Remote control Illustration
Keys description on the remote control

1. STANDBY	Switch the TV to standby and on again
2. AUTO	AUTO Adjust(PC MODE)
3. MUTE	Mute button
4. 0 - 9	TV channel number or teletext page number select
5. -/--	One / two digit TV channel selection
6. Return	View last TV Channel
7. ASPECT	Change display size
8. NICAM	NICAM
9. VOL+ / VOL-	Volume up / Volume down
10. CH+ / CH-	TV channel up / TV channel down
11. DISPLAY	Display current TV channel information
12. ▲▼◄► / ENTER	Navigation & Enter buttons
13. LED MENU	OSD menu
14. EXIT	Menu exit
15. INPUT	Input mode selection
16. SLEEP	Sleep time
17. PMODE	Picture mode selection
18. SMODE	Sound mode selection
19. TEXT	Switch to the Teletext with text mode
20. PGDW	Text page down
21. HOLD	Hold on or off for current page display
22. PGUP	Text page up
23. INDEX	Request index page
24. SUBPAGE	SUB coded page access
25. SIZE	Change display size
26. REVEAL	Reveal or hidden the hidden words
27. RED	Correspond to the differently colored subjects
28. CYAN	Correspond to the differently colored subjects
29. GREEN	Correspond to the differently colored subjects
30. YELLOW	Correspond to the differently colored subjects

7- Connection between different input signals

A) Connect with PC signal

You can use your LED-TV as a monitor for your personal computer using a VGA cable(not supplied).

1. VGA input (Remember to tighten the screws.)
2. PC Audio Input
3. DC12V power input

Connection steps:

* Read the user guide supplied with your computer and ensure that it has a VGA connector;
* Make sure that the power of the LED-TV and the PC are off;
* Connect a D type 15-pin VGA interface cable (not supplied) to the VGA video interface connector on the PC. Then connect the other end to the VGA video interface connector on the back of the LED-TV. Tighten the screws on the VGA connectors once they are firmly connected;
* Connect the DC 12V power input with the adaptor come with your LED TV.
* Turn on the power of the LED-TV first, and then turn on the power of the PC;
* Press the INPUT button to set the video input mode of the LED-TV to "VGA";
* Use the VOL- / VOL+ on the control panel or remote controller to adjust the volume.

B) Connect to external AV devices using Composite and YPBPR inputs

1. Left & Right Audio input.
2. CVBS / composite video input.
3. YPBPR/component Input.
4. DC12V power input

Connection steps:

* Read the user guide supplied with your AV devices and ensure that it has Composite or S-Video connectors;
* Make sure that the power of the LED-TV and the AV device are off;
* Connect a Composite video cable (not supplied) to the yellow composite video connector input on the back of the LED-TV. Now insert the other end of the composite cable into the yellow composite connector output on the AV device;
* Connect a YPBPR Cable (not supplied, provide better image quality) to the YPBPR connector on the back of the LED-TV. Now insert the other end of the YPBPR cable into the YPBPR connector on the AV device;
* Connect the RCA audio cables (not supplied, white and red connectors) from the AV devices' RCA audio output connectors to the RCA audio input connectors on the back of the LED-TV;
* Turn on the power of the LED-TV first, and then turn on the power of the AV device;
* Press the INPUT button to set the video input mode of the LED-TV to "YPBPR" mode or "AV" mode;

(C) Connect with TV signal

1. Antenna / 75Ω aerial input.
2. DC 12V power input.

Connection steps:

* Make sure that the power of the LED-TV is off;
* Connect an antenna cable (CATV) to the corresponding interface connector (75 Ω ANT) on the back of the LED-TV. Connect the other end of the antenna cable to the antenna connector on the wall or on your digital cable / satellite receiver.

Now you are able to view regular cable TV;

* Turn on the power of the LED-TV;
* Press the INPUT button to set the video input mode of the LED-TV to "TV" mode. The channel number appears in the top right side of the screen;
* When channels are not programmed a blue screen will appear with go around white screen with the text ATV "NO SIGNAL".

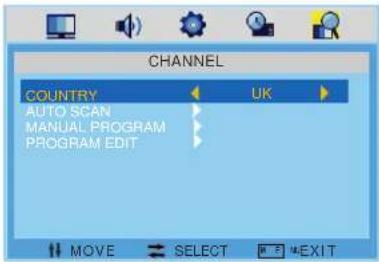

On the LED MENU you can read how the channels can be programmed (auto search or manual search).

It is recommended first to let the channels automatically to be searched.

* You can use key CH + / CH- button or the number keys on the remote control to select the channel you want to watch;

(D) Connect with SCART signal

1. Scart input.
2. DC 12V power input.

Connection steps:

* Read the user guide supplied with your AV devices and ensure that it has a scart connector;
* Make sure that the power of the LED-TV is off;
* Connect a SCART cable to the corresponding interface connector on the back of the LED-TV;
* Turn on the power of the LED-TV;
* Press the INPUT button to set the video input mode of the LED-TV to "SCART" mode;

E) Connect with HDMI signal

1. HDMI input
2. DC 12V power input.

Connection steps:

* Read the user guide supplied with your AV devices and ensure that it has a HDMI connector;
* Make sure that the power of the LED-TV is off;
* Connect a HDMI cable to the corresponding interface connector on the back of the LED-TV;
* Turn on the power of the LED-TV;
* Press the INPUT button to set the video input mode of the LED-TV to "HDMI" mode;

8- Basic operating instructions

Turn on the LED-TV

When the STANDBY button is pressed and the LED-TV is turned on, the indicator light on the front of the LED-TV changes from red to green. When the LED-TV is turned on, the input mode is displayed on the screen.

When the LED-TV is turned off using the STANDBY button, the LED-TV will go into standby mode and the indicator light turns red.

Switch Among Different Inputs : ATV/HDMI/SCART/YPBPR/AV/VGA

Press the Input button to display the inputs mode menu, then press ▼/▲ key to select a input source and press Enter key to confirm.

SOURCE

ATV

HDMI

SCART

YPBPR

AV

VGA

Audio control

1. Press the VOL+ button to increase the volume.
   A number will appear on screen indicating the volume level.
2. Press the VOL - button to decrease the volume.
   A number will appear on screen indicating the volume level.

Mute

1. Press the MUTE button to mute the sound temporarily. A Mute icon appears on the screen.
2. Press the MUTE button again to restore the sound. The Mute icon disappears.

Note

When you turn the LED-TV off, the mute function is canceled automatically.

Select the TV channel you want

You can use the number keys on the remote control to directly select TV channels. The LED-TV can store up to 99 channels (1 to 99), and you can press the keys on the remote control or on the panel to make a selection.

1- Press the relevant key on the remote control if you want to choose any channel from 1 to 9. (For example: if you want to choose channel 8, just press the key number 8).
2- If you want to choose a channel bigger than 9, please press the “-/-” button until “- -” is indicated on the screen. Enter the two digits of the channel number you want to watch. (For example: select channel 16).

ASPECT

Press to display proportion.(AUTO; FULL; ZOOM; 4:3; 16:9).

NICAM

Usually set to stereo to provide the best reproduction, but if reception deteriorates or if the service is not available the switch to Mono. Mono(M1) and (M2) can also be selected if a mono signal is being transmitted.

9- TELETEXT

Teletext features may vary depending on the Broadcasting Companies and is only available if the channel selected is transmitting Teletext. Pressing the TEXT button whilst in Teletext operation will switch the current status to TV. When in Teletext mode, the volume may still be altered to the desired listening level.

Page Selection

Pages can be selected by entering the page number, using the number keys on the remote control.

Size Button

Press Size to change display size: normal => large top => large bottom => normal.

Reveal Button

Press Reveal to reveal hidden words e.g. quiz page answers. Press again to hide.

Red/Green/Yellow/Cyan Buttons

These four buttons correspond to the differently coloured subjects.

Hold Button

Press Hold to remain the Teletext page when viewing multi-page information Press again to return to automatic page update.

Index Button

Press Index to return to the main index page.

Depending on the way information is transmitted, this may have to be pressed more than once to return to the main index page.

Sub page Button

When Teletext information exceeds more than one page, it may take some time for the automatic changing of the sub pages to reach the sub page you require.

It is possible to enter your required sub page and continue watching the normal programme until the correct sub page is found.

Select the required page number using buttons 0-9.

If the top of the page indicates that sub pages are being transmitted yet the page does not change, then the number at the top of the page is there to indicated that the broadcaster has updated the page's contents, there are no sub pages

Press Subpage, page number -/– will be displayed at the Bottom right of the screen. Enter desired subpage number before the page number -/– disappears.

To select page 6 enter 0,0,0 and 6.

Text Button

Press TEXT to enter or turn off Teletext mode

10- Menu operations

You can modify certain parameters of the LED-TV in the menu system. Please read the following descriptions to get an understanding of each adjustable parameter.

Input mode: PC (VGA)

1. Press the LED MENU key to display the main menu.
2. Use the RIGHT ARROW key to select the PICTURE, the SOUND, the SETTING, the FUNCTION, the PC SETUP.
3. Press the EXIT key to exit the menu.

NAME OF MENU	PICTURE OF MENU	INSTRUCTIONS
PICTURE		1. Picture ModeUse the Up / Down arrow keys to set the PICTURE MODEndication to yellow.Use the Left / Right arrow keys to select one of PMODE. (STANDARD; MOVIE;VIVID;PERSONAL).2. ContrastUse the Up / Down arrow keys to set the CONTRAST indication to yellow. Use the Left / Right arrow keys to adjust the contrast. The contrast increases as the number increases.3. BrightnessUse the Up / Down arrow keys to set the BRIGHTNESS indication to yellow. Use the Left / Right arrow keys to adjust the brightness. The brightness increases as the number increases.4. Color temperatureUse the Up/Down arrow keys to set the COLOR TEMPERATURE indication to yellowUse the Left / Right arrow keys to select an optimumCOLOR TEMPERATUREmode which suit your eyes for viewing among Normal, Warm and Cold.

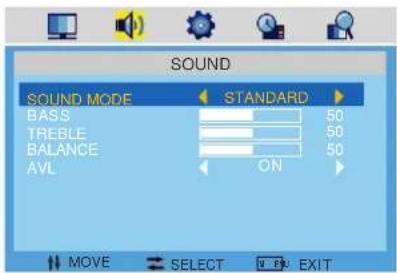

NAME OF MENU	SOUND OF MENU	INSTRUCTIONS
SOUND		1. Sound ModeUse the Up / Down arrow keys to set the SOUND MODE indication to yellow.Use the Left / Right arrow buttons to select one of SOUND MODE.(STANDARD;MOVIE MUSIC PERSONAL)
NAME OF MENU SOUND OF MENU INSTRUCTIONS
SOUND		2. BassUse the Up / Down arrow keys to set the BASS indication to yellow. Use the Left / Right arrow keys to adjust the bass.This can only be adjusted in the PERSONAL mode.3. TrebleUse the Up / Down arrow keys to set the TREBLE indication to yellow. Use the Left / Right arrow keys to adjust the treble. This can only be adjusted in the PERSONAL mode.4. BalanceUse the Up / Down arrow keys to set the BALANCE indication to yellow. Use the Left / Right arrow keys to adjust the balance.5. AVL (Auto volume control)Use the Up/Down arrow keys to set the AVL indication to yellow. Use the Left/Right arrow keys to select it ON or OFF.
NAME OF MENU SETTING OF MENU INSTRUCTIONS
SETTING		1. LanguageUse the Up / Down arrow keys to set the LANGUAGE indication to yellow.Use the Left / Right arrow keys to change the menu to one of the following Languages: DUTCH, ENGLISH,FRENCH, GERMAN, PORTUGUESE,SPANISH, POLISH.2. OSD TimerUse the Up/Down arrow keys to set the OSD Timer indication to yellow.Use the Left/Right arrow keys to select the OSD Timer screen.3. TransparenceUse the Up/Down arrow keys to set the TRANSPARENCE indication to yellow. Use the Left/Right arrow keys to adjust OSD menu transparence.
NAME OF MENU SETTING OF MENU INSTRUCTIONS
SETTING		4. OverscanUse the Up/Down arrow keys to set the OVERSCAN indication to yellow. Use the Left/Right arrow keys to select it ON or OFF when your input source is HDMI.5. ResetUse the Up/Down arrow keys to set the RESET indication to yellow. Use the Right arrow keys to reset picture setting to the factory default.
NAME OF MENU	FUNCTION OF MENU	INSTRUCTIONS
FUNCTION		1. Sleep timerUse the Up/Down arrow keys to set the SLEEP TIMER indication to yellow. Use the Left/Right arrow keys to select the sleep timer.2. AspectUse the Up/Down arrow keys to set the ASPECT indication to yellow. Use the Right arrow key to select the screen display mode. Which best corresponds to your viewing requirements.3. TT languageUse the Up/Down arrow keys to set the TT language indication to yellow. Use the Left/Right arrow keys to select TT language (Teletext language). (WEST;EAST;EAST;RUSSIAN;ARABIC; FARSI)4. Blue screenUse the Up/Down arrow keys to set the BLUE SCREEN indication to yellow.When there is no signal, the screen will be blue. You can switch this function ON/OFF by means of the Left/Right arrow keys.5. System lockUse the Up/Down arrow keys to set the SYSTEM LOCK indication to yellow.Use the Right arrow key to enter sub-menu.

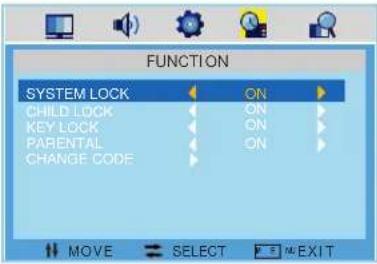

NAME OF MENU	FUNCTION OF MENU	INSTRUCTIONS
FUNCTION		- System lockUse theUp/Downarrow keys to set theSYSTEM LOCKindication to yellow. Use theLeft/Rightarrow keys to select this optionONorOFF. When set the system lockOFF, the locks below will be unavailable.- Child lockUse theUp/Downarrow keys to set theCHILD LOCKindication to yellow. Use theLeft/Rightarrow keys to select this optionONorOFF. When the child lock ON, the program locked in thePROGRAM EDITcan not be displayed.-KEY LOCKUse theUp/Downarrow keys to set theKEY LOCKindication to yellow. Use theLeft/Rightarrow keys to select this optionONorOFF. When set the key lockON. the key can not work.- Change codeUse theUp/Downarrow keys to set theCHILD LOCKindication to yellow. Use theRightarrow key to change the password of the system lock. A dialog as above will appear, the enter the new password can change the password successfully.Password default is 0000.6. FTI (First time installation)Use theUp/Downarrow keys to set theFTI indicationto yellow. Press theRightarrow key. A new screen appears on and you can initial Channel Search will scan for sort and save any available channels.-LanguageUse theUp/Downarrow keys to set theLANGUAGEindication to yellow and use theLeft/Rightarrow keys to choose the language as you want.- CountryUse theUp/Downarrow keys to set theCOUNTRYindication to yellow and use theLeft/Rightarrow keys to select for tuning.-Start searchUse theUp/Downarrow keys to set theSTART SEARCHindication to yellow. Press theRightarrow key. A new screen will appear and begin to auto search.
NAME OF MENU	PC SETUP OF MENU	INSTRUCTIONS
PC SETUP		1. H PositionUse theUp / Downarrow keys to set theH POSITIONindication to yellow. With this function the image width can be adjusted by means of theLeft / Rightarrow keys.2. V PositionUse theUp / Downarrow keys to set theV POSITIONindication to yellow. With this function the image height can be adjusted by means of theLeft / Rightarrow keys.3. ClockUse theUp / Downarrow keys to set theCLOCKindication to yellow. With this function the clock can be adjusted by means of theLeft / Rightarrow keys.4. PhaseUse theUp / Downarrow keys to set thePHASEindication to yellow. With this function any horizontal interference can be corrected and the contours of characters sharpened by means of theLeft / Rightarrow keys.5. Auto AdjustUse theUp / Downarrow keys to set theAuto SyncIndication to yellow. Use theRight arrow key to adjust the setting automatically.

Input mode: HDMI/SCART/AV/YPBPR

1. Press the LED MENU key to display the main menu.
2. Use the Right arrow key to select the PICTURE, the SOUND, the SETTING or the FUNCTION.
3. Press the EXIT key to exit the menu.

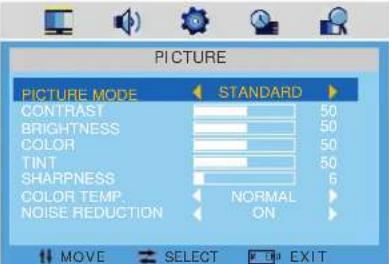

NAME OF MENU PICTURE OF MENU INSTRUCTIONS
PICTURE		1. Picture ModeUse the Up / Down arrow keys to set the PICTURE MODE indication to yellow.Use the Left / Right arrow keys to select one of PMODE. (STANDARD;MOVIE;VIVID;PERSONAL).2. ContrastUse the Up / Down arrow keys to set the CONTRAST indication to yellow. Use the Left / Right arrow keys to adjust the contrast. The contrast increases as the number increases.3. BrightnessUse the Up / Down arrow keys to set the BRIGHTNESS indication to yellow. Use the Left / Right arrow keys to adjust the brightness. The brightness increases as the number increases.4. ColourUse the Up / Down arrow keys to set the COLOUR SETTING indication to yellow.Use the Left/Right arrow keys to adjust the color. The color increases as the number increases.5. TintUse theUp/Down arrow keys to set the TINT indication to yellow. Use the Left/Right arrow keys to adjust the tone of color when your system is in NTSC.6. SharpnessUse the Up / Down arrow keys to set the SHARPNESS indication to yellow.Use the Left / Right arrow keys to adjust the sharpness.(Normal,Sharp,Sharpest,Soft)7. Color temperatureUse the Up/Down arrow keys to set the COLOR TEMPERATURE indication to yellow Use the LEFT/RIGHT ARROW keys to select an optimum COLOR TEMPERATURE mode which suit your eyes for viewing among Normal, Warm and Cold.8. Noise ReductionUse the LEFT/RIGHT ARROW keys to reduce the video noise level when the broadcast signal received is weak
NAME OF MENU	SOUND OF MENU INSTRUCTIONS
SOUND		1. Sound ModeUse the Up / Down arrow keys to set the SOUND MODE indication to yellow.Use the Left / Right arrow buttons to select one of SOUND MODE.(STANDARD;MOVIE;MUSIC;PERSONAL)2. BassUse the Up / Down arrow keys to set the BASS indication to yellow. Use the Left / Right arrow keys to adjust the bass.This can only be adjusted in the PERSONAL mode.3. TrebleUse the Up / Down arrow keys to set the TREBLE indication to yellow. Use the Left / Right arrow keys to adjust the treble. This can only be adjusted in the PERSONAL mode.4. BalanceUse the Up / Down arrow keys to set the BALANCE indication to yellow. Use the Left / Right arrow keys to adjust the balance.5. AVL (Auto volume control)Use the Up/Down arrow keys to set the AVL indication to yellow. Use the Left/Right arrow keys to select it ON or OFF.

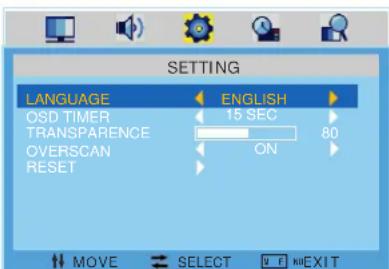

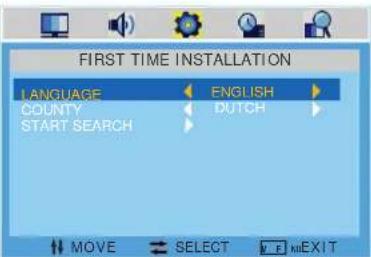

NAME OF MENU SETTING OF MENU INSTRUCTIONS
SETTING		1. LanguageUse the Up / Down arrow keys to set the LANGUAGE indication to yellow.Use the Left / Right arrow keys to change the menu to one of the following Languages: DUTCH, ENGLISH,FRENCH, GERMAN, PORTUGUESE,SPANISH, POLISH.2. OSD TimerUse the Up/Down arrow keys to set the OSD Timer indication to yellow.Use the Left/Right arrow keys to select the OSD Timer screen.
NAME OF MENU SETTING OF MENU		INSTRUCTIONS
SETTING		3. TransparenceUse theUp/Downarrow keys to set theTRANSPARENCEindication to yellow.Use theLeft/Rightarrow keys to adjust OSD menu transparence.4. OverscanUse theUp/Downarrow keys to set theOVERSCANindication to yellow. Use theLeft/Rightarrow keys to select itON or OFFwhen your input source is HDMI.5. ResetUse theUp/Downarrow keys to set theRESETindication to yellow. Use theRightarrow keys to reset picture setting to the factory default.
NAME OF MENU FUNCTION OF MENU INSTRUCTIONS
FUNCTION		1. Sleep timerUse theUp/Downarrow keys to set theSLEEP TIMERindication to yellow. Use theLeft/Rightarrow keys to select the sleep timer.2. AspectUse theUp/Downarrow keys to set theASPECTindication to yellow. Use theRightarrow key to select the screen display mode. Which best corresponds to your viewing requirements.3. TT languageUse theUp/Downarrow keys to set theTT language indication to yellow. Use theLeft/Rightarrow keys to selectTT language(Teletext language).(WEST;EAST;EAST;RUSSIAN;ARABIC; FARSI)4. Blue screenUse theUp/Downarrow keys to set theBLUE SCREENindication to yellow.When there is no signal, the screen will be blue. You can switch this functionON/OFFby means of theLeft/Rightarrow keys.5. System lockUse theUp/Downarrow keys to set theSYSTEM LOCKindication to yellow.Use theRightarrow key to enter sub-menu.
NAME OF MENU FUNCTION OF MENU INSTRUCTIONS
FUNCTION		- System lockUse the Up/Down arrow keys to set the SYSTEM LOCK indication to yellow. Use the Left/Right arrow keys to select this option ON or OFF. When set the system lock OFF, the locks below will be unavailable.- Child lockUse the Up/Down arrow keys to set the CHILD LOCK indication to yellow. Use the Left/Right arrow keys to select this option ON or OFF. When the child lock ON, the program locked in the PROGRAM EDIT can not be displayed.-KEY LOCKUse the Up/Down arrow keys to set the KEY LOCK indication to yellow. Use the Left/Right arrow keys to select this option ON or OFF. When set the key lock ON. the key can not work.- Change codeUse the Up/Down arrow keys to set the CHILD LOCK indication to yellow. Use the Right arrow key to change the password of the system lock. A dialog as above will appear, the enter the new password can change the password successfully. Password default is 0000.6. FTI (First time installation)Use the Up/Down arrow keys to set the FTI indication to yellow. Press the Right arrow key. A new screen appears on and you can initial Channel Search will scan for sort and save any available channels.-LanguageUse the Up/Down arrow keys to set the LANGUAGE indication to yellow and use the Left/Right arrow keys to choose the language as you want.- CountryUse the Up/Down arrow keys to set the COUNTRY indication to yellow and use the Left/Right arrow keys to select for tuning.-Start searchUse the Up/Down arrow keys to set the START SEARCH indication to yellow. Press the Right arrow key. A new screen will appear and begin to auto search.

Input mode: TV

1. Press the LED MENU key to display the main menu.
2. Use the RIGHT ARROW key to select the PICTURE, the SOUND, the SETTING the FUNCTION or the CHANNEL.
3. Press the EXIT key to exit the menu.

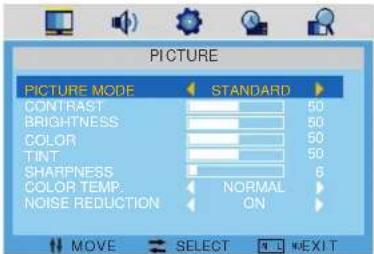

NAME OF MENU PICTURE OF MENU INSTRUCTIONS
PICTURE		1. Picture ModeUse the Up / Down arrow keys to set the PICTURE MODE indication to yellow.Use the Left / Right arrow keys to select one of PMODE. (STANDARD; MOVIE; VIVID; PERSONAL).2. ContrastUse the Up / Down arrow keys to set the CONTRAST indication to yellow. Use the Left / Right arrow keys to adjust the contrast. The contrast increases as the number increases.3. BrightnessUse the Up / Down arrow keys to set the BRIGHTNESS indication to yellow. Use the Left / Right arrow keys to adjust the brightness. The brightness increases as the number increases.4. ColourUse the Up / Down arrow keys to set the COLOUR SETTING indication to yellow.Use the Left/Right arrow keys to adjust the color. The color increases as the number increases.5. TintUse theUp/Down arrow keys to set the TINT indication to yellow. Use the Left/Right arrow keys to adjust the tone of color when your system is in NTSC.6. SharpnessUse the Up / Down arrow keys to set the SHARPNESS indication to yellow.Use the Left / Right arrow keys to adjust the sharpness.(Normal,Sharp,Sharpest,Soft)7. Color temperatureUse the Up/Down arrow keys to set the COLOR TEMPERATURE indication to yellow Use the LEFT/RIGHT ARROW keys to select an optimum COLOR TEMPERATURE mode which suit your eyes for viewing among Normal, Warm and Cold.8. Noise ReductionUse the LEFT/RIGHT ARROW keys . to reduce the video noise level when the broadcast signal received is weak
NAME OF MENU SOUND OF MENU INSTRUCTIONS
SOUND		1. Sound ModeUse the Up / Down arrow keys to set the SOUND MODE indication to yellow.Use the Left / Right arrow buttons to select one of SOUND MODE.(STANDARD;MOVIE;MUSIC;PERSONAL)2. BassUse the Up / Down arrow keys to set the BASS indication to yellow. Use the Left / Right arrow keys to adjust the bass.This can only be adjusted in the PERSONAL mode.3. TrebleUse the Up / Down arrow keys to set the TREBLE indication to yellow. Use the Left / Right arrow keys to adjust the treble. This can only be adjusted in the PERSONAL mode.4. BalanceUse the Up / Down arrow keys to set the BALANCE indication to yellow. Use the Left / Right arrow keys to adjust the balance.5. AVL (Auto volume control)Use the Up/Down arrow keys to set the AVL indication to yellow. Use the Left/Right arrow keys to select it ON or OFF.

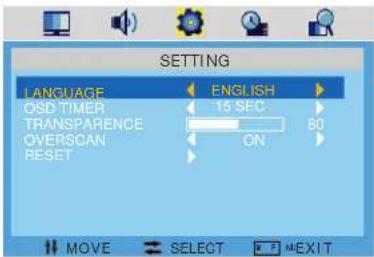

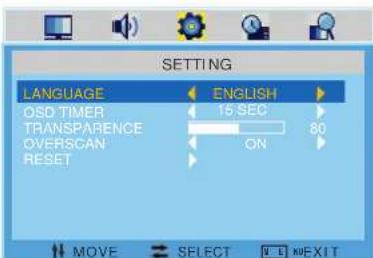

NAME OF MENU SETTING OF MENU INSTRUCTIONS
SETTING		1. LanguageUse the Up / Down arrow keys to set the LANGUAGE indication to yellow.Use the Left / Right arrow keys to change the menu to one of the following Languages: DUTCH, ENGLISH, FRENCH, GERMAN, PORTUGUESE, SPANISH, POLISH.2. OSD TimerUse the Up/Down arrow keys to set the OSD Timer indication to yellow.Use the Left/Right arrow keys to select the OSD Timer screen.
NAME OF MENU	SETTING OF MENU	INSTRUCTIONS
SETTING		3. TransparenceUse theUp/Downarrow keys to set theTRANSPARENCEindication to yellow.Use theLeft/Rightarrow keys to adjust OSD menu transparence.4. OverscanUse theUp/Downarrow keys to set theOVERSCANindication to yellow. Use theLeft/Rightarrow keys to select itON or OFFwhen your input source is HDMI.5. ResetUse theUp/Downarrow keys to set theRESETindication to yellow. Use theRightarrow keys to reset picture setting to the factory default.
NAME OF MENU FUNCTION OF MENU INSTRUCTIONS
FUNCTION		1. Sleep timerUse theUp/Downarrow keys to set theSLEEP TIMERindication to yellow. Use theLeft/Rightarrow keys to select thesleep timer.2. AspectUse theUp/Downarrow keys to set theASPECTindication to yellow. Use theRightarrow key to select the screen display mode. Which best corresponds to your viewing requirements.3. TT languageUse theUp/Downarrow keys to set theTT language indication to yellow. Use theLeft/Rightarrow keys to selectTT language(Teletext language).(WEST;EAST;EAST;RUSSIAN;ARABIC;FARSI)4. Blue screenUse theUp/Downarrow keys to set theBLUE SCREENindication to yellow.When there is no signal, the screen will be blue. You can switch this functionON/OFFby means of theLeft/Rightarrow keys.5. System lockUse theUp/Downarrow keys to set theSYSTEM LOCKindication to yellow.Use theRightarrow key to enter sub-menu.
NAME OF MENU FUNCTION OF MENU INSTRUCTIONS
FUNCTION		- System lockUse theUp/Downarrow keys to set theSYSTEM LOCKindication to yellow. Use theLeft/Rightarrow keys to select this optionONorOFF. When set the system lockOFF, the locks below will be unavailable.- Child lockUse theUp/Downarrow keys to set theCHILD LOCKindication to yellow. Use theLeft/Rightarrow keys to select this optionONorOFF. When the child lockON, the program locked in thePROGRAM EDITcan not be displayed.-KEY LOCKUse theUp/Downarrow keys to set theKEY LOCKindication to yellow. Use theLeft/Rightarrow keys to select this optionONorOFF. When set the key lockON. the key can not work.- Change codeUse theUp/Downarrow keys to set theCHILD LOCKindication to yellow. Use theRightarrow key to change the password of the system lock. A dialog as above will appear, the enter the new password can change the password successfully.Password default is 0000.-FTI (First time installation)Use theUp/Downarrow keys to set theFTI indicationto yellow. Press theRightarrow key. A new screen appears on and you can initial Channel Search will scan for sort and save any available channels.-LanguageUse theUp/Downarrow keys to set theLANGUAGEindication to yellow and use theLeft/Rightarrow keys to choose the language as you want.- CountryUse theUp/Downarrow keys to set theCOUNTRYindication to yellow and use theLeft/Rightarrow keys to select for tuning.-Start searchUse theUp/Downarrow keys to set theSTART SEARCHindication to yellow. Press the Right arrow key. A new screen will appear and begin to auto search.
NAME OF MENU CHANNEL OF MENU INSTRUCTIONS
CHANNEL		1. CountryUse theUp/Downarrow keys to set theCOUNTRYindication to yellow and usetheLeft/Rightarrow keys to select fortuning.(OTHER,GERMANY,UK,PORTUGAL,SPAIN,FRANCE,HOLLAND).2.Auto searchUse theUp/Downarrow keys to set theAUTO SEARCHindication to yellow.Press theRightarrow key.A new screenwill appear and begin to auto search.3. Manual programUse the Up/Downarrow keys to settheMANUAL PROGRAMIndication toyellow.Press theRightarrow key.A newscreen will appear.ProgramUse theUp/Downarrow keys to highlightProgram.Use theLeft/Rightarrow keys tochange the channel number.Colour SystemUse theUp/Downarrow keys to highlightColour System.Use theLeft/Rightarrow keysto change the colour system. In theNederlands, the PAL system is used.Ensurethat the system is set to PAL before you selecta channel.Sound SystemUse theUp/Downarrow keys to highlightSound System.Use theLeft/Rightarrow keysto change the sound system. In theNederlands,theBGsystem is used.Ensurethat the system is set toBGbefore you selecta channel.Manual SearchUse theDownarrow key to highlightManual Search.Press either theRightarrow key to search upwards ortheLeftarrow key to search downwards.Each press of thekeywill incrementthe frequency 0.6 MHz.When the newprogram has been located and is ofgood sound and picture quality,presstheEXITkey to store and exit thefeature.AFT(Auto Fine Tune)This option due to weak signals or a wrongantenna configuration , some of the channelsmay not be turned to the best receptioncondition.AFTfunction allows you to fine tunechannel selected. Use theUp/Downarrowkeys to highlightAFT.Use theLeft/Rightarrow keys to selectONorOFF.
CHANNEL		FineUse theUp/Downarrow keys to set theFINE indication to yellow. To improvethe image quality, you can change thechannel frequency by means of theLeft/Rightarrow keys.SkipUse theUp/Downarrow keys to set theSKIP indication to yellow. Then youcan change SKIP into ON/OFF bymeans of theLeft/Rightarrow keys. Ifthis function is set to ON, the respectivechannel will be skipped.4. Program editUse theUp/Downarrow keys to set thePROGRAM EDIT indication to yellow.Press theRightarrow key. A newscreen will appear. After tuning thereceives, this function allows you to sortthe TV Programs according to yourpreferences. Use theUp/Downarrowkeys to select the channel to bePreference.This option has three functions:-UseGreenbutton and use theUp/Downarrow keys to name thecurrent channel.-UseYellowbutton again insert thecurrent channel.-UseRedbutton to set the currentchannel to lock.Note:The Lock will effective unless theCHILD LOCKsetted "ON" under theSYSTEM LOCKmenu.

11- Product specifications

Items		Relevant illustrations
LED		60 cm LEDTV Widescreen 16:9
Resolution		1920* 1080(best resolution 1920 * 1080)
Features	Compatible areas	Multinorm
	TV standard	PAL B / G - D / K / I – SECAM L
	Channel amount	99
Input interface	PC	DB15 VGA input interface
	AV video, YPBPR	Composite video input interface, Component video input interface
	TV	75Ω ANT.
	SCART	21 Pin socket (Audio/Video in, Audio/Video out, RGB in)
	Audio	Audio(1) Left,right audio input interfaceAudio(2) Left,right audio input interface
	HDMI	High Quality Audio/Video input socket for connecting an external device fitted with an HDMI output
Headphone Output		headphone output interface
Speaker Output		2W x 25W x 2 MUSIC
OSD language		English, German, Spanish, French, Dutch, Portuguese, Polish.
Power supply		DC 12 V / Adaptor for 230 Volt
Power consumption		< 40 W
Accessories		Remote control, AC adapter, AC cable, 2xAAA Battery, IB, Warranty card ,Screw driver with screws (3 pcs), TV Stand

Base Assembly and Wall Mount instructions

1. Attaching the TV Stand

To attach the stand, place the stand on the nect of the TV, insert and tighten the 3 screws with the screwdriver.

Technical line drawing of a mechanical component with internal grid pattern and tool tip (no text or symbols)

2. Wall Mount instructions

Technical line drawing of a computer monitor interior layout (no text or symbols)

Screw taps x 4 for wall mounting

Technical line drawing of a computer monitor front panel with ventilation ducts and control panels (no text or labels)

Remove the stand by taking out the 4 screws

Instructions on environment protection

Simple line drawing of a trash bin with no text or symbols

Do not dispose of this product in the usual household garbage at the end of its life cycle; hand it over at a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about methods for disposal.

The materials are recyclable as mentioned in its marking. By recycling, material recycling or other forms of re-utilization of old appliances, you are making an important contribution to protect our environment.

Please inquire at the community administration for the authorized disposal location.

Deel 1: BEDIENING VAN DE LED TV

Line drawing of a hand pressing down on a device with an arrow indicating motion (no text or symbols)

Technical line drawing of a battery pack with mounting holes and internal components (no text or symbols)

Illustration of a hand pressing down on a cylindrical object with directional arrows indicating motion (no text or symbols)

Opmerking:

Illustration of a flat-screen monitor with 'AudioSonic' branding on the front panel (no additional text or symbols)

SOURCE
ATV HDMI SCART YPBPR AV VGA

Volume 50

Audiobediening

Red/Green/Yellow/Cyaan-toetsen

Technical line drawing of a mechanical component with internal grid pattern and tool tip (no text or symbols)

2. Wandmontage

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Technical line drawing of a computer monitor front panel with ventilation ducts and control panels (no text or labels)

Simple line drawing of a trash bin with no text or symbols

Three-step diagram showing hand positioning on a battery pack, with arrows indicating direction of movement (no text or symbols)

Remarque :

Illustration of a flat-screen monitor with 'AudioSonic' branding on the front panel (no additional text or symbols)

Technical line drawing of a mechanical component with internal grid structure and tool (no text or symbols)

2. Fixation murale

Technical line drawing of a computer monitor interior layout (no text or symbols)

Technical line drawing of a computer monitor front panel with ventilation ducts and control panels (no text or labels)

Illustration of a hand pressing down on a device with an arrow indicating upward motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a hand pressing down on a rolled document or paper sheet, with arrows indicating motion (no text or symbols)

Bemerkungen:

Illustration of a flat-screen monitor with 'AudioSonic' branding on the front panel (no additional text or symbols)

SOURCE
ATV HDMI SCART YPBPR AV VGA

Audio-Bedienung

Technical line drawing of a car wheel assembly with screwdriver and sensor array (no text or symbols)

Technical line drawing of a computer monitor front panel with ventilation ducts and control buttons (no text or labels)

Technical line drawing of a computer monitor front panel with ventilation ducts and control panels (no text or labels)

Line drawing of a hand pressing down on a device component with an arrow indicating motion (no text or symbols)

Technical line drawing of a battery pack with mounting holes and internal components (no text or symbols)

Line drawing of a hand pressing down on a flat surface with a downward arrow indicating compression (no text or symbols)

Observaciones:

Illustration of a flat-screen monitor with 'AudioSonic' branding on the front panel (no additional text or symbols)

Technical line drawing of a mechanical component with internal grid structure and screwdriver, no text or symbols present

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Technical line drawing of a computer monitor front panel with ventilation ducts and control panels (no text or symbols)

Line drawing of a hand pressing down on a device with an arrow indicating motion (no text or symbols)

Technical line drawing of a battery pack with mounting holes and internal circuit (no text or symbols)

Diagram of a hand pressing down on a rolled document or paper sheet, with arrows indicating direction (no text or symbols present)

Observações:

Illustration of a flat-screen monitor with 'AudioSonic' branding on the front panel (no additional text or symbols)

Passos de ligação:

Passos de ligação:

Passos de ligação:

Passos de ligação:

Passos de ligação:

Technical line drawing of a mechanical component with internal grid structure and tool tip (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with internal components and mounting base (no text or symbols)

Technical line drawing of a computer monitor front panel with ventilation ducts and control panels (no text or labels)

Line drawing of a hand pressing down on a device component with an arrow indicating motion (no text or symbols)

Technical line drawing of a battery pack with internal components and mounting holes (no text or symbols)

Line drawing of a hand pressing down on a rolled document or paper sheet, with arrows indicating direction (no text or symbols)

Uwagi:

Illustration of a flat-screen computer monitor with 'AudioSonic' branding on the front panel (no additional text or symbols)

Technical line drawing of a mechanical component with internal grid structure and screwdriver (no text or symbols)

Technical line drawing of a computer monitor interior layout (no text or symbols)

Technical line drawing of a computer monitor front panel with ventilation ducts and control panels (no text or labels)
