USER MANUAL D10VJ HiKOKI

Line drawing of a drill bit with handle and screwdriver, enclosed in a circular frame (no text or symbols)

保留备用

Keep for future reference

使用说明书

Handling instructions

目次

电动工具通用安全警告.....2

电钻安全警告....4

使用电钻时应注意事项……4

符号....4

规格....5

标准附件....5

用途....5

作业之前....5

使用方法....8

维护和检查....8

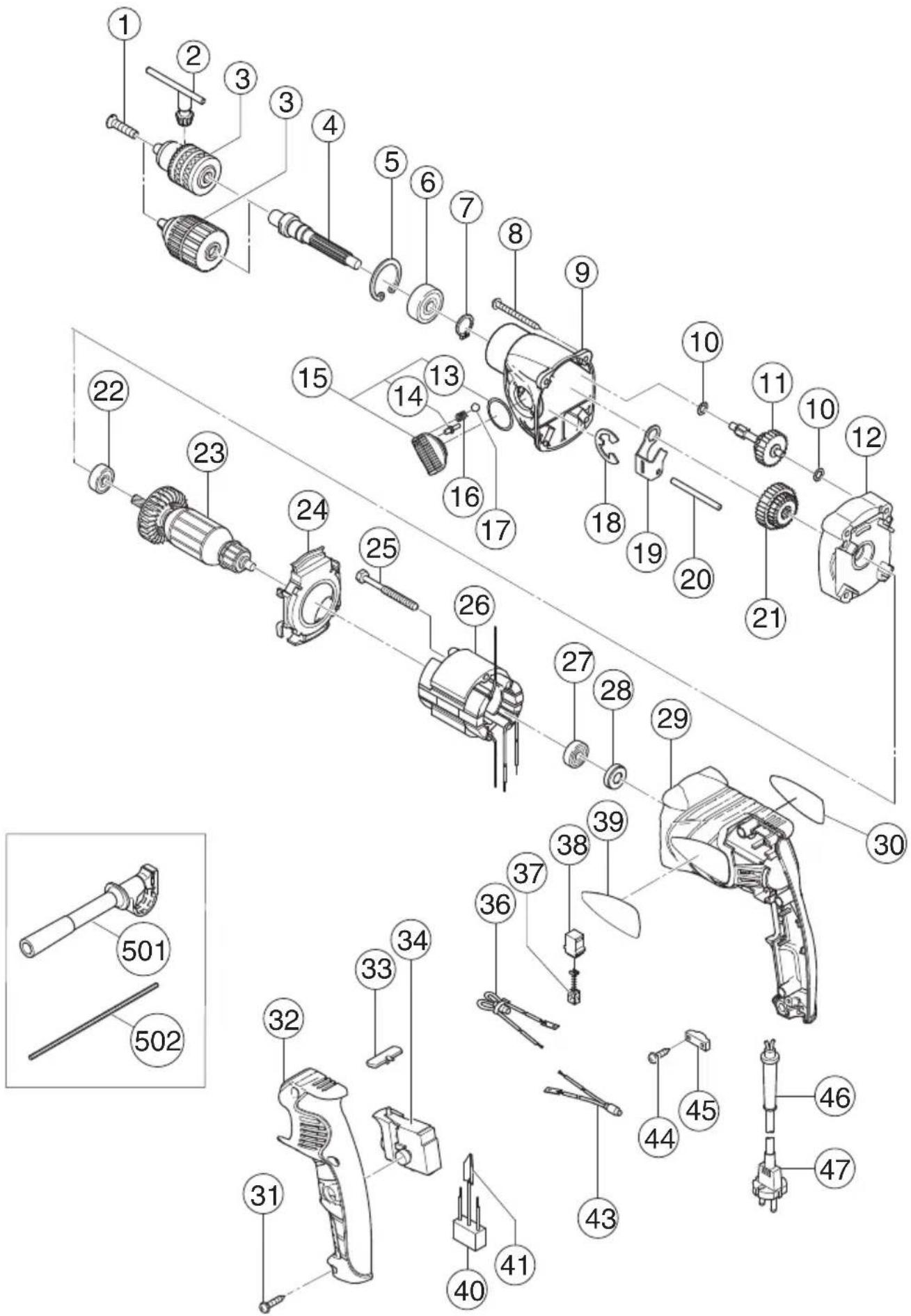

维修零部件一览表....10

电动工具通用安全警告

警告！

项目号 代码号 使用数 备注

1 995344 1 M6×25
2 987576 1
3-1 321814 1 13VLRB-D “1, 2”
3-2 322625 1 13VLRJ-N
4 323956 1
5 939556 1
6 6202DD 1	6202DDCMPS2L
7 939544 1
8 316321 4 D5×45
9 323959 1
10 322852 2
11 322858 1
12 323958 1
13 306353 1 S-22
14 322848 1
15 322847 1 “13, 14”
16 981328 1
17 319535 1 D3.5
18 323048 1
19 322849 1
20 322860 1 D5
21 322846 1
22 608DDM 1 608DDC2PS2L
23 360655E 1 220V-230V
24 322843 1
25 981824 2 D4×45
26 340589E 1 220V-230V
27 698T1X 1	698T1XZZ1MC2E NS7L
28 309929 1
29 322861 1
30 ———— 1
31 301653 3 D4×20
32 322862 1
33 322853 1
34 322854 1
36 322517 1
37 999041 2
38 955203 2
39 ———— 1
40 994273 1

项目号 代码号 使用数 备注

41 992635 1
43 321634 1
44 984750 2 D4×16
45 937631 1
46 953327 1
47 ———— 1
501 323050 1
502 303709 1

CONTENTS

GENERAL POWER TOOL SAFETY WARNINGS ....14

DRILL SAFETY WARNINGS ....16

PRECAUTIONS ON USING DRILL 17

SYMBOL....17

SPECIFICATIONS....18

STANDARD ACCESSORIES ....18

APPLICATIONS....18

Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool.

Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.

A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

English

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease.

Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

CAUTION

Keep children and infi rm persons away.

When not in use, tools should be stored out of reach of children and infirm persons.

DRILL SAFETY WARNINGS

1) Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
2) Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

PRECAUTIONS ON USING DRILL

1. Wear ear protectors with impact drills.
   Exposure to noise can cause hearing loss.
2. Use auxiliary handles supplied with the tool.
   Loss of control can cause personal injury.
3. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
4. Before drilling into walls, ceilings or floors, ensure that there are no concealed power cables inside.
5. Do not wear gloves made of stuff liable to roll up such as cotton, wool, cloth or string, etc.

SYMBOL

WARNING

The following show symbols used for the machine. Be sure that you understand their meaning before use.

To reduce the risk of injury, user must read instruction manual.

SPECIFICATIONS

Model D10VJ D13VH
Voltage 220 V		~
Power input 690 W
Speed change 1212
No load speed	Forward rotation 0 – 1000 /min 0 – 3000 /min 0 – 1000 /min 0 – 3000 /min	– 3000 /min 0 – 1800 /min 0 – 600 /min 0 – 1800 /min	– 1000 /min 0 – 3000 /min 0 – 1800 /min	– 3000 /min 0 – 1800 /min	– 3000 /min 0 – 1800 /min
	Reverse rotation 0 – 600 /min 0 – 1800 /min 0 – 600 /min 0 – 1800 /min	– 1800 /min 0 – 600 /min 0 – 1800 /min	– 1800 /min 0 – 1800 /min	– 1800 /min 0 – 1800 /min	– 1800 /min 0 – 1800 /min
Capacity	Steel 10 mm 6 mm 13 mm 8 mm
	Wood 25 mm 13 mm 40 mm 25 mm
Weight (without cord) 1.8 kg 1.9 kg

STANDARD ACCESSORIES

In addition to the main unit (1 unit), the package contains the accessories listed in the below.

		D10VJ D13VH
Chuck Wrench (Spec. only for keyed chuck)		1	1
Side Handle		1	1
Depth Gauge		1	1

APPLICATIONS

Boring holes in metal, wood and plastic.

PRIOR TO OPERATION

1. Power source

Ensure that the power source to be utilized conforms to the power requirements specified on the product nameplate.

2. Power switch

Ensure that the power switch is in the OFF position. If the plug is connected to a receptacle while the power switch is in the ON position, the power tool will start operating immediately, inviting serious accident.

3. Extension cord

When the work area is removed from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.

4. Selecting the appropriate drill bit

○ When boring metal or plastic

Use an ordinary metalworking drill bit.

○ When boring wood

Use an ordinary woodworking drill bit.

However, when drilling 6.5 mm or smaller holes, use a metalworking drill bit.

5. Mounting and dismounting of the bit

For keyed chuck (Fig. 1)

(1) Open the chuck jaws, and insert the bit into the chuck.
(2) Place the chuck wrench in each of the three holes in the chuck, and turn it in the clockwise direction (viewed from the front side). Tighten securely.
(3) To remove the bit, place the chuck wrench into one of the holes in the chuck and turn it in the counterclockwise direction.

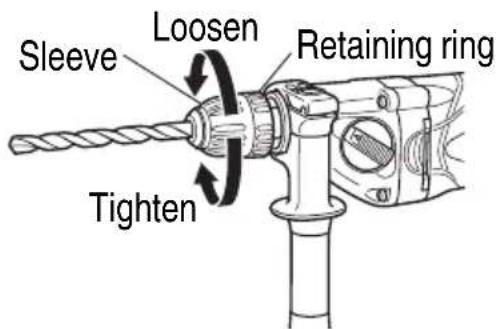

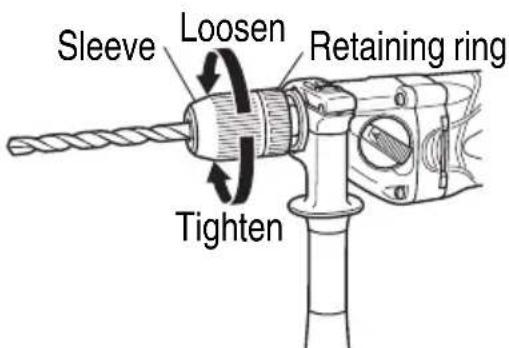

For keyless chuck (Fig. 2, 3)

(1) Mounting the bit

Turn the sleeve counterclockwise and open the chuck. After inserting the drill bit into the chuck as far it will go, grip the ring and close the chuck by turning the sleeve clockwise as viewed from the front.

(2) Dismounting the bit

Grip the ring and open the chuck by turning the sleeve counterclockwise.

NOTE

When the sleeve does not become loose any further, fix the side handle to ring, hold side handle firmly, then turn the sleeve to loosen by hand (Fig. 4).

Fig. 1

Fig. 2

Fig. 3

Fig. 4

English

6. Check the rotational direction (Fig. 5)

The bit rotates clockwise (viewed from the rear side) by pushing the R-side of the push button.

The L-side of the push button is pushed to turn the bit counterclockwise.

(The L and R marks are provided on the body.)

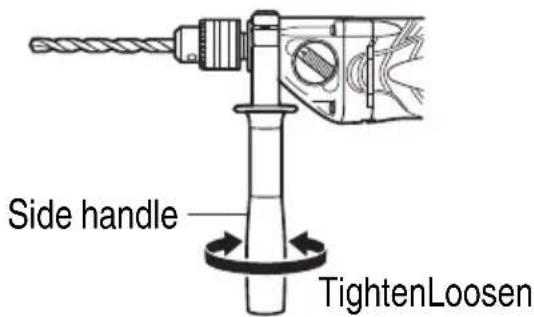

7. Fixing the side handle (Fig. 6)

Attach the side handle to the mounting part.

Rotate the side handle grip in a clockwise direction to secure it.

Set the side handle to a position that is suited to the operation and then securely tighten the side handle grip.

To attach a depth gauge on the side handle, insert the gauge into the U-shaped groove on the side handle, adjust the position of the depth gauge in accordance with the desired depth of the hole, and firmly tighten the side handle grip (Fig. 7).

8. High-speed/Low-speed changeover

Prior to changing speed, ensure that the switch is in the OFF position, and the drill has come to a complete stop. To change speed, rotate the gear shift dial as indicated by the arrow in Fig. 8. The numeral "1" engraved on the drill body denotes low speed, the numeral "2" denotes high speed.

If it is hard to turn the gear shift dial, turn the chuck slightly in either direction and then turn the gear shift dial again.

Fig. 5

Fig. 6

Fig. 7

Fig. 8

HOW TO USE

1. Switch operation

○ When the trigger is depressed, the tool rotates. When the trigger is released, the tool stops.
☐ The rotational speed of the drill can be controlled by varying the amount that the trigger switch is pulled. Speed is low when the trigger switch is pulled slightly and increases as the trigger switch is pulled more.

○ The desired rotation speed can be pre-selected with the speed control dial.

Turn the speed control dial clockwise for higher speed and counterclockwise for lower speed (Fig. 9).

○ Pulling the trigger and pushing the stopper, it keeps the switched-on condition which is convenient for continuous running. When switching off, the stopper can be disconnected by pulling the trigger again.

Fig. 9

CAUTION

If the L-side of push button is pressed for reverse bit rotation, the stopper cannot be used.

2. Drilling

○ When drilling, start the drill slowly, and gradually increasing speed as you drill.
○ Always apply pressure in a straight line with the bit. Use enough pressure to keep drilling, but do not push hard enough to stall the motor or deflect the bit.
☐ To minimize stalling or breaking through the material, reduce pressure on drill and ease the bit through the last part of the hole.
☐ If the drill stalls, release the trigger immediately, remove the bit from the work and start again. Do not click the trigger on and off in an attempt to start a stalled drill. This can damage the drill.
○ The larger the drill bit diameter, the larger the reactive force on your arm.

Be careful not to lose control of the drill because of this reactive force.

To maintain firm control, establish a good foothold, use side handle, hold the drill tightly with both hands, and ensure that the drill is vertical to the material being drilled.

MAINTENANCE AND INSPECTION

1. Inspecting the drill bits

Since use of an abraded drill bits will cause motor malfunctioning and degraded efficiency, replace the drill bits with a new one or resharpening without delay when abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

3. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

4. Inspecting the carbon brushes

For your continued safety and electrical shock protection, carbon brush inspection and replacement on this tool should ONLY be performed by a HiKOKI Authorized Service Center.

English

5. Service parts list

CAUTION

Repair, modification and inspection of HiKOKI Power Tools must be carried out by a HiKOKI Authorized Service Center.

This Parts List will be helpful if presented with the tool to the HiKOKI Authorized

Service Center when requesting repair or other maintenance.

In the operation and maintenance of power tools, the safety regulations and

standards prescribed in each country must be observed.

SERVICE PARTS LIST

23

English

Item No.	Code No.	No. Used	Remarks	Item No.	Code No.	No. Used	Remarks
1-1	995344	1 M6×25		39	———	1
1-2	311959	1 M6×23		40	994273	1
2	987575	1		41	992635	1
3-1	322581	1 10VLR-D “1, 2”		43	321634	1
3-2	322370	1 10VLRG-N		44	984750	2 D4×16
4	323956	1		45	937631	1
5	939556	1		46	953327	1
6	6202DD	1	6202DDCMPS2L	47	———	1
7	939544	1		501	323050	1
8	316321	4 D5×45		502	303709	1
9	323959	1
10	322852	2
11	322858	1
12	323958	1
13	306353	1 S-22
14	322848	1
15	322847	1 “13, 14”
16	981328	1
17	319535	1 D3.5
18	323048	1
19	322849	1
20	322860	1 D5
21	322846	1
22	608DDM	1 608DDC2PS2L
23	360655E	1 220V-230V
24	322843	1
25	981824	2 D4×45
26	340589E	1 220V-230V
27	698T1X	1 698T1XZZ1MC2E
			NS7L
28	309929	1
29	322861	1
30	———	1
31	301653	3 D4×20
32	322862	1
33	322853	1
34	322854	1
36	322517	1
37	999041	2
38	955203	2

D13VH

English

Item No.	Code No.	No. Used	Remarks	Item No.	Code No.	No. Used	Remarks
1	995344	1 M6×25		40	994273	1
2	987576	1		41	992635	1
3-1	321814	1 13VLRB-D “1, 2”		43	321634	1
3-2	322625	1 13VLRJ-N		44	984750	2 D4×16
4	323956	1		45	937631	1
5	939556	1		46	953327	1
6	6202DD	1 6202DDCMPS2L		47	———	1
7	939544	1		501	323050	1
8	316321	4 D5×45		502	303709	1
9	323959	1
10	322852	2
11	322858	1
12	323958	1
13	306353	1 S-22
14	322848	1
15	322847	1 “13, 14”
16	981328	1
17	319535	1 D3.5
18	323048	1
19	322849	1
20	322860	1 D5
21	322846	1
22	608DDM	1 608DDC2PS2L
23	360655E	1 220V-230V
24	322843	1
25	981824	2 D4×45
26	340589E	1 220V-230V
27	698T1X	1 698T1XZZ1MC2E
		NS7L
28	309929	1
29	322861	1
30	———	1
31	301653	3 D4×20
32	322862	1
33	322853	1
34	322854	1
36	322517	1
37	999041	2
38	955203	2
39	———	1

Line drawing of a quill pen in an inkwell (no text or symbols)

服务中心

工机商业(上海)有限公司
