FDU 70705-0 - Vacuum Cleaner Fieldmann - Free user manual and instructions

Product Type	Bagless Cylinder Vacuum Cleaner
Brand	Fieldmann
Model Number	FDU 70705-0
Power Consumption	700 W
Dust Capacity	1.5 L
Filtration System	HEPA washable filter
Suction Power Control	Variable with electronic slider
Dimensions (LxWxH)	40 x 25 x 30 cm
Weight	5 kg
Cord Length	5 m
Cleaning Radius	8 m
Noise Level	75 dB
Included Accessories	Floor brush, crevice tool, upholstery tool
Bagless Operation	Yes (cyclonic system)
Filter Cleaning	Washable under running water
Safety Features	Overheat protection, automatic shut-off
Repairability	Replacement parts available (filter, hose, brush)
Maintenance	Empty dust cup after each use, clean filter monthly
Energy Efficiency Class	C
Operating Voltage	220-240 V, 50/60 Hz

Frequently Asked Questions - FDU 70705-0 Fieldmann

How do I empty the dust cup?

Press the release button on top of the dust cup and pull it out. Empty over a trash bin and rinse the cup if needed. Allow to dry completely before reinserting.

How often should I clean the filter?

Clean the HEPA filter every month or when suction drops. Wash under lukewarm water and air-dry for 24 hours before reinstalling.

The vacuum loses suction. What should I check?

Check if the dust cup is full, clean the filter, and inspect the hose and brush for blockages. Also ensure the suction control is set to maximum.

Can I use the vacuum without the filter?

No. Operating without a filter can damage the motor and void the warranty. Always use the filter.

What accessories are included?

The package includes a floor brush, a crevice tool, and an upholstery tool.

How do I clean the floor brush?

Remove the brush by pressing the release button. Use scissors to cut away hair and threads. Wash the brush with soapy water if needed, then dry thoroughly.

The vacuum has an overheating protection feature. How does it work?

If the motor overheats, the vacuum automatically shuts off. Turn it off, unplug, and let it cool for 30 minutes. Clean filters and check for blockages before restarting.

Can I replace the hose or brush?

Yes, replacement parts such as hoses, brushes, and filters are available from Fieldmann service centers or authorized retailers.

What is the best way to store the vacuum?

Wind the cord around the hooks, detach the hose and store it separately, and keep the vacuum in a dry place. Ensure the dust cup is empty.

Is the vacuum suitable for pet hair?

Yes, the cyclonic system and included tools are effective on pet hair. Regular cleaning of the brush and filter is recommended.

USER MANUAL FDU 70705-0 Fieldmann

Abstract black and white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

FDU 70705-0

English 4-13

Čeština....14-23

Slovenčina 24-33

Magyarul 34-42

Polski 44-52

1

2

Two mechanical components with curved and straight ends, one showing a rotational motion (no text or symbols visible)

Two rectangular objects with arrows pointing to the top of their surfaces, labeled 'B' below (no text or symbols on objects)

Close-up grayscale image of a screw with threaded shaft (no text or symbols visible)

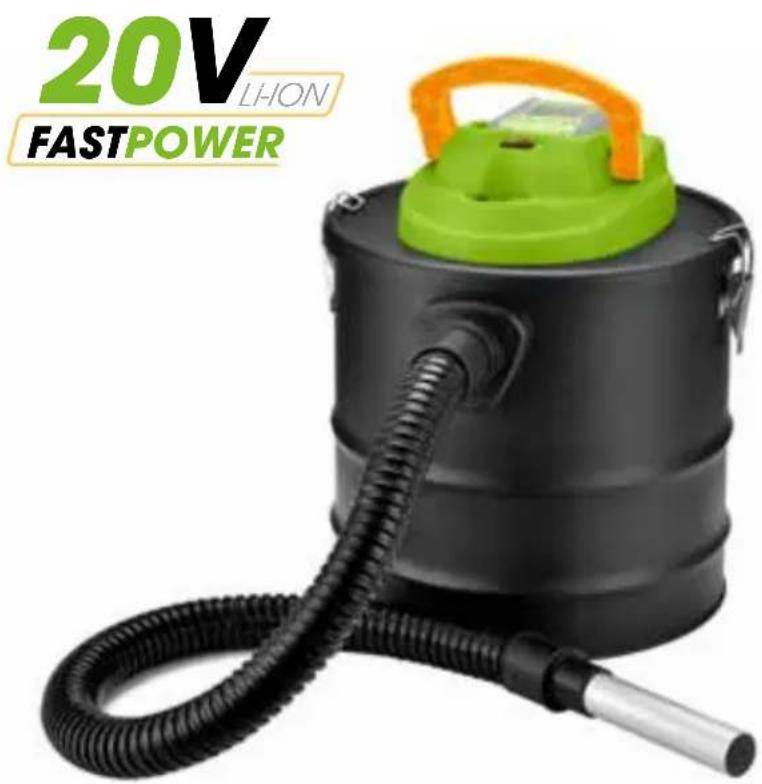

Cordless ash vacuum cleaner

20V LHON FASTPOWER

USER'S MANUAL

Thank you for purchasing this cordless ash vacuum cleaner. Before using the inverter, please carefully read this user manual and keep it for future reference.

TABLE OF CONTENTS

1. GENERAL SAFETY REGULATIONS....5
   Important safety notice 5
   Packaging 5
   User's manual....5
   General safety instructions ....5
   Work environment....6
   Electrical safety....6
   Personal safety 6
   Using battery tools 7
   Service 7
2. EXPLANATION OF INSTRUCTION LABELS ON THE MACHINE 8
3. DESCRIPTION OF THE MACHINE AND CONTENTS 9
   Included contents 9
4. IMPORTANT SAFETY INSTRUCTIONS....10
5. SAFETY PRECAUTIONS 11
6. USE INSTRUCTION....11
7. MAINTENANCE AND CARE....11
8. MAINTENANCE AFTER USE 11
9. CLEANING THE FILTER 12
10. TECHNICAL SPECIFICATIONS....12
11. DISPOSAL....12

1. GENERAL SAFETY REGULATIONS

Important safety notice

Before putting this power tool into operation it is important that you read the following instructions very carefully and understand them. They have been created for your protection and the protection of others and to ensure the long and problem-free life of this power tool.

* Carefully unpack the product and take care not to throw away any part of the packaging before you find all the product part.
Store the product in a dry place out of reach of children.
Read all warnings and instructions. Not following warnings or instructions may lead to injury by electrical shock, a fire and/or serious injuries.

Packaging

The product is packed in a package that prevents damage during transport. This package is a resource and so can be handed over for recycling.

User's manual

Before you start working with the power tool, read the following safety and usage instructions. Understand the operating elements and the correct use of the power tool. Keep the user's manual in a safe place for easy future reference. Save the original packaging, including the internal packing material, warranty card and proof of purchase receipt, at least for the duration of the warranty. If you need to ship this power tool, pack it in the original cardboard box to ensure maximum protection during shipping or transport (e.g. when moving or when you need to send this power tool for repair to a service centre).

Note: If you hand over the appliance to somebody else, do so together with this user's manual. Following the instructions in the included user's manual is a prerequisite for the proper use of the appliance. The user's manual also contains operating, maintenance and repair instructions. The manufacturer assumes no responsibility for accidents or damages arising from failure to comply with these instructions.

The manufacturer assumes no responsibility for accidents or damages arising from failure to comply with these instructions.

GENERAL SAFETY INSTRUCTIONS

Please read and understand these safety instructions carefully and keep the for future use.

ATTENTION! While using electric machines and power tools, it is necessary to follow and observe the following safety instructions to prevent electric shock, personal injury and risk of fire. "Power tools" in all instructions below means both grid powered (via a power cord) and battery powered tools (without a power cord). Please retain all warnings and instructions for future use.

Work environment

Keep the working area tidy and well illuminated. Untidiness and dark locations in the workplace are usually sources of accidents. Tidy up the tools you don't need.
Do not use the power tools in environments where there is an explosion hazard, i.e. where there are flammable liquids, gases or dust. Sparks are created on the commutator inside the power tools, which may cause the ignition of flammable powder or vapour.
* While using power tools, please prevent access of unauthorized staff and mainly small children to the working area! If you are distracted, you may lose control over the work being performed. Never leave the power tools unattended. Prevent the access of animals.

Electrical safety

* Prevent your body from coming into contact with grounded objects, such as pipes, central heating radiators, stoves and refrigerators. The risk of injury by electrical shock is greater when your body is connected to the ground.
Do not expose the power tools to rain, dampness or wetness. Never touch power tools with wet hands. Never wash power tools under running water or immerse them in water.
* Never work with tools if damaged in any way.
If the power tools are used in damp environment or outdoors, their use is permitted only if connected in an electric circuit with a 30mA residual current device. The use of a residual current device reduces the risk of electric shock.
Please hold the hand-held tools solely by insulated grip areas as cutting or drilling accessories may get into contact with the tools' hidden wire or power cord during operation.

Personal safety

Take care and caution while using power tools and pay utmost attention to the activity being performed. Concentrate on your work. Do work with power tools if you are tired or under the influence of drugs, alcohol or medication. Even a momentary lapse of attention while using power tools may lead to serious personal injury. Do not eat, drink or smoke while working with the tools.
* Use personal protective working aids. Always use eye protection. Use the protective equipment fit for the type of work being performed. Use protective aids such as respirator, safety footwear with anti-slip soles, head cover or hearing protection appropriately to the work conditions; they reduce the risk of personal injury.
* Avoid unintentional powering the tools. Do not carry the tools connected to power supply with your finger on the switch or trigger. Before connecting to power supply, make sure that the switch or trigger is set in the "off" position. Carrying the power tool with a finger on the trigger or connecting the power tool's plug with the switch engaged may lead to serious injuries.
Remove all adjustment tools and spanners before turning on the power tools. An adjustment tool or spanner left attached to a rotating part of the power tools may result in personal injury.
Always maintain a stable stance and balance. Only work in locations that you can reach safely. Never overestimate your own power. Do not use the power tools if you are tired.
* Dress in an appropriate manner. Use work clothing. Do not wear loose clothing or jewellery.
Make sure that your hair, clothing, gloves or other part of your body does not get in close proximity to rotating or hot parts of the power tools.
Connect a dust vacuum cleaner. If the tools are equipped with the option to connect a dust vacuum cleaner or a dust collection system, make sure they are properly connected and used. The use of such equipment may limit the danger posed by the created dust.

* Firmly fasten the workpiece. Please use a carpentry clamp or a vice to fasten the workpiece to be machined.
Do not use the power tools if you are influenced by alcohol, drugs, medicaments or other intoxicants or addictive substances.
This appliance must not be used by persons (including children) with physical, sensory or psychological impairments or by inexperienced persons, unless properly trained or schooled in the safe use of the appliance, or unless they have been properly supervised by a person who will be responsible for their safety. Children must remain under supervision to ensure that they do not play with the appliance.

Using battery tools

Before inserting the battery, make sure that the switch is set in the "0-off" position. Inserting the battery in a powered device may lead to dangerous situations.
To charge batteries, always use the chargers recommended by the manufacturer. Using a charger for another battery type may lead to the charger damage and fire.
Please use only batteries designed for given tools. Using other batteries may lead to injury or fire.
If the battery is not used, please keep it separately from metallic objects such as clamps, keys, screws and other tiny metallic objects that could cause one battery contact to connect to another. Battery short-circuiting may lead to injury, burns or fire.
Please handle the batteries with care. Inconsiderate handling may cause chemical substance to leak from the battery. Please avoid contact with this substance and if contact still occurs, wash the affected site with running water. If this fluid gets into the eyes, seek medical help immediately. Battery chemical substance may cause serious injuries.

Service

Do not exchange tool parts, do not perform repairs on your own or otherwise tamper with the tools construction. Have the tools repaired by qualified persons. Every repair or modification of the product without our company authorization is prohibited (this may lead to injury or harm to the user). Always have the power tools repaired in a certified service centre. Always use only original or recommended spare parts. This will ensure both your safety and the safety of your tools.

2. EXPLANATION OF INSTRUCTION LABELS ON THE MACHINE

	This product has been designed in compliance with approved standards.
	Before using the machine, carefully read the user's manual.
	Do not vacuum hot coal, burning objects or items with temperature exceeding 40 °C (104°F).
	Appliance Class II

3. DESCRIPTION OF THE MACHINE AND CONTENTS

Machine description (see fig. 1)

1. Battery platform
2. Motor base
3. Battery connector
4. HEPA filter
5. Handle
6. Black painting barrel
7. Switch
8. Metal clip
9. Top cover
10. Suction mouth
11. Barrel cap
12. Metal hose
13. Motor block
14. Aluminum tube
15. Motor

Included contents

Carefully take the tool out of the packaging and check whether all the following parts are present:

Ash vacuum cleaner
* Cotton filter
Metallic hose
Aluminium spout
Warranty card
* Instructions for use

If there are parts missing or they are damaged, please contact the vendor from whom you bought the machine.

4. IMPORTANT SAFETY INSTRUCTIONS

⚠️ ATTENTION! Please observe the following instruction to eliminate the risk of fire, electric shock or injury.

Never vacuum burning or smoking objects, such as glowing coal, cigarette stubs or matches.

Do not use the appliance without the filter installed.
Do not leave the appliance without supervision while powered.
Do not use the appliance in outdoor environment and on a moist surface as this could lead to electric shock. This appliance is no a toy for children. If this appliance is operated by a child or is being used in the vicinity of children, it is required that the children should be under a strict supervision.
Use the appliance exactly according to the instructions in this user's manual and use only accessories recommended by the manufacturer.
* Never use the appliance, if the power cord or plug shows any signs of damage.
Please contact the customer service if you notice your appliance malfunctioning, your appliance has been dropped, damaged, left outdoors or exposed to water.
* Always keep your hands dry while handling the appliance.
* Never insert any foreign objects in the appliance openings and if they are blocked, do not put the appliance into operation. Keep the openings clean and remove dust, residue deposits, hair and all other debris that could adversely harm the air flow.
* Always keep you hair, loose cloths, fingers and all other body parts out of moving machine parts.
Take extreme care while vacuuming stairs.
* Never vacuum fluids, flammable or explosive substances such as petrol and do not use the vacuum cleaner in the vicinity of such substances.
* Never use the vacuum cleaner without the dust bag and/or filter installed.
This appliance is not designed for being operated by persons (including children up to the age of 8) with limited physical, sensual and mental capabilities or persons with lack of experience and/or knowledge. Operating the appliance by those persons is only possible if they are supervised or trained by a qualified person in correct appliance operation. Children must be properly supervised to make sure that they do not play with the device.
This vacuum cleaner is designed for dry vacuuming only.

5. SAFETY PRECAUTIONS

Do not vacuum hot coal, burning objects or items with temperature exceeding 40^ C ( 104^ F). Not not turn the machine on until you make sure your hands are dry.

6. USE INSTRUCTION

Fit the fire prevention filter on the bottom of motor base. The filter should be took out and cleaned after every heavy use.
Connect one end of metal hose with the suction mouth on tank tightly.
Put aluminum tube into fireplace or stove to vacuum ash.
* Connect the plug to the socket.
Move the suction tube pipe with light pressure slowly and evenly over the dirt

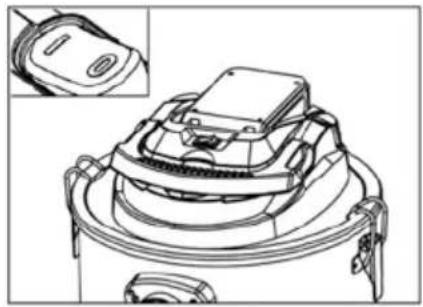

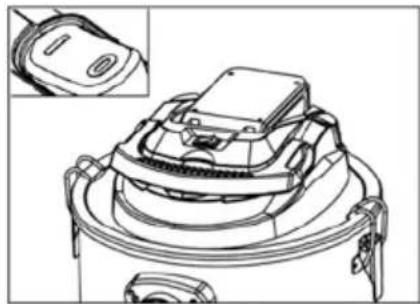

Power ON

1. Press the button on the battery catrdge, and plug it into the battery slot.
2. Turn the switch to 'I' to start the appliance. Turn the switch to 'O' to stop the appliance.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with attached components and a close-up inset (no text or symbols)

7. MAINTENANCE AND CARE

Stop the cleaner.
* Disconnect the mains plug from the power supply.
* Disconnect hose, tube and container apart.
Clean enter connector1, connector 2, hose and tube and keep them unblocked.
Use a damp cloth to clean the plastic parts.
Empty container, tap the deposits to loosen them and, if necessary, wash it.
* Brush dust on fire prevention filter and, if necessary, wash it.
Do not use cleaning products, solvents or sharp objects for this purpose.

8. MAINTENANCE AFTER USE

After turning the machine off, open the vacuum cleaner top lid and remove the filter. Then, clean or remove the filter.

9. CLEANING THE FILTER

We recommend to clean the filter at least once in a month or if there is visible contamination, reduced driving force and increased motor noise in excess of normal condition.
You may never use the vacuum cleaner without the filter installed. Operating the vacuum cleaner without the filter installed results in the motor damage.
* Always disconnect power from the vacuum cleaner before cleaning the filter.
The filter cannot be cleaned in a dishwasher.
Do not use a hair drier to dry out the filter.
The best way is to shake the filter by hand.

10. TECHNICAL SPECIFICATIONS

Power 1 x 20V (150W motor power)
Airflow rate 10 l/s
Tank size 18l
Only for cold ash (max 40 °C)
Battery and chager not included
Included	18l black painting tank, 35mm x 1m metal hose, washable filter, 23cm aluminium tube

11. DISPOSAL

INSTRUCTIONS AND INFORMATION ON DISPOSING OF USED PACKAGING MATERIALS

Dispose of used packaging material at a site designated for waste in your municipality.

The appliance and its accessories are manufactured from various materials, e.g. metal and plastic.

Take damaged parts to a recycling centre. Inquire at the relevant government department.

This appliance meets all the basic requirements of the EU directives.

Changes in the text, design and technical specifications may be made without prior notice and we reserve the right to make these changes.

FAST®

FAST ČR, a.s.

U Sanitasu 1621, 251 01 Ríčany, Czech Republic

tel.: [phone], fax: [phone]

EU DECLARATION OF CONFORMITY

Product / brand: Cordless Ash Vac / FIELDMANN

Type / model: FDU 70705-0 as factory model MDC203-150W-18L

DC 20,0V (battery powered); 150W; volume of container 18 Liter; Class III

Manufacturer: FAST ČR, a.s.

U Sanitasu 1621, 251 01 Říčany, Czech Republic

VAT no: CZ24777749

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above is in conformity with the relevant Union harmonization legislation:

Directive LVD 2014/35/EU

Directive EMC 2014/30/EU

Directive RoHS 2011/65/EU

The relevant harmonized standards and the other technical specifications:

EN 60335-1:2012+A11+A13+A1+A14+A2

EN 60335-2-2:2010+A11+A1

EN 62233:2008

EN 55014-1:2017+A11

EN 55014-2:2015

CE

Place of issuance: Prague

Date of issuance: 16.06.2022

Name: Petr Uher - Responsible Person

Signature:

FAST FAST CR, a.s.

U Sanitásu 1621-251 01 Ričany

tel:[phone]

ICO:24777249.DIC:CZ.24777749

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with attached components and a close-up inset (no text or symbols)

7. PREVENTIVNÍ PÉČE A ÚDRŽBA

U Sanitasu 1621, 251 01 Ríčany, Czech Republic

tel.: [phone], fax: [phone]

EU PROHLÁŠENÍ O SHODĚ

U Sanitasu 1621, 251 01 Říčany, Czech Republic

VAT no: CZ24777749

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with attached components and a close-up inset (no text or symbols)

7. PREVENTÍVNA STAROSTLIVOSŤ A ÚDRŽBA

U Sanitasu 1621, 251 01 Ríčany, Czech Republic

tel.: [phone], fax: [phone]

EU VYHLASENIE O ZHODE

U Sanitasu 1621, 251 01 Říčany, Czech Republic

VAT no: CZ24777749

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with a magnified inset showing a component detail (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with attached components and a close-up inset (no text or symbols)

7. PROFILAKTYKA I KONSERWACJA

Abstract black-and-white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

Model /Modell /Modelis:

Conditions of guarantee

This product is warranted for the period of 24 months from the date of purchase to the end-user. Warranty is limited to the following conditions. Warranty is referred only to the customer goods using for common domestic use. The claim for service can be applied either at dealer's shop where the product was bought, or at below mentioned authorized service shops. The end-user is obligated to set up a claim immediately when the defects appeared but only till the end of warranty period. The end-user is obligated to cooperate to certify the claiming defects. Only completed and clean (according to hygienic standards) product will be accepted. In case of eligible warranty claim the warranty period will be prolonged by the period from the date of claim application till the date of taking overthe product by end-user, or the date the end-user is obligated to take it over. To obtain the service under this warranty, end-user is obligated to certify his claim with duly completed following documents: receipt, certificate of warranty, certificate of installation...

This warranty is void especially if apply as follows: ■ Defects which were put on sale. ■ Wear-out or damage caused by common use. ■ The product was damaged by unprofessional or wrong installation, used in contrary to the applicable instruction manual, used in contrary to legal enactment and common process of use or used for another purpose which has been designed for. ■ The product was damaged by uncared-for or insufficient maintenance. ■ The product was damaged by dirt, accident of force majeure (natural disaster, fire, flood, ...). ■ Defects on functionality caused by low duality of signal, electromagnetic field interference etc. ■ The product was mechanically damaged (e.g. broken button, fall...). ■ Damage caused by use of unsuitable media, fillings, expendable supplies (batteries) or by unsuitable working conditions (e.g. high temperatures, high humidity, quakes,...). ■ Repair, modification or other failure action to the product by unauthorized person ■ End-user did not prove enough his right to claim (time and place of purchase). ■ Data on presented documents differs from data on products. ■ Cases when the claiming product can not be identified according to the presented documents (e.g. the serial number or the warranty seal has been damaged).

[e-mail]

www.fastcr.cz

Fast Plus, a. s.

Na Pántoch 18

SK 831 06 Bratislava

Slovenská republika

Tel.: [phone]

Fax: [phone]

[e-mail]

www.fastplus.sk

Jótállási jegy

Black and green portable vacuum cleaner with coiled hose and orange handle (no text or symbols visible)

FIELDMANN®

Home & Garden Performance
