MM267 - Mp3 player Manta - Free user manual and instructions

Product Type	Portable MP3 Player
Model	MM267
Brand	Manta
Dimensions	Approx. 85 x 35 x 12 mm
Weight	Approx. 28 g
Power Supply	Built-in rechargeable lithium-ion battery (300 mAh)
Charging	Via USB cable (5V DC)
Storage	MicroSD card slot (up to 32GB)
Audio Formats	MP3, WMA, WAV, FLAC
Playback Modes	Normal, Repeat, Shuffle, Folder
Radio	FM tuner with preset stations
Recording	Voice recording via built-in microphone
Display	1.8-inch LCD screen (color)
Headphone Output	3.5 mm stereo jack
USB Interface	Micro USB 2.0 for charging and data transfer
Battery Life	Up to 12 hours of audio playback
Care & Cleaning	Wipe with a dry, soft cloth. Avoid moisture and solvents.
Safety	Keep away from liquids and extreme temperatures. Use only approved chargers.
Spare Parts & Repairability	Contact Manta support or authorized service centers. Battery replacement available.
General Info	Includes USB cable, earphones, user manual. Suitable for music, podcasts, and audiobooks.

Frequently Asked Questions - MM267 Manta

How do I charge the Manta MM267?

Connect the micro USB cable to the player and a computer USB port or a 5V USB charger. The battery icon shows charging status.

How do I transfer music to the device?

Insert a microSD card into the player, then connect it to a computer via USB. Drag and drop music files into the card's folder. Or copy directly to internal memory if available.

Why is my Manta MM267 not turning on?

Ensure the device is charged. If still not on, try resetting by pressing the reset button with a pin. If problem persists, contact support.

Can I listen to FM radio?

Yes, press the Menu button and select FM Radio. Use the earphone cable as antenna. You can scan and save stations.

How do I use the voice recorder?

Go to the Recording menu and press the play button to start recording. Press stop to save. Files are saved in MP3 format.

What file formats are supported?

The player supports MP3, WMA, WAV, and FLAC audio formats. Formats like AAC or OGG may not work.

How do I set a playlist?

Create a folder with your chosen songs on the microSD card. In the player, select Folder Play mode from the options to play that folder.

The screen is frozen – what should I do?

Hold the Power button for 10 seconds to force restart. If that fails, use a pin to press the reset hole on the device.

How long does the battery last?

The battery lasts up to 12 hours for music playback. Actual time depends on volume and usage. Charging takes about 2 hours.

Can I expand the storage?

Yes, insert a microSD card up to 32GB into the slot. The device will read the card automatically.

USER MANUAL MM267 Manta

To ensure proper use of this product please read this User's Manual carefully and keep for future reference.

MM259/MM267 - DEMON 3

Instrukcja obsługi

Turn power on and play music 14

Setting 15

Format MP3 player ....17

MM259/MM267 - DEMON 3

Návod k obsluze

Top-down schematic of a vehicle or container with no visible text, numbers, or symbols

MM259/MM267 - DEMON 3

W razie kłopotów

Brak zasilania

MP3 Player, USB cable, headphones, warranty card.

Description

Top-down line drawing of a vehicle or container with a rectangular opening and curved handle (no text or symbols)

MM259/MM267 - DEMON 3

1. [▶] – Play/Pause/Confirm button
2. [▶]→ Forward
3. [-◀] - Backward
4. [M] - Menu button
5. [R/V] - Record /Volume
6. [HOLD ▶] – Lock button
7. Headphones

Charging

1. Connect the PC USB port and the MP3 USB port with the provided USB cable.
2. The power sign is shown dynamic when charging, once full charged,, the power sign will stop moving, power is full, please shut off the power. The charging time is approximately 1.5 hours.
3. If the unit is being used during charging, it will take longer to charge.
4. To stop recharging, disconnect the USB cable.

Notes! For first time use, fully charge your MP3 Li-polymer rechargeable battery. Your computer must be turned on while connected to your MP3 for charging.

Turn power on and play music

To Start :

1. Install an AAA battery to the battery slot.
2. Connect earphone to earphone jack.
3. Switch [HOLD▶] button to "unlock" position.
4. Press and hold [▶] button to enter into "MSC" mode. (The default is "Music" mode.)
5. Short press [▶] button to play music.

MM259/MM267 - DEMON 3

AB repeat

1. In music playback mode, short press [M] button to select "A" point, short press [M] button again to start "AB" repeat.
2. Short press [M] button for the third time to cancel "AB" repeat.

To return main menu: Press and hold [M] button.

To Pause/play: Short press [▶] button.

To change tracks: Short press [▶] or [ -◀◀ ] button .

To turn unit off: Press and hold [▶] button.

Press and hold [M] button to return to main menu, then press [▶▶+] or [-◀◀] button to select:

Play Music, Setting, Info, Exit.

Volume adjustment

In video playback, short press [R/V] button to pitch on the volume rim, at this time press / button to turn down or turn up volume.

Setting

Equalizer:

1. Select Equalizer mode and short press [M] button to enter.
2. Short press [▶] or [ -◀◀ ] button to select your desired option (e.g. Normal, Pop, Rock, Classical, Jazz, Bass, Exit)
3. Short press [M] button to confirm.

Repeat Mode

1. Select repeat mode and short press [M] button to enter.
2. Short press [▶] or [ -◀◀ ] button to select your desired option(e.g. Normal, Repeat one, Repeat all, Random repeat)
3. Short press [M] button to confirm.

MM259/MM267 - DEMON 3

Contrast:

Select Contrast mode and short press [M] button to enter, then press [▶] or [ -◀◀ ] button to adjust the contrast, at last press [M] button to save your setup.

Backlight:

Select Backlight mode and short press [M] button to enter, then press [ ] or [ -◀◀] button to select the backlight time: Always off/5S/10S/Always on.

Power Set:

Select Power Set mode and short press [M] button to enter, then press [▶] or [◀◀] button to select the auto off time: 2MIN/10MIN/30MIN

Language:

1. Select language mode and short press [M] button to confirm.
2. Short press [▶] or [ -◀◀ ] to select your desired option.
3. Short press [M] button to confirm.

Info

In the main menu, select Info. menu and enter by pressing [M] button, then you can see some system information, like free flash capacity and total flash capacity.

1. Connect the PC USB port and the MP3 USB port with the provided USB cable.
2. Add MP3 files/folders to the USB storage's folder.
3. Open files/folders to transfer from your computer.
4. Open My Computer – Removable Disk from the desktop.
5. Select the files/folders to transfer from your computer and draw and put them to a folder of your choice in the Removable Disk (you also can transfer files on your PC to the player using the „Copy” and „Paste” functions).

MM259/MM267 - DEMON 3

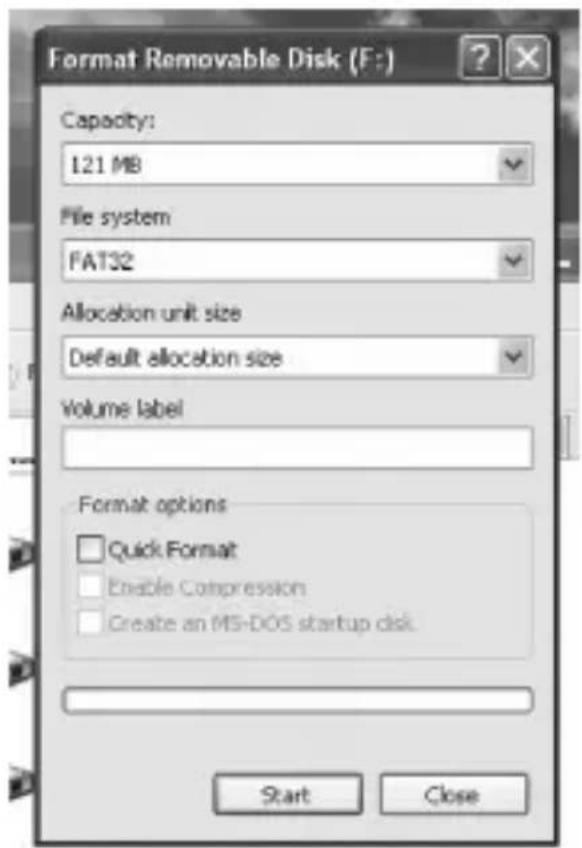

Format MP3 player

The MP3 player format is “FAT” format. To format the MP3 player, you need to right click the „Removable Disk” and choose „Format” mode, then click „Start” to format in operating system. As following pictures show:

Návod k obsluze

Top-down schematic of a vehicle or container with no visible text, numbers, or symbols

MM259/MM267 - DEMON 3

V případě problémů

Chybějící napájení

Top-down schematic of a vehicle or container with no visible text, numbers, or symbols

MM259/MM267 - DEMON 3

Problémák esetén

Nincs tápfeszültség

Top-down line drawing of a vehicle or container with a rectangular opening and curved handle, no text or symbols present.

MM259/MM267 - DEMON 3

У разі проблем
