Product Type	Refrigerator
Brand	Beko
Model	HS221520F
Dimensions (H x W x D)	180 cm x 60 cm x 65 cm
Weight	65 kg
Power Supply	220-240 V ~ 50 Hz
Energy Class	A+
Annual Energy Consumption	150 kWh
Climate Class	N-ST
Noise Level	40 dB
Refrigerant	R600a
Number of Shelves	4 adjustable glass shelves
Door Compartments	3 door bins
Crisper Drawer	1 vegetable drawer
Thermostat Control	Mechanical dial
Defrosting	Manual defrost
Door Reversibility	Reversible door
Interior Light	LED
Maintenance	Clean with mild soap and water
Safety Features	Flammable refrigerant R600a; ensure proper ventilation
Spare Parts Availability	Available through Beko service centers
Repairability Index	7.5 / 10

Frequently Asked Questions - HS221520F BEKO

How do I adjust the temperature inside the fridge?

Turn the thermostat dial, located inside the fridge compartment, to a higher number for colder temperature or a lower number for warmer. Usually, setting 3-4 is recommended for normal use.

The fridge is making unusual noises. Is this normal?

Some noise is normal (e.g., from the compressor, fans, or refrigerant flow). However, loud knocking, vibrations, or persistent sounds may indicate improper installation or a fault. Ensure the fridge is level and not touching walls.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual to remove the door and reattach hinges on the opposite side. You may need tools like a screwdriver.

How often should I defrost the fridge?

This model requires manual defrosting when frost builds up to about 5 mm. Turn off the fridge, remove food, and let ice melt. Do not use sharp objects to remove ice.

What is the correct temperature setting for food storage?

For optimal food preservation, set the thermostat between 3 and 5 on the dial. The internal temperature should be around 3-5°C (37-41°F). Avoid overfilling.

How do I clean the fridge?

Unplug the appliance. Remove shelves and drawers. Clean interior surfaces with a mild detergent and warm water. Rinse and dry thoroughly. Avoid abrasive cleaners.

The interior light is not working. What should I do?

Check if the bulb type is LED (non-replaceable) or incandescent. If LED, contact service. For incandescent, replace with a new bulb of the same wattage (usually 15W).

Is it normal for water to collect at the back of the fridge?

Some moisture inside is normal, especially if doors are opened frequently. However, excessive water may indicate a blocked drain. Clean the drain hole with a pipe cleaner.

How much energy does this fridge consume?

The annual energy consumption is approximately 150 kWh. Actual consumption varies based on usage, temperature settings, and ambient conditions.

What should I do if the fridge stops cooling?

Check if the power cord is plugged in and the circuit breaker is on. Ensure the thermostat is not set to 0. If still not cooling, the compressor or refrigerant may be faulty - contact a qualified technician.

USER MANUAL HS221520F BEKO

HS221520F

EN-RO-SR-BiH-MK-AL-UA

WARNING!

In order to ensure a normal operation of your refrigerating appliance, which uses a completely environmentally friendly refrigerant the R600a (flammable only under certain conditions) you must observe the following rules:

• Do not hinder the free circulation of the air around the appliance.
• Do not use mechanic devices in order to accelerate the defrosting, others than the ones recommended by the manufacturer.
• Do not destroy the refrigerating circuit. Do not use electric appliances inside the food beeping compartment, others than those that might have been recommended by the manufacturer.

WARNING!

Advice for recycling of the old appliance /1

Packing Recycling /2

Transport instructions /2

Warnings and special advice /2

Setting up /3

Electric connection /3

Switching off /4

Appliance description /4

Freezer operation /4

Advice for food conservation /5

Defrosting of the appliance /5

Replacing the interior light bulb /6

Cleaning of the appliance /6

Defects finding guide /6

Contents

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

Congratulations on your choice!

The chest freezer you have purchased is one in the BEKO product range and represents a harmonious combination of refrigeration technology and aesthetic design. It has a new and attractive design and is built according to European and national standards that guarantee its operation and safety features. At the same time, the refrigerant used, R600a, is environmentally friendly and does not affect the ozone layer.

To make the best use of your freezer, we advise you to read the information in these user instructions carefully.

Advice for recycling your old appliance

If your newly purchased appliance replaces an older one, you must consider a few aspects.

Old appliances are not valueless scrap. Their disposal, while preserving the environment, allows the recovery of important raw materials.

Make your old appliance useless:

• disconnect the appliance from the power supply;
• remove the power cord (cut it);
• remove any locks on the door to prevent children from being trapped inside while playing and endangering their lives. Refrigerating appliances contain insulating materials and refrigerants that require proper recycling.

Original spare parts will be provided for 10 years following the product purchase date.

This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Packing Recycling

WARNING!

Do not allow children to play with the packing or with parts of it. There is the risk of suffocation with parts of corrugated cardboard and with plastic film.

In order to get to you in good condition, the appliance was protected with a suitable packing. All the materials of the packing are compatible with the environment and recyclable. Please help us recycle the packing while protecting the environment!

IMPORTANT!

Before putting the appliance in operation, read carefully and entirely these instructions. They contain important information concerning the setting up, use and maintenance of the appliance.

The manufacturer is free of any responsibility if the information in this document are not observed. Keep the instructions in a safe place in order to reach them easily in case of need. They can also be useful subsequently by another user.

ATTENTION!

This appliance must be used only for its intended purpose, (household use), in suitable areas, far from rain, moisture or other weather conditions.

Transport instructions

The appliance must be transported, as much as possible, only in vertical position. The packing must be in perfect condition during transport.

If during transport the appliance was put in horizontal position (only according to the markings on the packing), it is advised that, before putting it into operation, the appliance is left to rest for 4 hours in order to allow the settling of the refrigerating circuit.

The failure to observe these instructions can cause the breakdown of the motorcompressor and the cancellation of its warranty.

Warnings and general advice

• Do not plug in the appliance if you noticed a failure.
• The repairs must be done only by qualified personnel.
• In the following situations please unplug the appliance from the mains:
• when you defrost completely the appliance;
• when you clean the appliance.

To unplug the appliance, pull by the plug, not by the cable!

• Ensure the minimum space between the appliance and the wall against which it is placed.
• Do not climb on the appliance.
• Do not allow the children to play or hide inside the appliance.
• Never use electric appliances inside the freezer, for defrosting.
• Do not use the appliance near heating appliances, cookers or other sources of heat and fire.
• Do not leave the freezer door open more than it is necessary to put in or take out the food.
• Do not leave the food in the appliance if it is not working.
• Do not keep inside products containing flammable or explosive gases.
• Do not keep inside fizzy drinks (juice, mineral water, champagne, etc.) in the freezer: the bottle can explode! Do not freeze drinks in plastic bottles.
• Do not eat ice cubes or icecream immediately after having taken them out of the freezer because they may cause „freezer burns”.
• Never touch cold metal parts or frozen food with wet hands because your hands can quickly freeze on the very cold surfaces.
• For the protection of the appliance during warehousing and transport, it is provided with spacers between the door and the cabinet (in the front and rear side). These spacers will be removed before putting the appliance into operation.

Excess deposit of ice on the frame and the baskets should be removed regularly with the plastic scraper provided. Do not use any metal parts to remove the ice.

The presence of this ice build-up makes it impossible to close the door correctly.

If you do not use your appliance for a few days, it is not advisable to switch it off. If you do not use it for a longer period, please proceed as follows:

• unplug the appliance;
• empty the freezer;
• defrost it and clean it;
• leave the door open to avoid the formation of unpleasant smells.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If your appliance has a lock, keep it locked and store the key in a safe place, out of the reach of children. If you are discarding an appliance with lock, make sure that it is made ineffective. This is very important so as to avoid children being trapped inside, which may cause their loss of life.

Setting up

This appliance was designed to operate at an ambient temperature between -15°C and +43°C. If the ambient temperature is above +43°C, inside the appliance the temperature can increase.

Set up the appliance far from any source of heat and fire. Placing it in a warm room, the direct exposure to sunbeams or near a heat source (heaters, cookers, ovens), will increase the energy consumption and shorten the product life.

Please observe the following minimum distances:

• 100 cm from cookers working with coal or oil;
• 150 cm from electric and gas cookers.

Ensure free circulation of air around the appliance by observing the distances shown in Item 2.

Assemble the supplied spacers on the condenser (at the rear). (Item 3).

Place the appliance on a perfectly even, dry, and well-ventilated surface.

Assemble the supplied accessories.

Electrical connection

Your appliance is intended to operate at a single-phase voltage of 220-240V/50 Hz. Before plugging in the appliance, make sure that the parameters of your household mains (voltage, current type, frequency) comply with the appliance's operating parameters.

• Information regarding supply voltage and power consumption is given on the rating label located on the back of the freezer.
• The electrical installation must comply with legal requirements.
• Earthing of the appliance is compulsory. The manufacturer accepts no responsibility for any damage to persons, animals, or property arising from failure to observe the specified conditions.
• The appliance is equipped with a supply cord and plug (European type, rated 10/16A) with double earthing contact for safety. If the socket does not match the plug type, please ask a qualified electrician to change it.
• Do not use extension cords or multiple adapters.

Switching off

Switching off must be possible by unplugging the appliance or by means of a two-pole mains switch placed before the socket.

Operation

Before putting into operation, clean the inside of the appliance (see chapter "Cleaning"). After finishing this operation, plug in the appliance and adjust the thermostat knob to an average position. The green and red LEDs in the signalling block must light. Leave the appliance to work for about 2 hours without putting food inside it. Freezing of fresh food is possible after at least 20 hours of operation.

Appliance description

(Item 1)

1. Door handle
2. Door
3. Lamp housing
4. Thermostat box
5. Basket
6. Spacer for transport

Freezer operation

Temperature adjustment

The temperature of the freezer is adjusted by means of the knob assembled on the thermostat (item 4), position "MAX" being the lowest temperature.

The achieved temperatures can vary according to the conditions of use of the appliance, such as: place of the appliance, ambient temperature, frequency of door opening, extent of filling with food of the freezer. The position of the thermostat knob will change according to these factors. Normally, for an ambient temperature of approx. 32°C, the thermostat will be adjusted to an average position.

The signalling system is placed on the back side of the freezer (Item 5).

It includes:

1. Thermostat adjustment knob – adjusts the inside temperature.
2. Green LED – indicates that the appliance is supplied with electric energy.
3. Red LED – damage – lights up if the temperature in the freezer is too high. The LED will operate 15-45 minutes after the freezer is put into operation, then it must go off. If the LED goes on during operation, this means that defects have occurred.
4. Orange LED – fast freeze function activated – by setting the knob to the Superfreeze position, the orange LED goes on, showing that the appliance has entered the "fast freeze" mode. The exit from this mode is done automatically after 50 hours, then the appliance runs in economic mode, and the orange LED goes off.

The three LEDs give information about the mode of operation of the freezer.

Advice for food conservation

The freezer is intended to keep frozen food for a long time, as well as to freeze fresh food.

One of the main elements for successful food freezing is the packing.

The main conditions that the packing must fulfill are the following: to be airtight, to be inert towards the packed food, to resist low temperatures, to be proof against liquids, grease, water vapours, and smells, and to be able to be washed.

These conditions are fulfilled by the following types of packings: plastic or aluminium film, plastic and aluminium vessels, waxed cardboard glasses, or plastic glasses.

IMPORTANT!

• For freezing fresh food, please use the supplied baskets of the appliance.
• Do not place into the freezer too large a quantity of food at a time. The quality of the food is best kept if it is deeply frozen as quickly as possible. This is why it is advisable not to exceed the freezing capacity of the appliance specified in the "PRODUCT FICHE".
• The fresh food must not come into contact with the food already frozen.
• The frozen food you have bought can be placed into the freezer without having to adjust the thermostat.
• If the freezing date is not mentioned on the packing, please take into consideration a period of max. 3 months, as a general guide.
• The food, even partially defrosted, cannot be frozen again, it must be consumed immediately or cooked and then refrozen.
• The fizzy drinks will not be kept in the freezer.
• In case of a power failure, do not open the door of the appliance. The frozen food will not be affected if the failure lasts less than 36 hours.

Freezing with Superfrost

• Place the knob to super frost position. The Superfrost lamp comes on.
• Wait 24 hours.
• Place the fresh food in the freezer. In order to achieve fast freezing, food should be in contact with the interior walls when it is placed in the freezer.
• The Superfrost facility automatically switches the fast freezing procedure off after 50 hours.

Important

When you place the knob to Superfrost position, the compressor might not switch on for a few minutes. This is due to the integrated rise-delay switch which is designed to increase the life span of the refrigeration unit.

You should not switch on the Superfrost function:

• when placing frozen food in the freezer;
• when freezing up to approx. 2 kg fresh food daily.

Defrosting of the appliance

• We advise you to defrost the freezer at least twice a year or when the ice layer has an excessive thickness.
• The ice build-up is a normal phenomenon.
• The quantity and the rapidity of ice build-up depends on the ambient conditions and on the frequency of the door opening.
• We advise you to defrost the appliance when the quantity of frozen food is the least.
• Before defrosting, adjust the thermostat knob to a higher position so that the food stores more cold.

- Unplug the appliance.

- Take out the frozen food, wrap it in several sheets of paper and put them in refrigerator or a cool place.

Use a tray and put it under the freezer in the direction of the dripping tube. Take out the obstructing plug. The water which results will be collected in the tray. After the melting of the ice and the run-off of the water please wipe with a cloth or with a sponge, then dry well. Put the obstruction plug back in its place. (Item. 6) For a fast thaw please leave the door open.

Do not use sharp metal objects to remove the ice.

Do not use hairdriers or other electric heating appliances for defrosting.

Replacing the interior light bulb

If the lamp burns out, disconnect the appliance from the mains. Take out the lamp trim. Make sure the lamp is screwed correctly. Plug in the appliance again. If the lamp still does not go on, replace it with another one model E14-15W. Mount back the lamp trim in its place. The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way.

The lamps used in this appliance have to withstand extreme physical conditions such as temperatures below -20°C.

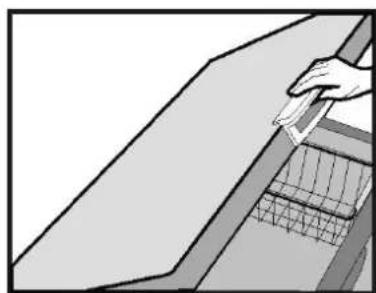

Inside cleaning

Before starting the cleaning, unplug the appliance from the mains.

• It is advisable to clean the appliance when you defrost it.
• Wash the inside with lukewarm water where you add some neutral detergent. Do not use soap, detergent, gasoline or acetone which can leave a strong odour.
• Wipe with a wet sponge and dry with a soft cloth.

During this operation, avoid the excess of water, in order to prevent its entrance into the thermal insulation of the appliance, which would cause unpleasant odours.

Do not forget to clean also the door gasket especially the bellow ribs, by means of a clean cloth.

Outside cleaning

• Clean the outside of the freezer by means of a sponge soaked in soapy warm water, wipe with a soft cloth and dry.
• The cleaning of the outside part of the refrigerating circuit (motorcompressor, condenser, connection tubes) will be done with a soft brush or with the vacuum-cleaner. During this operation, please take care not to distort the tubes or detach the cables.

Do not use scouring or abrasive materials!

- After having finished the cleaning, replace the accessories at their places and plug in the appliance.

Defects finding guide

The appliance does not work.

• There is a power failure.
• The plug of the supply cord is not inserted well into the socket.
• The fuse is blown.
• The thermostat is in the “OFF” position.

The temperatures are not low enough (red LED on).

• The food prevents the door from closing. ● The appliance was not placed correctly.
• The appliance is placed too close to a heat source.
• The thermostat knob is not in the correct position.

Excessive ice build-up

- The door was not closed properly.

The inside lighting does not work

- The lamp is blown. Unplug the appliance from the mains, take out the lamp and replace it with a new one.

The following are not defects

- Possible noddings and cracks coming from the product: circulation of the refrigerant in the system.

Noises during operation

In order to keep the temperature at the value you have adjusted, the compressor of the appliance starts periodically.

The noises which can be heard in such situation are normal.

They are reduced as soon as the appliance reaches the operating temperature.

The humming noise is made by the compressor. It can become a little stronger when the compressor starts.

The bubbling and gurgling noises coming from the refrigerant circulating in the pipes of the appliance are normal operating noises.

Warning!

Never try to repair the appliance or its electrical components yourself. Any repair made by an unauthorized person is dangerous for the user and can result in the warranty being voided.

The symbol ■ on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.

Do not use hair dryers or other electric heating appliances for defrosting.
