ABP604BB - Hob BESTRON - Free user manual and instructions

Product type	Electric griddle
Brand	Bestron
Model	ABP604BB
Dimensions (L x H x D)	105,5 x 26,0 x 11,0 cm
Cord length	82 cm
Power supply	220-240 V ~ 50-60 Hz
Power	1800 W
Temperature range	180°C to 260°C (5 positions)
Coating	Non-stick
Thermostat	Removable, adjustable
Indicator light	Heating indicator
Drip tray	Gutter and grease tray
Handle	Yes, for transport
Non-slip feet	Yes
Protection class	I
Usage	Domestic and similar (kitchens, offices, hotels, etc.)
Cleaning	Damp cloth and mild detergent; do not immerse
Safety	Do not touch hot surfaces; keep out of reach of children under 8 years; do not use near birds
Included accessories	Removable thermostat, power cord

Frequently Asked Questions - ABP604BB BESTRON

How to use the griddle for the first time?

Before first use, clean the griddle with a damp cloth. Plug in the appliance, set the thermostat to a low setting and let it heat up without food. A slight smoke may occur, this is normal. Ensure good ventilation and keep birds away.

What do the thermostat positions mean?

Positions 1 to 5 correspond to increasing temperatures: 1 = approximately 180°C, 2 = 200°C, 3 = 220°C, 4 = 240°C, 5 = 260°C. Choose the temperature according to the food to be grilled.

Can metal utensils be used on the griddle?

No, it is not recommended to use sharp or metal objects as they may damage the non-stick coating. Use wooden, silicone or heat-resistant plastic utensils instead.

How to clean the griddle?

Unplug the appliance and let it cool completely. Remove the thermostat. Clean the griddle with a damp cloth and a little mild detergent. Dry thoroughly. Never immerse the connector, thermostat, cord or plug in water.

Why does the griddle emit smoke and odor during first use?

It's normal. The heating elements and non-stick coating may produce a slight smoke and characteristic odor during the first heating. This disappears after a few uses. Make sure to ventilate the room well.

Can I leave the griddle unattended while in use?

No, it is not recommended to leave the appliance unattended while it is on. The surfaces become very hot and there is a risk of burns or fire. Always monitor cooking.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by a qualified professional. Contact Bestron customer service for a replacement thermostat or repair.

Can the griddle be used for all types of food?

Yes, it is suitable for grilling meats, fish, vegetables, etc. However, avoid melting plastic or highly acidic foods that could damage the coating.

How to store the griddle after use?

Let it cool completely, remove the thermostat and wipe the griddle. Store it in a dry place, away from dust. Avoid placing heavy objects on top to prevent deforming the surface.

The appliance makes noise during cooking, is it normal?

A slight operating noise is normal, due to thermal expansion. If the noise is loud or abnormal, unplug the appliance and contact after-sales service.

USER MANUAL ABP604BB BESTRON

Platter of various seafood and fish dishes arranged on a black griddle, with no visible text or labels.

INSTRUCTION MANUALTEPPAI

DE

HR

ZEN

RO

EBG

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

SICHERHEITSHINWEISE

Technical line drawing of a cable connector with a knob and cable, no text or symbols present

Technical line drawing of a mechanical device with a knob and coiled cable, no text or symbols present

NETTOYAGE ET ENTRETIEN

Technical line drawing of a mechanical device with a knob and cable, showing no text or symbols

REINIGING EN ONDERHOUD

- This appliance is not intended for professional use, but is intended for domestic and similar use, such as in staff kitchens, in shops, offices and other working environments, by guests in hotels, motels and other residential environments, in Bed & Breakfast type environments and farms.

- Make sure that the mains voltage matches with the voltage shown on the rating plate.

• Always install the appliance on a stable and level surface where it cannot fall over.

- Parts of this appliance may become warm or hot. Avoid burning yourself. Do not touch.

- Your hands must be dry when you touch this appliance, it's cord and plug.

- This appliance must lose it's heat so give it sufficient clearance around it. Also do not cover it.

- This appliance, the cord and the plug must not come into contact with water, heat sources or open flames.

- Do not touch this device if it has come into contact with water. Immediately remove the plug from the socket.

- Never let the cord hang over the edge of the sink, worktop or table.

- Always remove the plug from the socket when you are not using the electrical appliance.

- Remove the plug from the socket by pulling on the plug itself and not on the cord.

- Do not use the electrical appliance if the cord is damaged.

- Do not operate this appliance with an external timer or separate remote control system.

- If the appliance or cord is defective, do not attempt to repair it yourself. Always have repairs carried out by a qualified technician. It must be replaced by the manufacturer, a technical service provider or a person with equivalent qualifications, to avoid any danger.

- Do not move this device when it is turned on or still hot.

- Never use this device near birds. The fumes released from the non-stick coating can cause stress or worse in birds.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the dangers.

- Children are not allowed to clean or maintain the appliance unless they are over 8 years old and supervised.

- Keep the appliance and the cord out of the reach of children under the age of 8.

• Children shall not play with the appliance.

- Only hold the device by the handles. All metal parts can be very hot.

- Do not use sharp or metal objects on the grill plate, stone grill plate or pans. These will damage the non-stick coating.

ENVIRONMENT

Dispose of packaging material such as plastic and cardboard boxes in the designated containers.

• Do not dispose of this product as normal domestic waste at the end of its life, but hand it in at a collection point for the reuse of electric and electronic equipment. Look for the symbol on the product, the user instructions or the packaging showing the type of waste.
• The materials can be used as indicated. By helping us reuse and process the materials or otherwise recycle the old equipment, you will be making an important contribution towards the protection of the environment.
• Your municipality can tell you where to find the designated waste collection point in your neighbourhood.

SERVICE

In the unlikely event of a malfunction, please contact Bestron customer service: www.bestron.com/service

Technical Specifications
Model ABP604BB
Mains (V) 220-240V~
Frequency (Hz) 50-60
Safety Class I
Power (Watt) 1800
Noise (dB(A)) -
Max. Capacity -
Maximum continuous operating time (KB) -
Dimensions (L x W x H) (cm)	105,5x26,0x11,0
Cable length (cm)	82

OPERATION - General

1. Handle
2. Grill plate
3. Socket
4. Thermostat dial

5. Indicator light, temperature

6. Removable thermostat

7. Power cord with plug
8. Collecting groove and drip tray
9. Non-slip feet

OPERATION - Before first use

1. Remove the grill from the packaging, and remove all packaging materials.
2. Clean the grill plate before using the appliance for the first time (see 'Cleaning and maintenance').

WARNING:

• The appliance may emit a little smoke and a characteristic smell when you switch it on for the first time. This is normal and will stop on its own. Make sure the appliance has sufficient ventilation.
• Keep house birds away from the appliance when it is in use. Fumes released from the non-stick coating are harmful to birds.

OPERATION - Preheating

1. Put the appliance on a level and heat-resistant surface.
2. Insert the thermostat completely into the connection socket of the grill plate. Only the supplied cord with thermostat may be used.
3. Put the plug in the wall socket.
4. Adjust the thermostat dial to the required temperature (position 1 through 5). The indicator light on the thermostat will illuminate to show that the heating element has been switched on.

Position Temperature (°C)

1 approx. 180°C
2 approx. 200°C
3 approx. 220°C
4 approx. 240°C
5 approx. 260°C

1. After waiting a few minutes check whether the indicator light is extinguished.
2. Once the indicator light has extinguished the appliance has reached the required temperature, and is ready for use. During use the heating element will switch on and off to keep the temperature of the grill plate constant. Consequently the indicator light will also occasionally be illuminated.

OPERATION - Grilling

1. Allow the grill plate to preheat (see 'Preheating').
2. If so required, grease the grill plate with a little oil.
3. Place the food you wish to grill on the grill plate.
4. Grill the food until it is cooked. Turn the food over occasionally whilst it is being grilled to ensure that both sides are evenly cooked.
5. Remove the food from the grill plate and place on a plate. Take care! The food is hot.

OPERATION - After use

1. Turn the thermostat dial to the "0" position.
2. Remove the plug from the wall socket.
3. Let the appliance cool down fully.

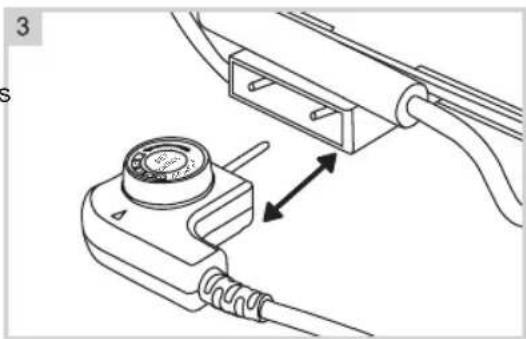

4. Remove the thermostat by holding the appliance's handle with one hand and pulling the thermostat out of the socket with the other hand. Make sure you do not touch the appliance's metal socket; it may still be hot. Always hold the thermostat by the plastic section.

Technical line drawing of a mechanical component with a knob and coiled cable (no text or symbols)

WARNING:

• The metal pin fitted to the thermostat can be very hot.

CLEANING AND MAINTENANCE

Clean the grill plate after each use.

1. Remove the plug from the wall socket, allow the appliance to cool down completely, and pull the thermostat out of the socket.
2. Clean the grill plate and the base with a damp cloth, if necessary moistened with a couple of drops of washing-up liquid.
3. Dry the grill plate and the base thoroughly.

WARNING:

• Verify that the appliance is not connected to the power supply before you start to clean it.
• Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.
• Never immerse the socket, thermostat, plug or power cord in water or other liquid.

Technical line drawing of a mechanical device with a knob and cable, no text or symbols present

Technical line drawing showing a mechanical assembly with a knob and cable, no text or symbols present

LIMPIEZA Y MANTENIMIENTO

Technical diagram showing a mechanical component with a knob and coiled cable, no text or symbols present

CZYSZCZENIE I KONSERWACJA

1. Ručka
2. Ploča za roštilj
3. Utičnica
4. Brojčanik termostata

5. Svjetlosni indikator, temperatura

6. Odvojivi termostat

7. Kabel za napajanje s utikačem
8. Utor za skupljanje i posuda za skupljanje
9. Neklizajuće noge

RAD - PRIJE PRVE UPORABE

1. 1. Izvadite roštilj iz pakiranja i uklonite sav materijal za pakiranje.
2. 1. Očistite ploču za roštilj prije prve uporabe uređaja (pogledajte 'Čišćenje i održavanje').

UPOZORENJE:

• Aparat može ispuštati malo dima i karakterističan miris kada ga uključite prvi put. To je normalno i prestat će samo od sebe. Provjerite ima li uređaj dovoljnu ventilaciju.
• Držite kućne ptice podalje od uređaja dok je u uporabi. Pare koje se oslobađaju iz neprijanjajućeg sloja štetne su za ptice.

RAD - PREDGRIJAVANJE

1. Stavite uređaj na ravnu površinu otpornu na toplinu.
2. Termostat do kraja umetnite u priključnu utičnicu ploče za roštilj. Smije se koristiti samo isporučeni kabel s termostatom.
3. Uključite utikač u zidnu utičnicu.
4. Podesite regulator termostata na željenu temperaturu (položaj od 1 do 5). Indikatorska lampica na termostatu će zasvijetliti kako bi pokazala da je grijaći element uključen.

Temperatura položaja (°C)

1 cca. 180°C
2 cca. 200°C
3 cca. 220°C
4 cca. 240°C
5 cca. 260°C

Technical line drawing of a mechanical component with a knob and coiled cable (no text or symbols)

ČIŠĆENJE I ODRŽAVANJE

Očistite ploču za roštilj nakon svake upotrebe.

1. Izvucite utikač iz zidne utičnice, ostavite uređaj da se potpuno ohladi i izvucite termostat iz utičnice.
2. Očistite ploču roštilja i podlogu vlažnom krpom, po potrebi navlaženom s nekoliko kapi sredstva za pranje posuđa.
3. Temeljito osušite ploču za roštilj i podlogu.

UPOZORENJE:

• Provjerite da uređaj nije priključen na napajanje prije nego što ga počnete čistiti.
• Nikada ne koristite korozivna sredstva za čišćenje ili sredstva za ribanje ili oštre predmete (kao što su noževi ili tvrde četke) za čišćenje uređaja.
• Nikada ne uranjajte útičnicu, termostat, útikač ili kabel za napajanje u vodu ili drugu tekućinu.

BEZPEČNOSTNÍ INSTRUKCE

Technical line drawing of a mechanical component with a circular knob and coiled cable, no text or symbols present

ČIŠTĚNÍ A ÚDRŽBA

Technical diagram showing a connector with a circular knob and cable, no text or symbols present

ČISTENIE A ÚDRŽBA

Technical diagram showing a mechanical component with a knob and coiled cable, no text or symbols present

Technical diagram showing a connector with cable and a circular component, no text or symbols present

RENGÖRING OCH UNDERHÅLL
