USER MANUAL Horizon Jetson
A GUIDE FOR YOUR RIDE.
IMPORTANT:
Read carefully and retain
for future reference.
JETSON
HORIZON
Electric Dirt Bike.
MODEL SKU(S): JKDB24-BB | JKDB24-BLK
OUR TOP TWO RIDING RULES:
BE SAFE, HAVE FUN!
MADE IN SAMUT PRAKARN, THAILAND
IMPORTED BY TRURIDE TECH LLC.
PO BOX 461, JERSEY CITY, NJ 07302-9998
DATE CODE: 08/2025
DOCUMENT EDITION: V2.1
MADE IN THAILAND
© 2025, TRURIDE TECH. ALL RIGHTS RESERVED. MANUFACTURED FOR TRURIDE TECH LLC.
JETSON® IS A REGISTERED TRADEMARK USED UNDER LICENSE FROM JETSTREAM BRANDS LLC.
NO PORTION OF THIS DOCUMENT, INCLUDING SHAPE, GRAPHICS, AND DESIGN, MAY BE
REPRODUCED OR TRANSMITTED IN ANY FORM OR BY ANY MEANS.
Contents
Safety Warnings 4
Warranty Coverage & Product Registration .....7
1. About Your Product
1.1 Product Overview 8
1.2 Product Specs .... 10
1.3 Online Resources 10
2. Installation Instructions
2.1 Starting Notes....11
2.2 Rider Suitability....11
2.3 Attaching the Handlebar 12
2.4 Charging the Battery .....14
3. Preparing to Ride
3.1 Pre-Ride Safety Checks 16
3.2 Tire Pressure & Inflation 17
4. Operating & Riding Instructions
4.1 Powering On & Off 18
4.2 Activating the Lights ..... 18
4.3 Understanding the Battery Indicator Lights ...19
4.4 Using the Kickstand .....19
4.5 Riding 20
4.6 Changing Speed Modes ..... 21
4.7 Using the Brake 21
4.8 Helmet Safety 22
4.9 Maximizing Speed & Run Time 22
Care & Maintenance 23
Connect With Us....25
EN
SAFETY WARNINGS.
KEEP THESE INSTRUCTIONS.
INSTRUCTIONS ON THE RISK OF FIRE OR INJURY TO PERSONS AND IMPORTANT SAFETY INSTRUCTIONS
- Before use, please read the user manual and safety warnings carefully, and make sure you understand and accept all the safety instructions. The user will be responsible for any loss or damage caused by improper use.
- Failure to use correct charger can result in fire and explosion, resulting in property damage, injury, and death.
- Before each cycle of operation, the operator shall perform the preoperation checks specified by the manufacturer: That all guards and pads originally supplied by the manufacturer are in proper place and in serviceable condition; That the braking system is functioning properly; That any and all axle guards, chain guards, or other covers or guards supplied by the manufacturer are in place and in serviceable condition; That tires are in good condition, inflated properly, and have sufficient tread remaining; The area that the product is to be operated should be safe and suitable for safe operation.
- Components shall be maintained and repaired in accordance with the manufacturer's specifications and using only the manufacturer's authorized replacement parts with installation performed by dealers or other skilled persons.
- Warning against recharging non-rechargeable batteries.
- Don't allow hands, feet, hair, body parts, clothing, or similar articles to come in contact with moving parts, wheels, or drive train, while the motor is running.
- This product should not be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction (IEC 60335-1/A2:2006).
- Unsupervised children should not play with the product (IEC 60335-1/A2:2006).
• Adult supervision is required.
- Units shall not be operated to perform racing, stunt riding, or othermaneuvers, which may cause loss of control, or may cause uncontrolled operator/passenger actions or reactions. - Never use near motor vehicles.
- Avoid sharp bumps, drainage grates, and sudden surface changes. Product may suddenly stop.
- Avoid streets and surfaces with water, sand, gravel, dirt, leaves, and other debris. Wet weather impairs traction, braking, and visibility.
- Avoid riding around flammable gas, steam, liquid, or dust that could cause fire.
- Operators shall adhere to all of the manufacturer's recommendations and instructions, as well as comply with all laws and ordinances: Units without headlights shall be operated only with adequate daylight conditions of visibility, and; Owners shall be encouraged to highlight (for conspicuity) using lighting, reflectors, and for low-riding units, signal flags on flexible poles.
- Persons with the following conditions shall be cautioned not to operate: Those with heart conditions; Pregnant women; Persons with head, back, or neck ailments, or prior surgeries to those areas of the body; and persons with any mental or physical conditions that may make them susceptible to injury or impair their physical dexterity or mental capabilities to recognize, understand, and perform all of the safety instructions and to be able to assume the hazards inherent in unit use.
- Do not ride at night.
- Do not ride after drinking or taking prescription medication.
- Do not carry items when riding.
- Never operate the product barefooted.
•Always wear shoes and keep shoelaces tied.
• Make sure your feet are always placed securely on the deck.
- Operators always shall use appropriate protective clothing, including but not limited to a helmet, with appropriate certification, and any other equipment recommended by the manufacturer: Always wear protective equipment such as helmet, knee pads, and elbow pads.
• Always give way to pedestrians.
- Be alert to things in front and far away from you.
- Do not allow distractions when riding, such as answering the phone or engaging in any other activities.
• The product cannot be ridden by more than one person.
- When you ride the product along with other riders, always keep a safe distance to avoid a collision.
- When turning, be sure to maintain your balance.
- Riding with improperly adjusted brakes is dangerous and can result in serious injury or death.
- The brake may become hot while operating, do not touch the brake with your bare skin.
- Applying brakes too hard or too suddenly can lock up a wheel, which could cause you to lose control and fall. Sudden or excessive application of the brake may result in injury or death.
- If the brake loosens, please adjust with a hexagon wrench, screwdriver, or other applicable tool, or please contact the Jetson Care Team.
- Replace worn or broken parts immediately.
- Check whether all safety labels are in place and understood before riding.
- The owner shall allow the use and operation of the unit after a demonstration that such operators can understand and operate all components of the unit before use.
- Do not ride without proper training. Do not ride at high speeds, on uneven terrain, or on slopes. Do not perform stunts or turn abruptly.
•Recommended for indoor charge.
•Recommended for outdoor use.
- Prolonged exposure to UV rays, rain and the elements may damage the enclosure materials, store indoors when not in use.
- The eBikes not intended for use in high altitude locations, which may require increased electrical spacings in electrical circuits, shall indicate that they are not intended for use at elevations greater than 2000 m above sea level.
- Only use the battery(ies) specified by the manufacturer.
- STORE INDOORS WHEN NOT IN USE. LEAVE IT INDOOR WHEN CHARGING OR NOT RIDING.
- WARNING - Riskof Fire - No User Serviceable Parts.
• The rider should not exceed 140 lb (63.50 kg).
MODIFICATIONS
Do not attempt to disassemble, modify, repair, or replace the unit or any components of the unit without instruction from the Jetson Care Team. This will void any warranty, and can lead to malfunctions which may cause injury.
ADDITIONAL OPERATION PRECAUTIONS
Do not lift the product off the ground while it is on and the wheels are in motion. This can result in freely spinning wheels, which may cause injury to yourself or others nearby. Do not jump on or off the product, and do not jump while using it. Always keep your feet firmly planted on the foot rest while in operation. Always check the battery charge before using.
DISPOSAL OF USED BATTERY
Battery may contain hazardous substances which could endanger the environment and human health. This symbol marked on the battery and/or packaging indicates that used battery shall not be treated as
municipal waste. Batteries should be disposed of at an appropriate collection point for recycling. By ensuring the used batteries are disposed of correctly, you will help preventing potential negative consequences for the environment and human health. The recycling of materials will help to conserve natural resources. For more information about recycling of used batteries, please contact your local municipality waste disposal service.
EN
NOTICE OF COMPLIANCE
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
- Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits.
WARNING:
Failure to comply with the following instructions may result in injury to the child or others.
- Keep small parts away from children during assembly.
- Accessory must be assembled and removed by an adult.
• Frequently inspect the product for damage.
* ADULT ASSEMBLY IS REQUIRED.
WARNING:
To reduct the risk of injury, adult supervision is required. Never use in roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water; always wear shoes, and never allow more than 1 rider.
IMPORTANT SAFETY INSTRUCTIONS
WARNING - When using this product, basic precautions should always be followed, including the following:
(A) Read all the instructions before using the product.
(B) To reduce the risk of injury, close supervision is necessary when the product is used near children.
(C) Do not put fingers or hands into the product.
(D) Do not use this product if the flexible power cord or output cable is frayed, has broken insulation, or any other signs of damage.
(E) For all equipment, the instructions shall indicate: This equipment is not intended to be used at ambient temperatures less than -10 °C (14 °F) or above ambient temperatures of 40 °C (104 °F).
(F) For all equipment, the instructions shall indicate: The battery is intended to be charged when the ambient temperature is between 0 °C (32 °F) and 40 °C (104 °F). Never charge the battery when ambient temperatures are outside this range.
CALIFORNIA PROPOSITION 65
WARNING:
THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING CADMIUM, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO: WWW.P65WARNINGS.CA.GOV.
GENERAL LIMITED WARRANTY
YOUR NEW JETSON PRODUCT IS WARRANTED AGAINST DEFECTS IN MATERIALS AND WORKMANSHIP AS INDICATED ON RIDEJETSON.COM/WARRANTY FOR A PERIOD OF TIME FROM THE DATE OF ORIGINAL RETAIL PURCHASE WHEN USED IN ACCORDANCE WITH JETSON'S USER MANUALS (REFER TO RIDEJETSON.COM/SUPPORT). UNDER THIS WARRANTY, YOU WILL BE ABLE TO DIRECT YOUR CLAIMS TO JETSON EVEN IN SITUATIONS WHERE YOU PURCHASED THE JETSON PRODUCT FROM ONE OF OUR AUTHORIZED RETAILERS.TO READ THE FULL TERMS OF OUR WARRANTY, VISIT RIDEJETSON.COM/WARRANTY.
PRODUCT REGISTRATION
REGISTER YOUR NEW JETSON TO FAST-TRACK YOU TOWARDS PERSONALIZED PRODUCT AND WARRANTY SUPPORT. MAKE YOUR MOVE AT RIDEJETSON.COM/PAGES/REGISTRATION.
WARRANTY COVERAGE & PRODUCT REGISTRATION.
To exercise your product's warranty or inquire about warranty coverage, contact us directly.
www.ridejetson.com
EN
1. ABOUT YOUR PRODUCT.
1.1 Product Overview
- HANDLEBAR*
- HANDLEBAR CLAMP* (×2; LEFT AND RIGHT)
- FRONT PLATE
- MUDGUARD
- FRONT FORK
- WHEEL (×2; FRONT AND REAR)

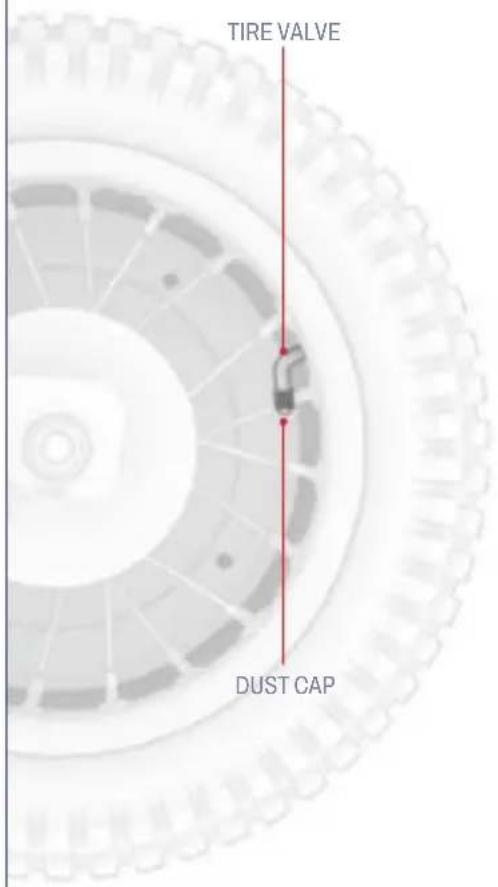

- TIRE VALVE WITH DUST CAP (×2; FRONT AND REAR)
- FLEX FOOT PEG (×2; LEFT AND RIGHT)
- KICKSTAND
-
CHAIN
-
SHOCK ABSORBER
- SEAT
- FRAME LIGHTS
- CHARGING PORT WITH COVER

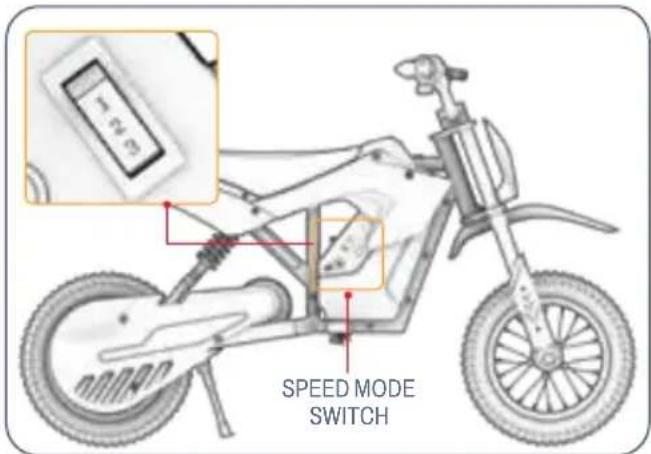

- SPEED MODE SWITCH
- LIGHTING BUTTON

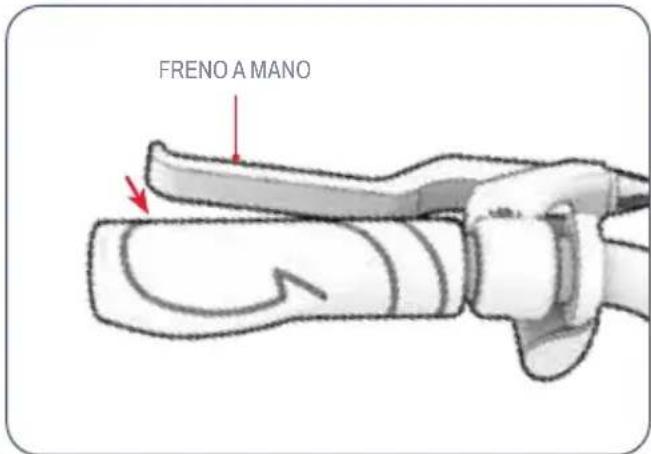

- HANDBRAKE
- BATTERY CHARGE DISPLAY
- ACCELERATION THROTTLE

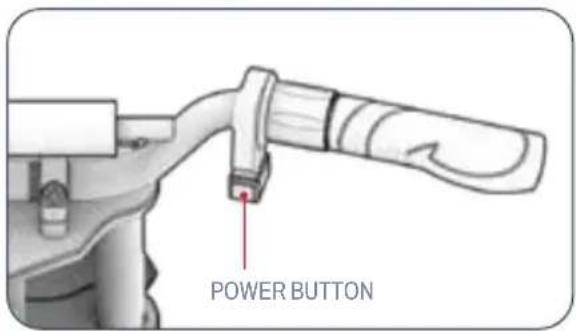

- POWER BUTTON
- CHARGER
Tools, hardware, and parts included for assembly, adjustment, and maintenance:
6MM ALLEN KEY BOLT (×4)
CLAMP TOP (×2) CLAMP BASE (×2)
NOTE: IMAGES MAY NOT REFLECT EXACT APPEARANCE OF ACTUAL PRODUCT. *NOT PRE-ATTACHED; REQUIRES ASSEMBLY.
•PRODUCT DIMENSIONS:
43.3 IN (L) × 23.6 IN (W) × 27.5 IN (H)
110 CM (L) × 60 CM (W) × 69.8 CM (H)
-HANDLEBAR HEIGHT: 31.5 IN | 80 CM
-SEAT HEIGHT: 21.1 IN | 53.4 CM
•PRODUCT WEIGHT: 39.4 LB | 17.8 KG
•TIRE SIZE: 12 IN | 30.5 CM
-BRAKE TYPE: HANDBRAKE
•WEIGHT LIMIT: 140 LB | 63.5 KG
•RECOMMENDED AGE: 13+
•MAX SPEED: 14 MPH* | 22.5 KM/H*
•MAX RUN TIME: 30 MINS.*
-CHARGING TIME: UP TO 4 HOURS
•RECOMMENDED TIRE PRESSURE: 36-40 PSI
•WATER RESISTANCE RATING: IPX4
•UL CERTIFICATION: UL2271
-CHARGER: UL LISTED, 42V 1.0A
*PRODUCT RUN TIME, SPEED, BATTERY LIFE, AND OTHER SPECIFICATIONS MAY VARY BASED ON RIDER AND RIDING CONDITIONS. SEE SECTION 4.9 FOR MORE DETAILS ON CONDITIONS THAT CAN AFFECT PERFORMANCE.
1.3 Online Resources1.2 Product Specs
Scan for our most updated product onboarding materials and support resources.
Find this user manual online at
https://cdn.shopify.com/s/files/1/2530/6734/files/
HORIZON-MANUAL_WEB-1748615957147.pdf
Find our collection of user manuals at
https://ridejetson.com/pages/product-manuals
2.1 Starting Notes
•KICK OFF YOUR ADVENTURE RIGHT. PRIOR TO USE OF THIS PRODUCT, CAREFULLY READ THE ENTIRE USER MANUAL, INCLUDING SAFETY WARNINGS. MAKE SURE YOU UNDERSTAND, ACCEPT, AND ADHERE TO ALL:
•MANUFACTURER'S RECOMMENDATIONS.
• SAFETY INSTRUCTIONS AND WARNINGS.
- LOCAL RIDING AND OPERATIONAL LAWS AND ORDINANCES.
- REMOVE ALL PROTECTIVE PACKAGING PIECES PRIOR TO BEGINNING ASSEMBLY.
- THE DIRECTIONS GIVEN IN THIS MANUAL—RIGHT, LEFT, FRONT/FORWARD, AND REAR/BACK—ARE ORIENTED AS THE RIDER WOULD SEE THEM WHEN SEATED ON THE DIRT BIKE. THE “RIGHT SIDE” OF THE DIRT BIKE, FOR EXAMPLE, IS THE SIDE WHERE THE RIDER’S RIGHT HAND WILL BE.
- IT IS EASIER TO ASSEMBLE YOUR DIRT BIKE WITH IT PROPPED UPRIGHT ON ITS KICKSTAND. (SECTION 4.3)

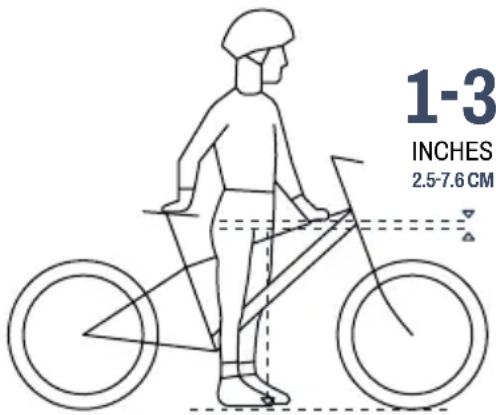

2.2 Rider Suitability
1-3
INCHES 2.5-7.6 CM
For safe and comfortable riding, there should be a clearance of at least 1–3 inches (2.5–7.6 cm) between the crotch and the top tube of the bike frame when the rider straddles the bike with both feet flat on the ground.
2. INSTALLATION INSTRUCTIONS.
EN
2.3 Attaching the Handlebar

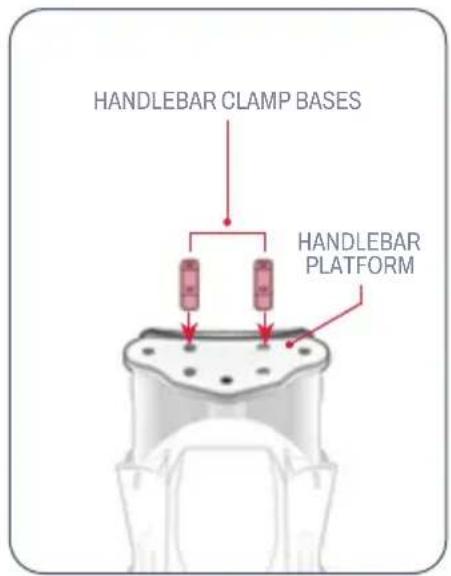

- POSITION THE 2 CLAMP BASES ON THE HANDLEBAR PLATFORM SUCH THAT THE FLAT SIDE IS RESTING ON THE PLATFORM AND THE 2 HOLES IN EACH CLAMP BASE ARE ALIGNED WITH THE 2 HOLES ON EACH SIDE OF THE HANDLEBAR PLATFORM.
-
WITHOUT DISTURBING THE CLAMP BASES, LIFT THE HANDLEBAR ONTO THE BASES SUCH THAT THE FOLLOWING CONDITIONS ARE MET:
-
THE BATTERY CHARGE DISPLAY IS ON THE RIGHT SIDE OF THE DIRT BIKE.
- THE TWO GROOVED AREAS AT THE BOTTOM OF THE HANDLEBAR ARE RESTING IN THE CLAMP BASES.
- HOLDING THE HANDLEBAR IN THAT POSITION, PLACE 1 CLAMP TOP OVER THE GROOVED AREA SUCH THAT THE 2 HOLES IN THE CLAMP TOP ARE ALIGNED WITH THE 2 HOLES IN THE CLAMP BASE.
- INSERT BUT DO NOT FULLY TIGHTEN 1 BOLT INTO EACH SET OF ALIGNED HOLES BY TURNING IT CLOCKWISE WITH THE 6 MM ALLEN KEY.
- REPEAT STEPS 3-4 WITH THE OTHER CLAMP TOP AND REMAINING 2 BOLTS.
- ROTATE THE HANDLEBAR WITHIN THE CLAMP BASES UNTIL IT SITS IN A "U" SHAPE WITH THE HAND GRIPS HIGHER THAN THE CENTER AND IS IDEALLY POSITIONED FOR THE RIDER.
IMPORTANT: THE HANDLEBAR SHOULD BE POSITIONED SUCH THAT THE HANDBRAKE IS EASY FOR THE RIDER TO REACH AND COMPRESS. - FULLY TIGHTEN ALL 4 BOLTS BY TURNING EACH CLOCKWISE WITH THE ALLEN KEY.
- CHECK THAT THE HANDLEBAR IS SECURE.
EN
2.4 Charging the Battery
NOTE: Prior to the first use of this product, charge the battery for 12 HOURS, even if the charging indicator light is illuminated green, indicating that charging is complete.
AFTER THE INITIAL CHARGING SESSION, AND FOR ALL SUBSEQUENT CHARGING SESSIONS, CHARGE THE BATTERY UNTIL IT REACHES FULL CHARGE. FOR A FULLY DEPLETED BATTERY, THAT TAKES ABOUT 4 HOURS.
- PULL OPEN THE CHARGING PORT COVER ON YOUR PRODUCT.
- PLUG THE CHARGER INTO THE WALL, AND THEN PLUG THE CHARGER CORD INTO THE CHARGING PORT.
- WHEN THE INDICATOR LIGHT ON THE CHARGER CHANGES FROM RED TO GREEN, YOUR BATTERY HAS REACHED FULL CHARGE. REMOVE THE CHARGER CORD FROM THE CHARGING PORT AND UNPLUG THE CHARGER FROM THE WALL OUTLET.
- CLOSE THE CHARGING PORT COVER.
CHARGING INDICATOR LIGHT ON THE CHARGER:
RED ILLUMINATION CHARGING CHARGING
GREEN ILLUMINATION COMPLETE
Important Charging Notes
- ALWAYS KEEP THE CHARGING PORT CLOSED WHEN NOT ACTIVELY CHARGING THE BATTERY.
- NEVER TURN ON THE PRODUCT WHILE IT IS CHARGING.
- DO NOT USE RELOCATABLE POWER TAPS.
• FOR BEST BATTERY HEALTH, CHARGE THE BATTERY FULLY DURING EACH CHARGING SESSION—ABOUT 4 HOURS. - NEVER LEAVE YOUR PRODUCT CHARGING OVERNIGHT OR FOR EXTENDED PERIODS OF TIME.
-DO NOT ATTEMPT TO REMOVE OR DISASSEMBLE THE BATTERY. - CHARGING AMBIENT TEMPERATURE RANGE: 32°F (0°C) - 104°F (40°C)
• OPERATING AMBIENT TEMPERATURE RANGE: 14°F(-10°C)-104°F(40°C) - ALWAYS KEEP THE CHARGING PORT COVER CLOSED WHEN NOT ACTIVELY CHARGING THE PRODUCT.
- DO NOT USE THIS PRODUCT IF THE FLEXIBLE POWER CORD OR OUTPUT CABLE IS FRAYED, HAS BROKEN INSULATION, OR ANY OTHER SIGNS OF DAMAGE.
- CHECK THAT THE CHARGER MODEL NUMBER ON THE CHARGER LABEL MATCHES THE CHARGER MODEL NUMBER LISTED ABOVE.
- CHECK THAT THE CHARGER LABEL IDENTIFIES THE CHARGER AS COMPATIBLE WITH YOUR JETSON MODEL. YOU CAN FIND YOUR JETSON MODEL'S NAME AND SKU ON A LABEL ADHERED TO THE TOP, SIDE, OR UNDERSIDE OF THE PRODUCT'S FRAME OR STANDING DECK.
IMPORTANT:
ONLY USE THE INCLUDED CHARGER OR ONE OBTAINED DIRECTLY THROUGH JETSON (JETSON MODEL NO. PJKDB24-CH, PJKDB24-CH-3) LABELED WITH CP4210 MADE BY COMING DATA OR LABELED WITH FY0424201000 MADE BY FUYUANDIAN POWER CO. LTD.
WARNING: FAILURE TO USE CORRECT CHARGER CAN RESULT IN FIRE AND EXPLOSION, RESULTING IN PROPERTY DAMAGE, INJURY, AND DEATH.
THIS IS AN EXAMPLE OF THE MARKING YOUR CHARGER WILL HAVE.
EN
3. PREPARING TO RIDE.
3.1 Pre-Ride Safety Checks
CONDUCT THESE IMPORTANT SAFETY CHECKS BEFORE EVERY JOURNEY:
Brake
- MAKE SURE THE BRAKE WORKS PROPERLY SUCH THAT THE HANDBRAKE LEVER IS SECURED TO THE HANDLEBAR AND LUBRICATED SO IT COMPRESSES EASILY. - THE BRAKE SMOOTHLY AND SAFELY BRINGS THE WHEEL TO A STOP WHEN COMPRESSED.
Foot Pegs
- CHECK THAT THE FOOT PEGS ARE SECURELY TIGHTENED TO THE FRAME
Frame & Fork
- CHECK THAT THE FRAME AND THE FORK ARE NOT DAMAGED, BENT, OR BROKEN. - ENSURE THAT THE STEM-TO-FORK BOLT IS NOT OVERTIGHTENED. AN OVERTIGHTENED BOLT CAN LEAD TO A MALFUNCTION THAT PUTS RIDER SAFETY AT RISK. - CHECK THAT THE DRIVE SYSTEM IS IN WORKING ORDER AND SECURELY ATTACHED TO THE FRAME.
Steering
- CHECK THAT THE HANDLEBAR AND WHEEL ROTATE IN ALIGNMENT.
- CHECK THAT THE HANDLEBAR IS SECURED IN POSITION BY THE HANDLEBAR CLAMPS.
Wheels & Tires
- CHECK THAT TIRES DO NOT SHOW SIGNS OF EXCESSIVE WEAR OR ARE DAMAGED.
- MAKE SURE THAT THE TIRES ARE INFLATED TO WITHIN THE RECOMMENDED PRESSURE OF 36 - 40 PSI.
- CHECK THAT THE WHEEL SPOKES ARE NOT BROKEN.
- CHECK THE WHEEL RIMS ARE NOT DAMAGED OR BENT.
- CHECK THAT THE AXLE NUTS ARE TIGHT.
- CHECK THAT THE WHEELS AND TIRES ARE CLEAR OF DEBRIS.
Chain
- CHECK THAT THE CHAIN IS PROPERLY SITUATED AND ROTATES EASILY.
- CHECK THAT THE CHAIN AND CHAIN AREA ARE FREE OF DEBRIS.
3.2 Tire Pressure & Inflation
BEFORE YOUR FIRST RIDE, YOU WILL NEED TO ADD AIR TO THE TIRES TO BRING THEM TO THE RECOMMENDED PRESSURE OF 36-40 PSI (POUNDS PER SQUARE INCH). USE A GAUGE TO CHECK THAT THE TIRE PRESSURE IS AT 36-40 PSI PRIOR TO EVERY RIDE.
TO ADD AIR
- REMOVE THE DUST CAP FROM THE TIRE VALVE ON ONE WHEEL BY TWISTING IT COUNTERCLOCKWISE. SET ASIDE.
- FOLLOW THE MANUFACTURER'S INSTRUCTIONS ON YOUR AIR PUMP TO INSERT AIR INTO THE TIRE. CHECK PERIODICALLY WITH A GAUGE AND CONTINUE ADDING AIR UNTIL YOU REACH 36 - 40 PSI.
- REMOVE THE AIR PUMP FROM THE VALVE AND REPLACE THE DUST CAP BY TWISTING IT CLOCKWISE ONTO THE VALVE.
- REPEAT WITH THE OTHER TIRE.
IMPORTANT: Only use a manual air pump to inflate the tires on your product. Never use an air compressor; doing so may cause the tire tubes to pop.
EN
4. OPERATING & RIDING INSTRUCTIONS.
4.1 Powering On & Off
PRESS AND HOLD THE POWER BUTTON FOR 3 SECONDS TO TURN YOUR DIRT BIKE ON OR OFF.
IMPORTANT POWER NOTES:
• TO PRESERVE BATTERY POWER, ALWAYS REMEMBER TO POWER YOUR DIRT BIKE OFF WHEN MAKING A PIT STOP OR PUTTING IT AWAY FOR THE NIGHT.
- POWER OFF YOUR DIRT BIKE WHEN WALKING WITH IT SO AS NOT TO ENGAGE THE MOTOR BY INADVERTENTLY TWISTING THE ACCELERATION THROTTLE.
NOTE: The dirt bike will automatically power off after 8 minutes without use.
4.2 Activating the Lights
QUICK-PRESS THE LIGHTING BUTTON TO TURN THE LIGHTS ON OR OFF.
4.3 Understanding the Battery Indicator Lights
YOU CAN KEEP TABS ON YOUR BATTERY'S CHARGE LEVEL BY LOOKING TO THE BATTERY CHARGE DISPLAY.
| BATTERY INDICATOR LIGHTS | APPROXIMATE REMAINING CHARGE PERCENTAGE* |
| 4 GREEN LIGHTS | 76 - 100% |
| 3 GREEN LIGHTS | 51 - 75% |
| 2 GREEN LIGHTS | 26 - 50% |
| 1 GREEN LIGHT | <25%Charge your Jetson NOW! |
4.4 Using the Kickstand
TO PROP THE DIRT BIKE UPRIGHT ON THE KICKSTAND, PIVOT THE KICKSTAND DOWN AND GENTLY TILT THE DIRT BIKE ONTO IT. TO RAISE THE KICKSTAND, PIVOT IT BACK UP.
*APPROXIMATION ONLY. MAY VARY BASED ON USE.
IMPORTANT: Always raise the kickstand before riding.
EN
4.5 Riding
TO START AND ACCELERATE: SLOWLY ROTATE THE ACCELERATION THROTTLE TOWARDS YOU.
IMPORTANT: The more you rotate the throttle, the more the motor will engage—and the faster you will travel. To avoid sudden bursts of speed, always rotate the throttle gradually.
TO MAINTAIN SPEED: HOLD THE THROTTLE STEADY.
TO SLOW DOWN: GENTLY EASE UP ON THE THROTTLE.
TO TURN: ROTATE THE HANDLEBAR TO THE LEFT OR RIGHT.
IMPORTANT: Always ride with your feet resting on the foot pegs. Never ride with a dangling off the side of the bike. This product should not be ridden in areas dense pedestrians or on roadways with cars and vehicle traffic.
4.6 Changing Speed Modes
- THERE ARE 3 SPEED MODES, EACH OF WHICH HAS A MAXIMUM SPEED AT WHICH THE DIRT BIKE CAN TRAVEL.
• TO CHANGE SPEED MODES, TOGGLE THE SPEED MODE SWITCH.
4.7 Using the Brake
*WEAR A HELMET, APPROPRIATE CLOTHING, SHOES, AND SAFETY GEAR. AVOID CLOTHING THAT CAN GET CAUGHT INTO OR UNDER THE WHEELS. CLOSED-TOE, FLAT SHOES ARE RECOMMENDED. WEAR AN ASTM F1492 APPROVED HELMET AND PROTECTIVE GEAR TO PREVENT INJURY IN THE EVENT OF AN ACCIDENT.
4.9 Maximizing Speed & Run Time
IN IDEAL CONDITIONS, THE MAXIMUM SPEED THAT CAN BE ACHIEVED IS 14.0 MPH (22.5 KM/H) AND THE MAXIMUM RUN TIME PER BATTERY CHARGE IS 30 MINUTES.
Riding Surface
TRAVELING OVER A ROUGH SURFACE CAUSES FRICTION, WHICH CAN SLOW YOU DOWN AND REQUIRES THE MOTOR TO WORK HARDER, WHICH DRAINS IT FASTER. WHEN POSSIBLE, CHOOSE A SMOOTH RIDING SURFACE.
Carrying Weight
- MORE WEIGHT (RIDER PLUS CARGO) DECREASES ACHIEVABLE RUN TIME.
- MAXIMUM RUN TIME AND SPEED CAN BE ACHIEVED WITH CARRYING WEIGHT OF 140 LB (63.5 KG) OR LESS.
Riding Style
FREQUENT STARTING AND STOPPING WILL REDUCE RUN TIME.
Air Temperature
THE IDEAL TEMPERATURE FOR RIDING AND STORING THE PRODUCT IS BETWEEN 50°F - 75°F (10°C - 23.9°C).
Incline
THE MOTOR HAS TO WORK HARDER TRAVELING UPHILL THAN ON FLAT STRETCHES OR DOWNHILL.
Battery Maintenance
TIMELY BATTERY CHARGING AFTER EVERY RIDE HELPS MAINTAIN BATTERY CAPACITY AND STRENGTH.
Take good care of your Jetson to keep it riding smoothly and safely. Here's how:
Handling Your Jetson
- AVOID EXPOSING YOUR PRODUCT TO SEVERE VIBRATION OR INTENSE PHYSICAL IMPACT.
•NEVER DISASSEMBLE THE BATTERY. - KEEP YOUR PRODUCT AWAY FROM WATER AND MOISTURE.
- RIDE ON SMOOTH, FLAT SURFACES TO AVOID BREAKAGE.
- NEVER CARRY YOUR PRODUCT BY THE WHEELS, SEAT, AND/OR HANDLEBAR.
- TAKE CARE NOT TO PULL OR SNAG THE WIRING CONNECTING THE MOTOR WITH THE HANDLEBAR COMPONENTS.
Storage Instructions
- FULLY CHARGE THE BATTERY BEFORE STORING THE PRODUCT FOR EXTENDED PERIODS OF TIME.
- WHEN IN STORAGE FOR EXTENDED PERIODS OF TIME, FULLY CHARGE THE BATTERY ONCE A MONTH.
•COVER THE PRODUCT TO PROTECT IT AGAINST DUST. - STORE THE PRODUCT INDOORS AND IN A DRY PLACE AT A TEMPERATURE BETWEEN 50°F - 90°F (10°C - 35°C).
CARE &
MAINTENANCE.
EN
Cleaning Your Jetson
- SEAT AND FRAME - WIPE WITH A DAMP DUST-FREE CLOTH OR ONE DIPPED IN RUBBING ALCOHOL. FOLLOW WITH A DRY DUST-FREE CLOTH.
- HANDLEBAR - WIPE DOWN WITH MILD SOAP USING A DAMP DUST-FREE CLOTH. REMOVE EXCESS SOAP WITH A SEPARATE DAMP CLOTH.
•WHEEL COMPONENTS - WIPE WITH A DAMP DUST-FREE CLOTH. - TIRES - WIPE WITH A DAMP DUST-FREE CLOTH. A TIRE FINISHER OR CLEANER CAN ALSO BE USED.
WARNING: Do not spray or apply water directly onto to the product. Water can cause damage to the wiring, battery compartment, and lights, as well as deterioration of the frame—all of which could cause a malfunction that puts rider safety at risk.
Battery Precautions
YOUR PRODUCT HAS A LITHIUM-ION BATTERY. TAKE CARE WHEN HANDLING.
- KEEP PRODUCT AWAY FROM FIRE AND EXCESSIVE HEAT.
- AVOID INTENSE PHYSICAL SHOCK, SEVERE VIBRATION, OR IMPACT.
•PROTECT PRODUCT FROM WATER OR MOISTURE.
• DO NOT PLACE OR STORE PRODUCT IN A PILE ON TOPOF OR UNDERNEATH OTHER OBJECTS.
•DO NOT DISASSEMBLE THE PRODUCT OR ITS BATTERY - DO NOT DISPOSE OF PRODUCT WITH EVERYDAY TRASH. BRING PRODUCT TO A DEDICATED E-WASTE FACILITY OR BATTERY RECYCLING CENTER. FOR MORE INFORMATION ON DISPOSAL SITES NEAR YOU, CONTACT YOUR LOCAL MUNICIPALITY OR WASTE HAULER.
- SHOULD THE PRODUCT'S BATTERY FEEL HOT OR EXHIBIT SIGNS OF OVERHEATING, EMIT AN ODOR OR UNUSUAL SOUND, LEAK FLUID OR GAS, OR CHANGE IN SHAPE OR COLOR, IMMEDIATELY:
- IF IN USE, STOP USING THE PRODUCT IMMEDIATELY. REMOVE THE CHARGING CABLE FROM THE PRODUCT IF IT IS PLUGGED IN.
- DISCONTINUE USE OF THE PRODUCT.
- IF SAFE TO DO SO, MOVE THE PRODUCT INTO A CLEAR SPACE AND AWAY FROM ANYTHING FLAMMABLE.
- CALL YOUR LOCAL EMERGENCY SERVICES FOR ASSISTANCE.
- THOROUGHLY WASH EYES OR AREAS OF SKIN THAT HAVE COME IN CONTACT WITH LEAKING BATTERY ELECTROLYTE FLUID WITH CLEAN RUNNING WATER AND SEEK ADDITIONAL MEDICAL ATTENTION.
- IF THERE ARE ANY ISSUES WITH THE BATTERY, CONTACT THE JETSON CARE TEAM.
CONNECT WITH US.
RIDEJETSON.COM/SUPPORT RIDEJETSON.COM/CHAT
1-844-585-7462
Be sure to follow @ridejetson on social media to learn about fantastic offers, giveaways, and all the latest Jetson news.
LOVING YOUR RIDE?
Leave a review at
ridejetson.com/reviews.
We can't wait to hear from you!
MakeMoves
EN
UNA GUÍA PARA TU VIAJE.
IMPORTANTE:
Lea atentamente y conserve
•DIMENSIONES DEL PRODUCTO:
43.3 PU (LARGO) × 23,6 PU (ANCHO) × 27,5 PU (ALTO)
110 CM (LARGO) × 60 CM (ANCHO) × 69,8 CM (ALTO)
-ALTURA DEL MANILLAR: 31.5 PU | 80 CM
•ALTURA DEL ASIENTO: 21.1 PU | 53.4 CM
•PESO DEL PRODUCTO: 39,4 LB | 17,8 KG
•TAMAÑO DEL NEUMÁTICO: 12 IN | 30,5 CM
-TIPO DE FRENO: FRENO DE MANO
•LÍMITE DE PESO: 140 LB | 63.5 KG
•EDAD RECOMENDADA: 13+
- VELOCIDAD MÁXIMA: 14 MPH* | 22,5 KM/H*
ridejetson.com/reviews.
https://cdn.shopify.com/s/
files/1/2530/6734/files/HORIZON-MANUAL
WEB-1748615957147.pdf
ridejetson.com/reviews.
·产品尺寸：
扫描我们的最
更新产品
入职材料
和支持资源。
在线查找本用户手册，请访问
https://cdn.shopify.com/s/
files/1/2530/6734/files/HORIZON-
MANUAL_WEB-1748615957147.pdf
请访问
https://ridejetson.com/pages/
product-manuals
查找我们收集的用户手册。
2.1 使用前注意事项
ridejetson.com/reviews.
我们迫不及待地想收到您的来信！
MakeMoves
CN
라이딩을 위한 가이드.
중요:
주의 깊게 읽고 보관하세요
나중에 참조할 수 있습니다.
JETSON
HORIZON
전기 흙 자전거.
모델 SKU(S): JKDB24-BB | JKDB24-BLK
상위두 가지 라이딩 규칙:
안전하세요. 즐거운 시간 보내세요!
태국 사무트 프라칸에서 제조
트루라이드 테크 LLC에서 수입.
PO BOX 461, JERSEY CITY, NJ 07302-9998
날짜 코드: 08/2025
문서 버전: V2.1
태국산
43.3인치(L) × 23.6인치(W) × 27.5인치(H) |
110CM(L) × 60CM(W) × 69.8CM(H)
·핸들바 높이:31.5인치|80CM
가장 많이 검색한
제품 업데이트
온보딩 자료
및 지원 리소스를
참조하세요.
이 사용 설명서는 온라인
https://cdn.shopify.com/s/
files/1/2530/6734/files/HORIZON-
MANUAL_WEB-1748615957147.pdf)
에서 확인할 수 있습니다
사용자 설명서 모음은
https://ridejetson.com/pages/product-
manuals
에서 확인하세요
2.1 시작 노트
ridejetson.com/reviews.
여러분의 의견을 기다리겠습니다!
MakeMoves
KOR
WYPRODUKOWANO W SAMUT PRAKARN, TAJLANDIA
IMPORTOWANE PRZEZ TRURIDE TECH LLC.
PO BOX 461, JERSEY CITY, NJ 07302-9998
KOD DATY: 08/2025
DOCUMENT EDITION: V2.1
WYPRODUKOWANO W TAJLANDII
© 2025, TRURIDE TECH. WSZELKIE PRAWA ZASTRZEŻONE. WYPRODUKOWANO DLA TRURIDE TECH LLC.
JETSON® JEST ZASTRZEŻONYM ZNAKIEM TOWAROWYM UŻYWANYM NA LICENCJI JETSTREAM BRANDS LLC.
ŻADNA CZĘŚĆ NINIEJSZEGO DOKUMENTU, W TYM KSZTAŁT, GRAFIKA I PROJEKT, NIE MOŻE BYĆ POWIELANA
ANI PRZESYŁANA W JAKIEJKOLWIEK FORMIE LUB W JAKIKOLWIEK SPOSÓB.
Zawartość
GWARANCJA I REJESTRACJA PRODUKTU.
43.3 IN (L) × 23.6 IN (W) × 27.5 IN (H)
110 CM (L) × 60 CM (W) × 69.8 CM (H)
-WYSOKOŚĆ KIEROWNICY: 31,5 CALA | 80 CM
•WYSOKOŚĆ SIEDZISKA: 21,1 CALA | 53,4 CM
•WAGA PRODUKTU: 39,4 LB | 17,8 KG
•ROZMIAR OPONY: 12 CALI | 30,5 CM
-TYP HAMULCA: HAMULEC RĘCZNY
•LIMIT WAGI: 140 FUNTÓW | 63,5 KG
• ZALECANY WIEK: 13+
•PŘEDKOŚĆ MAKSYMALNA: 14 MPH* | 22,5 KM/H*
•MAKSYMALNY CZAS PRACY: 30 MINUT*
-CZAS LADOWANIA: DO 4 GODZIN
• ZALECANE CIŚNIENIE W OPONACH: 36-40 PSI
•WODOODPORNOŚĆ: IPX4
• CERTYFIKAT UL: UL2271
-ŁADOWARKA: UL LISTED, 42V 1.0A
*CZAS PRACY PRODUKTU, PREDKOŚĆ, ŻYWOTNOŚĆ BATERII I INNE SPECYFIKACJE MOGA SIE ROŻNIĆ W ZALEŻNOŚCI OD WARUNKÓW JAZDY. WIĘCEJ INFORMACJI NA TEMAT WARUNKÓW, KTORE MOGA WPŁYWĄC NA WYDAJNOŚĆ, ZNAJDUJE SIE W SEKCJI 4.9.
- OBRÓĆ KIEROWNICE W PODSTAWIE ZACISKU, AŻ UŁOŻY SIĘ W KSZTAŁT LITERY "U" Z UCHWYTAMI DŁONI WYŻEJ NIZ ŚRODEK I BĘDZIE IDEALNIE USTAWIONA DLA ROWERZYSTY. WAŻNE: KIEROWNICA POWINNA BYĆ USTAWIONA W TAKI SPOSÓB, ABY KIEROWCA MÓGŁ ŁATWO DOSIĘGNAĆ I NACISNAĆ HAMULEC RĘCZNY.
- CAŁKOWICIE DOKREĆ WSZYSTKIE 4 ŚRUBY, OBRACAJĄC KAZDĄ Z NICH ZGODNIE Z RUCHEM WSKAZÓWEK ZEGARA ZA POMOCĄ KLUCZA IMBUSOWĘGO.
- SPRAWDŹ, CZY KIEROWNICA JEST DOBRZE ZAMOCOWANA.
PLK
ridejetson.com/reviews.
- Do not carry items when riding.
43.3 IN (L) × 23.6 IN (W) × 27.5 IN (H) |
110 CM (L) × 60 CM (W) × 69.8 CM (H)
-HAUTEUR DU GUIDON : 31.5 IN | 80 CM
•HAUTEUR D'ASSISE : 21.1 IN | 53.4 CM
•POIDS DU PRODUIT : 39.4 LB | 17.8 KG
•TAILLE DU PNEU : 12 IN | 30.5 CM
-TYPE DE FREIN : FREIN À MAIN
• LIMITE DE POIDS : 140 LB | 63,5 KG
-ÂGE RECOMMANDÉ : 13+
•VITESSE MAXIMALE : 14 MPH* | 22.5 KM/H*
•MAX DURÉE DE FONCTIONNEMENT : 30 MINS.*
-TEMPS DE CHARGE : JUSQU'À 4 HEURES
-PRESSION RECOMMANDÉE POUR LES PNEUS : 36-40 PSI
https://ridejetson.com/pages/product-manuals
2.1 Notes de départ
•COMMENCEZ VOTRE AVENTURE DU BON PIED. AVANT D'UTILISER CE PRODUIT, LISEZ ATTENTIVEMENT L'INTÉGRALITÉ DU MANUEL D'UTILISATION, Y COMPRIS LES AVERTISSEMENTS DE SÉCURITÉ. ASSUREZ-VOUS DE COMPRENDRE, D'ACCEPTER ET DE RESPECTER :
•RECOMMANDATIONS DU FABRICANT.
- CONSIGNES ET AVERTISSEMENTS DE SÉCURITÉ.
- LOIS ET ORDONNANCES LOCALES RELATIVES À LA CONDUITE ET À L'EXPLOITATION.
- RETIREZ TOUS LES ÉLÉMENTS D'EMBALLAGE PROTECTEURS AVANT DE COMMENCER L'ASSEMBLAGE.
- LES INSTRUCTIONS DONNÉES DANS CE MANUEL (DROITE, GAUCHE, AVANT/AVANT ET ARRIÈRE/ARRIÈRE) SONT ORIENTÉES DE LA MANIÈRE DONT LE PILOTE LES VERRAIT ASSIS SUR LA MOTO. LE « CÔTÉ DROIT » DE LA MOTO, PAR EXEMPLE, CORRESPOND AU CÔTÉ OÙ SE TROUVE LA MAIN DROITE DU PILOTE.
- IL EST PLUS FACILE D'ASSEMBLER VOTRE MOTO EN LA TENANT DEBOUT SUR SA BÉQUILLE. (SECTION 4.3)
CONNECTEZ-VOUS AVEC NOUS.
RIDEJETSON.COM/SUPPORT RIDEJETSON.COM/CHAT
1-844-585-7462
ridejetson.com/reviews.
110 CM (L) × 60 CM (W) × 69.8 CM (H)
•ALTEZZA DEL MANUBRIO: 31,5 IN | 80 CM
•ALTEZZA DELLA SEDUTA: 21,1 IN | 53,4 CM
•PESO DEL PRODOTTO: 39,4 LB | 17,8 KG
•DIMENSIONE DEL PNEUMATICO: 12 IN | 30,5 CM
• TIPO DI FRENO: FRENO A MANO
•LIMITE DI PESO: 140 LB | 63,5 KG
• ETÀ CONSIGLIATA: 13+
• VELOCITÀ MASSIMA: 14 MPH* | 22,5 KM/H*
| MODO 3MODO | ||
| FINO A 5,0 MPH(8,0 KM/H) | FINO A 7,5 MPH(12,1 KM/H) | FINO A 14,0 MPH(22,5 KM/H) |
4.7 Uso del freno
- PREMERE DELICATAMENTE IL FRENO A MANO PER RALLENTARE
-STRINGERE CON PIÙ FORZA PER FERMARSI COMPLETAMENTE. - PER EVITARE MOVIMENTI BRUSCHI, CERCATE DI PREMERE IL FRENO A MANO GRADUALMENTE.
SKU(S): JKDB24-BB | JKDB24-BLK 7v7n0
GK L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N L K N
• Use for all except the long world. Use all right international investors.
FCC 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100
1796 J) TSON is not to be a person who is, but it's not to be a person who is, but it's not to be a person who is, but it's not to be a person who is, but it's not to be a person who is, but it's not to be a person who is, but it's not to be a person who is, but it's not to be a person who is, but it's not to be a person who is, but it's not to be a person who is, but it's
.RIDEJETSON.COM/WARRANTY
1.3
https://cdn.shopify.com/s/
files/1/2530/6734/files/HORIZON-MANUAL_
WEB-1748615957147.pdf
https://ridejetson.com/pages/product-manuals
• Industry sector industry.
.2
.
- Let us you have to be a man who is going to me, and let you go to me, and let you go to me, and let you go to me, and let you go to me, and let you go to me, and let you go to me, and let you go to me, and let you go to me, and let you go to me, and let you go to me, and let you go to me, and let you go to me, and let you go to me, and let you go to me, and let you go to Me
- 1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.100
• Sele, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron, Toron
X P'X DXT
הכלה
תְרָה בּוֹת
[Unreadable]
תְרָה בַרִי אַשׁ
.12. 70. 69.
.3
• Among the 100% of the 100% of the 100% of the 100% of the 100% of the 100% of the 100% of the 100% of the 100% of the 100% of the 100% of the 100% of the 100% of the 100% of the 100% of the
.י physics is a good way to be the world
תְרָה בַרִי אַלְאָה
•秘书 Linux Vision, CEO's email client is legal.
- transvers. - transvers. transvers.
ridejetson@ jetsos, n is not in jetsos, n is not in jetsos, n is not in jetsos, n is not in jetsos, n is not in jetsos, n is not in jetsos, n is not in jetsos, n is not in jetsos, n is not in
תְרָה בְּרָה בְּרָה
.ridejetson.com/reviews
80.0 इएचि (ले) × 20.6 इएचि (ले) × 29.5 इएचि (ले) |
https://cdn.shopify.com/s/
files/1/2530/6734/files/HORIZON-
MANUAL_WEB-1748615957147.pdf
https://ridejetson.com/pages/
product-manuals
BN
২.১ শুরুর লোট
ridejetson.com/reviews.
- VALV KAWOTCHOU AK BOUCHON POUSYÈ
( × 2; DEVAN AK DÉYÈ)
- PYE FLEXIBLE
(×2; AGOCH AK ADWAT)
-
SIPÒ
-
CHÈN
-
ABSÔBE CHÒK
-
SYÈJ
-
LIMYÈ ANKADREMAN
-
PÒ CHAJE AK KOUVÈTI
-
CHANJMAN MÒD VITÈS
-
BOUTON EKLERAJ
-
FREN MEN
-
EKSPOZISYON CHAJ BATRI A
-
AKSELERASYON AKSELERATÈ
-
BOUTON POUVWA
-
CHARGEUR
Zouti, pyès ki nan konpitè, ak pyès ki enkli pou asanblaj, ajisteman, ak antretyen:
KLE ALLEN 6MM BOULON (×4)
KLIPS TÊT (×2)BAZ KRANPON (×2)
REMAK: IMAJ YO KA PA REFLETE APARANS EGZAK PWODWI REYÈL LA. *PA PRE-TACHE; LI MANDE ASANBLAJ.
HC
43.3 POUS (LONGÈ) × 23.6 POUS (LAJÈ) × 27.5 POUS (WOTÈ) |
110 CM (LONGÈ) × 60 CM (LAJÈ) × 69.8 CM (WOTÈ)
-WOTÈ GIDON: 80 CM
•WOTÈ CHÉZ: 21.1 POUS | 53.4 CM
•PWA PWODWI: 39.4 LIV | 17.8 KG
•GWOSÈ KAWOTCHOU: 12 POUS | 30.5 CM
-KALITE FREN: FREN MEN
•LIMIT PWA: 140 LB | 63.5 KG
• LAJ REKÒMANDE: 13+
•VITÈS MAKSIMÒM: 22.5 KM/H* | 22.5 KM/H*
•TAN MAKSIMÒM POU KOURI: 30 MINIT*
-TAN CHAJE: JISKA 4 ÉDTAN
•PRESYON KAWOTCHOU REKÒMANDE: 36-40 PSI
•EVALYASYON REZISTANS DLO: IPX4
•SÈTIFIKASYON UL: UL2271
-CHARGEUR: UL LISTED, 42V 1.0A
*TAN FONKSYÒNMAN PWODWI A, VITÈS, DIRE LAVI BATRI, AK LÒT ESPESIFIKASYON YO KA VARYE ŠELON ŠIKLIS LA AK KONDISYON MONTE A. GADE SEKSYON 4.9 POU PLIS DETAY SOU KONDISYON KI KA AFEKTE PÉFOMANS.
1.3 Resous sou Entènèt1.2 Espesifikasy
Eskane pou pi bon nou yo pwodwi mete ajou materyèl entegrasyon ak resous sipò.
Jwenn manyèl utilizatè sa a sou entènèt nan https://cdn.shopify.com/s/files/1/2530/6734/files/HORIZON-MANUAL_WEB-1748615957147.pdf
Jwenn koleksyon manyèl utilizatè nou yo nan https://ridejetson.com/pages/product-manuals
HC
2.1 Nôt pou kòmanse
- KÔMANSE AVANTI OU BYEN. ANVAN OU ITILIZE PWODUI SA A, LI TOUT MANYÈL ITILIZATÈ A AVÈK ATANSYON, KI GEN LADAN AVÈTISMAN SEKIRITE YO. ASIRE W OU KONPRANN, AKSEPTE, EPI RESPEKTE TOUT BAGAY SA YO:
- REKÒMANDASYON MANIFAKTI A.
•ENSTRIKSYON AK AVÈTISMAN SEKIRITE.
• LWA AK ÓDONANS LOKAL YO SOU MONTE BISIKLÈT AK FONKSYÒNMAN.
- RETIRE TOUT MOSO ANBALAJ PWOTEKSYON YO ANVAN OU KÒMANSE ASANBLAJ LA.
- DIREKSYON YO BAY NAN MANYÈL SA A—ADWAT, AGOCH, DEVAN/DEVAN, AK DÈYÈ/DÈYÈ—ORYANTE JAN SIKLIS LA TA WÈ YO LÈ L CHITA SOU MOTOSIKLÈT TÈ A. PA EGZANP, "BÒ DWAT" MOTOSIKLÈT TÈ A SE BÒ KOTE MEN DWAT SIKLIS LA PRAL YE A.
• LI PI FASIL POU RASANBLE MOTOSIKLÈT OU A LÈ LI KANPE DWAT SOU SIPÒ LI. (SEKSYON 4.3)
•TCHEKE KE TIJ PYE YO BYEN SERE SOU ANKADREMAN AN
Ankadreman ak fouchèt
• TCHEKE KE ANKADREMAN AN AK FOUCHÈT LA PA DOMAJE, PLIYE, OSWA KASE.
- ASIRE W KE BOULON KI KONEKTE TIJ LA AK FOUCHÈT LA PA TWÒ SERE. YON BOULON KI TWÒ SERE KA LAKÒZ YON FONKSYÒNMAN KI METE SEKIRITE SIKLIS LA AN DANJE.
- TCHEKE SISTÈM TRANSMISYON AN AP FONKSYONE BYEN EPI LI BYEN TACHE AK ANKADREMAN AN.
Volan
•TCHEKE KE GIDON AN AK WOU A AP VIRE NAN ALIYMAN.
•TCHEKE SI GIDON AN BYEN FIKSE NAN PLAS LI AK KRANPON GIDON YO.
Rou ak Kawotchou
• TCHEKE KAWOTCHOU YO POU WÈ SI YO PA TWÒ ITILIZE OUBYEN SI YO DOMAJE.
- ASIRE W KE KAWOTCHOU YO GONFLE NAN LIMIT PRESYON REKÒMANDE A 36 - 40 PSI.
•TCHEKE KE REYON WOU YO PA KASE.
•TCHEKE JANT WOU YO PA DOMAJE OSWA PLIYE.
•TCHEKE KE NWA AKS YO SERE.
•TCHEKE POU WÈ SI WOU YO AK KAWOTCHOU YO PA GEN OKENN DEBRI.
Chèn
•TCHEKE SI CHÊN LAN BYEN PLASE EPI LI KA VIRE FASILMAN.
• TCHEKE KE CHÊN LAN AK ZÔN CHÊN LAN PA GEN DEBRI.
3.2 Presyon ak Gonflasyon Kawotchou
ANVAN PREMYE WOULIB OU A, OU PRAL BEZWEN AJOUTE LÈ NAN KAWOTCHOU YO POU YO RIVE NAN PRESYON REKÒMANDE A. 36 - 40 PSI (LIV PA POUS KARE). SÈVI AK YON KALIB POU VERIFYE SI PRESYON KAWOTCHOU A SE 36-40 PSI ANVAN CHAK WOULIB.
POU AJOUTE LÈ
- RETIRE BOUCHON PWOTEKSYON AN NAN VALV KAWOTCHOU A SOU YON WOU LÈ W VIRE L NAN SANS KONTRÈ ZEGWI MONT LAN. METE L SOU KOTE.
- SWIV ENSTRIKSYON MANIFAKTI A SOU PONP LÈ A POU METE LÈ NAN KAWOTCHOU A. TCHEKE DETANZANTAN AVÈK YON KALIB EPI KONTINYE AJOUTE LÈ JISKASKE OU RIVE NAN 36 - 40 PSI.
- RETIRE PONP LÈ A NAN VALV LA EPI REMETE BOUCHON POUSYÈ A LÈ W VIRE L NAN SANS ZEGWI MONT LAN SOU VALV LA.
- REPETE AK LÔT KAWOTCHOU A.
ENPÔTAN: Sèlman sèvi ak yon ponp lè manyèl pou gonfle kawotchou pwodwi w la. Pa janm sèvi ak yon konpresè lè; si w fè sa, chanm kawotchou o ka pete.
HC
4. OPERASYON & MONTE BISIKLÈT ENSTRIKSYON.
4.1 Limen ak Etenn
PEZE EPI KENBE BOUTON POUVWA A PANDAN 3 SEGONN POU LIMEN OSWA ETENN MOTOSIKLÈT OU A.
NÔT ENPÔTAN SOU POUVWA A:
- POU KONSÈVE BATRI A, TOUJOU SONJE ETENN MOTOSIKLÈT OU A LÈ W AP FÈ YON ARÈ NAN PIT OUBYEN LÈ W AP METE L KOTE POU PASE NWIT LAN.
- ETENN MOTOSIKLÈT OU A LÈ W AP MACHE AVÈ L POU OU PA ANGAJE MOTÈ A LÈ W VIRE AKSELERATÈ A SAN W PA FÈ ESPRE.
NOT: Motosiklèt tè a ap etenn otomatikman apre 8 minit san itilizasyon.
4.2 Aktive Limyè yo
PEZE BOUTON EKLERAJ LA RAPIDMAN POU LIMEN OSWA ETENN LIMYÈ YO.
HC
4.3 Konprann Limyè Endikatè Batri yo
OU KA KONTWOLE NIVO CHAJ BATRI OU A LÈ W GADE EKRAN CHAJ BATRI A.
| BATRI ENDIKATÈ LIMYÈ | POUSANTAJ CHAJ KI RETE APWOKSIMATIF* |
| 4 VÈT LIMYÈ | 76 - 100% |
| 3 VÈT LIMYÈ | 51 - 75% |
| 2 VÈT LIMYÈ | 26 - 50% |
| 1 VÈT LIMYÈ | <25% Chaje Jetson ou KOUNYE A! |
VWAYAJE SOU YON SIFAS KI PA LIS LAKÓZ FRIKSYON, SA KI KA RALANTI W EPI KI EGZIJE POU MOTÈ A TRAVAY PI RÈD, SA KI DECHAJE L PI VIT. LÈ SA POSIB, CHWAZI YON SIFAS KI LIS POU W MONTE.
Pote Pwa
• PLIS PWA (KAVALYE PLIS KAGO) DIMINYE TAN KOURI KI KA REYALIZE.
- OU KA ATENN TAN AK VITÈS MAKSIMÒM LÈ W POTE YON PWA 140 LB (63.5 KG) OSWA MWENS.
Stil Monte
DEMARAJ AK ARÈ SOUVAN AP DIMINYE TAN FONKSYÒNMAN.
Tanperati lè a
TANPERATI IDEYAL POU MONTE EPI ESTOKE PWODWI A SE ANT 50°F - 75°F (10°C - 23.9°C).
Pant
MOTÈ A DWE TRAVAY PI RÈD LÈ W AP MONTE YON MÒN PASE SOU TEREN PLAT OSWA DESANN.
Antretyen Batri
CHAJE BATRI A ALÈ APRE CHAK WOULIB EDE KENBE KAPASITE AK FÓS BATRI A.
Pran swen Jetson ou a pou l ka kontinye woule san pwoblèm epi an sekirite. Men kijan pou fè sa:
Manyen Jetson ou a
• EVITE EKSPOZE PWODWI OU A GWO VIBRASYON OSWA ENPAKFIZIK ENTANS.
• PA JANM DEMONTE BATRIA.
• KENBE PWODWI OU LWEN DLO AK IMIDITE.
•MONTE SOU SIFAS KI LIS E PLAT POU EVITE LI KRAZE.
• PA JANM POTE PWODWI OU A NAN WOU YO, CHÈZ LA, AK/OSWA GIDON AN.
- FÈ ATANSYON POU OU PA RALE OSWA BLOKE FIL ELEKTRIK KI KONEKTE MOTÈ A AK KONPOZAN GIDON AN.
Enstriksyon Depo
- CHAJE BATRI A NÈT ANVAN OU SERE PWODWI A POU YON BON BOUT TAN.
• LÈ W AP SERE L POU YON BON BOUT TAN, CHAJE BATRI A NÈT YON FWA PA MWA.
•KOUVRI PWODWI A POU PWOTEJE L KONT POUSYÈ. - SERE PWODWI A ANDEDAN KAY LA NAN YON KOTE KI SÈK NAN YON TANPERATI ANT 50°F - 90°F (10°C - 35°C).
SWEN AK ANTRETYEN.
Netwaye Jetson ou a
- SYÈJ AK ANKADREMAN - SIYE AK YON TWAL MOUYE KI PA GEN POUSYÈ OSWA YOUN KI TRANPE NAN ALKÒL. SWIV AK YON TWAL SÈK KI PA GEN POUSYÈ.
- GIDON - SIYE AK YON SAVON DOU AVÈK YON TWAL MOUYE KI PA GEN POUSYÈ. RETIRE SAVON ANPLIS LA AVÈK YON LÔT TWAL MOUYE.
• KONPOZAN WOU YO - SIYE AK YON TWAL MOUYE KI PA GEN POUSYÈ. - KAWOTCHOU - SIYE AK YON TWAL MOUYE KI PA GEN POUSYÈ. OU KA ITILIZE YON PWODUI POU FINI OSWA NETWAYE KAWOTCHOU TOU.
AVÉTISMAN: Pa flite oswa aplike dlo dirèkteman sou pwodwi a. Dlo ka domaje fil elektrik yo, konpatiman batri a, ak limyè yo, epitou ka deteryore chasi a—tout bagay sa yo ka lakòz yon fonksyònman ki ka mete sekirite siklis la an danje.
Prekosyon pou batri
PWODUI OU A GEN YON PIL ITYÒM-ION. FÈ ATANSYON LÈ W AP MANYEN L.
• KENBE PWODWI A LWEN DIFE AK CHALÈ TWÒP.
• EVITE GWO CHÒK FIZIK, GWO VIBRASYON, OSWA ENPAK.
•PWOTEJE PWODWI A KONT DLO OSWA IMIDITE.
• PA METE OSWA SERE PWODWI A AN PIL SOU OSWA ANBA LÔT OBJÈ.
• PA DEMONTE PWODWI A OSWA BATRI LI.
- PA JETE PWODWI A NAN FATRA ÒDINÈ. POTE PWODWI A NAN YON SANT ESPESYAL POU FATRA ELEKTWONIK OSWA YON SANT RESIKLAJ PIL. POU PLIS ENFÒMASYON SOU SIT JETE FATRA KI TOUPRE W LA, KONTAKTE MINISIPALITE LOKAL OU A OSWA YON KONPAYI KI RANMASE FATRA.
- SI BATRI PWODWI A CHO OSWA LI MONTRE SIY SURCHOF, LI DEGAJE YON ODÈ OSWA YON SON DWÒL, LI GEN YON KOULE LIKID OSWA GAZ, OSWA LI CHANJE FÒM OSWA KOULÈ, IMEDYATMAN:
1. SI W AP ITILIZE PWODWI A, SISPANN ITILIZE LI IMEDYATMAN. RETIRE KAB CHAJE A NAN PWODWI A SI LI BRANCHE.
2. SISPANN SÈVI AK PWODWI A.
3. SI LI AN SEKIRITE POU FÈ SA, DEPLASE PWODWI A NAN YON ESPAS VID EPI LWEN NENPÒT BAGAY KI KA PRAN DIFE.
4. RELE SÈVIS IJANS LOKAL OU A POU JWENN ASISTANS.
5. LAVE JE YO OSWA ZÒN PO KI TE AN KONTAK AK LIKID ELEKTWOLIT BATRI A KI AP KOULE A BYEN AVÈK DLO PWÒP K AP KOULE EPI CHÈCHE SWEN MEDIKAL ADISYONËL.
•SI GEN NENPÒT PWOBLÈM AK BATRIA, KONTAKTE EKIP SWEN JETSON AN.
KQNEKTE AVEK NOU.
RIDEJETSON.COM/SIPÒ RIDEJETSON.COM/CHAT
1-844-585-7462
Pa bliye swiv @ridejetson sou rezo
sosyal yo pou w aprann sou òf
fantastik, kado, ak tout dènye nouvel
Jetson yo.
OU RENMEN WOULIB OU A?
ridejetson.com/reviews.
Nou pa ka tann pou nou tande nouvèl ou!
MakeMoves
HC
(40°C (104°F) (C (14°F)
وَثْ لِيْت سَى جوژیس جس سَى رسیور جزا بوا بَى.
https://ridejetson.com/pages/product-manuals
ridejetson.com/reviews.
إِم آپ سى سنى كا انتظار نەپين کر سكتى
MakeMoves
UR
- A GUIDE FOR YOUR RIDE.
- OUR TOP TWO RIDING RULES:
- BE SAFE, HAVE FUN!
- Contents
- Safety Warnings 4
- Warranty Coverage & Product Registration .....7
- About Your Product
- Installation Instructions
- Preparing to Ride
- Operating & Riding Instructions
- Care & Maintenance 23
- Connect With Us....25
- SAFETY WARNINGS.
- INSTRUCTIONS ON THE RISK OF FIRE OR INJURY TO PERSONS AND IMPORTANT SAFETY INSTRUCTIONS
- MODIFICATIONS
- ADDITIONAL OPERATION PRECAUTIONS
- DISPOSAL OF USED BATTERY
- NOTICE OF COMPLIANCE
- WARNING:
- IMPORTANT SAFETY INSTRUCTIONS
- CALIFORNIA PROPOSITION 65
- GENERAL LIMITED WARRANTY
- PRODUCT REGISTRATION
- WARRANTY COVERAGE & PRODUCT REGISTRATION.
- ABOUT YOUR PRODUCT.
- Product Overview
- Online Resources1.2 Product Specs
- Starting Notes
- Rider Suitability
- 1-3
- INSTALLATION INSTRUCTIONS.
- Attaching the Handlebar
- Charging the Battery
- AFTER THE INITIAL CHARGING SESSION, AND FOR ALL SUBSEQUENT CHARGING SESSIONS, CHARGE THE BATTERY UNTIL IT REACHES FULL CHARGE. FOR A FULLY DEPLETED BATTERY, THAT TAKES ABOUT 4 HOURS.
- CHARGING INDICATOR LIGHT ON THE CHARGER:
- Important Charging Notes
- IMPORTANT:
- PREPARING TO RIDE.
- Pre-Ride Safety Checks
- Brake
- Foot Pegs
- Frame & Fork
- Steering
- Wheels & Tires
- Chain
- Tire Pressure & Inflation
- TO ADD AIR
- OPERATING & RIDING INSTRUCTIONS.
- Powering On & Off
- IMPORTANT POWER NOTES:
- Activating the Lights
- Understanding the Battery Indicator Lights
- Riding
- Changing Speed Modes
- Using the Brake
- Maximizing Speed & Run Time
- Riding Surface
- Carrying Weight
- Riding Style
- Air Temperature
- Incline
- Battery Maintenance
- Take good care of your Jetson to keep it riding smoothly and safely. Here's how:
- Handling Your Jetson
- Storage Instructions
- CARE &
- MAINTENANCE.
- Cleaning Your Jetson
- Battery Precautions
- CONNECT WITH US.
- LOVING YOUR RIDE?
- MakeMoves
- UNA GUÍA PARA TU VIAJE.
- 使用前注意事项
- 라이딩을 위한 가이드.
- 상위두 가지 라이딩 규칙:
- 시작 노트
- Zawartość
- GWARANCJA I REJESTRACJA PRODUKTU.
- Notes de départ
- CONNECTEZ-VOUS AVEC NOUS.
- Uso del freno
- مواصفات المنتج
- הכלה 1.2
- 1.3
- .2
- .3
- .י physics is a good way to be the world
- תְרָה בְּרָה בְּרָה
- শুরুর লোট
- Resous sou Entènèt1.2 Espesifikasy
- Nôt pou kòmanse
- Ankadreman ak fouchèt
- Volan
- Rou ak Kawotchou
- Chèn
- Presyon ak Gonflasyon Kawotchou
- POU AJOUTE LÈ
- OPERASYON & MONTE BISIKLÈT ENSTRIKSYON.
- Limen ak Etenn
- NÔT ENPÔTAN SOU POUVWA A:
- Aktive Limyè yo
- Konprann Limyè Endikatè Batri yo
- Pote Pwa
- Stil Monte
- Tanperati lè a
- Pant
- Antretyen Batri
- Pran swen Jetson ou a pou l ka kontinye woule san pwoblèm epi an sekirite. Men kijan pou fè sa:
- Enstriksyon Depo
- SWEN AK ANTRETYEN.
- Netwaye Jetson ou a
- Prekosyon pou batri
- KQNEKTE AVEK NOU.
- OU RENMEN WOULIB OU A?
Brand : Jetson
Model : Horizon
Category : Toy
