Product Type	Top-Freezer Refrigerator
Model	GL-B360QM
Brand	LG
Total Net Capacity	Approximately 360 liters (12.7 cu ft)
Refrigerator Compartment Volume	~250 L (8.8 cu ft)
Freezer Compartment Volume	~110 L (3.9 cu ft)
Dimensions (W x D x H)	Approx. 600 x 700 x 1700 mm (23.6 x 27.6 x 66.9 in)
Weight	Approximately 60 kg (132 lbs)
Power Supply	220-240 V, 50/60 Hz, 1.5 A
Energy Consumption	Approximately 350 kWh/year
Temperature Control	Manual dial with 5 steps (MIN to MAX) for refrigerator; separate freezer control
Defrost Type	Automatic defrost
Ice Maker	Twisting ice serve type (manual fill)
Convertible Corner	Adjustable between vegetable and fresh zone
Vegetable Drawer	Magic Crisper with humidity control
Deodorizer	Optional, located in cooling air inlet; can be revived by sunlight or hair dryer
Refrigerant	R600a (isobutane)
Leveling Legs	Adjustable front legs
Lamp Type	Incandescent 40W (freezer and refrigerator)
Cleaning Recommendation	Mild soap solution, avoid abrasive cleaners
Safety Features	Grounding required, anti-condensation pipe, child lock removal for disposal
Warranty	Refer to separate warranty card (not included in manual)

Frequently Asked Questions - GL-B360QM LG

What should I do if my LG GL-B360QM refrigerator is not cooling?

First, check if the power cord is plugged in and the circuit breaker hasn't tripped. Ensure the temperature controls are set correctly (not at MIN). Allow 2-3 hours after initial startup for stabilization. Also, avoid frequent door openings and ensure adequate airflow around the unit.

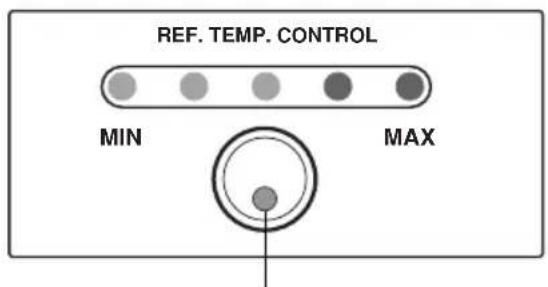

How do I adjust the temperature in my LG GL-B360QM refrigerator?

Press the REF. TEMP CONTROL button to cycle through 5 temperature steps from MIN to MAX. The default is NORMAL. For the freezer, adjust the knob; higher numbers (4-7) give colder temperatures. Note that making the freezer colder makes the refrigerator warmer.

Why is there frost or ice buildup in my freezer?

Frost buildup is normal in auto-defrost models. The defrost cycle runs automatically. If excessive, check that the door is sealing properly and not left open. Ensure the defrost drain is not clogged. Manual defrosting is not required for this model.

How do I make ice with the ice maker?

Fill the ice tray with water and insert it into the ice maker position. To release ice cubes, hold the lever and pull gently to twist the tray, dropping cubes into the ice box. This is a manual twist ice serve type.

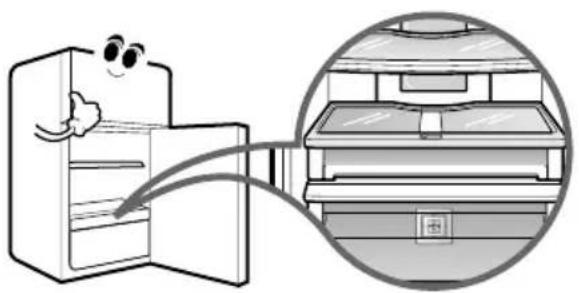

What is the Convertible Corner and how do I use it?

The Convertible Corner is a storage compartment that can be set to either Vegetable Corner or Fresh Corner by turning a knob. Do not leave the knob in the middle. It helps keep food fresher by minimizing warm air flow when the door opens.

How often should I clean the refrigerator and what should I use?

Clean the interior and exterior regularly using a lukewarm solution of mild soap or dish soap. Wipe with a clean damp cloth and dry. Do not use abrasive scouring pads, strong alkaline solutions, or flammable liquids. Always unplug before cleaning near electrical parts.

The refrigerator is making unusual noises. What could be the cause?

Check if the unit is level and stable; adjust the leveling screws if needed. Remove any objects behind the refrigerator. Normal sounds include refrigerant flow and defrost cycles. If noises persist, contact service.

How do I replace the light bulb in my LG GL-B360QM?

For the freezer lamp: unplug the refrigerator, remove the lamp lid by loosening one screw, then twist the bulb counterclockwise to remove. For the refrigerator lamp: unplug, remove shelves, pull the lamp lid forward, and twist the bulb counterclockwise. Replace with a 40W incandescent bulb of the same size.

What type of refrigerant does this refrigerator use?

This refrigerator uses R600a (isobutane) as the refrigerant, which is flammable. In case of a leak, ventilate the area immediately and avoid any sparks. Do not store inflammable materials near the unit.

Can I store hot food directly in the refrigerator?

No, allow hot food to cool to room temperature before storing. Placing hot food inside can spoil other food and increase energy consumption. Also, cover food to prevent moisture loss and odor transfer.

USER MANUAL GL-B360QM LG

READ THIS OWNER'S MANUAL THOROUGHLY BEFORE OPERATING AND KEEP IT HANDY FOR REFERENCE AT ALL TIMES.

P/No. MFL42237402

CONTENTS

IMPORTANT SAFETY INFORMATION .... 3

INSTALLATION 9

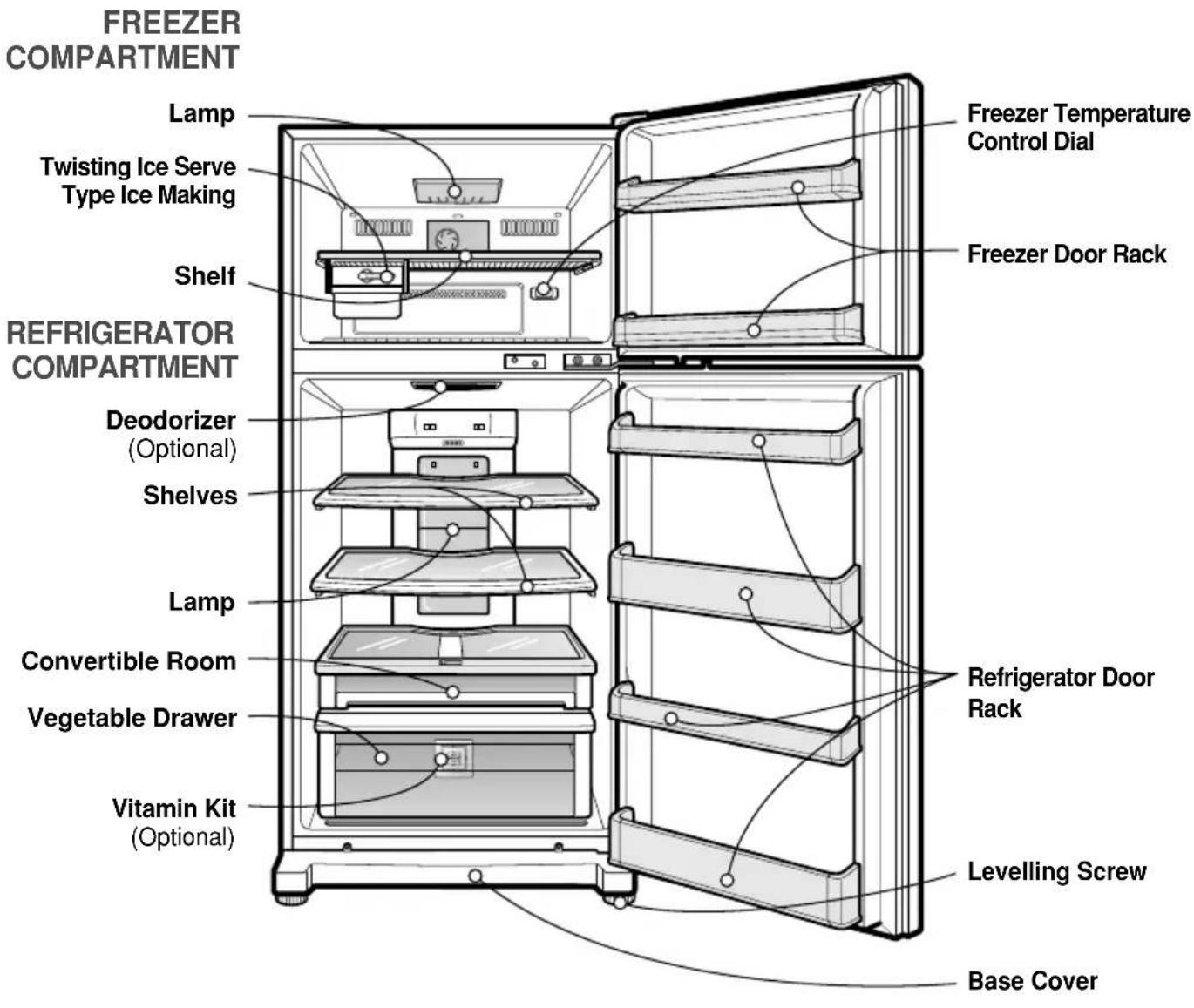

INNER PARTS 10

OPERATIONS 11

Starting

Controls For Refrigerator Compartment

Controls For Freezer Compartment

Ice Making

Convertible Corner

Vegetable Drawer

Defrosting

Deodorizer(Optional)

SUGGESTIONS ON FOOD STORAGE .... 14

CLEANING 15

GENERAL INFORMATION 15

LAMP REPLACEMENT 16

IMPORTANT WARNINGS .... 17

BEFORE CALLING FOR SERVICE .... 18

Cartoon illustration of a smiling refrigerator character with arms and legs (no text or symbols)

IMPORTANT SAFETY INFORMATION

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or you or others or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING, or CAUTION. These words mean:

DANGER

You will be killed or seriously injured if you don't follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

CAUTION

Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following.

Read all instructions before using this appliance.

1. When connecting the power

The dedicated outlet should be used.

• Using several devices at one outlet may cause fire.
• The electric leakage breaker may damage food and the dispenser may be leaked.

Diagram of a rope knot or crimping iron (no text or symbols present)

Do not allow the power plug to face upward

or to be squeezed at the back of the refrigerator.

Water may be flown into or the plug may be damaged, which causes fire or electric shock.

Illustration of a refrigerator with a sad face and two crossed doors connected by arrows (no text or symbols)

Do not allow the power cord bent or pressed by the heavy object to be damaged.

It may damage the power cord to cause fire or electric shock.

Cartoon illustration of a refrigerator with a 'NO' sign and waving hand, next to a sofa and fan (no text or symbols)

Do not extend or modify the length of the power plug.

It causes electric shock or fire by the electric damage of the power cord or others.

Cartoon illustration of a smiling refrigerator with a 'NO' sign, accompanied by a person holding a phone (no text or symbols on the refrigerator itself)

IMPORTANT SAFETY INFORMATION

1. When connecting the power

Unplug the power plug when cleaning, handling or replacing the interior lamp of the refrigerator.

• It may cause electric shock or injury.

- When replacing the interior lamp of the refrigerator, make sure that the rubber ring for preventing the electric spark within the socket is not taken off.

Illustration of a child holding a refrigerator next to an open refrigerator (no text or symbols)

Do not pull out the cord or touch the power plug with wet hands.

• It may cause electric shock or injury.

Illustration of two children interacting with a large X-shaped object, no text or symbols present

Remove water or dust from the power plug and insert it with the ends of the pins securely connected.

Dust, water or unstable connection may fire or electric shock.

Illustration of a hand holding a tool near a cloth, no text or symbols present

Make sure of grounding.

The incorrect grounding may cause breakdown and electric shock.

When the power cord or the power plug is damaged or the holes of the outlet are loosed, do not use them.

It may cause electric shock or short circuit to make fire.

2. When using the refrigerator

Do not place the heavy object or the dangerous object

(container with liquid) on the refrigerator.

It may be dropped to cause injury, fire or electric shock when opening or closing the door.

Cartoon illustration of a child holding a large box with a cross mark above their head, next to a smiling face (no text or symbols)

Do not cling to the door or the shelves of the door or the home bar of the freezer or the cool chamber.

It may make the refrigerator fallen down or damage the hands. Especially, do not allow the children to do the above.

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not install the refrigerator in the wet place or the place which water or rain splashes.

Deterioration of insulation of electric parts may cause electric leakage.

Do not use or store inflammable materials ether, benzene, alcohol, medicine, LP gas,

spray or cosmetics near or in the refrigerator.

It may cause explosion or fire.

Do not place the lit candle within the refrigerator to deodorize.

It may cause explosion or fire.

Cartoon illustration of a smiling refrigerator with a 'NO' sign and a 'X' symbol, no text or symbols present.

Do not store the medicine or the academic materials at the refrigerator.

When the material with the strict temperature control is stored, it may be deteriorated or it may make an unexpected reaction to cause any risk.

Do not use the combustible spray near the refrigerator.

It may cause fire.

Avoid the heating devices.

It may cause fire.

Cartoon illustration of a distressed rectangular character and a box with steam rising (no text or symbols)

Do not place flower vase, cup, cosmetics, medicine or any container

with water on the refrigerator.

It may cause fire, electric shock or injury by dropping down.

Cartoon illustration of a smiling gift box character with arms and a 'NO' sign, no text or symbols present.

Use the submerged refrigerator after checking it.

It may cause electric shock or fire.

Cartoon illustration of a smiling refrigerator with a person standing nearby (no text or symbols)

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

When gas is leaked, do not touch the refrigerator or the outlet and ventilate the room immediately.

- The explosion by spark may cause fire or burn. - Because this refrigerator uses natural gas (isobutene, R600a) as the environment-friendly refrigerant, even a small amount (80\~90g) is combustible. When the gas is leaked by the severe damage during delivering,

installing or using the refrigerator, any spark may cause fire or burn.

Illustration of a cartoon refrigerator and a child with a door, no text or symbols present

Do not spray water at the outside or the inside of the refrigerator or do not clean it with benzene or thinner.

Deterioration of insulation of electric parts may cause electric shock or fire.

Cartoon illustration of a smiling book character and a girl holding a book, both waving (no text or symbols present)

When any strange smell or smoke is detected from the refrigerator, disconnect

the power plug immediately and contact to the service center.

It may cause fire.

Do not allow any person except the qualified engineer to disassemble, repair or alter the refrigerator.

It may cause injury, electric shock or fire.

Cartoon illustration of a girl running away from a refrigerator with a 'NO' sign, no text or symbols present

Do not use the refrigerator for non-domestic purpose (storing medicine or testing material, using at the ship, etc.).

It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction.

Cartoon illustration of a smiling rectangular character with arms and legs, standing on a cross symbol (no text or symbols present)

When disposing the refrigerator, remove the packing materials from the door.

It may cause to lock out the child.

Cartoon illustration of a child holding a knife next to an open refrigerator (no text or symbols)

Install the refrigerator on the solid and level floor.

Installing it on the unstable place may cause death by falling down the refrigerator when opening or closing the door.

Cartoon illustration of a smiling refrigerator with arms and exhaust lines (no text or symbols)

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not insert the hands or the metal stick into the exit of cool air, the cover, the bottom of the refrigerator, the heatproof grill

(exhaust hole) at the backside.

It may cause electric shock or injury.

Illustration of a child standing in front of an electric refrigerator with a crossed-out X-shaped door, separated by a diagonal line (no text or symbols)

When you want to dispose the refrigerator, contact to the down-block office.

When you want to dispose the large living waste such as electric home appliance and furniture, you'd better contact the local down-block office.

CAUTION

Violating this direction may cause injury or damage house or furniture. Always be careful, please.

Do not touch food or containers at the

freezer with wet hands.

It may cause frostbite.

Cartoon illustration of a girl holding a crossed-out refrigerator while another girl is waving, with no text or symbols present.

Wait for 5 minutes or longer when reconnecting the plug.

It may cause the operation of the freezer to fail.

Do not put bottle in the freezer.

It may freeze the contents to break the bottle to cause injury.

Pull out the power plug not by grasping the cord but the plug of its

end.

It may cause electric shock or short circuit to fire.

IMPORTANT SAFETY INFORMATION

CAUTION

Violating this direction may cause injury or damage house or furniture. Always be careful, please.

Do not install the refrigerator in the wet place or the place which water or rain

splashes.

Deterioration of insulation of electric parts may cause electric leakage.

Cartoon illustration of a smiling book character holding a 'NO' sign, with a crossed book and bucket nearby (no text or symbols)

Do not insert the hands into the bottom of the refrigerator.

The iron plate of the bottom may cause injury.

Cartoon illustration of a smiling refrigerator with a sad face and a person lying on the floor (no text or symbols)

Carry the refrigerator with the handle bar at the bottom of the front and the top of the

rear.

Otherwise, your hands may be slipped to cause injury.

Illustration of three workers in hard hats pulling a large rectangular object (no text or symbols)

Because opening or closing the door of the refrigerator may cause injury to the person around it, be careful, please.

Opening or closing the door may cause feet or hands to be caught in the chink in door or the child to be get hurt by the corner.

Cartoon illustration of a distressed refrigerator with a 'NO' sign and a child sitting on the floor (no text or symbols on the main image)

Do not put any living animal in the refrigerator.

THIS REFRIGERATOR IS MANUFACTURED WITH GREAT CARE, AND UTILIZES THE LATEST IN TECHNOLOGY.

WE ARE CONFIDENT THAT YOU WILL BE FULLY SATISFIED WITH IT'S PERFORMANCE AND RELIABILITY.

BEFORE YOU START YOUR REFRIGERATOR, PLEASE READ THIS BOOKLET CAREFULLY.

IT PROVIDES EXACT INSTRUCTIONS FOR INSTALLATION, OPERATION AND

MAINTENANCE, AND ALSO SUPPLIES SOME USEFUL HINTS.

INSTALLATION

1. Select a good location.
   Place your refrigerator where it is easy to use.
2. Avoid placing the unit near heat sources, direct sunlight or moisture.
3. To ensure proper air circulation around the fridge -freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.
4. To avoid vibrations, the unit must be level. If required, adjust the leveling screws to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly.
   Turn the leveling screws clockwise( ) to raise the unit, counterclockwise( ) to lower it.
5. Don't install this appliance below 5 °C. It may cause the debasement of the refrigerator.

NEXT

1. Clean your refrigerator thoroughly and wipe off all dust accumulated during shipping.
2. Install accessories such as ice cube box, etc., in their proper places. They are packed together to prevent possible damage during shipment.
3. You have a model with bar-type handle, assemble the handle according to instruction card.
4. Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.
5. Prior to storing food, leave your refrigerator on for 2 or 3 hours.
   Check the flow of cold air in the freezer compartment to ensure proper cooling.
   Your refrigerator is now ready for use.

- This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.

OPERATIONS

STARTING

When your refrigerator is first installed, allow it 2-3 hours to stabilize at normal operating temperatures prior to filling it with fresh or frozen foods.

If operation is interrupted, wait 5 minutes before restarting.

CONTROLS FOR REFRIGERATOR COMPARTMENT

Ref. Temp Control Button

The default setting of the temperature control button for the refrigerator compartment is NORMAL.

To control the refrigerator temperature, press the REF. TEMP CONTROL button.

When the button is pressed, the LEDs light.

The temperature is set in 5 steps, from MIN to MAX.

CONTROLS FOR FREEZER COMPARTMENT

Line drawing of a refrigerator with open door and side panel (no text or symbols)

• The higher number the control setting is, the lower the temperature of the freezer compartment becomes.
• Since the temperature of the refrigerator and freezer compartments is controlled with a fixed amount of cooled air, the refrigerator compartment will be warmer if the freezer compartment becomes colder.
• When the freezer compartment is not cold enough in winter, adjust the control for the freezer to High(4\~7).

- Setting the Freezer Knob at 📄 📄 📄 will satisfy 4 STAR. Setting the Freezer Knob at NORMAL will have sufficient freezing effect, so it is recommended to set the Knob at NORMAL.

OPERATIONS

ICE MAKING

Twisting Ice Serve Type

• To make ice cubes, fill the ice tray with water and insert in its position.
• To remove ice cubes, hold the lever of the tray and pull turn gently. Then, ice cubes drop in to the ice cube box.

Illustration of a griddle being poured into a tray with a handle (no text or symbols)

CONVERTIBLE CORNER

• When the door is opened, the warmer air can't influence in the fresh zone. So you can store food more fresh in it.
• Inserted convertible room must be placed at its position. If door is opened, it can't fill the role of it.

How to use

• Vegetable Corner or Fresh Corner can be used through the control of knob.
• Check the position of knob prior to store the food.
• Do not locate the knob on the middle point.

Cartoon illustration of a refrigerator with a smiling face and open door, connected to an inset image of the refrigerator (no text or symbols)

VEGETABLE DRAWER

Magic Crispers

• Magic Crispers provide fresher-tasting fruit and vegetables by letting you easily keep humidity inside the drawer.
• A lattice on the underside of the cover to efficiently hold or release moisture.
• Sealing structure keep the humidity.

Vitamin Kit (Optional)

• Vitamin Kit used to keep fruits more fresher.
- Please try to keep the kit from getting wet as this would decrease its effectiveness.

Vitamin Kit

Line drawing of a rectangular container with a lid and side supports (no text or symbols)

OPERATIONS

DEFROSTING

• Defrosting takes place automatically.
- The defrosted water flows down to the evaporating tray which located in the lower back side of the refrigerator and is evaporated automatically.

DEODORIZER (OPTIONAL)

- Unpleasant odor of food in fresh food compartment is deodorized with no harm to you and the food.

Cartoon illustration of a smiling rectangular character with arms and legs, pointing upward (no text or symbols)

Cartoon illustration of a distressed character holding a tool, with steam rising (no text or symbols)

How to use

• As Deodorizer is located in cooling air inlet for circulating air in fresh food compartment, there is no need for any handling.
• Do not prick the cooling air inlet with a sharp tip because Deodorizer may be damaged.
• When storing food with a strong odor, wrap it or store it in a container with a lid because odor may be passed on to other foods.

Re-Using of Deodorizer

• Used some length and the odor is strong, Deodorizer can be revived and re-used.
- Separate Deodorizer in ceiling of refrigerator compartment, using hair drier to remove moisture or malodor and oxidize under sunlight to decomposing malodor by ultraviolet.

SUGGESTIONS ON FOOD STORAGE

STORING FOOD

• Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor.
• Do not store food which goes bad easily at low temperatures, such as bananas, pineapples, and melons.
• Allow hot food to cool prior to storing. Placing hot food in the refrigerator could spoil other food, and lead to higher electric bills!
• When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.
• Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even.
• Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperatures to rise.

FREEZER COMPARTMENT

• Do not store bottles in the freezer compartment - they may break when frozen.
• Do not refreeze food that has been thawed. This causes loss of taste and nutrition.
• When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack.

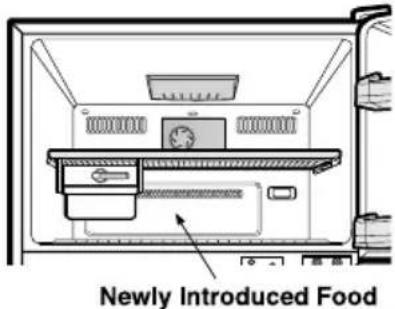

• Loading for Freezing - It is recommended to load newly introduced foods on the following position for freezing:

REFRIGERATOR COMPARTMENT

• Avoid placing moist food on deep interior refrigerator shelves, it could freeze upon direct contact with chilled air. To avoid this it is better to store food in the covered container.
• It is desirable to store moist food (especially vegetable and fruit) in the vegetable storage compartment. If it is necessary to store on a shelf of the refrigerator, put it close to the door away from the back wall of the

refrigerator to avoid being frozen by the cool circulating in the refrigerator.

• Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped clean, to prevent adjacent food from spoiling.
• When storing eggs in their storage rack, ensure that they are fresh, and always store them in a upright position, which keeps them fresh longer.

CLEANING

It is important that you refrigerator be kept clean to prevent undesirable odors. Spilled food should be wipe up immediately, since it may acidify and stain plastic surfaces if allowed to settle.

Never use metallic scouring pads, brushes, coarse abrasive cleaners or strong alkaline solutions on any surface.

Before you clean, however, remember that damp objects will stick or adhere to extremely cold surfaces. Do not touch frozen surfaces with wet or damp hands.

EXTERIOR - Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

INTERIOR - Regular cleaning of the interior and interior parts is recommended. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

INTERIOR PARTS - Wash compartment shelves, door racks, storage trays and magnetic door seals etc. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

WARNING

Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical parts(lamps, switches, controls, etc.).

Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing electric shock. Do not use flammable or toxic cleaning liquids.

• Caution for Cleaning Not in use: Surface active agent, Car wax, Anticorrosive, All sorts of oil, Gasoline, Acids, Wax.
• Usable Detergent Vegetable dish washable solution, Soapy water.
• When careless using, it can occur a color change.

GENERAL INFORMATION

VACATION TIME

During average length vacations, you will probably find it best to leave the refrigerator in operation.

Place freezable items in freezer for longer life.

When you plan to be away for an extended period, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.

POWER FAILURE

Most power failures are corrected in an hour or two and will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. During power failures of longer duration, place a block of dry ice on top of your frozen packages.

IF YOU MOVE

Remove or securely fasten down all loose items inside the refrigerator.

To avoid damaging the leveling screw(s), turn them all the way into the base.

ANTI-CONDENSATION PIPE

The outside wall of the refrigerator cabinet may sometimes get warm,

especially just after installation.

Don't be alarmed.

This is due to the anti-condensation pipe, which pumps hot refrigerant to prevent "sweating" on the outer cabinet wall.

Caution

Electrical Shock Hazard

Before replacing a burned-out light bulb, either unplug the refrigerator or turn off power at the circuit breaker or fuse box.

NOTE: Moving the control to the OFF position does not remove power to the light circuit.

LAMP REPLACEMENT

- Not all appliance bulbs will fit your refrigerator. Be sure to replace the bulb with one of the same size, shape and wattage.

FREEZER LAMP

• Unplug the power cord from the outlet.
• Remove the room lamp lid by loosening 1 screw and take down while pulling it forward with both hands as shown in figure.
• Remove the lamp by turning it counterclockwise.

Illustration of a hand holding a tool interacting with a dome-shaped object (no text or symbols)

Illustration of two hands pressing down on a surface with arrows indicating motion (no text or symbols)

REFRIGERATOR LAMP

• Unplug the power cord from the outlet.
• Remove refrigerator shelves.
• Remove the room lamp lid by pulling it forward.
• Make sure the bulbs are cool to the touch. Remove the lamp by turning it counterclockwise.

Illustration of hands holding a rectangular object with arrows indicating motion or force direction (no text or symbols)

IMPORTANT WARNINGS

DO NOT USE AN EXTENSION CORD

If possible, connect the refrigerator to its own individual electrical outlet to prevent it and other appliances or household lights from causing an overload that could cause a power outage.

ACCESSIBILITY OF SUPPLY PLUG

The refrigerator-freezer should be so positioned that the supply plug is accessible for quick disconnection when accident happens.

SUPPLY CORD REPLACEMENT

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

ABOUT GROUNDING (EARTHING)

In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current.

In order to prevent possible electric shock, this appliance must be grounded.

Improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.

DO NOT MODIFY OR EXTEND THE POWER CORD LENGTH.

It will cause electric shock or fire.

An empty refrigerator can be a dangerous attraction to children. Remove either gaskets, latches, lids or the entire door from your unused appliance, or take some other action to make it harmless.

This appliance must be grounded (earthed). DON'T WAIT! DO IT NOW!

Do not store inflammable materials, explosives or chemicals in the refrigerator.

Disposal of the old appliance

This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable.

All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For take back, please contact with the local agency.

BEFORE CALLING FOR SERVICE

SERVICE CALLS CAN OFTEN BE AVOIDED!

IF YOU FEEL YOUR REFRIGERATOR IS NOT OPERATING PROPERLY, CHECK THESE POSSIBLE CAUSES FIRST :

PROBLEM	POSSIBLE	CAUSES
REFRIGERATOR DOES NOT OPERATE	Has a house fuse blown or circuit breaker tripped?Has the power cord plug been removed or loosened from the electrical wall outlet?
REFRIGERATOR OR FREEZER COMPARTMENT TEMPERATURE TOO WARM	Temperature control not set on proper position.Appliance is placed close to wall or heat source.Warm weather-frequent door openings.Door left open for a long time.Large amount of foods are kept in the refrigerator.
ABNORMAL NOISE(S)	Refrigerator is installed in a weak or uneven place, or leveling screw needs adjusting.Unnecessary objects placed in the back side of the refrigerator.
REFRIGERATOR HAS ODOR	Foods with strong odors should be tightly covered or wrapped.Interior needs cleaning.
DEW FORMS ON THE CABINET SURFACE	Not unusual during periods of high humidity.Door may have been left ajar.

Change the triad - the government is about that from the country. An im/kil and a way to be in the country. لاحي فعير سلنا

Diagram of a refrigerator interior showing front and back views with no text or symbols

Cartoon illustration of a smiling rectangular character pointing upward with arms, no text or symbols present

Cartoon illustration of a distressed character holding a tool, with steam rising (no text or symbols)

Illustration of a container being poured into a griddle with liquid, no text or symbols present

۰ تابعکلا جارخلا.

Illustration of a refrigerator with a cartoon character inside, connected to an inset image of the refrigerator (no text or symbols)

Ref. Temp Control Button

Line drawing of an open refrigerator with a right-pointing arrow indicating direction (no text or symbols)

Cartoon illustration of a sad refrigerator with a distressed face and a child running away (no text or symbols)

Illustration of a cartoon refrigerator with a child inside and a box with X marks (no text or symbols)

حيث قد يتسب

ذلك في صدمة

بية أو إصابة. كهر

Illustration of a cartoon refrigerator and a girl running away from a doorway (no text or symbols)

Cartoon illustration of a smiling rectangular object with arms and legs, standing on a cross symbol (no text or symbols present)

Cartoon illustration of a girl and a book character interacting, no text or symbols present

Cartoon illustration of a smiling rectangular character with arms and legs crossed out, expressing shock or discomfort (no text or symbols)

Cartoon illustration of a smiling child holding a broom while standing beside an open refrigerator (no text or symbols)

Cartoon illustration of a smiling refrigerator with a 'NO' sign and X-shaped door, no text or symbols present.

Cartoon illustration of a refrigerator with a 'NO' sign and a distressed face, next to an open box with steam rising (no text or symbols on the main subjects)

Cartoon illustration of a smiling refrigerator and a person running away (no text or symbols)

Cartoon illustration of a smiling rectangular character holding a 'NO' sign, with expressive faces and limbs (no text or symbols beyond the label)

Illustration of two children playing with airplanes, one holding a baton and the other holding a baton (no text or symbols)

Cartoon illustration of a refrigerator with a speech bubble and a hand pointing at it, connected to a wall (no text or symbols)

specialist التاريض

أكثر من 30 بوصة

الحص الثاني يض.

Illustration of a cartoon refrigerator with a sad face and a double-headed arrow pointing to its side (no text or symbols)

Pure mechanical diagram showing a rope tied around a central component (no text or symbols)

Cartoon illustration of a refrigerator with a 'NO' sign and a phone, no text or symbols present

Cartoon illustration of a smiling refrigerator character with arms and legs (no text or symbols)

Illustration of two hands holding a rectangular object with arrows indicating rotation or movement (no text or symbols)

Illustration of a hand holding a screwdriver inserted into a dome-shaped container (no text or symbols)

Illustration of hands holding a transparent container with arrows indicating motion (no text or symbols)

Cartoon illustration of a smiling book character holding a pen, with no text or symbols present.

Cartoon illustration of a person holding a broken object with steam rising (no text or symbols)

Illustration of a container being poured into a tray with a handle, showing liquid and a small object (no text or symbols)

תְקָרִי אַלְאָה

Illustration of a cartoon refrigerator with a close-up of its door connected to an air conditioner unit (no text or symbols present)

Illustration of a cartoon refrigerator with a smiling face and open door, connected to an inset image of the refrigerator (no text or symbols)

תָּלְיֹם תַּרְה

↑

תְרָה

תְרָה בְּרַע

↓

תְרָה

Line drawing of an open refrigerator with a door open, showing internal compartments and a handle (no text or symbols)

GR-B612Y / GR-B562Y / GR-B628Y ολT

תָאַלְרָה אַע

Exploded view diagram of an open refrigerator showing internal compartments and ventilation systems (no text or labels)

תְקַרָה בִּוֹת

||ONX 'KN

אַתְרָה

תָאַלְרָה

||onx'xn

אַתְרָה

|| gran

הכלה

תְרָה

הכלה

Cartoon illustration of a distressed rectangular object with a sad face and a person sitting on the ground, surrounded by steam and clouds (no text or symbols)

Cartoon illustration of a book character with a sad expression and a crossed-out cigarette (no text or symbols)

Cartoon illustration of a distressed refrigerator with a surprised face and a person sitting on the floor outside (no text or symbols)

Illustration of a child and a man inside a refrigerator with a crossed-out X symbol (no text or symbols present)

Illustration of a child standing in front of a distressed refrigerator with a warning sign, separated by a broken floor (no text or symbols present)

Illustration of a child standing beside an open refrigerator with a sad face and crossed-out X (no text or symbols)

Cartoon illustration of a smiling book character and a girl holding a book, no text or symbols present

Cartoon illustration of a smiling rectangular character with arms crossed out, surrounded by waving hands (no text or symbols)

Cartoon illustration of a nurse and a smiling hospital ship with a bandage, no text or symbols present

Cartoon illustration of a smiling refrigerator with arms and legs crossed out, expressing discomfort (no text or symbols)

Cartoon illustration of a child cleaning a refrigerator with a broom (no text or symbols)

תְבָרִי הַלְהָם

תָאַעְרָה, וּוֹת

תְרָה בְּרָה

.תְרַעָה

Cartoon illustration of a smiling rectangular character and a crossed-out bottle (no text or symbols)

תָרְשָׁה בַרְשָׁה

תְקָרִי

תְרָה בְּרָה בְּרָה

.הכלהה אַרְׁבָם

Cartoon illustration of a smiling rectangular character holding a 'N7' sign, next to a crossed-out box and a small bottle (no text or symbols on the character itself)

אַתְרָה אַתְרָה

תְבָרִי בְאַעֹה אַל

.הכלהה

Cartoon illustration of a refrigerator with a sad face and a broken cup, accompanied by a distressed character (no text or symbols)

תְרָה בַרִי אַלְרָה

בַרְשָׁה בַרְשָׁה

הכלהה כרִי

תְקָרִי בְּרִי

Cartoon illustration of a smiling refrigerator with an open door and a 'X' symbol, no text or symbols present.

Cartoon illustration of a refrigerator and a gift box, both showing expressive faces (no text or symbols)

Cartoon illustration of a smiling rectangular book character and a small robot holding a tablet, both waving (no text or symbols)

Cartoon illustration of a smiling refrigerator and a worker holding a tool, no text or symbols present

תְבָרִי בְאַעֹה אַל

הכלהה

. אַרְשָׁא

בְרָה, בְּרָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְא'

בַרְשָׁה בְּרִיָה

.תְקּוֹר

Cartoon illustration of a gift box character with arms and facial features (no text or symbols)

Illustration of a child standing beside a refrigerator with a smiling face (no text or symbols)

Illustration of two children playing with a star-shaped prop, separated by a diagonal line (no text or symbols)

Illustration of a cartoon refrigerator with a smiling face and a small object inserted into a surface (no text or symbols)

Illustration of a hand holding a tool near a cloth, with motion lines indicating motion (no text or symbols)

תְרָה אַעֹן, בְּבָא

בְרָה בְרַעֹת אִי

בַעָה בְרִי

.תְּרָהוֹתִי

Cartoon illustration of a smiling refrigerator with a hand waving, and a person holding a windmill (no text or symbols)

Cartoon illustration of a child holding a large box with a cross on top, next to a smiling girl (no text or symbols)

Illustration of a cartoon refrigerator with a sad face and a broken handle, next to an X-shaped diagram showing a hand holding a box (no text or symbols)

תְרָה בְּרַעֹל אַק

אַלְרָה אַתִי

הכלהה

Diagram of a mechanical or electrical component with intersecting wires and a central cross (no text or symbols)

Cartoon illustration of a smiling refrigerator with a 'NO' sign and a person sitting on the floor (no text or symbols on the refrigerator itself)

Cartoon illustration of a refrigerator with a surprised expression and a gift box (no text or symbols)

GR-B612Y / GR-B562Y / GR-B628Y

GR-B492Y / GR-528Y
