GL-B330QM - Refrigerator LG - Free user manual and instructions

Product Type	Refrigerator with Top Freezer
Total Gross Capacity	330 L
Freezer Capacity	90 L (approx)
Refrigerator Capacity	240 L (approx)
Dimensions (W x D x H)	595 x 685 x 1680 mm
Net Weight	60 kg
Power Supply	220-240 V, 50 Hz
Climate Class	N, ST
Refrigerant	R600a (isobutane)
Energy Consumption	0.8 kWh/24h (approx)
Noise Level	42 dB (approx)
Defrost System	Automatic defrost (auto-defrost)
Temperature Control	Electronic, 5-step control for fridge, knob for freezer
Ice Maker	Twisting Ice Serve type
Convertible Corner	Yes, convertible between vegetable and fresh corner

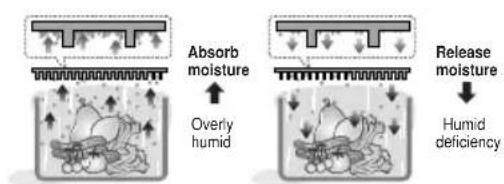

Vegetable Drawer	Yes, Magic Crispers with humidity control
Deodorizer	Optional, located in cooling air inlet
Interior Light	Yes, replaceable bulb
Shelves Material	Tempered glass
Door Racks	Yes, adjustable
Anti-Condensation Pipe	Yes, prevents exterior sweating
Safety Features	Grounding, no extension cord, child lock door removal
Cleaning	Use mild soap and water, avoid abrasives
Lamp Replacement	Unplug, replace with same type (screw base)
Warranty	1 year (standard)

Frequently Asked Questions - GL-B330QM LG

How do I set the temperature for the refrigerator compartment?

Press the REF. TEMP CONTROL button to cycle through 5 steps from MIN to MAX. The default is NORMAL. Each press changes the LED indicator.

Why is my freezer not cold enough in winter?

In winter, adjust the freezer knob to a higher setting (4-7) to compensate for lower ambient temperatures. The knob sets the freezer temperature; a higher number means colder.

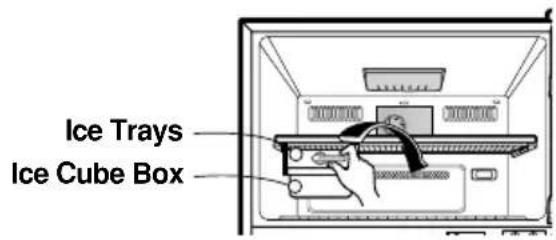

How do I make ice cubes?

Fill the ice tray with water and place it in the freezer. To release cubes, hold the lever and gently turn. Ice drops into the ice cube box below.

What is the Convertible Corner and how do I use it?

The Convertible Corner can be used as a vegetable or fresh corner. Turn the knob to select the desired mode. Do not set the knob to the middle position.

How do I clean the refrigerator?

Use a lukewarm solution of mild soap or dishwashing liquid. Wipe with a clean damp cloth and dry. Never use abrasive cleaners or metallic scouring pads. Unplug before cleaning near electrical parts.

What should I do if the refrigerator is not cooling?

Check if the power cord is plugged in and the circuit breaker is not tripped. Ensure the temperature controls are set correctly. If the issue persists, allow 2-3 hours after startup to stabilize.

How do I replace the interior light bulb?

Unplug the refrigerator. For the freezer, remove the lamp lid by loosening 1 screw, then pull forward. For the fridge, remove the lid by pulling forward. Turn the bulb counterclockwise to remove and replace with the same wattage (screw base).

Why does the outside of the refrigerator feel warm?

This is normal due to the anti-condensation pipe that pumps hot refrigerant to prevent moisture buildup on the exterior. It is especially noticeable just after installation.

Can I store bottles in the freezer compartment?

No, do not store bottles in the freezer. They may break when the contents freeze, causing injury.

How do I deodorize the refrigerator?

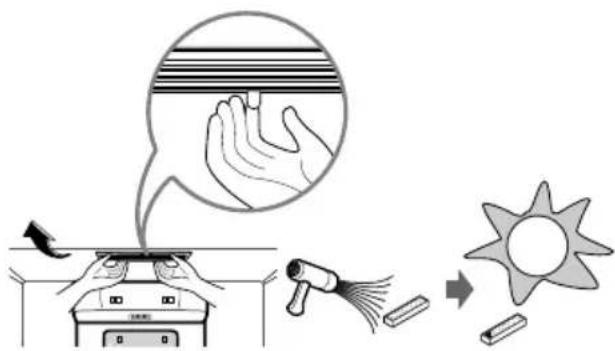

The deodorizer (optional) is located in the cooling air inlet and works automatically. For revival, remove it and use a hair dryer to remove moisture or place it in sunlight to decompose malodor. Wrap strong-smelling foods.

USER MANUAL GL-B330QM LG

READ THIS OWNER'S MANUAL THOROUGHLY BEFORE OPERATING AND KEEP IT HANDY FOR REFERENCE AT ALL TIMES.

P/No. MFL42237402

CONTENTS

IMPORTANT SAFETY INFORMATION .... 3

INSTALLATION 9

INNER PARTS 10

OPERATIONS 11

Starting

Controls For Refrigerator Compartment

Controls For Freezer Compartment

Ice Making

Convertible Corner

Vegetable Drawer

Defrosting

Deodorizer(Optional)

SUGGESTIONS ON FOOD STORAGE .... 14

CLEANING 15

GENERAL INFORMATION 15

LAMP REPLACEMENT 16

IMPORTANT WARNINGS .... 17

BEFORE CALLING FOR SERVICE .... 18

Cartoon illustration of a smiling refrigerator character with arms and legs (no text or symbols)

IMPORTANT SAFETY INFORMATION

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or you or others or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING, or CAUTION. These words mean:

DANGER

You will be killed or seriously injured if you don't follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

CAUTION

Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following.

Read all instructions before using this appliance.

1. When connecting the power

The dedicated outlet should be used.

• Using several devices at one outlet may cause fire.
- The electric leakage breaker may damage food and the dispenser may be leaked.

Pure diagram of a rope knot with no text, numbers, or symbols

Do not allow the power plug to face upward

or to be squeezed at the back of the refrigerator.

Water may be flown into or the plug may be damaged, which causes fire or electric shock.

Illustration of a refrigerator with a sad face and two crossed arms, connected by a directional arrow (no text or symbols)

Do not allow the power cord bent or pressed by the heavy object to be damaged.

It may damage the power cord to cause fire or electric shock.

Cartoon illustration of a refrigerator with a 'NO' sign and a phone, no text or symbols present

Do not extend or modify the length of the power plug.

It causes electric shock or fire by the electric damage of the power cord or others.

Cartoon illustration of a smiling refrigerator character waving with 'NO' text, next to a person holding a phone (no readable text or symbols)

IMPORTANT SAFETY INFORMATION

1. When connecting the power

Unplug the power plug when cleaning, handling or replacing the interior lamp of the refrigerator.

• It may cause electric shock or injury.

- When replacing the interior lamp of the refrigerator, make sure that the rubber ring for preventing the electric spark within the socket is not taken off.

Illustration of a child holding a refrigerator next to an open refrigerator (no text or symbols)

Do not pull out the cord or touch the power plug with wet hands.

• It may cause electric shock or injury.

Illustration of two children interacting with a large X-shaped object, no text or symbols present

Remove water or dust from the power plug and insert it with the ends of the pins securely connected.

Dust, water or unstable connection may fire or electric shock.

Illustration of a hand holding a tool near a cloth, no text or symbols present

Make sure of grounding.

The incorrect grounding may cause breakdown and electric shock.

When the power cord or the power plug is damaged or the holes of the outlet are loosed, do not use them.

It may cause electric shock or short circuit to make fire.

2. When using the refrigerator

Do not place the heavy object or the dangerous object

(container with liquid) on the refrigerator.

It may be dropped to cause injury, fire or electric shock when opening or closing the door.

Cartoon illustration of a child holding a large box with a cross mark above their head, next to a smaller figure (no text or symbols present)

Do not cling to the door or the shelves of the door or the home bar of the freezer or the cool chamber.

It may make the refrigerator fallen down or damage the hands. Especially, do not allow the children to do the above.

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not install the refrigerator in the wet place or the place which water or rain splashes.

Deterioration of insulation of electric parts may cause electric leakage.

Do not use or store inflammable materials ether, benzene, alcohol, medicine, LP gas,

spray or cosmetics near or in the refrigerator.

It may cause explosion or fire.

Do not place the lit candle within the refrigerator to deodorize.

It may cause explosion or fire.

Cartoon illustration of a smiling refrigerator with a 'NO' sign and a 'X' symbol, no text or symbols present.

Do not store the medicine or the academic materials at the refrigerator.

When the material with the strict temperature control is stored, it may be deteriorated or it may make an unexpected reaction to cause any risk.

Do not use the combustible spray near the refrigerator.

It may cause fire.

Avoid the heating devices.

It may cause fire.

Cartoon illustration of a distressed rectangular character and a box with steam rising (no text or symbols)

Do not place flower vase, cup, cosmetics, medicine or any container

with water on the refrigerator.

It may cause fire, electric shock or injury by dropping down.

Cartoon illustration of a smiling gift box character with arms and a 'NO' sign, no text or symbols present.

Use the submerged refrigerator after checking it.

It may cause electric shock or fire.

Cartoon illustration of a smiling refrigerator with a person standing nearby (no text or symbols)

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

When gas is leaked, do not touch the refrigerator or the outlet and ventilate the room immediately.

- The explosion by spark may cause fire or burn. - Because this refrigerator uses natural gas (isobutene, R600a) as the environment-friendly refrigerant, even a small amount (80\~90g) is combustible. When the gas is leaked by the severe damage during delivering,

installing or using the refrigerator, any spark may cause fire or burn.

Illustration of a cartoon refrigerator and a child with a door, no text or symbols present

Do not spray water at the outside or the inside of the refrigerator or do not clean it with benzene or thinner.

Deterioration of insulation of electric parts may cause electric shock or fire.

Cartoon illustration of a smiling book character and a girl holding a book, both waving (no text or symbols present)

When any strange smell or smoke is detected from the refrigerator, disconnect

the power plug immediately and contact to the service center.

It may cause fire.

Do not allow any person except the qualified engineer to disassemble, repair or alter the refrigerator.

It may cause injury, electric shock or fire.

Cartoon illustration of a girl running away from a refrigerator with a 'NO' sign, no text or symbols present

Do not use the refrigerator for non-domestic purpose (storing medicine or testing material, using at the ship, etc.).

It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction.

Cartoon illustration of a smiling book character with arms and legs crossed out, surrounded by waving hands (no text or symbols)

When disposing the refrigerator, remove the packing materials from the door.

It may cause to lock out the child.

Cartoon illustration of a child holding a knife next to a refrigerator (no text or symbols)

Install the refrigerator on the solid and level floor.

Installing it on the unstable place may cause death by falling down the refrigerator when opening or closing the door.

Cartoon illustration of a smiling refrigerator with arms and exhaust lines (no text or symbols)

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not insert the hands or the metal stick into the exit of cool air, the cover, the bottom of the refrigerator, the heatproof grill (exhaust hole) at the backside.

It may cause electric shock or injury.

Illustration of a child standing in front of a refrigerator with a crossed-out X-shaped door, separated by a diagonal line (no text or symbols)

When you want to dispose the refrigerator, contact to the down-block office.

When you want to dispose the large living waste such as electric home appliance and furniture, you'd better contact the local down-block office.

CAUTION

Violating this direction may cause injury or damage house or furniture. Always be careful, please.

Do not touch food or containers at the freezer with wet hands.

It may cause frostbite.

Cartoon illustration of a girl holding a crossed-out refrigerator with a 'No' sign, no text or symbols present

Wait for 5 minutes or longer when reconnecting the plug.

It may cause the operation of the freezer to fail.

Do not put bottle in the freezer.

It may freeze the contents to break the bottle to cause injury.

Pull out the power plug not by grasping the cord but the plug of its

end.

It may cause electric shock or short circuit to fire.

IMPORTANT SAFETY INFORMATION

CAUTION

Violating this direction may cause injury or damage house or furniture. Always be careful, please.

Do not install the refrigerator in the wet place or the place which water or rain

splashes.

Deterioration of insulation of electric parts may cause electric leakage.

Do not insert the hands into the bottom of the refrigerator.

The iron plate of the bottom may cause injury.

Cartoon illustration of a distressed refrigerator with a sad face and a person lying on the floor (no text or symbols)

Carry the refrigerator with the handle bar at the bottom of the front and the top of the

rear.

Otherwise, your hands may be slipped to cause injury.

Illustration of three workers in hard hats pulling a large rectangular object (no text or symbols)

Because opening or closing the door of the refrigerator may cause injury to the person around it, be careful, please.

Opening or closing the door may cause feet or hands to be caught in the chink in door or the child to be get hurt by the corner.

Cartoon illustration of a distressed refrigerator with a 'NO' sign and a child sitting on the floor (no text or symbols on the main image)

Do not put any living animal in the refrigerator.

THIS REFRIGERATOR IS MANUFACTURED WITH GREAT CARE, AND UTILIZES THE LATEST IN TECHNOLOGY.

WE ARE CONFIDENT THAT YOU WILL BE FULLY SATISFIED WITH IT'S PERFORMANCE AND RELIABILITY.

BEFORE YOU START YOUR REFRIGERATOR, PLEASE READ THIS BOOKLET CAREFULLY.

IT PROVIDES EXACT INSTRUCTIONS FOR INSTALLATION, OPERATION AND

MAINTENANCE, AND ALSO SUPPLIES SOME USEFUL HINTS.

INSTALLATION

1. Select a good location.
   Place your refrigerator where it is easy to use.
2. Avoid placing the unit near heat sources, direct sunlight or moisture.
3. To ensure proper air circulation around the fridge -freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.
4. To avoid vibrations, the unit must be level. If required, adjust the leveling screws to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly.
   Turn the leveling screws clockwise( ) to raise the unit, counterclockwise( ) to lower it.
5. Don't install this appliance below 5 °C. It may cause the debasement of the refrigerator.

NEXT

1. Clean your refrigerator thoroughly and wipe off all dust accumulated during shipping.
2. Install accessories such as ice cube box, etc., in their proper places. They are packed together to prevent possible damage during shipment.
3. You have a model with bar-type handle, assemble the handle according to instruction card.
4. Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.
5. Prior to storing food, leave your refrigerator on for 2 or 3 hours.
   Check the flow of cold air in the freezer compartment to ensure proper cooling.
   Your refrigerator is now ready for use.

- This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.

OPERATIONS

STARTING

When your refrigerator is first installed, allow it 2-3 hours to stabilize at normal operating temperatures prior to filling it with fresh or frozen foods.

If operation is interrupted, wait 5 minutes before restarting.

CONTROLS FOR REFRIGERATOR COMPARTMENT

Ref. Temp Control Button

The default setting of the temperature control button for the refrigerator compartment is NORMAL.

To control the refrigerator temperature, press the REF. TEMP CONTROL button.

When the button is pressed, the LEDs light.

The temperature is set in 5 steps, from MIN to MAX.

CONTROLS FOR FREEZER COMPARTMENT

Line drawing of a refrigerator with open door and side panel (no text or symbols)

• The higher number the control setting is, the lower the temperature of the freezer compartment becomes.
• Since the temperature of the refrigerator and freezer compartments is controlled with a fixed amount of cooled air, the refrigerator compartment will be warmer if the freezer compartment becomes colder.
• When the freezer compartment is not cold enough in winter, adjust the control for the freezer to High(4\~7).

- Setting the Freezer Knob at 📄 📄 📄 will satisfy 4 STAR. Setting the Freezer Knob at NORMAL will have sufficient freezing effect, so it is recommended to set the Knob at NORMAL.

OPERATIONS

ICE MAKING

Twisting Ice Serve Type

• To make ice cubes, fill the ice tray with water and insert in its position.
• To remove ice cubes, hold the lever of the tray and pull turn gently. Then, ice cubes drop in to the ice cube box.

Illustration of a griddle being poured into a tray with a handle (no text or symbols)

CONVERTIBLE CORNER

• When the door is opened, the warmer air can't influence in the fresh zone. So you can store food more fresh in it.
• Inserted convertible room must be placed at its position. If door is opened, it can't fill the role of it.

How to use

• Vegetable Corner or Fresh Corner can be used through the control of knob.
• Check the position of knob prior to store the food.
• Do not locate the knob on the middle point.

Cartoon illustration of a refrigerator with a smiling face and open door, connected to an inset image of the refrigerator (no text or symbols)

VEGETABLE DRAWER

Magic Crispers

• Magic Crispers provide fresher-tasting fruit and vegetables by letting you easily keep humidity inside the drawer.
• A lattice on the underside of the cover to efficiently hold or release moisture.
• Sealing structure keep the humidity.

Vitamin Kit (Optional)

• Vitamin Kit used to keep fruits more fresher.
- Please try to keep the kit from getting wet as this would decrease its effectiveness.

Vitamin Kit

Line drawing of a rectangular container with a lid and side supports (no text or symbols)

OPERATIONS

DEFROSTING

• Defrosting takes place automatically.
- The defrosted water flows down to the evaporating tray which located in the lower back side of the refrigerator and is evaporated automatically.

DEODORIZER (OPTIONAL)

- Unpleasant odor of food in fresh food compartment is deodorized with no harm to you and the food.

Cartoon illustration of a smiling rectangular character with arms and legs, pointing upward (no text or symbols)

Cartoon illustration of a distressed character holding a tool, with steam rising (no text or symbols)

How to use

• As Deodorizer is located in cooling air inlet for circulating air in fresh food compartment, there is no need for any handling.
• Do not prick the cooling air inlet with a sharp tip because Deodorizer may be damaged.
• When storing food with a strong odor, wrap it or store it in a container with a lid because odor may be passed on to other foods.

Re-Using of Deodorizer

• Used some length and the odor is strong, Deodorizer can be revived and re-used.
- Separate Deodorizer in ceiling of refrigerator compartment, using hair drier to remove moisture or malodor and oxidize under sunlight to decomposing malodor by ultraviolet.

SUGGESTIONS ON FOOD STORAGE

STORING FOOD

• Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor.
• Do not store food which goes bad easily at low temperatures, such as bananas, pineapples, and melons.
• Allow hot food to cool prior to storing. Placing hot food in the refrigerator could spoil other food, and lead to higher electric bills!
• When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.
• Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even.
• Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperatures to rise.

FREEZER COMPARTMENT

• Do not store bottles in the freezer compartment - they may break when frozen.
• Do not refreeze food that has been thawed. This causes loss of taste and nutrition.
• When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack.
• Loading for Freezing - It is recommended to load newly introduced foods on the following position for freezing:

REFRIGERATOR COMPARTMENT

• Avoid placing moist food on deep interior refrigerator shelves, it could freeze upon direct contact with chilled air. To avoid this it is better to store food in the covered container.
• It is desirable to store moist food (especially vegetable and fruit) in the vegetable storage compartment. If it is necessary to store on a shelf of the refrigerator, put it close to the door away from the back wall of the

refrigerator to avoid being frozen by the cool circulating in the refrigerator.

- Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped clean, to prevent adjacent food from spoiling.

- When storing eggs in their storage rack, ensure that they are fresh, and always store them in a upright position, which keeps them fresh longer.

CLEANING

It is important that you refrigerator be kept clean to prevent undesirable odors. Spilled food should be wipe up immediately, since it may acidify and stain plastic surfaces if allowed to settle.

Never use metallic scouring pads, brushes, coarse abrasive cleaners or strong alkaline solutions on any surface.

Before you clean, however, remember that damp objects will stick or adhere to extremely cold surfaces. Do not touch frozen surfaces with wet or damp hands.

EXTERIOR - Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

INTERIOR - Regular cleaning of the interior and interior parts is recommended. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

INTERIOR PARTS - Wash compartment shelves, door racks, storage trays and magnetic door seals etc. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

WARNING

Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical parts(lamps, switches, controls, etc.).

Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing electric shock. Do not use flammable or toxic cleaning liquids.

• Caution for Cleaning Not in use: Surface active agent, Car wax, Anticorrosive, All sorts of oil, Gasoline, Acids, Wax.
• Usable Detergent Vegetable dish washable solution, Soapy water.
• When careless using, it can occur a color change.

GENERAL INFORMATION

VACATION TIME

During average length vacations, you will probably find it best to leave the refrigerator in operation.

Place freezable items in freezer for longer life.

When you plan to be away for an extended period, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.

POWER FAILURE

Most power failures are corrected in an hour or two and will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. During power failures of longer duration, place a block of dry ice on top of your frozen packages.

IF YOU MOVE

Remove or securely fasten down all loose items inside the refrigerator.

To avoid damaging the leveling screw(s), turn them all the way into the base.

ANTI-CONDENSATION PIPE

The outside wall of the refrigerator cabinet may sometimes get warm,

especially just after installation.

Don't be alarmed.

This is due to the anti-condensation pipe, which pumps hot refrigerant to prevent "sweating" on the outer cabinet wall.

Caution

Electrical Shock Hazard

Before replacing a burned-out light bulb, either unplug the refrigerator or turn off power at the circuit breaker or fuse box.

NOTE: Moving the control to the OFF position does not remove power to the light circuit.

LAMP REPLACEMENT

- Not all appliance bulbs will fit your refrigerator. Be sure to replace the bulb with one of the same size, shape and wattage.

FREEZER LAMP

• Unplug the power cord from the outlet.
• Remove the room lamp lid by loosening 1 screw and take down while pulling it forward with both hands as shown in figure.
• Remove the lamp by turning it counterclockwise.

Illustration of a hand holding a tool inserted into a dome-shaped container (no text or symbols)

Illustration of two hands pressing down on a surface with arrows indicating motion (no text or symbols)

REFRIGERATOR LAMP

• Unplug the power cord from the outlet.
• Remove refrigerator shelves.
• Remove the room lamp lid by pulling it forward.
• Make sure the bulbs are cool to the touch. Remove the lamp by turning it counterclockwise.

Illustration of hands pressing down on a mechanical component (no text or symbols visible)

IMPORTANT WARNINGS

DO NOT USE AN EXTENSION CORD

If possible, connect the refrigerator to its own individual electrical outlet to prevent it and other appliances or household lights from causing an overload that could cause a power outage.

ACCESSIBILITY OF SUPPLY PLUG

The refrigerator-freezer should be so positioned that the supply plug is accessible for quick disconnection when accident happens.

SUPPLY CORD REPLACEMENT

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

ABOUT GROUNDING (EARTHING)

In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current.

In order to prevent possible electric shock, this appliance must be grounded.

Improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.

DO NOT MODIFY OR EXTEND THE POWER CORD LENGTH.

It will cause electric shock or fire.

An empty refrigerator can be a dangerous attraction to children. Remove either gaskets, latches, lids or the entire door from your unused appliance, or take some other action to make it harmless.

This appliance must be grounded (earthed). DON'T WAIT! DO IT NOW!

Do not store inflammable materials, explosives or chemicals in the refrigerator.

Disposal of the old appliance

This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable.

All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For take back, please contact with the local agency.

BEFORE CALLING FOR SERVICE

SERVICE CALLS CAN OFTEN BE AVOIDED!

IF YOU FEEL YOUR REFRIGERATOR IS NOT OPERATING PROPERLY, CHECK THESE POSSIBLE CAUSES FIRST :

PROBLEM	POSSIBLE	CAUSES
REFRIGERATOR DOES NOT OPERATE	Has a house fuse blown or circuit breaker tripped?Has the power cord plug been removed or loosened from the electrical wall outlet?
REFRIGERATOR OR FREEZER COMPARTMENT TEMPERATURE TOO WARM	Temperature control not set on proper position.Appliance is placed close to wall or heat source.Warm weather-frequent door openings.Door left open for a long time.Large amount of foods are kept in the refrigerator.
ABNORMAL NOISE(S)	Refrigerator is installed in a weak or uneven place, or leveling screw needs adjusting.Unnecessary objects placed in the back side of the refrigerator.
REFRIGERATOR HAS ODOR	Foods with strong odors should be tightly covered or wrapped.Interior needs cleaning.
DEW FORMS ON THE CABINET SURFACE	Not unusual during periods of high humidity.Door may have been left ajar.

Change the triad - the government is about that from the country. An im/kil and a way to be in the country. لاحي فعير سلنا

Diagram of a refrigerator interior showing front and back views with no text or symbols

Cartoon illustration of a smiling rectangular character pointing upward with arms, no text or symbols present

Cartoon illustration of a distressed face with steam rising, held by hands (no text or symbols)

Illustration of a container being poured into a griddle with a lid (no text or symbols)

۰ تابعکلا جارخلا.

Illustration of a cartoon refrigerator with a magnified inset showing its exterior view (no text or symbols)

Ref. Temp Control Button

Line drawing of an open refrigerator with a right-pointing arrow indicating direction (no text or symbols)

Cartoon illustration of a sad refrigerator with a distressed face and a child running away (no text or symbols)

Illustration of a cartoon refrigerator with a child inside and a box with X marks (no text or symbols)

حيث قد يتسب

ذلك في صدمة

بية أو إصابة. كهر

Illustration of a cartoon refrigerator and a girl running away from a doorway (no text or symbols)

Cartoon illustration of a smiling rectangular object with arms and legs, standing on a cross symbol (no text or symbols present)

Cartoon illustration of a girl and a book character interacting, no text or symbols present

Cartoon illustration of a smiling rectangular character with arms crossed out, expressing shock or discomfort (no text or symbols)

Cartoon illustration of a smiling child holding a broom while standing beside an open refrigerator (no text or symbols)

Cartoon illustration of a smiling refrigerator with an 'NO' sign and X-shaped door, indicating no change or absence of any text.

Cartoon illustration of a refrigerator with a 'NO' sign and a gift box (no text or symbols on the main image)

Cartoon illustration of a smiling refrigerator with a child running away (no text or symbols)

Cartoon illustration of a smiling rectangular character holding a 'NO' sign, with expressive faces and limbs (no text or symbols beyond the label)

Illustration of two children playing with airplanes, one holding a baton and the other holding a baton (no text or symbols)

Cartoon illustration of a refrigerator with a speech bubble and a hand pointing at it, next to a small battery (no text or symbols)

specialistالتارiques

أكثر من 30 بوصة

الحص الثاني يض.

Illustration of a cartoon refrigerator with a sad face and a broken door connected to a crossed-out door (no text or symbols)

Diagram of a mechanical or electrical component with intersecting wires and a central block (no text or symbols)

Cartoon illustration of a refrigerator with a 'NO' sign and a phone, no text or symbols present

Cartoon illustration of a smiling refrigerator character with arms and legs (no text or symbols)

Illustration of two hands holding a rectangular object with arrows indicating rotation or movement (no text or symbols)

Illustration of a hand holding a screwdriver inserted into a dome-shaped container (no text or symbols)

Illustration of hands holding a transparent container with arrows indicating motion (no text or symbols)

Cartoon illustration of a smiling book character holding a pen, with no text or symbols present.

Cartoon illustration of a sad, anthropomorphic object with arms and legs, being cut (no text or symbols)

•

Illustration of a container being poured into a tray with a handle, showing liquid and a small object (no text or symbols)

תְקָרִי אַלְאָה

Illustration of a cartoon refrigerator with a magnified inset showing internal air conditioner unit (no text or symbols)

Illustration of a cartoon refrigerator with a smiling face and open door, connected to an inset image of the refrigerator (no text or symbols)

תָּלְיֹם תַּרְה

↑

תְרָה תְרָה

תָרִי בְּרַע

↓

תְרָה

Line drawing of an open refrigerator with a door, showing internal compartments and a handle (no text or symbols)

GR-B612Y / GR-B562Y / GR-B628Y ολT

תָאַלְרָה אַע

Exploded view diagram of an open refrigerator showing internal compartments and ventilation systems (no text or labels)

תְרָה בְּרָה

||ONX'KN

אַתְרָה

תָאַלְרָה

||onx'xn

אַתְרָה

|| gran

הכלה

תְרָה

הכלה

Cartoon illustration of a distressed book character with a sad face and a person sitting on the ground (no text or symbols)

Cartoon illustration of a smiling book character holding a 'N' sign next to a crossed-out cigarette (no text or symbols)

Cartoon illustration of a distressed refrigerator with a surprised face and a person sitting on the floor, no text or symbols present.

Illustration of a child and a man inside a refrigerator with a crossed-out X symbol (no text or symbols present)

Cartoon illustration of a child standing in front of a distressed refrigerator with a large 'X' symbol, no text or symbols present.

Cartoon illustration of a child standing beside an open refrigerator with a distressed face (no text or symbols)

Cartoon illustration of a smiling book character and a girl holding a book, no text or symbols present

Cartoon illustration of a smiling rectangular character with arms crossed out, surrounded by waving hands (no text or symbols)

Cartoon illustration of a nurse and a smiling hospital ship with a bandage, no text or symbols present

Cartoon illustration of a smiling refrigerator with arms and legs crossed out, expressing discomfort (no text or symbols)

Cartoon illustration of a child cleaning a refrigerator with a broom (no text or symbols)

תְבָרִי הַלְהָם

תָאַעְרִי, וּוֹת

תְרָה בְּרָה

.תְרַעָה

Cartoon illustration of a smiling rectangular character and a crossed-out bottle (no text or symbols)

תָרְשָׁה בַרְשָׁה

תְקָרִי

Cartoon illustration of a smiling rectangular character holding a 'N7' sign, next to a crossed-out box and a small bottle (no text or symbols on the character itself)

אַתְרָה אַתְרָה

תְבָרִי בְאַעֹה אַל

.הכלהה

Cartoon illustration of a refrigerator with a sad face and a broken cup, accompanied by a distressed character (no text or symbols)

תְרָה בַרִי אַלְרָה

בַרְשָׁה בַרְשָׁה

הכלהה כרִים

תְקַרָה בְּרָה

Cartoon illustration of a smiling refrigerator with an open door and a 'X' symbol, no text or symbols present.

Cartoon illustration of a distressed refrigerator and a gift box (no text or symbols)

Cartoon illustration of a smiling rectangular book character and a small robot holding a tablet, both waving (no text or symbols)

Cartoon illustration of a smiling refrigerator and a worker holding a tool, no text or symbols present

תְבָרִי בְאַעֹה אַל

הכלהה

. אַרְשָׁא

בְרָה, בְּרָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְא'

בַרְשָׁה בַרְשָׁה

.תָרְשָׁ

Cartoon illustration of a gift box character with arms and facial features (no text or symbols)

תְרָה בַרִי הַלְרָה

Illustration of a child next to a refrigerator with a smiling face (no text or symbols)

Illustration of two children playing with a star-shaped prop, separated by a diagonal line (no text or symbols)

Illustration of a cartoon refrigerator with a smiling face and a small object inserted into a ground anchor (no text or symbols)

Illustration of a hand holding a tool near a cloth, with motion lines indicating motion (no text or symbols)

תְרָה אַעֹן, בְּבָא

בְרָה בְרַעֹת אִי

בַעָה בְרִי

.תְּרָהוֹתִים

Cartoon illustration of a smiling refrigerator with a hand waving, and a person holding a windmill (no text or symbols)

אַתְרָה בִרְשָׁבָה

Cartoon illustration of a child holding a large rectangular object with a cross on top, next to a smiling face (no text or symbols)

Illustration of a cartoon refrigerator with a sad face and a broken handle, next to an X-shaped diagram showing a hand holding a box (no text or symbols)

תְרָה בְּרַעֹל אַק

אַלְרָה אַתִי

הכלהה

Diagram of a mechanical knot or spring assembly with no visible text or symbols

Cartoon illustration of a smiling refrigerator with a 'NO' sign and a person sitting on the floor (no text or symbols on the refrigerator itself)

Cartoon illustration of a refrigerator with a surprised expression and a gift box (no text or symbols)

GR-B612Y / GR-B562Y / GR-B628Y

GR-B492Y / GR-528Y
