MERO6 - Loudspeaker Audac - Free user manual and instructions

Brand	Audac
Model	MERO6
Product Type	In-wall speaker
Driver Configuration	5" aluminum woofer + 1" aluminum dome tweeter
RMS Power	60 W
Maximum Power	120 W
Nominal Impedance	8 Ohm
Sensitivity	88 dB (1W/1m)
Maximum SPL	106 dB
Frequency Response (-3 dB)	55 Hz - 20 kHz
Crossover Frequency	3.0 kHz
Crossover Network	Passive built-in
Connectors	Gold plated spring clamps
Mounting System	4-screw quick-fixing
Cut-out Dimensions	174 x 254 mm
Overall Dimensions	196.5 x 276.7 x 82 mm
Built-in Depth	78.5 mm
Net Weight	1.66 kg
Shipping Weight	2.1 kg
Front Finish	White thin edge grill (RAL9003), 1 mm border, 3.2 mm height
Construction Material	High-quality ABS
Special Features	Rotatable tweeter, neodymium magnet grill, quick-fix mechanism
Application	Residential Hi-Fi, home cinema, multi-zone systems
Indoor Use Only	Yes
Cleaning Instructions	Clean with dry cloth only

Frequently Asked Questions - MERO6 Audac

How do I install the MERO6 in-wall speaker?

First, cut a hole of 174 x 254 mm using the included template. Remove the front grill, connect wires to the gold plated spring clamps (red positive, black negative), then insert the speaker and tighten the four screws to lock the mounting clips behind the surface. Finally, reattach the grill.

What is the recommended amplifier power for the MERO6?

The speaker has an RMS power of 60 W and maximum power of 120 W. Use an amplifier that delivers within this range at 8 Ohms to avoid damage.

Can the MERO6 be used outdoors?

No, this speaker is designed for indoor use only. Do not expose it to rain, moisture, or extreme temperatures.

How do I connect the speaker wires?

Use gold plated spring clamps: press the button on the terminal, insert the wire, then release. Ensure correct polarity: red for positive (+), black for negative (-). Use cables with clear color coding and sufficient gauge.

What is the cut-out size for the MERO6?

The required cut-out hole is 174 x 254 mm. A template is included for easy marking.

Is the tweeter adjustable?

Yes, the 1-inch aluminum dome tweeter can be rotated up to 7.5 degrees for optimal orientation.

Does the speaker come with a grill?

Yes, it includes a slim white grill with a 1 mm border and 3.2 mm height, held by neodymium magnets for easy attachment and removal.

How should I clean the MERO6?

Clean only with a dry cloth. Do not use liquids or chemicals.

What are the dimensions and weight?

Overall dimensions: 196.5 x 276.7 x 82 mm, built-in depth: 78.5 mm. Net weight: 1.66 kg.

Is the MERO6 suitable for home theater use?

Yes, it is designed for residential Hi-Fi and home cinema installations, as well as multi-zone systems.

USER MANUAL MERO6 Audac

6" High-end in-wall speaker

The MERO speakers will blend beautifully into any interior, making only their extraordinary sound draw your attention with their nearly invisible design. Their slim grill with very thin border of only 1mm and limited grill depth extrudes the surface by only 3.2 mm when installed.

Their grilles are retained by neodymium magnets which enables assembly in seconds, while powerful enough to keep it fixed, even when subject to vibrations or if touched. Their applications range from residential Hi–Fi and home cinema installations to Multi–Zone systems, unobtrusive installations in lounges, bars, boutiques and offices.

The selection of high-grade materials in combination with accurate acoustics craftsmanship makes the MERO speakers superior in their class. The largest MER06 consists of a 6" aluminum cone woofer and complementary 1" dome tweeter that are smoothly matched and optimized using a high-quality crossover network.

An acoustically optimized waveguide matches the dispersion of woofer and tweeter, while a phaseplug reduces diffraction and enhances off-axis high frequency response. All these details share their part to its pure sound.

An elegant look with minimal visual impact is created by the slim grill with very thin border, while great ease and installers convenience is guaranteed using the quick-fix mechanism with Gold-CON connectivities. Installation can be done in both vertically and horizontally, while the rotatable tweeter allows optimal orientation positioning.

Precautions

READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY

• ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. NEVER THROW THEM AWAY
  • ALWAYS HANDLE THIS UNIT WITH CARE
• CLEAN ONLY WITH DRY CLOTH
  • HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS
• NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR SPLASHING LIQUID. AND NEVER PLACE AN OBJECT FILLED WITH LIQUID ON TOP OF THIS DEVICE
• DO NOT INSTALL THIS UNIT NEAR ANY HEAT SOURCES SUCH AS RADIATORS OR OTHER APPARATUS THAT PRODUCE HEAT
• DO NOT PLACE THIS UNIT IN ENVIRONMENTS WITH A HIGH LEVEL OF DUST, HEAT, MOISTURE OR VIBRATION
• THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY. DO NOT USE IT OUTDOORS
• ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED BY THE MANUFACTURER.
• ONLY INSTALL THE SPEAKER IN LOCATIONS THAT CAN STRUCTURALLY SUPPORT THE WEIGHT OF THE SPEAKER. IGNORING THIS CAN BRING THE SPEAKER DOWN.
• DO NOT USE ANY OTHER METHOD THAN SPECIFIED TO MOUNT THE SPEAKER. IF EXTREME FORCE IS APPLIED TO THE SPEAKER, IT COULD FALL DOWN
• CAREFULLY CHECK THE UNIT'S CONDITION AFTER UNPACKING. IF THERE IS ANY DAMAGE TO THE CARTON BOX OR THE UNIT ITSELF, INFORM YOUR VENDOR IMMEDIATELY.

CAUTION

• USE CABLES OF THE RIGHT GAUGE TO CONNECT THE LOUDSPEAKER
- USE CABLES WITH CLEAR COLOUR CODING INDICATING THE POLARITY AND MAINTAIN THE SAME POLARITY THROUGHOUT THE WHOLE SYSTEM.
- ONLY USE THE CORRECT AMPLIFIER OUTPUT VOLTAGE AND IMPEDANCE. EXCEEDING THESE LIMITS COULD CAUSE FIRE OR OTHER FAILURES. AVOID EXPLOSIONS: DO NOT USE THE SPEAKER AROUND GASOLINE, THINNER OR OTHER COMBUSTIBLES
- AVOID ELECTRIC SHOCKS: SWITCH OFF THE AMPLIFIER WHEN CONNECTING THE LOUDSPEAKER
- DO NOT USE THE LOUDSPEAKER FOR AN EXTENDED PERIOD OF TIME AT DISTORTED SOUND. THIS COULD CAUSE PERMANENT DAMAGE.

White hand gesture with index finger raised (no text or symbols)

CAUTION - SERVICING

This product contains no user serviceable parts. Refer all servicing to qualified service personnel. Do not perform any servicing (unless you are qualified to do so.)

EC DECLARATION OF CONFORMITY

This product conforms to all the essential requirements and further relevant specifications described in following directives: 2004/108/EC (EMC) and 2006/95/EC (LVD)

Simple line drawing of a mechanical device with cross-shaped components (no text or symbols)

WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)

The WEEE marking indicates that this product should not be disposed with regular household waste at the end of its product life. This regulation is created to protect both the environment and human health.

This product is developed and manufactured with high quality materials and components which can be recycled and/or reused. Please dispose this product to your local collection point or recycling centre for electrical and electronic waste. This will make to sure that it will be recycled on an environmentally friendly manner, and will help to protect the environment in which we all live.

Installing the MERO

Introduction

The MERO speakers feature a quick-fixing mechanism, which allows quick and easy installation of the loudspeakers in only a few minutes.

The installation of the MERO speakers requires a minimum amount of installation skills. Before the loudspeaker is installed, the location whereto it will be mounted should be carefully checked to make sure the surface can support the weight of the speaker and no lines for water, gas, electricity or other supplies are crossing this point.

Installation procedure

To ensure a safe and secure mounting of the loudspeaker, the installation should be done according to the procedure described below:

1) Firstly cut a hole into the surface where to the loudspeaker should be installed with dimensions 254 x 174 mm. The included cutout template can be used for an easy marking of the installation hole.

2) Provide the loudspeaker connection cable through the mounting hole. Make sure the used connection cable is sufficiently thick. The required cable thickness depends on its length.

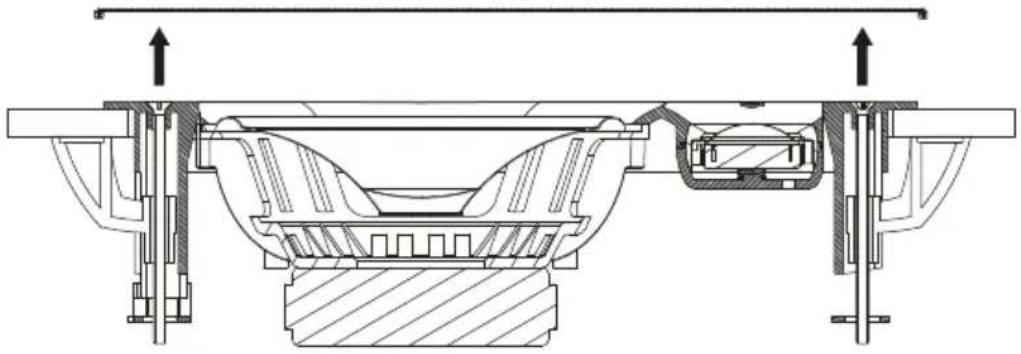

3) Take the loudspeaker, and remove the front grill which is held in place by neodymium magnets. The front grill can be easily removed by gently pulling it.

Cross-sectional technical diagram of a mechanical assembly (no text or labels)

4) Connect the loudspeaker connection cable to the gold plated spring clamp connectors. Press the button of the corresponding terminal down and insert the connection cable. After releasing the button, the cable is connected to the loudspeaker. The Red terminal indicates positive (+) pole and the Black terminal indicates the negative (−) pole.

Mind the polarity markings when wiring the loudspeaker cables.

Maintain the same polarity and wiring colour coding throughout the entire system to avoid any mistakes causing malfunction or distortion.

5) Once the connections are made, the loudspeaker can be installed in the provided mounting hole. Make sure the mounting clips of the loudspeaker are rotated inwards, making the speaker fit through the hole. Insert the speaker through the provided mounting hole, and use a screwdriver for tightening the fixing screws.

Once the screws are tightened a quarter turn, the mounting clip will rotate outwards and will be locked behind the surface. From then on, the loudspeaker is anchored in the surface and thus can not fall.

Technical cross-sectional diagram of a mechanical assembly (no text or labels)

6) After the screws are tightened and the speaker is level with the surface, the front grill can be assembled to the loudspeaker.

Additional Information

Technical specifications

RMS	Power	60	Watt
Max.	Power	120	Watt

Nominal impedance 8 Ohm

Sensitivity 1W / 1m 88 dB

Sound pressure Max W / 1m 106 dB

Frequency response -3 dB 55 Hz - 20 kHz

Cross-over frequency 3.0 kHz

Cross-over network Passive Built-in

Drivers	HF	1”	Alu	tweeter
	7.5°	rotation	angle
	LF	5”	Alu	woofer

Connectors Gold plated spring clamps

Mounting	4-Screw	Quick-Fixing
Construction	High-Quality	ABS

Front finish White Thin edge grill (RAL9003)

(1 mm width x 3.2 mm height edge)

Dimensions 196,5 x 276,7 x 82 mm

Cut-out measurement 174 x 254 mm

Built-in depth 78,5 mm

Weight 1.66 Kg

Packaging Carton box

Shipping weight & Volume 2.1 Kg - 0,0083 Cbm

Accessories included Cut-out template Instruction manual
