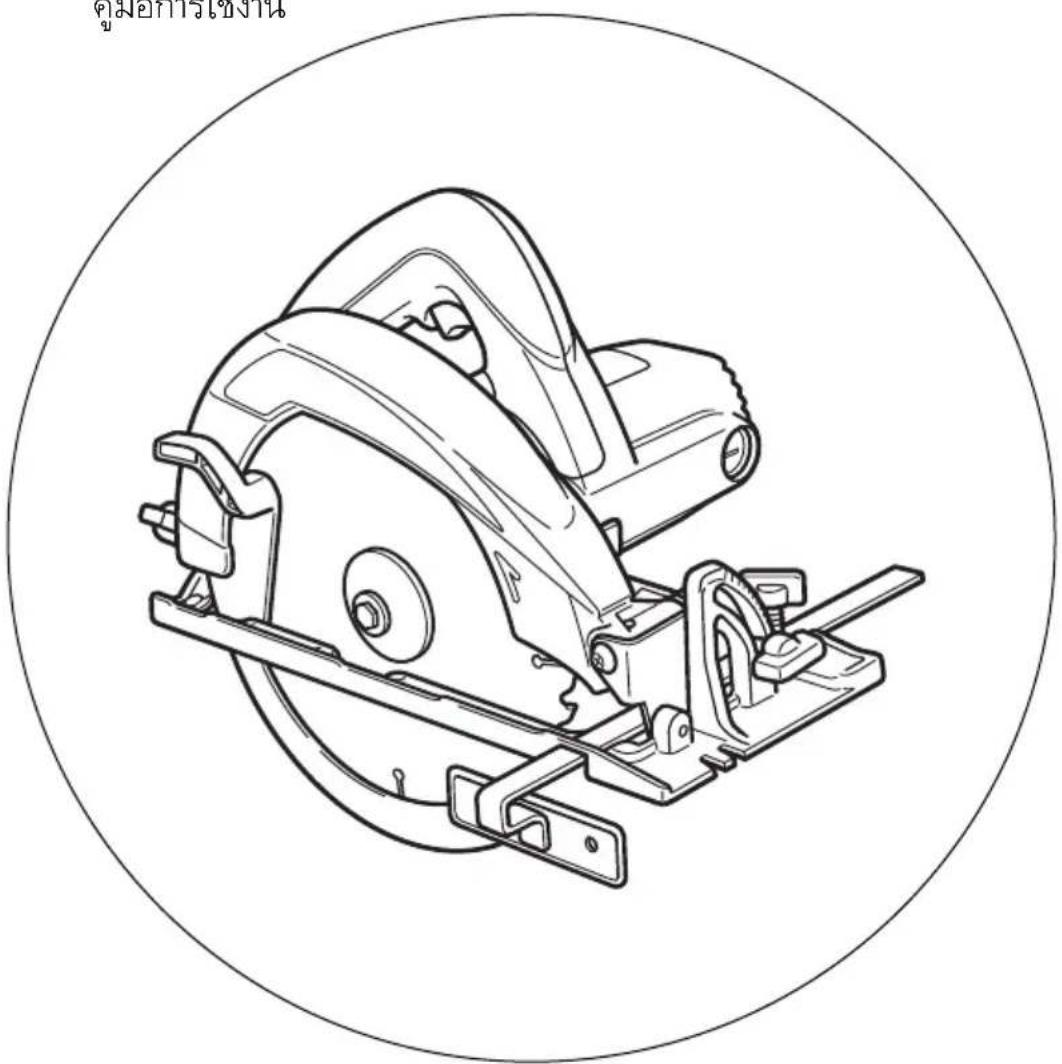

USER MANUAL C 6SF HITACHI
HANDLING INSTRUCTIONS
使用說明書
คู่มือการใช้งาน
Read through carefully and understand these instructions before use.
使用前務請詳加閱讀
5
8
Read all instructions
Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury.
The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
1) Work area
a) Keep work area clean and well lit.
Cluttered and dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust.
Power tools create sparks which may ignite the dust of fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in serious personal injury.
b) Use safety equipment. Always wear eye protection.
Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Avoid accidental starting. Ensure the switch is in the off position before plugging in.
Carrying power tools with your fi nger on the switch or plugging in power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
Use of these devices can reduce dust related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation.
If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
PRECAUTION
Keep children and infi rm persons away.
When not in use, tools should be stored out of reach of children and infi rm persons.
SAFETY INSTRUCTIONS FOR ALL SAWS
a) DANGER: Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing.
If both hands are holding the saw, they cannot be cut by the blade.
b) Do not reach underneath the workpiece.
The guard cannot protect you from the blade below the workpiece.
c) Adjust the cutting depth to the thickness of the workpiece.
Less than a full tooth of the blade teeth should be visible below the workpiece.
d) Never hold piece being cut in your hands or across your leg. Secure the workpiece to a stable platform. It is important to support the work properly to minimize body exposure, blade binding, or loss of control.
e) Hold power tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord.
Contact with a "live" wire will also make exposed metal parts of the power tool "live" and shock the operator.
f) When ripping always use a rip fence or straight edge guide.
This improves the accuracy of cut and reduces the chance of blade binding.
g) Always use blades with correct size and shape (diamond versus round) of arbour holes.
Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.
h) Never use damaged or incorrect blade washers or bolt.
The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation.
FURTHER SAFETY INSTRUCTIONS FOR ALL SAWS
Causes and operator prevention of kickback:
- kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator;
- when the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator;
- if the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator.
Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.
a) Maintain a fi rm grip with both hands on the saw and position your arms to resist kickback forces.
Position your body to either side of the blade, but not in line with the blade.
Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken.
b) When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop.
Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur.
Investigate and take corrective actions to eliminate the cause of blade binding.
c) When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw teeth are not engaged into the material.
If saw blade is binding, it may walk up or kickback from the workpiece as the saw is restarted.
d) Support large panels to minimise the risk of blade pinching and kickback.
Large panels tend to sag under their own weight.
Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel.
e) Do not use dull or damaged blades.
Unsharpened or improperly set blades produce narrow kerf causing excessive friction, blade binding and kickback.
f) Blade depth and bevel adjusting locking levers must be tight and secure before making cut.
If blade adjustment shifts while cutting, it may cause binding and kickback.
g) Use extra caution when making a "plunge cut" into existing walls or other blind areas.
The protruding blade may cut objects that can cause kickback.
SAFETY INSTRUCTIONS FOR SAWS WITH PENDULUM GUARD OR TOW GUARD
a) Check lower guard for proper closing before each use. Do not operate the saw if lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position.
If saw is accidentally dropped, lower guard may be bent.
Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut.
b) Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use.
Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.
c) Lower guard should be retracted manually only for special cuts such as "plunge cuts" and "compound cuts". Raise lower guard by retracting handle and as soon as blade enters the material, the lower guard must be released.
For all other sawing, the lower guard should operate automatically.
d) Always observe that the lower guard is covering the blade before placing saw down on bench or floor.
An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path.
Be aware of the time it takes for the blade to stop after switch is released.
PRECAUTIONS ON USING CIRCULAR SAW
- Proceed with cutting operation when full speed has been reached.
- Never use the circular saw with its lower guard fixed open.
- Ascertain that lower guard moves smoothly.
- Never lay down the circular saw while the saw blade is revolving.
-
Turn OFF the switch immediately when a fault occurs.
-
Never operate circular saw with its saw blade turned upward.
- Cutting glass fi ber is not recommended.
- Do not use the saw blade of which the diameter at the end of the teeth is less than 134 mm (C6SF/C6MF) or 162 mm (C7SF/C7MF).
- Always keep the saw blade sharp.
- Ascertain that the workpiece is free of foreign matter such as nails.
- Exercise care to position the circular saw at a safe, stable spot when sawing.
SPECIFICATIONS
| Model C6SF/C6MF C7SF/C7MF | ||
| Voltage* | (110 V, 220 V, 230 V 240 V) | |
| Power Input 1010 W 1050 W | ||
| Max. Cutting Depth 57 mm 68 mm | ||
| Saw Blade: external diam. 165 mm 190 mm thickness 1 mm tip width | 1 mm 1.6 mm | 1.6 mm |
| No-load Speed* | 5000/min, 5500/min | |
| Weight (without cord) | 3.0 kg | 3.3 kg |
*Be sure to check the nameplate on product as it is subject to change by areas.
STANDARD ACCESSORIES
(1) Saw Blade....1
(2) Box Wrench ....1
(3) Guide ....1
(4) Hex. Bar Wrench ....1
Standard accessories are subject to change without notice.
APPLICATION
○ Cutting various types of wood.
○ Cutting various decorative boards, thin plastic boards, and new types of building materials which are soft (use a saw blade for plastics).
PRIOR TO OPERATION
- Power source
Ensure that the power source to be utilized conforms to the power requirements specified on the product nameplate. - Power switch
Ensure that the power switch is in the OFF position. If the plug is connected to a receptacle while the power switch is in the ON position, the power tool will start operating immediately, inviting serious accident. - Extension cord
When the work area is removed from the power source. Use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.
4. Prepare a wooden workstand (Fig. 1)
Since the saw blade will extend beyond the lower surface of the lumber, place the lumber on a workstand when cutting. If a square block is utilized as a workstand, select level ground to ensure it is properly stabilized. An unstable workstand will result in hazardous operation.
CAUTION
To avoid possible accident, always ensure that the portion of lumber remaining after cutting is securely anchored or held in position.
ADJUSTING THE POWER TOOL PRIOR TO USE
1. Adjusting the cutting depth
The cutting depth can be adjusted by moving the base after loosening its wing nut (Fig. 2).
CAUTION
Should this wing nut remain loosened, it will create a very hazardous situation. Always thoroughly clamp it.
2. Adjusting the angle of inclination
By loosening the wing bolt at the scale, the saw blade can be titled up to maximum angle of 45^ against the base (Fig. 3).
The angle of inclination can also be regulated by loosening the wing bolt at the scale (Fig. 3).
CAUTION
It is very hazardous to allow this wing bolt to remain loosened. Always thoroughly clamp it.
3. Regulating the guide
The cutting position can be regulated by moving the guide to the left or right after loosening its wing bolt.
The guide can be mounted on either the left or the right side.
4. Fine tuning of parallelism
It is possible to fi ne-tune the parallelism of the saw blade to the base using the parallelism adjustment screw.
Adjustment has already been made at the time of shipment from the factory. However, in the unlikely event of parallelism being faulty, adjust as follows.
(1) Unfasten only the mounting screws of the saw cover hinge portion (Fig. 4).
(2) Retract the protective cover into the saw cover.
(3) Insert wood chip in the rear side of the saw blade base, and mark the position on the base (Fig. 5).
(4) Move the marked wood chip to the front of the base, and turn the parallelism adjustment screw so that the marking corresponds to the base side (Fig. 6).
(5) After adjustment, fasten the mounting screws tightly in place.
NOTE
○ Parallelism may be slightly faulty if the cutting depth is adjusted after parallelism adjustment.
CUTTING PROCEDURES
- Place the saw body (base) on the lumber, and align the cutting line with the saw blade at the front scale (Fig. 7).
- Turn ON the switch before the saw blade contacts the lumber. The switch is turned ON when the trigger is squeezed, and turned OFF when the trigger is released.
CAUTIONS
Before starting to saw, confi rm that the saw blade has attained full-speed revolution.
- Should the saw blade stop or make an abnormal noise while operating, promptly turn OFF the switch.
○ Always take care in preventing the power cord from coming near to the revolving saw blade.
○ Using the circular saw with the saw blade facing upwards or sideways is very hazardous. Such uncommon applications should be avoided.
○ When cutting materials, always wear protective glasses.
When fi nished with a job, pull out the plug from the receptacle.
MOUNTING AND DISMOUNTING THE SAW BLADE
CAUTION
To avoid serious accident, ensure the switch is in the OFF position, and the power source is disconnected.
1. Dismounting the saw blade

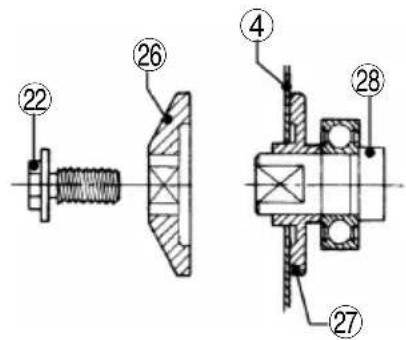

(1) Set the cutting depth to maximum and place the circular saw in a rigid position (Fig. 8).
(2) Keeping the lock lever depressed, carefully turn the bolt with the supplied box wrench.
(3) When the saw shaft is fixed, turn the box wrench counterclockwise to remove bolt and washer (B).
(4) While gripping the lower guard knob, retract the lower guard into the saw cover and take out the saw blade.
2. Mounting the saw blade
(1) Install the saw blade in the reverse order to removal.
(2) Wipe off the swarf from the spindle, washer, etc.
(3) Washer (A) is supplied for 1 type of saw blades with the hole diameter 20 mm (Fig. 9).
(4) The saw blade should be installed so that the arrow on the saw blade is aligned with the arrow on the saw cover.
(5) Tighten the bolt securely.
CAUTIONS
○ If a box wrench other than the one supplied is used, the bolt cannot be tightened correctly. Always use the supplied box wrench.
Before connecting the power cord, check that the lock lever is returned to its original position and the saw blade rotates smoothly.
MAINTENANCE AND INSPECTION
1. Inspecting the saw blade
Since use of a dull saw blade will cause motor malfunctioning and degraded effi ciently, whet it or replace with a new one without delay when abrasion is noted.
2. Inspecting the mounting screws
Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.
3. Maintenance of the motor
The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.
4. Inspecting the carbon brushes (Fig. 10)
The motor employs carbon brushes which are consumable parts. Since an excessively worn carbon brush could result in motor trouble, replace the carbon brushes with new ones which having the same carbon brush No. shown in the figure when they become worn to or near the "wear limit". In addition, always keep carbon brushes clean and ensure that they slide freely within the brush holders.
○ Replacing carbon brushes
Disassemble the brush cap with a slotted-head screwdriver. The carbon brush can then be easily removed.
5. Inspecting lower guard functioning and its maintenance
Carefully maintain the lower guard so that it remains capable of smoothly functioning. Completely remove sawdust deposited around the rotary portion of the lower guard.
6. Service parts list
A: Item No.
B: Code No.
C: No. Used
D: Remarks
CAUTION
Repair, modification and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center. This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.
MODIFICATIONS
Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.
Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice.
NOTE
Due to HITACHI's continuing program of research and development, the specifications herein are subject to change without prior notice.
一般安全規則
警告！
C7SF
| A | B | C | D |
| 1 963803 1 | |||
| 2 322088 1 | |||
| 3 308361 1 | |||
| 4 305568 2 M5 | × 12 | ||
| 5 322507 1 | |||
| 6 317203 1 | |||
| 7 6002VV 1 6002VVCMPS2L | |||
| 8 308362 1 | |||
| 9 308773 3 M3 | × 12 | ||
| 10 322099 1 | |||
| 11 — — — — 1 190MM-D20 | |||
| 12 322100 1 | |||
| 13 957749 1 M7 | × 17.5 | ||
| 14 302434 3 M5 | × 45 | ||
| 15 301653 3 D4 | × 20 | ||
| 16 — — — — 1 | |||
| 17 322504 1 "31, 32" | |||
| 18 931701 1 | |||
| 19 316394 1 | |||
| 20 608VVM 1 608VVC2PS2L | |||
| 21 930703 2 | |||
| 22-1 340571E 1 220V-230V "21" | |||
| 22-2 340571F 1 240V "21" | |||
| 23 322002 1 | |||
| 24-1 360624E 1 220V-230V | |||
| 24-2 360694F 1 240V | |||
| 25 307918 1 | |||
| 26 6000VV 1 6000VVCMPS2L | |||
| 27A 318647 1 | |||
| 28 962782 1 M5 | × 6 | ||
| 29 322015 1 "27A, 41, 42" | |||
| 30 — — — — 1 | |||
| 31 938477 2 M5 | × 8 | ||
| 32 957051 2 | |||
| 33 999043 2 | |||
| 34 935829 2 | |||
| 35 981373 1 | |||
| 36 953327 1 D8.8 |
C6MF
| A | B | C | D |
| 1 963803 1 | |||
| 2 322088 1 | |||
| 3 308361 1 | |||
| 4 305568 2 M5 | × 12 | ||
| 5 322506 1 | |||
| 6 317203 1 | |||
| 7 6002VV 1 6002VVCMPS2L | |||
| 8 308362 1 | |||
| 9 308773 3 M3 | × 12 | ||
| 10 322099 1 | |||
| 11 — — — — 1 165MM-D20 | |||
| 12 322100 1 | |||
| 13 957749 1 M7 | × 17.5 | ||
| 14 302434 3 M5 | × 45 | ||
| 15 301653 3 D4 | × 20 | ||
| 16 — — — — 1 | |||
| 17 322504 1 "31, 32" | |||
| 18 931701 1 | |||
| 19 316394 1 | |||
| 20 608VVM 1 608VVC2PS2L | |||
| 21 930703 2 | |||
| 22 340571E 1 220V-230V "21" | |||
| 23 322002 1 | |||
| 24 360624E 1 220V-230V | |||
| 25 307918 1 | |||
| 26 6000VV 1 6000VVCMPS2L | |||
| 27A 318647 1 | |||
| 28 962782 1 M5 | × 6 | ||
| 29 322004 1 "27A, 41, 42" | |||
| 30 — — — —1 | |||
| 31 938477 2 M5 | × 8 | ||
| 32 957051 2 | |||
| 33 999043 2 | |||
| 34 935829 2 | |||
| 35 981373 1 | |||
| 36 953327 1 D8.8 | |||
| 37 959140 1 |
C7MF
| A | B | C | D |
| 1 963803 1 | |||
| 2 322088 1 | |||
| 3 308361 1 | |||
| 4 305568 2 M5 | × 12 | ||
| 5 322507 1 | |||
| 6 317203 1 | |||
| 7 6002VV 1 6002VVCMPS2L | |||
| 8 308362 1 | |||
| 9 308773 3 M3 | × 12 | ||
| 10 322099 1 | |||
| 11 — — — — 1 190MM-D20 | |||
| 12 322100 1 | |||
| 13 957749 1 M7 | × 17.5 | ||
| 14 302434 3 M5 | × 45 | ||
| 15 301653 3 D4 | × 20 | ||
| 16 — — — | |||
| —1 | |||
| 17 322504 1 "31, 32" | |||
| 18 931701 1 | |||
| 19 316394 1 | |||
| 20 608VVM 1 608VVC2PS2L | |||
| 21 930703 2 | |||
| 22 340571E 1 220V-230V "21" | |||
| 23 322002 1 | |||
| 24 360624E 1 220V-230V | |||
| 25 307918 1 | |||
| 26 6000VV 1 6000VVCMPS2L | |||
| 27A 318647 1 | |||
| 28 962782 1 M5 | × 6 | ||
| 29 322015 1 "27A, 41, 42" | |||
| 30 — — — — 1 | |||
| 31 938477 2 M5 | × 8 | ||
| 32 957051 2 | |||
| 33 999043 2 | |||
| 34 935829 2 | |||
| 35 981373 1 | |||
| 36 953327 1 D8.8 | |||
| 37 959140 1 |
Hitachi Koki Co., Ltd.
903
Code No. C99126334 F
Printed in China
- Read all instructions
- SAVE THESE INSTRUCTIONS
- 1) Work area
- 2) Electrical safety
- 3) Personal safety
- 4) Power tool use and care
- 5) Service
- PRECAUTION
- SAFETY INSTRUCTIONS FOR ALL SAWS
- FURTHER SAFETY INSTRUCTIONS FOR ALL SAWS
- SAFETY INSTRUCTIONS FOR SAWS WITH PENDULUM GUARD OR TOW GUARD
- PRECAUTIONS ON USING CIRCULAR SAW
- STANDARD ACCESSORIES
- APPLICATION
- PRIOR TO OPERATION
- Prepare a wooden workstand (Fig. 1)
- CAUTION
- ADJUSTING THE POWER TOOL PRIOR TO USE
- Adjusting the cutting depth
- Adjusting the angle of inclination
- Regulating the guide
- Fine tuning of parallelism
- NOTE
- CUTTING PROCEDURES
- CAUTIONS
- MOUNTING AND DISMOUNTING THE SAW BLADE
- Dismounting the saw blade
- Mounting the saw blade
- MAINTENANCE AND INSPECTION
- Inspecting the saw blade
- Inspecting the mounting screws
- Maintenance of the motor
- Inspecting the carbon brushes (Fig. 10)
- ○ Replacing carbon brushes
- Inspecting lower guard functioning and its maintenance
- Service parts list
- MODIFICATIONS
- 一般安全規則
- 警告！
- Hitachi Koki Co., Ltd.
Brand : HITACHI
Model : C 6SF
Category : Lawn mower
