OSC5132BH - Range hood Hansa - Free user manual and instructions

Product type	Range hood, chimney style
Model	OSC5132BH
Brand	Hansa
Width	51 cm
Depth	50 cm
Height (min/max)	70-80 cm (adjustable)
Weight	Approx. 10 kg
Power supply	220-240 V ~ 50 Hz
Rated power	200 W (fan + lighting)
Motor power	160 W
Max airflow	650 m³/h
Noise level (max speed)	~65 dB(A)
Number of speeds	3
Controls	Buttons or sliders (depending on version)
Lighting	LED (1-2 lamps, 3 W each)
Grease filter	Aluminum mesh, washable (monthly cleaning)
Charcoal filter	Optional, replace every 3-4 months
Operating modes	Extraction (duct) or recirculation (with charcoal filter)
Installation type	Wall-mounted (vertical) over a hob
Mounting height (min)	50 cm above electric hob / 65 cm above gas hob
Material	Stainless steel and painted steel
Warranty	2 years (manufacturer-covered)

Frequently Asked Questions - OSC5132BH Hansa

How do I clean the grease filter?

The aluminum grease filter should be cleaned at least once a month. You can wash it in a dishwasher or by hand using a mild detergent. After several washes, the color may change, but this does not affect performance.

How often should I replace the charcoal filter?

The activated charcoal filter should be replaced every 3-4 months, or more frequently if you use the hood intensively. It is not washable and must be replaced once saturated.

Can I use the hood in recirculation mode without a charcoal filter?

No, the hood must have an activated charcoal filter installed to operate in recirculation mode. Without it, odors will not be filtered and will return to the room.

What is the minimum distance between the hob and the hood?

For electric hobs, the minimum distance is 50 cm. For gas hobs, it is 65 cm. If the gas cooker manual specifies a greater distance, follow that.

How do I change the light bulb?

The hood uses LED modules. Refer to Figure 7 in the manual for replacement instructions. If unsure, contact an authorized service point.

Why is my hood noisy?

Noise can increase if the grease filter is clogged or if the duct is restricted. Clean the filter regularly and ensure the duct is not too long or bent.

How do I switch between extraction and recirculation mode?

For universal/chimney hoods, manually change the mode by adjusting internal parts (see Figure 8 in manual). For telescopic/in-built hoods, the mode is fixed or set during installation.

What should I do if the power cord is damaged?

Do not use the appliance. The power cord must be replaced by a qualified service technician to avoid hazards.

Can I install the hood myself?

Installation should be done by a qualified installer to ensure safety and compliance with local regulations. The wall must be strong enough to support the weight.

What does the LED indicator color mean?

On some models, the LED changes color with fan speed: usually white for low, yellow for medium, and red for high. Refer to the manual for your specific model.

USER MANUAL OSC5132BH Hansa

OSC6232* / OSC5232* / OSC6132* / OSC5132* / OSC6132* / OSC6212*

EN - Table of contents

NOTES ON SAFETY 8

UNPACKING 11

DISPOSAL OF OLD APPLIANCE 11

OPERATION 12

KITCHEN HOOD CONTROLS 12

OPERATION 13

KITCHEN HOOD CONTROLS 13

OTHER IMPORTANT INFORMATION CONCERNING THE OPERATION OF THE HOOD 14

CLEANING AND MAINTENANCE 15

MAINTENANCE 15

GREASE FILTER 15

ACTIVATED CHARCOAL FILTER 15

LIGHT 15

WARRANTY AND AFTER SALES SERVICE 16

WARRANTY 16

HU - Table of contents

SAFETY INSTRUCTIONS 18

UNPACKING 22

WARRANTY, AFTER-SALES SERVICE

WARRANTY

76

77

78

87

87

88

88

89

89

90

91

91

91

91

91

92

94

98

98

99

99

00

100

101

02

102

102

102

102

03

103

SR - Contents

SAFETY NOTES 105

UNPACKING 108

DISPOSAL OF USED APPLIANCES 108

USE 109

OPERATING INSTRUCTIONS 109

USE 110

CONTROLLING THE HOOD 110

OTHER IMPORTANT INFORMATION ABOUT USING THE HOOD 111

CLEANING AND MAINTENANCE 112

MAINTENANCE 112

GREASE FILTER 112

CHARCOAL FILTER 112

LIGHTING 112

WARRANTY, AFTER-SALES SERVICES 113

WARRANTY 113

From now on, your daily housework will be easier than ever before. Your Hansa appliance is exceptionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

Hansa

Haushaltsgeräte

NOTES ON SAFETY

• Before using the appliance, please carefully read this manual!
• The appliance is designed for household use only.
• The manufacturer reserves the right to introduce changes, which do not affect operation of the appliance.
• The manufacturer shall not be liable for any damage or fire caused by the appliance resulting from failure to follow instructions in this manual.
• Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.
• Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The length of the duct (usually a pipe of ∅ 120 or 150 mm) should not be longer than 4-5 m. An air extraction duct is also required for telescopic and furniture hoods in absorption mode.
• Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane (Mainly in chimney cooker hoods).
• The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.
• Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island'hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

- For details of the installation distance above an electric hob please refer to product technical sheet. If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1).

- Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not extend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.

- When cooking with fat, supervise the pans constantly, because overheated fat can ignite.

- Unplug the appliance before any cleaning, replacing the filter, or repair work.

- The cooker hood grease filter should be cleaned at least once a month, because a filter saturated with fat is flammable.

- Ensure adequate ventilation (air flow) if other equipment such as liquid fuel stoves or heaters are operated in the room in addition to the cooker hood. When the cooker hood is operated simultaneously with burning appliances that require adequate fresh air from the room to work properly, their safe operation is possible if the underpressure around these appliances is a maximum of 0.004 mbar (this does not apply when the cooker hood is used as an odour filter).

- Do not lean on the hood.

- The hood should be cleaned regularly both inside and out (AT LEAST ONCE A MONTH, following the maintenance instructions provided in this manual). Failure to adhere to the rules concerning cleaning the hood and replacing filters results in a fire risk.

- If the power cord is damaged, it should be replaced by a specialised service centre.

- Ensure that it is possible to disconnect the appliance from the mains by removing the plug or switching off the bi-polar switch.

- This appliance is not intended for use by persons (including children) with physical, mental, or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions communicated to them by persons responsible for their safety.

unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety.

• Particular attention should be paid not to allow unaccompanied children to use the appliance.
• Make sure the voltage indicated on the nameplate corresponds to the local mains supply voltage.
• Before use, extend and straighten the power cord.
• Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.
• Before connecting the hood to the mains power supply, always check that the power cord is properly installed and is not trapped by the appliance. Do not connect the appliance to the mains until assembly is complete.
• Do not operate your kitchen hood without the aluminium grease filters.
• It is strictly forbidden to cook dishes under an open flame (flambé) under your kitchen hood.
• Always strictly adhere to regulations issued by the competent local authorities regarding the technical and safety requirements for fume extraction.
• Failing to tighten bolts and fasteners in accordance with these instructions may endanger life and health.
• Hanging kitchen hoods operate only in air circulation / odour absorber mode.
• WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Cleaning and maintenance of the appliance should not be performed by children unless they are 8 years or older and are supervised by a competent person.

UNPACKING

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

OPERATION

Kitchen hood controls

Control Panel is shown in Figure 4, for reference it is also shown below:

The control panel is equipped with buttons (isostat switch).

To turn on the kitchen hood, press one of the buttons to select the desired speed:

1- Low speed. Use this speed when cooking a little food with hardly any fumes. 2- Medium speed. Use this speed when cooking multiple dishes at the same time with moderate amount of fumes. 3- High speed. Use this speed when frying or grilling, with large amount of fumes. 0- Turn off the appliance

Press 📂 to turn the lighting on/off. The lighting operates independently of the hood fan.

Selected kitchen hood models have an LED indicator that changes colour depending on fan speed.

OPERATION

Kitchen hood controls

Control Panel is shown in Figure 4, for reference it is also shown below:

3210

10

The control panel is equipped with two sliders:

1- Low speed. Use this speed when cooking a little food with hardly any fumes. 2- Medium speed. Use this speed when cooking multiple dishes at the same time with moderate amount of fumes. 3- High speed. Use this speed when frying or grilling, with large amount of fumes. 0- Set the slider in this setting to turn off the fan

Use the lighting slider to turn the lighting on (1) or off (0). The lighting operates independently of the hood fan.

Other important information concerning the operation of the hood

Operation in air circulation / odour filter mode. In this mode, the filtered air returns to the room through the outlets. Install the activated charcoal filter in this setting. It is recommended to install the air guide (available depending on the model, mainly in chimney cooker hoods).

Air extraction operation: When the cooker hood operates in extraction mode, air is discharged outside through an extraction duct. Remove the activated charcoal filter in this setting. The cooker hood is connected to the air outlet opening using a rigid or flexible extraction duct with a diameter of 150 or 120 mm, and the appropriate clamps, which must be purchased at a hardware store. The appliance should be installed by a qualified installer.

Fan speed: The lowest and medium fan speeds are used in normal conditions and for less intense odours, while the highest speed is used only when cooking odours are very intense, such as during frying or grilling.

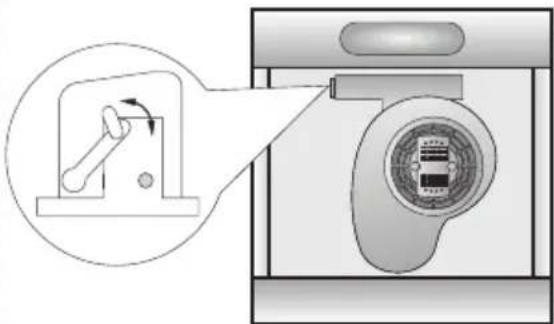

Note (applies to universal hoods only): Due to the design of universal hoods, you need to manually change the mode of operation. See Figure 8 for instructions on how to change the mode.

Note (only applies to telescopic and in-built kitchen hoods): Furniture and telescopic cooker hoods operating in air recirculation mode require installation of the exhaust duct. The other end of the duct should be directed to the room as it will discharge filtered air.

Note: Hanging kitchen hoods operate only in air circulation / odour absorber mode.

CLEANING AND MAINTENANCE

Maintenance

Regular maintenance and cleaning of the appliance will ensure trouble-free operation of the cooker hood and extend its life. Especially make sure that the grease filter and activated charcoal filter are replaced according to the manufacturer's recommendations.

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.
• It is recommended to use a damp cloth and a neutral detergent.

Note: After several washes in the dishwasher, the colour of the aluminium filter may change. The change of colour does not indicate improprieties or the necessity to change it.

Grease filter

For normal hood operation, the grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

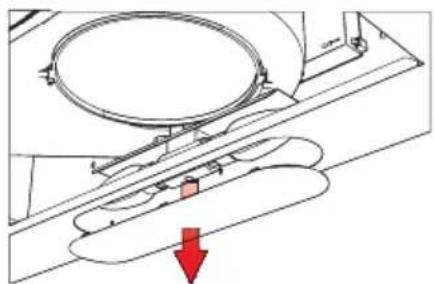

Dismantling of the grease filter is shown in Figure 5.

An acrylic filter is used in some models. This filter should be replaced at least once every 2 months or more frequently if the appliance is used intensively.

Activated charcoal filter

The charcoal filter is used only when the cooker hood is not connected to the ventilation duct. The activated charcoal filter can absorb odours until saturated. The charcoal filter is not suitable for washing or regeneration and should be replaced at least once every 3-4 months or more frequently if the appliance is used intensively.

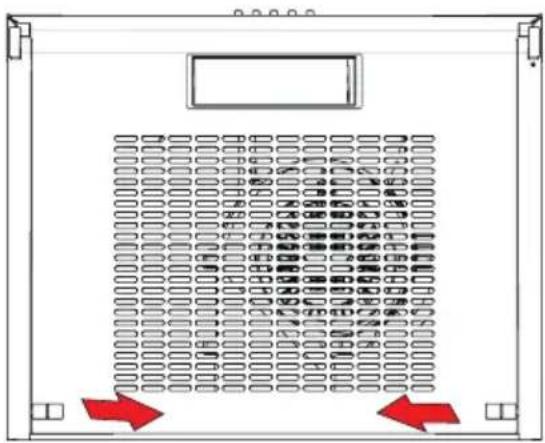

Dismantling of the charcoal filter is shown in Figure 6.

Light

Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance. See Figure 7 for details on how to replace lights. If there is no such figure in this manual, please contact authorised service to replace the lighting module.

WARRANTY AND AFTER SALES SERVICE

Warranty

The manufacturer shall not be held liable for any damage caused by improper use of the product.

Service

• The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. For safety reasons, repairs should be referred to professionals.
• Repairs carried out by unqualified persons may seriously endanger the appliance user.
• The minimum warranty period for the appliance offered by the manufacturer, importer or authorized representative is given in the warranty card.
• The warranty shall be void if you make any independent adaptations or alterations, tamper with seals or other appliance safety devices or its parts or interfere with the appliance contrary to operating instructions.

In the event of appliance malfunction, request assistance or repair.

If your appliance needs repair, please contact the service centre. Please see website for address and contact details of our service centre. Before contacting us, please have ready the appliance serial number, which can be found on the identification sticker: For your convenience, please write it down below:

Certificate of compliance CE and UKCA

The Manufacturer hereby declares that this product complies with the general requirements pursuant to the following European Directives and analogous UK requirements:

• The Low Voltage Directive 2014/35/EC / Electrical Equipment (Safety) Regulations 2016. • Electromagnetic Compatibility Directive 2014/30/EC / Electromagnetic Compatibility Regulations 2016.
• ErP Directive 2009/125/EC / The Ecodesign for Energy-related Products Regulations 2010 (as amended) for the applicable implementing measures which apply in Great Britain and Northern Ireland, respectively.

and therefore the product has been marked with CE and UK symbols and the Declaration of Conformity, the Manufacturer has drawn up the declaration and is available to the competent authorities regulating the market.

Dear Customer

WARRANTY, AFTER-SALES SERVICE

Warranty

The appliance is protected against damage during transport. After removing the appliance from the packaging, please dispose of the packaging materials in a way that does not harm the environment.

All materials used for packaging are not harmful to the natural environment, 100% recyclable, and marked with the appropriate symbol.

Attention! Keep packaging materials (plastic bags, pieces of styrofoam, etc.) away from children when removing packaging.

DISPOSAL OF USED APPLIANCES

The appliance is protected from damage during transport. After removing the appliance from the packaging, please dispose of the packaging elements in a way that does not harm the environment.

All materials used for packaging are not harmful to the environment, 100% of the material is suitable for recycling, therefore they are marked with the appropriate symbol.

Caution! Keep packaging elements (plastic bags, pieces of styrofoam, etc.) away from children when removing packaging.

DISPOSAL OF USED APPLIANCES

This appliance is marked in accordance with European Directive 2012/19/EU. The mark on the product indicates that this product cannot be treated as ordinary household waste after its end of life.

The user is obliged to return this product to an appropriate collection point for recycling of used electrical and electronic equipment. Collection facilities for such waste, including local collection points, shops, and municipal units, create an appropriate system that enables the disposal of such equipment.

Proper disposal of used electrical and electronic equipment prevents potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate disposal and processing of this product.

USE

Power management

0

1

2

3

3210

10

4

5

6

7

*According to the model

*BG- B зависимост от модела / CZ- V závislosti od modelu / DA- Afhængigt af model / DE- Modell abhängig / EE- Sõltuvalt mudelist / EN- According to the model / ES- En función del modelo / FI-Mallin mukaan / FR- Selon le modèle / HR- Ovisno o modelu / HU- Modelltöl függöen / KK- моделіне байланысты / LT- Priklausomai nuo modelio / LV- Atkaribă no modela / NL- Afhankelijk van het model / NO- I henhold til modell / PL- W zależności od modelu / PT- Consoante o modelo / RO- În funcție de model / RU- B зависимости от модели / SK- V závislosti od modelu / SL- Odvisno od modela / SR-Zavisi od modela / SV- I enlighet med utförandet / UK- B залежності від моделі / UZ- Modeliga bog'liq ravishda
