Tv 40ATS5100-U - Television Allview - Free user manual and instructions

Brand	Allview
Model	Tv 40ATS5100-U
Product Type	101 cm (40 inch) LED TV
Resolution	3840 x 2160 (4K UHD)
Aspect Ratio	16:9
Contrast Ratio	3000:1
Color System	PAL/SECAM
Sound System	BG/DK/I
Power Supply	AC 100-240V, 50/60 Hz
Power Consumption (Max)	90 W
Dimensions (W x D x H)	911 x 207 x 571 mm
Weight	6.4 kg
Operating Temperature	-5°C to +45°C
Inputs	RF, 3x HDMI, YPbPr, 2x USB, SCART, AV IN, CI+, LAN, WiFi
Outputs	3.5mm headphone jack, Coaxial
USB Playback Formats	Movie, Music, Photo, Text
Special Features	Hotel Mode, Time Shift, Recording, Teletext, TV Guide, Multi-language OSD
Stand	Detachable
Wall Mount Compatibility	Yes (professional installation recommended)
Maintenance	Unplug before cleaning; use dry soft cloth; no chemicals
Safety Certifications	WEEE compliant; safety warnings included

Frequently Asked Questions - Tv 40ATS5100-U Allview

How do I connect external devices like a DVD player or game console?

Use the HDMI, SCART, or AV inputs on the TV. Press the SOURCE button on the remote or TV to select the corresponding input.

What is the default password if I need to enter one?

The default password is 0000. The universal password is 8899.

Can I record live TV?

Yes, in DTV mode you can use the RECORDER function to record live TV. A USB storage device must be connected.

How do I perform a time shift (pause live TV)?

In DTV mode, press the TIME SHIFT button on the remote to pause live TV. Requires a USB storage device.

Why is there no signal on my TV?

Ensure the correct input source is selected. Check the antenna or cable connection. For digital channels, run an Auto TV Scanning in the menu.

Can I mount this TV on a wall?

Yes, the TV is wall-mountable. Contact a professional for assistance. We are not responsible for damage or injury from DIY mounting.

How do I clean the screen?

Unplug the TV and use a dry, soft cloth. Do not use alcohol, benzene, or compressed air. Scratches are not covered under warranty.

What USB formats are supported for multimedia playback?

The TV supports playback of movie, music, photo, and text files from USB drives. Ensure the files are in a compatible format.

How do I enable subtitles?

Press the SUBTITLE button on the remote control while watching a program (available in DTV mode).

What is Hotel Mode?

Hotel Mode is a feature that allows the TV to be programmed for use in hotels, with settings like volume limits and power-on channel.

USER MANUAL Tv 40ATS5100-U Allview

USER MANUAL....2

MANUAL DE UTILIZARE......9

KASUTUSJUHEND....16

HASZNÁLATI ÚTMUTATÓ......23

NAUDOJIMO INSTRUKCIJA....30

LIETOTĀJA ROKASGRĀMATA....37

INSTRUKCJA OBSŁUGI....44

SAFETY INSTRUCTIONS

The lightning flash and arrow head within the triangle is a warning sign alerting you of "dangerous voltage" that can cause electric shocks.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within the triangle is a warning sign alerting you of important instructions accompanying the product.

WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR SERIOUS PERSONAL URY:

• In order to avoid any hazard, if the cord is damaged, it must be repaired by the manufacturer, the authorized service unit or qualified personnel.
  ● The cord should always be easily accessible.
• In order to prevent fires, electric shocks or injuries, DO NOT INSERT THE POWER CABLE, THE SOCKET OR THE DEVICE in water or other liquids and do not place objects with water on the surface of the device.
• Do not block the ventilation holes, in order to avoid overheating the device.
• Leave a minimum distance of 10 cm around the unit to ensure sufficient ventilation.
  ● Naked flame sources, such as candles, should not be placed near the device.
  ● The device is intended for use only in a temperate climate.
• Do not place the product on/near radiators, heat registers, stoves, or any other hot surfaces.
• Clean the product only as recommended by the manufacturer (see "Maintenance" section from the user guide). Unplug the power plug from the wall outlet before cleaning.
• Unplug the power plug from the wall outlet if it is unused for an extended period.
• Do not spill liquids and do not insert objects in the device.
• Operate the product only with the supplied power cord. Place power cords so they are not walked on or pinched by items placed upon or against them, paying particular attention to plugs, convenience receptacles, and the point where the power cord exits the product.
• If you're using a network connector or an extension cord to disconnect the device, the disconnecting device shall have easy access.

• Do not operate this product under the following conditions:

• When the power-supply cord or plug is damaged.

• If liquid has been spilled or objects have been inserted into the product.
• If the product has been exposed to rain or water.
• If the product does not operate properly or it is not used according to the instructions.

• If the product has been dropped or damaged in any way.

• Do not attempt to repair the product. Any intervention on the device must be made by the authorized service unit.

• Do not overload wall outlets or the extension cords.
• Connect this product to a power outlet which has grounding.

CAUTION - TO REDUCE THE RISK OR PERSONAL INJURY OR PRODUCT DAMAGE:

• This product is intended solely for non-commercial, non-industrial use as a television. Do not use this product for any other purpose.

• Do not subject the product to violent shocks, extreme temperatures, or lengthy periods of direct sunlight exposure.

• Keep the product away from magnetic objects, engines and transformers.

• Do not use outdoors, in bad weather.
• Do not use the TV while driving. It is dangerous and illegal in some areas.

BATTERY HANDLING AND USAGE:

• CAUTION: Danger of explosion if the batteries are incorrectly placed or not replaced by the same type or equivalent.
  ● The batteries should not be exposed to excessive heat such as sunshine, fire or a similar source.
  ● Different types of batteries, new and used batteries, should not be mixed.
  ● The batteries must be installed according to the polarity.
• If the battery is worn, it must be removed from the product.
• The battery must be safely disposed. Always use the collection bins provided (check with your provider) to protect the environment.
• Keep batteries away from children and pets. Only adults should handle batteries.
• Follow the battery safety and usage instructions.

INSTRUCTIONS REGARDING RECYCLING

According to the European Directive 2002/96/EC on electrical and electronic waste exploitation (WEEE) and to Directive 2008/112/CE of the European Parliament and Council from December 16, 2008, the old household electrical appliances must not be disposed of in the normal municipal solid waste stream.

Old appliances must be collected separately in order to optimize the recovery and recycling rhythm for their components, and in order to prevent the possible negative impact on human health and the environment. The crossed out “wheeled bin” symbol should be on all products of this type in order to remind the people that they have the obligation to contact the local authorities or the selling points and ask for information regarding the adequate places of disposal of old electrical appliances.

To avoid possible hearing damage, do not listen at high audio volume for long periods of time.

NOTE: This user guide contains only general instructions. For detailed instructions, please access https://www.allviewmobile.com/index.php/products/tv.html. If there are differences, the online manual will be taken into consideration.

CHARACTERISTICS

39.5" LED DISPLAY

Hotel Mode, Auto TV Scanning, Digital broadcasting reception

TV Guide Function, TELETEXT Function (Europe)

USB multimedia playback, multi-language on screen display, complete control from remote

LAN, HDMI, SCART, YPBPR, AV and CI Card inputs

EARPHONES and COAXIAL output

Recording Function, TIME SHIFT Function

Detachable stand holder

External Antenna Jack

Built-in Speakers

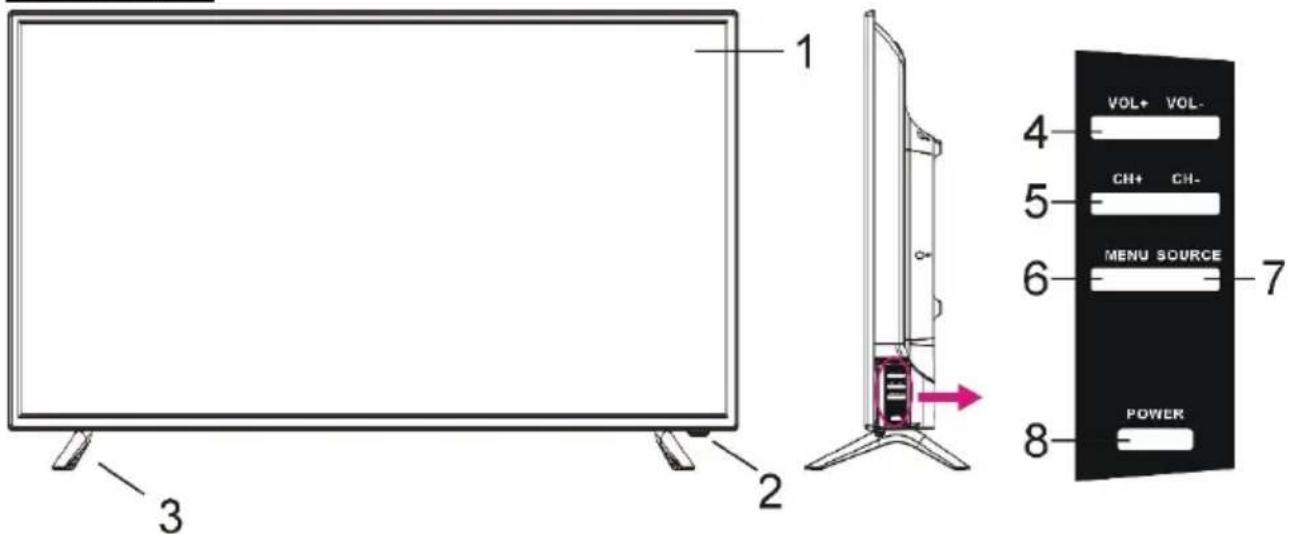

MAIN UNIT

1. LED display screen
2. Sensor / Power indicator - In standby mode the indicator light will display a red color, and when the TV is on, the indicator light will display a blue color.
3. Stand holder
4. VOL +/- button - To increase/decrease the volume level or to move left/right in the menu.
5. CH +/- button - To select next/previous channel or move up/down in the menu.
6. MENU button - To enter menu setting page.
7. SOURCE button - To select the input source.
8. POWER button - To turn ON/OFF the TV

Back View

1. AC Power cord	7. CI+ Slot
2. USB 1/2 Input	8. Mini AV Input
3. LAN input	9. Mini YPbPr Input
4. HDMI 1/2/3 Input	10. COAXIAL Output
5. EARPHONE output	11. RF Antenna input – Connect the ext antenna
6. SCART Input

BASIC CONNECTIONS

● Ensure all the cables are disconnected to the main unit before connecting them to a socket.
● Make sure all the equipment and power plugs are properly connected and the unit is set in a correct mode before any kind of operation.
● Carefully read the instructions before connecting the device to other equipment.

BASIC OPERATIONS

• Press the POWER button on the unit or remote control to power ON the unit (indicator will glow blue); press it again to power OFF (standby mode) the unit (indicator will glow red).
• Press the SOURCE button on the unit or remote control to set the unit in DTV or ATV mode.
• Certain actions require inserting a password (0000 - default, 8899 - universal)

VOLUME CONTROL, MUTE CONTROL

SOURCE SETTING, MULTI-AUDIO SETTING

INFORMATION DISPLAY

TV GUIDE (FOR DTV MODE ONLY), FAVORITE LIST

QUICK SELECT, TELETEXT

TV/RADIO (FOR DTV MODE ONLY)

SUBTITLE

RECORDER (FOR DTV MODE ONLY)

TIME SHIFT (FOR DTV MODE ONLY)

MEDIA PLAYBACK (Photos, Music, Movies, e-Book)

NOTE: To play your multimedia files, make sure you have selected the correct icon in the main menu of MEDIA PLAYBACK. That means that you can only play photo files in PHOTO item, music files in MUSIC item and so on.

MAIN MENU

● The unit contains different setting modes. Once the initial programming is entered, it will remain as such until changed. This way, the unit can always be operated under the same conditions.
● The settings will remain as such until they are changed by the user, even if the TV enters in standby mode.

DTV MODE

• Press the SOURCE button to switch the TV in DTV mode.
• You have the following submenus: Picture, Sound, Channel, Features, Setup

ATV AND OTHER MODES

• Press SOURCE button on the remote control to select desired input source.
• For these modes, please refer to the user guide from the website.

MAINTENANCE

• Be sure to press the POWER button to set the TV in Standby mode and disconnect the power plug before cleaning the TV.
  ● Never use alcohol, benzene, thinner, cleaning fluid or other chemicals. Do not use compressed air to remove dust.
  ● Wipe the TV with a dry, soft cloth. The scratches present on the display are not subject to the warranty certificate.

WALL MOUNTING

• Contact a professional for assistance when wall mounting your TV. We are not responsible for any damage to the product or injury to yourself, if you mount the TV on your own.
• Do not wall mount the TV while TV is turned on. It may cause personal injury due to electric shock.

STAND INSTALLATION

Your TV may be packed with the stand separately. Before using this TV, please carry out the stand installation according to the detailed instructions from the online user guide.

SPECIFICATIONS

Display Device	101 cm LED TV
Resolution	3840x2160
Contrast Ratio	3000:1
Aspect Ratio	16:9
Color System	PAL/SECAM
Sound System	BG/DK/I
Inputs	1 x RF, 3 x HDMI, 1 x YPbPr, 2 x USB, 1 x Scart, 1 x AV IN, 1 x CI+, LAN, WiFi
Outputs	1 x Jack 3.5mm, Coaxial
USB Multimedia Playback Format	Movie, music, photo, text (according to their format)
Power Source	AC 100-240 V, 50/60 Hz
Power Consumption	Max 90W
Operation Temperature	-5°C -> + 45°C
Measurement	911(W)x207(D)x571(H)
Weight	6.4 kg

Note: Specifications are subject to change without notice.

INSTRUCTIUNI DE BAZA

1. Cablu alimentare	7. Slot CI+
2. Intrare USB 1/2	8. Intrare mini AV
3. Intrare LAN	9. Intrare mini YPbPr
4. Intrare HDMI 1/2/3	10. Iesire COAXIAL
5. Iesire CASTI	11. Intrare antenna RF – conectare antenna externa
6. Intrare SCART

CONEXIUNI DE BAZA

TV/RAADIO (AINULT DTV)

SUBTIITRID

SALVESTAJA (AINULT DTV)

AJANIHE (AINULT DTV)

CSATLAKOZTATÁS

TV PROGRAMMA (TIKAI DTV REŽIMAM), IZLASES SARAKSTS

ĀTRĀ IZVĒLE, TELETEKSTS

TV/RADIO (TIKAI DTV REŽIMAM)

SUBTITRI

IERAKSTĪTĀJS (TIKAI DTV REŽĪMAM)

LAIKA NOBİDE (TIKAI DTV REŽİMAM)

REJESTRATOR (TYLKO DLA TRYBU DTV)

PRZESUNIĘCIE CZASU (TYLKO DLA TRYBU DTV)
