Product Type	Canopy Cooker Hood (Extractor Hood)
Brand	Bosch
Model	DHU665CQ
Installation Type	Wall-mounted or under cabinet
Operating Modes	Extraction (ducted) and Recirculation (with charcoal filter)
Minimum Distance from Hob	650 mm
Duct Diameter	120 mm (min)
Number of Speeds	3 (low, medium, high)
Worktop Illumination	Yes (replaceable lamp)
Grease Filter Type	Multi-layer metal or thin synthetic (1 mm)
Grease Filter Cleaning	Wash monthly (metal) or replace every 2 months (synthetic)
Charcoal Filter Replacement	Every 3 months (in recirculation mode)
Power Supply	230 V, 50 Hz (verify rating plate)
Electrical Connection	Double-pole switch with 3 mm contact gap
Safety Features	Class I or II, earthing required, anti-backflow
Materials	Metal (stainless steel or painted)
Dimensions (approx.)	Standard 60 cm width (check installation template)
Weight (approx.)	12 kg (typical for similar models)
Accessories Included	Fixing screws, wall plugs, paper template, flange spigot
User Manual	Free download in multiple languages

Frequently Asked Questions - DHU665CQ BOSCH

What is the minimum distance required between the hob and the Bosch DHU665CQ hood?

The minimum safety distance is 650 mm. If the gas hob instructions specify a greater distance, follow that.

Can the Bosch DHU665CQ be installed in recirculation mode without ducting?

Yes, it can be used in recirculation mode with a charcoal filter to recycle air back into the kitchen.

How do I change the grease filter on the DHU665CQ?

Open the metal grille panel, push the filter clips to one side, remove the old filter. For metal filters, wash monthly; for synthetic filters, replace every 2 months.

What should I do if the hood lights stop working?

Open the grille panel and check that the lamp is fully screwed in. If still not working, replace with an identical lamp to ensure safe operation.

How often should the charcoal filter be replaced?

For good performance, replace the charcoal filter every 3 months if used in recirculation mode.

Is the Bosch DHU665CQ suitable for use with gas hobs?

Yes, it is designed for both gas and electric hobs. Ensure the room has adequate ventilation to prevent backflow of combustion gases.

What is the maximum negative pressure allowed in the room when using the hood with other appliances?

The negative pressure must not exceed 0,04 mbar to prevent fumes being drawn back into the room.

Can I flambé food under the DHU665CQ hood?

No, never flambé under the range hood due to risk of fire.

How do I clean the exterior of the hood?

Use a damp cloth and a neutral liquid detergent. Avoid abrasive cleaners.

What should I do if the power cord is damaged?

It must be replaced by the manufacturer or an authorized service agent to prevent hazards.

USER MANUAL DHU665CQ BOSCH

Line drawing of a front-end air conditioner unit with ventilation grilles and a circular top (no text or symbols)

Instructions Manual

RECOMMENDATIONS AND SUGGESTIONS 3

GENERAL INFORMATION - SAFETY WARNINGS 4

INSTALLATION 5

USE - MAINTENANCE 6

УКАЗАТЕЛЬ

RU

RECOMMENDATIONS AND SUGGESTIONS

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
- Never use the hood for purposes other than for which it has been designed.
- Never leave high naked flames under the hood when it is in operation.
- Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
- Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
- Do not flambè under the range hood; risk of fire
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
- "CAUTION: Accessible parts may become hot when used with cooking appliances."

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol 📋 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Illustration of a microwave oven with a green X-shaped exhaust cone and a steaming pot on a base (no text or symbols)

Illustration of a laboratory setup with a beaker, a pot, and a flame-like substance on a stand (no text or symbols)

GENERAL INFORMATION

This canopy hood is designed to be fixed to any rigid vertical surface, over a gas or electric hotplate and can be used either in the extraction mode (ducted to the outside) or in the recirculation mode (internal recycling). All cookers hood perform better when used in extraction mode. During winter time it may be convenient to use the hood in the recycling mode to avoid heat loss from the kitchen.

Before starting the installation, consideration should be given to the difficulties that can be found during installation. The installation work must be undertaken by a qualified and competent person in conformity to the rules concerning the evacuation of contaminated air.

The manufacturer disclaims all liability for any damage or injury caused as a result of not following the instructions for installation contained in the following text.

1 - SAFETY WARNINGS

1.1 - When used in the extraction mode, the cooker hood ducting must not be connected to a flue which is used for exhausting fumes from appliances supplied with energy other than electric, such as a central heating flue or water heating flue.
1.2 - Before connecting to the mains supply ensure that the mains voltage corresponds with the voltage on the rating plate inside the hood.
1.3 - Connect the cookerhood to the mains via a double poled switch which has 3mm clearance between the contacts.
1.4 - For cooker hoods featuring an earth cable, make sure the electric plant of your house is correctly earthed.
1.5 - Appliance in class II are provided with a double insulation; therefore do not connect them through earthed plugs but through a double poled plugs.
1.6 - When installed, the hood must be positioned at least 65cm above the hotplate.
1.7 - Never do flambé cooking under this cooker hood.
1.8 - Never leave frying pans unattended during use as overheated fat and oil may catch fire.
1.9 - Before carrying out any kind of maintenance or cleaning, disconnect the hood from the mains supply.

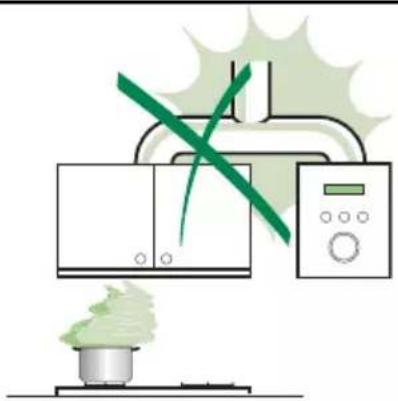

1.10- If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then this must be of the room sealed or balanced flue type. If other types of flue or appliance are fitted, ensure that there is an adequate supply of air into the room. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
1.11- The appliance must be positioned so that the plug is accessible.
1.12- If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
1.13- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
1.14- Children should be supervised to ensure that they do not play with the appliance.

2 - INSTALLATION INSTRUCTIONS

Some installation systems require the opening and removal of the metal grille panel.

2.1 - Instructions for opening and removing the metal grille panel

To open the grille panel, press inwardly on the two slider catches at each side of the grille panel and the grille will pivot down.

To remove the metal grille, pull forward on the right hand side so that the hinge pin on the back of the grille will be released from the slot in the side of the casing.

2.2 - Wall cabinet fixing

a - Predrilled wall cabinet: fix the hood onto the wall cabinet base panel using the four screws 4.2 x 45 mm (supplied with the fixing kit).

It is not necessary to open the metal grille.

b - No predrilled wall cabinet:

b.1 - If the hood is provided with a paper fixing template, follow the instructions.

b.2 - If the hood is not provided with a paper fixing template, position the hood on the wall cabinet base panel and pilot drill the 3.5 x 16 mm screws (not supplied with the fixing kit) from the inside onto the wood.

2.3 - Wall mounting

a - Drill two ∅ 8 mm holes on the wall using the paper template, insert two rawl plugs and two 4.2 x 44,4 mm screws leaving 5 mm untightened. Open the metal grille panel, hook the hood on and fully tighten the screws.

b - If the hood is not provided with a paper fixing template, drill two ∅ 8 mm holes (see draw.), insert the plugs and screws, proceeding as directed under paragraph a.

c - For wall mounting using wallbrackets (optional), follow the instructions of the fixing template.

d - Pay attention to the safety regulation of point 1.6.

2.4 - Choice of operating mode

a - Evacuation mode

To check that the hood is set up for evacuation, open the grille panel and make sure that the conversion lever or the change-over knob on the centrifugal unit is in the DUCTING position. The charcoal filter is not required.

For ducting to the outside, the hood is supplied with a rear and top outlet. A flange spigot of 100 mm diameter (120 mm in certain models) is usually fitted on the top outlet and a blanking plug on the rear outlet. If you choose to duct the hood from the rear of the casing, you should invert the position of the flange and of the blanking plug. Pay attention to the safety regulation 1.1.

b - Internal recirculation mode

To check that the hood is set up for recycling, open the grille panel and make sure that the conversion lever or the change-over knob on the centrifugal unit is in the RECYCLING position.

The charcoal filter is to be fitted. To fit the charcoal filter, support the filter with one hand and turn the thumb screw through the centre of the charcoal filter. If the filter is of the interlocking type, turn the filter clockwise. The hood can remain connected to the outside.

2.5 - Electrical connection and working test

1 - The safety measures 1.2, 1.3, 1.4 and 1.5 of paragraph 1 are to be strictly observed.

2- Once the electrical connection has been completed, check that the worktop illumination, motor and speeds work properly.

3 - OPERATION

3.1- Controls are located on the right hand side of the front to operate worktop illumination and select the most suitable working speed for your cooking. To increase the area of extraction, the glass visor should be pulled open. The top speed should be used when frying or cooking foods with strong odours, while a lower speed can be used for normal cooking. To obtain the best performance from your hood, turn it on before you start cooking and leave it running for a few minutes after your cooking is over to clear the air.

3.2- Pay attention to safety regulations 1.7 and 1.8.

4 - MAINTENANCE AND CLEANING

Regular maintenance and cleaning will ensure good performance and reliability, while extending the working-life of the hood. Special attention should be reserved to the grease filter and to the charcoal filter (recycling mode).

4.1 - Grease filter

This retains the solid grease particles and can be supplied in different types. It is fitted onto the reverse side of the metal grille panel. Maintenance of the grease filter varies according to the used type.

a-Whatever type of filters used, the filter is easily removed from the grille by pushing the metal wire clips to one side and removing.

b-Thin synthetic filter (1 mm thick). It should not be washed and should be replaced every two months. If the filter is provided with a saturation indicator, replace when:

b.1-The violet colour of the dots, which are visible through the metal grille, is spread over the whole surface of the filter.
b.2-The red colour of the stripes, which is not visible through the metal grille when the filter is clean, becomes visible from the outside of the metal grille.

c-Multi-layer metal filter. It should be washed once a month in hot water using mild detergent or liquid soap. It can be washed in a dish-washer. It should not be bent and should be left to drain dry.

WARNING: An excess of grease in the filter not only would affect the performance of the hood, but it is also a possible fire risk. We strongly recommend therefore to clean and replace filters in accordance with the manufacturer instructions.

4.2 - Cleaning Metal self-supporting Grease Filters

• The filters are washable and must be cleaned at least every 2 months of operation, or more frequently for particularly heavy usage.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside.

4.3 - Charcoal filter

The charcoal filter is a chemical filter to be used only when the hood is in the recycling position. To replace the charcoal filter, open the grille and remove the thumb screw through the centre of the charcoal filter. If the filter is of the interlocking type, turn the filter anticlockwise. Replace by reversing the operation. For a good performance replace the charcoal filter on average every three months.

4.4 - Worktop illumination

If a lamp fails to function at any time, open the metal grille panel and check that the lamp is fully screwed into the holder. When changing the lamp, an identical replacement must be fitted to ensure a safe working of the hood.

4.5 - Cleaning

The metal work should be cleaned regularly, at least once a month, using mild household cleaner and polish. Never use abrasives. For all operations from point 4.1 to point 4.4 and in particular for point 4.3, pay special attention to the safety regulation 1.9.

Illustration of a microwave oven with a green X-shaped exhaust plume and a steaming pot on a base (no text or symbols)

Illustration of a heating setup with a pot and smoke rising, crossed by a green ribbon (no text or symbols)
