Indigo IS-JE52S02 - Citrus juicers Scarlett - Free user manual and instructions

Product Type	Electric Juicer
Brand	Scarlett
Model	Indigo IS-JE52S02
Color	White and Transparent
Material (Filter)	Stainless Steel
Material (Body)	Plastic
Pulp Container Capacity	2000 ml
Juice Jug Capacity	800 ml
Number of Speeds	5
Speed Control	Electronic Touch Buttons
Motor Power	400 W (estimated)
Voltage	220-240 V (check rating label)
Frequency	50/60 Hz
Power Cord Length	1 m (approx.)
Safety Features	Safety Lock, Automatic Shut-off if Locks Not Fastened
Maximum Operating Time	10 minutes continuously, then 10 minutes rest
Dishwasher Safe	No (Hand wash only)
Included Accessories	Pusher, Pulp Container, Juice Jug, Foam Separator
Dimensions (approx.)	25 x 20 x 35 cm
Weight (approx.)	3 kg

Frequently Asked Questions - Indigo IS-JE52S02 Scarlett

How should I clean the juicer?

Disassemble and wash all removable parts in warm soapy water. Rinse the filter from the underside. Do not use a dishwasher. Never immerse the motor unit in water. Use a damp sponge for the outside. Dry all parts before storage.

Can I wash the parts in a dishwasher?

No, dishwasher use is not recommended. Use warm soapy water and hand wash only to avoid damage.

How do I assemble the juicer?

Place the separating unit on the motor unit and push until it clicks. Insert the grating filter and turn clockwise. Attach the transparent lid and fasten the locks. Place the pulp container and juice jug. Refer to the manual for details.

What types of fruits and vegetables can I juice?

Softer products like grapes, peaches, melons, and berries use lower speeds. Harder products like carrots, pumpkin, apples, and pears use higher speeds. Remove stones and peel from citrus and hard fruits.

How long can I run the juicer continuously?

Do not exceed 10 minutes of continuous operation. Allow at least 10 minutes rest for the motor to cool.

What should I do if the juicer stops suddenly?

Check that the safety locks are properly fastened. The unit is designed to shut off if locks are not secured. Ensure the lid is locked correctly before restarting.

How do I adjust the speed?

Press the '+' and '-' buttons to set speed from 1 to 5. Lower speeds for soft fruits, higher speeds for hard vegetables.

Can I juice citrus fruits with peel?

It is recommended to remove the peel from citrus fruits like oranges and lemons before juicing to avoid bitterness.

Why is the grating filter sharp?

The filter is designed for efficient juicing. Handle with care to avoid cuts. Replace if damaged.

How should I store the juicer?

Clean and dry all parts thoroughly. Assemble the juicer and store in a dry place. Keep out of reach of children.

USER MANUAL Indigo IS-JE52S02 Scarlett

Modern Indigo brand juicer with digital display and control buttons (no visible text or symbols on device body)

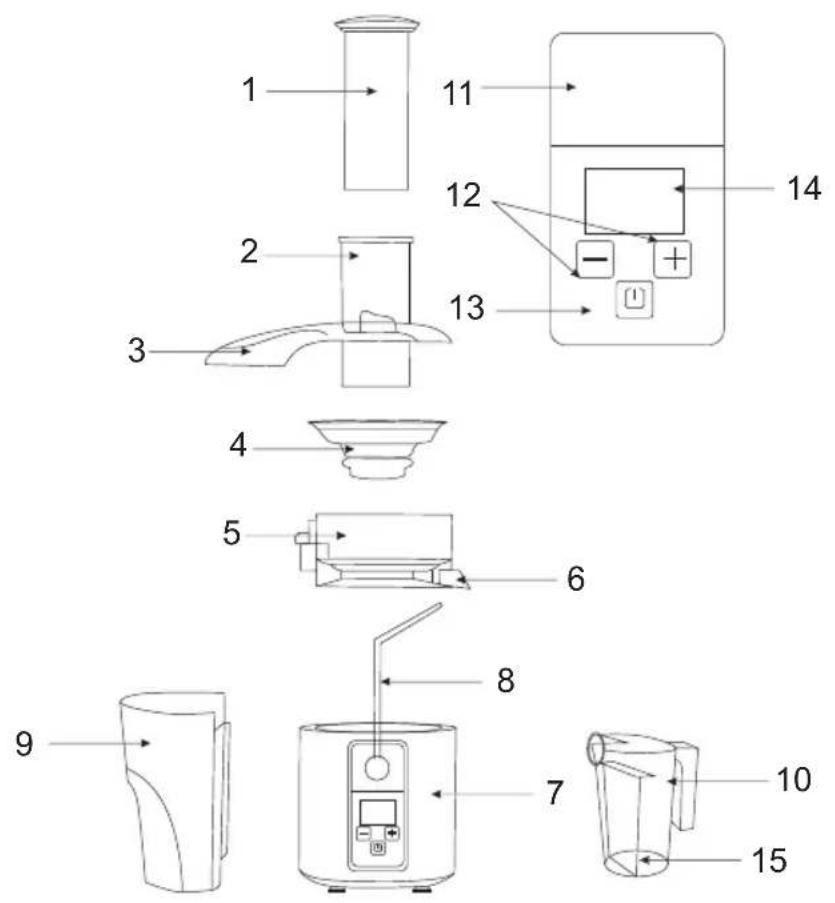

GB

1. Pusher
2. Feeder tube
3. Transparent lid
4. Stainless steel grating filter
5. Upper body
6. Juice spou
7. Motor unit
8. Lock
9. Pulp container 2000 ml
10. Juice jug 800 ml
11. Control Panel
12. Speed selection buttons
13. On/off button "ON/OFF"
14. Display
15. Foam separator

RUS

Pls add month and year of production e.g. 08.2010 at this place

• Before the first connecting of the appliance check that voltage indicated on the rating label corresponds to the mains voltage in your home.
• For home use only. Do not use for industrial purposes. Do not use the appliance for any other purposes than described in this instruction manual.
• Do not use outdoors.
• Do not disassemble the juice extractor when it is plugged to the power supply. Always unplug the appliance from the power supply before cleaning and when not in use.
• To prevent risk of electric shock and fire, do not immerse the appliance in water or any other liquids. If it has happened, unplug it immediately and check in a service center.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not leave the appliance switched on when not in use.
• Do not use other attachments than those supplied.
• In order to avoid danger replacement of the damaged power cord should be performed by the manufacturer or service centre authorized

by the manufacturer, or experienced qualified personnel only.

- Do not attempt to repair, adjust or replace parts in the appliance. Check and repair the malfunctioning appliance in the nearest service center only.

• Keep the cord away from sharp edges and hot surfaces.
• Do not pull, twist, or wrap the power cord around the appliance.
• Do not place the appliance near gas or electric oven or store at heated surface.
• Avoid contacting with moving parts.

- The grating filter is very sharp, so handle it with care.

• Always make sure the safety lock is fastened correctly before switching on. The unit is designed to shut off automatically if locks are not fastened securely in place.
• Do not push products into the appliance by fingers while it is in operation. If food becomes lodged in feeder tube, use pusher to push it down. If this doesn't work, turn the motor off, unplug unit, and then disassemble juice extractor to remove remaining food.
• Do not run juice extractor continuously for longer than 10 minute. Turn off switch and let it rest for at least 10 minute to cool down the motor, otherwise the motor may be damaged.
• Every time make sure that the appliance is unplugged and all moving parts with motor are stopped completely before disassembling and cleaning.

• Be sure to switch off the unit after each use.

• Do not overload appliance with products.

• If the product has been exposed to temperatures below 0^ C for some time it should be kept at room temperature for at least 2 hours before turning it on.
• The manufacturer reserves the right to introduce minor changes into the product design without prior notice, unless such changes influence significantly the product safety, performance, and functions.

2. BEFORE USING FOR THE FIRST TIME

• After unpacking the unit and before any use, make sure the mechanical parts of the unit and all attachments are not damaged.
• Wash and dry all parts of the appliance, which will come into contact with products. To clean the outside of the body use a damp sponge.
• Practice assembling and dismantling the unit a few times before making juice.

3. HOW TO ASSEMBLE

• DISMANTLING:
  • Unplug the appliance from the power supply.
• Open the locks.

- Remove the transparent lid, pull the grating filter upwards, then take off separating unit. While doing this, hold it by the beak from below and by the underside of the top of the unit on the other side.

• ASSEMBLING:

• Place the separating unit on the motor unit, push with both hands on the separating unit until it clicks into place.

• Insert the grating filter; turn it clockwise to fit securely.

• Mount the transparent lid and fasten the locks.
• Place the pulp container under the cover, and the glass – under the beak for juice.
• Plug the appliance to the power supply.

4. OPERATING INSTRUCTIONS

• Before starting make sure that the juicer is switched off and transparent lid fixed properly.
• Wash fruits and vegetables thoroughly. Cut fruits into small pieces so as to be fitted into the feeding tube. Remove the stone or peel from those citrus and fruit: prunes, apricots, cherries or oranges, lemons, melons, etc.
• Connect the juice extractor to mains.
• Press the ON/OFF button to switch the appliance on. The juice extractor will start operation at lowest speed.
• Using "+" and "-" buttons, set the required speed (1 to 5), depending on the type of the product processed.
• Softer products, such as grape, peach, melon, and berries, should be processed at lower speeds.
• Harder products, such as carrots, pumpkin, apples, and pears, should be processed at higher speeds.

• Feed the pre-prepared fruits and hit, vegetables into the juice extractor and press down gently with the pusher. NEVER USE FINGERS AS PUSHER.

• The motor must always be running after fruit or vegetables were fed into the appliance.

• When pulp container or juice jug is full, switch off the power and empty containers before continuing the process.

5. CLEANING

• Remove and wash all removable parts in warm soapy water. Rinse filter assembly from under side for easy removal of residue from strainer holes. Do not use a dishwasher or very hot water.
• Do not use steel woods, abrasive cleaners or scouring pad on appliance.
• To clean the outside of the motor unit, use a damp sponge.
  • Never immerse the body in water.
• Some vegetables, such as carrots, may cause discoloration of the plastic. Reduce this by washing parts immediately after use with small amount of non-abrasive cleaner on a cloth, rub gently, then rinse well and dry.
• The grating filter must be replaced as soon as any signs of damage or wear and tear appear.

6.STORAGE

- Store assembled cleaned and dried juice extractor in a dry place.
