Product Type	CD Player
Brand	Blaupunkt
Model	BB4WH
Color	White
Dimensions (approx)	140 x 140 x 25 mm
Weight (approx)	200 g
Power Source	2 x AA batteries (not included) or DC 4.5V adapter
Playback Media	CD, CD-R, CD-RW
Anti-skip Protection	40 seconds
Audio Output	3.5 mm headphone jack
Controls	Play/Pause, Stop, Skip Forward/Back, Volume
Playback Modes	Repeat All, Repeat 1, Random
Display	LCD screen for track info
Safety	Avoid moisture, do not disassemble
Maintenance	Clean lens with soft cloth; wipe exterior with dry cloth
Repair/Spare Parts	Contact Blaupunkt service center

Frequently Asked Questions - BB4WH BLAUPUNKT

How do I turn on the Blaupunkt BB4WH CD player?

Open the CD lid, insert a CD, and press the Play/Pause button. The player will start automatically.

Can I play burned CDs (CD-R/CD-RW) on this player?

Yes, the Blaupunkt BB4WH supports CD-R and CD-RW discs. Ensure they are finalized.

What should I do if the CD skips?

First, try cleaning the disc with a soft cloth. If skipping persists, the anti-skip protection may need adjustment; refer to the manual. Also, check for scratches on the disc.

How do I connect headphones to this CD player?

Insert the headphone plug into the 3.5mm jack located on the side of the player.

What is the battery life of the BB4WH?

With two fresh AA batteries, you can expect approximately 10 hours of continuous playback.

Does the BB4WH have a display?

Yes, it features an LCD display that shows track number, time elapsed, and playback mode.

How do I repeat a single track or the entire CD?

Press the Repeat button to cycle through modes: Repeat 1, Repeat All, and off.

Is the Blaupunkt BB4WH portable?

Yes, it is designed for portability with battery operation and a compact size.

How to clean my CD player?

Use a dry, soft cloth to wipe the exterior. For the lens, use a lens cleaning disc or gently swab with a soft cloth.

Where can I find the user manual for the BB4WH?

The manual is available for free download on the Blaupunkt website or on notice-facile.com.

USER MANUAL BB4WH BLAUPUNKT

Digital portable radio with a black-and-white design, displaying time 20:30 and 'BLAUPUNKT' logo (no readable text beyond branding)

Enjoy it.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Important Safety Instructions

Caution:

To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

Explanation of Graphical Symbols:

The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute an electric shock to a person or persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate this product. This will assure you years of trouble free performance and listening pleasure.

Important Notes

• This safety and operating instruction should be retained for future reference.
- The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom.
- Do not install the product in the following areas:
- Places exposed to direct sunlight or close to radiators.
○ On top of other stereo equipment that radiate too much heat.
○ Blocking ventilation or in a dusty area.
○ Areas where there is constant vibration.
○ Humid or moist places.
• Do not place near candles or other naked flames.
- Operate the product only as instructed in this manual.
- Before turning on the power for the first time, make sure the power adaptor is properly connected.
- Plug-in the USB stick directly or use an USB-extension cable which is not longer than 25 cm.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and users' instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.
6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
7. Grounding or polarization - the product is not required to be grounded. Ensure that the plug is fully inserted into the wall outlet or extension cord receptacle to prevent blade or pin exposure. Some versions of the product are equipped with a power cord fitted with a polarized alternating line plug (a plug having one blade wider than the other). This plug will fit onto the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. When using an extension power-supply cord or a power-supply cord other than that supplied with the appliance, it should be fitted with the appropriate molded plugs and carry safety approval appropriate to the country of use.
8. Power cord protection - Power-supply cords should be routed so that they are not likely to be walked on, kinked or pinched by items placed on or against them, paying particular attention to cords from plugs, receptacles and the point where they exit from the product.
9. Overloading - Do not overload wall outlets, extension cords, or multiple sockets, as this can result in a risk of fire or electric shock.
10. Ventilation - The product must be properly ventilated. Do not place the product on a bed, sofa, or other similar surface. Do not cover the product with any items such as tablecloths, newspapers, etc.
11. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products, including amplifiers that produce heat. No naked flame sources, such as lighted candles, should be placed on the apparatus.
12. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to train, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).
13. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that

could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.

1. Cleaning - Unplug the product from the wall outlet before cleaning. Dust in the woofer may be cleaned with a dry cloth. If you wish to use an aerosol cleaning spray, do not spray directly on the cabinet; spray onto the cloth. Be careful not to damage the drive units.

2. Attachments - Do not use attachments not recommended by the product manufacturer, as they may cause hazards.

3. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.

4. Moving the product - A product and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product and cart combination to overturn.

5. Unused periods - The power cord of the appliance should be unplugged from the outlet during lightning storms or when the apparatus is left unused for a long period of time.

6. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

7. Please remove the power plug form the main power source or wall power source when not in use. When plugged in to a power source, the system is in standby mode, so the power is not entirely cut off.

8. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

9. Mains fuses - For continued protection against fire hazard, use fuses only of the correct type and rating. The correct fuse specification for each voltage range is marked on the product.

10. Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speaker may be damaged when a peak level section is suddenly played.

11. The only means of completely disconnecting the product from the power supply is by removing the power cord from the wall outlet or the product. The wall outlet or the power cord entry to the product must remain freely accessible at all times while the product is in use.

12. Try to install the product near a wall socket or extension cord and shall be easily accessible.

13. The highest environmental temperature suitable for this product is 35°C.

14. ESD hints - If the product maybe reset or not reset to operation of control due to electrostatic discharge, just switch off and reconnect again, or move the product to another location.

28. Battery

1) The batteries must not be exposed to excessive heat such as sunshine, fire or the like.
2) The batteries should be drawn to the environmental aspects of battery disposal.
3) Battery usage CAUTION-to prevent battery leakage which may result in body injuries, property damage, or damage to the apparatus:

• Install all batteries correctly, + and - as marked on the apparatus.
• Do not mix batteries (old and new or carbon and alkaline, etc.)
• Remove batteries when the unit is not used for a long time.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if this only for a short while.
2. The appliance is not intended to be operated by means of an external timer or separate remote control system.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.
5. The unit should not be impeded by covering the ventilation opening with items such as newspaper, table-cloths, curtains etc. Make sure that there are at least 20 cm of space above and at least 5 cm of space on each side of the unit.
6. The apparatus must not be exposed to dripping or splashing and that objects filled with liquids, such as vases, must not be placed on the apparatus.
7. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture or dust.
8. Do not locate this unit near any water sources e.g. taps, bathtubs, washing machines or swimming pools. Ensure that you place the unit on a dry, stable surface.
9. Do not place this unit close to a strong magnetic field.
10. Do not place the unit on a amplifier or receiver.
11. Do not place this unit in a damp area as the moisture will affect the life of electric components.
12. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.
13. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.
14. When removing the power plug from the wall outlet, always pull directly on the

plug, never pull on the cord.

1. Depending on the electromagnetic waves used by a television broadcast, if a TV is turned on near this unit while it is also on, lines might appear on the TV screen. Neither this unit nor the TV is malfunctioning. If you see such lines, keep this unit well away from the TV set.

2. The mains plug is used as the disconnect device, the disconnect device must remain readily operable.

3. To keep the laser pickup clean, do not touch it, and always close the disc tray.

4. During playback, the disc rotates at high speed. DO NOT lift or move the unit during playback, doing so may damage the disc or the unit.

5. When changing places of installation or packing the unit for moving, be sure to remove the disc and return the disc tray to its closed position in the player. Then, press switch to turn the power off and disconnect the power cord. Moving this unit with the disc loaded may result in damage to this unit.

6. Put discs back in their case after playing them. Never expose discs to direct sunlight or heat sources. Never leave discs inside a car parked in full sunlight.

7. Do not touch the playback side of disks. Hold discs by the edges to avoid leaving fingerprints on the surface. Any dust, fingerprints or scratches may cause a malfunction. Never attach a label or sticky tape to the disc.

8. Use a clean soft lint-free cloth to clean the disc, working from the center outwards in a straight line, thinners, commercially available cleaners or anti static sprays for vinyl discs.

9. To prevent possible hearing damage, do not listen at high volume levels for long periods.

WARNING: DANGER OF RADIATION

CLASS 1 LASER PRODUCT LUOKAN 1 LASERLAITE KLASS 1 LASERAPPARAT

This label means that this unit contains a laser component. Opening the CD compartment lid and defeating the safety interlocks will expose the user to radiation from the laser beam. Do not stare into the laser while it is operating.

BEFORE OPERATION

Notes: Concerning compact discs.

Since dirty, damaged or warped discs may damage the appliance, care should be taken of the followings items:

a. Usable compact discs. Use only compact disc with the mark shown below.

b. CD compact disc only with digital audio signals.

NOTICE

CE

Conformity

Hereby, Blaupunkt Competence Center 2N-Everpol Sp. z o.o., declares that this equipment is in compliance with the essential requirement and other relevant provisions of Directive 2014/53/EU. Declaration of conformity can be obtained from the product page at www.blaupunkt.com.

Responsible party: 2N-Everpol Sp. z o.o, Puławska 403A, 02-801 Warsaw, Poland,

Phone: [phone], E-mail: [e-mail]

Your products is designed an manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please cat according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2013/56/EU, which cannot be dispose with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard(box), polystyrene foam(buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

ERP2 - (Energy Related Products) note

This product with ecodesign complies with the stage 2 requirements of Commission Regulation (EC) NO. 1275/2008 implementing Directive 2009/125/EC regard to standby and off mode electric power consumption of electronic household and office equipment. After 30 minutes without any

audio input, the device will automatically switch into standby mode. Follow up the instruction manual to resume the operation.

Important note:

This device is equipped with an energy saving mode: if no signal is given during 30 minutes the device will switch automatically into standby mode in order to save energy (ERP 2 standard). Please note that low volume setting in the audio source may be recognized as "no audio signal": this will affect the capability of signal detection from the device and can also originate an automatic switch into standby mode. If this happens please reactivate the audio signal transmission or increase the volume setting on the audio source player (MP3 player, etc.), in order to resume playback. Please contact the local service center if the problem remains.

LOCATION OF CONTROLS

Name of controls

1- Preset - / repeat button;
2- Volume - button;
3- Preset + / stop button;
4- Volume + button;
5- Handle;
6- Standby button;
7- CD door;
8- FM antenna;
9- Source button;
10- Tune +/- & previous / next button;
11- Program/clock set button;
12- Play/pause button;
13- Speaker;
14- Display;
15- Line in jack;
16- Battery compartment(power cord hide inside);
17- Battery door;

Power source and connection

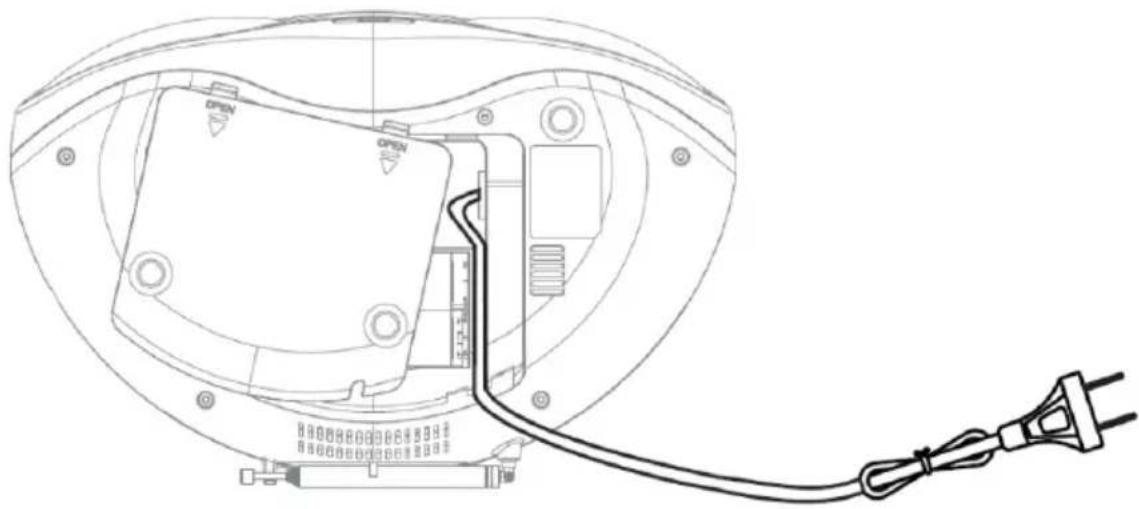

AC operation: Open the bottom battery door and loose the power cord from the inner compartment; then order the power cord to follow the cable management slot and fully extent it through the open hole of battery door; and close the boattery door. Insert the power plug into the AC wall outlet in order get the power, meanwhile, the display will light up. The batteries power will be disconnected automatically once AC power is available.

DC operation(battery power): open the battery door and insert 6pcs x UM2/1.5V batteries(not include) according to the engraved positive and negative polarity symbol. Then recover the battery door.

Notes:

a. Please kinldy note the power cord is fixed and hid inside of the battery compartment.
b. The sound will become distortion due to low or exhausted battery power, please replace it with fresh battery. Please deposit the battery in environmental friendly way, please reference and follow the requirement by your local government.
c. Please do not install the battery with mix up brand; please take out the battery in case of no operation in a long time to avoid liquid leakage issue.

Technical line drawing of an electronic device with a cable inserted, showing internal components and wiring (no text or symbols)

Clock time setting

The display will light up once the power source ready, which means the unit is in power standby mode. Press and hold the clock set button 2 seconds, the hour digits will flare on display; short press the tune +/- button to adjust the hours; short press the clock set button to confirm the selection and skip to minute setting; adjust the minute by tune+/- button and short press the clock set button again to complete the clock time setting.

Notes:

a. Only 24 hours format is supported.
b. The clock time is only available when the AC or DC power is provided. Please set the clock time again in case of power interrupted.
c. The display will auto resume to clock time interface after 5 seconds in audio playing mode.

CD operation

This unit can playback CD disc which is under CD/CD-R/CD-RW format. Before start the playback, please check the CD disc format first, and mare sure the CD disc is clean and no damages.

CD playback: Open the CD door and load a CD disc, then close the door. Press the standby button to power on the unit; press the source button to switch into CD mode; then the unit will read out the CD and get sound output automatically.

In CD playback mode, press the volume +/- button to adjust the volume output level; press the play/puase button to pause or resume the playback; press stop button for playing stop; short press the previous and next button to select the track, press hold and release it for fast-forwarding or fast-rewinding playback selection; Press the repeat button for repeat one/repeat all selection;

Programming playback (up to 20 tracks for CD disc): press the stop button to stop the CD playback first; press the program button to start programming; and the display will show "P01" with "PROG"; press the previous and next button to switch and select the track which you desire to be programmed, then press the program button to confirm the selection; and the track will be saved as P01. Repeat the operation till "P20" show on display which mean the programming memory is full. Press the play/pause button to play the programmed track; open the CD door or press the stop button twice to cancel and remove the programmed CD.

Radio operation

Before start the radio operation, please kindly full extent the FM antenna and try to put the unit next to the window in order to get better signal and reception.

Scan and auto scan: press the tune +/- button to tune the FM frequency step by step, press and hold it 2 seconds to auto scan the available station in upward or downward frequency; press and hold the program button 2 seconds to auto scan and save the available station.(Max supported preset station up to 40). Press the preset +/-button to pick up and switch the preset station.

Station manual memory: When you tuned a favorite station, press the program button first; then press the previous and next button to select the desirable preset station number, and press the program button again, then the station will be saved. Repeat the operation can save other station.

AUX IN/Line in/MP3 Link operation

Using the 3.5mm stereo to 3.5mm audio cable and connect the LINE IN jack on the rear panel of unit with other player( like MP3 player etc..). Power on the unit and press source button repeatedly enter to LINE IN mode; Select and play the music from your player, then the sound will output from unit. Please kindly note the main control is on your player side, but you can adjust the volume level on the speaker side.

Specification

Power source:	AC 230V/50Hz;DC 9V battery power(6pcs x UM2 size,1.5V; battery not include);
FM frequency:	87.5~108.0MHz;
RMS power output:	2 x 1Watt;
CD optical pick-up:	3 beam semiconductor laser;
Power consumption:	12W
Standby power consumption: < 1W(the above spec may update without prior notice)

Trouble shooting

1. Cannot power on the unit.
   a. Please check if the DC power has connected properly.
   b. Please contact the service center for support in case of the problem remains.

2. The radio station sounds not good.

a. Please move the unit next to window or adjust the direction of antenna in order to get better reception.

b. Please try switch to another station for listening.

c. Please contact the service center for support in case of the problem remains.

1. The unit cannot read out the CD disc.

a. Please double check if the CD disc or audio file format is correct or not.

b. Please contact the service center for support in case of the problem remains.

WAŻNE INSTRUKCJE DOTYCZĄCE BEZPIECZEŃSTWA

PRZESTROGA

ZAGROŻENIE PORAŻENIEM

ELEKTRYCZNYM

NIE OTWIERAĆ

Technical line drawing of an electronic device with a cable inserted into the body (no text or symbols)

Ustawienie zegara

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or numbers present)

Three hand-drawn diagrams showing a circular object being handled, with no text or symbols present.

VAROVÁNÍ: NEBEZPEČÍ ZÁŘENÍ

CLASS 1 LASER PRODUCT LUOKAN 1 LASERLAITE KLASS 1 LASERAPPARAT

Nastavení hodin

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

NEBEZPEČIE ÚRAZU ELEKTRICKÝM PRÚDOM NEOTVÁRAJTE

Three hand-drawn diagrams showing a circular object being cut with a cross mark, no text or symbols present

Line drawing of a device interior with a cable inserted, showing no text or symbols

Óra beállítása

VAŽNE SIGURNOSNE UPUTE

UGROŽENJE OD ELEKTRIČNOG

UDARA NEMOJTE OTVARATI

Važne sigurnosne upute

Oprez:

Kako bi se smanjila opasnost od električnog udara, nemojte skidati poklopac niti stražnj dio uređaja. Unutar uređaja ne postoje komponente za popravak od strane korisnika. Održavanje i popravak opreme izvršava isključivo kvalificirano servisno osoblje.

Objašnjenje grafičkih simbola:

Simbol munje sa sa strelicom koji se nalazi u jednakostraničnom trokutu upozorava na prisutnost neizoliranog „opasnog napona” unutar kućišta uređaja koja može postići veličinu uzrokujuću strujni udar.

Uskličnik unutar jednakostraničnog trokuta upozorava korisnika da ovdje su prezentirane važne poruke za rad i održavanjeopreme u dokumentaciji priloženoj uređaju.

Technical line drawing of a device with internal components and cable (no text or symbols)

Line drawing of an electrical plug inserted into a device housing (no text or symbols)

HOIATUS: KIIRGUSE ALLIKAS

CLASS 1 LASER PRODUCT

LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

ENNE TÖÖ ALUSTAMIST

Kella seadistamine

Line drawing of an electronic device with a cable inserted into the body (no text or symbols)

CLASS 1 LASER PRODUCT

LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

PRED ZAČETKOM DELA

Nastavljanje ure

Ko se po priklopu napajanja vklopi zaslon, to pomeni, da je naprava pripravljena za delovanje. Pritisnite in za 2 sekundi pridržite tipko za nastavljanje ure, številke ure začnejo utripati na zaslonu; kratko pritisnite tipko Tune +/-, da bi prilagodili uro; da bi potrdili izbiro in prešli na nastavljanje minut, ponovno kratko pritisnite tipko za nastavljanje ure; določite minute s pomočjo tipke Tune +/- in kratko pritisnite tipko za nastavljanje ure, da bi končali celoten postopek.

Opombe:

a) Podpirana je le 24-urna oblika prikaza ure.
b) Ura je na voljo le ob AC- ali DC-napajanju. Ob prekinitvi napajanja ponovno nastavite uro.
c) V načinu predvajanja zvoka se po 5 sekundah na zaslonu samodejno spet prikaže ura.

Uporaba CD

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.

Enjoy it.
