Leona IPL2036B01BK - Lighting Canarm - Free user manual and instructions

Product Type	Ceiling Mounted Light
Brand	Canarm
Model	Leona IPL2036B01BK
Dimensions	20.3 x 36.1 x 4.5 inches
Weight	5.5 lbs
Material	Metal, Acrylic
Light Source	Integrated LED
Wattage	36W
Color Temperature	3000K - 5000K (Adjustable)
Voltage	120V AC
Dimmable	Yes, with compatible dimmer
Mounting	Ceiling mount, flush or semi-flush
Style	Modern, Contemporary
Certification	UL Listed, cUL
Warranty	5 years limited
Cleaning	Wipe with dry or slightly damp cloth
Safety	Installation by licensed electrician recommended
Reparability	LED module replaceable by qualified technician
Indoor/Outdoor	Indoor use only
Energy Efficiency	Energy Star rated

Frequently Asked Questions - Leona IPL2036B01BK Canarm

How do I install the Canarm Leona IPL2036B01BK light fixture?

Turn off power at the circuit breaker. Securely mount the bracket to the ceiling junction box, connect wires (black to black, white to white, green to ground), and attach the fixture. For detailed steps, refer to the user manual.

Can I replace the LED module if it fails?

Yes, the integrated LED module is replaceable. However, we recommend contacting a qualified electrician for replacement to ensure safe handling and compatibility.

Is this light dimmable?

Yes, the Leona IPL2036B01BK is dimmable when used with a compatible LED dimmer switch. For best performance, use a dimmer rated for LED loads.

What are the dimensions of this fixture?

The fixture measures approximately 20.3 inches in length, 36.1 inches in width, and 4.5 inches in height. Always verify fit before installation.

How do I clean the fixture?

Turn off the light and let it cool. Use a soft dry cloth or slightly damp cloth to wipe the surface. Do not use abrasive cleaners or liquids directly on the LED.

What color temperature options does it have?

The light offers adjustable color temperature from 3000K (warm white) to 5000K (daylight). Use the integrated switch (if available) or check the manual for adjustment.

Does it come with a warranty?

Yes, Canarm provides a 5-year limited warranty against manufacturing defects. Keep your purchase receipt for warranty claims.

Can I use this light with a standard wall switch?

Yes, it works with a standard on/off wall switch. For dimming, ensure the switch is LED-compatible.

What is the weight of the fixture?

The fixture weighs approximately 5.5 lbs. Ensure your ceiling junction box can support this weight.

Is professional installation required?

While not mandatory, we strongly recommend hiring a licensed electrician for installation to ensure safety and compliance with local codes.

USER MANUAL Leona IPL2036B01BK Canarm

Call or Email us first

Our service team is ready to answer your questions...

1-800-265-1833 (English) / 1-800-567-2513 (French)

IN CANADA - [e-mail] - IN USA - [e-mail]

Monday – Friday

8AM-5 PMEST

INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS READ ALL INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

TOOLS AND MATERIALS REQUIRED:

Phillips
Screwdriver

Wire Cutters

Pliers Wrench

Wiring supplies as required by local electrical code

SAFETY PRECAUTIONS:

1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
3. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL BOX.
4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH A CLEAN, SOFT CLOTH.

NOTE: Product may not look exactly as shown in figures.

INSTALLATION:

1. Install the length of rod that is required by threading wire through the rod and screwing it to the fixture. Install swivel to the rod, ensuring that the plastic bushing sleeve is at the swivel.

1. Loosen "B". Adjust stud to desired length and lock in place with "B". Mount the mounting bracket to electrical box using electrical box screws (not included). Make sure the studs on the mounting bracket are facing out from the electrical box.

1. Connect the ground wires (bare copper or green) from your fixture to the ground wire (bare copper or green) or ground screw in the electrical box. Connect the black wire (or wire with marking) from the fixture to the black wire in the electrical box and connect the white wire from the fixture to the white wire in the electrical box.
2. Once connections of wires are completed, carefully tuck wires and wire nuts into the electrical box making sure no bare wire (on the black and white) is visible at the wire nuts.
3. Position fixture over studs on mounting bracket assembly. Secure fixture in place with star washers and cap nuts.

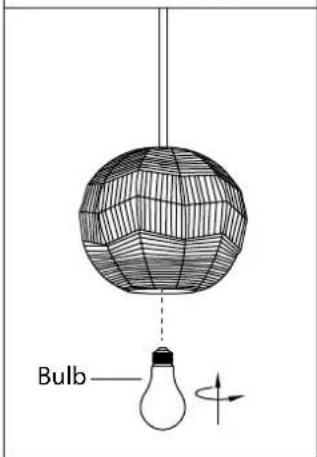

4. Install specified bulb type and wattage (not included).
