Product Type	Air Conditioner
Brand	Teka
Model	ACI 124 WH
Cooling Capacity	12,000 BTU/h (approx. 3.5 kW)
Power Supply	220-240 V, 50 Hz
Indoor Unit Dimensions (W×H×D)	800 × 300 × 200 mm
Indoor Unit Weight	10 kg
Outdoor Unit Dimensions (W×H×D)	800 × 600 × 300 mm
Outdoor Unit Weight	30 kg
Remote Control Battery	2× R03/LR03 (AAA) 1.5V
Operating Modes	Auto, Cool, Dry, Heat, Fan
Fan Speeds	Auto, Low, Med, High
Timer	24-hour on/off timer
Sleep Function	Yes (energy-saving)
Turbo Function	Yes (rapid cooling/heating)
Eco Mode	Yes (energy-efficient)
Swing Function	Horizontal/vertical louver control
Filter Cleaning	Every 2-4 weeks (washable)
Self-Clean Function	Yes (removes mold and dust)
Refrigerant	R32 (typical)
Safety	FCC and ICES-003 compliant
Spare Parts	Remote control, batteries, filters
Installation	Professional installation recommended

Frequently Asked Questions - ACI 124 WH TEKA

How do I install the air conditioner?

Installation should be performed by a qualified professional. Ensure the unit is placed on a stable surface with proper drainage and ventilation. Refer to the installation manual for detailed steps.

How often should I clean the filters?

Clean the air filters every 2 weeks under normal use. Wash with lukewarm water and mild detergent, then dry thoroughly before reinserting.

What do the error codes on the display mean?

Error codes indicate specific malfunctions. For example, 'E1' may signal a sensor issue. Consult the user manual for a complete list and troubleshooting steps.

How do I use the remote control?

Insert two AAA batteries (included). Point the remote towards the indoor unit and press ON/OFF. Use MODE to select Auto, Cool, Dry, Heat, or Fan. Adjust temperature with TEMP ▲/▼ and fan speed with FAN.

What is the difference between Cool and Dry mode?

In Cool mode, the unit lowers room temperature. In Dry mode, it reduces humidity without significant cooling. The fan speed is automatically set in Dry mode.

How do I set the timer?

Press TIMER on the remote. Use TEMP ▲/▼ to set the desired on/off time (in 30-minute increments up to 10 hours, then 1-hour increments up to 24 hours). Confirm by pointing to the unit.

Why is the unit not cooling?

Check if the filter is dirty, the set temperature is appropriate, and the mode is set to Cool. Ensure windows and doors are closed. If the problem persists, contact a service technician.

Can I use the air conditioner in winter?

Yes, if your model includes a Heat mode (not available on cooling-only units). Select HEAT mode via the remote and set the desired temperature.

How do I activate the self-clean function?

Press the CLEAN button on the remote while the unit is in Cool or Dry mode. The unit will run a cleaning cycle and turn off automatically.

What do I do if the remote stops working?

Replace the batteries with new ones. Ensure there are no obstructions between the remote and the unit. If still not working, check for direct sunlight interference or contact customer service.

USER MANUAL ACI 124 WH TEKA

Modern kitchen interior with black cabinets, ovens, and a red 'TEKA' logo on the wall (no text-heavy elements)

UZAKTAN KUMANDA KULLANIM KILAVUZU

TR

İçindekiler

Illustration of a hand holding a remote control panel with two arrows indicating left-hand movement (no text or symbols present)

Uzaktan Kumanda

Simple line drawing of a rectangular frame with a small arrow pointing downward to the bottom right corner (no text or symbols)

Simple diagram of a rectangular frame with two gray arrows pointing downward (no text or symbols)

Simple line drawing of a rectangular frame with a stack of stacked layers below (no text or symbols)

Simple line drawing of a finger pressing a star button on an oval shape, with an arrow pointing right (no text or symbols)

World map silhouette showing continents and countries with no text or labels

Modern kitchen interior with glossy black cabinets and stainless steel appliances, featuring a 'TEKA' logo in the top right corner (no other text or symbols visible)

REMOTE CONTROLLER

EN

Table of Contents

Remote Controller Specifications ....02

Handling the Remote Controller 03

Buttons and Functions ....04

Remote Screen Indicators 08

How to Use Basic Functions ....09

How to Use Advanced Functions ....11

Remote Controller Specifications

Model	RG10A(D2S)/BGEF, RG10A(D2S)/BGEFU1,RG10A1(D2S)/BGEF, RG10A2(D2S)/BGEFU1, RG10A2(D2S)/BGCEFU1, RG10A2(D2S)/BGCEF, RG10A10(D2S)/BGEF, RG10B(D2)/BGEF, RG10B1(D2)/BGEF, RG10B2(D2)/BGCEF,RG10B10(D2)/BGEF, RG10B10(D2)/BGCEF, RG10Y1(D2)/BGEF,RG10Y2(D2S)/BGEF
Rated Voltage	3.0V( Dry batteries R03/LR03×2)
Signal Receiving Range	8m
Environment	-5°C~60°C(23°F~140°F)

NOTE: For models of RG10Y1 (D2)/BGEF,RG10Y2(D2S)/BGEF, If the unit is turned off under COOL, AUTO or DRY mode with the set temperature less than 24^irc C, the set temperature will be automatically set to 24^irc C when you turn on the unit again. If the unit is turned off under HEAT mode with the set temperature more than 24^irc C, the set temperature will be automatically set to 24^irc C when you turn on the unit again.

Quick Start Guide

NOT SURE WHAT A FUNCTION DOES?

Refer to the How to Use Basic Functions and How to Use Advanced Functions sections of this manual for a detailed description of how to use your air conditioner.

SPECIAL NOTE

• Button designs on your unit may differ slightly from the example shown.
• If the indoor unit does not have a particular function, pressing that function's button on the remote control will have no effect.
• When there are wide differences between "Remote controller Manual" and "USER'S MANUAL" on function description, the description of "USER'S MANUAL" shall prevail.

Handling the Remote Controller

Inserting and Replacing Batteries

Your air conditioning unit may come with two batteries(some units). Put the batteries in the remote control before use.

1. Slide the back cover from the remote control downward, exposing the battery compartment.
2. Insert the batteries, paying attention to match up the (+) and (-) ends of the batteries with the symbols inside the battery compartment.
3. Slide the battery cover back into place.

Illustration of a hand holding a remote control device with two views showing internal components (no text or symbols)

Remote Control

• Direct sunlight can interfere with the infrared signal receiver.
• There must be a clear line of sight between the remote and the appliance.
• If the signals from the remote control happen to control another appliance, move the appliance to another location or contact customer service.

Battery Disposal

• Do not dispose of batteries as unsorted municipal waste. Refer to local laws for proper disposal of batteries.
• Batteries may have a chemical symbol at the bottom of the disposal icon. This chemical symbol means that the battery contains a heavy metal that exceeds a certain concentration. An example is Pb: Lead (>0.004%).
• Appliances and used batteries must be treated in a specialized facility for reuse, recycling and recovery. By ensuring correct disposal, you will help avoid possible negative consequences for the environment and human health.

Pb

Battery Performance

For optimal product performance:

• Do not mix old and new batteries, or batteries of different brands.
• Do not leave batteries in the remote control if you don't plan on using the device for more than 2 months.

Notes For Using Remote Control

The device could comply with the local national regulations.

• In Canada, it should comply with CAN ICES-3(B)/NMB-3(B).
• In USA, this device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
  (1) This device may not cause harmful interference, and
  (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• Changes or modifications not approved by the party responsible for compliance could void user's authority to operate the equipment.

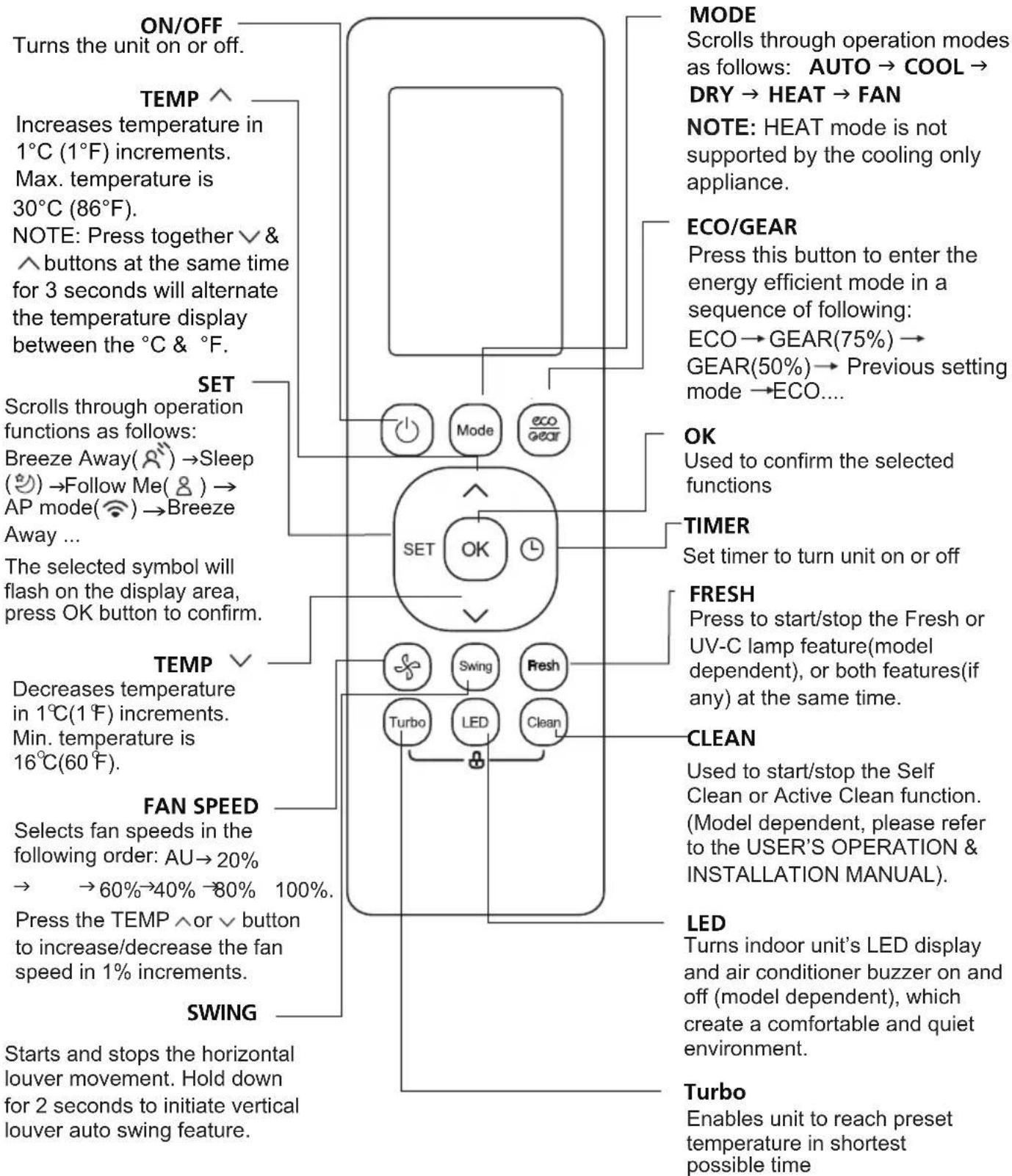

Buttons and Functions

Before you begin using your new air conditioner, make sure to familiarize yourself with its remote control. The following is a brief introduction to the remote control itself. For instructions on how to operate your air conditioner, refer to the How to Use Basic Functions section of this manual.

Starts and stops the horizontal louver movement. Hold down for 2 seconds to initiate vertical louver auto swing feature(some units).

MODE

Scrolls through operation modes as follows: AUTO → COOL → DRY → HEAT → FAN

NOTE: HEAT mode is not supported by the cooling only appliance.

ECO/GEAR

Press this button to enter the energy efficient mode in a sequence of following:

ECO→GEAR(75%)→ GEAR(50%)→ Previous setting mode→ECO.....

OK

Used to confirm the selected functions

TIMER

Set timer to turn unit on or off

BREEZE AWAY

This feature avoids direct air flow blowing on the body and makes you feel indulging in silky coolness.

NOTE: This feature is available under cool, Fan and Dry mode only

CLEAN

Used to start/stop the Self Clean or Active Clean function. (Model dependent, please refer to the USER'S OPERATION & INSTALLATION MANUAL).

LED

Turns indoor unit's LED display and air conditioner buzzer on and off (model dependent), which create a comfortable and quiet environment.

Turbo

Enables unit to reach preset temperature in shortest possible time

Model: RG10A2(D2S)/BGEFU1,RG10Y2(D2S)/BGEF

RG10A10(D2S)/BGEF(20-28°C/68-82°F)

RG10A(D2S)/BGEF & RG10A(D2S)/BGEFU1(Fresh feature is not available)

RG10A2(D2S)/BGCEFU1 & RG10A2(D2S)/BGCEF

(Cooling only models, AUTO mode and HEAT mode are not available)

Model: RG10A1(D2S)/BGEF
Max. temperature is 30°C (86°F).
NOTE: Press together &
^ buttons at the same time
for 3 seconds will alternate
the temperature display
between the °C & °F.]

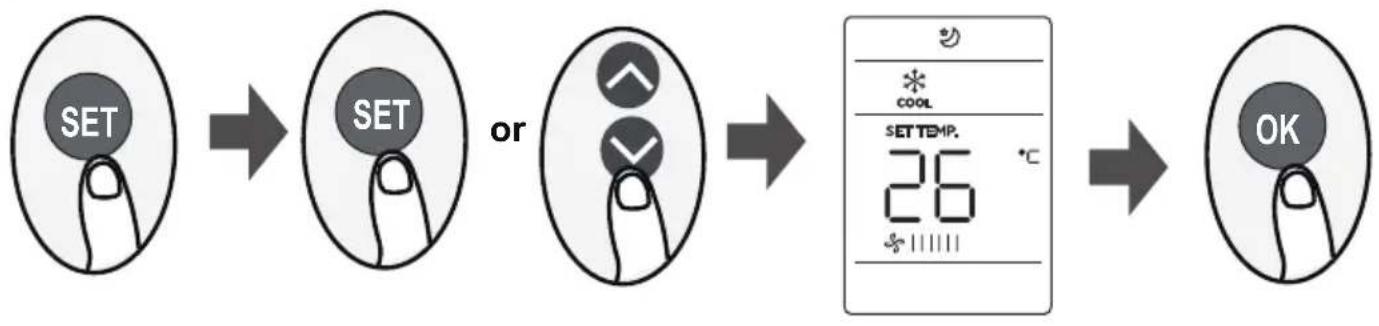

    E["SET"] --> F Scrolls through operation functions as follows:
Fresh/UV-C lamp( Ø )→
Sleep( 😊 )→Follow Me( ⚠ )
→AP mode( 📞 )]
    F --> G The selected symbol will flash on the display area,
press the OK button to confirm.
    H["TEMP ↓"] --> I Decreases temperature in 1°C (1°F) increments.
Min. temperature is 16°C (60°F).]
    I --> J["FAN SPEED"]
    J --> K Selects fan speeds in the following order:
AUTO → LOW → MED → HIGH
NOTE: Holding this button
down for 2 seconds will activate
Silence feature.
SWING

Starts and stops the horizontal louver movement. Hold down for 2 seconds to initiate vertical louver auto swing feature(some units).

MODE

Scrolls through operation modes as follows: AUTO → COOL →

DRY → HEAT → FAN

NOTE: HEAT mode is not supported by the cooling only appliance.

SLEEP

Saves energy during sleeping hours.

OK

Used to confirm the selected functions

TIMER

Set timer to turn unit on or off.

SHORTCUT

Used to restore the current settings or resume previous settings.

CLEAN

Used to start/stop the Self Clean or Active Clean function. (Model dependent, please refer to the USER'S OPERATION & INSTALLATION MANUAL).

LED

Turns indoor unit's LED display and air conditioner buzzer on and off (model dependent), which create a comfortable and quiet environment.

Turbo

Enables unit to reach preset temperature in shortest possible time

Model: RG10B(D2)/BGEF(Fresh feature is not available) RG10B10(D2)/BGEF & RG10B10(D2)/BGCEF(20-28° C/68-82°F) RG10B2(D2)/BGCEF & RG10B10(D2)/BGCEF (Cooling only model, AUTO mode and HEAT mode are not available) RG10Y1(D2)/BGEF

Starts and stops the horizontal louver movement. Hold down for 2 seconds to initiate vertical louver auto swing feature(some units).

MODE

Scrolls through operation modes as follows: AUTO→COOL → DRY → HEAT → FAN

NOTE: HEAT mode is not supported by the cooling only appliance.

SLEEP

Saves energy during sleeping hours.

OK

Used to confirm the selected functions

TIMER

Set timer to turn unit on or off

FRESH

Press to start/stop the Fresh or UV-C lamp feature(model dependent), or both features(if any) at the same time.

CLEAN

Used to start/stop the Self Clean or Active Clean function. (Model dependent, please refer to the USER'S OPERATION & INSTALLATION MANUAL).

LED

Turns indoor unit's LED display and air conditioner buzzer on and off (model dependent), which create a comfortable and quiet environment.

TURBO

Enables unit to reach preset temperature in shortest possible time

Model: RG10B1(D2)/BGEF

Remote Screen Indicators

Information are displayed when the remote controller is power up.

Note:

All indicators shown in the figure are for the purpose of clear presentation. But during the actual operation, only the relative function signs are shown on the display window.

How to Use Basic Functions

ATTENTION

Before operation, please ensure the unit is plugged in and power is available.

AUTO Mode

Select AUTO mode Set your desired temperature

Turn on the air conditioner

NOTE:

1. In AUTO mode, the unit will automatically select the COOL, FAN, or HEAT function based on the set temperature.
2. In AUTO mode, fan speed can not be set.

COOL or HEAT Mode

Select COOL/HEAT mode

Set the temperature

Set the fan speed

Turn on the air conditioner

DRY Mode

Select DRY mode Set your desired temperature Turn on the air conditioner

NOTE: In DRY mode, fan speed can not be set since it has already been automatically controlled.

FAN Mode

Select FAN mode Turn on the absolute speed

NOTE: In FAN mode, you can't set the temperature. As a result, no temperature displays in remote screen.

Setting the TIMER

TIMER ON/OFF - Set the amount of time after which the unit will automatically turn on/off.

TIMER ON setting

Press TIMER button to initiate the ON time sequence.

Press Temp. up or down button for multiple times to set the desired time to turn on the unit.

Point remote to unit and wait 1sec, the TIMER ON will be activated.

TIMER OFF setting

Press TIMER button to initiate the OFF time sequence.

Press Temp. up or down button for multiple times to set the desired time to turn off the unit.

Point remote to unit and wait 1sec, the TIMER OFF will be activated.

NOTE:

1. When setting the TIMER ON or TIMER OFF, the time will increase by 30 minutes increments with each press, up to 10 hours. After 10 hours and up to 24, it will increase in 1 hour increments. (For example, press 5 times to get 2.5h, and press 10 times to get 5h,) The timer will revert to 0.0 after 24.

2. Cancel either function by setting its timer to 0.0h.

TIMER ON & OFF setting(example)

Keep in mind that the time periods you set for both functions refer to hours after the current time.

Example: If current timer is 1:00PM, to set the timer as above steps, the unit will turn on 2.5h later (3:30PM) and turn off at 6:00PM.

How to Use Advanced Functions

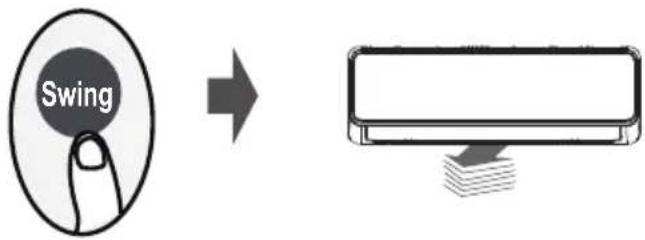

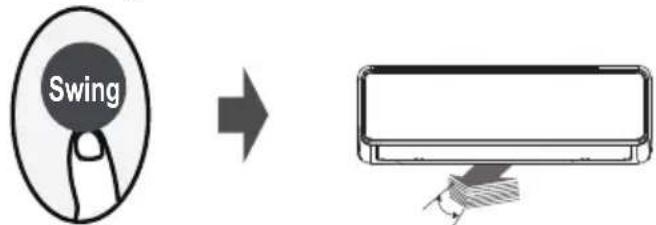

Swing function

Press Swing button

The horizontal louver will swing up and down automatically when pressing Swing button. Press again to make it stop.

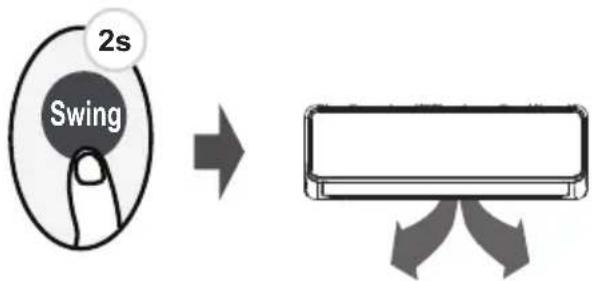

Keep pressing this button more than 2 seconds, the vertical louver swing function is activated. (Model dependent)

Airflow direction

If continue to press the SWING button, five different airflow directions can be set. The louver can be move at a certain range each time you press the button. Press the button until the direction you prefer is reached.

NOTE: When the unit is off, press and hold MODE and SWING buttons together for one second, the louver will open for a certain angle, which makes it very convenient for cleaning. Press and hold MODE and SWING buttons together for one second to reset the louver (Model dependent).

LED DISPLAY

Press LED button Press this button more

than 5 seconds(some units)

Press this button to turn on and turn off the display on the indoor unit.

Keep pressing this button more than 5 seconds, the indoor unit will display the actual room temperature. Press more than 5 seconds again will revert back to display the setting temperature.

LOCK function

Press together Clean button and Turbo button at the same time more than 5 seconds to activate Lock function. All buttons will not response except pressing these two buttons for two seconds again to disable locking.

ECO/GEAR function

Press this button to enter the energy efficient mode in a sequence of following:

ECO → GEAR(75%) → GEAR(50%) → Previous setting mode → ECO.....

Note: This function is only available under COOL mode.

ECO operation:

Under cooling mode, press this button, the remote controller will adjust the temperature automatically to 24^irc C/75°F, fan speed of Auto to save energy (only when the set temperature is less than 24^irc C/75°F). If the set temperature is above 24^irc C/75°F, press the ECO button, the fan speed will change to Auto, the set temperature will remain unchanged.

NOTE:

Pressing the ECO/GEAR button, or modifying the mode or adjusting the set temperature to less than 24^irc C/ 75^irc F will stop ECO operation.

Under ECO operation, the set temperature should be 24^irc C/75°F or above, it may result in insufficient cooling. If you feel uncomfortable, just press the ECO button again to stop it.

GEAR operation:

Press the ECO/GEAR button to enter the GEAR operation as following:

75%(up to 75% electrical energy consumption) → 50%(up to 50% electrical energy consumption) → Previous setting mode.

Under GEAR operation, the setting temperature will revert back in the display screen after 3 seconds you select the desired electrical energy consumption operation.

SHORTCUT function

Press SHORTCUT button(some units)

Hand holding a finger pointing to a star button inside an oval shape, with a right-pointing arrow indicating direction (no text or symbols)

Push this button when remote controller is on, the system will automatically revert back to the previous settings including operating mode, setting temperature, fan speed level and sleep feature (if activated).

If pushing more than 2 seconds, the system will automatically restore the current operation settings including operating mode, setting temperature, fan speed level and sleep feature (if activated).

Silence function

Keep pressing Fan button for more than 2 seconds to activate/disable Silence function(some units).

Due to low frequency operation of compressor, it may result in insufficient cooling and heating capacity. Press ON/OFF, Mode, Sleep, Turbo or Clean button while operating will cancel silence function.

FP function

The unit will operate at high fan speed (while compressor on) with temperature automatically set to 8^irc C/46°F.

Note: This function is for heat pump air conditioner only.

Press this button 2 times during one second under HEAT Mode with setting temperature of 16^ircC / 60^ircF or 20^ircC / 68^ircF (for models of RG10A10(D2S)/BGEF, RG10B10(D2)/BGEF and RG10B10(D2)/BGCEF) to activate FP function.

Press On/Off, Sleep, Mode, Fan and Temp. button while operating will cancel this function.

TURBO Function

Press this button

When you select Turbo feature in Cool/Heat mode, the unit will blow cool/heat air with strongest wind to reach the set temperature in short time (some units).

For units with Electric heat elements, when in heat mode, the Electric Heater will activate and jump-start the heating process.

For units adopt PTC devices, when in heat mode, press Turbo button will activate/disable the PTC device. Press the Fan button to select the desired fan speed. After the PTC device is turned on, it will turn off immediately if the set temperature is reached during 2 hours. If the set temperature is not reached after two hours, the PTC device will also automatically stop, but the Turbo indicator on the display screen remains on. If you still want to activate PTC device, press the Turbo button twice.

CLEAN function

Press Clean button to active self clean or active clean function(Model dependent)

Active clean function:

The Active Clean Technology washes away dust, mold, and grease that may cause odors when it adheres to the heat exchanger by automatically freezing and then rapidly thawing the frost. When this function is turned on, the indoor unit display window appears “CL”, after 20 to 45 or 130(model dependent) minutes, the unit will turn off automatically and cancel CLEAN function.

Self clean function:

Airborne bacteria can grow in the moisture that condenses around heat exchanger in the unit. With regular use, most of this moisture is evaporated from the unit. By pressing the CLEAN button, your unit will clean itself automatically.

After cleaning, the unit will turn off automatically. Pressing the CLEAN button mid-cycle will cancel the operation and turn off the unit. You can use CLEAN as often as you like.

Note: You can only activate this function in COOL or DRY mode.

SET function

• Press the SET button to enter the function setting, then press SET button or TEMP▼or TEMP▲ button to select the desired function. The selected symbol will flash on the display area, press the OK button to confirm.
• To cancel the selected function, just perform the same procedures as above.
• Press the SET button to scroll through operation functions as follows: Breeze Away (♂)→ Fresh/UV-C lamp (∅)→ Sleep(♀)→ Follow Me(♀)→ AP mode (♀) [*]: If your remote controller has Breeze Away button, Fresh button or Sleep button, you can not use the SET button to select the Breeze Away, Fresh or Sleep feature.

Breeze Away function( ) (some units):

This feature avoids direct air flow blowing on the body and makes you feel indulging in silky coolness.

NOTE: This feature is available under cool, Fan and Dry mode only.

FRESH/UV-C lamp function(∅) (some units):

When this function is selected, the Ionizer or UV-C lamp(model dependent) will be activated. If has both features, these two features will be activated at the same time. This function will help to purify the air in the room.

Sleep function(💡) :

The SLEEP function is used to decrease energy use while you sleep (and don't need the same temperature settings to stay comfortable). This function can only be activated via remote control.

For the detail, see "sleep operation" in "USER'S MANUAL."

NOTE: The SLEEP function is not available in FAN or DRY mode.

Follow me function( 👁 ):

The FOLLOW ME function enables the remote control to measure the temperature at its current location and send this signal to the air conditioner every 3 minutes interval. When using AUTO, COOL or HEAT modes, measuring ambient temperature from the remote control (instead of from the indoor unit itself) will enable the air conditioner to optimize the temperature around you and ensure maximum comfort.

NOTE: Press and hold Turbo button for seven seconds to start/stop memory feature of Follow Me function.

• If the memory feature is activated, "On" displays for 3 seconds on the screen.
• If the memory feature is stopped, "OF" displays for 3 seconds on the screen.
• While the memory feature is activated, press the ON/OFF button, shift the mode or power failure will not cancel the Follow me function.

AP function( ) (some units) :

Choose AP mode to do wireless network configuration. For some units, it doesn't work by pressing the SET button. To enter the AP mode, continuously press the LED button seven times in 10 seconds.

The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details.

TEKA

World map silhouette showing continents and countries with no text or labels
