KAFXIDIP3MB - Security Camera Kogan - Free user manual and instructions

Product Type	Security Camera
Brand	Kogan
Model	KAFXIDIP3MB
Resolution	1080p HD (1920x1080)
Connectivity	Wi-Fi 2.4GHz
Power Input	DC 5V / 1A (USB)
Field of View	100° wide-angle
Night Vision	Up to 10m IR
Audio	Two-way audio with built-in microphone and speaker
Storage	MicroSD card up to 128GB (not included)
Dimensions	7.0 x 7.0 x 12.0 cm
Weight	200 g
Material	Plastic housing
Weatherproof Rating	IP65 (outdoor use)
Mounting Type	Wall mount with included bracket
Motion Detection	Yes, with push notifications
Smart Assistant Compatible	Amazon Alexa, Google Assistant
App Control	Kogan App (iOS and Android)
Recording Mode	Continuous or motion-triggered
Warranty	12 months
Package Contents	Camera, USB cable, power adapter, wall mount kit, manual

Frequently Asked Questions - KAFXIDIP3MB Kogan

How do I reset the Kogan KAFXIDIP3MB security camera to factory settings?

Locate the reset button (usually a small pinhole) on the camera. Use a paperclip to press and hold the button for about 10 seconds until you hear a voice prompt or see the LED flash. The camera will restart and return to factory defaults.

Can I use the camera without an SD card?

Yes, the camera can stream live video without an SD card, but recording will depend on your setup. For local recording, a MicroSD card (up to 128GB) is required. Cloud recording options may also be available via the Kogan App.

Does the camera support two-way audio?

Yes, the Kogan KAFXIDIP3MB has a built-in microphone and speaker, allowing you to listen and talk through the camera using the Kogan App.

How do I connect the camera to Wi-Fi?

Download the Kogan App and create an account. Plug in the camera and wait for the LED to flash. In the app, select 'Add Device' and scan the QR code on the camera. Follow the in-app prompts to connect to your 2.4GHz Wi-Fi network.

What is the maximum SD card size supported?

The camera supports MicroSD cards up to 128GB. It is recommended to use a high-speed card (Class 10 or higher) for smooth recording.

Can I view the camera remotely?

Yes, once the camera is connected to Wi-Fi and added to the Kogan App, you can view the live stream from anywhere with an internet connection on your smartphone or tablet.

How do I set up motion detection alerts?

Open the Kogan App and go to the camera settings. Enable 'Motion Detection' and adjust sensitivity. You can also set up notification schedules. When motion is detected, you will receive a push alert on your phone.

Is the camera suitable for outdoor use?

Yes, the Kogan KAFXIDIP3MB has an IP65 weatherproof rating, meaning it is protected against dust and low-pressure water jets. It can be used outdoors under eaves or sheltered areas.

What should I do if the camera is not connecting to Wi-Fi?

Ensure your Wi-Fi is 2.4GHz (not 5GHz). Try resetting the camera, moving it closer to the router, or restarting your router. If the issue persists, check that the camera is fully powered and the LED is flashing.

Can I mount the camera upside down?

Yes, the camera includes a wall mount bracket that allows for ceiling or inverted mounting. In the Kogan App, you can enable 'Image Flip' to rotate the video feed 180 degrees for correct orientation.

USER MANUAL KAFXIDIP3MB Kogan

Line drawing of a circular mechanical device with a base and top, no text or symbols present

KOGAN SMARTERHOME™ FULL HD INDOOR SECURITY CAMERA

KAFXIDIP3MB

COMPONENTS

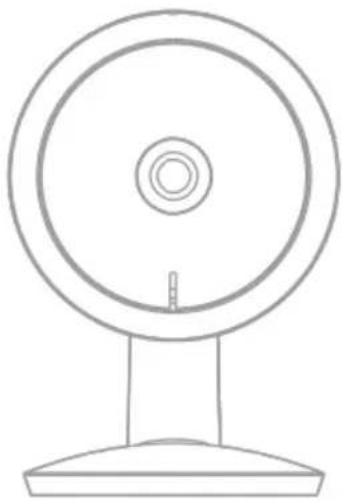

Simple line drawing of a circular device with a central hub and base (no text or symbols)

Kogan SmarterHome™ Full HD Indoor Security Camera

Line drawing of a cable with connectors and a connector pin (no text or symbols)

USB to Micro USB Cable

Simple line drawing of a circular object with horizontal lines inside, resembling a perforated or meshed surface (no text or symbols)

Adhesive Tape

Simple line drawing of a U-shaped object resembling a thermometer or pipette (no text or symbols)

Reset Pin

Simple circular diagram with two inner circles, no text or symbols present

Metal Bracket Screws User Guide

Simple line drawing of two screws on a rectangular base (no text or symbols)

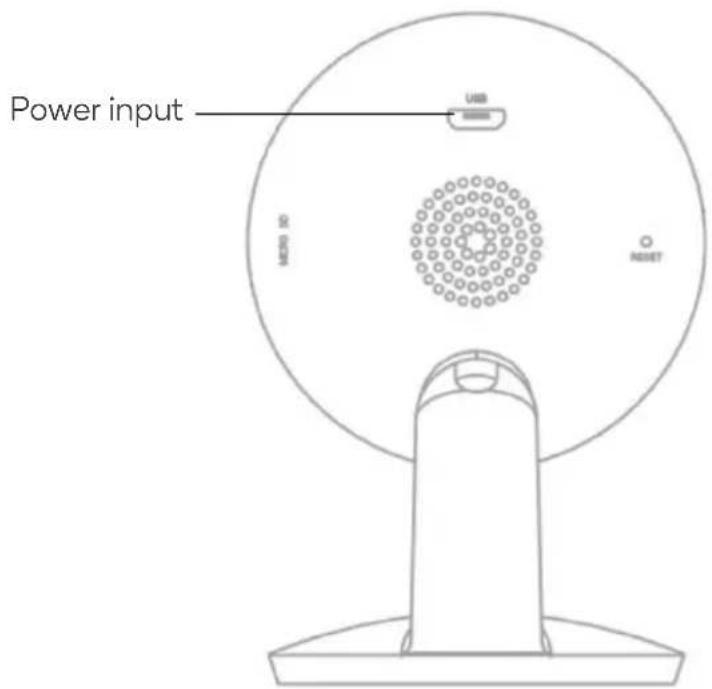

OVERVIEW

Power	DC 5V±10% (Micro USB)
Status light	Solid red light: Error with device or network connectionBlinking red light: Ready for Wi-Fi connectionSolid blue light: Camera operating correctlyBlinking blue light: Connection in process
Microphone	Captures sounds for your video
microSD card slot	Supports local SD Card storage (Max. 256GB)
Reset button	Using the supplied Reset Pin, press and hold the 'RESET' button for 5 seconds to reset the device. The camera will return to factory defaults.

INSTALLATION

1. Prepare the intended mounting surface, ensuring it is clean and dry.
2. Use the provided adhesive tape or screws to secure the metal bracket to the wall. If the surface is made of metal, skip this step.
3. Attach the magnet on the base of the camera to the metal bracket.

Diagram of a mechanical or optical setup with two lenses aligned on a vertical surface, no text or symbols present.

1. If mounting upside down, ensure the camera settings are configured to flip the video (see Functions page).

Powering On the Camera

1. Connect the USB Cable:

Use the supplied USB to Micro USB cable to connect the camera to a power source. Ensure the USB cable is securely connected to both the camera and a power adapter or USB port.

2. Power On:

Once connected, the camera will automatically power on. The status light will indicate the camera's power status.

3. Check the Status Light:

Refer to the Status Light indicators to confirm the camera is powered on and operating correctly.

CONNECT TO SMARTERHOME™ APP

Install App

Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS).

Register

If you do not have a Kogan SmarterHome ^™ account, register or sign in with a verification code sent by SMS.

To register:

1. Tap to enter registration page.
2. The system automatically recognises your country/area. You can also select your country code manually. Enter your email address or mobile number and tap 'Next.'
3. A verification code will be sent to you by email or SMS. Enter the code to confirm.
4. Create a profile on the next page to define your location and room.

Set device in pairing mode

When the device is first turned on, it may automatically enter pairing mode (the red light will be blinking).

If not automatically in pairing mode when powered on, you can manually set the device in pairing mode by resetting the device. Using the supplied Reset Pin, press and hold the 'RESET' button for 5 seconds to reset the device. Once reset, the red light will begin to flash.

Add device through network

1. Once registered, tap “+” in the upper right corner of the app’s home page to add a new device through the network.
2. Select the product type from the list of options in the app (Home Security > Cameras).

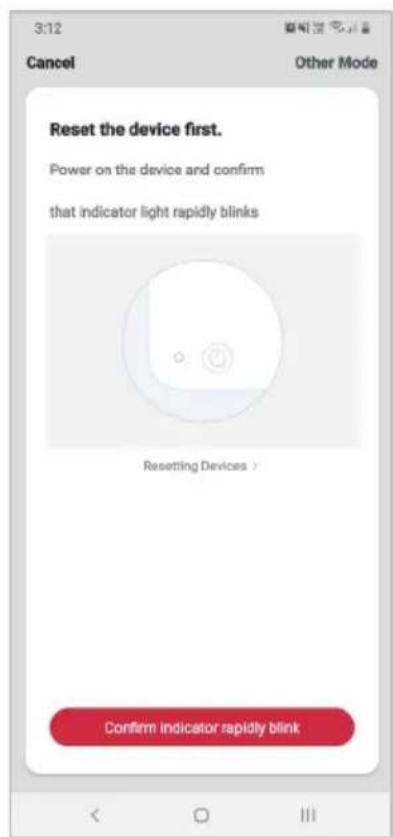

3. Ensure that the device is in pairing mode, with the red light flashing, and tap "Confirm light is rapidly flashing".

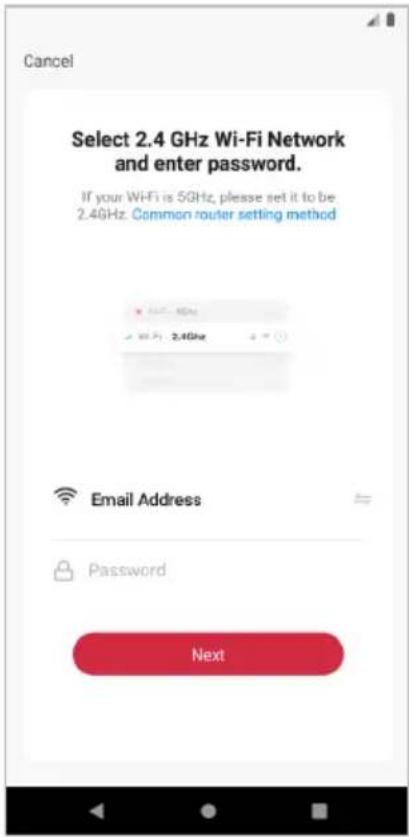

4. Upon successfully confirming pairing mode, enter your Wi-Fi details. It is important that your SmarterHome™ device and the app are connected to the same Wi-Fi network during setup.

1. Calibrate the smart camera by holding your smartphone 15-20cm away from the camera lens until it successfully scans the QR code shown on the following screen of the setup. The device will make a Prompt sound to confirm, click "I heard a prompt" to proceed to the next screen.
2. The device will commence the pairing process and connect to the app. Ensure your Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until connection is complete.
3. After successfully being added, you will have the option to rename the device and assign it to a location. It will now be listed on the app's home page. Tap the device listing to enter its control page.

Notes:

• The device and the app have to use the same Wi-Fi network.
• The device is only compatible with 2.4Ghz networks.
• Ensure the number bits in the SSID and password of the router do not exceed 24 digits.

FUNCTIONS

Settings

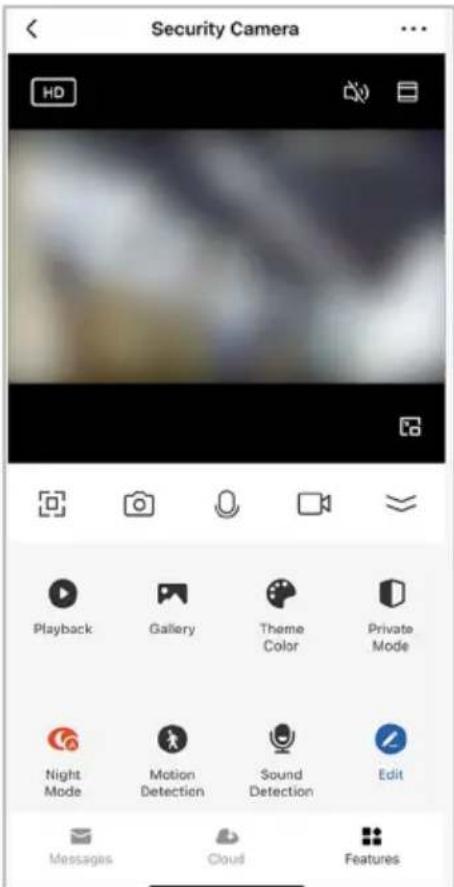

In the Smart Camera interface, click "☐" in the top right corner to set the camera common functions.

Video flip

Flip your video stream vertically. This is useful if you've mounted the camera upside down.

Motion detection

Smart motion detection will send push notifications to your smartphone once abnormal movement is detected.

Record

Record every moment using microSD card storage (max. 256GB).

Day & Night

Powerful night vision means no interruptions, even in complete darkness.

Modern living room interior with sofa, coffee table, lamp, and wall art (no visible text or symbols)

Daytime

Interior view of a modern living room with sofa, coffee table, lamp, and wall art (no visible text or symbols)

Night vision

TROUBLESHOOTING

Issue Possible solution
The device cannot be connected properly.	Check whether the network is operating correctly.Ensure the camera is positioned closely to the router.Ensure you are connecting to a 2.4Ghz network, and that this is the network you are currently connected to on your smartphone.Double check that you have read through the instructions correctly, that the indicator light is flashing and ready for connection before attempting to pair.If this does not work, we recommend resetting the device and attempting again.
The device is still appearing in SmarterHomeTM app after resetting.	Resetting device only initializes network configuration of the camera, but cannot change the configuration in the app. To stop it appearing in the app, you must also remove the device from the app.
How to change the camera network to another router.	First remove the device from the app, then reset the device manually. It is now ready to pair using a new network or device.
Device isn't identifying the microSD card.	It is recommended to insert the microSD card while power is off.Confirm whether the microSD card is normally available and ensure the format is FAT32.Sometimes the microSD card may not be identified when the internet connection is not stable.
Push notifications are not appearing.	Confirm that the app has been running on the phone and the relevant reminder function has been enabled from the settings list.Ensure message notification and app permissions have been enabled on the smart phone.

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
