Product Type	Modular switch
Model	ADC913T
Brand	Hager
Rated Voltage	230 V AC
Rated Current	10 A
Number of Gangs	1
Switching Function	ON/OFF
Mounting Type	Flush or surface mounting
Shape	Square with rounded corners
Dimensions (mm)	45 x 45 (standard)
Depth (mm)	Approx. 10
Material	Thermoplastic
Color	White
IP Rating	IP20 (indoor use)
Mechanical Durability	20,000 cycles
Electrical Durability	10,000 cycles
Operating Temperature	-5°C to +40°C
Cleaning Method	Wipe with a dry or slightly damp cloth
Safety Compliance	IEC 60669-1
Repairability	Replace entire unit if faulty

Frequently Asked Questions - ADC913T HAGER

What is the rated voltage for the Hager ADC913T switch?

The rated voltage is 230 V AC, standard for residential lighting circuits.

What is the maximum current rating?

The switch is rated for 10 A at 230 V AC.

Can the ADC913T be used for three-way switching?

No, this is a single-pole single-throw (SPST) switch, intended for simple ON/OFF control. For three-way switching, use compatible Hager intermediate switches.

What are the dimensions of the ADC913T?

The switch faceplate measures 45 mm x 45 mm (standard square). Depth is approximately 10 mm.

Is the ADC913T suitable for outdoor use?

No, it has an IP20 rating, meaning it is only suitable for indoor, dry locations.

How do I install the ADC913T?

Ensure power is off. Connect phase wire to the common terminal and load wire to the switched terminal. Secure the switch into a flush box or surface mount. Follow local electrical codes.

What does the 'T' in ADC913T mean?

The 'T' likely indicates a tactile or standard design variant. It does not affect functionality.

Can I use this switch with LED lights?

Yes, it is compatible with LED loads. However, for very low wattage LEDs, ensure the combined load exceeds the minimum switch rating (typically 10 mA) to avoid flickering.

What is the warranty for Hager ADC913T?

Hager typically offers a 2-year warranty against manufacturing defects. Check your local supplier for details.

How do I clean the switch?

Wipe the surface with a dry or slightly damp cloth. Do not use abrasive cleaners or immerse in water.

USER MANUAL ADC913T HAGER

Technical line drawing of a mechanical component with no visible text or symbols

AU

Residualcurrentoperated circuit-breaker RCBO with switched neutral 6 to 32A

This device is to be installed only by a professional electrician fitter according to local applicable installation standards. Do not plug in or unplug this product when it is live. Conform to TBTS installation rules.

Electrical connection

230 / 240 V\~ 50 Hz

	LINE	LOAD
(mm^2)	1 to 162 x 10	1 to 162 x 6
	12 mm	10 mm
	PZ2	PZ2
	2,1 Nm	1,9 Nm

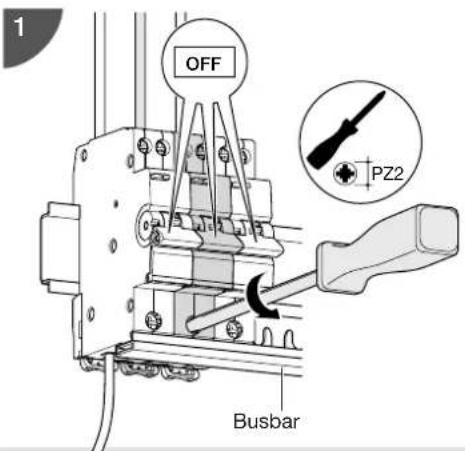

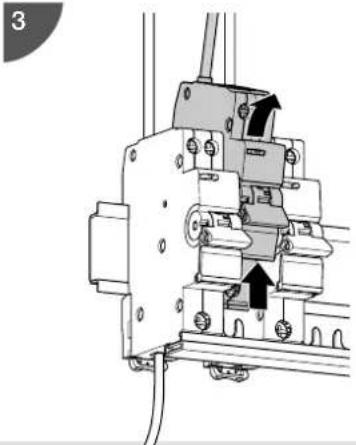

Easy dismounting with the plastic DIN rail clip

Mechanical assembly diagram showing a clamping device with rotating components and directional arrows (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Locking device for handle MZN175

RCBO 1 module suitable for DIN rail mount & Invicta panel board
