Product Type	2-Port WUXGA Splitter
Brand	Smart-AVI
Model	AVS-2P
Video Format	VGA RGB Analog (75Ω, 0.7Vp-p)
Max Resolution	Up to 1600x1200 @ 85Hz, 2048x1536 @ 60Hz
Input Interface	(1) HD-15 Male
Output Interface	(2) HD-15 Female
Horizontal Frequency Range	30-95KHz
Vertical Frequency Range	50-180Hz
Bandwidth	300 MHz
DDC Signal	5 Volts peak-to-peak, TTL
TDMS Signal	1.2 Volts peak-to-peak, TTL
Power Supply	External 5VDC 2A
Dimensions (W x H x D)	5.325" x 1" x 3" (13.5 x 2.5 x 7.6 cm)
Weight	0.25 lbs (113 g)
Enclosure	Compact metal
Approvals	Device: CE, RoHS; Power Supply: C-UL US, CE
Installation	Plug-and-play, easy setup
Application	Home theater, restaurants, digital signage, kiosks, studios
Care and Cleaning	Wipe with a soft dry cloth. Do not use liquids.
Safety	Use only supplied power adapter. Keep away from moisture.
Spare Parts and Repairability	No user-serviceable parts. Contact Smart-AVI for repairs.
General Information	Designed to split one VGA signal to two displays simultaneously.

Frequently Asked Questions - AVS-2P Smart-AVI

What is the maximum resolution supported?

The AVS-2P supports resolutions up to 2048x1536 @ 60Hz and 1600x1200 @ 85Hz.

Does the splitter require external power?

Yes, it requires an external 5VDC 2A power adapter, which is included.

Can I connect displays with different resolutions?

Both displays will show the same signal at the source resolution. No scaling is performed.

Is it compatible with Mac or Linux?

Yes, as long as the computer has a VGA output, it will work with any operating system.

How do I install the AVS-2P?

Turn off all devices. Connect a VGA cable from the computer to the input port, then connect displays to the output ports. Connect power and turn on devices.

Does it support audio?

No, the AVS-2P transmits video only via VGA. Audio must be handled separately.

What is the bandwidth of the splitter?

The bandwidth is 300 MHz, ensuring high-quality signal transmission.

Do I need to install any software?

No, it is plug-and-play and requires no additional drivers.

Can I use it to extend my desktop?

No, this is a splitter, not an extender. It duplicates the same signal to both displays. For extending, you need a different device.

Where can I find more support or manuals?

Visit the official website www.smartavi.com for additional support and resources.

USER MANUAL AVS-2P Smart-AVI

Technical Specifications

VIDEO
Format	VGA RGB Analog (75Ω, 0.7Vp-p)
Resolution	Up to 1600x1200 @ 85Hz2048x1536 @ 60Hz
Input Interface	(1) HD-15 Male
Output Interface	(2) HD-15 Female
H Frequency Range	30-95KHz
V Frequency Range	50-180Hz
OTHER
DDC Signal	5 Volts [peak-to-peak], TTL
TDMS Signal	1.2 Volts[peak-to-peak], TTL
Power	External SVDC2A
Dimensions	5.325"W x 1"H x 3"D
Weight	0.25 lbs.
Approvals	Device: CE, ROHSPower Supply: C-UL US, CE

© Copyright 2010 Smart-AVI, All Rights Reserved

NOTICE

The information contained in this document is subject to change without notice. Smart-AVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or translated into another language without prior written consent from Smart-AVI.

For more information, visit www.smartavi.com.

Smart-AVI SMART AUDIO VIDEO INNOVATION

Installation Manual

AVS-2P 2-Port WUXGA Splitter

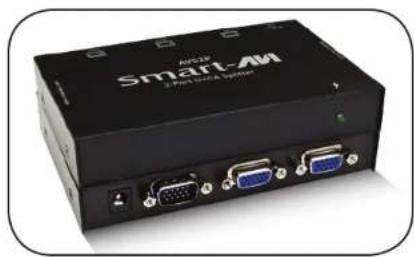

Black AVODR smart-AM device with two I/O ports and a USB port (no visible text or symbols on the device body)

Connect One VGA Output Signal to Two Displays

Smart-AM SMART AUDIO VIDEO INNOVATION

SmartAVI, Inc. / Twitter: smartavi 2840 N. Naomi Ave. Burbank, CA 91504 Tel: [phone] Fax: [phone] http://www.SmartAVI.com

www.smartavi.com

Introduction

The AVS-2P is a 2-port WUXGA splitter that allows a computer to display one VGA video signal on two monitors simultaneously.

Features

• Split WUXGA signal into two outputs
- Resolutions up to 1600x1200 @ 85Hz and up to 2048x1536 @ 60Hz
- Easy installation
- 300 MHz Bandwidth
- Compact metal enclosure

Applications

• Home Theater Integration
• Restaurants and Bars
• Digital Signage Deployment
• Information Kiosks/Displays
• Film/Recording Studios

Product - Installation Diagram

Installation

1. Turn off the computer and the displays.
2. Connect an VGA cable from the computer to the input port on the AVS-2P.
3. Connect the displays to the VGA outputs on the AVS-2P.
4. Connect the power cord to the AVS-2P.
5. Power on the computer and the displays.
