Product Type	HDMI Splitter
Brand	Smart-AVI
Model	HDS-2P
Number of Inputs	1
Number of Outputs	2
Supported Resolutions	Up to 4K@30Hz (3840x2160)
Video Amplifier Bandwidth	10.2 Gbps
HDMI Version	1.4b
HDCP Support	Yes, HDCP 1.4
Power Supply	5V DC, 1A via USB or adapter
Power Consumption	2.5W (max)
Dimensions (H x W x D)	1.0 x 2.0 x 0.7 inches (2.5 x 5.0 x 1.8 cm)
Weight	0.9 oz (25 g)
Housing Material	Aluminum alloy
Operating Temperature	32°F to 122°F (0°C to 50°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Connector Type	HDMI Type A (female)
LED Indicators	Power and signal status
Compliance	RoHS, FCC, CE
Warranty	1 year limited
Included Accessories	Splitter unit, USB power cable, user manual

Frequently Asked Questions - HDS-2P Smart-AVI

What is the Smart-AVI HDS-2P?

The Smart-AVI HDS-2P is a 1-input, 2-output HDMI splitter that distributes a single HDMI source to two displays simultaneously.

What resolutions does the HDS-2P support?

It supports resolutions up to 4K@30Hz (3840x2160) and is backward compatible with lower resolutions like 1080p and 720p.

Does the HDS-2P require external power?

Yes, it requires a 5V DC power supply (1A). It can be powered via the included USB cable or a dedicated adapter (not included).

Does it support HDCP?

Yes, the HDS-2P supports HDCP 1.4 for protected content.

Can I connect both a TV and a monitor simultaneously?

Yes, the splitter duplicates the signal to two displays. Both will show the same content.

What cables do I need?

You need standard HDMI cables (not included) to connect the source to the input and each display to the outputs.

Is the HDS-2P plug and play?

Yes, it requires no software or drivers. Simply connect, power on, and it works immediately.

What is the maximum cable length?

For 4K signals, we recommend HDMI cables up to 15 feet (4.5m). For 1080p, up to 50 feet (15m).

Does it work with game consoles?

Yes, it works with PlayStation, Xbox, Nintendo Switch, and other HDMI devices.

What if only one display is connected?

The splitter will still output to the connected display without issues. The unused port has no effect.

USER MANUAL HDS-2P Smart-AVI

Technical Specifications

VIDEO
Format	HDMI 1.3c [Deep Color, xvYcc color space supported]
HDMI Compliance	HDMI 1.1
HDCP Compliance	Yes
Video Bandwidth	Single-link 225MHz [6.75Gbps]
Resolution	Up to WUXGA [1920x1200 @ 60Hz] & UXGA [1600x1200 @ 60Hz]
Input Interface	(1) HDMI[7.1ch audio & video]
Output Interface	(2) HDMI[7.1ch audio & video]
Connector	Type A[19-pin male]
AUDIO
Supported Formats	DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
OTHER
DDC Signal	5 Volts [peak to- peak], TTL
TDMS Signal	1.2 Volts[peak to- peak], TTL
Power	External 5VDC2A
Dimensions	5"W x 1.125"H x 3"D
Weight	0.25 lbs.
Approvals	Device: CE, ROHSPower Supply: C UL US, CE

© Copyright 2010 Smart-AVI, All Rights Reserved

NOTICE

The information contained in this document is subject to change without notice. Smart-AVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or translated into another language without prior written consent from Smart-AVI.

For more information, visit www.smartavi.com.

Smart-AMI SMART AUDIO VIDEO INNOVATION

Installation Manual

HDS-2P

2-Port HDMI Splitter

Exterior view of a two-tiered Smart-AM device with purple and black casing (no visible text or symbols on body)

Connect One HDMI/HDTV Component to Two Displays

Smart-AM SMART AUDIO VIDEO INNOVATION

SmartAVI, Inc. / Twitter: smartavi 2840 N. Naomi Ave. Burbank, CA 91504 Tel: [phone] Fax: [phone] http://www.SmartAVI.com

www.smartavi.com

Introduction

The HDMI Splitter allows set-top boxes, DVD players, HDMI game console, and other HDTV devices with a HDMI output to be connected to two or more HDTV displays.

Supports HDTV's 480i/480p/720i/720p/1080i/1080p & PC's WUXGA/1900x1200 and works with flat panel, plasma screen, projector, switch, splitter, computer video display, HDTV/HDCP, set-top boxes, DTV and DVD.

HDMI can output up to 20 feet from an HDMI device to the HDMI splitter, and then 20 feet from the HDMI splitter to the displays.

Features

• HDMI 1.3c and DVI 1.0 compliant
• HDCP 1.2 compliant
• Wide Frequency Range: 25MHz\~225MHz
• Video bandwidth: 6.7GBPS
• Resolution up to 1080p or WUXGA
• Supports CEC (not bypassing)
• Supports Dolby Digital, DTS-HD and Dolby True HD audio
- Easy installation

Applications

• Home Theater Integration
• Restaurants and Bars
• Digital Signage Deployment
• Information Kiosks/Displays
• Film/Recording Studios

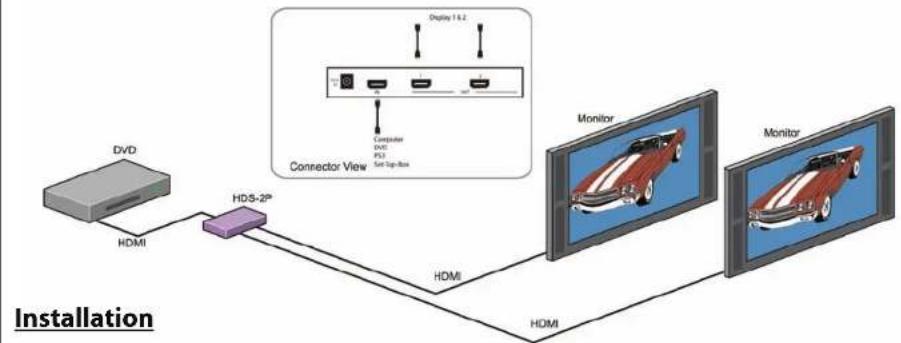

Product - Installation Diagram

1. Turn off the HDMI device and the displays.
2. Connect an HDMI cable from the HDMI output device to the input port on the HDS-2P.
3. Connect the displays to the HDMI outputs on the HDS-2P.
4. Connect the power cord to the HDS-2P.
5. Power on the HDMI device and the displays.

Front view of a purple HDS-2P device with a green indicator light (no visible text or symbols on the device body)

Front view of a purple HDS-2P rear device with three ports (no visible text or symbols on the device body)
