Product Type	9\"x2 FHD Rack Mount LCD Monitor
Brand	JVC
Model	DT-X93Hx2
Display Size	9 inches × 2
Display Resolution	1920×1200
Brightness	450 cd/m²
Contrast Ratio	1000:1
Viewing Angle	170° horizontal / 170° vertical
Video Inputs	2× BNC (SDI), 1× BNC (CVBS), 1× HDMI
Video Outputs	2× BNC (SDI loop), 1× BNC (CVBS loop), 1× HDMI loop
Audio Input	1× 3.5mm analog audio
Audio Output	1× 3.5mm (SDI/HDMI embedded and analog)
Additional Ports	1× GPI (UMD & control), 1× USB (firmware upgrade)
Power Supply	DC 6.5V–24V via 4-pin XLR
Power Consumption	36W
Dimensions (W×H×D)	484 × 177 × 112.8 mm
Net Weight	2.8 kg
Supported Video Formats (SDI)	1080p (up to 60), 1080i, 720p, 480i, 576i, 2048×1080p/i
Supported Video Formats (HDMI)	480i/p, 576i/p, 720p, 1080i, 1080p up to 60, 1080psf
On-Screen Display (OSD)	Yes, with adjustable picture, color temp, markers, audio, function keys, etc.
Special Features	Timecode, UMD, AFD, Audio Meters, Peaking Focus Assist, Zebra, Freeze Frame, False Color, H/V Delay, Flip/Rotate, Color Bar, GPI Control
Internal Color Bar	100% color bar for calibration
Cleaning Instructions	Use dry soft cloth or LCD cleanser; avoid water, chemicals, and pressure
Operating Temperature	0°C to +40°C
Storage Temperature	-15°C to +60°C

Frequently Asked Questions - DT-X93Hx2 JVC

How do I clean the LCD screen?

Use a dry, soft cloth or a special LCD cleanser. Do not press hard on the screen. Avoid using water or chemical cleaners.

Note: Harsh chemicals can damage the LCD.

What power adapter should I use?

Use the provided or manufacturer-recommended power adapter. If using a third-party adapter, ensure the voltage (6.5-24V DC), polarity (Pin1 negative, Pin4 positive), and power rating match.

Warning: Incorrect polarity may damage the monitor.

How can I update the firmware?

Download the latest firmware to a USB drive (root directory). Insert the USB into the rear USB slot. Go to Menu → System → Update Driver or Update Kernel, select 'Yes'. Do not power off during the update.

Why is there no display on the screen?

Check that the power is on (press the POWER button). Ensure the video cable (BNC or HDMI) is securely connected. Verify the input source is selected correctly. If using battery, ensure it has charge. Check the power adapter for proper polarity.

How do I set up the function keys (F1-F5)?

Press MENU/ENTER, go to 'Function Key' submenu. Select each key (F1-F5) and assign a function from the list (e.g., Timecode, Focus Assist, Zebra). Press MENU/ENTER to confirm.

What is the false color feature and how do I use it?

False color aids in setting camera exposure. It displays colors from blue (dark) to red (bright) with a reference chart at the bottom. You can assign it to a function key or GPI pin. Enable via function key assignment or GPI.

Can I mount this monitor in a rack?

Yes, the DT-X93Hx2 is a rack-mount monitor with dimensions 484×177×112.8 mm. Use standard 19-inch rack mounting brackets (not included). Ensure adequate ventilation.

How do I adjust the picture settings?

Press MENU/ENTER to open OSD. Navigate to 'Picture' submenu. Adjust Contrast, Brightness, Saturation, Sharpness, Hue, and Backlight. Use the rotary knob to change values and press to apply.

What does the TALLY light indicate?

The front TALLY light has three colors: Red (on air), Green (preview), Yellow (custom). It can be controlled via GPI pins or UMD protocol. Configure in 'GPI' or 'UMD' submenu.

Is the monitor covered by warranty?

Yes, the warranty period is 2 years. It does not cover physical damage, LCD dot defects (≤3), damage from third-party adapters, misuse, or unauthorized disassembly. Contact SWIT Electronics for service.

USER MANUAL DT-X93Hx2 JVC

9"x2 FHD Rack Mount LCD Monitor

User Manual

Ver: A

Please read this User Manual thoroughly before using.

1. All internal technologies of this product are protected, including device, software and trademark. Reproduction in whole or in part without written permission is prohibited.
2. All brands and trademarks are protected and other relative trademarks in this user manual are the property of their respective owners.
3. Due to constant effort of product development, SWIT Electronics reserves the right to make changes and improvements to the product described in this manual without prior notice.
4. The warranty period of this product is 2 years, and does not cover the following:

(1) Physical damage to the surface of the products, including scratches, cracks or other damage to the LCD screen or other externally exposed parts; (2) The LCD dot defects are not over three; (3) Any damage caused by using third-party power adaptors; (4) Any damage or breakdown caused by use, maintenance or storage not according to the user manual. (5) The product is disassembled by anyone other than an authorized service center. (6) Any damage or breakdown not caused by the product design, workmanship, or manufacturing quality, etc.

Warning

1. In order to reduce the risk of fire and electrical shock, do not expose this product to rain or damp places.
2. Please keep away from strong magnetic fields; they may cause noise in the video and audio signals.

The power

1. Please use the power adapter provided or recommended by the manufacturer to avoid damage.
2. For a third-party power adapter, make sure the voltage range, supplied power, and polarity of the power lead are suitable.
3. Please disconnect the power cable in the following situations: (A) If you do not operate this monitor for a period of time; (B) If the power cable or power adapter is damaged; (C) If the monitor housing is broken.

The monitor

1. Please do not touch the screen with your fingers, as this may deface the screen.
2. Please do not press on the screen; the LCD is extremely delicate and fragile.
3. Please do not place this product on an unstable surface.

Cleaning

1. Please clean the screen with a dry, soft cloth or a special LCD cleaner.
2. Please do not press hard when cleaning the screen.
3. Please do not use water or other chemical cleaners to clean the screen. Chemicals may damage the LCD.

Contents

Preface 2

Maintenance 3

Contents 4

Installation Dimension 5

Operation Instructions....6

·Front Panel 6

-OSD 7

·Back Panel....9

Sub-Menu....11

Specification....17

Trouble-shooting....18

The main body (in mm)

- Front Panel

(1) Speaker: For SDI/HDMI embedded audio and analog audio monitoring. (Will not work if headphone socket is plugged in)

(2) Button

SOURCE: Press "SOURCE" to select SDI1, SDI2, HDMI, and CVBS signal input. F1~F5: User definable function keys. Please see details in "4. Function key" under "Main Menu". AUDIOBAR: Press "AUDIOBAR" to turn on or turn off the audio meters display. DISPLAY: Press "DISPLAY" to turn on or turn off relevant status information.

(3) Rotary Knob

BRIGHT: 0-100 value adjustment and the default value is 50 CONTRAST: 0-100 value adjustment and the default value is 50 SATURATION: 0-100 value adjustment and the default value is 50 MENU/ENTER: When the menu is inactivated, presses "MENU/ENTER" to turn on the main menu; Revolve "MENU/ENTER" to adjust settings or parameters, and press to apply; When the menu is inactivated, revolve "MENU/ENTER" to adjust sound volume.

(4) POWER: Power on/off (5) TALLY Light: Red, Green and Yellow 3-color TALLY indicator

-OSD

(1) Timecode (SDI)

Under SDI input, it can display Timecode. If no Timecode information is detected, it will be displayed as "TC: UNLOCKED".

User can set function keys F1~F5 or GPI pins as "Timecode" to turn on or off this function.

(2) UMD

Set up the UMD under 'UMD" submenu.

(3) AFD (SDI)

User can set function keys F1~F5 or GPI pins as "AFD" to turn on or off this function. If no relevant information is detected, it will be displayed as "AFD: UNLOCKED".

(4) Audio

Monitor the audio information. The relevant parameters like position, audio channels and blending, etc can be changed under "Audio" submenu.

User can set function Keys F1~F5 or GPI pins as "Audio" to turn on or off this function.

Introduction of audio and video functions

◆ 2-channel embedded audio meters

Under SDI and HDMI input, it displays 2-channel embedded audio meters, and under analog input, the monitor displays 2-channel analog audio meters. The audio meter is green, and will turn yellow when audio exceeds -20dB, and turn red when audio exceeds -9dB.

◆ Audio alarm

If the embedded audio value is too low or no audio input, it will display "MUTE" or "UNLOCKED" in the audio bar.

◆ Timecode (SDI)

Under SDI input, it can display the SMPTE timecode (VITC1, VITC2 or LTC) on the top of the screen, which is used extensively for synchronization, and for logging and identifying material in recorded media. If no Timecode information is detected, it will be displayed as "UNLOCKED".

◆ Internal Color Bar

Under SDI and HDMI input, it has 100% internal color bar which helps to analyze the monitor color and adjust the display parameter.

User can set function Keys F1~F5 or GPI pins as "color bar" to turn on or off this function.

◆ Peaking focus assist (red/blue switch)

The Peaking focus assist function is to mark the sharpest edges of the image with red or blue color under SDI and HDMI input, for users to check if the subjects are focused.

User can set function Keys F1~F5 or GPI pins as "Focus Assist" to turn on or off this function.

◆ Zebra stripes

Zebra Stripes are used to check if the image is over exposed or not by showing black and white lines on the monitor. It is considered over exposed when luminance value exceeds 90%.

User can set function Keys F1~F5 or GPI pins as "Zebra" to turn on or off this function.

◆ Freeze Frame

The freeze frame is to capture and display the current broadcast frame.

User can set function Keys F1\~F5 or GPI pins as "Freeze Frame" to turn on or off this function.

◆ R/G/B/Mono

R/G/B/Mono is to display only the blue/red/green primary signal or the luminance signal only so as to monitor the image noise.

User can set function Keys F1\~F5 or GPI pins as "R/G/B/Mono" to turn on or off this function.

False Color

The false color is used to aid in the setting of camera exposure. Under false color mode, there's a color chart on the bottom of screen for reference. The color from the dark to the bright will be displayed as blue, cyan, green, yellow, orange and red in a consecutive way. User can set function Keys F1\~F5 or GPI pins as "False color" to turn on or off this function.

♦ AFD (SDI)

It is the abbreviation of active format description. AFD is to display the SDI embedded AFD information graphically on the screen.

◆ H/V Delay (SDI)

Under SDI input, H/V Delay can be used to display line/field blanking signal, and to observe the horizontal and vertical synchronous signal.

◆ UMD

When using external control unit, it can display the video source ID and tally information on the screen.

◆ Flip and Rotate

The image can be set to flip up/down, or mirror left/right, like:

Normal Left to right Up to down 180° Rotate

- Back Panel

(1) GPI: TSL UMD&GPI control socket (2) SDI-LOOP1: SDI loop through output from SDI-IN1 (BNC) (3) SDI-LOOP2: SDI loop through output from SDI-IN2 (BNC) (4) CVBS-OUT: CVBS through output from CVBS-IN (BNC) (5) HDMI Socket

HDMI-IN: HDMI input (HDMI-A)

HDMI-OUT: HDMI loop through output from HDMI-IN (HDMI-A)

(6) AUDIO IN: 3.5mm analog audio input (7) AUDIO OUT: 3.5mm audio output, SDI/HDMI embedded audio and analog audio output (8) DC IN: Connect with 4-pin XLR power adapter, support 6.5V-24V voltage input (Pin 1: Negative, Pin 4: Positive) (9) CVBS-IN: CVBS input (BNC) (10) SDI-IN2: SDI input (BNC) (11) SDI-IN1: SDI input (BNC) (12) USB: User firmware upgrade socket (13) AC-DC Power Adaptor

DT-X93Hx2 has OSD to adjust the parameters and settings, for example: Picture, color temp., function keys, etc.

1. Press "MENU/ENTER" button, the main menu will pop-up from the left top of the screen. The selected main menu highlights in yellow.

1. Revolve "MENU/ENTER" to select submenu, the selected submenu highlights in yellow, press "MENU/ENTER" to apply and enter into the selected submenu's items.
2. Revolve "MENU/ENTER" to select the item which needed to adjust, press "MENU/ENTER", the selected item and its parameters will be highlighted in yellow.

Main Menu		XXXX
Exit&Status	>	Exit
Picture	>	Marker	XX
Color Temp	>	Marker Select	15:9
Function Key	>	Safety Area	XXX
GPI	>	Fit Marker	XXX
UMD	>	Center Marker	XXX
Marker	>	Marker Color	XXX
Audio	>	Marker Outside	XXX
Vector	>
Waveform	>
Display	>
System	>
OSD	>
Key Inhibit	>

1. Revolve "MENU/ENTER" to change the selected item's parameter, press "MENU/ENTER" to apply and save the settings.
2. Revolve "MENU/ENTER" to select "Exit", press "MENU/ENTER" to quit submenu. Select "Exit & Status" under the Main Menu and press to quit Main Menu.

Notice:

* The items in gray cannot be set up. * If there is no operation under the set time, the menu will automatically save settings and quit. * If the key inhabit function is turned on, except key inhibit function, all other items are in grey. Please turn off the key inhibit function to adjust the items.

1. Exit & Status

Displays the current status, with details as follows:

*1 Displays the current video signal and format *2 Displays the current function key setup

2. Picture

To adjust picture parameters

3. Color Temp

To select different color temperatures or set up user-defined color parameters.

* Only when "Color Temp" is set to "User" can the Red/Blue/Green Gain or Red/Blue/Green Bias be adjusted.

4. Function key

To define the F1~F5 function keys.

*1 Function keys F1-F5 can be set to the following functions:

Timecode, Zebra, Audio Bar, False Color, AFD, H/V Delay, R/G/B/Mono, Marker, Color Bar, UMD, Audio Alarm, Focus Assist, Aspect Ratio, Scan Mode, Zoom Mode, Mute, Freeze Frame, Flip, CVBS, HDMI, SDI1, SDI2, Color Temp.

5. GPI

User can set GPI pins to relevant functions to turn this function on or off.

*1 When "GPI control" is set to "On", the monitor can be operated through an external GPI control unit. *2 The GPI pins can be set to the following functions:

Red Tally, Green Tally, Yellow Tally, Aspect Ratio, Scan Mode, Zoom Mode, Mute, Freeze Frame, Flip, Color Temp, Time Code, Zebra, Audio Bar, False Color, AFD, H/V Delay, R/G/B/Mono, Marker, Color Bar, UMD, Audio Alarm, Focus Assist.

Pin	1	2	3	4
GPI	GPI_1	GPI_2	RXD+	GPI_3
Pin	5	6	7	8
GPI	GPI_4	RXD-	NC	GND

When connecting the GPI pin with ground, the set function will be turned on, and goes out when disconnecting.

Example 1: Under "GPI" submenu, set "GPI control" to "On", set "2 Pin" to "Red Tally", when the pin 2 of the external GPI control unit is connected with ground, the Tally light on the front panel will turn red. When disconnected, the tally light will turn off.

Example 2: Under "GPI" submenu, set "GPI control" to "On", set "6 Pin" to "Scan Mode", when the pin 6 of the external GPI control unit is connected with ground, the Scan mode will change and follow the sequence: "Normal" → "Overscan" → "Native".

6. UMD

Support "TSL UMD Protocol-V4.0" provided by Television System LTD

Source ID Setup:

Select "Source ID", revolve "MENU/ENTER" to select the letters and press "MENU/ENTER" to input. Max 8 letters are supported. Select "Exit" to quit and save settings, the source ID will be displayed on top or bottom of the screen.

UMD setup:

(1) Connect the external control equipment; (2) Set "Display Type" to "UMD"; (3) Set "address", "Baud Rate" and "Parity" (4) Adjust the external control equipment and send UMD command, the monitor will display as: User can set the character and color of the UMD and the color of Tally1 and Tally2.

Please see "5. GPI" to check the "RS485 pin sequence and definition:

User can set the character and color of the UMD and the color of Tally1 and Tally2.

Please see "5. GPI" to check the "RS485 pin sequence and definition:

7. Marker

*1 When "Fit Marker" is "Off", the size of safety area is benchmarked against the actual display screen, accounting for 80% to 95% of actual display screen. When "Fit Marker" is "On", the size of safety area is benchmarked against the area inside the scales marker, accounting for 80% to 95% of the area inside the scales marker.

8. Audio

*1 When "Bar Frame" is set to "Off", only the audio meter will be displayed. When "Bar Frame" is set to "On", frame and real-time audio value will be displayed.

*2 When "Audio Alarm" is set to "On", if no embedded audio is detected, the audio bar will display "UNLOCKED". If the audio value is too low, the audio bar will display "MUTE".

*3 Select Channel Under SDI signal, user can set output audio from channel 1 or channel 2

9. Display

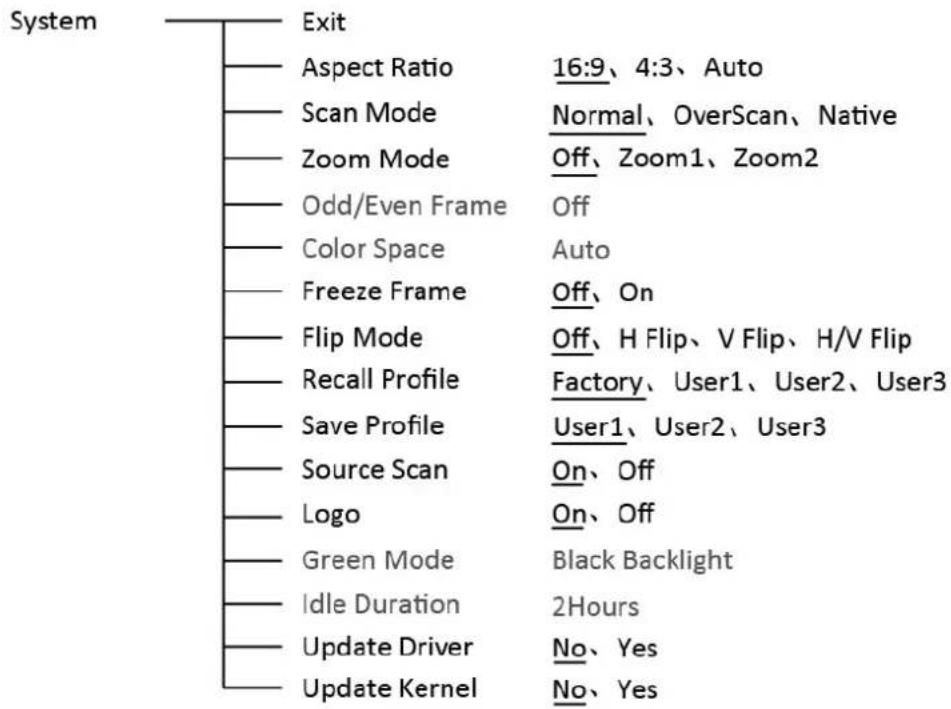

10. System

*1 Source Scan

When set to "Yes", after turn on the monitor, the signal will be inspected and follow the sequence of "SDI1→SDI2→HDMI→CVBS".

For example: if channel is selected to SDI2, SDI-IN2 has no input, and CVBS has input. When turn on the monitor, after automatic inspection, SDI2 has no recognized signal, and CVBS has recognized signal, then the input signal will be CVBS.

When set to "No", update model will not be supported.

*2 Logo

When powered on, the screen will display ProHD logo.

*3, *4 Update Driver/ Kernel

Download latest firmware files in USB disk - root directory.

Switch on the monitor, and insert USB disk into the USB socket on rear panel.

Enter Menu – System – Update Driver, select YES and the monitor will upgrade automatically, and will restart when upgrade finished.

Enter Menu – System – Update Kernel, select YES and the monitor will upgrade automatically, and will restart when upgrade finished.

Please DO NOT cut off power during firmware upgrade.

USB firmware upgrade

Firmware Upgrating... 37%

Caution! DO NOT cut off power during firmware upgrade.

11. OSD

12. Key Inhibit

If the "Key Inhibit" is "On", there is no response when all the buttons expert "MENU/ENTER" are pressed, the screen will be displayed as "Key Inhibit".

Specification

LCD Performance
Size		9 inches ×2
Display area		191.5×119.7 mm
Resolution		1920×1200
Color 8 bit
Aspect ratio		16:9 / 4:3
Brightness		450 cd/m2
Contrast		1000:1
Viewing Angle Horizontal: 170° Vertical: 170°
Input/output - Each LCD
Input	BNC×2 2K/3G/HD/S	D-SDI ×2
	BNC×1 CVBS input
	HDMI×1 HDMI input
	GPI×1 UMD, GPI control input
	USB×1 For firmware upgarde
	3.5mm×1 analog audio input
Output	BNC×2 2K/3G/HD/S	D-SDI loop through output ×2
	BNC×1 CVBS loop through output
	HDMI×1 HDMI loop through output
	3.5mm×1 SDI/HDMI/analog audio output
Video Format
CVBS NTSC / PAL
HDMI		480i / 576i / 480p / 576p
		1080i (60 / 59.94 / 50)
		720p (60 / 59.94 / 50)
		1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
		1080psf (30 / 29.97 / 25 / 24 / 23.98)
SDI	SMPTE-2048-2	2048×1080p (23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60)
		2048×1080i (50 / 59.94 / 60)
	SMPTE-425M-A/B	1080p (60 / 59.94 / 50)
	SMPTE-274M	1080i (60 / 59.94 / 50)
		1080p (30 / 29.97 / 25 / 24 / 23.98)
	SMPTE-RP211	1080psf (30 / 29.97 / 25 / 24 / 23.98)
	SMPTE-296M	720p (60 / 59.94 / 50)
	SMPTE-125M	480i (59.94)
	ITU-R BT.656	576i (50)
General
Input voltage		DC 6.5V-24V
Power consumption		36W
Working temperature		0°C~+40°C
Working humidity		10%~90%
Storage temperature		-15°C~ +60°C
Storage humidity		10%~90%
Dimensions		484×177×112.8mm
Net weight (main body)		2.8 kg
Symptom Possible Causes Solution
No display	The power is not turned on	Please check if the power is connected, and then press "POWER" button to turn on the monitor
	Unstable power voltage Reconnect to power supply
	BNC or HDMI cable loose contact or not correctly connected	Check and correctly connect the BNC or HDMI cable
	The attached battery is no power	Change battery
	Using DIY power supply but the polarity is reversed	Refer to the provided power supply, reconnect the power.
Image or color abnormal	Bad contact of BNC or HDMI cable	Change cable
	Video signal has Interference	Remove the interference source(s)
	Improper adjustment of the color parameters	Adjust the "Recall profile" to "Default" under "System" submenu
	Distortion of the image Reset the Aspect ratio
	Set to Red/Green/Blue only or Mono	Turn the Blue only/ Red Only/ Green Only/Mono off under R/G/B/Mono submenu
	Turn on the "Focus Assist" function	Turn off the "Focus Assist" function
	Turn on the "False Color" function	Turn off the "False Color" function
No audio output	Set to Mute	Turn off MUTE or revolve "MENU/ENTER" to adjust the volume
	Bad contact of signal cable	Change signal cable
	Wrong connection or bad contact of Audio cable	Connect to the correct input socket.

ProHD

This model is manufactured, warranted and supported by SWIT Electronics Co., Ltd. / SWIT Electronics USA, LLC, and distributed in North America by JVCKENWOOD USA Corporation

To obtain service or for further information, please contact:

Address: 3350 Scott Blvd. 61-02, Santa Clara, CA 95054

Toll free: 1 866 986-SWIT (7948) • Tel: [phone] • Fax: [phone]

Email: [e-mail] • Website: www.swit.us
