HGV425123N - Frying Pan BOSCH - Free user manual and instructions

Product Type	Frying Pan
Brand	Bosch
Model	HGV425123N
Material	Stainless Steel with Non-Stick Coating
Diameter	28 cm
Height	5 cm
Weight	1.2 kg
Power Source	Stove Top (Gas, Electric, Induction, Ceramic)
Induction Compatible	Yes
Oven Safe	Up to 180°C
Dishwasher Safe	Yes
Handle Material	Silicone (Heat Resistant)
Non-Stick Type	PTFE-Free Ceramic Coating
Warranty	2 Years
Cleaning	Hand wash recommended; avoid abrasive cleaners
Safety Features	Cool-Touch Handle, Stable Base
Spare Parts Available	Yes (Replacement Handles)
Repairability	Modular design for easy part replacement

Frequently Asked Questions - HGV425123N BOSCH

Is this pan suitable for induction cooktops?

Yes, the Bosch HGV425123N is fully compatible with induction cooktops due to its magnetic stainless steel base.

Can I use metal utensils on the non-stick surface?

It is recommended to use wooden, silicone, or plastic utensils to avoid scratching the ceramic non-stick coating.

Is the pan dishwasher safe?

Yes, the pan is dishwasher safe, but hand washing with mild detergent is recommended to prolong the non-stick life.

What is the maximum oven temperature the pan can withstand?

The pan is oven safe up to 180°C (356°F). Remove the silicone handle if baking for extended periods.

How do I clean stubborn food residues?

Soak the pan in warm soapy water for 10-15 minutes, then use a soft sponge. Avoid steel wool or abrasive pads.

Does the pan come with a lid?

No, the HGV425123N is sold as a single frying pan without a lid. Lids may be purchased separately.

What type of fat or oil is recommended?

Use a small amount of oil or butter with a high smoke point (e.g., vegetable, canola, or avocado oil) for best results.

Is the pan suitable for all hob types?

Yes, it works on gas, electric, ceramic, and induction hobs. Ensure the pan base matches the burner size.

How long is the warranty period?

Bosch offers a 2-year warranty from the date of purchase against manufacturing defects.

Can I use the pan for deep frying?

Yes, but fill oil only up to one-third of the pan height and never leave unattended. Use a thermometer to monitor temperature.

USER MANUAL HGV425123N BOSCH

[en] Instruction manual ....3

Important safety information.... 3

Causes of damage....6

Damage to the oven....6

Damage to the plinth drawer....6

Set-up, gas and electricity connection.... 6

Gas connection 6

Faults in the gas installation/smell of gas ....7

Moving the appliance by the gas line or door handle....7

Electrical connection 7

Levelling the cooker ....7

Wall fixing ....7

Setting up the appliance ....7

Measures to be noted during transport....7

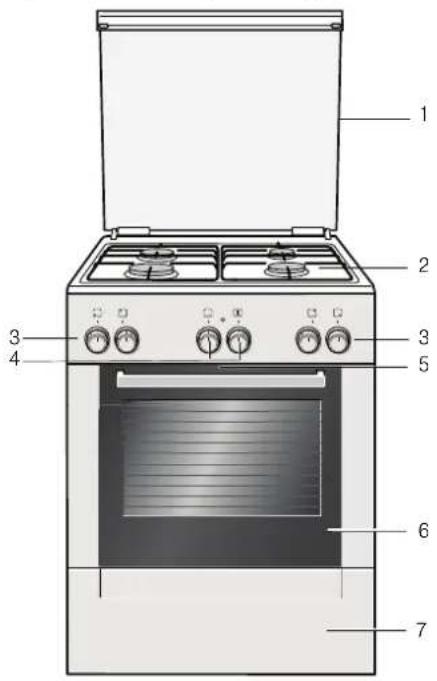

Your new cooker....8

General information ....8

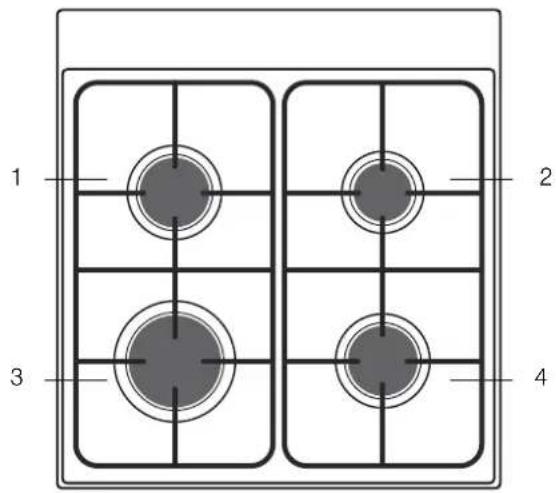

Cooking area 8

The oven 9

The cooking compartment 9

Oven door - Additional safety precautions ....9

Your accessories 9

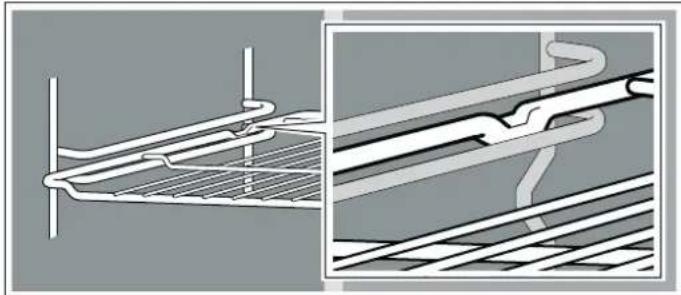

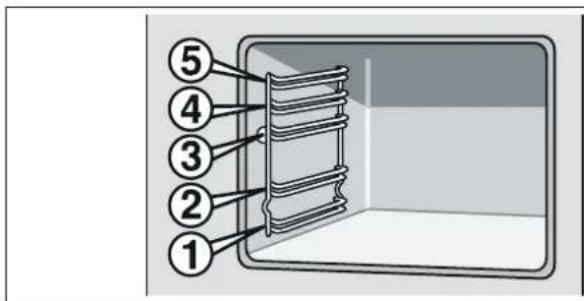

Inserting the accessories 9

Optional accessories 10

After-sales service products 11

Before using the oven for the first time 11

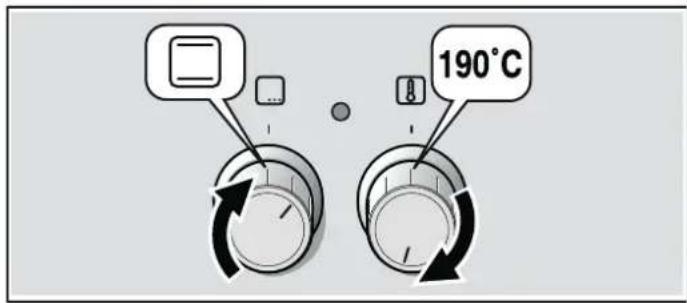

Heating up the oven 11

Cleaning the accessories.... 11

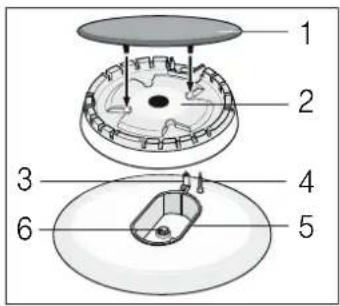

Advance cleaning of burner cup and cap 11

Making settings on the hob 11

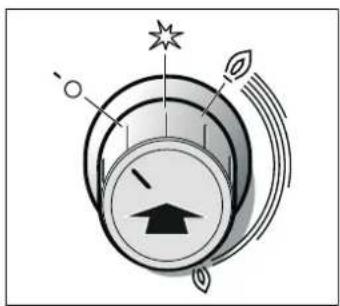

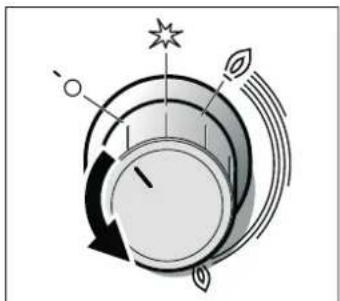

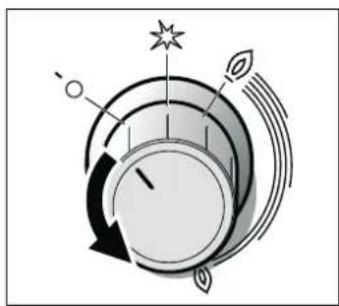

Igniting the gas burners.... 11

Table - Cooking 12

Setting the oven.... 12

Types of heating and temperature 12

Care and cleaning 12

Upper glass cover 13

Cleaning agents 13

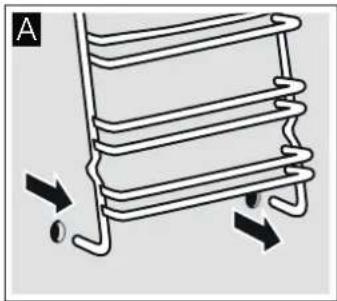

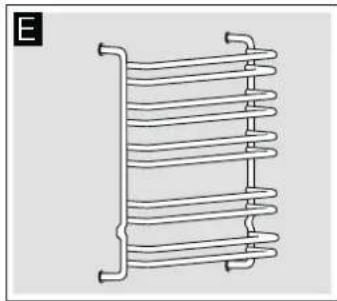

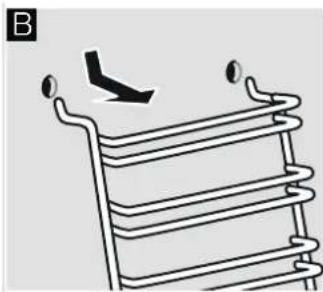

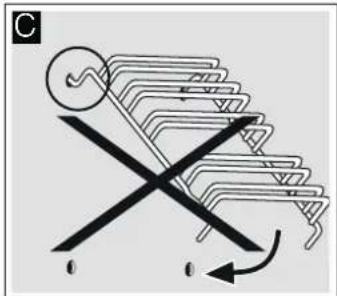

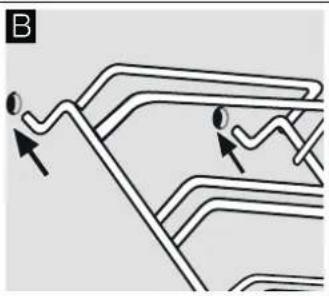

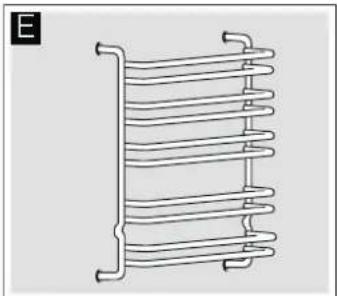

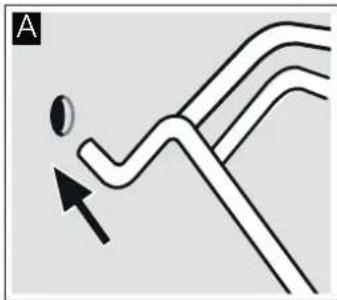

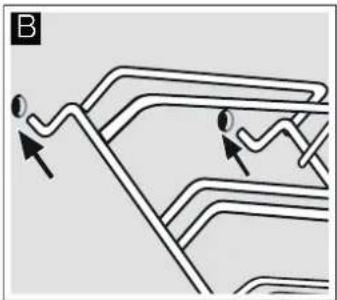

Detaching and refitting the rails.... 14

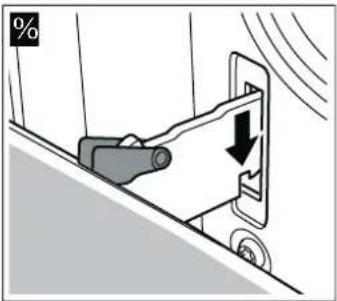

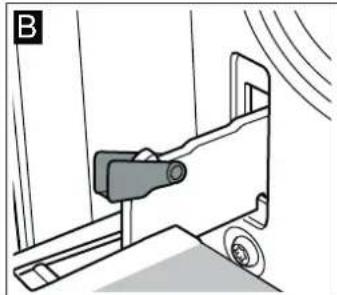

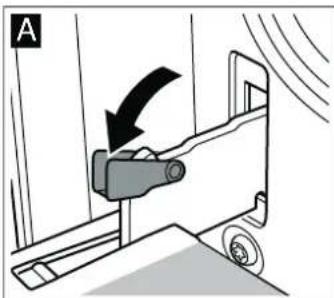

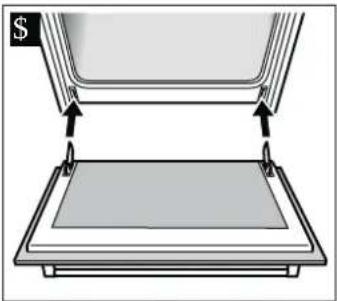

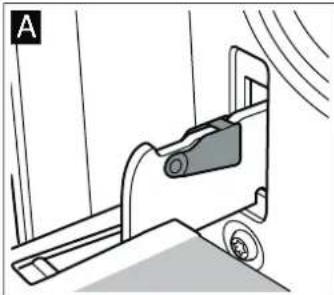

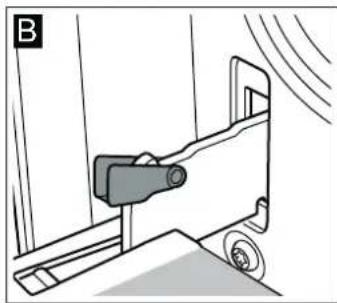

Detaching and attaching the oven door.... 14

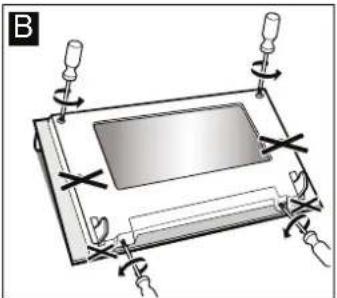

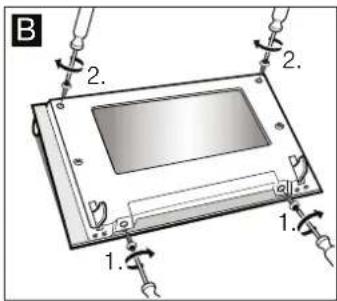

Removing and refitting the door panels.... 15

Troubleshooting 16

Malfunction table.... 16

Replacing the bulb in the oven ceiling light 16

Glass cover.... 16

After-sales service 16

E number and FD number 16

Energy and environment tips 17

Saving energy with your oven 17

Saving energy with the gas hob 17

Environmentally-friendly disposal.... 17

Tested for you in our cooking studio 17

Cakes and pastries 17

Baking tips 18

Meat, poultry, fish 19

Tips for roasting and grilling.... 21

Bakes, gratins, toast with toppings 21

Preprepared products.... 21

Special dishes 21

Preserving 22

Acrylamide in foodstuffs 23

Test dishes.... 23

Baking.... 23

Grilling.... 23

Additional information on products, accessories, replacement parts and services can be found at www.bosch-home.com and in the online shop www.bosch-eshop.com

⚠️ Important safety information

Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.

These instructions are only valid if the appropriate country symbol appears on the appliance. If the symbol does not appear on the appliance, it is necessary to refer to the technical instructions which will provide the necessary instructions concerning modification of the appliance to the conditions of use of the particular country.

Appliance category: Category 1

Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.

Only allow a licensed professional to connect the appliance and to convert the appliance to a different type of gas. The appliance must be installed (electric and gas connections) in accordance with the instruction and installation manual. An incorrect connection or incorrect settings may lead to serious accidents and damage to the appliance. The appliance manufacturer accepts no liability for damage of this kind. The appliance's warranty becomes void.

Caution: This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.

Caution: The use of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed. Ensure that the kitchen is well ventilated especially when the appliance is in use: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).

Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present.

This appliance is not designed for operation with an external timer or by remote control.

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

Children must not play with the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

Keep children below the age of 8 years old at a safe distance from the appliance and power cable.

Always slide accessories into the cooking compartment correctly. See "Description of accessories in the instruction manual.

Risk of fire!

A draught is created when the appliance door is opened. Greaseproof paper may come into contact with the heating element and catch fire. Do not place greaseproof paper loosely over accessories during preheating. Always weight down the greaseproof paper with a dish or a baking tin. Only cover the surface required with greaseproof paper. Greaseproof paper must not protrude over the accessories.
■ Combustible objects that are left in the cooking compartment may ignite. Never store combustible items in the cooking compartment. Never open the appliance

door if there is smoke inside. Switch off the appliance and unplug the mains plug or switch off the fuse in the fuse box. Shut off the gas supply.

• Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.
  ■ The hotplates become very hot. Never place combustible items on the hob. Never place objects on the hob.
  ■ The appliance becomes very hot, and flammable materials can easily catch fire. Do not store or use any flammable objects (e.g. aerosol cans, cleaning agents) under or in the vicinity of the oven. Do not store any flammable objects inside or on top of the oven.
• When gas hotplates are in operation without any cookware placed on them, they can build up a lot of heat. The appliance and the extractor hood above it may become damaged or be set on fire. Grease residue in the filter of the extractor hood may ignite. Only operate the gas burners with cookware on them.
  ■ The rear of the appliance becomes very hot. This may cause damage to the power cables. Electricity and gas lines must not come into contact with the rear of the appliance.
  ■ Never place flammable objects on the burners or store them in the cooking compartment. Never open the appliance door if there is smoke inside. Switch off the appliance. Pull out the mains plug or switch off the appliance at the circuit breaker in the fuse box. Shut off the gas supply.
  ■ The surfaces of the plinth drawer may become very hot. Only store oven accessories in the drawer. Flammable and combustible objects must not be stored in the plinth drawer.

Risk of burns!

■ The appliance becomes very hot. Never touch the interior surfaces of the cooking compartment or the heating elements. Always allow the appliance to cool down. Keep children at a safe distance.

■ Accessories and ovenware become very hot. Always use oven gloves to remove accessories or ovenware from the cooking compartment.
■ Alcoholic vapours may catch fire in the hot cooking compartment. Never prepare food containing large quantities of drinks with a high alcohol content. Only use small quantities of drinks with a high alcohol content. Open the appliance door with care.
■ The hotplates and the area around them get very hot. Never touch the hot surfaces. Keep children away.
■ During operation, the surfaces of the appliance become hot. Do not touch the surfaces when they are hot. Keep children away from the appliance.
■ Empty cookware becomes extremely hot when set on a gas hotplate that is in operation. Never heat up empty cookware.
■ The appliance becomes hot during operation. Allow the appliance to cool down before cleaning.
■ Caution: Accessible parts may be hot when the grill is in use. Young children should be kept away from the appliance.

Risk of scalding!

■ The accessible parts become hot during operation. Never touch the hot parts. Keep children at a safe distance.
- When you open the appliance door, hot steam may escape. Open the appliance door with care. Keep children at a safe distance.
■ Water in a hot cooking compartment may create hot steam. Never pour water into the hot cooking compartment.

Risk of injury!

• Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, or sharp or abrasive cleaning aids or detergents.
• Incorrect repairs are dangerous. Repairs may only be carried out, and damaged power and gas lines replaced, by an after-sales engineer trained by us. If the appliance is faulty, unplug the mains plug or switch off the fuse in the fuse box. Shut off the gas supply. Contact the after-sales service.

■ Faults or damage to the appliance are dangerous. Never switch on a faulty appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Shut off the gas supply. Contact the after-sales service.
■ Unsuitable pan sizes, damaged or incorrectly positioned pans can cause serious injury. Observe the instructions which accompany the cookware.

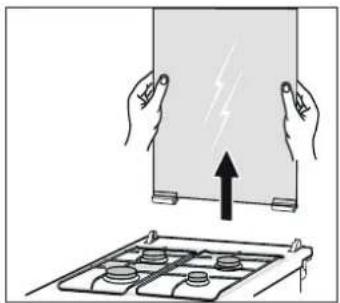

■ Caution: The glass cover may crack due to heat. Before closing the cover, turn off all burners. Wait until the oven has cooled down before closing the glass cover.

If the appliance is placed on a base and is not secured, it may slide off the base. The appliance must be fixed to the base.

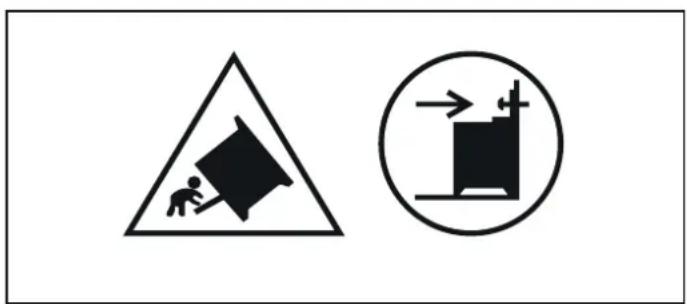

Risk of tipping!

Warning: In order to prevent tipping of the appliance, this stabilizing means must be installed. Refer to the instructions for installation.

Risk of electric shock!

■ Incorrect repairs are dangerous. Repairs may only be carried out by one of our trained after-sales engineers. If the appliance is faulty, unplug the mains plug or switch off the fuse in the fuse box. Contact the after-sales service.
■ The cable insulation on electrical appliances may melt when touching hot parts of the appliance. Never bring

electrical appliance cables into contact with hot parts of the appliance.

■ Penetrating moisture may cause an electric shock. Do not use any high-pressure cleaners or steam cleaners.

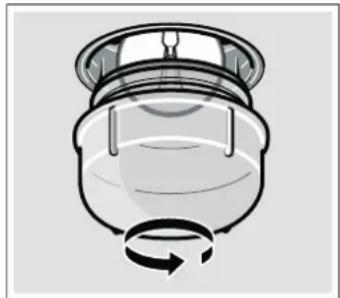

■ When replacing the cooking compartment bulb, the bulb socket contacts are live. Before replacing the bulb, unplug the

appliance from the mains or switch off the circuit breaker in the fuse box.

A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.

Causes of damage

Hob

Caution!

■ Only use the burners when cookware has been placed on top. Do not heat up empty pots or pans. The saucepan base will be damaged.
■ Only use pots and pans with an even base.
■ Place the pot or pan centrally over the burner. This will optimise transfer of the heat from the burner flame to the pot or ban base. The handle does not become damaged, and greater energy savings are guaranteed.
■ Ensure that the gas burners are clean and dry. The burner cup and ☐burner cap must be positioned exactly.

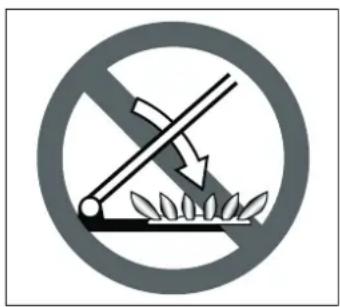

■ Ensure that the top cover is not closed when the oven is started up.

Damage to the oven

Caution!

■ Accessories, foil, greaseproof paper or ovenware on the cooking compartment floor: do not place accessories on the cooking compartment floor. Do not cover the cooking compartment floor with any sort of foil or greaseproof paper. Do not place ovenware on the cooking compartment floor if a temperature of over 50 °C has been set. This will cause heat to accumulate. The baking and roasting times will no longer be correct and the enamel will be damaged.
■ Water in a hot cooking compartment: do not pour water into the cooking compartment when it is hot. This will cause

steam. The temperature change can cause damage to the enamel.

■ Moist food: do not store moist food in the cooking compartment when it is closed for prolonged periods This will damage the enamel.
■ Fruit juice: when baking particularly juicy fruit pies, do not pack the baking tray too generously. Fruit juice dripping from the baking tray leaves stains that cannot be removed. If possible, use the deeper universal pan.
■ Cooling with the appliance door open: only allow the cooking compartment to cool when it is closed. Even if the appliance door is only open a little, front panels of adjacent units could be damaged over time.
■ Very dirty door seal: If the door seal is very dirty, the appliance door will no longer close properly when the appliance is in use. The fronts of adjacent units could be damaged. Always keep the door seal clean.
■ Appliance door as a seat, shelf or worktop: Do not sit on the appliance door, or place or hang anything on it. Do not place any cookware or accessories on the appliance door.
- Inserting accessories: depending on the appliance model, accessories can scratch the door panel when closing the appliance door. Always insert the accessories into the cooking compartment as far as they will go.
- Carrying the appliance: do not carry or hold the appliance by the door handle. The door handle cannot support the weight of the appliance and could break.

Damage to the plinth drawer

Caution!

Do not place hot objects in the plinth drawer. It could be damaged.

Set-up, gas and electricity connection

Gas connection

Installation must only be performed by an approved expert or a licensed after-sales service engineer in accordance with the instructions specified under "Gas connection and conversion to a different gas type".

For the licensed expert or after-sales service

Caution!

The setting conditions for this appliance are specified on the rating plate on the back of the appliance. The gas type set in the factory is marked with an asterisk (*).
■ Before setting up the appliance, check the grid access conditions (gas type and gas pressure) and ensure that the gas setting of the appliance meets these conditions. If the

appliance settings have to be changed, follow the instructions in the section "Gas connection and conversion to a different gas type".

This appliance is not connected to a waste gas main. It must be connected and commissioned in accordance with the installation conditions. Do not connect the appliance to a waste gas main. All ventilation regulations must be observed.
■ The gas connection must be made via a fixed, i.e. not mobile connection (gas line) or via a safety hose.
If using the safety hose, ensure that the hose is not trapped or crushed. The hose must not come into contact with hot surfaces.
■ The gas line (gas pipe or safety hose) can be connected to the right or left-hand side of the appliance. The connection must have an easily accessible locking device.

Faults in the gas installation/smell of gas

If you notice a smell of gas or faults in the gas installation, you must

■immediately shut off the gas supply and/or close the gas cylinder valve
■immediately extinguish all naked flames and cigarettes
■ switch off electrical appliances and lights
■ open windows and ventilate the room
■ call the after-sales service or the gas supplier

Moving the appliance by the gas line or door handle

Do not move the appliance while holding the gas line; the gas pipe could be damaged. There is a risk of a gas leak! Do not move the appliance while holding it by the door handle. The door hinges and door handle could be damaged.

Electrical connection

Caution!

■Have the appliance set up by your after-sales service. A 16 A fuse is required for connection. The appliance is designed for operation at 220-240 V.
■ If the electricity supply drops below 180 V, the electrical ignition system does not work.
■ Any damage arising from the appliance being connected incorrectly will invalidate the guarantee.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

For the after-sales service

Caution!

■The appliance must be connected in accordance with the data on the rating plate.
■ Only connect the appliance to an electrical connection that meets the applicable provisions. The socket must be easily accessible so that you can disconnect the appliance from the electricity supply if necessary.
■ Please ensure the availability of a multi-pin disconnecting system.
■ Never use extension cables or multiple plugs.
■For safety reasons, this appliance must only be connected to an earthed connection. If the safety earth terminal does not comply with regulations, safety against electrical hazards is not guaranteed.
■ You must use a H 05 W-F type cable or equivalent for the appliance connection.

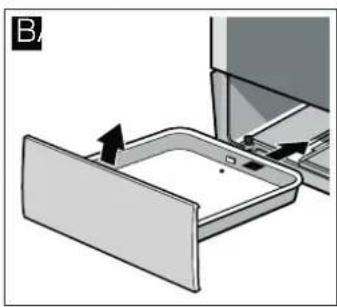

Levelling the cooker

Always place the cooker directly on the floor.

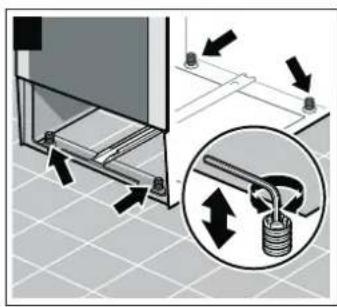

1. Pull out the plinth drawer and lift it up and out. There are adjustable feet at the front and rear on the inside of the plinth.

2. Use an Allen key to raise or lower the adjustable feet as necessary until the cooker is level (picture A).

3. Push the plinth drawer back in (picture B).

Diagram of a device with a tray and mouse, showing an arrow indicating direction (no text or symbols present)

Wall fixing

To prevent the cooker from tipping over, you must fix it to the wall using the enclosed bracket. Please observe the installation instructions for fixing the oven to the wall.

Setting up the appliance

■The appliance must be set up directly on the kitchen floor and in line with the specified dimensions. The appliance must not be set up on any other object.

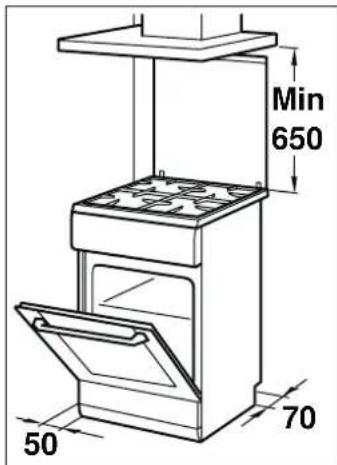

■The distance between the top edge of the oven and the bottom edge of the extractor hood must meet the requirements of the extractor hood manufacturer.
■ Ensure that the appliance is not moved again after set up. The distance from the high output burner or wok burner to the fronts of the adjacent units or the wall must be at least 50 mm.

Measures to be noted during transport

Secure all mobile parts in and on the appliance using an adhesive tape that can be removed without leaving any traces. Push all accessories (e.g. baking tray) into the corresponding slots with cardboard at the edges, in order to avoid damaging the appliance. Place cardboard or similar between the front and rear side to prevent knocks against the inside of the glass door. Secure the door and, if available, the top cover to the appliance sides using adhesive tape.

Keep the original appliance packaging. Only transport the appliance in the original packaging. Observe the transport arrows on the packaging.

If the original packaging is no longer available

pack the appliance in protective packaging to guarantee sufficient protection against any transport damage.

Transport the appliance in an upright position. Do not hold the appliance by the door handle or the connections on the rear, as these could be damaged. Do not place any heavy objects on the appliance.

Your new cooker

Here you will learn about your new cooker. We will explain the control panel, the hob and the individual operating controls.

General information

The design depends on the respective appliance model.

Explanations

1	H	o	b	c	o
2	Hob
3	Hotplate knob
4	Function and temperature selector
5	Appliance cooling
6	Oven door
7	P	l	i	n	t

You will find information on the cooking compartment and the accessories.

Cooking area

Here is an overview of the control panel. The design depends on the respective appliance model.

Explanations

1	S	t	a	n	d	a
2	E	c	o	n	o	m
3	H	i	g	h	o	u
v 4	e S	r t	a	n	d	a

Burner Pot or pan diameter

Economy burner 1 kW 12–18 cm

Standard burner 1.7 kW 18–24 cm

High output burner 3 kW 24–28 cm

Only use pots or pans with an even base.

e r

Place the pot or pan centrally over the burner. This will optimise transfer of the heat from the burner flame to the pot or ban base. The handle does not become damaged, and greater energy savings are guaranteed.

Illustration of a cooking pot on a stove (no text or symbols)

Burner knob

You can adjust the heat setting of the hotplates using the four burner knobs.

Positions Function/gas oven

○	Zero position The oven is switched off.
☀	Ignition position Ignition position
@	Settings area Large flame = highest settingEconomy flame = lowest setting

There is a limit stop at the end of the settings area. Do not turn the timer beyond this.

The oven

Use the function selector and the temperature selector to set the oven.

Function selector

With the function selector knob you can set the heating mode for the oven. The function selector knob can be rotated to the right or to the left.

When the required type of heating is set, the oven light lights up.

Positions Function

☐	Off The oven is switched off.
☐	Top/bottom heating*	Baking, roasting or grilling is possible on a single level only. This setting is well-suited for cakes and pizza in tins or on the baking tray, and for lean joints of beef, veal and game. Heat is emitted evenly from the top and bottom.
☐	Bottom heating You can use Bottom heating for the final baking stage and for browning meals from the bottom. The heat is emitted from below.
☐	Radiant grill, small area	Can be used for grilling smaller quantities of steak, sausages, fish, and toasts. The centre part of the grill element is heated.
☐	Radiant grilling, large area	Can be used to grill a large number of beef steaks, sausages and fish, or to toast bread. The whole area below the grill heating element becomes hot.
* Type of heating in accordance with energy efficiency class EN50304.

Your accessories

The accessories supplied with your appliance are suitable for making many meals. Ensure that you always insert the accessories into the cooking compartment the right way round.

There is also a selection of optional accessories, with which you can improve on some of your favourite dishes, or simply to make working with your oven more convenient.

Inserting the accessories

The accessories can be inserted in the oven at 5 different levels. Always slide the accessories fully in to avoid them coming into contact with the oven's glass door.

Temperature selector

Use the temperature selector to set the temperature and the grill setting.

Positions Function

Zero position Oven not hot.
50-270 Temperature range	Temperature in °C.
1, 2, 3 Grill settings	Grill settings for the □ Grill,small area and □ Grill, large area.Setting 1 = lowSetting 2 = mediumSetting 3 = high

The small light above the temperature selector is lit when the oven is heating. If heating is interrupted, it goes out. It does not light up for certain settings.

The cooking compartment

The oven light is located in the cooking compartment. A cooling fan protects the oven from overheating.

Oven light

During operation, the oven light in the cooking compartment is on.

Cooling fan

The cooling fan switches on and off as required. The hot air escapes above the door.

So that the cooking compartment cools down more quickly after operation, the cooling fan continues to run for a certain period afterwards.

Caution!

do not cover the ventilation slots. Otherwise the oven will overheat.

Oven door - Additional safety precautions

During long cooking times, the oven door may become very hot.

If you have small children, extra supervision is required during oven operation.

In addition, there is a protective device (protective grid) which prevents direct contact with the oven door. You can purchase this optional accessory (469088) from the after-sales service.

The accessories can be pulled out approximately halfway without tipping. This allows meals to be taken out easily.

When placing the accessories into the oven, check that the indentation is at the back. They can only lock correctly in place in this position.

Technical illustration of a metal shelving rack with mesh insulation and internal channels (no text or symbols)

Note: Heat may cause the accessories to deform. As soon as the accessories cool down, they regain their original shape. Their function is not adversely affected.

Hold the baking tray securely on the sides with both hands and push it parallel into the frame. Avoid movements to the right or left when pushing the baking tray in. Otherwise, it will be difficult to push the tray in and the enamelled surfaces could be damaged.

You can buy accessories from the after-sales service, from specialist retailers or online. Please specify the HEZ number.

Wire rack

For ovenware, cake tins, roasts, grilling and frozen meals.

Slide the wire rack into the oven with the open side facing the oven door and the curvature pointing downwards.

Enamel baking tray

For cakes and biscuits.

Push the baking tray into the oven with the sloping edge facing towards the oven door.

Optional accessories

You can buy optional accessories from your after-sales service or from specialist retailers. You will find a variety of suitable products for your oven in our brochures and on the Internet. The availability of optional accessories and the options for ordering them on the internet vary depending on the country. Information on purchasing accessories can be found in the sales documents.

Not every optional accessory is suitable for every appliance. When making a purchase, always quote the full name (E no.) of your appliance.

Optional accessories HEZ number Function

Pizza tray HEZ317000 Particularly good for pizza, frozen meals and round tarts. You can use the pizza tray instead of the universal pan. Slide the tray in above the wire rack and proceed according to the instructions in the tables.
Insert wire rack HEZ324000 For roasting. Always place the grill wire rack on the universal pan. This ensures that dripping fat and meat juices are collected.
Grill tray HEZ325000 Used for grilling instead of the grill wire rack or used as a splatter guard to protect the oven from becoming heavily soiled. Only use the grill tray with the universal pan.Grilling on the grill tray: only shelf positions 1, 2 and 3 can be used.The grill tray as a splash guard: the universal pan is inserted together with the grill tray under the wire rack.
Baking stone HEZ327000 The baking stone is perfect for preparing home-made bread,bread rolls and pizzas which require a crispy base. The baking stone must always be preheated to the recommended temperature.
Enamel baking tray HEZ331003 For cakes and biscuits.Place the baking tray in the oven with the sloping edge towards the oven door.
Enamel baking tray with non-stick coating HEZ331011 The baking tray is ideal for laying out cakes and biscuits. Place the baking tray in the oven with the sloping edge towards the oven door.
Universal pan HEZ332003 For moist cakes, pastries, frozen meals and large roasts. Can also be used under the wire rack to catch fat or meat juices.Place the universal pan in the oven with the sloping edge towards the oven door.
Universal pan with non-stick coating HEZ332011 This universal pan is ideal for moist cakes, pastries, frozen meals and large roasts. Place the universal pan in the oven with the sloping edge towards the oven door.
Lid for the Profi extra-deep pan HEZ333001 The lid converts the Profi extra-deep pan into the Profi roasting dish.
Profi extra-deep pan with insert wire rack HEZ333003	Particularly suitable for preparing large quantities of food.
Wire rack HEZ334000 For ovenware, cake tins, roasts, grilling and frozen meals.
Glass roasting dish HEZ915001 The glass roasting dish is suitable for pot roasts and bakes.Ideal for programmes and automatic roasting.

After-sales service products

You can obtain suitable care and cleaning agents and other accessories for your domestic appliances from the after-sales

service, specialist retailers or (in some countries) online via the e-Shop. Please specify the relevant product number.

Cleaning cloths for stainless-steel surfaces Product no. 311134	Reduces the build-up of dirt. Impregnated with a special oil for perfect maintenance of your appliance's stainless-steel surfaces.
Oven and grill cleaning gel Product no. 463582 For cleaning the cooking compartment. The gel is odourless.
Microfibre cloth with honeycomb structure Product no. 460770 Especially suitable for cleaning delicate surfaces, such as glass, glass ceramic, stainless steel or aluminium. The microfibre cloth removes liquid and grease deposits in one go.
Door lock Product no. 612594 To prevent children from opening the oven door. The locks on different types of appliance door are screwed in differently. See the information sheet supplied with the door lock.

Before using the oven for the first time

In this section, you can find out what you must do before using your oven or gas hob to prepare food for the first time. First read the section on Safety information.

Heating up the oven

To remove the new cooker smell, heat up the oven when it is empty and closed. An hour of ☐ Top/bottom heating at 240 °C is ideal for this purpose. Make sure that there are no remnants of packing in the cooking compartment.

1. Use the function selector to set ☐ Top/bottom heating.
2. Set the temperature selector to 240 °C.

After an hour, switch off the oven. Turn the function selector and temperature selector to the off position.

Cleaning the accessories

Before you use the accessories for the first time, clean them thoroughly with hot soapy water and a soft dish cloth.

Advance cleaning of burner cup and cap

Clean the burner cap (1) and cup (2) with water and washing-up liquid. Dry the individual parts carefully.

Place the burner cup and cap back on the burner shell (5). Ensure that the igniter (3) and flame safety pin (4) are not damaged.

The nozzle (6) must be dry and clean. Always position the burner cap exactly over the burner cup.

Making settings on the hob

Your hob is equipped with four gas burners. The following information explains how to light the gas burners and set the size of flame.

Igniting the gas burners

Always position the burner cap exactly over the burner cup. Openings on the burner cup are always unobstructed. All parts must be dry.

1. Open the top cover. The top cover must remain open for as long as the oven is in operation.
2. Turn the knob for the desired burner anti-clockwise to the ignition position ⚙️. Ignition begins.
3. Press and hold the burner knob for 1-3 seconds. The gas burner ignites.

Abstract circular diagram with concentric rings and star-like elements, no text or symbols present

Abstract diagram of a clock-like device with directional arrows and star symbol (no text or labels)

The safety pilot is activated. If the gas flame goes out, the gas supply is automatically interrupted by the safety pilot.

1. Set the desired flame size. Between setting ☐ Off and setting ⓐ, the flame is not stable. Therefore, always choose a setting between ⓐ large and ⓐ small flame.
2. If the flame goes out again, repeat the process from step 2.
3. To end the cooking process: Turn the burner knob o clockwise to the Off position.

The ignition device should not be actuated for more than 15 seconds. If the burner does not light within 15 seconds, wait for at least one minute. Then repeat the ignition process.

Caution!

If after switching the oven off you turn the burner knob while the oven is still hot, gas will escape. +If you do not turn the knob to the ignition position ⭐, the gas supply will be interrupted after 60 seconds.

The gas burner does not ignite

If there is a power cut or if the ignition plugs are damp, you can light the gas burners with a gas lighter or a match.

Table - Cooking

Select the right saucepan size for each burner. The diameter of the pot or pan base should be the same as that of the burner.

Cooking times depend on the type, weight and quality of the food. Deviations are therefore possible. You yourself can best judge the optimal cooking time.

Minerals and vitamins are very quickly destroyed during cooking. Therefore, only use a little water. This will help you retain vitamins and minerals. Select short cooking times so that the vegetables remain firm and full of nutrients.

Example Dish Burner Heat setting

Melting Chocolate, butter, margarine Economy burner small flame
Heating Stock, tinned vegetables Standard burner small flame
Heating and keeping warm	Soups Economy burner small flame
Braising*	Fish	Standard burner	between large and small flame
Braising*	Potatoes and miscellaneous vegetables, meat	Standard burner between large and small flame
Cooking*	Rice, vegetables, meat dishes (with sauces)	Standard burner Large flame
Roasting	Pancakes, potatoes, schnitzel, fish fingers	High output burner	between large and small flame

* If you are using a saucepan with a cover, turn the flame down as soon as it reaches boiling point.

Setting the oven

Here you can find out how to set the oven.

Types of heating and temperature

Example in the picture: 190 °C, Top/bottom heating ☐.

1. Use the function selector to select the required type of heating.
2. Use the temperature selector to set the temperature or the grill setting.

The oven heats up.

Switching off the oven

Turn the function selector to the off position.

Changing the settings

The type of heating and temperature or grill setting can be changed at any time using their respective selectors.

Care and cleaning

With attentive care and cleaning, your hob and oven will retain its looks and remain in good working order for a long time. We will explain here how you should care for and clean them correctly.

Notes

■ Slight differences in the colours on the front of the oven are caused by the use of different materials, such as glass, plastic and metal.
■ Shadows on the door panel which look like streaks, are caused by reflections made by the oven light.
■Enamel is baked on at very high temperatures. This can cause some slight colour variations. This is normal and does not affect operation. The edges of thin trays cannot be completely enamelled. As a result, these edges can be rough. This will not impair the anti-corrosion protection.

Upper glass cover

Before opening the top cover, remove any spills with a cloth. Use glass cleaner if possible.

For cleaning, remove the top cover. To do this, hold the cover securely on both sides with both hands and pull it upwards.

Illustration of hands holding a tablet with an upward arrow and four circular components on a stove (no text or symbols)

If the cover hinges become loose, note the letters marked on them. The hinge with the letter R must be fitted on the right, and the hinge with the letter L must be fitted on the left.

After cleaning, re-assemble the top cover following the same procedure in reverse order.

Only close the top cover once the burners have cooled down.

Cleaning agents

Damage to the various different surfaces caused by using the wrong cleaning agent can be avoided by observing the following instructions.

When cleaning the hob do not use

■ undiluted washing-up liquid or dishwasher detergent,
■ scouring pads,
■ abrasive cleaning agents such as oven cleaner or stain remover,
■ high-pressure cleaners or steam jets.
■ Do not clean individual parts in the dishwasher.

When cleaning the oven do not use

■ sharp or abrasive cleaning agents,
■ cleaning agent with a high alcohol content,
■ scouring pads,
■ high-pressure cleaners or steam jets.
■ Do not clean individual parts in the dishwasher.

Wash new sponges thoroughly before first use.

Stainless steel fronts	Wipe with some washing-up liquid and a damp cloth. Always wipe parallel to the natural grain. Otherwise, you may scratch the surface. Dry with a soft cloth. Remove flecks of limescale, grease, starch and albumin (e.g. egg white) immediately. Do not use any abrasive materials, scouring sponges or rough cleaning cloths. The stainless steel fronts can be polished using a special care product. Follow the manufacturer's instructions. You can purchase special stainless steel cleaner from our after-sales service or from specialist retailers.
Enamel surfaces and lacquered surfaces	Clean with some washing-up liquid and a damp cloth. Dry with a soft cloth.
Burners and steel grid of the gas burn- ers	Do not clean in the dishwasher. Remove the wire rack and clean with a sponge, washing-up liquid and some hot water. Remove the burner cup and cap. Clean with a sponge and some hot water and washing-up liquid. Ensure that the gas outlets on the burner cups are clean and unobstructed. Brush the igniters with a small, soft brush. The gas burners only work properly when the igniters are clean. Remove food residue from the burner shells with some washing-up liquid and a damp cloth. Only use a little water. Water must not be allowed to enter the appliance. Ensure that the nozzle opening does not become blocked or dam- aged during cleaning. Dry all parts after cleaning and place the burner cover accurately on the burner cup. If the parts are not positioned accurately, it will be harder to ignite the burner. The burner covers are coated with black enamel. Due to the high temperatures, discolouration may occur. This will not impair the function of the burner. Replace the wire rack in the oven.
Electric hob (option)	Clean with the hard side of a scouring sponge and some liquid scouring agent. After cleaning, switch the hob on briefly to dry it. Wet hobs rust over time. Then apply a care product. Always remove spilt liquids and food residue immediately.
Metal ring of the electric hob (option)	The metal ring may discolour with time. However, it is possible restore the original colour. Clean the ring with the hard side of a scouring sponge and some liquid scouring agent. When doing so, make sure that you do not scour the adjacent surfaces, as this could damage them.
Knobs Clean with some washing-up liquid and a damp cloth. Dry with a soft cloth.
Door glass	Can be cleaned with glass cleaner. Do not use any abrasive cleaning agents or sharp metal objects. These could scratch and damage the surface of the glass panel.
Seal Wipe with a damp cloth. Dry with a soft cloth.
Oven interior	Clean with hot water or vinegar solution. For heavy soiling: Only use oven cleaner on cold surfaces.
Glass cover on the oven light	Clean with some washing-up liquid and a damp cloth. Dry with a soft cloth.
Accessories Soak in hot soapy water. Clean with a brush or a sponge.
Aluminium baking tray (option)	Do not clean in the dishwasher. Never use oven cleaner. To avoid scratches, never touch the metal sur- faces with a knife or similar sharp object. Wipe the surfaces horizontally and without applying pressure with soapy water and a soft window cloth or a lint-free microfibre cloth. Dry with a soft cloth. Do not use any abrasive materials, scouring sponges or rough cleaning cloths. They could scratch the baking tray
Childproof lock (option)	If a childproof lock has been fitted on the oven door, it must be removed before cleaning. Soak all plastic parts in hot soapy water and wash with a sponge. Dry with a soft cloth. If very dirty, the childproof lock will not work properly.
Plinth drawer (option)	Clean with some washing-up liquid and a damp cloth. Dry with a soft cloth.
Accessories Soak in hot soapy water. Clean with a brush or sponge.

Detaching and refitting the rails

The rails can be removed for cleaning. The oven must have cooled down.

Unhooking the rails

1. Hold the shelf frames from underneath and pull slightly forward. Pull the extension pins at the bottom of the rails out of the mounting holes (Fig. A).
2. Then fold the rails upwards and carefully remove them (Fig. B).

Diagram of a coiled spring with directional arrows indicating motion (no text or symbols)

Diagram of a coiled spring with a downward arrow indicating force or direction (no text or symbols)

Clean the rails with washing-up liquid and a sponge. For stubborn deposits of dirt, use a brush.

Installing the frames

1. Insert the two hooks carefully into the upper holes. (Figure A-B)

Diagram showing a curved pipe or tube with an arrow pointing to a circular feature, labeled 'A' in the top-left corner (no text or symbols on the diagram itself)

Pure mechanical diagram showing zigzag components with arrows indicating direction (no text or symbols)

⚠️ Incorrect assembly!

Never move the frame before the two hooks are fully anchored in the upper holes. The enamel could be damaged and may break (figure C).

Diagram of a mechanical or electrical component with intersecting lines and arrows indicating direction (no text or symbols)

1. the two hooks must be inserted fully into the upper holes. Now move the frame slowly and carefully downwards and insert in the lower holes (figure D).

2. Insert both frames into the side walls of the oven (figure E). If the rails are fitted correctly, the distance between the two upper shelf positions is greater.

Diagram of a rack with curved arrows indicating motion or force direction (no text or symbols)

Line drawing of a coiled heating element (no text or symbols)

Detaching and attaching the oven door

For cleaning purposes and to remove the door panels, you can detach the oven door.

The oven door hinges each have a locking lever. When the locking levers are closed (figure A), the oven door is secured in place. It cannot be detached. When the locking levers are open in order to detach the oven door (figure B), the hinges are locked. They cannot snap shut.

Diagram of a mechanical device with wheels and a handle, no visible text or symbols

Line drawing of a mechanical device with wheels and a sensor, no text or symbols present

Risk of injury!

Whenever the hinges are not locked, they snap shut with great force. Ensure that the locking levers are always fully closed or, when detaching the oven door, fully open.

Detaching the door

1. Open the oven door fully.
2. Fold up the two locking levers on the left and right (figure A).

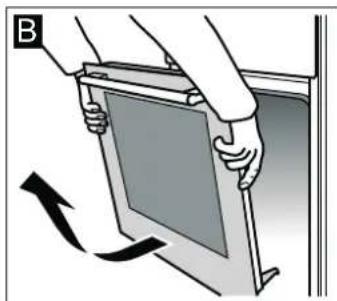

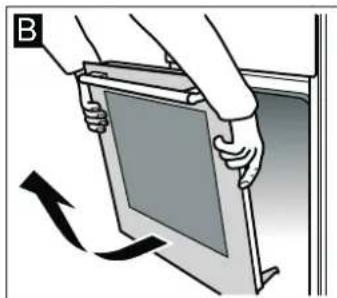

3. Close the oven door as far as the limit stop. With both hands, grip the door on the left and right-hand sides. Close the door a little further and pull it out (figure B).

Diagram of a car door mechanism with motion arrows indicating movement (no text or symbols)

Illustration of hands holding a tablet with an arrow indicating rotation (no text or symbols)

Attaching the door

Reattach the oven door in the reverse sequence to removal.

1. When attaching the oven door, ensure that both hinges are inserted straight into the opening (figure A).

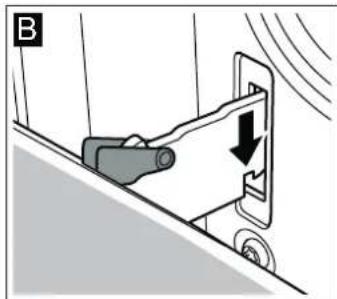

2. The notch on the hinge must engage on both sides (figure B).

Diagram showing two stacked rectangular objects with arrows indicating movement or assembly (no text or symbols)

Diagram of a vehicle ramp with a downward arrow indicating motion, no text or symbols present

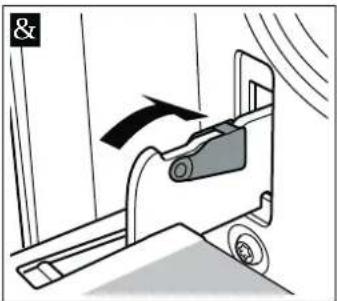

1. Fold back both locking levers (figure C). Close the oven door.

Diagram of a car steering wheel with motion arrows indicating speed (no text or symbols)

: Risk of injury!

Risk of injury. If the oven door falls out accidentally or a hinge snaps shut, do not reach into the hinge. Call the after-sales service.

Removing and refitting the door panels

The glass panels can be removed from the oven door to allow more thorough cleaning.

Removal

1. Removing the oven door See the section Removing the oven door. Lay the oven door on a cloth with the handle facing downwards (Fig. A).

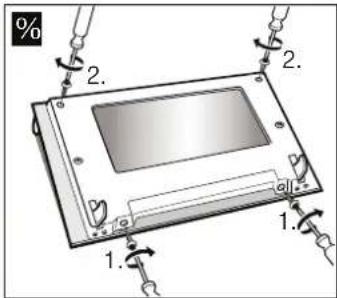

2. First turn the two screws at the bottom anticlockwise, then the two screws at the top, also anticlockwise (Fig. B).

Illustration of a computer monitor with a scroll wheel and buttons, placed on a surface with no visible text or symbols.

Diagram of a device with rotating components and directional arrows, no text or symbols present

1. Remove the cover (Fig. C).

Diagram of a device with an arrow indicating upward movement, no text or symbols present

The parts that have been removed must not be washed. Clean the panels with a glass cleaner and a soft cloth.

: Risk of injury!

Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, or sharp or abrasive cleaning aids or detergents.

Refitting

1. Place the cover back in position (Fig. A).
2. First retighten the two screws at the bottom, then the two screws at the top (Fig. B).

Diagram of a device with a downward arrow pointing to a screen (no text or symbols present)

1. Fitting the oven door See the section Fitting the oven door.

Do not use the oven again until the panels have been correctly fitted.

Troubleshooting

Malfunctions often have simple explanations. Refer to the table before calling the after-sales service as you may be able to remedy the fault yourself.

Malfunction table

If your meal is not successful, please refer to section. We have tested the recipe for you in our cooking studio. Here, you will find useful cooking tips and tricks for cooking, baking and roasting.

⚠️ Risk of electric shock!

Repairs that are not carried out properly are dangerous.

Repairs must only be performed by one of our after-sales service technicians.

Malfunction Possible cause Remedy/information

The oven does not work.	The circuit breaker is defective.	Look in the fuse box to see if the circuit breaker is defective.
	Power cut. Check whether the kitchen light and other kitchen appliances are working.
Oven not hot. Dust on the contacts.		Turn the control knobs several times to the left and right.
The burner does not ignite.	Power has failed or ignition plugs are damp.	Light the gas burner with a gas lighter or a match.

Replacing the bulb in the oven ceiling light

If the bulb in the oven light fails, it must be replaced. Heat-resistant, 40 watt spare bulbs can be obtained from our after-sales service or a specialist retailer. Only use these bulbs.

Risk of electric shock!

Switch off the circuit breaker in the fuse box.

1. Place a tea towel in the oven when it is cold to prevent damage.
2. Unscrew the glass cover by turning it anti-clockwise.

Diagram of a mechanical component with a circular arrow indicating rotation (no text or symbols)

1. Replace the bulb with one of the same type.
2. Screw the glass cover back in.
3. Remove the tea towel and switch on the circuit breaker.

Glass cover

You must replace a damaged glass cover. Suitable glass covers may be obtained from the after-sales service. Please specify the E number and FD number of your appliance.

After-sales service

Our after-sales service is there for you if your appliance needs to be repaired. We will always find the right solution in order to avoid unnecessary visits from a service technician.

E number and FD number

When calling us, please give the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. The rating plate containing these numbers is found on the side of the oven door. To save time, you can make a note of the number of your appliance and the telephone number of the after-sales service in the space below, should it be required.

E no.

FD no.

After-sales service

Please note that there will be a fee for a visit by a service technician in the event of a malfunction, even during the warranty period.

Please find the contact data of all countries in the enclosed customer service list.

To book an engineer visit and product advice

GB 0844 8928979

Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

IE 01450 2655

Trust the expertise of the manufacturer, and rest assured that the repair will be carried out by trained service technicians using original spare parts for your domestic appliance.

Energy and environment tips

Here you can find tips on how to save energy when baking and roasting in the oven and when cooking on the hob, and how to dispose of your appliance properly.

Saving energy with your oven

■ Only preheat the oven if this is specified in the recipe or in the operating instruction tables.
■ Use dark, black lacquered or enamelled baking tins. They absorb the heat particularly well.
■ Open the oven door as infrequently as possible while cooking, baking or roasting.
It is best to bake more than one cake, one after the other. The oven is still warm. This reduces the baking time for the second cake. You can also place two loaf tins next to each other.
■For longer cooking times, you can switch the oven off 10 minutes before the end of the cooking time and use the residual heat to finish cooking.

Saving energy with the gas hob

■ Always use a saucepan which is the correct size for your food. A larger, less full saucepan requires a lot of energy.
■ Always place a suitable lid on the saucepan.
■ The gas flame must always be in contact with the base of the saucepan.

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance complies with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). The directive gives a framework for the collection and recycling of old appliances, which is valid across the EU.

Tested for you in our cooking studio

Here you will find a selection of dishes and the ideal settings for them. We will show you which type of heating and which temperature are best suited for your dish. You can find information about suitable accessories and the height at which they should be inserted. There are also tips about cookware and preparation methods.

Notes

■ The values in the table always apply to dishes placed into the cooking compartment when it is cold and empty.
Only preheat the appliance if the table specifies that you should do so. Do not line the accessories with greaseproof paper until after they have been preheated.
■ The times specified in the tables are guidelines only. They will depend on the quality and composition of the food.
■ Use the accessories supplied. Additional accessories may be obtained as special accessories from specialist retailers or from the after-sales service.
Before using the oven, remove any unnecessary accessories and ovenware from the cooking compartment.
■ Always use oven gloves when taking hot accessories or ovenware out of the cooking compartment.

Cakes and pastries

Baking tins

It is best to use dark-coloured metal baking tins.

Baking times are increased when light-coloured baking tins made of thin metal or glass dishes are used, and cakes do not brown so evenly.

If you wish to use silicone baking tins, use the information and recipes provided by the manufacturer as a guide. Silicone baking tins are often smaller than normal tins. The amount of mixture and recipe instructions may differ.

Tables

The tables show the ideal type of heating for the various cakes and pastries. The temperature and baking time depend on the amount and composition of the mixture. This is why temperature ranges are given in the tables. You should try the lower temperature first, since a lower temperature results in more even browning. You can increase the temperature next time if necessary.

If you preheat the oven, the baking time is shortened by 5 to 10 minutes.

Additional information can be found in the Baking tips section following the tables.

Cake in a mould Tin Level Type of			heating	Temperature in °C	Cooking time in minutes
Simple, dry cake Springform cake tin with tube sheet/fruit loaf tin	2			170-190 50-60
Simple, dry cake, delicate Springform cake tin with tube sheet/fruit loaf tin	2			150-170 60-70
Sponge flan base Flan-base cake tin 2				150-170 20-30
Fruit flan, simple dough High springform cake tin with tube sheet	2			160-180 50-60
Sponge cake Springform cake tin 2				160-180 30-40
Sponge flan base	Springform cake tin 1			170-190 25-35
Fruit tart or cheesecake, shortcrust pastry*	Springform cake tin	1		170-190 70-90

* Allow cakes to cool in the appliance for approx. 20 minutes.

Cake in a mould	Tin	Level Type of heating	Temperature in °C	Cooking time in minutes
Spice cake* Springform cake tin 1		☐	180-200 50-60

* Allow cakes to cool in the appliance for approx. 20 minutes.

Cakes on trays Accessories Level Type of		heating	Temperature in °C	Cooking time in minutes
Sponge mixture or yeast dough with dry topping	Baking tray 2	☐	170-190 20-30
Sponge mixture or yeast dough with moist topping, fruit	Baking tray 3	☐	170-190 40-50
Swiss roll (preheat) Baking tray 2		☐	190-210 15-20
Plaited loaf with 500 g flour Baking tray 2		☐	160-180 30-40
Stollen with 500 g flour Baking tray 3		☐	160-180 60-70
Stollen with 1 kg flour Baking tray 3		☐	150-170 90-100
Strudel, sweet Baking tray 2		☐	180-200 55-65
Börek Baking tray 2		☐	180-200 40-50
Pizza	Baking tray 2	☐	220-240 25-35

Small baked products	Accessories	Level	Type of heating	Temperature in °C	Cooking time in minutes
Biscuits	Baking sheet	3		150-170 10-20
Viennese whirls (preheat)	Baking sheet	2		150-170 20-30
Almond biscuits	Baking sheet	3		110-120 30-40
Meringue	Baking sheet	3		80-100	90-180
Choux pastry	Baking sheet	2		200-220 30-40
Puff pastry	Baking sheet	3		200-220 20-30

Bread and rolls
Never pour water into the hot oven.
When baking bread, preheat the oven, unless instructions state otherwise.

Bread and rolls	Accessories	Level	Type of heating	Temperature in °C	Cooking time in minutes
Yeast bread with 1.2 kg flour	Baking tray	2		270	8
				200	35-45
Sourdough bread with 1.2 kg flour	Baking tray	2		270	8
				200	40-50
Bread rolls, e.g. rye bread rolls(do not preheat)	Baking tray	4		200-220 20-30

Baking tips

You want to bake according to your own recipe.	Use similar items in the baking tables as a guide.
How to tell whether sponge cake is baked through.	Approximately 10 minutes before the end of the baking time specified in the recipe, stick a cocktail stick into the cake at the highest point. If the cocktail stick comes out clean, the cake is ready.
The cake collapses.	Use less fluid next time or set the oven temperature 10 degrees lower. Observe the specified mixing times in the recipe.
The cake has risen in the middle but is lower around the edge.	Do not grease the sides of the springform cake tin. After baking, loosen the cake carefully with a knife.
The cake goes too dark on top.	Place it lower in the oven, select a lower temperature and bake the cake for a little longer.
The cake is too dry.	When it is done, make small holes in the cake using a cocktail stick. Then drizzle fruit juice or an alcoholic beverage over it. Next time, select a temperature 10 degrees higher and reduce the baking time.
The bread or cake (e.g. cheesecake) looks good, but is soggy on the inside (sticky, streaked with water).	Use slightly less fluid next time and bake for slightly longer at a lower temperature. For cakes with a moist topping, bake the base first. Sprinkle it with almonds or bread crumbs and then place the topping on top. Follow the recipe and baking times.
The cake is unevenly browned. Select a slightly lower temperature to ensure that the cake is baked more evenly. Bake delicate pastries on one level using Top/bottom heating. Protruding greaseproof paper can affect the air circulation. For this reason, always cut greaseproof paper to fit the baking tray.
The bottom of a fruit cake is too light. Place the cake one level lower the next time.
The fruit juice overflows. Next time, use the deeper universal pan, if you have one.
Small baked products made out of yeast dough stick to one another when baking.	There should be a gap of approx. 2 cm around each item. This gives enough space for the baked items to expand well and brown on all sides.
Condensation forms when you bake moist cakes.	Baking may result in the formation of water vapour, which escapes above the door. The steam may settle and form water droplets on the control panel or on the fronts of adjacent units. This is a natural process.

Meat, poultry, fish

Ovenware

You may use any heat-resistant ovenware. The baking tray is also suitable for large roasts.

Glass ovenware is the most suitable. The lid of the roasting dish should fit well and close properly.

Add a little more liquid when using enamelled roasting dishes.

With roasting dishes made of stainless steel, browning is not so intense and the meat may be somewhat less well done. Increase the cooking times.

Information in the tables:

Ovenware without a lid = uncovered

Ovenware with a lid = covered

Always place the ovenware in the centre of the wire rack.

Place hot glass ovenware on a dry mat after cooking. The glass could crack if placed on a cold or wet surface.

Roasting

Add in a little liquid if the meat is lean. Cover the base of the ovenware with approx. 12 cm of liquid.

Add liquid generously for pot roasts. Cover the base of the ovenware with approx. 1 - 2 cm of liquid.

The amount of liquid depends on the type of meat and the material the ovenware is made of. If preparing meat in an enamelled roasting dish, it will need a little more liquid than if cooked in glass ovenware.

Roasting dishes made from stainless steel are not ideal. The meat cooks more slowly and browns less fully. Use a higher temperature and/or a longer cooking time.

Tips for grilling

When grilling, preheat the oven for approx. 3 minutes, before placing the food into the cooking compartment.

Always grill with the oven door closed.

As far as possible, the pieces of food you are grilling should be of equal thickness. This will allow them to brown evenly and remain succulent and juicy.

Turn the food you are grilling after 23 of the time.

Do not add salt to steaks until they have been grilled.

Place the food to be grilled directly on the wire rack. If you are grilling a single piece, the best results are achieved by placing it in the centre of the wire rack.

Also insert the baking tray at level 1. The meat juices are collected in the pan and the oven is kept cleaner.

When grilling, do not insert the baking tray or universal pan at level 4 or 5. The high heat distorts it and the cooking compartment can be damaged when removing it.

The grill element switches on and off continually. This is normal. The grill setting determines how frequently this will happen.

Meat

Turn pieces of meat halfway through the cooking time.

When the roast is ready, turn off the oven and allow it to rest for an additional 10 minutes. This allows better distribution of the meat juices.

After cooking, wrap sirloin in aluminium foil and leave it to rest for 10 minutes in the oven.

For roast pork with a rind, score the rind in a crossways pattern, then lay the roast in the dish with the rind at the bottom.

Meat Weight Accessories and ovenware			Level Type of heating	Temperature in °C, grill setting	Cooking time in minutes
Beef
Joint of beef 1.0 kg Covered 2				200-220	120
	1.5 kg		2	190-210	140
	2.0 kg		2	180-200	160
Beef tenderloin	1.0 kg	Uncovered	2	210-230	70
	1.5 kg		2	200-220	80
	2.0 kg		2	190-210	90
Sirloin, medium rare	1.0 kg Uncovered	2		210-230	60
Steaks, well-done		Wire rack	5	3	20
Steaks, medium rare 3 cm		Wire rack	5	3	15

Meat	Weight	Accessories and ovenware	Level	Type of heating	Temperature in °C, grill setting	Cooking time in minutes
Veal
Joint of veal 1.0 kg Uncovered 2				☐	190-210 110
	2.0 kg 2			☐	170-190 120
Pork
without rind (e.g. neck) 1.0 kg Uncovered 2				☐	210-230 110
	1.5 kg 2			☐	200-220 130
	2.0 kg 2			☐	190-210 150
with rind (e.g. shoulder) 1.0 kg Uncovered 2				☐	210-230 130
	1.5 kg 2			☐	200-220 160
	2.0 kg 2			☐	190-210 180
Smoked pork on the bone 1.0 kg Covered 2				☐	210-230 70
Lamb
Leg of lamb, boned, medium 1.5 kg Uncovered 2				☐	170-190 120
Minced meat
Meat loaf	approx. 750 g	Uncovered 2		☐	200-220 70
Sausage
Sausage	approx. 750 g	Wire rack	4	☐	3	15

Poultry

The weights indicated in the table refer to oven-ready poultry (without stuffing).

Place whole poultry on the lower wire rack breast-side down. Turn after 23 of the specified time.

Turn roasts, such as rolled turkey joint or turkey breast, halfway through the cooking time. Turn poultry portions after 23 of the time.

For duck or goose, pierce the skin on the underside of the wings. This allows the fat to run out.

Poultry will turn out particularly crispy and brown if you baste it towards the end of the roasting time with butter, salted water or orange juice.

If you are grilling directly on the wire rack, you should insert the baking tray at level 1. The meat juices are collected in the pan and the oven is kept cleaner.

Poultry	Weight	Accessories and ovenware	Level	Type of heating	Temperature in °C	Cooking time in minutes
Chicken, half	400 g each	Wire rack	2		210-230 50-60
Chicken pieces	250 g each	Wire rack	2		210-230 30-40
Chicken, whole	1.0 kg Wire rack		2		210-230 60-80
Duck, whole	1.7 kg Wire rack		2		200-220 90-100
Goose, whole	3.0 kg Wire rack		2		190-210 100-120
Small turkey, whole	3.0 kg Wire rack		2		200-220 80-100
2 turkey drumsticks	800 g each	Wire rack	2		200-220 100-120

Fish

Turn the pieces of fish after 23 of the grilling time.

Whole fish does not have to be turned. Place the whole fish in the oven in its swimming position with its dorsal fin facing

upwards. Placing half a potato or a small ovenproof container in the belly of the fish will make it more stable.

If you are grilling directly on the wire rack, you should also insert the baking tray at level 1. The liquid is then collected, keeping the oven cleaner.

Fish	Weight	Accessories and ovenware	Level	Type of heating	Temperature in °C, grill setting	Cooking time in minutes
Fish, whole	300 g each Wire rack	3			2	20-25
	1.0 kg	Wire rack	2		190-210 45-50
	1.5 kg	Wire rack	2		180-200 50-60
Fish fillet, 3 cm	300 g each	Wire rack	4		2	20-25

Tips for roasting and grilling

The table does not contain information for the weight of the joint.	Select the next lowest weight from the instructions and extend the time.
How to tell when the roast is ready.	Use a meat thermometer (available from specialist shops) or carry out a “spoon test”. Press down on the roast with a spoon. If it feels firm, it is ready. If the spoon can be pressed in, it needs to be cooked for a little longer.
The roast is too dark and the crackling is partly burnt.	Check the shelf height and temperature.
The roast looks good but the juices are burnt.	Next time, use a smaller roasting dish or add more liquid.
The roast looks good but the juices are too clear and watery.	Next time, use a larger roasting dish and use less liquid.
Steam rises from the roast when basted.	This is normal and due to the laws of physics. The majority of the steam escapes through the steam outlet. It may settle and form condensation on the cooler switch panel or on the fronts of adjacent units.

Bakes, gratins, toast with toppings

If you are grilling directly on the wire rack, you should also insert the baking tray at level 1. This keeps the oven cleaner.

Always place the ovenware on the wire rack.

How well cooked the bake is will depend on the size of the dish and the height of the bake. The figures in the table are only average values.

Dish Accessories and oven-ware		Level Type of heating	Temperature °C, grill setting	Cooking time in minutes
Bakes
Bake, sweet Ovenproof dish 2		☐	180-200 40-50
Pasta bake Ovenproof dish 2		☐	210-230 30-40
Gratin
Potato gratin made using raw ingredients, Max. 4 cm deep	Ovenproof dish 2	☐	160-180 50-60
Toast
Toasts browned from above 12 pieces	Wire rack 4	☐	3	5-8

Preprepared products

Observe the instructions on the packaging.

If you line the accessories with greaseproof paper, make sure that the paper is suitable for these temperatures. Make sure the paper is a suitable size for the dish to be cooked.

The cooking result greatly depends on the quality of the food. Pre-browning and irregularities can sometimes even be found on the raw product.

Dish Accessories Level	Type of		heating	Temperature in °C	Cooking time in minutes
Strudel, frozen	Baking sheet	3		200-220 30-40
Chips	Baking sheet	3		190-210 25-30
Pizza	Wire rack	2		200-220 15-20
Pizza baguette	Wire rack 3			200-220 20-25

Special dishes

Low temperatures are particularly good for preparing yeast dough and home-made yoghurt.

Remove the accessories from the oven.

Preparing yoghurt

1. Bring 1 litre of milk (3.5% fat) to the boil, let it cool to 40 °C.
2. Add 150 g yoghurt (from the refrigerator) to the milk and stir well.
3. Pour into small sealable jars and cover with cling film.
4. Place the jars on a wire rack and slide in at level 1.
5. Set the baking temperature to 50 °C and continue as indicated.

Proving yeast dough

1. Prepare the yeast dough as usual, place it in a heat-resistant ceramic dish and cover with a lid.

2. Preheat the oven as indicated.

3. Close the oven door and allow the yeast dough to prove in the oven.

Dish Ovenware Type of			heating	Temperature Cooking time
Yoghurt Sealable yoghurt jars	1	☐	50 °C 6-8 hours
Proving yeast dough Place the heat-resistant dish	on the oven floor	☐	preheat to 50 °C	5-10 minutes
			Switch off the appliance and place the yeast dough in the oven	20-30 minutes

Preserving

For preserving, the jars and rubber seals must be clean and intact. If possible, use jars of the same size. The information in the table is for round, one-litre jars.

Caution!

Do not use jars that are larger or taller than this. The lids could crack.

Only use fruit and vegetables in good condition. Wash them thoroughly.

The times given in the tables are a guide only. The time will depend on the room temperature, number of jars, and the quantity and temperature of the contents. Before you switch off the appliance or change the cooking mode, check whether the contents of the jars are bubbling as they should.

Preparation

1. Fill the jars, but not to the top.

2. Wipe the rims of the jars, as they must be clean.

3. Place a damp rubber seal and a lid on each jar.

4. Seal the jars with the clips.

Place no more than six jars in the cooking compartment.

Making settings

1. Insert the universal pan at level 2. Arrange the jars on it so that they do not touch each other.
2. Pour 12 litre of hot water (approx. 80 °C) into the universal pan.
3. Close the oven door.
4. Set ☐ Bottom heating.
5. Set the temperature to between 170 and 180 °C.

Preserving

Fruit

After approx. 40 to 50 minutes, small bubbles begin to form at short intervals. Switch off the oven.

After 25 to 35 minutes of residual heat, remove the preserving jars from the cooking compartment. If they are allowed to cool for longer in the cooking compartment, germs could multiply, promoting acidification of the preserved fruit.

Fruit in one-litre jars When it starts to bubble Residual heat

Apples, redcurrants, strawberries Switch off approx. 25 minutes
Cherries, apricots, peaches, gooseberries Switch off approx. 30 minutes
Apple purée, pears, plums	Switch off	approx. 35 minutes
VegetablesAs soon as bubbles begin to form in the jars, set the temperature back to between 120 and 140 °C. Depending on	the type of vegetable, heat for approx. 35 to 70 minutes. Switch off the oven after this time and use the residual heat.

Vegetables with cold cooking water in one-litre jars	When it starts to bubble Residual heat
Gherkins	-	approx. 35 minutes
Beetroot	approx. 35 minutes	approx. 30 minutes
Brussels sprouts	approx. 45 minutes	approx. 30 minutes
Beans, kohlrabi, red cabbage	approx. 60 minutes	approx. 30 minutes
Peas	approx. 70 minutes	approx. 30 minutes

Taking out the jars

After preserving, remove the jars from the cooking compartment.

Caution!

Do not place the hot jars on a cold or wet surface. They could suddenly burst.

Acrylamide in foodstuffs

Acrylamide is mainly produced in grain and potato products prepared at high temperatures, such as potato crisps, chips,

toast, bread rolls, bread or fine baked goods (biscuits, gingerbread, cookies).

Tips for keeping acrylamide to a minimum when preparing food

General	■Keep cooking times to a minimum.■Cook meals until they are golden brown, but not too dark.■Large, thick pieces of food contain less acrylamide.
Baking With top/bottom heating max. 200 °C.With 3D hot air or hot air max.180 °C.
Biscuits With top/bottom heating max. 190 °C.With 3D hot air or hot air max. 170 °CEgg or egg yolk reduces the production of acrylamide.
Oven chips Spread evenly over the baking tray, in a single layer. Bake at least 400 g per baking tray so that the chips do not dry out

Test dishes

These tables have been produced for test institutes to facilitate the inspection and testing of the various appliances.

In accordance with EN 50304/EN 60350 (2009) and IEC 60350.

Baking

For apple pie, place the dark springform cake tins diagonally next to each other.

Cakes in tinplate springform cake tins:

Bake on 1 level with ☐ Top/bottom heating Place the springform cake tins on the baking tray instead of directly on the wire rack.

Dish Accessories and oven-ware	Level Type of heating	Temperature in °C	Cooking time in minutes
Viennese whirls Baking tray 2		150-170 20-30
Small cakes, 20 cakes Baking tray 3		160-180 20-30
Hot water sponge cake	Springform cake tin on the wire rack	160-180 30-40
Apple pie	Wire rack + 2 springform cake tins, dia. 20 cm	190-210 70-80

Grilling

If you are grilling food directly on the wire rack, the baking tray should also be inserted at level 1. The liquid is then collected, keeping the oven cleaner.

Dish Accessories and oven-	ware	Level Type of heating		Grill setting	Cooking time in minutes
Toast Preheat for 10 minutes	Wire rack	5		3	1-2
Beefburgers, x12* do not preheat	Wire rack + baking tray	4		3	25-30

* turn over after 23 of the cooking time.

nl Inhoudsopgave

Diagram of a device with an open drawer and a computer monitor, showing a mouse cursor interacting with the tray (no text or symbols present)

Toelichting

Illustration of a cooking pot on a stove (no text or symbols)

Branderschakelaar

Technical illustration of a metal shelving rack with mesh insulation and a close-up view of the rack structure (no text or symbols)

Abstract illustration of a clock with an upward arrow and decorative elements (no text or symbols)

Abstract diagram of a clock-like shape with directional arrows and star, no text or symbols present

Illustration of hands holding a tablet with a lightning bolt and upward arrow, next to a grid-patterned stove (no text or symbols)

Diagram of a coiled spring with directional arrows indicating motion (no text or symbols)

Diagram of a coiled spring with a downward arrow indicating force or direction (no text or symbols)

Diagram showing a curved pipe or tube with an arrow pointing to a circular feature, labeled 'A' in the top-left corner (no text or symbols on the diagram itself)

Pure mechanical diagram showing zigzag components with arrows indicating direction (no text or symbols)

Verkeerde montage!

Diagram showing a mechanical or electrical component with intersecting lines and arrows indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with curved lines and circular annotations, no readable text or symbols present.

Line drawing of a coiled heating element (no text or symbols)

Diagram of a vehicle chassis with wheels and motion lines indicating movement (no text or symbols)

Diagram of a mechanical device with wheels and a handle, no text or symbols present

Risico van letsel!

Diagram of a car door mechanism with a black arrow indicating clockwise motion (no text or symbols)

Illustration of a person holding a tablet with an arrow indicating rotation (no text or symbols)

Deur inbrengen

Diagram of two mechanical components with arrows indicating assembly or force direction (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating motion or force, no text or symbols present

Diagram of a mechanical device with a curved arrow indicating motion or force direction (no text or symbols)

Risico van letsel!

Diagram of a device with a screen and handle, shown in a technical line drawing without any text or symbols.

Diagram of a mechanical or electronic component with rotating arms and a rectangular plate, no visible text or symbols

Technical diagram of a device casing with an arrow indicating upward motion (no text or symbols present)

Diagram of a device casing with a downward arrow indicating a component (no text or symbols present)

Diagram of a mechanical component with a circular arrow indicating rotation (no text or symbols)
