USER MANUAL ANT-UHF 20 Steren

STEREN

S4-B

Partes

Armado de la base

VHF/UHF 20 element outdoor antenna

Instruction Manual

V0810

STEREN

S4-B

VHF/UHF 20 ELEMENT OUTDOOR ANTENNA

ANT-UHF 20

Thank You

on purchasing your new Steren product.

This manual includes all the feature operations and troubleshooting necessary to install and operate your new VHF/UHF 20 element outdoor antenna. Please review this manual thoroughly to ensure proper installation and operation of this product. For support, shopping, and everything new at Steren, visit our website:

www.steren.com

CONTENT

Features 7

Content 8

Parts 10

How to set your new antenna 11

Troubleshooting 16

IMPORTANT

Before to install the VHF/UHF 20 element outdoor antenna read this instructive to prevent malfunction. Keep it for futures references:

• Don't install the antenna near from power lines or transformers.
• Don't place the antenna near from electrical appliances.
• Don't fix the mast to metal structures.

Features

• Outdoor antenna.
• 20dB gain (for urban areas).
• Quick and easy installation.
• UHF/VHF and FM reception.

Content

• Two large
• Six medium
• Six small
• Twelve tubes.
• Elements for assembling.

5.- Mast base.
6.- Screw U type.
7.- Two washers and two butterfly nuts.

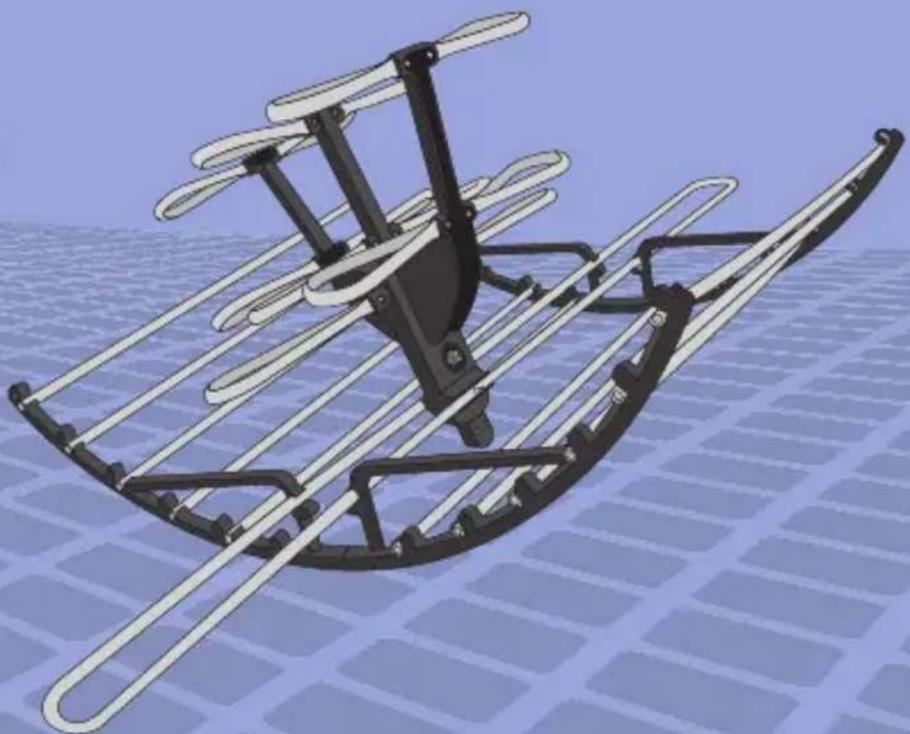

Parts

1.- F-type connector.
Connect the coaxial cable from the antenna to TV.
2.- Six inputs from elements.
Allows to install the aluminum elements.
3.- Connectors for B-type arms.

How to set your new antenna

A-type arm assembly

1.- Recognize the content: base, elements, mast clamp, A-type and B-type arms.

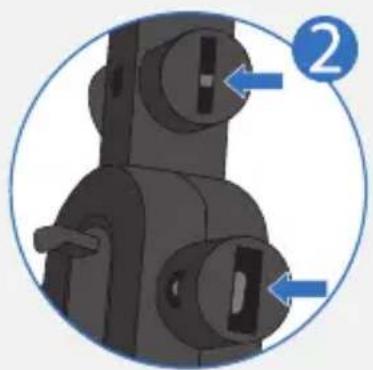

2.- Take two A-type arms, in the bottom there are two slots and a hook, connect them to one piece. Repite the process with next two arms.

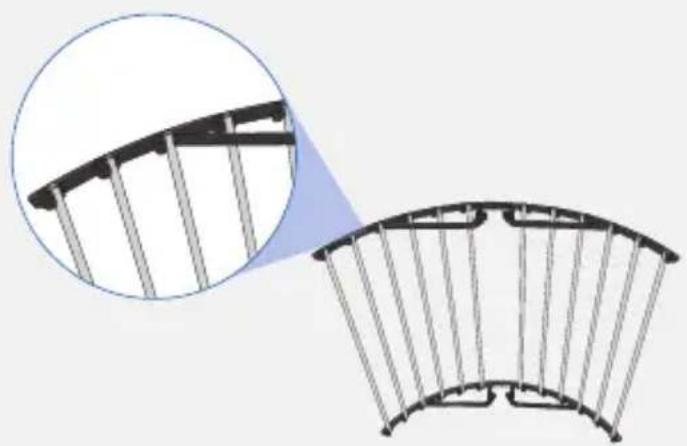

3.- Place the elements (tubes) in the slots, so that be aligned, must remain free holes in the middle.

B-type arm assembly

4.- Must use two small and two medium elements; in the B-type arms there are four slots for place elements, insert two medium elements on the firsts slots (A) and two small elements on the next (B).

Base assembly

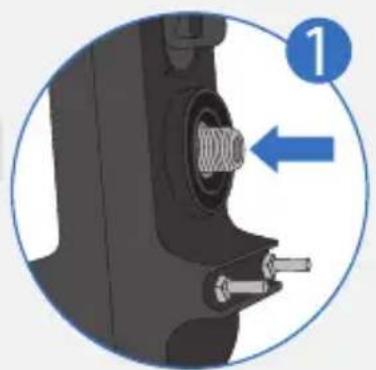

5.- Locate two slots that be near from F-type connector, remove the screws, nuts and pla ce the large elements, then scre w.
6.- In the following slots insert two medium elements; place the small elements in the following inputs.

7.- There are two channels in the base, where you will attach the longest element.

Remove the screw and nuts: first insert the part where there are two holes, put the screws to adjust; then place on the other channel and install the screw.

8.- Attach the bracket for the mast (not included) in the bottom for the antenna.

9.- To finish the as sembling, insert the A-type and B-type pe arms to the base.

10.- Connect a coaxial cable to the F-type connector and the other end to TV.

11.- Turn on the TV.
12.- Adjust the antenna to obtain clear images.

Note:

⚠ Mast is not included in the package.

If you wish to use this antenna to receive FM signals:

1.- Extend the coaxial cable (not included) and connect to the radio's input via F-type adapter to 3.5mm (adapter not included).
2.- Turn on the radio and check the FM signal reception.
3.- Rotate the antenna for better reception.

Troubleshooting

Trouble Solution
The images aren’t clear - Turn th antenna to get a better reception.- Check connections.

Note:

⚠️ Product design and specifications are subject to change without previous notice.

STEREN

Product: VHF/UHF 20 element outdoor antenna

Part number: ANT-UHF 20

Brand: Steren

WARRANTY

This Steren product is warranted under normal usage against defects in workmanship and materials to the original purchaser for one year from the date of purchase.

CONDITIONS

1.- This warranty card with all the required information, invoice, product box or package, and product, must be presented when warranty service is required.
2.- If the product stills on the warranty time, the company will repair it free of charge.
3.- The repairing time will not exceed 30 natural days, from the day the claim was received.
4.- Steren sell parts, components, consumables and accessories to customer, as well as warranty service, at any of the addresses mentioned later.

THIS WARRANTY IS VOID IN THE NEXT CASES:

If the product has been damaged by an accident, acts of God, mishandling, leaky batteries, failure to follow enclosed instructions, improper repair by unauthorized personnel, improper safe keeping, among others.

a) The consumer can also claim the warranty service in the purchase establishment.
b) If you lose the warranty card, we can reissue it, if you show the invoice or purchase ticket.

www.steren.com

STEREN

Help us to improve this instruction manual, call us to:

01800 500 9000

Customer Service Center
