Product Type	Subwoofer
Brand	Audiopipe
Model	TS-VR8
Speaker Size	8 inches
Impedance	4 ohms
Power Handling (RMS)	200 W
Peak Power	400 W
Sensitivity	88 dB
Frequency Response	30 Hz - 500 Hz
Mounting Depth	4.5 inches
Cut-out Diameter	7.25 inches
Recommended Enclosure	Sealed or ported
Cone Material	Polypropylene
Surround Material	Rubber
Voice Coil	Single 4 ohm
Magnet Weight	40 oz
Net Weight	5 lbs
Dimensions (Diameter x Depth)	8.27 x 4.72 inches
Color	Black
Maintenance	Clean with a dry cloth; avoid moisture
Safety	Do not expose to water; ensure proper ventilation
Spare Parts Availability	Contact authorized service center
Repair	By qualified technician only
Warranty	1 year limited

Frequently Asked Questions - TS-VR8 Audiopipe

How do I install the Audiopipe TS-VR8 subwoofer?

First, choose a suitable enclosure (sealed or ported) with the recommended volume. Cut a hole of 7.25 inches diameter for the subwoofer. Secure the subwoofer using screws, and connect the terminals to your amplifier with proper gauge wire. Ensure the impedance matches your amplifier's output.

What amplifier power is recommended for this subwoofer?

A amplifier delivering 200W RMS at 4 ohms is ideal. The subwoofer can handle up to 400W peak, but it's best to match RMS ratings for reliable performance.

What is the power handling of the TS-VR8?

The RMS power handling is 200 watts, and the peak power handling is 400 watts.

Can I use this subwoofer in a sealed enclosure?

Yes, it works well in sealed enclosures. A sealed box with about 0.4 cubic feet internal volume is recommended for accurate bass.

What is the impedance of the TS-VR8?

The subwoofer has a single 4 ohm voice coil, resulting in a 4 ohm total impedance.

How should I break in the subwoofer?

Play music at moderate volume for about 10-20 hours. Start with low frequencies and gradually increase to normal listening levels. This helps the suspension loosen up.

Why is there no sound from my subwoofer?

Check all connections: ensure the amplifier is powered, the signal wires are connected, and the subwoofer is wired correctly. Also verify the amplifier's crossover settings and that the gain is not too low.

How do I clean the subwoofer?

Use a dry, soft cloth to gently wipe the cone and surround. Do not use any liquids or cleaners as they may damage the materials.

What is the warranty period?

The Audiopipe TS-VR8 comes with a 1-year limited warranty covering manufacturing defects. Keep your purchase receipt for warranty claims.

Is the subwoofer waterproof?

No, it is not designed for outdoor or wet environments. Exposure to moisture can damage the subwoofer permanently.

USER MANUAL TS-VR8 Audiopipe

User's Manual

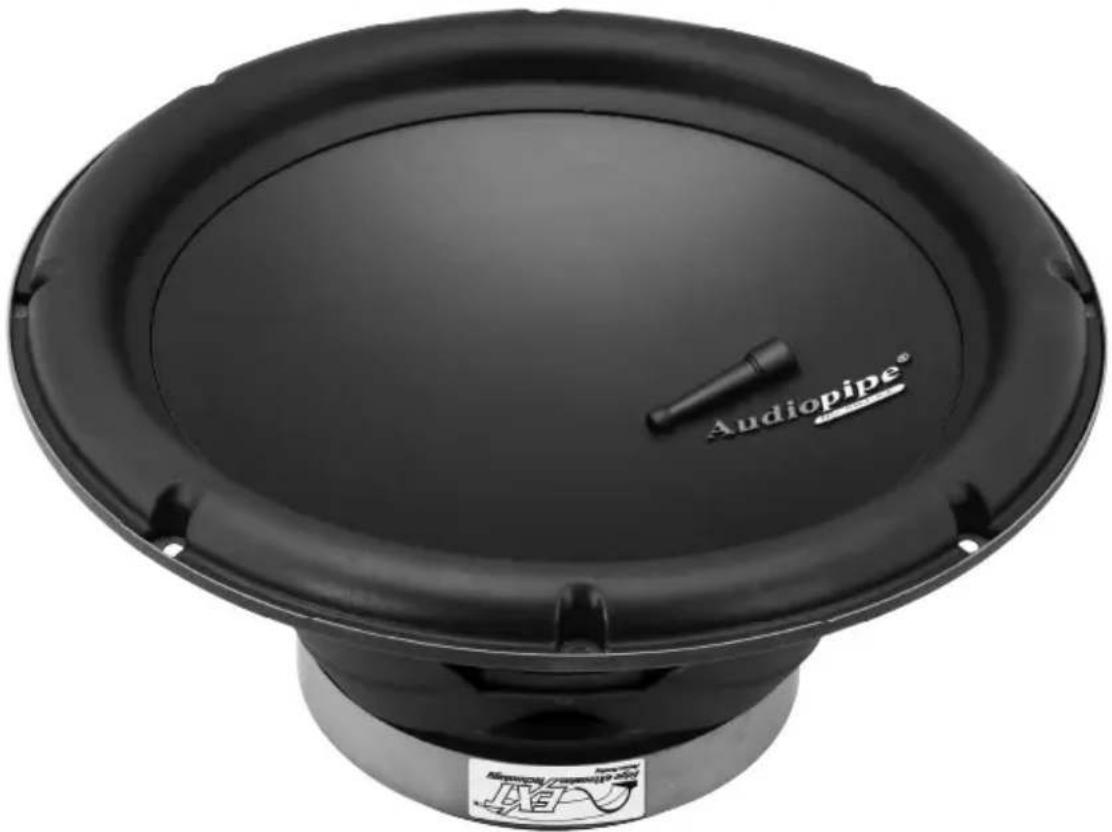

Close-up of a black audio pipe speaker with a visible label and base (no text-heavy elements)

CEA

Consumer Electronics Association

MEMBER

TS-VR6

TS-VR8

TS-VR10

TS-VR12

TS-VR15

Introduction:

Congratulations on your purchase of an Audiopipe subwoofer incorporating EXT technology. Your Audiopipe subwoofer has been engineered to produce the highest quality sub-bass performance in your vehicle. Audiopipe dealers have the knowledge, skills to build high-quality enclosure that will maximize the performance of your subwoofer. We highly recommend that you have your enclosure built by an Audiopipe authorized dealer. For more dealer information in your area do visit.

All Audiopipe products are designed, manufactured and tested to perform in the harsh environments. From our entry level products to our high end series, Audiopipe is your best choice for competition level performance.

We welcome you to team Audiopipe......

Close-up of a black curved object with smooth surface and slight edge detail (no text or symbols)

Special large Butyl edge surround

Table of Contents:

Specifications 1

Dimensions 2

Sealed Applications 3

Vented Applications 4

Wiring Diagrams 5

Wiring Diagrams 6

Specifications:

		TS-VR8	TS-VR10	TS-VR15TS	VR12TS-VR6
Free Air Response (FS)	66Hz	45Hz	35Hz	31Hz	25Hz
Electrical “Q” (Qes)	0.71	0.64	0.76	0.67	0.67
Mechanical “Q” (Qms)	1.16	0.9	2.5	4.5	3.5
Total Speaker “Q” (Qts)	0.44	0.49	0.5	0.49	0.5
One way,Linear Excursion (Xmax)	2mm	4.5mm	7.5mm	7.5mm	7.5mm
Efficiency (1W/1m)	86dB	87dB	87dB	89dB	91dB
Effective Piston Area (sd)	0.016M^2	0.026M^2	0.042M^2	0.062M^2	0.094M^2
DC resistance (Re)	2x3.6Ω	2x3.6Ω	2x3.6Ω	2x3.6Ω	2x3.6Ω
Nominal Impedance	2x4Ω	2x4Ω	2x4Ω	2x4Ω	2x4Ω
Power Handling	75/150W	175/350W	300/600W	375/750W	500/1000W
Mounting Depth	75mm3”	105mm4 1/8”	145mm5 6/8”	153mm6 1/16”	180mm7 1/16”
Mounting Hole Diameter	Ø155mmØ6 1/8”	Ø199mmØ7 7/8”	Ø254mmØ10”	Ø306mmØ12 1/16”	Ø374mmØ14 7/8”

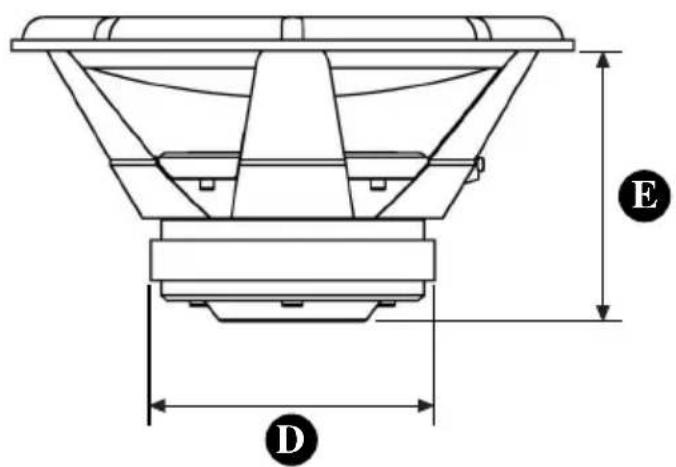

Dimensions:

	A	E	●	●	●
TS-VR6	∅165mm∅6 1/2”	∅143mm∅5 5/8”	∅155mm∅6 1/8”	∅110mm∅4 5/8”	75mm3”
TS-VR8	∅214.5mm∅8 3/8”	∅182.5mm∅7 1/4”	∅199mm∅7 7/8”	∅126mm∅5.0”	105mm4 1/8”
TS-VR10	∅267mm∅10 5/8”	∅238mm∅9 1/2”	∅254mm∅10.0”	∅140mm∅5 5/8”	145mm5 7/8”
TS-VR12	∅320mm∅12 3/4”	∅290mm∅11 1/2”	∅306mm∅12 1/16”	∅156mm∅6 1/8”	153mm6 1/16”
TS-VR15	∅389mm∅15 3/8”	∅363mm∅14 3/8”	∅374mm∅14 7/8”	∅170mm∅6 7/8”	180mm7 1/8”

Sealed enclosure applications

Primary advantages: Small, good low frequency extension and control, simple to build.

This type of enclosures is a classic design and the easiest to build among most installers. These enclosure recommendations have been calculated with the airspace inside and include the displacement of the woofer. All sealed enclosure designs should be filled to 50% with loose poly-fil stuffing. The use of poly-fil will slightly decrease efficiency but will deepen and extend the low frequency output.

Subwoofer	Recommended Sealed Enclosure

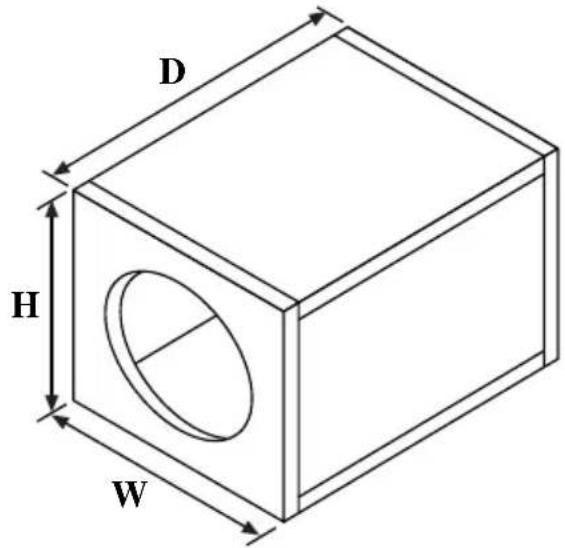

	Volume (net int.)	External Dimensions (Width x Height x Depth)
TS-V6	0.25 FT3	?” x ?” x ?”
TS-VR8	0.5 FT3	10” x 10” x 11”
TS-VR10	1.0 FT3	12” x 12” x 13”
TS-VR12	1.75 FT3	14” x 14” x 16”
TS-VR15	2.25 FT3	16” x 16” x 18”

Box building notes

Use 3/4 ” or thicker MDF (medium density fiberboard) and seal the joints with silicone. All the cubic ft measurements in this manual include the displacement of the woofer and port. All ports have been calculated using rectangular ports it would be impractical to use round ports for these designs. Do not install ports opening against a solid surface, such as an internal brace, back panel or seat of your vehicle. The port opening must remain unobstructed.

Vented enclosure applications

Primary advantage: Efficient, low distortion around port tuning.

These enclosures are the installer's choice for high performance SPL levels and require a deeper understanding in order to achieve maximum efficiency. These enclosure recommendations have been calculated with the airspace inside and include the displacement of the woofer.

Subwoofer	Recommended Ported Enclosure
	Volume (net int.)	Enclosure External Dimensions (Width x Height x Depth)	Slot Port Internal Dimensions (Slot Width x Slot Height x Slot Length)
TS-VR8	0.75 FT3	10” x 10” x 15”	1.25” x 4” x 14”
TS-VR10	1.25 FT3	13” x 13” x 17.5”	1.25” x 9.5” x 16.5”
TS-VR12	2.00 FT3	15” x 15” x 17”	1.25” x 11.5” x 16”
TS-VR15	2.50 FT3	17” x 17” x 16”	1.25” x 14.5” x 15”

Wiring options

The TS-VR series of subwoofers are available with dual 4 Ohms voice coils. Both coils must be connected to a source of amplification. A dual 4 Ohms woofer can be configured in parallel to provide a 1 Ohm load. A dual 4 Ohms woofer can be also configured in series to provide a 8 Ohms load. The terminal with the red markings is the positive while the black terminals represent the negative.

Series Wiring for Dual Voice Coil 2Ω Sub

Other useful wiring options

T#1=Terminal #1

T#2 = Terminal #2

Parallel Wiring for Two Single Voice Coil 4Ω Subs

Series/Parallel Wiring for Two Dual Voice Coil 2Ω Subs

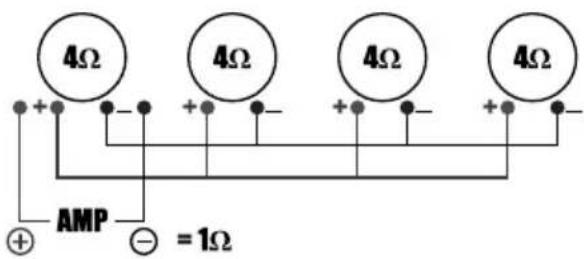

Parallel Wiring for Four Single Voice Coil 4Ω Subs

Series/Parallel Wiring for Four Single Voice Coil 4Ω Subs

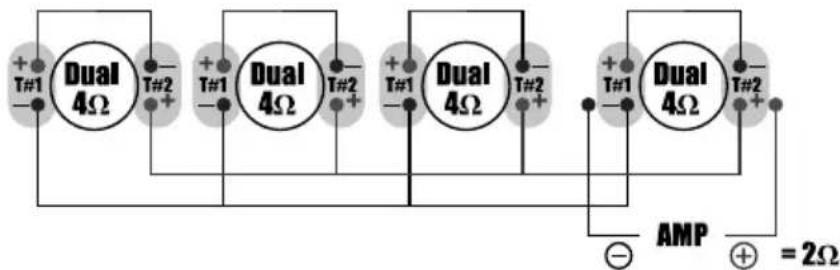

Series/Parallel Wiring for Four Dual Voice Coil 4Ω Subs

Parallel Wiring for Dual Voice Coil 2Ω Sub Series

e Coil 2Ω Sub

Series/Parallel Wiring for Three Dual Voice Coil 2Ω Subs

Parallel Wiring for One Dual Voice Coil 4Ω Subs

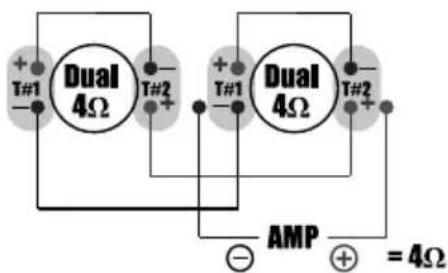

Parallel Wiring for Two Dual Voice Coil 4Ω Subs

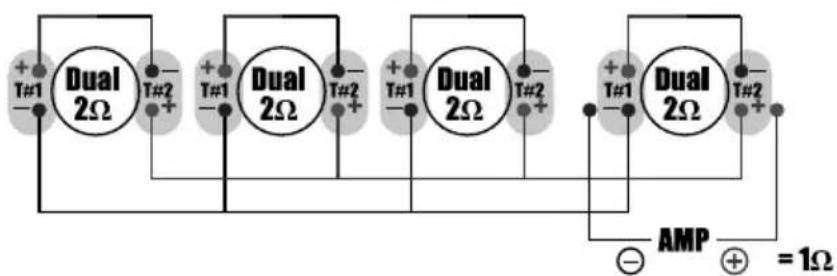

Series/Parallel Wiring for Four Dual Voice Coil 2Ω Subs

Series/Parallel Wiring for Three Dual Voice Coil 4Ω Subs

Series/Parallel Wiring for Two Dual Voice Coil 4Ω Subs
