SVCA100SP - Frying Pan SVAN - Free user manual and instructions

Brand	SVAN
Model	SVCA100SP
Product Type	Electric Heater (Tower/Stand)
Power Supply	220-240 V ~ 50/60 Hz
Power Levels	650 W (Low), 1350 W (Medium), 2000 W (High)
Height Adjustment	1.8 m to 2.1 m
Mounting Options	Stand (free-standing) or Wall-mounted
Control Type	Pull switch with 3 power positions + Off
Heating Element	Radiant (quartz? - not specified, assumed radiant)
Safety Features	Overheat protection (manual states DO NOT COVER), tip-over? (not specified, but manual warns about placement)
Cleaning	Switch off, unplug, cool down; use soft damp cloth; no abrasives
Protection Rating	IP20 (indoor use only)
Cord Length	Approx. 1.5 m (estimated)
Weight	Not specified (estimated 5-8 kg)
Base Dimensions	Not specified (estimated diameter 40 cm)
Certifications	CE, RoHS
Use with Timer/Programmer	Not allowed (fire risk if covered or incorrectly positioned)
Minimum Clearance	100 cm front/sides, 100 cm top
Installation Height (Wall)	At least 1.8 m above floor
For Bathrooms	Not allowed near bath, shower, or pool
Spare Parts	Contact authorized service agent
Repair	Only by Authorized Service Agent

Frequently Asked Questions - SVCA100SP SVAN

How do I assemble the SVAN SVCA100SP heater?

The heater can be assembled in stand mode or wall mode. For stand mode, attach the counterweight to the base, then attach the lower column, then middle and upper columns using the provided screws. Connect the heating part to the upper column and tighten the knob. For wall mode, remove the attachment, mark screw positions on the wall, install the bracket, and hang the heater. See the manual for detailed steps.

What are the power settings and how do I use them?

The heater has a pull switch with 4 positions: Off (0), 650 W (1), 1350 W (2), and 2000 W (3). Pull the switch to select the desired power level. The slight vibration when switching on will stop after a few seconds.

Can I use the heater in a bathroom?

No, the heater must not be used in the immediate vicinity of a bath, shower, or pool. It is for indoor household use only and should be kept away from water.

What is the minimum distance from flammable materials?

Keep at least 100 cm clearance at the front and sides, and 100 cm at the top. Do not place near curtains, furniture, or other combustible materials.

How do I clean the heater?

Always unplug and allow the heater to cool completely before cleaning. Use a slightly damp, soft cloth to clean the base and radiant part. Do not use scouring pads or abrasive products.

What should I do if the power cord is damaged?

If the supply cord is damaged, it must be repaired or replaced by an Authorized Service Agent to avoid hazards. Do not use the heater with a damaged cord.

Can I mount the heater on the ceiling?

No, never install the heater on the ceiling. It must be installed at least 1.8 m above the ground and only on a wall or on a flat floor using the stand base.

Is it safe to use a timer or automatic switch with this heater?

No, do not use a programmer, timer, or any device that switches the heater on automatically. There is a fire risk if the heater is covered or positioned incorrectly.

What does the 'DO NOT COVER' symbol mean?

The symbol (a figure with a cross through it) means the heater must not be covered. Covering can cause overheating and fire risk. Always ensure the air grilles are unobstructed.

How do I dispose of the heater when it is no longer usable?

You must dispose of old electrical appliances separately according to local regulations. Follow the WEEE directive; contact your local authority or retailer for proper disposal. Cut the power cord after unplugging to make it inoperable.

USER MANUAL SVCA100SP SVAN

Exterior view of a black outdoor heat exchanger with a red LED grille (no text or symbols visible)

Modelo: SVCA100SP

CE RoHS

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

ESPAÑOL

Exterior view of a black outdoor heat exchanger with a circular top (no text or symbols visible)

Model: SVCA100SP

C€ RoHS

NSTRUCTION MANUAL

SVAN TRADING S.L.

GENERAL SAFETY INSTRUCTIONS:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
4. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
5. Never pull on the cord when unplugging.
6. Do not use the unit with a damaged cord or plug, or if it is not working properly.
7. Do not handle the appliance with wet hands.
8. Never immerse the appliance in water or any other liquid.
9. Make sure the appliance has been unplugged before cleaning.
10. This appliance must be installed following the national regulations for electrical installations.
11. This appliance is for household use only.

12. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

13. WARNING: In case of misuse, there is a risk of possible injury.

IMPORTANT SAFETY INSTRUCTIONS:

- The meaning of figure ☑ in marking is ,DO NOT COVER'. WARNING: In order to avoid overheating, do not cover the heater.

- Children of less than 3 years should be kept away unless continuously supervised.

- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- The device should not be placed immediately below a socket base.

- Do not place a heater in use near curtains, furniture, wood panelling or combustible material which can deteriorate with heat.

- Do not use this heater in the immediate vicinity of a bath, shower or pool.

- Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

- Do not use the appliance in flammable atmospheres (e.g. in the vicinity of combustible gases or sprays cans)! Explosion and fire hazard!

- Allow ample space around the heater. A safe area to be left free is 100 cm at the front and at the sides and 100 cm at the top.

• Always unplugged the heater after use.

- Important! Do not insert any foreign objects into the appliance openings! Risk of injury (electric shock) and damage to the appliance!

- Keep the mains cord at a safe distance from the air inlet and outlet grilles.

- The heating appliance must be installed at least 1.8m above the ground. Please never install the appliance on the ceiling

ENGLISH

1. HEATING ELEMENT

2.KNOB

3. POWER CORD

4. POWER LEVEL

5. PULL SWITCH

6.HEIGHT REGULATOR

7.UPPER POST

8. SCREW

9.MIDDLE POST

10. SCREW

11. LOWER POST

12.CLAMP

13. BASE COVER

14.SCREW

15.BASE

16.NON SLIP BASE

ASSEMBLY OF THE APPLIANCE

To assemble, follow these instructions:

□ Stand mode

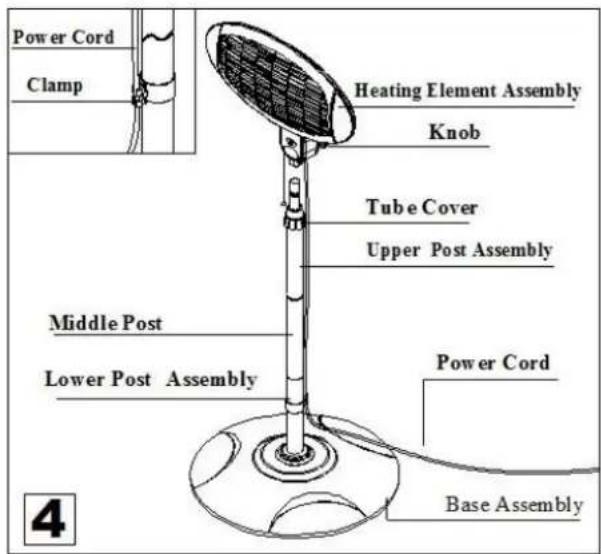

1. Attach the counterweight inside the base using the 4 screws provided.

2. Attach the lower column to the base using the 4 screws provided and then insert the ring nut.

3. Connect the intermediate column to the lower one and then the upper one, attaching them with the screws provided.

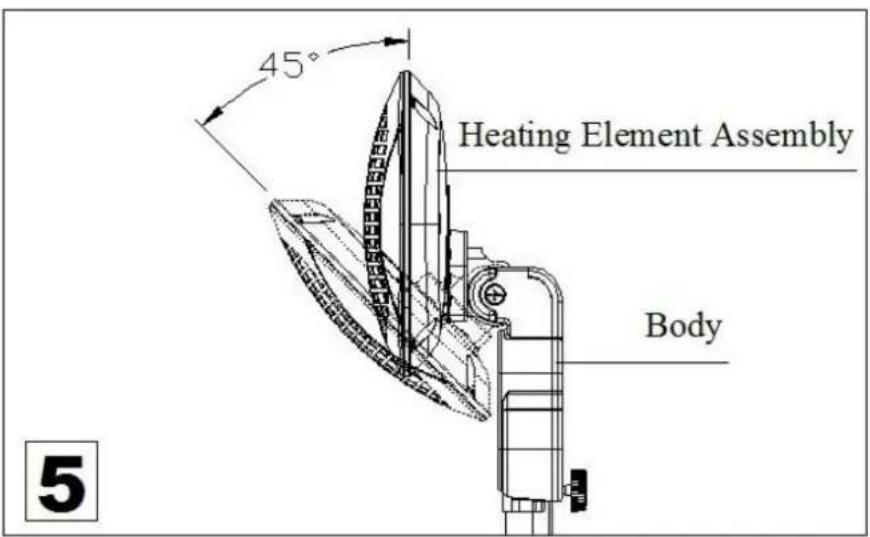

4. Connect the heating part to the upper column and attach it by tightening the knob on the screw.

5. Hook the electric cord to the ring.

Minimal height: 1.8 m

Maximal Height: 2.1 m

Note: Never install the appliance on the ceiling

□ Wall mode

1. Remove the attachment from the back of the stove. Put it on the wall and mark the position of the screws

2. Replace the accessory on the stove with the help of the screws

3. Install the entire stove on the wall

Note: Never install the appliance on the ceiling

The appliance is switched on by means of the pull switch. The slight vibration noticeable when the appliance is switched on will stop after a few seconds.

By pulling of the pull switch you can set the power steps:

Position 0 Off

Position 1 650 W (normal power)

Position 2 1350 W (intermediate power)

Position 3 2000 W (full power)

CLEANING AND MAINTENANCE

• Before cleaning the appliance, switch it off, remove the plug from the current socket and leave it until getting cool.
• Protect the radiant part from dust to preserve its reflectivity.
• To clean the base and the radiant part, use a slightly damp, soft cloth; do not use scouring pads or abrasive products.
• Should you decide not to use the appliance any more, we recommend making it inoperative by cutting the power cord (after making sure you have disconnected the plug from the socket) and make dangerous parts harmless if children are allowed to play with them, such as the heating elements.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out ,wheeled bin' symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately

collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
