ST-CM0169 - Coffee maker Saturn - Free user manual and instructions

Product Type	Coffee Maker
Brand	Saturn
Model	ST-CM0169
Power Consumption	1000 W
Rated Voltage	220-230 V
Rated Frequency	50 Hz
Rated Current	4.54 A
Capacity	Approximately 1.2 L (based on typical model)
Keep Warm Function	Yes, up to 1 hour
Anti-Drip System	Yes, stops dripping when carafe removed (max 30 seconds)
Funnel Type	Removable, with locking tabs
Filter Type	Paper filter (not included)
Water Level Indicator	Yes, with MAX marking
Carafe Material	Glass (fragile)
Warming Plate	Yes, for keeping coffee warm
Accessories Included	Measuring spoon, instruction manual
Cleaning Method	Hand wash funnel and carafe; wipe exterior with damp cloth; descale with vinegar solution
Safety Features	Auto shut-off not specified; do not operate without water
Warranty	2 years (or more per local law)
Environmental Disposal	Take to appropriate waste disposal center

Frequently Asked Questions - ST-CM0169 Saturn

How do I use the coffee maker for the first time?

Before first use, brew clean water without coffee grounds up to the MAX level, then discard. Rinse the funnel and carafe with warm water.

Can I use the coffee maker without water?

No, never operate the coffee maker without water as it may damage the appliance.

How do I descale the coffee maker?

Mix water and vinegar, pour into the tank, and brew a cycle without coffee. Repeat until no yellow liquid appears, then brew fresh water to remove vinegar odor.

What should I do if coffee overflows?

Ensure the funnel is locked properly and the water level does not exceed MAX. Also check that the carafe is placed correctly on the warming plate.

How long does the keep warm function last?

The coffee maker keeps coffee warm for up to 1 hour after brewing. For best taste, serve immediately.

Can I pour coffee during brewing?

Yes, you can remove the carafe to pour coffee. The anti-drip system stops dripping for up to 30 seconds. Do not exceed this time.

How do I clean the coffee maker?

Unplug and let cool. Wash the funnel and carafe in hot soapy water. Wipe the exterior and warming plate with a damp cloth. Do not immerse the base in water.

What is the correct voltage for this coffee maker?

The rated voltage is 220-230 V, 50 Hz. Check your outlet voltage matches to avoid damage.

How do I assemble the funnel correctly?

Open the tank cover, locate the slots on both sides. Insert the funnel with handle upright, then lower the handle to lock the tabs under the slots. Ensure it does not move.

Is the carafe fragile?

Yes, the carafe is glass and fragile. Do not use if cracked, avoid sudden temperature changes, and handle with care.

USER MANUAL ST-CM0169 Saturn

Exterior view of a Saturn 4<|im_start|> Greenland watermelander (no text or symbols visible on the device itself)

GB

Coffee Maker

Dear Buyer!

We congratulate you on having

bought the device under trade name

«Saturn». We are sure that our devices will become safe and

devices will become safe and reliable assistance in your

housekeeping

Avoid extreme temperature

changes. Rapid temperature change

(e.g. when the unit is moved from

freezing temperature to a warm

room) may cause condensation inside the unit and a malfunction

Inside the unit and a malfunction when it is switched on. In this case

when it is switched on. In this case leave the unit at room temperature

for at least 1.5 hours before

switching it on.

If the unit has been in transit, leave

it indoors for at least 1.5 hours

before starting operation.

Important Safeguards:

When using electrical appliances, basic safety preparations should always be

safety precautions should always be followed to reduce the risk of fire.

electrical shock and/or personal injury.

1. Read all Instructions.

2. Make sure that your outlet voltage

corresponds to the voltage stated on the

rating label of the coffee maker.

1. Do not immerse appliance, cord or plug in water on other liquid.

plug in water of other liquid.

1. Unplug from outlet when not in use and before cleaning. Allow to cool

and before cleaning. Allow to tool before putting on or taking off parts

before putting on or taking on pa and before cleaning the appliance.

1. Do not operate any appliance with a

damaged cord or plug, or in abnormal

state. If its main cord is damaged, it

must be replaced by the manufacturer,

by nearest service agent or a qualified person.

1. Do not use accessories not

recommended by the applianc

manufacturer. It may result in fire,

electric shock and/or personal injury.

1. Do not let the cord hang over edge of table or counter or touch hat.

of table of counter of touch not surfaces.

surfaces.

1. Do not place on or near a hot gas,

electric burner or in a heated oven.

1. To disconnect the appliance, remove plug from the wall outlet

Always hold the plug, never pull the

Always held the plug, never pull the cord.

1. Do not use the appliance for

other purposes. Store it in a dry

environment.

1. Do not leave the coffee maker

unattached while it is operating.

1. Be careful not to get burned by the steam

2. Do not touch hot surface. Use

3. Do not touch hot surfaces, use handles or knobs only.

4. The container is designed for use

with this appliance. Never use it on a

range top

1. Do not put a hot container on a wet

or cold surface

1. Do not use a cracked container or a container, showing a large container

container having a loose or weakened handle.

1. Do

2. DO NOT CLEAN CONTAINER WITH cleanscero, steel wool node or ot

cleansers, steel wool pads of other abrasive materials.

1. Never use the appliance if the carafe

2. Never use the appliance in the carafe shows any signs of cracks. Use carefully

as the carafe is very fragile

1. Never use your coffee maker

without water in it

1. Never leave the empty container on

the keeping warm plate otherwise the

container can be cracks.

1. This appliance is not intended for use by persons (including children) w

use by persons (including children) with reduced physical, sensor or mental

capabilities, or lack of experience a

knowledge, unless they have been given

supervision or Instruction concerning

use of the appliances by a person

responsible for their safety

1. Children should be supervised to

ensure that they do not play with the

appliance.

1. This appliance is intended to be used in household and similar

used in household and similar applications such as:

applications such as

- staff kitchen areas in shops, offices and other working environment.

and other working environments, - farm houses:

- by clients in hotels, motels and other

residential type environments;

- bed and breakfast type environments.

1. Do not use outdoors.

2. Save these instructions.

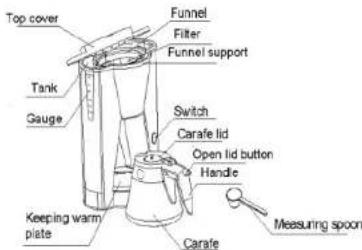

Know your coffee maker:

Before your first use

Check that the accessories are complete

and the unit is not damaged. Then do

not pour in ground coffee, brew clean

water up to MAX marker according to

the steps below for one or two times, then pour out. Clean carafe, funnel thoroughly with warm water.

Operation instruction

1) Open the tank cover of coffee maker, fill proper amount water into tank with carafe. The water level should not exceed the MAX level.

2) Place the funnel into the funnel support, make sure it is assembled correctly. For the detail steps refer to the figure at the end of instruction. Then put the filter correctly.

3) Add ground coffee into the filter. Usually a cup of coffee requires a level spoon of ground coffee, but you may adjust quantity of coffee according to you taste.

4) Insert the carafe on the warm plate horizontally.

5) Plug the power cord into the outlet, turning on the switch, the indicator will be illuminated. The appliance begins to work.

Note: you can take out carafe, pour and serve coffee at any time. The appliance will stop dripping automatically. But the time cannot exceed 30 seconds.

7) Do not open the tank cover when the coffee maker is operating. The hot water in the tank may splash and cause scalding.

8) You can take out carafe, pour and serve when finish brewing (about one minute later after the coffee stops dripping out.)

9) When the process is finished and if you do not want to serve immediately, do not unplug the power and keep the switch is on. The coffee can be kept warm in the keeping warm plate. The keeping warm time will not exceed 1 hour. For an optimum coffee taste, serve it just after brewing.

10) Always turn the coffee maker off and unplug the power cord from the electrical outlet when the coffee maker is not in use.

Note: pay attention when pouring the coffee out, otherwise you it may cause scalding as the temperature of prepared coffee is high.

Cleaning and maintenance

Caution: be sure to unplug this appliance before cleaning. To protect against electrical shock, do not immerse cord, plug or unit in water or other liquid. After each use, always make sure the plug is first removed from wall outlet.

1. Clean the funnel and carafe after each use in hot, sudsy water.
2. Wipe the product's exterior surface with a soft, damp cloth to remove stains.

3. Water droplets may buildup in the area above the filter and drip into the product base during brewing. To control the dripping, wipe off the area with a clean, dry cloth after each use of the product.

4. Use a damp cloth to gently wipe the keeping warm plate. Never use abrasive cleaners to clean it.

Cleaning of mineral deposits To keep your coffee maker operating efficiently, you should clean away the mineral deposits left by the water regularly according to the water quality in your area and the frequency use the appliance.

The details are as follows: pour the water and vinegar mixture into the tank, do not place into ground coffee, brewing the water-vinegar solution according to "Operation instructions". Repeat it until no yellow liquid comes out if necessary, then pour out the mixture, brewing with tap water until no vinegar odor is left.

HINTS FOR GREAT-TASTING COFFEE 1. A clean coffee maker is essential for making great-tasting coffee. Regularly clean the coffee maker as specified in the "Cleaning and maintenance" section. Always use fresh, cold water in the coffee maker.

1. Store unused coffee grounds in a cool, dry place. After opening a package of ground coffee, reseal it tightly and store it in a refrigerator to maintain its freshness.

2. Do not reuse ground coffee since this will greatly reduce the coffee' flavor. Reheating coffee is not recommended as coffee is at its peak flavor immediately after brewing.

3. Clean the coffee maker when over-extraction causes oiliness. Small oil droplets on the surface of brewed, black coffee are due to the extraction of oil from the ground coffee.

4. Illness may occur more frequently if heavily roasted ground coffee is used.

THE DETAILS ASSEMBLING STEPS FOR FUNNEL

Water will overflow if funnel is not locked firmly and properly. Funnel should not move when engaged

1. With tank cover open, locate slot on both sides of the opened coffee maker

Mechanical assembly diagram showing a piston-cylinder joint with a red arrow indicating a force or direction (no text or symbols present)

1. Firmly press the funnel into coffee maker while holding handle upright.


Mechanical assembly diagram showing a bucket with a red arrow indicating force or motion (no text or symbols present)

Technical Data:

Power: 1000 W

Rated Voltage: 220-230 V

Rated Frequency: 50 Hz

Rated Current: 4.54 A

Set

Coffee maker 1

Measuring spoon 1

Instruction manual with

warranty book 1

Warranty Package

ENVIRONMENT

FRIENDLY

FRIENDY DISPOSAL

DISPOSAL

You can help prot

the environment!

Please remember to

respect the local

regulations: han

the non-working

electrical equipments

to an appropriate

waste disposal center.

The manufacturer reserves the right to change the specification and design of goods.

P11

КОФЕВАРКА

1. Locate tabs on funnel and lower funnel into coffee maker with the handle upright.

Technical line drawing of a bucket with red arrows indicating direction (no text or symbols)

1. Lower funnel handle down so that tabs lock under slots.


Mechanical assembly diagram showing a rotating component with a lever and shaft (no text or symbols)

The Warranty is provided for the period of 2 years or more if the Law on User Right of the country where the appliance was bought provides for a greater minimum warranty period.

All terms of warranty comply with to the Law on Protection of the Consumer Rights and are governed by the legislation of the country where the product was bought.

The warranty and free of charge repair are provided in any country where the product is delivered to by Saturn Home Appliances or authorized representative thereof, and where no restriction of import or other legal provisions interfere with rendering of warranty services and free of charge repair.

Cases uncovered by the warranty and free of charge repair:

1. Guarantee coupon is filled in improperly.

2. The product has become inoperable because of the Buyer's non-observance of the service regulations indicated in the Instruction.

3. The product was used for professional, commercial or industrial purposes (except for the models, specially intended for this purpose that is indicated in the instruction).

4. The product has external mechanical damage or damage caused by penetration of the liquid inside, dust, insects and other foreign objects.

5. The product has damages caused by non-observance of the rules of power supply from batteries, mains or accumulators.

6. The product was exposed to opening, repair or modification of design by the persons, unauthorized to repair; independent cleaning of internal mechanisms etc. was made.

7. The product has natural wear of parts with limited service life, expendables etc.

8. The product has deposits of scale inside or outside of fire-bar elements, irrespective of used water quality.

9. The product has damages caused by effect of high (low) temperatures or fire on non-heat resistant parts of the product.

10. The product has damages of accessories and nozzles which are included into the complete set of product shipment (filters, grids, bags, flasks, cups, covers, knives, sealing rings, graters, disks, plates, tubes, hoses, brushes, and also power cords, headphone cords etc.).

On the warranty service and repair, please contact the authorized service centers of Saturn Home Appliances.

CZ

MEZINÁRODNÍ ZÁRUKA

When purchasing the product, please require its checking before you; BE SURE that the goods sold to you, are functional and complete and that the warranty coupon is filled in correctly.

This warranty coupon confirms the absence of any defects in the product you purchased and provides for free of charge repair of the product failed through the fault of the manufacturer throughout the period of warranty service and free of charge repair.

Failing the presentation of this coupon, in case of its improper filling in, infringement of factory seals (if any), and also in cases indicated in the warranty obligations, the claims are not accepted, and no warranty service and free of charge repair is made! The warranty coupon is valid only in the original copy with the stamp of trading organization, signature of the seller, date of sale and signature of the buyer.

CZ

ZÁRUČNÍ LIST

Buyer's Signature confirming the acquaintance and consent with conditions of free of charge maintenance service of the product, and absence of the complaints on appearance and color of the product.
