Product Type	Electric Patio Heater
Model	Smart-Heat BH3622006
Brand	Bromic
Power Source	Electric (Hardwired)
Power Consumption	2000 W
Voltage	220-240 V ~ 50/60 Hz
Heating Element	Quartz Infrared
Heat Settings	2 (Low / High)
Dimensions (H x W x D)	180 cm x 30 cm x 30 cm
Weight	10 kg
Mounting Type	Wall-Mounted or Freestanding (with optional base)
Remote Control	Included
Thermostat	Adjustable Thermostat
Timer Function	Yes (1-9 hours)
Safety Features	Tip-Over Switch, Overheat Protection, Cool-Touch Housing
Weather Resistance	IPX4 (Splash-Proof)
Material	Stainless Steel and Toughened Glass
Certification	CE, RoHS
Warranty	2 Years
Recommended Use	Outdoor Patios, Balconies, Terrace

Frequently Asked Questions - Smart-Heat BH3622006 Bromic

What is the recommended clearance for installation?

Maintain at least 1 meter clearance from combustible materials and 0.5 meters from ceilings or overhangs.

Can the heater be used indoors?

This heater is designed for outdoor or well-ventilated areas only. Do not use in enclosed spaces.

How do I clean the heater?

Turn off and unplug the heater. Wipe with a soft, damp cloth. Do not use abrasive cleaners or immerse in water.

What should I do if the heater does not turn on?

Check that the power supply is connected and the circuit breaker is not tripped. Ensure the remote control has batteries.

Is the heater safe to touch?

The housing remains cool to the touch due to double-wall construction and cool-touch technology. However, avoid direct contact with the heating element.

Can I mount the heater on a wooden wall?

Yes, but ensure the wall is non-combustible or use a heat shield. Follow local building codes.

How do I replace the remote control battery?

Slide open the battery cover on the back of the remote and replace with a CR2025 coin cell battery, positive side up.

Does the heater have a timer?

Yes, you can set the timer from 1 to 9 hours using the remote control or the control panel.

What is the coverage area?

The heater effectively covers an area of up to 20 m² (215 ft²) when mounted at the recommended height.

Can I use an extension cord?

If necessary, use a heavy-duty extension cord rated for 12 amps or higher, and keep it as short as possible.

USER MANUAL Smart-Heat BH3622006 Bromic

PLATINUM SMART-HEAT™ ELECTRIC

Available in black and white, our Platinum Smart-Heat ^™ Electric heater is specifically suited for low-clearance and design-focused spaces. This slim-line, stainless-steel unit spreads comfort evenly in its space, all while minimizing light emission and blending seamlessly into the background with our recess mounting solutions.

2300W, 3400W & 4500W SERIES BLACK | WHITE

2300W, 3400W & 4500W SERIES BLACK | WHITE

SPECIFICATIONS

Reference the specification guide below to help you select the correct solution for your needs.

MODEL NUMBER
2300W SERIES 3400W SERIES 4500W SERIES

PRODUCT CODES PLATINUM ELECTRIC	BH0320003 | BH0320007BH0320019 | BH0320020	BH0320005 | BH0320008BH0320021 | BH0320022	BH3622000 | BH3622004BH3622001 | BH3622005
PRODUCT CODES PLATINUM ELECTRIC MARINE	BI 0320015 | BI 0320017BH0320025 | BH0320024	BI 0320016 | BI 0320018BH0320025 | BH0320026	BI 03622002 | BI 03622006BH3622003 | BH3622007
FUEL TYPE	ELECTRIC ELECTRIC ELECTRIC
COLOR	BLACK | WHITE BLACK | WHITE BLACK | WHITE
HEAT AREA	65°F	108°F	143°F
RATED CURRENT**	220 - 240V/9.6A208V/11A	220 - 240V/14.2A208V/16.3A	220 - 240V/18.8A208V/21.6A
MINIMUM FLOOR CLEARANCE	WALL 72" | CEILING 96" WALL 72" | CEILING 96" WALL 72" | CEILING 96"

MOUNTING OPTIONS

CEILING MOUNT	INCLUDED INCLUDED INCLUDED
WALL MOUNT	INCLUDED INCLUDED INCLUDED
RECESS KIT | FLUSH MOUNT	√	√	√
CEILING RECESS KIT PRODUCT CODES	BH313007	BH3130027	BH3623000
NEW RECESS KIT | LOW CLEARANCE	√	√	-
LOW CLEARANCE RECESS KIT PRODUCT CODES	BH3623009	BH3623008	-
CEILING POLE EXTENSION	√	√	√
CEILING POLE (2') PRODUCT CODE	BH3130023-1	BH3130023-1	BH3623020
CEILING POLE (4') PRODUCT CODE	BH3130024-1	BH3130024-1	BH3623021
FREESTANDING	-	-	-

CONTROL OPTIONS

ON | OFF	√	√		√
ON | OFF PRODUCT CODE	BH3130010-1 BH3130010-1		BH3130010-1
DIMMER	√	√		√
DIMMER PRODUCT CODE	BH313001H BH313001H		BH313001H-1
MASTER REMOTE *	√	√		√
MASTER REMOTE PRODUCT CODE	BH3130012-1 BH3130012-1		BH3130012-1

Control up to six zones of heaters with unimixed heaters per zone from a single remote control. Dimmer control required. Works with dimming controls. Remote control operates within 100 fl of heaters. ¹³ Available in 208V and 220-240V configurations.
Measurements displayed within this document are for reference only, for complete requirement, based the installation/user manual. Biomic takes no responsibility for income, or non-compliant installations. All measurement in this document are displayed in inches.

DIMENSIONS

With a wide range of sizes available, find the ideal heater to suit your outdoor space.

CONTROL OPTIONS

ON | OFF CONTROL

DIMMER CONTROL

MASTER REMOTE

PROFILE
2300W

3400W

4500W

CEILING RECESS
CEILING RECESS FRAME 2300W

CEILING RECESS FRAME 3400W

CEILING RECESS FRAME 4500W

LOW CLEARANCE RECESS KIT 2300/3400W

MINIMUM CAVITY OPTION 1 2300/3400W

MINIMUM CAVITY OPTION 2 2300/3400W

MINIMUM CAVITY FOR 4500W

MOUNT OPTIONS

With a wide array of mounting options, Bromic offers solutions to compliment any decor and provide functionality for ambiance and comfort.

HEATING REACH

Creating ideal comfort levels, Bromic heaters offer a variety of heat distribution options to suit your outdoor heating needs.

CEILING & WALL MOUNT
CEILING MOUNT CLEARANCE

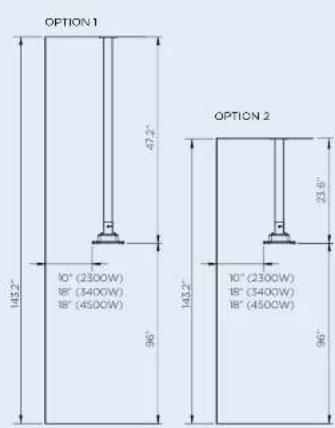

CEILING POLE CLEARANCE

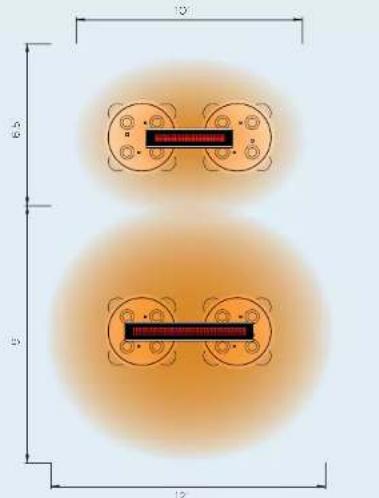

HEAT AREA
2300W SERIES
HEATING APPROXIMATE PRICE 2300W HEATING POWER
HEATING APPROXIMATELY OBT? \$400W HEATING POWER

3400W SERIES

WALL BRACKET (INCLUDED)

CEILING BRACKET (INCLUDED)

4500W SERIES
HEATING APPROXIMATELY 435FT 450KW HEATING POWER

EXTEND YOUR COMFORT OUTDOORS WITH THE SUPERIOR HEAT AND AWARD-WINNING DESIGN OF OUR SMART-HEAT ¹ OUTDOOR HEATERS.
