| Product Type | DLP Video Projector |
| Model | ACER GM525K |
| Resolution | SVGA (800 x 600) |
| Brightness | 2500 ANSI Lumens |
| Contrast Ratio | 2000:1 |
| Lamp Life | Up to 4000 hours (Standard Mode) |
| Projection Lens | Manual Zoom & Focus |
| Keystone Correction | ±40° Vertical |
| Inputs | VGA, S-Video, Composite Video, Audio In |
| Dimensions (W x D x H) | 286 x 192 x 97 mm |
| Weight | 2.5 kg (5.5 lbs) |
| Power Supply | AC 100-240V, 50/60 Hz |
| Power Consumption | 230W (max), <1W (Standby) |
| Fan Noise | 30 dB (Standard Mode) |
| Lamp Type | 190W P-VIP |
| Supported Aspect Ratio | 4:3, 16:9 |
| Maintenance | Clean air filter every 500 hours; replace lamp when indicator turns red |
| Safety | Do not look directly at lens; ensure proper ventilation |
| Spare Parts | Replacement lamp (model: MC.JG711.001) and air filter |
Frequently Asked Questions - GM525K ACER
How do I replace the lamp on the Acer GM525K?

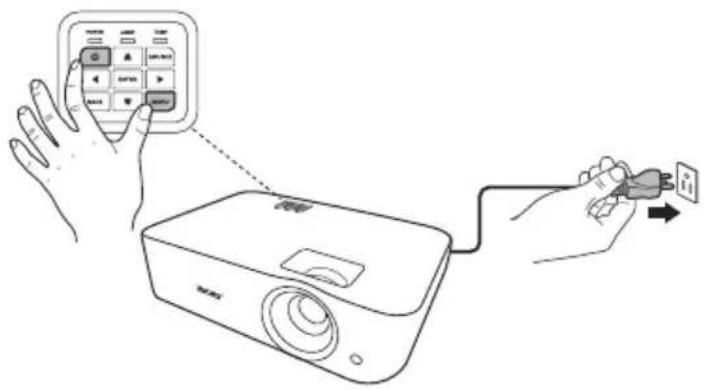

Turn off the projector and unplug it. Wait for the lamp to cool. Remove the lamp cover screw, slide out the old lamp module, insert the new one, and secure the cover. Reset the lamp hour counter via the OSD menu.
Can I connect my laptop to the GM525K?

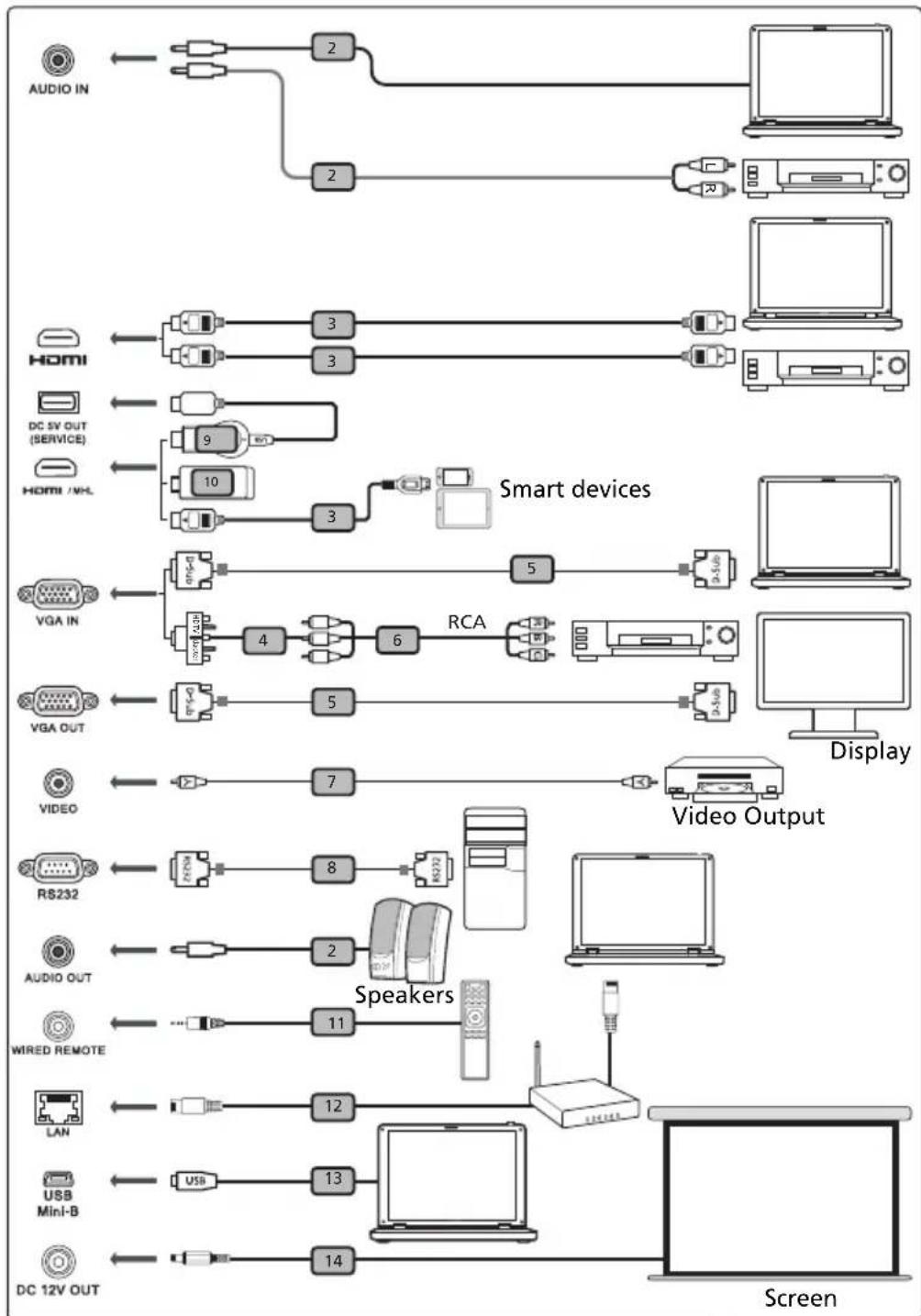

Yes, use a VGA cable to connect your laptop's VGA port to the projector's VGA input. You may also need to press the 'Source' button to select VGA.
How do I adjust keystone correction?
Press the 'Keystone' button on the remote or projector, then use the arrow keys to correct vertical distortion. The GM525K supports ±40° vertical keystone.
Why is the projector overheating?
Check if the air filter is clogged. Clean the filter with a vacuum cleaner. Also ensure the projector has at least 30 cm clearance around the vents.
What is the recommended projection distance for a 100-inch screen?
For a 100-inch diagonal image, place the projector approximately 3.5 to 4 meters away from the screen, depending on zoom settings.
How do I clean the lens?
Use a soft, dry microfiber cloth. Gently wipe the lens in a circular motion. Avoid using liquid cleaners or abrasive materials.
The image is blurry, what should I do?
Adjust the focus ring on the lens. If still blurry, check that the projector is at the correct distance and that the keystone correction is not excessive.
Can I use the projector without a remote?

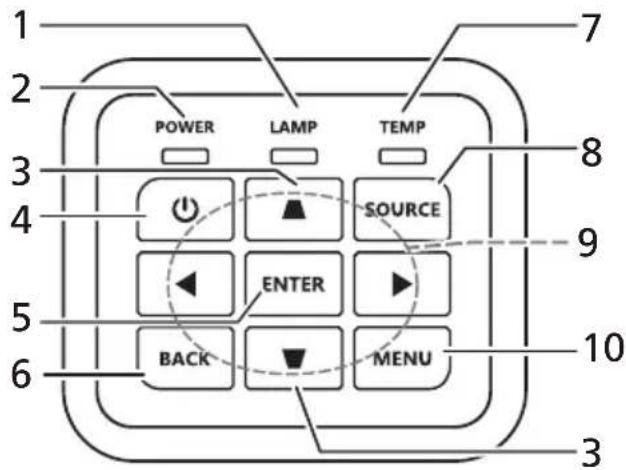

Yes, the control panel on the projector includes buttons for power, menu, source, keystone, and navigation.
What does the 'Lamp' indicator mean?
A steady red light indicates the lamp needs replacement soon. A blinking red light means the lamp has reached the end of its life and must be replaced immediately.
How do I reset the lamp hour counter?
Go to the OSD menu, select 'Management' > 'Lamp Hour Reset', then press 'Enter' and confirm. This should be done after replacing the lamp.
