Product Type	Portable Ice Maker
Brand	Innoliving
Model	INN-853
Dimensions (W x D x H)	Approx. 30 x 25 x 35 cm
Weight	Approx. 12 kg
Power Supply	AC 220-240V, 50/60Hz
Power Consumption	150 W
Ice Production Capacity	Up to 12 kg per day
Ice Cube Size Options	Small / Large (selectable)
Water Tank Capacity	2.2 L
Refrigerant	R600a
Functions	Auto water refill, ice full indicator, transparent window
Cleaning and Maintenance	Descale regularly with vinegar solution; clean interior with damp cloth
Safety Features	Auto shut-off when ice basket full, low water alarm
Spare Parts Included	Ice basket, ice scoop
Repairability	User-replaceable parts: ice basket, scoop; professional service for internal components
Noise Level	Approx. 45 dB
Operating Temperature Range	10°C to 35°C
Certifications	CE, RoHS

Frequently Asked Questions - INN-853 Innoliving

How do I start making ice with the INN-853?

Fill the water tank with clean water up to the MAX line. Plug in the appliance, press the power button, and select the ice cube size (small or large). The machine will start producing ice automatically.

How long does it take to make ice?

The first batch typically takes 6-8 minutes. Subsequent batches may take 10-15 minutes depending on ambient temperature and water temperature.

What should I do if the ice cubes are too small or too large?

Check the selected ice size. You can change it by pressing the size button. Also, ensure the water temperature is below 25°C for optimal performance.

How do I clean the ice maker?

Unplug the unit, remove the ice basket and scoop, and wipe the interior with a soft cloth dampened with a mixture of water and mild detergent. Rinse with clean water and dry thoroughly. Descale every 2-3 months using a vinegar solution.

What does the 'Add Water' indicator mean?

The water tank is empty or below the minimum level. Refill with fresh water to resume ice making. The machine will automatically stop when the tank is empty.

Why is my ice maker not producing ice?

Common causes: water tank empty, ambient temperature too high (above 35°C), or the machine is in defrost cycle. Check the water level and ensure the room is cool. If the problem persists, allow the refrigerant to settle for 5-10 minutes after unplugging.

Can I use the ice maker outdoors?

It is designed for indoor use only, in a well-ventilated area away from direct sunlight and heat sources. Do not expose to rain or moisture.

What is the maximum ice storage capacity?

The ice basket holds up to 800 g of ice. Once full, the machine will stop producing ice and the 'Ice Full' indicator will light up. Empty the basket to resume.

How do I change the ice cube size?

Press the 'Select' button on the control panel to toggle between small and large ice cubes. The corresponding indicator will light up. The change takes effect for the next batch.

Is the INN-853 energy efficient?

With a power consumption of only 150W, it is relatively energy efficient. It also has an auto shut-off feature when the ice basket is full or water tank is empty, saving energy.

USER MANUAL INN-853 Innoliving

innoliving easy tech, easy life

FABBRICATORE DI GHIACCIO ICE MAKER

White ice cream maker with open lid and digital display, labeled 'innoliving' (no other text or symbols visible)

INN-853

MANUALE D'USO

USER MANUAL

PANNELLO DI CONTROLLO

ACCENSIONE

Thank you for purchasing the ice cube maker Innoliving INN-853..

Before use, read the instruction manual carefully and keep this manual safe for future references.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic safety regulations must be observed, including:

1. Read carefully the instruction manual and keep it safe for future references
2. Before connecting the appliance, check that the voltage indicated on the rating label corresponds to the main voltage in your home.
3. Before using the appliance for the first time, leave the transparent lid open for at least two hours.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its after sales service or similar qualified persons in order to avoid any hazards.
5. Do not overturn the product.
6. To avoid the risk of electric shock, do not immerse the product in water or other liquids.
7. Disconnect the plug from the mains when the product is not in use and before proceeding with any cleaning or maintenance operations.
8. Keep 8cm of distance between the appliance and any other object around in order to grant a good heat release.
9. Do not use accessories different than those supplied.
10. This appliance can be used by children from 8 years old and by persons with reduced physical, sensory or mental abilities or without experience or knowledge of the product only under the supervision of a responsible person or in case they have received specific information about safe use of the appliance and have understood the risks

associated with it.

1. This product is not a toy. Children should be supervised to ensure they do not play with the appliance.

2. Cleaning and maintenance operation should not be performed from children without supervision.

3. Do not use the appliance near flames, hotplates, heaters or any other heat sources.

4. Do not press the power button too frequently, wait at least 5 minutes between one process and the other to avoid damaging the compressor.

5. Do not insert any foreign object in the product.

6. Do not use the appliance outdoors.

7. Do not use any chemical or abrasive detergent to clean the product.

8. WARNING: do not store explosive substances such as aerosol sprays or other flammable materials inside the product.

9. This appliance is intended for domestic and internal use only, such as:

- kitchen areas for staff in shops, offices and other work environments;

- Farmhouses;

- From customers in hotels, motels, b & bs and other residential environments.

This product is isolating class I. Connect only to sockets with earth connection WARNING: fill only with drinking water

WARNING: keep all ventilation openings free from obstructions

WARNING: to accelerate the defrosting process, do not use mechanical devices or any other device different from those recommended by the manufacturer

WARNING: do not damage the refrigerant circuit

WARNING: do not use electrical devices inside the compartments unless they are the same as recommended by the manufacturer.

WARNING: When placing the product, make sure the power cord is not trapped or damaged.

WARNING: do not place multiple sockets or mobile power supplies behind the appliance.

CAUTION: This product contains a small amount of isobutane based refrigerant (R600a), an eco-compatible, but also flammable natural gas. During transport and installation of the appliance, be careful not to damage any component of the refrigeration system.

This refrigerant requires the product to be disposed as required by law.

ATTENTION: DANGER OF FIRE Refrigerant (R600a) is flammable.

In case of leaks, avoid using flames or inflammable material and ventilate the room where the product was used for a few minutes.

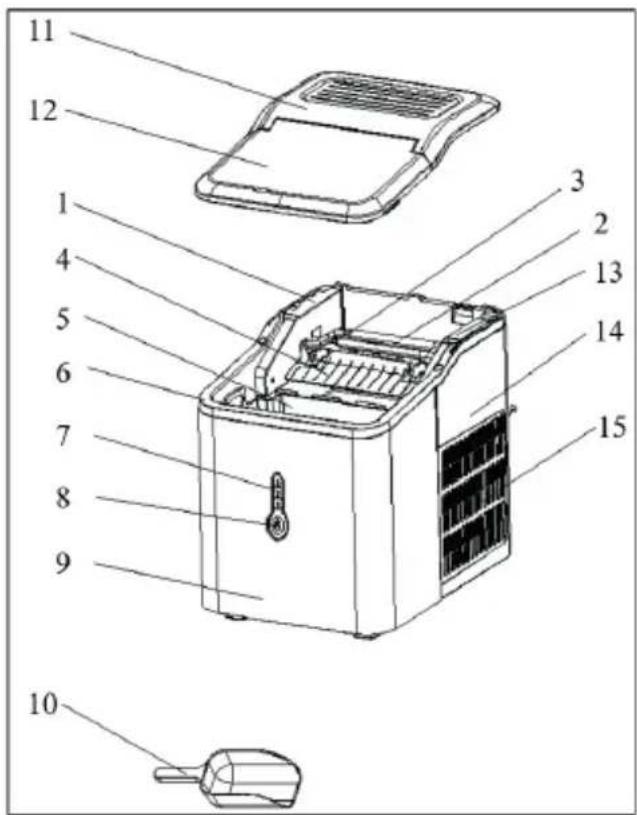

PRODUCT DESCRIPTION

1. Microswitch
2. Evaporator
3. Water tray
4. Ice shovel board
5. Ice collecting tray
6. Water box
7. Control panel
8. ON/OFF Switch
9. Front housing
10. Ice shovel
11. Top cover
12. Transparent lid
13. Motor Mount
14. Back housing
15. Air vent

CONTROL PANEL

ICE FULL: ice container full

ADD WATER: missing water icon

ICE MAKING: ice production

POWER ON

Connect the product to the power supply. The ICE MAKING icon starts flashing and the machine starts the defrost function. Press the ON/OFF button, the ICE MAKING icon comes on and then ice making starts automatically. At the end of the ice production, the cubes are made to slide inside the tank.

1) ADD WATER: missing water icon

When the ADD WATER icon turns red, there is not enough water in the tank. You need to add water and press the ON/OFF button to restart the machine.

2) ICE FULL: ice container full

When the ice tank reaches its maximum capacity, the ICE FULL icon flashes and the machine stops. In this case, empty the ice tank to restart ice production.

3) ICE MAKING: ice production

When the icon is on, means that the machine is preparing ice.

OPERATION MODE

Step 1

Open the lid and remove the ice basket, then add the water to the tank.

Note: there is a maximum MAX level in the tank. The water must not exceed this level. If the water exceeds it, you need to open the bottom drain plug and drain the excess water.

Step 2

Plug in the power and press the power button to start the machine.

CAUTION

1. For the first three cycles of use, the ice produced is small and patchy.
2. When the ice tank is full, remove the ice immediately, do not let the ice overflow from the tank.

CARE AND MAINTENANCE

Frequently clean the internal parts, the ice tank, the water tank, the ice shovel and the evaporator. While cleaning, unplug the unit and remove the ice cubes. Use a diluted solution

of water and vinegar to clean the inside and outside of the ice maker. Do not spray chemicals or diluted agents such as acids, gasoline or oil. Rinse thoroughly before starting.

Keep the ventilation openings of the unit clear of obstructions. Do not use mechanical devices or other means to speed up the defrosting process.

Periodically reuse the machine after a period of inactivity; there may be a need to add water to the tank.

To ensure proper ice hygiene, change the water in the water tank at least once a day. If not used for a long time, drain the water and replace it.

Always use potable water for ice production both on first use and after a long period of inactivity.

TROUBLE SHOOTING

1. In the event of a power failure due to disconnection of the power cord or if the power button was pressed during an ice-making cycle, it is possible that small pieces of ice may form and become stuck in the blade. automatic causing jamming. In this case, the ice fragments can be removed by unplugging the power cord and gently pushing the shovel back, so that you have access to the fragments and can remove them, and then start the machine.

PROBLEM POSSIBLE	CAUSE SOLUTION
Compressor malfunctions with noise	The voltage is lower than recommended	Turn off the machine and do not restart it until the voltage is adequate.
Add water light on 1. There	is no water2. The pump is filled with air	1.Add a little water until reaching the MAX position2.Press the POWER button to restart
The indicators on the display do not light up	Blown fuse / No power Replace the fuse / Turn on the machine
The ice produced is too big and the cubes stick together	Ice from previous cycles left in the water tank	Take out the ice in stand-by mode
The ice making process is running, but no ice has come out	1. The compressor has no refrigerant2. Compressor damaged3. Fan motor damaged	Call customer service
All indicators flash at the same time	1. The water tray is blocked by the ice cube2. The motor is stuck, moving or damaged3. Micro switch damaged	1. Disconnect the power to take out the ice blocking the tray, then connect the power and press the POWER button, the machine will restart 3 minutes later.2. Call customer service
The machine worked, but the water got warm	The solenoid is broken 1. Replace the solenoid2. Call customer service
When the ice tank is full, the ICE FULL light does not come on	ICE FULL sensor damaged 1.	Replace the full ice sensor2. Making ice indoors3. Call customer service

RATING LABEL

Innoliving Spa

Via Merloni 2/B - 60131 Ancona - Italy

INN-853 ICE MAKER

FABBRICATORE GHIACCIO

Classe climatica: SN/N

Classe isolamento I

Capacità: 1,5 L

Corrente: 1 A

Refrigerante R600a (20g)

This product complies with all applicable European directives.

Food Contact

Read carefully the instruction manual

IINFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste.

The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014
