SM3392 - Kitchen appliance Concept - Free user manual and instructions

Brand	Concept
Model	SM3392
Product type	Multifunction food processor
Dimensions (L x D x H)	35 x 25 x 30 cm
Weight	5.2 kg
Power	1000 W
Bowl capacity	3.5 L
Bowl material	Tempered glass
Main functions	Blend, chop, knead, beat, emulsify
Included accessories	Whisk, dough hook, chopping blade, measuring lid
Speeds	6 speeds + pulse function
Power supply	220-240 V, 50-60 Hz
Power cord	1.2 m, detachable
Care and cleaning	Bowl and accessories dishwasher safe
Safety	Bowl locking, automatic shut-off in case of overload
Certifications	CE, RoHS
Warranty	2 years
Spare parts and repairability	Available through Concept customer service, repairability index 8.5/10
Color	White with silver accents
Use	Domestic

Frequently Asked Questions - SM3392 Concept

What are the main functions of the Concept SM3392?

The SM3392 food processor allows you to blend, chop, knead, beat and emulsify thanks to its included accessories (whisk, dough hook, chopping blade). It has 6 speeds and a pulse function for precise control.

What is the bowl capacity of the SM3392?

The tempered glass bowl has a capacity of 3.5 liters, ideal for preparing family-sized quantities. The bowl is also dishwasher safe for easy cleaning.

Is the Concept SM3392 food processor easy to clean?

Yes, the glass bowl and accessories (whisk, hook, blade) are dishwasher safe. The motor unit can be wiped with a damp cloth.

What are the dimensions and weight of the SM3392?

It measures approximately 35 x 25 x 30 cm (L x D x H) and weighs 5.2 kg, making it compact and easy to store.

Is the SM3392 equipped with safety devices?

Yes, the food processor has a bowl locking system to prevent accidental startup and automatic shut-off in case of overload or overheating.

What accessories are supplied with the Concept SM3392?

The package includes: a whisk, a dough hook, a chopping blade and a measuring lid. Additional accessories can be purchased separately.

Is the power cord detachable?

Yes, the 1.2 m power cord is detachable for easy storage. The appliance operates on a power supply of 220-240 V, 50-60 Hz.

Where can I find spare parts for the SM3392?

Spare parts and accessories are available from Concept customer service or on their website. The repairability index is 8.5/10, indicating good repairability.

What is the warranty of the Concept SM3392 food processor?

The food processor is covered by a 2-year warranty against manufacturing defects. In case of issues, contact Concept's after-sales service.

Can I use the SM3392 to knead bread dough?

Absolutely, the dough hook is specially designed for kneading leavened doughs. The 3.5 L capacity allows you to prepare up to 1 kg of flour.

USER MANUAL SM3392 Concept

Product display of a smart blender with various shades and packaging, including a concept blender and a red cover (no text or symbols on the main objects)

CZ

ESBGLVSKPI

concept

PODĚKOVÁNÍ

4

Close-up of a transparent cylindrical object with a black base and internal structure (no visible text or symbols)

5
6

NÁVOD K OBSLUZE

UPOZORNĚNÍ

Close-up of a black and transparent blender with handle and internal components (no visible text or symbols)

Close-up of a black and transparent blender with handle and internal components (no visible text or symbols)

Three transparent plastic containers with red and black lids, arranged in a diamond-shaped arrangement (no text or symbols visible)

INSTRUKCJA OBSŁUGI

UWAGA

Close-up of a black and transparent kitchen blender with handle and control knob (no text or symbols visible)

Close-up of a black and transparent blender with handle and internal components (no visible text or symbols)

Three transparent plastic containers with red and black lids, arranged in a diamond frame (no text or symbols visible)

4

Close-up of a transparent cylindrical object with a black base and small protrusions, no visible text or symbols.

5
6

EKSPLUATĀCIJAS NORĀDĪJUMI

BRĪDINĀJUMS

Close-up of a black and white kitchen blender with handle and control knob (no visible text or symbols)

Three transparent plastic containers with red and black lids, arranged in a diamond shape (no text or symbols visible)

4

Close-up of a transparent cylindrical object with a black base and internal structure (no visible text or symbols)

5
6

SM 3390

РЪКОВОДСТВО ЗА УПОТРЕБА

ПРЕДУПРЕЖДЕНИЕ

Close-up of a black and white kitchen blender with handle and control panel (no visible text or symbols)

Thank you for purchasing a Concept product. We hope you will be satisfied with our product throughout its service life.

Please study the entire Operating Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure other people using the product are familiar with these instructions.

Technical parameters
Voltage 220 – 240 V~ 50/60 Hz
Input 500-700 W
Noise level depending on accessories connected max. 88	dB(A)
Time of continuous operation (KB) max. 60 sec.

IMPORTANT SAFETY INSTRUCTIONS:

• Use the unit only as described in this operating manual.
• Remove all the covering and marketing materials from the unit before the first use.
• Make sure the mains voltage matches the value marked on the rating plate.
• Close supervision is necessary when the unit is on or plugged into the socket.
• Put the appliance on a flat, steady surface; do not put it on other appliances.
• Do not place the appliance close to flammable substances, fire, heating bodies or a hot oven.
• Do not cover the appliance. There is a risk of overheating.
• Do not put anything on the unit during operation.
• Never carry the unit during operation.
• Keep the unit clean; prevent debris or other foreign bodies from entering the openings of the unit body. Contaminants may short out the unit, causing damage or fire.
• Never pull the cord to disconnect the plug from the socket; hold the plug instead.
• Do not allow children or unskilled people to handle the unit. Use the unit out of the reach of these individuals.
• The appliance is not intended for use by people with reduced physical, sensory or mental capabilities or lack of knowledge, unless under the supervision of an acquainted person responsible for their safety.
• Pay the utmost attention when using the unit close to children.
• Do not use the appliance as a toy.
• Make sure the power cord does not hang over the working area, to prevent children from reaching it.
• The appliance is intended for interior use only; do not expose it to moisture. Otherwise, a risk of electrical shock may occur.
• Use manufacturer-recommended accessories only.
• Never use the appliance if the supply cord or plug is damaged. Immediately refer to an authorised service centre for repair.
• Never pull the supply cord or use it to carry the unit.
• Keep the appliance away from any other heat sources such as radiators, ovens etc. Do not expose the unit to direct sunlight or moisture.
• Never operate the appliance with wet hands.
• Turn off the product and disconnect the plug from the mains outlet before installing accessories, performing maintenance, or in the case of any failure.
• Do not touch the moving parts during operation of the unit. Wait until it stops completely.

EN

concept

• The appliance is intended for domestic use only, not for commercial use.
- Do not immerse the power cord, plug, or appliance in water or any other liquid.
- Check the appliance and power cord for damage regularly. Never switch on a damaged appliance.
- Prevent loose hair and garments from hanging close to the openings and moving parts of the appliance.
- Before plugging the unit in or unplugging it from the wall outlet, make sure the switch is OFF.
• Always take extra care when handling the blades and slicers. They are very sharp and could cause an injury.
- Turn the unit off, disconnect the power cord from the wall outlet, and allow the unit to cool before cleaning.

- The unit contains sharp parts. Extra care should be taken while cleaning the unit.

- Do not let the power cord hang loosely over the edge of the work area. Make sure the power cord does not touch hot surfaces.

- Do not let the unit hang loosely on the power cord.

- Do not use the unit without correctly mounted accessories.

- Do not let the appliance run when empty.

- Do not repair the appliance yourself. Refer to an authorised service centre instead.

- This appliance may be used by children 8 years of age and older and by persons with physical or mental impairments or by inexperienced persons if they are properly supervised or have been informed about how to use of the product in a safe manner and understand the potential dangers. Children must not play with the appliance. This appliance may be cleaned by children 8 years of age and older if they are properly supervised. Keep this appliance and the power cord out of reach of children younger than 8 years of age.

Failure to follow the manufacturer's instructions may lead to refusal of warranty repair.

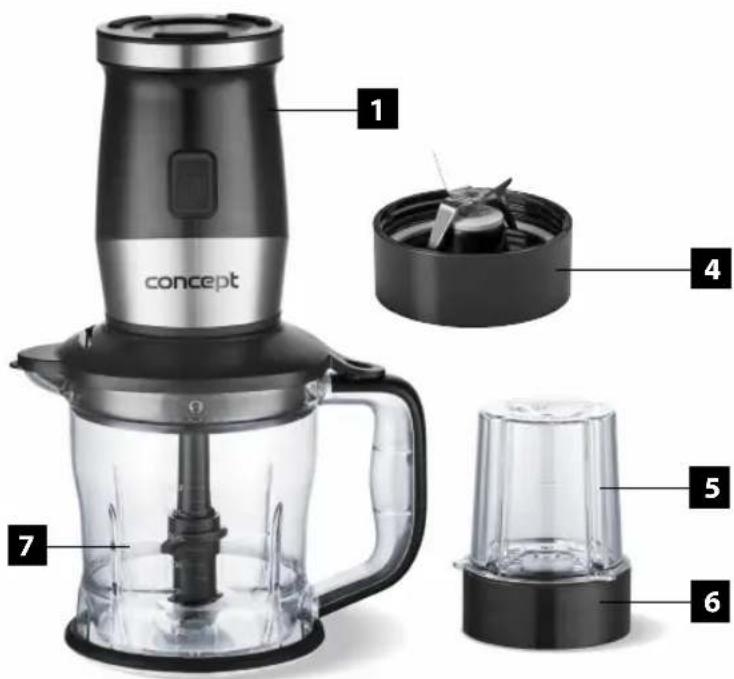

PRODUCT DESCRIPTION

1. Body of the unit
2. Blender jars
3. Blender jars lid
4. Blender blade part
5. Container of the mill
6. Mill blade part
7. Chop container

OPERATING INSTRUCTIONS

CAUTION

Prior to using a new unit, wipe the surface with a wet cloth and wash the removable accessories in warm water due to hygienic reasons.

The unit has a built-in safety catch. The motor can be switched on only if the accessories are properly mounted. Do not bypass the safety mechanism!

- Never leave the appliance unattended while it is running or connected to the mains.

- Some parts may keep moving for a while immediately after the motor has been switched off and the power cord disconnected from the socket. Wait until the accessories stop completely and only then open the lid.

MIXING

BLENDER IS DESIGNED FOR PROCESSING FRUIT AND VEGETABLE

1. Put the ingredients into the mixing jar (2) and screw in the blade assembly (4) to close the jar.
2. Put the mixing jar (2) onto the blender unit (1), so that the pins on the mixing jar (2) slip into the holes on the blender body (1) and turn the mixing jar (2) clockwise until an audible click is heard.
3. Uncoil the entire cord and plug into the outlet.
4. Press and hold the PULSE button to start blending. Release the PULSE button to stop blending.
5. When you finish blending, unplug the cord from the outlet.
6. Separate the mixing jar (2) from the body of the appliance (1).
7. Unscrew the blade assembly (4) and replace it with the jar cover (3). If you open the cap, you can drink directly from the jar.

CHOPPING

The chopping bowl is suitable for chopping meat, cheese, onions, herbs, garlic, carrots, walnuts, almonds, dried plums, etc.

Do not attempt to chop extremely hard foodstuffs such as nutmeg, coffee beans, or cereals. Items like meat, cheese, onions, garlic, carrots, or frozen food must be cut before chopping.

Remove the stems from herbs and all nutshells.

Remove bones, cartilage and tendons from the meat.

1. Fill the chopping bowl (7) with the ingredients and close it with the cover that holds the transmission.

2. Mount the unit body (1) on the lid with the transmission.

3. Uncoil the whole length of the power cord. Make sure it does not touch any nearby sources of heat. Insert the plug into the electric voltage socket.

4. Hold the body (1) with one hand and the chopping container (7) with the other.

5. Press and hold the PULSE button to start chopping. Release the PULSE button to stop chopping.

6. Switch the unit off after chopping. Use the release buttons to disconnect the unit body (1) from the lid with the transmission. Disconnect the cable from the socket.

7. Wipe the lid with the transmission using a wet cloth. Do not immerse in water or wash in running water!

Close-up of a black and transparent blender with handle and internal components (no visible text or symbols)

Recommended amount of food and preparation times

Food Maximum quantity Approximate cutting time
Meat (1 cm pieces) 200 g		15 s
Cheese (1 cm pieces) 200 g		15 s
Nuts 200 g		15 s
Herbs 40 g		10 s
Onions 200 g		15 s
Garlic 40 g		10 s
Carrots (1 cm pieces) 200 g		15 s
Hard-boiled eggs	2 eggs 15 s
Bread (1 cm pieces)	1 slice 15 s

MILLING

1. Put food in the mill container (5), do not exceed the marked maximum level, and close it by screwing in the mill blade part (6).
2. Put the mill container (5) on the body of the blender (1) so the latches on the container (5) fall into the holes on the body of the blender (1) and turn the container of the blender (2) clockwise until an audible click is heard.
3. Unroll the entire power cord and insert the plug into the mains.
4. Press and hold the PULSE button to start blending. Release the PULSE button to stop blending.
5. After the grinding process sis done, unplug the power cord from the mains.
6. Remove the mill container (5) from the body of the appliance (1).

CLEANING AND MAINTENANCE

Prior to any cleaning or change of the extensions, make sure the power cord is disconnected from the socket.

• Never immerse the motor part (1) or the power cord in water.
• Wipe the body of the unit (1) using a wet cloth only.
• Wash the replaceable parts in tepid water with detergent and rinse in clean water. Do not use pot scourers, abrasive agents or solvents to clean the appliance.

SERVICING

Any extensive maintenance or repair that requires access to the inner parts of the product must be performed by an expert service centre.

ENVIRONMENTAL PROTECTION

• Packaging materials and obsolete appliances should be recycled.
• The transport box may be disposed of as sorted waste.
• Polyethylene bags shall be handed over for recycling.

APPLIANCE RECYCLING AT THE END OF ITS SERVICE LIFE:

A symbol on the product or its packaging indicates that this product should not go into household waste. It must be taken to the collection point of an electric and electronic equipment recycling facility. By making sure this product is disposed of properly, you will help prevent the negative effects on the environment and human health that would otherwise result from inappropriate disposal of this product. You can learn more about recycling this product from your local authorities, a household waste disposal service or in the shop where you bought this product.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

concept

DANKE FÜR IHR VERTRAUEN

BEDIENUNGSANLEITUNG

HINWEIS

Close-up of a black and white kitchen blender with handle and control knob (no text or symbols visible)

4

Close-up of a transparent cylindrical object with a black base and circular top, no visible text or symbols.

5
6

52

SM 3390

MODE D'EMPLOI

AVERTISSEMENT

Close-up of a black and transparent blender with handle and internal components (no visible text or symbols)

MANUALE D'USO

AVVERTIMENTI

Close-up of a black and white kitchen blender with handle and central screw (no visible text or symbols)

Close-up of a black and white kitchen blender with handle and side blade (no text or symbols visible)

The manufacturer (or importer) is responsible for ensuring the product complies with the requirements of applicable legal regulations as well as those of the relevant technical standards. Moreover, they are responsible for ensuring the product has the properties the manufacturer described in documents related to the goods or those reasonably expected by the customer with regard to the nature of the goods or based on advertising produced by the manufacturer, and further they are responsible for ensuring the product is fit for the purpose proposed by the manufacturer or that a product of the same type is normally used for.

The quality warranty term is 24 months from product takeover by the customer.

The warranty does not apply to wear and tear caused by regular use. The customer shall not be entitled to any warranty claims if, prior to taking the product over, they knew the product contained a defect or if the defect is attributable to the customer.

The warranty specifically does not apply:

• if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to,
  • to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation,
• to malfunctions caused by an inexpert third-party intervention,
  • to malfunctions caused by natural disaster,
• to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments,
• to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner,
  • to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments,
• if the service life of certain product parts expires, e.g. for accumulators, bulbs, etc.

The warranty does not apply to any products and services provided along with the product (gifts, promotional articles, etc.).

Filing a complaint

A complaint against a product defect must be filed as soon as identified, yet no later than before the end of the warranty term.

The customer must file a product complaint with the dealer from which they have purchased the product, or with any authorised service centre, a list of which is included in the product package, or available at www.my-concept.com.

While filing a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person.

The customer must submit proof of having concluded a purchase contract for the product by producing the receipt.

While filing their complaint, the customer must indicate the noted defect and identify the preferred complaint application method.

Complaints processing

As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis.

Where such a procedure is not reasonable with regard to the nature of the defect, the user may require to be supplied a new defect-free product (replacement), or, where the defect applies to a part of the product only, replacement of the part concerned. However, if replacement of the product or any part thereof is not proportionate with regard to the nature of the defect, especially if the defect can be removed without undue delay, the customer has the right to have the defect removed free of charge.

concept

If the noted defect is not removable, or if the customer becomes entitled to replacement of the product or a part thereof, yet the replacement is not possible, for example due to the product having been sold out, the customer has the right to return the product (withdrawal from the contract).

The customer shall have the right to a new product (replacement) or to replacement of a part of the product even if the defect can be removed, provided they cannot properly use the product due to repeated occurrence of the defect or due to a high number of such defects. In such a case, the customer also has the right to return the product (by withdrawing from the contract).

If the product is not returned (the customer does not withdraw from the contract), or if the customer does not apply the right to a new defect-free product (replacement), to replacement of a part thereof or to repair of the product, they may request a reasonable discount. The customer also has a right to a reasonable discount if a new defect-free product cannot be supplied to them, or if a product part cannot be replaced or the product repaired unless the situation is remedied within a reasonable time limit, or if remedying the situation would create major discomfort on the part of the customer.

The seller, authorised service centre or a staff member authorised by them must decide about each complaint immediately or within three business days in complicated cases. This term does not include a reasonable period of time, depending on the type of product concerned, required for the defect to be assessed by an expert. A complaint, including defect removal, must be dealt with without any undue delay, yet no later than within 30 calendar days of the complaint filing date, unless the seller and the customer agree on a later deadline.

On returning the product (withdrawing from the contract) the customer must return any accessories and documents supplied along with the product.

The customer does not have the right to keep the defective parts and components of the product replaced as part of a repair of the product.

This shall be without prejudice to any other rights the customer may have in relation to the purchase of the product.

Remark: Complaints against products damaged in transport are governed by the carrier's complaints procedure.

Manufacturer

Jindřich Valenta – Concept

Vysokomýtská 1800, 565 01 Choceň

Czech Republic

tel.: [phone]

fax [phone]

Company ID No. 13216660

email: [e-mail]

www: www.my-concept.com

Product data

Model:
Production number:
Date of purchase: Seal and signature of vendor:

DE

GARANTIEBEDINGUNGEN

Garantie

CONDITIONS DE GARANTIE

Garantie

Blank gray image with no visible content, text, or symbols

concept
