Product Type Room Air Conditioner
Brand Admiral
Model AAWV-06CR1FAU
Cooling Capacity 6,000 BTU
Power Supply 115 V ~ 60 Hz, 15 A
Plug Type 3-prong grounded (NEMA 5-15)
Minimum Window Opening 15.5" W x 22" H
Dimensions (W x H x D) Approx. 18" x 12" x 20"
Weight Approx. 55 lbs
Fan Speeds Auto, Low, Med, High
Thermostat Range 66°F – 88°F (19°C – 31°C)
Timer 0 – 24 hours (ON/OFF)
Remote Control Yes, with LCD display
Modes Cool, Fan Only, Energy Saving Cool
Air Exchanger Fresh air intake (open/close)
Filter Type Washable, reusable
Filter Cleaning Frequency Weekly (recommended)
Safety Features GFCI power cord (Leakage current detection)
Installation Type Vertical sliding window or casement window
Warranty 5 years full (parts and in-home service)
Certifications UL listed, ETL recognized
Refrigerant R-32 (estimated)

Frequently Asked Questions - AAWV-06CR1FAU Admiral

How do I clean the air filter?
Turn off and unplug the unit. Grasp the top of the inlet grill and pull forward to access the filter. Remove the filter, wash with mild detergent and warm water, rinse, squeeze dry, and reinstall. Clean weekly for optimal performance.
What is the minimum window size for installation?
The minimum window opening required is 15.5 inches wide by 22 inches high. The unit is designed for vertical sliding or casement windows.
How do I set the timer?
Press the TIMER button. When the unit is on, press to set OFF timer; when off, press to set ON timer. Use the ▲/▼ buttons to adjust the time from 0 to 24 hours. The timer LED will show remaining time.
Why is my air conditioner not cooling?
Check if the power cord is plugged in, the circuit breaker is not tripped, and the mode is set to COOL. Also ensure the air filter is clean and there is no obstruction to airflow. If the compressor is overloaded, wait 10 minutes for it to restart.
How do I test the GFCI power cord?
Plug into a grounded 3-prong outlet. Press RESET, then press TEST (you should hear a click). Then press RESET again to latch. If the Reset button does not stay in, do not use the cord; contact the manufacturer for replacement.
Can I use an extension cord?
No, do not use an extension cord or an adapter. Plug directly into a properly grounded 3-prong outlet meeting electrical specifications (115 V, 60 Hz, 15 A).
How do I use the remote control?
Insert two AAA (1.5V) batteries, matching polarity. Aim the remote at the unit's signal receptor within 23 feet. Use buttons for power, mode, fan speed, timer, and temperature adjustment.
What does the Energy Saving mode do?
Energy Saving mode cycles the fan and compressor to maintain temperature while reducing power consumption. It runs the fan less frequently than in regular Cool mode. Wait 3 minutes when switching modes.
How do I clean the coils and condensate pan?
For annual maintenance, inspect and clean the coils and condensate water passages. Use a soft brush or vacuum to remove debris. Ensure the drain plug is in place to prevent leaks. This is consumer responsibility.
What should I do if water drips inside?
Check that the unit is tilted slightly backward (approximately 1/2 bubble on a level) so condensation drains outside. Adjust the leveling bolt on the support platform if needed. Do not drill holes in the bottom pan.

User questions about AAWV-06CR1FAU Admiral

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Air conditioner in PDF format for free! Find your manual AAWV-06CR1FAU - Admiral and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AAWV-06CR1FAU by Admiral.

USER MANUAL AAWV-06CR1FAU Admiral

AAWV-12CR1FAU AAWV-10CR1FAU AAWV-08CR1FAU AAWV-06CR1FAU

Thank you for purchasing an Admiral ® room air conditioner. Please read this “Use and Care Manual” carefully before installing and using this appliance. Keep this manual for future reference.

Parts Identification 2

Air Conditioner Safety 3-4

Electrical Specifications 5

Tips Before Installation 6

Installation Instructions 7-8

Operating Instructions 9-11

Care and Maintenance 12

Troubleshooting Guide 13

Warranty 14

ÍNDICE

Page

Introducción 15

Thank you for choosing this room air conditioner to cool your home. This USE AND CARE MANUAL provides information necessary for the proper care and maintenance of your new room air conditioner. If properly maintained, your air conditioner will give you many years of trouble free operation. To avoid installation difficulties, read instructions completely before starting. This manual contains information for the installation and operation of your room air conditioner.

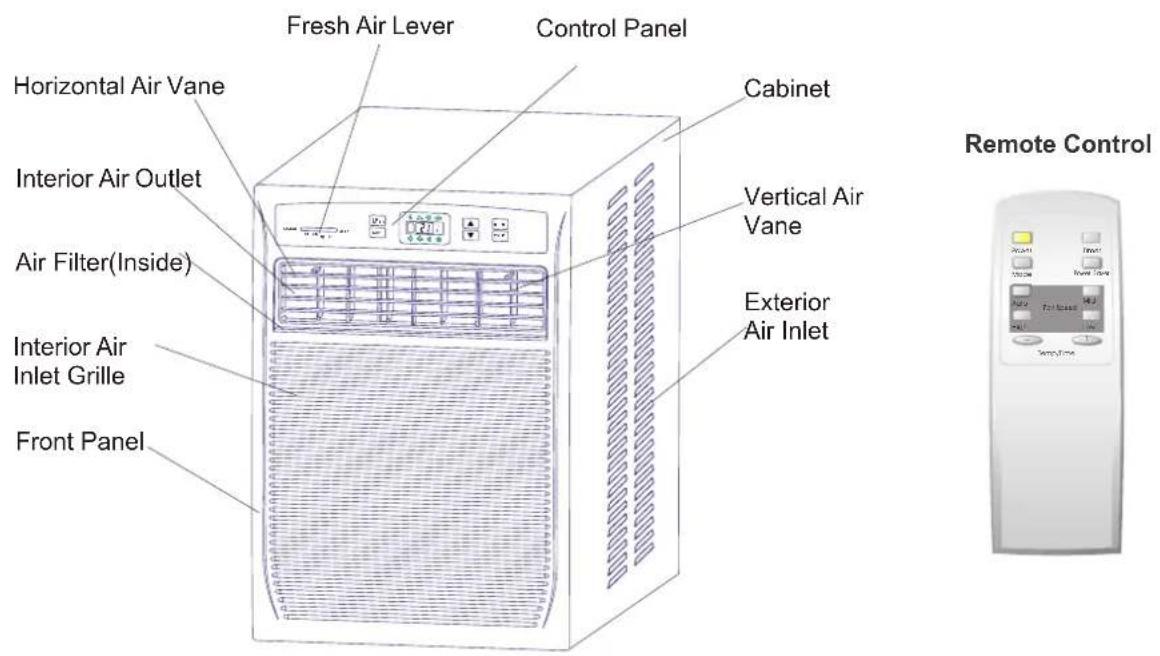

PART IDENTIFICATION

Fresh Air Lever Control Panel Horizontal Air Vane Interior Air Outlet Air Filter(Inside) Interior Air Inlet Grille Front Panel Cabinet Vertical Air Vane Exterior Air Inlet Remote Control

Control Panel
Closed Air Exchanger Open FAN SPEED TIMER 21 °F HR ↑ ▼ /OFFON MODE

Note:
The figures in this manual are based on the external view of a standard model. Consequently, the shape may differ from that of the air conditioner you have selected.

AIR CONDITIONER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

Admiral AAWV-06CR1FAU - Your safety and the safety of others are very important. - 1

This is the SAFETY ALERT SYMBOL.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electrical shock, or injury when using your air conditioner, follow these basic precautions:

  • Plug into a grounded 3-prong outlet. • Do not use an extension cord.
  • Do not remove ground prong. • Unplug air conditioning before servicing.
  • Do not use an adapter. Use two or more people to move and install air conditioner.

— S A V E THESE INSTRUCTIONS —

INSTALLATION REQUIREMENTS

  • The portable air conditioner should be connected to a 115 V, 60 Hz, 15- or 20-amp fused 3-prong grounded outlet.
  • The use of a time-delay fuse or time-delay circuit breaker is recommended.
  • All wiring must comply with local and national electrical codes and be installed by a qualified electrician. If you have any questions, contact a qualified electrician.

Electrical Requirements

WARNING

Admiral AAWV-06CR1FAU - WARNING - 1

ELECTRIC SHOCK HAZARD

  • Plug into a grounded 3-prong outlet.
  • Do not remove ground prong.
  • Do not use an adapter.
  • Do not use an extension cord.
  • Failure to follow these instructions can result in death, fire, or electrical shock.

Power Supply Cord

NOTE: Your unit's device may differ from the one shown.

A B TEST

A Reset Button B Test Button

This room air conditioner is equipped with a power supply cord required by UL. This power supply cord contains state-of-the-art electronics that sense leakage current. If the cord is crushed, the electronics detect leakage current and power will be disconnected in a fraction of a second.

To test your power supply cord:

  1. Plug power supply cord into a grounded 3-prong outlet.
  2. Press RESET.
  3. Press TEST (listen for click; Reset button will trip and pop out).
  4. Press and release RESET (listen for click; Reset button will latch and remain in). The power supply cord is ready for operation.

NOTES:

  • The Reset button must be pushed in for proper operation.
  • The power supply cord must be replaced if it fails to trip when the test button is pressed or fails to rest.
  • Do not use the power supply cord as as an off/on switch. The power supply cord is designed as a protective device.
  • A damaged power supply cord must be replaced with a new power supply cord obtained from the product manufacturer and must not be repaired.
  • The power supply cord contains no use serviceable parts. Opening the tamper-resistant case voids all warranty and performance claims.

INSTALLATION INSTRUCTIONS

Unpack the Air Conditioner

WARNING

EXCESSIVE WEIGHT HAZARD

Use two or more people to move and install air conditioner.

Failure to do so can result in back or other injury.

Remove packaging materials

  • Remove and properly dispose of packaging materials. Remove tape and glue residue from surfaces before turning on the air conditioner. Rub a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.
  • Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your air conditioner.
  • Handle air conditioner with care.

ELECTRICAL SPECIFICATIONS

  1. All wiring must comply with local and national electrical codes and must be installed by a licensed electrician. Once you have any questions regarding the following instructions, contact a licensed electrician.
  2. Check available power supply and resolve any wiring problems BEFORE installing and operating this unit.
  3. For your safety and protection. This unit is grounded through the power cord when plugged into a matching wall outlet. If you are not sure whether your wall outlet is properly grounded, please consult a licensed electrician.
  4. The wall outlet(3-pin) must match the plug (3-pin) on the service cord supplied with the unit. DO NOT use plug adapters or extension cord. See (Table 1) for receptacle and fuse information.
  5. The rating plate on the unit contains electrical and other technical data. The rating plate is located on the right side of the unit.

Admiral AAWV-06CR1FAU - ELECTRICAL SPECIFICATIONS - 1

Electric Shock Hazard

If the air conditioner has a serial plate rating of 115 volts and up to and including 7.5 amps the unit maybe on a fuse or circuit breaker with other devices. However, the maximum amps of all devices on that fuse or circuit breaker can not exceed the amps of the fuse of circuit breaker.

If the air conditioner has a serial plate rating of 115 volts and greater than 7.5 amps it must have its own fuse or circuit breaker, and no other device or unit should be operated on the fuse or circuit breaker.

To avoid the possibility of personal injury, disconnect power to the unit before installing or servicing.

Receptacle and Fuse Types
Rated Volts 125
AMPS15
Wall OutletAdmiral AAWV-06CR1FAU - Electric Shock Hazard - 1
Fuse Size15
Time Delay Fuse (or circuit breaker)Plug type

Table 1

TIPS BEFORE INSTALLATION

Your Room Air Conditioner unit is designed to be highly efficient and save energy. Follow these recommendations for greater efficiency.

  1. Select the thermostat setting that suits your comfort needs and leave the thermostat at that chosen setting.
  2. The filter is very efficient in removing airborne particles. Keep air filter clean. Normally, filter should be cleaned once a month. More frequent cleaning may be necessary depending on outdoor and indoor air quality.
  3. Use drapes, curtains, or shades to keep direct sunlight from heating your room, but DO NOT obstruct the air conditioner. Allow air to circulate around the unit without obstructions.
  4. Start your air conditioner before outdoor air becomes hot and uncomfortable. This avoids an initial period of discomfort while the unit is cooling off the room.
  5. When outdoor temperature is cool enough, use HIGH or LOW FAN only. This circulates indoor air, providing some cooling comfort, and utilizes less electricity than when operating on a cooling setting.

CAUTION To avoid installation/operating difficulties, read the instructions thoroughly.

Your Room Air Conditioner was designed for easy installation in a vertical (slider type) windows. NOTE: This unit is NOT designed for single or double-hung windows.

NOTE: Save the shipping carton and packing materials for future storage or transport of the unit. Please check the contents of hardware kit against the corresponding model check list, prior to installation of the unit. See lists below.(Fig.A)

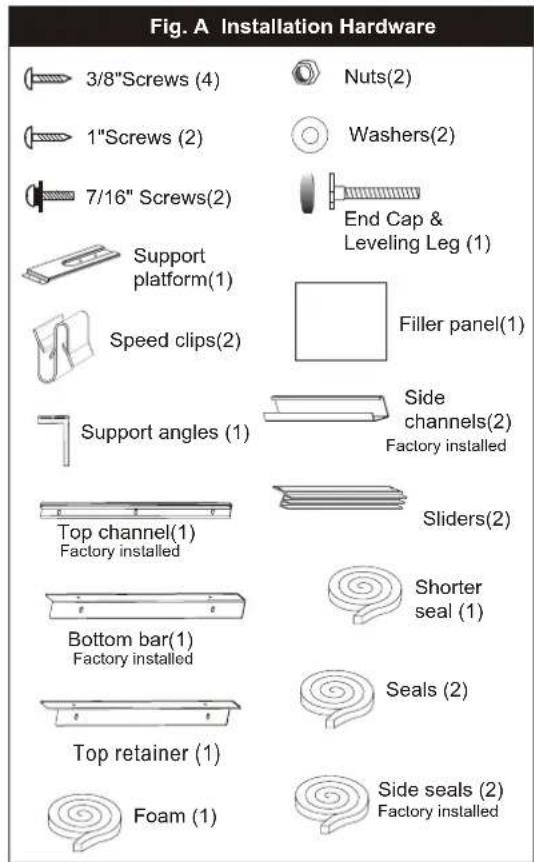

Fig. A Installation Hardware 3/8"Screws (4) 1"Screws (2) 7/16" Screws(2) Support platform(1) Speed clips(2) Support angles (1) Top channel(1) Factory installed Bottom bar(1) Factory installed Top retainer (1) Foam (1) Nuts(2) Washers(2) End Cap & Leveling Leg (1) Filler panel(1) Side channels(2) Fac…

NOTE: Surplus screw(s) for spare use.

Tools Needed for Window Installation Screw drivers: Both Philips and flat head Power drill: 1/8 inch diameter drill bit Pencil Measuring tape Scissors Carpenters level

INSTALLATION INSTRUCTIONS

A

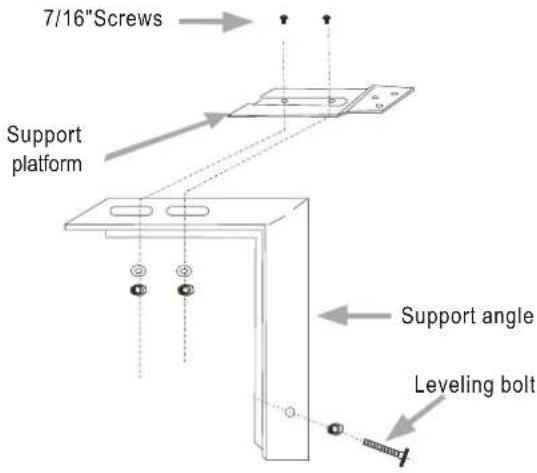

7/16" Screws Support platform Support angle Leveling bolt

Sliding Window Installation

  1. Choose the installation site. It is imperative that the window frame assembly and the side of the structure are adequate to support the weight of the unit. Reinforce if necessary.
    2.Slide open one window sash to install support platform.
  2. Loosely attach support angle to bottom of support platform using two 7/16 screws, washers and nuts. (See fig. A)
  3. Place support platform against lower window track and firmly against vertical edge of window frame.
  4. Attach support platform to windowsill using two 1" self-tapping screws. To overcome interference of support the Platform with window track or storm window, securely attach
    a 2" wide shim stripto the window sill. The strip should be as long as the width of the support platform and flush with the back edge of the sill. The thickness of the strip should be controlled by the amount of interference.(See fig. B)
  5. Pull support angle against outside of structure. Tighten two 7/16 screws on top of the support platform."
  6. Adjust leveling bolt to position support angle in a level plane. This will allow for the proper angle. Tighten leveling bolt locknut.

Important: Unit must be level or tilted back slightly to facilitate proper condensate disposal.

B

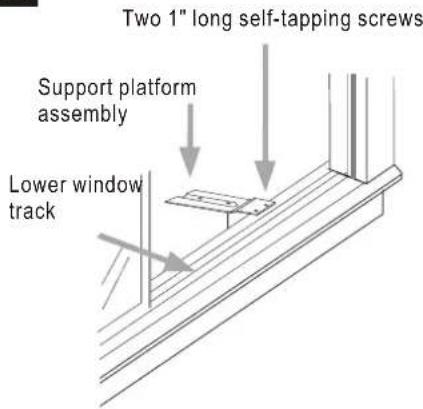

Two 1" long self-tapping screws Support platform assembly Lower window track

Caution: Do not drill a hole in the bottom pan. The unit is designed to operate with approximately pfl/2 " water in the bottom pan.

  1. Cut two pieces of adhesive seal to height of window opening. Remove backing and apply to vertical inside edges of window frame and sliding sash that will rest against unit. (See fig. C)
  2. Slide unit onto support platform. Be sure unit side channel butts against vertical edge of window frame.
    Note: If unit side channel does not fit securely, remove unit and readjust leveling bolt.

C
Seal Top retainer Filler panel Sliders Shorter seal

  1. Drill two 1/8" holes through window channel frame in alignment with existing holes in bottom bar. Install two 3/8" long self-tapping screws through these holes. If the window channel frame is not tall enough to use existing holes, drill new holes off to the side of the existing holes to attach the unit bottom bar to the support platform. The unit should be firmly anchored to the window channel frame or support platform. (See fig. D)
  2. Slide inside window sash closed. Be sure vertical edge of inside window sash is pressed firmly against side of unit cabinet. Cut remaining seal to width of window opening. Remove backing and apply to top inside edge of window frame.(See fig. C)

The above installations are intended to be permanent, and when installed in apartment or rental properties, permission to make the above modifications should be obtained from owners or landlords of buildings prior to installation of unit.

INSTALLATION INSTRUCTIONS

D

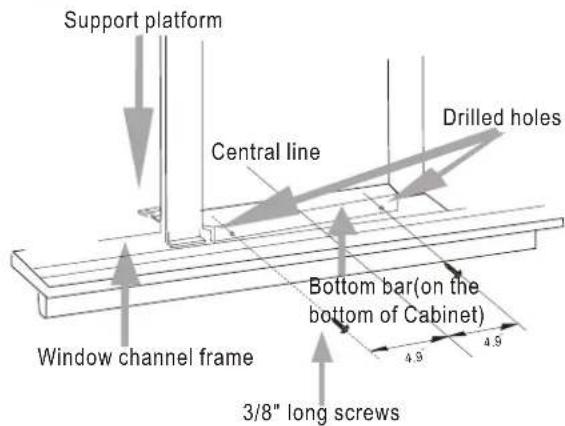

Support platform Central line Drilled holes Window channel frame Bottom bar(on the bottom of Cabinet) 3/8" long screws 4.9 4.9

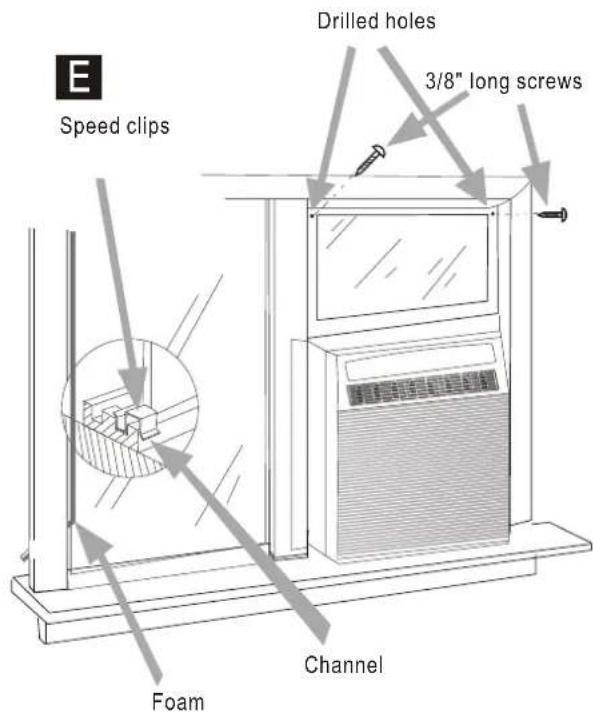

E Speed clips Drilled holes 3/8" long screws Foam Channel

Caution: Do not block air circulation to outside louvers of cabinet.

  1. Install speed clips on top and bottom inside edge of window to provide locking. (See fig. E)
  2. Using supplied foam, cut to proper length, insert between inside window sash and outside window. (See fig. E)
  3. Place top retainer on top edge of filter panel, then place the bottom edge of filler panel into groove of bottom retainer (mounted on unit). Filler panel may be trimmed with knife or scissors to fit window height.(See fig. C)
    15.Slide sliders upward making sure filler panel aligns in sliders.
  4. With sliders up against top retainer, drill 1/8 hole through window frame in alignment with existing hole in slider. Install 3/8"long self-threading screw in hole. Repeat for other slider.
  5. Check all seals and plug all air leaks around unit. Use supplied sealant to fill any minor openings.

Casement Window Installation

This air conditioner is designed to fit into most casement type windows. As shipped from factory, unit will fit into a minimum window opening 151/2" wide and 22"high. The preferred method of installation is through a closed or stationary window. Installation in an open window frame is also possible where open window can be secured to outside of building or removed completely.

  1. Closed or stationary window: Install unit in stationary sash to avoid crank handles or window latches. If unit is to be installed in or next to a movable sash, it may be necessary to remove catch, handle or both. Remove crank handle and secure window in closed position. Remove glass panes and separating strips to a height sufficient to mount unit.
  2. Open window frame: Remove crank mechanism and catch handles. Fold window sash back against exterior wall of building and secure, or remove completely where possible.
  3. A filler panel will be required at side of unit when installed in windows having width greater than 151/2". Filler panel should be made from 3/4" thick wood securely anchored to one side of opening so that 15 1/2" wide opening is provided. Filler panel should run full length of window. Paint to suit.
  4. Install unit in same manner as described for sliding windows.

Installation in wood sliding or wood casement windows

  1. For wood frame casement windows, it is necessary to construct a frame, using at least 1 "thick wood with a 15 1/2" wide opening.
  2. Paint frame and fasten it securely, sealing it into window opening.
  3. Install unit into frame following procedures for metal sliding and casement windows.

These installations are also typical, and since styles and sizes of casement windows vary widely, it is advisable to have unit installed by someone skilled in this type of installation. The dealer selling these units can recommend or supply qualified people to install your new unit.

OPERATING INSTRUCTIONS

4.CONTROL PANEL(Only for electronic models)

Caution: If air conditioner is shutoff, wait a minimum of three minutes before restarting

Closed Air Exchanger Open FAN SPEED TIMER ON/OFF MODE

Control Functions

Air Exchanger: Circulates fresh air and helps remove stale air when in the open position. Maximum air circulation and cooling occur when in the closed position.

ON/OFF button

The air conditioner will be started when it is energized or will be stopped when it is in operation, if you press this button.

MODE button

Each time MODE button is pressed, the operation mode is changed in sequence: COOLING FAN ONLY ENERGY SAVING COOLING

NOTE: After setting the mode, allow 3 minutes before switching to another mode.

FAN SPEED button

Used to select fan speed in sequence auto, low, medium and high.

TIMER button

Used to set or cancel timer operation.

When the unit is in operation, you can set OFF TIMER. When the unit is off, you can set ON TIMER. Timer setting range is 0 to 24 hours.

If the OFF TIMER is set, the timer LED displays the remaining time to turn off the unit for only 12 seconds, then LED shifts to display set temperature. If you press TIMER button within the 12 seconds, OFF TIMER will be canceled.

If the ON TIMER is set, the timer LED displays the remaining time to turn on the unit. If you want to cancel ON TIMER, press TIMER button.

▲▼ Button

Used to set room temperature in COOLING mode or used to set time in TIMER mode. If the two keys are pressed at the same time, the temperature LED display will alternate between ° C and ° F. NOTE: Temperature setting range is from 19°C (66°F) to 31°C (88°F).

Indication symbols of LED on control panel:

The above LED lights are shown when the relevant mode is in use.

OPERATING INSTRUCTIONS

▶REMOTE CONTROL

1 2 3 4 5 6 7 8 Power Timer Mode Power Saver Auto Fan Speed Mid High Low Temp/Time

1 Power BUTTON

The appliance will be started when it is energized or will be stopped when it is in operation, if you press this button.

2 Mode BUTTON

Used to select the operation mode.

3 BUTTONS

Used to set room temperature in COOLING mode or used to set time in Timer mode.

4 High BUTTON

Used to select the mode.high fan speed

5 Mid BUTTON

Used to select the mid mode.fan speed

6 Low BUTTON

Used to select the low mode.fan speed

7 Auto BUTTON

Used to select the auto mode. fan speed

8 Timer BUTTON

Used to set or cancel timer operation.

9 Power Saver BUTTON

Used to select the mode.Energy-saving

Admiral AAWV-06CR1FAU - Power Saver BUTTON - 1

  • When changing modes during operation, sometimes the unit does not always respond at once. Wait three (3) minutes.
  • Wait three (3) minutes before restarting the appliance.

OPERATING INSTRUCTIONS

▶ REMOTE CONTROL

• How to Insert the Batteries

Remove the battery cover according to the arrow direction. Insert new batteries making sure that the (+) and (-) of battery are matched correctly.

Reattach the cover by sliding it back into position.

Note:

  • Use 2 LR6 AA(1.5volt) batteries. Do not use rechargeable batteries. Replace batteries with new ones of the same type when the display becomes dim.
  • If the replacement is done within 1 minute, the remote control will keep original presetting. (This function only for LCD remote control)

- How to Use

To operate the room air conditioner, aim the remote control to the signal receptor. The remote control will operate the air conditioner at a distance of up to 23 feet when pointing at signal receptor of indoor unit.

Diagram showing hand tool application on a device with an arrow indicating direction, including a magnified inset of the component.

Two circular diagrams showing hand positioning and tool manipulation, with arrows indicating direction of movement (no text or symbols)

Signal receptor

CARE AND MAINTENANCE

When servicing the air conditioner, be sure to turn the mode switch to the "OFF" position and disconnect the power cord from the electrical outlet.

  1. DOT NOT use gasoline, benzine, thinner or other chemicals on the air conditioner as these substances may cause damage to the paint finish and deformation of plastic parts.
  2. Never attempt to pour water directly on the front of the unit as this will cause deterioration of the electrical insulation.

Cleaning the Air Filter

NOTE: Failure to keep the air filter clean will result in poor air circulation. DO NOT operate without a filter. This can render the unit inoperative.

Proper use and care of your air conditioner will help ensure longer life of the unit. It is recommended to annually inspect and clean the coils and condensate water passages. Expense of annual inspection is the consumers responsibilities.

When the air filter inlet grill and cabinet are dirty, wipe with lukewarm water (below 10 4 F/40 C). Use of mild detergent is recommended.

Directing airflow

Air conditioner is engineered with adjustable louvers to direct discharge airflow. Louvers are manually adjusted by moving levers in direction of desired airflow.

Cleaning Air Filter

When the air conditioner is operating, indoor air is filtered and refiltered continuously trapping airborne dirt and dust in the washable filter. Therefore, the filter should be inspected and cleaned weekly.

  1. Turn the unit off.
  2. Grasp both sides near top of inlet grill and pull forward. Inlet grill will pivot forward to reveal air filter.
  3. Remove air filter from tabs.
  4. Carefully wash air filter with a mild detergent and warm water. Rinse with clear water, squeeze dry and replace.
  5. Replace inlet grill.

Air Filter Removal:

The air filter on the above model is located behind the air intake front grill.

To remove the air filter, grasp the filter handle(tab)

located on the top side of the air inlet grille and slide the air filter to the top.

(See the right fig.)

To reinstall the air filter, reverse the above procedure.

End-of-Season Care

  1. Operate the fan alone for half a day to dry out the inside of the unit.
  2. Turn off power and remove plug from wall socket.
  3. Clean filter.
  4. Store in a dry location.

Diagram of a vehicle air conditioner unit with airflow direction indicated by an arrow and grid lines below

TROUBLESHOOTING GUIDE

Frequently, a problem is minor and a service call may not be necessary, use this troubleshooting guide for a possible solution.

PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTION
Air conditioner will not operateNo power to the unit.Check connection of power cord to power source.Check fuse or circuit breaker.Set MODE knob to position other than "OFF".
Inefficient or no coolingDirty air filter.Inappropriate capacity for application.Blocked air flow.Power interruption, settings change too quickly, or compressor overload tripped.Clean or replace air filter.Check with dealer to determine proper unit capacity for application.Remove obstruction from grill or outdoor louvers.Let fan run to restart compressor (in approximately 10 minutes).
Noisy unitLoose parts.Inadequate support.Tighten loose parts.Provide additional support to unit.
OdorsFormation of mold, mildew, or algae on wet surfaces.Remove drain plug and drain base pan.Replace drain plug.Clean unit thoroughly.
Water dripping outsideCondensation run-off is normal during hot and humid weatherAdd flexible tubing to redirect water flow.
Water dripping insideUnit is not properly angled to allow water to drain outside.Unit must be installed on an angle for proper condensation run-off. Check the unit and make adjustments.
Ice or frost build-up Lowoutside temperature.Unit air filter is dirty.When outdoor temperature is approximately 65°F or below, frost may form when unit is in cooling mode. Switch unit to FAN (only) operation until frost melts.Remove and clean filter.

NOTE:

If circuit breaker is tripped repeatedly, or fuse is blown more than once, contact a licensed technician.

WARRANTY

5 YEAR FULL WARRANTY

This product is warranted for 5 years from the date of original purchase. Any part which fails in materials or workmanship will be replaced within the warranty period. This warranty covers in home service. A copy of your proof of purchase, with date of purchase and product name included, is required to arrange this service repair.

For the name and location of an authorized service provider nearest you, please CALL 1-877-465-3566. Please reference product name, brand name, and model number when you call.

This warranty does not apply if the damage occurs because of accident, improper handling or operation, shipping damage, abuse, misuse, unauthorized repairs made or attempted, or the use of the product for commercial use, or any other use for which it was not intended.

ALL WARRANTIES, EXPRESSED OR IMPLIED, LAST FOR 5 YEARS FROM THE DATE OF ORIGINAL PURCHASE. THIS WARRANTY DOES NOT COVER LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR ANY CAUSE WHATSOEVER.

This warranty is extended to the original owner and any succeeding owner for products purchased for home use within the USA. Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific rights, and you may also have other rights which may vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Introducción

• C cómo use

© 2005 Admiral, Kelon Air Conditioner Co., and Kelon USA, Inc. All rights reserved.

Printed in China

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Admiral

Model : AAWV-06CR1FAU

Category : Air conditioner
