Product type	Dual-band outdoor access point
Brand	EnGenius
Model	N600 ENH710EXT
WiFi standards	802.11 a/b/g/n (N600)
Frequency bands	2.4 GHz and 5 GHz
Maximum data rate	300 Mbps per band
Antennas	2 detachable antennas (max gain 7 dBi, impedance 50 ohms)
Power supply	PoE 802.3af (adapter included)
Dimensions (L x W x H)	28 x 20 x 8 cm
Weight	1.2 kg
Protection rating	IP65 (weather resistant)
Operating modes	Access point, repeater, WDS bridge
Security	WPA2, MAC filtering, client isolation
Management	Web interface, SNMP
Installation	Professional, wall or pole
Operating temperature	-20°C to 60°C
Humidity	5% to 95% non-condensing
Maintenance and cleaning	Clean with a soft, dry cloth. Avoid solvents and abrasive products.
Spare parts and repairability	Antennas and mounting kit available separately. Repair only by a qualified technician.
General information	Compliant with IC standard, minimum distance of 20 cm required.

Frequently Asked Questions - N600 ENH710EXT ENGENIUS

How to configure the EnGenius N600 ENH710EXT access point?

Log into the web interface via the default IP address (192.168.1.1). The default username and password are 'admin'. Follow the quick setup wizard to choose the mode and WiFi settings.

What are the available operating modes?

This device supports Access Point, Repeater, and WDS Bridge modes. You can switch via the web interface.

Can I use antennas more powerful than those provided?

No. The maximum allowed gain is 7 dBi. Using higher gain antennas is prohibited by IC regulations and may result in penalties.

How to power the ENH710EXT?

The device is powered by PoE 802.3af. Use the provided PoE injector or a compatible PoE switch. Do not use non-standard power supplies.

What is the maximum outdoor range?

The range depends on the environment. In open field, with the original antennas, you can reach up to 500 meters in ideal conditions. Walls and obstacles reduce range.

Is the device waterproof?

Yes, it has a protection rating of IP65, making it resistant to rain and dust. It can be installed outdoors without additional protection.

How to reset the device to factory settings?

Press and hold the Reset button on the back of the device for about 10 seconds until the LEDs flash. The settings will be reset.

What are the safety precautions for installation?

Install the device at least 20 cm away from people. Use only approved antennas. Installation must be performed by a qualified professional.

Can I use multiple ENH710EXT in a mesh network?

Yes, you can configure them in WDS Bridge mode to create an extended wireless network. Up to 4 access points can be linked.

How to update the firmware?

Download the latest firmware from the EnGenius website. Access the web interface, go to Administration > Firmware Update and select the file. Do not cut power during the update.

USER MANUAL N600 ENH710EXT ENGENIUS

White EnGenius device with four metallic connectors, no visible text or symbols on the device body.

ENH710EXT

version 1.0

Dual Band Long Range Wireless N600 Outdoor Access Point

IMPORTANT

To install this Access Point please refer to the Quick Installation Guided in the product packaging.

Table of Contents

Chapter 1 Product Overview. 4

Key Features/Introducon. 5

System Requirements. 6

Package Contents. 7

Technical Specifications.. 8

Physical Interface. 10

Chapter 2 Before You Begin. 11

Computer Sengs....12

Hardware Installaon. 15

Mounng the ENH710EXT. 16

Chapter 3 Configuring Your Access Point. 20

Default Settings./Web Configuration.. 21

Chapter 4 Building a Wireless Network. 22

Access Point Mode. 23

Client Bridge Mode 24

WDS AP Mode....25

WDS Bridge Mode....26

WDS Staon Mode....27

Chapter 5 Status. 28

Main Status....29

Connecon....31

Chapter 6 Network....33

Basic IP Sengs. 34

Spanning Tree Protocol Seng. 35

Chapter 7 2.4 GHz/5 GHz Wireless. 36

WirelessSengs....37

2.4 GHz/5 GHz Wireless Network. 38

2.4GHz/5 GHz SSID Profile.. 40

Wireless Security 41

Wireless MAC Filtering.... 42

Wireless Advanced. 43

WPS Mixed-Enterprise: AP/WDS AP Mode. 44

WDS Link Sengs. 45

Client Bridge Sengs.... 46

Guest Network Sengs. 47

Chapter 8 Management 48

Management VLAN Sengs. 49

Advanced Sengs....50

CLI Sengs/Email Alert 51

Time Zone....53

Auto Reboot Sengs.... 54

Wi-Fi Scheduler.... 55

Tools. 56

Account/Firmware. 58

Backup/Restore 59

Log....61

Logout/Reset....62

Appendix. 63

FCC Interference Statement.... 64

CE Interference Statement. 65

IC Interference Statement.... 68

Professional Installaon Instrucon. 69

White EnGenius wireless router device with two leads (no visible text or symbols on body)

Introduction

Key Features

• Up to 27 dBm transmit power enabling long range connectivity
• Supports IEEE802.11a/b/g/n wireless standards with up to 300 Mbps data rate on each band.
• Two detachable 5 dBi 2.4 GHz Omni-direconal antennas
• Two detachable 7 dBi 5 GHz Omni-direconal antennas
• Can be used with included power adapter or via PoE with PoE 802.3at - capable switches or injectors
• Band Steering shis dual band clients to 5 GHz for beer throughput performance
  • Secured Guest Network opon available

Introduction

The ENH710EXT is a high-powered, long-range 2x2 Dual-Band Wireless 802.11a/b/g/n Outdoor Access Point with speeds up to 450 Mbps on both its high-powered 2.4 GHz and 5 GHz radios. It can be configured as an: Access Point, Client Bridge or WDS (AP, Staon & Bridge). The ENH710EXT is designed to operate in a variety of outdoor environments. Its high-powered, long-range characteriscs make it a cost eecve alternate to ordinary Access Points that don't have the range and reach to connect to a growing number of wireless users who wish to connect to a business network. The ENH710EXT supports the 2.4 GHz frequency band under 802.11 b/g/n mode while at the same me providing the 5 GHz band for communicating to and from other 5 GHz capable computers, tablets or smart phones or transferring files. Several ENH710EXTs can be deployed in a campus seng using the 5 GHz band as

White EnGenius wireless device with two external antennas (no visible text or symbols on body)

Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment, and mix of devices in the network. Features and specifications subject to change without notice. Trademarks and registered trademarks are the property of their respective owners. For United States of America: Copyright © 2014 EnGenius Technologies, Inc. All

rights reserved.

a backhaul to provide mulple 2.4 GHz wireless cells for computers or mobile devices in common outdoor areas. The ENH710EXT is easy to install in virtually any locaon with its included PoE (Power over Ethernet) injector for quick outdoor installaon. The ENH710EXT enables network administrators to control its transmit power and features sengs for selecng narrow bandwidth and traffic shaping. The ENH710EXT also supports wireless encrypon including Wi-Fi Protected Access (WPA-PSK/WPA2-PSK) Encryption and IEEE 802.1X with RADIUS.)

System Requirements

The following are the Minimum System Requirements in order to configure the device.

• Computer with an Ethernet interface or wireless network capability
• Windows OS (XP, Vista, 7, 8), MacOS, or Linux-based operating systems
• Web-Browsing Applicaon (i.e.: Internet Explorer, Firefox, Safari, or another similar browser applicaon)

Package Contents

The ENH710EXT package contains the following items:*

• ENH710EXT Access Point
• 2 detachable 5 dBi 2.4 GHz Omni-direconal Antenna
- 2 detachable 7 dBi 5 GHz Omni-direconal Antenna
- Power Adapter
- PoE Injector (EPE-48GR)
- Grounding Cable
- Pole Mount Bracket
- Wall Mount Base
- Mounng Screw Set
- Quick Installaon Guide

*(all items must be in package to issue a refund):

Technical Specifications

Standard:

IEEE802.11a/n on 5 GHz

IEEE802.11b/g/n on 2.4 GHz

IEEE802.3at

Antenna

4 External N-type Antennas

2 x detachable 5dBi 2.4GHz Omni-direconal Antennas

2 x detachable 7dBi 5GHz Omni-direconal Antennas

Physical Interface

2 x 10/100/1000 Gigabit Ethernet Port with PoE support LAN1 Port supports IEEE802.3at PoE Input

LED Indicator

Power

LAN 1

LAN 2

2.4 GHz

5 GHz

Power Requirements

External Power Adapter, DC IN, 48V/0.5A

IEEE802.3at support

Operation Modes

Access Point

Client Bridge

WDS

WDS Detail

WDS AP

WDS Bridge

WDS Staon

Optimal Performance

Distance Control (Ack Timeout)

Mulcast Supported

Band Steering

Fast Roaming

Auto Channel Selecon

BSSID Support

Easily Management

VLAN Tag / VLAN Pass-through

Guest Network

QoS: Complaint with IEEE 802.11e /WMM

RADIUS Accoung

Wireless STA (Client) conneccon list

Traffic Shaping (Per SSID, Per user)

Intuitive Tools

SNMP v1/v2c/v3 support

MIB I/II, Private MIB

Save Configuration as Default

CLI Support

WiFi-Scheduler/Auto Reboot

E-mail Alert

Reinforcement Security

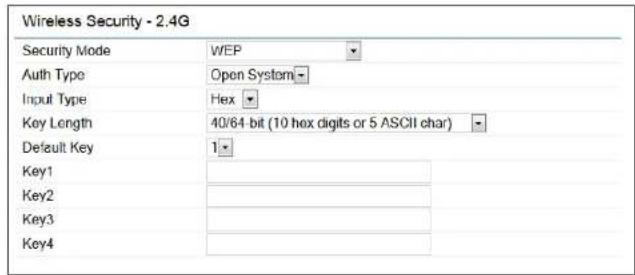

WEP Encryption-64/128/152 bit

WPA/WPA2 Enterprise (WPA-EAP using TKIP or AES)

Hide SSID in beacons

MAC address filtering up to 32 MACs per SSID

Hps Support

SSH

QoS (Quality of Service)

Complaint with IEEE 802.11e standard

Physical/Environment Conditions

Operang:

Temperature: -4 °F to 158 °F (-20°C to 70°C)

Humidity (non-condensing): 90% or less

Storage:

Temperature: -22 °F to 176 °F (-30 °C to 80 °C)

Humidity (non-condensing): 90% or less

Physical Interface

Dimensions and Weights

Length: 280.48mm (11.22")

Width: 217.65mm (8.58")

Depth: 55.50mm (2.1")

Weight: 1.88Kg (4.17 lbs)

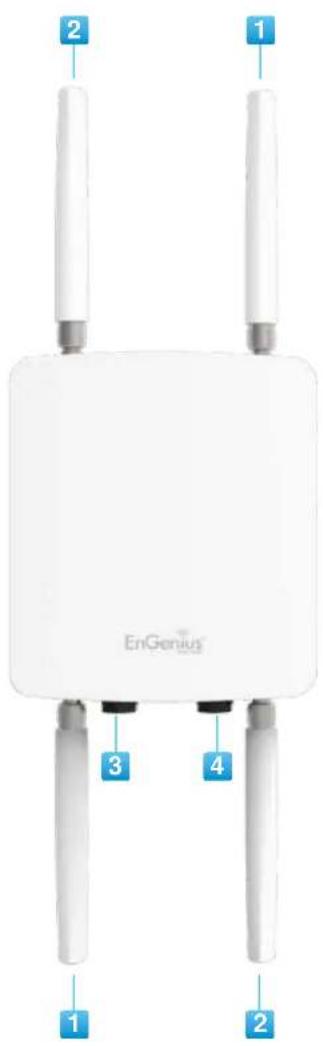

1 2.4 GHz Antennas: Detachable 5 dBi 2.4 GHz Omni-direconal
2 5 GHz Antennas: Detachable 7 dBi 5 GHz Omni-direconal
3 LAN Port 1 (802.3at PoE Input)thernet port for RJ-45 cable.
4 LAN Port 2: Ethernet port for RJ-45 cable.

Chapter 2

Before You Begin

White EnGenius wireless router device with two leads (no visible text or symbols on body)

Computer Settings

Windows XP/Windows 7/Windows 8

In order to use the ENH710EXT, you must first configure the TCP/IPv4 conneccon of your Windows OS computer system. 1a. Click the Start buon and open the Control Panel

Windows XP Windows 7

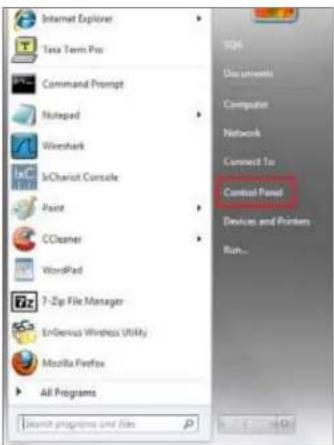

1b. Move your mouse to the lower right hot corner to display the Charms Bar and select the Control Panel in Windows 8 OS.

2a. In Windows XP, click Network Connections.

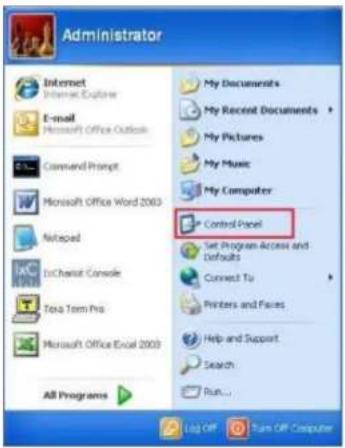

Network Connections

2b. In Windows 7/Windows 8, click View Network Status and Tasks in the Network and Internet secon, then select Change adapter settings.

Network and Internet

View network status and tasks

Choose homegroup and sharing options

1. RightclickorLocalAreaConnectionandselectProperties.

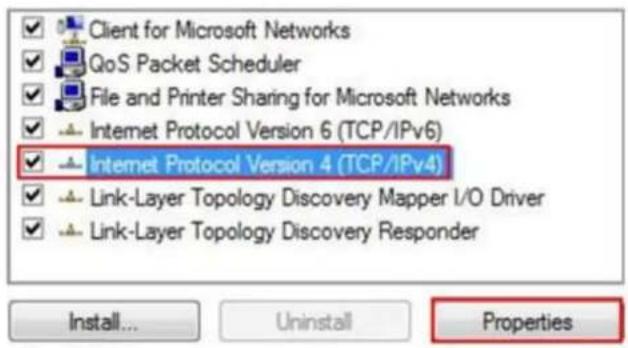

1. SelectInternet Protocol Version 4 (TCP/IPA) then selectProperties

1. Select Use the following IP address and enter an IP address that is dierent from the ENH710EXTand Subnet mask, then click OK.

Note: Ensure that the IP address and Subnet mask are on the same subnet as the device.

For example: ENH710EXT IP address: 192.168.1.1

PCIPaddress:192.168.1.2-192.168.1.255

PC Subnet mask: 255.255.255.0

Apple Mac OS X

1. Go to System Preferences(Which can be opened in the Applicaons folder or selecng it in the Apple Menu).
2. Select Network in the Internet & Networksecon.

1. Highlight Ethernet.

2. In Configure IPv4, selectManually.

3. Enter an IP address that is dierent from the ENH710EXT and Subnet mask then pressOK.

Note: Ensure that the IP address and Subnet mask are on the same subnet as the device.

For example: ENH710EXT IP address: 192.168.1.1

PCIPaddress:192.168.1.2-192.168.1.255

PC Subnet mask: 255.255.255.0

1. Click Apply when done.

Hardware Installation

1. Connect one end of the Ethernet cable into the main This diagram depicts the hardware configuration.
   LAN port (PoE) of the Access Point and the other end to the AP Ethernet port on the PoE injector.
2. Connect the Power Adapter to the DC-IN port of the PoE injector and plug the other end in to an electrical outlet.
3. Connect the second Ethernet cable into the LAN port of the PoE injector and the other end to the Ethernet port on the computer.
4. Screw on the provided antennas to the device. Once both connecons are secure, verify the following:

a) Ensure that the POWER light is on (it will be green).
b) Ensure that the 2.4 GHz/5 GHz WLAN light is on (it will be green for both 5 GHz and 2.4 GHz).
c) Ensure that the LAN (Computer/ENH710EXT Connection) light is on (it will be green).
d) Once all three lights are on, proceed to set up the Access Point using the computer.

Note: The Access Point supports both IEEE 802.3at PoE (Power over Ethernet) or the included power injector. You may use either one as the power source. Do NOT use both at the same time.

Mounting the ENH710EXT

Using the provided hardware, the ENH710EXT can be aached to a wall or a pole.

1. Wall Mount Kit: 260x180x7 (mm) (10.2" x 7.09" x 0.28")

Pure diagram of a symmetrical mechanical or electrical component layout without any text, numbers, or symbols

1. Pipe 63.5 (D) x 12.7 (mm) (2.5"(D) x 0.5")

Simple line drawing of a circular pipe or clamp with a small protrusion on top (no text or symbols)

1. Pole Mount Kit 140x112x33 (mm) (5.51" x 4.41" x 1.30")

Technical line drawing of a mechanical assembly with four mounting brackets and internal components (no text or symbols)

1. Tool 20(D) x 6 (mm) (0.79"(D) x 0.24")

1. Screws: 6.5(D) x 9.95 (mm) (0.26"(D) x 0.39")

To attach the ENH710EXT to a wall using wall mounting kit.

1. Mark the four locaons of the moung holes on the flat mounting surface.

2. Drill a 37 mm deep 8 mm hole in the markings and hammer the bolts into the openings.

3. Placethelock and flat washers on the four hex caps screws and drive the screws to each the bracket to the back of the Access Point.

4. Tighten the flat washers to secure the bracket to the mounng surface.

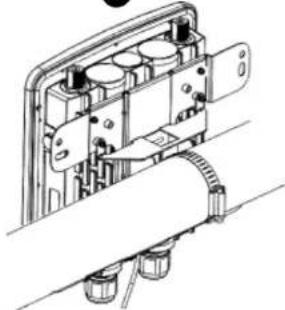

To attach the ENH710EXT to a pole using the provided pole mounting kit:

1. Placethelockandflatwashersonthefourhexcapscrews and drive the screws to each the bracket to the back of the Access Point.
2. Drive the four round head screws to each the Pole Mount Bracket to the bracket.
3. Thread the open end of the Pole Strap through the two

tabs on the Pole Mount Bracket .

1. Lock and tighten the Pole Strap to secure the Pole Mount Bracket to the pole.

Note: See diagram below for vercal and horizontal placements.

1
vertical placement

Technical line drawing of an electronic device casing with internal components (no text or symbols)

horizontal placement

Technical line drawing of an electrical switchgear assembly (no text or symbols)

2

Technical diagram of a mechanical assembly with no visible text or symbols

Technical line drawing of an internal mechanical assembly (no text or symbols visible)

6

Mechanical assembly diagram showing internal components (no text or labels)

Technical line drawing of an internal mechanical assembly with no visible text or symbols

4

Technical line drawing of a mechanical assembly with rollers and housing (no text or symbols)

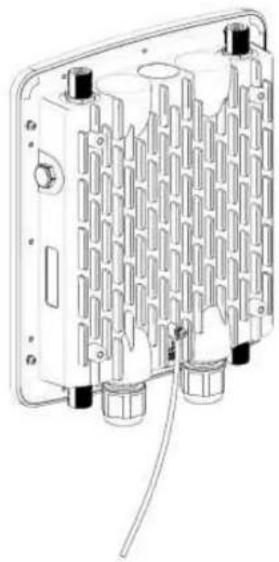

To install the ground cable on the ENH710EXT

1. Use the aached screws to pass the ground cable as shown in the figure below.

2. Assemble the ground cable on the device.

Technical line drawing of a device housing with internal components and a labeled cable (no text or symbols beyond label)

Length: 1.8m (5.9")

Technical line drawing of a mechanical or electronic device with internal channels and mounting points (no text or symbols)

Chapter 3

Configuring Your Access Point

White EnGenius wireless router device with four ports and antenna (no visible text or symbols on body)

Configuring Your Access Point

This section will show you how to configure the device using the web-based configuration interface.

Default Settings

Please use your Ethernet port or wireless network adapter to connect the Access Point.

IP Address 192.168.1.1

Username / Password admin / admin

Web Configuration

1. Open a web browser (Internet Explorer/Firefox/Safari/Chrome) and enter the IP Address http://192.168.1.1

Note: If you have changed the default LAN IP Address of the Access Point, ensure you enter the correct IP Address.

1. The default username and password are admin. Once you have entered the correct username and password, click the Login buon to open the web-base configuration page.

1. If successful, you will be logged in and see the ENH710EXT User Interface.

Chapter 4

Building a Wireless Network

White EnGenius wireless router device with two vertical connectors (no visible text or symbols on body)

The ENH710EXT has the ability to operate in various modes. This chapter describes the operating modes of the ENH710EXT.

Access Point Mode

In Access Point Mode, ENH710EXT behaves likes a central connection for stations or clients that support IEEE 802.11a/b/g/n networks. The stations and clients must be configured to use the same SSID (Service Set Identifier) and security password to associate with the ENH710EXT. The ENH710EXT supports up to eight (8) SSIDs per band at the same time for secure access.

Diagram of a central wireless router connected to multiple laptops, each with signal waves (no text or labels)

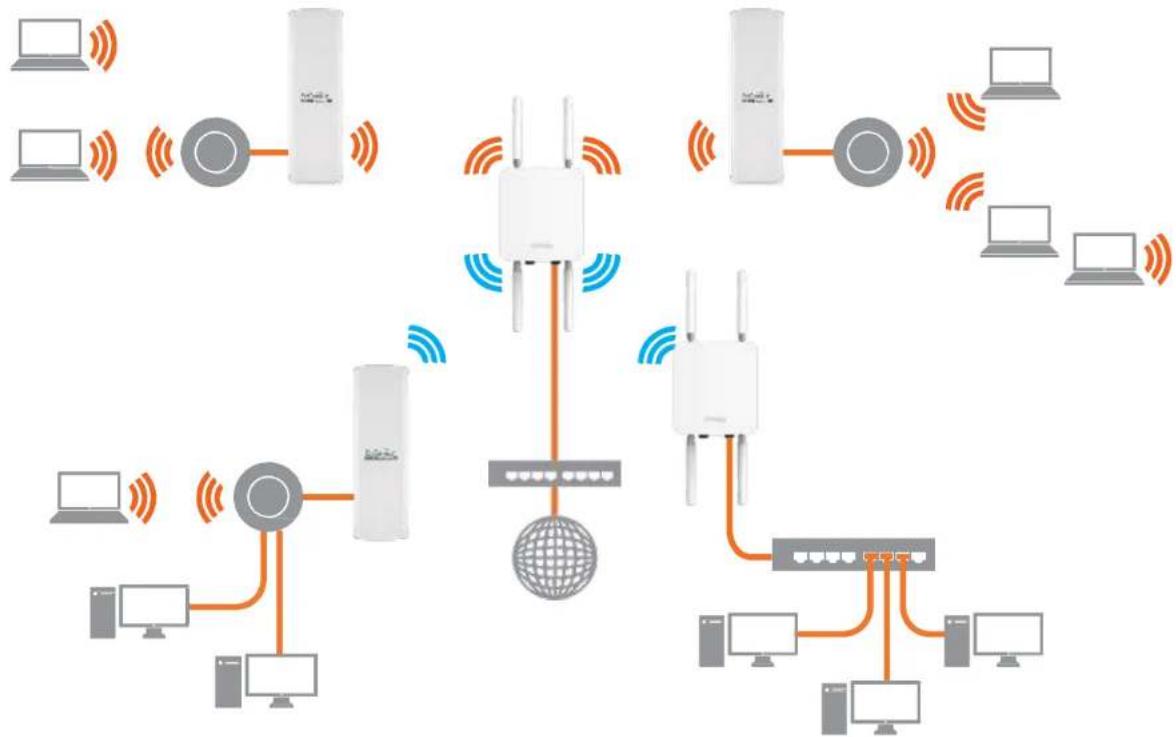

Client Bridge Mode

The ENH710EXT essenally acts as a wireless adapter that connects to an access point to allow a system of wireless access to the network in the Client Bridge mode. Since the computers are on the same subnet, the ENH710EXT can broadcast to reach all end-devices.

If you use the client bridge mode in the ENH710EXT, you can use the AP Detecon feature to scan for Access Points within range. When you find an Access Point, configure the ENH710EXT to use the same SSID and Security Password as the Access Point to associate with it.

WDS AP Mode

The ENH710EXT also supports WDS AP mode. This operang mode allows wireless connecons to the ENH710EXT using WDStechnology. In thismode, configuretheMACaddressesin bothAccessPointstoenlargethewirelessareabyenabling WDS Link seings. WDS supports up to four (4) AP MAC addresses.

WDS Bridge Mode

In WDS Bridge Mode, the ENH710EXT can wirelessly connect different LANs by configuring the MAC address and security settings of each ENH710EXT device. Use this mode when two wired LANs located a small distance apart want to communicate with each other. The best soluon is to use the ENH710EXT to wirelessly connect two wired LANs, as shown in the following diagram.

WDS Bridge Mode can establish up to four WDS links, creang a star-like network.

Note: WDS Bridge Mode does not act as an Access Point. Access Points linked by WDS are using the same frequency channel. More Access Points connected together may lower throughput. This configuration can be susceptible to generate endless network loops in your network, so it is recommended to enable the Spanning Tree funcon to prevent this from happening.

Three white wireless devices connected via a central tower, each with an orange signal icon and a computer monitor (no text or symbols)

WDS Station Mode

Staon mode expands the WDS by receiving a wireless signal/service and sharing it through the Ethernet port.

Diagram showing four white wireless devices with red and blue signal waves, arranged in a cross pattern (no text or symbols)

Chapter 5

Status

White EnGenius wireless router device with two leads (no visible text or symbols on body)

Main Status

Save Changes

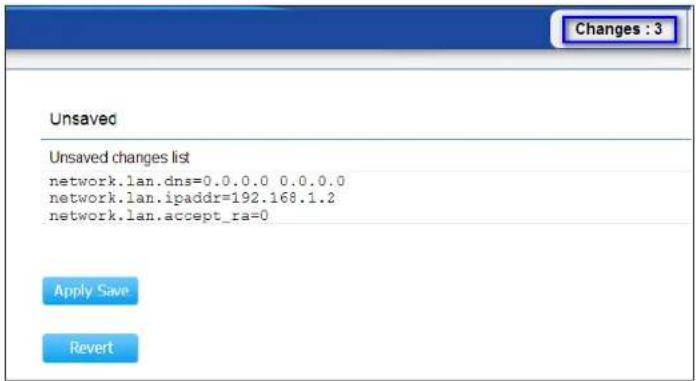

This page lets you save and apply the settings shown under Unsaved changes listor cancel the unsaved changes and revert to the previous settings that were in eect.

Device Status

Clicking the Device Status link under theOverview menu shows the status informaon about the current operang mode.

- The Device Information secon shows general system informaon such as Device Name, MAC Address, Current Time, Firmware Version, and Management VLAN ID Note: VLAN ID informaon is only applicable in Access Point or WDS AP mode.

Device Information
Device Name	ENH710EXT
MAC Address
- LAN	00:02:6F:22:0A:00
- Wireless LAN - 2.4GHz	00:02:6F:22:0A:01
- Wireless LAN - 5GHz	00:02:6F:22:0A:02
Country	Default
Current Local Time	Fri Oct 3 08:01:39 UTC 2014
Firmware Version	2.0.7
Management VLAN ID	Untagged

- The LAN Information secon shows the Local Area Network sengs such as the LAN IP Address, Subnet mask, and DNS Address.

LAN Information - IPv4
IP Address	192.168.1.1
Subnet Mask	255.255.255.0
Gateway	192.168.1.1
Primary DNS	0.0.0.0
Secondary DNS	0.0.0.0
DHCP Client	Disable
Spanning Tree Protocol (STP)	Disable

- The Wireless LAN Information 2.4 GHz/5 GHz secon shows wireless informaon such as Operang Mode, Frequency, and Channel. Since the ENH710EXT supports mulple-SSIDs, informaon about each SSID, the ESSID, and security sengs, are displayed

Note: Profile Settings are only applicable in AccessPoint and WDS AP modes.

Wireless LAN Information - 2.4GHz
Operation Mode		AP
Wireless Mode		802.11 B/G/N
Channel Bandwidth		20-40 MHz
Channel		2.437 GHz (Channel 6)
Distance		1000 M
Profile	SSID		Security	VID	802.1Q
#1	EnGenius063C96_1-2.4GHz		None	1	Disable
#2	EnGenius063C96_2-2.4GHz		None	2	Disable
#3	EnGenius063C96_3-2.4GHz		None	3	Disable
#4	EnGenius063C96_4-2.4GHz		None	4	Disable
#5	EnGenius063C96_5-2.4GHz		None	5	Disable
#6	EnGenius063C96_6-2.4GHz		None	6	Disable

• The Statistics secon shows Mac informaon such as

SSID, MAC address, RX and TX.

Statistics
SSID	MAC	RX(Packets)	TX(Packets)
Ethernet	00 02 6F FF FF FF	75.57KB(856 PKts )	455.920KB(399 PKts )
EnGenius063C96_1-2 4GHz	88 DC 96 06 3C 96	0KB(0 PKts )	0.792KB(4 PKts )
EnGenius063C97_1-5GHz	88 DC 96 06 3C 97	0KB(0 PKts )	0KB(0 PKts )

Wireless LAN Information - 5GHz
Operation Mode		AP
Wireless Mode		802.11 A/N
Channel Bandwidth		40 MHz
Channel		5.66 GHz (Channel 132)
Distance		1000 M
Profile	SSID		Security	VID	002.1Q
#1	EnGenius063C97_1-5GHz		None	51	Disable
#2	EnGenius063C97_2-5GHz		None	52	Disable
#3	EnGenius063C97_3-5GHz		None	53	Disable
#4	EnGenius063C97_4-5GHz		None	54	Disable
#5	EnGenius063C97_5-5GHz		None	55	Disable
#6	EnGenius063C97_6-5GHz		None	56	Disable
#7	EnGenius063C97_7-5GHz		None	57	Disable
#8	EnGenius063C97_8-5GHz		None	58	Disable

Connection

2.4 GHz/5 GHz Connection List

Click the conncon link under the Overview menu displays the connection list of clients associated to the ENH710EXT's 2.4 GHz/5 GHz, along with the MAC addresses and signal strength for each client. Clicking Refresh updates the client list.

Note: Only applicable in Access Point and WDS AP modes.

2.4 GHz/5 GHz WDS Link List

Click the connection link under the Overview menu. This page displays the current status of the WDS link, including WDS Link ID, MAC Address, Link Status and RSSI.

Note: Only applicable in WDS AP and WDS Bridge modes.

Overview Device Status Connections Network Basic Wireless WPS Management Advanced Time Zone WiFi Scheduler Tools System Manager Account Firmware Log	Connection List - 2.4GHz
	SSID	MAC Address	TX	RX	RSSI	Block
	SNWL	EC:55:F9:4C:D9:EA	227782Kb	59705Kb	-57dBm	Kick
	SNWL	54:72:4F:66:89:42	323Kb	190Kb	-43dBm	Kick
	SNWL	60:FA:CD:6E:93:0B	2556Kb	1209Kb	-50dBm	Kick
	SNWL	60:36:DD:7F:3A:05	62466Kb	6127Kb	-47dBm	Kick
	SNWL	48:60:BC:5E:8C:DF	1011Kb	191Kb	-52dBm	Kick
	SNWL	E8:2A:EA:05:72:79	78334Kb	8725Kb	-38dBm	Kick
	SNWL	20:A2:E4:23:41:63	255Kb	76Kb	-52dBm	Kick
	EAP900H-2.4GHz	08:ED:B9:E1:FD:CF	159346Kb	19451Kb	-61dBm	Kick
	EAP900H-2.4GHz	C8:6F:1D:1B:F4:BE	3563Kb	582Kb	-61dBm	Kick
	EAP900H-2.4GHz	20:02:AF:C5:6D:85	1731Kb	504Kb	-46dBm	Kick
	EAP900H-2.4GHz	54:26:96:CF:F2:4D	152054Kb	5003Kb	-50dBm	Kick

Client Bridge Connection Status

Click the conncon link under the Overview menu. This page displays the conncon status between Access Point, including associated SSID, BSSID, conncon status, wireless mode, current channel, security, Tx Data Rate(Mbps), Current noise level and signal strength.

Chapter 6 Network

White EnGenius wireless router device with two leads (no visible text or symbols on body)

Basic IP Settings

IPv4/IPv6 Settings

This page allows you to modify the device's IP sengs.

IPv4 Settings
IP Network Setting	Static IP
IP Address	192.168.1.1
Subnet Mask	255.255.255.0
Gateway	192.168.1.1
Primary DNS	0.0.0.0
Secondary DNS	0.0.0.0

IP Network Settings: Select whether the device IP address will use a static IP address specified in the IP address field or be obtained automatically when the device connects to a DHCP server.

IP Address: The IP address of this device.

Subnet Mask: The IP Subnet mask of this device.

Gateway: The Default Gateway of this device. Leave it blank if you are unsure of this seing.

Primary/Secondary DNS: The primary/secondary DNS address for this device.

Save: Click Save to confirm the changes.

Spanning Tree Protocol (STP) Settings

This page allows you to modify the Spanning Tree sengs. Enabling the Spanning Tree protocol will prevent network loops in your LAN network.

Spanning Tree Protocol (STP) Settings
Status	Disable(n)
Hello Time	2	seconds (1-10)
Max Age	20	seconds (6-40)
Forward Delay	4	seconds (4-30)
Priority	32768	(0-65535)

Spanning Tree Status: Enables or disables the Spanning Tree funcon.

Hello Time: Specifies Bridge Hello Time in seconds. This value determines how oen the device sends handshake packets to communicate informaon about the topology throughout the enre Bridged Local Area Network.

Max Age: Specifies Bridge Max Age in seconds. If another bridge in the spanning tree does not send a hello packet for a long period of me, it is assumed to be inactive.

Forward Delay: Specifies Bridge Forward Delay in seconds. Forwarding delay me is the me spent in each of the Listening and Learning states before the Forwarding state is entered. This delay is provided so that when a new bridge comes onto a busy network, it analyzes data traffic before parcipang in the network.

Priority: Specifies the Priority Number. A smaller number has a greater priority than a larger number.

Save: Click Save to confirm the changes.

Chapter 7

2.4 GHz & 5 GHz Wireless

White EnGenius wireless router device with two leads (no visible text or symbols on body)

Wireless

Wireless Settings

Wireless Settings
Device Name	ENH710EXT
Country / Region	United States
Band Steering	Disable ▼NOTE: In order for Band Steering function to work properly, both 2.4GHz and 5GHz SSID and security settings must be the same.

Device Name: Enter a name for the device. The name you type appears in SNMP management. This name is not the SSID and is not broadcast to other devices.

Band Steering: Enable Band Steering to send 802.11n clients to the 5 GHz band, where 802.11b/g clients cannot go, and leave 802.11b/g clients in 2.4GHz to operate at their slower rates. Band Steering works within the Access Point by direcng 5 GHz-capable clients to that band.

Save: Click Save to confirm the changes.

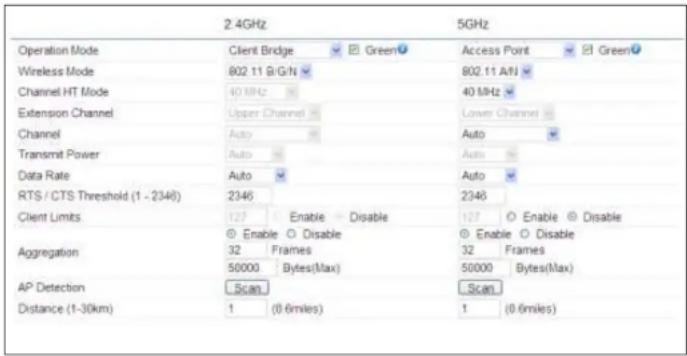

This page displays the current status of the Wireless sengs of the ENH710EXT.

2.4 GHz/5 GHz Wireless Network

Operation Mode: Select Operation Mode The ENH220EXT supports mul-operaon modes: Access Point, Client Bridge, or WDS(WDS AP, WDS Bridge, and WDS Staon).

Wireless Mode: Supports 802.11b/g/n mixed mode in 2 GHz and 802.11a/n mixed mode in 5 GHz.

Channel HT Mode: The default channel bandwidth is 20 MHz/ 40 MHz. The larger the channel, the greater the AP Detection: AP Detecon can select the best channel to transmission quality and speed. use by scanning nearby areas for Access Points.

Extension Channel: Select the upper or lower channel. Your selecon may act the Auto channel funcon.

Channel: Select the appropriate channel and frequency. Select Auto to enable auto-channel selecon.

Transmit Power: Sets the power output of the wireless signal.

Data Rate: Select a data rate from the drop-down list. The data rate aects throughput of data in the ENH710EXT. Select the best balance for you and your network but note that the lower the data rate, the lower the throughput, though transmission distance is also lowered.

RTS/CTS Threshold: Specifies the threshold package size for RTC/CTS. A small number causes RTS/CTS packets to be sent more often and consumes more bandwidth.

Client Limits: Limits the total number of clients.

2.4 Aggregation: Merges data packets into one packet. This open reduces the number of packets, but also increases packet sizes.

the AP Detection: AP Detecon can select the best channel to use by scanning nearby areas for Access Points.

Distance: Specifies the distance between Access Points and clients. Note that longer distances may drop higher-speed connexons.

Save: Click Save to confirm the changes or Cancel to cancel and return to previous sengs.

2.4 GHz/5 GHz SSID Profile

Wireless Settings - 2.4GHz
No.	Enable	SSID	Edit		Security	SuppressedSSID	StationSeparation	Isolation	VID
1	☑	EnGenius063C96_1-2.4GHz	Edit	None		☐	☐	☐	1
2	☐	EnGenius063C96_2-2.4GHz	Edit	None		☐	☐	☐	2
3	☐	EnGenius063C96_3-2.4GHz	Edit	None		☐	☐	☐	3
4	☐	EnGenius063C96_4-2.4GHz	Edit	None		☐	☐	☐	4
5	☐	EnGenius063C96_5-2.4GHz	Edit	None		☐	☐	☐	5
6	☐	EnGenius063C96_6-2.4GHz	Edit	None		☐	☐	☐	6
7	☐	EnGenius063C96_7-2.4GHz	Edit	None		☐	☐	☐	7
8	☐	EnGenius063C96_8-2.4GHz	Edit	None		☐	☐	☐	8

Wireless Settings - 5GHz
No.	Enable	SSID	Edit		Security	SuppressedSSID	StationSeparation	Isolation	VID
1	W	EnGenius063C97_1-5GHz	Edit	None		☐	☐	☐	51
2	☐	EnGenius063C97_2-5GHz	Edit	None		☐	☐	☐	52
3	☐	EnGenius063C97_3-5GHz	Edit	None		☐	☐	☐	53
4	☐	EnGenius063C97_4-5GHz	Edit	None		☐	☐	☐	54
5	☐	EnGenius063C97_5-5GHz	Edit	None		☐	☐	☐	55
6	☐	EnGenius063C97_6-5GHz	Edit	None		☐	☐	☐	56
7	☐	EnGenius063C97_7-5GHz	Edit	None		☐	☐	☐	57
8	☐	EnGenius063C97_8-5GHz	Edit	None		☐	☐	☐	58

Current Profile: You can configure up to sixteen (16) different SSIDs (eight (8) per band). If multiple client devices will be accessing the network, you can arrange the devices into SSID groups. Click Edit to configure the profile and check whether you want to enable extra SSID.

SSID: Specifies the SSID for the current profile.

Suppressed SSID: Check this opon to hide the SSID from clients. If checked, the SSID will not appear in the site survey.

Station Separation: Click the appropriate radio buon to allow or prevent communicaon between client devices.

VID: Specifies the VLAN tag for each profile. If your network includes VLANs, you can specify a VLAN ID for packets pass through the Access Point with a tag.

Wireless Security: See the Wireless Security secon.

Isolation: Restrict clients communicang with dierent VIDs by selecng the radio buon.

Save: Click Save to accept the changes.

Wireless Security

The Wireless Security section lets you configure the ENH710EXT's security modes: WEP, WPA-PSK, WPA2-PSK, WPA-PSK Mixed, WPA, WPA2, and WPA Mixed. It is strongly recommend that you use WPA2-PSK.

Input Type:

ASCII: Regular Text (recommended)

Hexadecimal Numbers (For advanced users)

Key Length: Select the desired opon and ensure that wireless clients use the same seng. Your choices are 64, 128, and 152-bit password lengths.

Default Key: Select the Key you wish to be the default. Transmied data is ALWAYS encrypted using the Default Key; the other Keys are for decryption only. You must enter a Key Value for the Default Key.

Encryption Key Number Enter the Key Value or values you wish to use. Only the Key selected as Default is required. The others are oponal.

Wireless MAC Filtering

Wireless MAC Filtering is used to allow or deny network access to wireless clients (computers, tablet PCs, NAS, smartphones, etc.) according to their MAC addresses. You can manually add a MAC address to restrict permission to access the ENH710EXT. The default seng is: Disable Wireless MAC Filter.

Note: Only applicable in Access Point and WDS AP modes.

ACL Mode: Determines whether network access is granted or denied to clients whose MAC addresses appear in the MAC address table on this page. Your choices are: Disabled, Deny MAC in the list, or Allow MAC in the list.

MAC Address: Enter the MAC address of the wireless client.

Add: Click Add to add the MAC address to the MAC address table.

Delete: Delete the selected entries.

Save: Click Save to apply the changes.

Wireless Advanced

Wireless Traffic Shaping

Traffic shaping regulates the flow of packets leaving an interface to deliver improved Quality of Service.

Wireless Traffic Shaping
Enable Traffic Shaping	Disable
Download Limit	100	Mbps (1-999)
Upload Limit	100	Mbps (1-999)

Enable Traffic Shaping Check this opon to enable Wireless Traffic Shaping.

Download Limit: Specifies the wireless transmission speed the Key must be 64 HEX characters in length.

used for downloading.

Upload Limit: Specifies the wireless transmission speed used for uploading.

Save: Click Save to confirm the changes.

WPA-PSK (WPA Pre-Shared Key) Encryption:

Wireless Security - 2.4G
Security Mode	WPA2-PSK
Encryption	Both(TKIP+AES)
Passphrase
Group Key Update Interval	3600

Encryption: Select the WPA encrypon type you would like. Please ensure that your wireless clients use the same sengs.

Passphrase: Wireless clients must use the same Key to associate the device. If using ASCII format, the Key must be from 8 to 63 characters in length. If using HEX format,

the Key must be 64 HEX characters in length.

Group Key Update Interval: Specifies how often, in seconds, the Group Key changes.

WPA Mixed-Enterprise: Access Point / WDS AP mode

Encryption: Select the WPA encrypon type you would like. Please ensure that your wireless clients use the same sengs.

Radius Server: Enter the IP address of the Radius server.

Radius Port: Enter the port number used for connecons to the Radius server.

Radius Secret: Enter the secret required to connect to the Radius server.

Group Key Update Interval: Specifies how often, in seconds, the Group Key changes.

Radius Accounting: Enable or disable accoung feature.

Radius Accounting Server: Enter the IP address of the Radius accoung server.

Radius Accounting Port Enter the port number used for connecons to the Radius accoung server.

Radius Accounting Secret Enter the secret required to connect to the Radius accoung server.

Interim Accounting Interval: Specifies how often, in seconds, the accoung data sends.

Note: 802.11n does not allow WEP/WPA-PSK TKIP/WPA2-PSK TKIP security mode. The conncon mode will automatically change from 802.11n to 802.11g.

Fast Roaming Enable Fast Roaming to serve mobile client devices that roam from Access Point to Access Point. Some applicaons running on Client devices require fast re-associaon when they roam to a dierent Access Point. Voice applicaon.

WDS Link Settings

Using the WDS (Wireless Distribuon System) feature will allow a network administrator or installer to connect to Access Points wirelessly. Doing so will extend the wired infrastructure to locaons where cabling is not possible or inefficient to implement.

Note: Compatibility between dierent brands and models of Access Points is not guaranteed. It is recommended that the WDS network be created using the same models for maximum compatibility.

Also note: All Access Points in the WDS network need to use the same Channel and Security sengs.

To create a WDS network, please enter the MAC addresses of the Access Points that you want included in the WDS. There can be a maximum of four Access Points.

Note: Only applicable in WDS AP and WDS Bridge modes.

2.4 GHz/5 GHz WDS Link Settings

Security: Select None or AES from the drop-down list.

³ AES Passphrase: Enter the Key Values you wish to use. Other Access Points must use the same Key to establish a WDS link.

MAC Address: Enter the Access Point's MAC address to where you want to extend the wireless area.

Mode: Select to disable or enable from the drop-down list.

Save: Click Save to confirm the changes.

Client Bridge Setting

No.: Display the seng value

SSID: You can implement the AP detecon to select the proper SSID.

Edit: Click it to implement the advanced sengs

Prefer BSSID: You can insert the prefer BSSID or enter the specific SSID to be associated with the Access Point.

SSID: You can implement the AP detecon to select the proper SSID.

Security Mode: Select the correct security mode and insert the correct encrypon type. Please refer the wireless security secon in page 42.

Save: Click Save to accept the changes

Guest Network Settings

Adding a guest network allows visitors to use the Internet without giving out your office or company wireless security key. You can add a guest network to each wireless network in the 2.4 GHzb/g/n and 5 GHza/n frequencies.

Guest Network Settings
Enable	SSID	Edit	Security	Suppressed SSID	Station Separation
EnGenius-2.4GHz_GuestNetw	Edit	None
EnGenius-5GHz_GuestNetw	Edit	None
Manual IP Settings
- IP Address		192.168.200.1
- Subnet Mask		255.255.255.0
Automatic DHCP Server Settings
- Starting IP Address		192.168.200.100
- Ending IP Address		192.168.200.200
- WINS Server IP		0.0.0.0

SSID: Specifies the SSID for the current profile.

Suppressed SSID: Check this opon to hide the SSID from clients. If checked, the SSID will not appear in the site survey.

Station Separation: Click the appropriate radio buon to allow or prevent communicaon between client devices.

IP Address:The IP Address of this device.

Subnet Mask:The IP Subnet mask of this device.

Starting IP Address: The first IP Address in the range of the addresses by the DHCP server.

Ending IP Address: The last IP Address in the range of addresses assigned by the DHCP server.

Fast Handover

Fast Handover: Enable the Fast Handover feature by ensuring that each client is served by at least one Access Point at any me. Access Points connuously monitor the connecvity quality of any client in their range and efficiently share this information with other Access Points in the vicinity of that client to coordinate which of them should serve the client best.

RSSI: Enter the RSSI (Received Signal Strength Index) in order to determine the handover procedure which the current wireless link will terminate. RSSI is an indication of the power level being received by the antenna. Therefore, the higher the RSSI number, the stronger the signal.

Chapter 8 Management

White EnGenius wireless router device with two leads (no visible text or symbols on body)

Management VLAN Settings

This page allows you to assign a VLAN tag to packets sent over the network. A VLAN is a group of computers on a network whose software has been configured so that the behave as if they were on a separate Local Area Network (LAN). Computers on VLAN do not have to be physically located next to one another on the LAN.

Note: Only applicable in Access Point and WDS AP modes.

Management VLAN: If your network includes VLANs, you can enable Management VLAN ID for packets passing through the Access Point with a tag.

Save: click Save to confirm the changes or Cancel to cancel and return to previous sengs.

Note: If you reconfigure the Management VLAN ID, you may lose your conncon to the ENH710EXT. Verify that the DHCP server supports the reconfigured VLAN ID and then reconnect to the ENH710EXT using the new IP address.

Advanced Settings

SNMP Settings

This page allows you to assign the Contact Details, Locaon, Community Name, and Trap Sengs for a Simple Network Management Protocol (SNMP). SNMP is a networking management protocol used to monitor network aached devices. SNMP allows messages (called protocol data units) to be sent to various parts of the network. Upon receiving these messages, SNMP compatible devices (called agents) returns the data stored in their Management Information Bases.

SNMP Enable/Disable Enables or disables the SNMP feature.

Contact: Specifies the contact details of the device.

Location: Specifies the location of the device.

Community Name (Read Only): Specifies the password for the SNMP community for read only access.

Community Name (Read/Write): Specifies the password for the SNMP community with read/write access.

Trap Destination Address: Specifies the IP address of the computer that will receive the SNMP traps.

Trap Destination Community Name: Specifies the password for the SNMP trap community.

SNMPv3: Enables or disables the SNMPv3 feature.

User Name: Specifies the username for SNMPv3.

Auth Protocol: Selects the authencaon protocol type: MDS or SHA.

Auth Key: Specifies the authentication key.

Priv Protocol: Selects the privacy protocol type: DES.

Priv Key: Specifies the privacy key for privacy.

Engine ID: Specifies the engine ID for SNMPv3.

Apply Save: Click Apply Save to apply the changes.

CLI Settings

CLI: The Command Line Interface (CLI) allows you to type commands instead of choosing them from a menu or selecng an icon.

SSH: Enable Secure Shell (SSH) to make secure, encrypted conncons in the network. Secure Shell is a network protocol that allows data to be exchanged using a secure channel between two network devices.

HTTPS: Enable HTTPS to transfer and display web content securely. The Hypertext Transfer Protocol over SSL (Secure Socket Layer) is a TCP/IP protocol used by web servers to transfer and display web content securely.

Email Alert

You can use the Email Alert feature to send messages to the configured email address when particular system events occur.

Note: Do NOT use your personal email address as it can unnecessarily expose your personal email login credentials. Use a separate email account made for this feature instead

From: Enter the email address to show the sender of the email.

To: Enter the address that you wish to send emails to.

Subject: Enter the text that you wish to appear in the email's subject line.

Username: Enter the username for the email account that will be used to send emails.

Password: Enter the password for the email account that will be used to send emails.

SMTP Server: Enter the IP address or hostname of the outgoing SMTP server.

Port: Enter the SMTP port number to use for outbound emails.

Time Zone

Time Setting

This page allows you to set the internal clock of the ENH710EXT.

Manually Set Date and Time: Manually specify the date and me.

Automatically Get Date and Time: Select and check whether you wish to enter the IP address of an NTP server or use the default NTP server to have the internal clock set automacally.

Enable Daylight Saving: Check whether daylight savings applies to your area.

Start: Select the day, month, and me when daylight savings me starts.

End: Select the day, month, and me when daylight savings mes ends.

Auto Reboot Settings

You can specify how oen you wish to reboot the ENH710EXT.

Auto Reboot Setting : Enables or disables the Auto Reboot funcon.

Frequency of Auto Reboot: Species how oen you wish to reboot the ENH710EXT by Min, Hour, Day or Week.

Timer: Select the day and enter the me you would like to reboot automacally.

Save: Click Save to apply the changes.

Wi-Fi Scheduler

The Wi-Fi Scheduler can be created for use in enforcing rules. For example, if you wish to restrict web access to Mon-Fri from 3pm to 8pm, you could create a schedule selecng Mon, Tue, Wed, Thu and Fri while entering a Start time of 3pm and End Time of 8pm to limit access to these mes.

Status: Enables or disables the Wi-Fi scheduler funcon.

Wireless Radio: Select 2.4 GHz or 5 GHz from the drop-down list for the preferred band type.

SSID Selection: Select a SSID from the drop-down list.

Schedule Templates: Select a schedule template from the

drop-down list.

Day(s): Place a checkmark in the boxes for the desired days or select the All Week radio buon to select all seven days of the week.

Duration: The Start Time is entered in two fields. The first box is for hours and the second box is for minutes. The End Time is entered in the same format as the Start me.

Tools

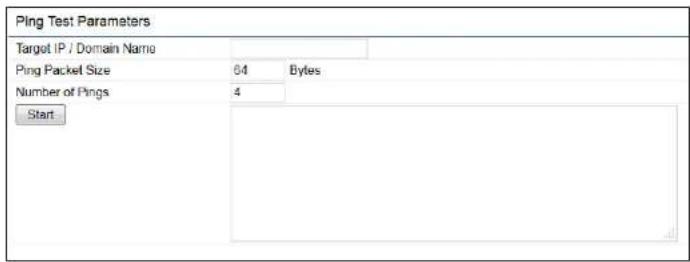

Ping Test Parameters

This page allows you to analyze the conncon quality of the ENH710EXT and trace the round table to a target in the network.

Target IP: Enter the IP address you would like to search.

Ping Packet Size Enter the packet size of each ping.

Number of Pings: Enter the number of mes you wish to ping.

Start Ping: Click Start Ping to begin pinging the target device (via IP).

Traceroute Target: Enter the IP address or domain name you wish to trace.

Start Traceroute: Click Start Tracerouteto begin the trace route operaon.

Speed Test Parameters / LED Control

This page allows you to control LED on/o for Power, LAN interface, or 2.4 GHz/5 GHz WLAN interface.

indicator.

WLAN-5 GHz: Enables or disables the WLAN-5 GHz LED indicator.

Device Discovery

This page allows you to discover devices from network for Operaon Mode, IP Address, System MAC Address and Firmware version.

LED Control

Power: Enables or disables the Power LED indicator.

LAN: Enables or disables the LAN LED indicator.

WLAN-2.4 GHz: Enables or disables the WLAN-2.4 GHz LED

Account

This page allows you to change the ENH710EXT username and password. By default, the username is: admin and the password is: admin. The password can contain from 0 to 12 alphanumeric characters and is case sensitive.

Account Settings

Account Settings
Administrator Username	admin
Current Password	●●●●●
New Password
Verify Password

Administrator Username: Enter a new username for logging in to the New Name entry box.

Current Password: Enter the old password for logging in to the Old Password entry box.

New Password: Enter the new password for logging in to the New Password entry box.

Verify Password: Re-enter the new password in the Confirm Password entry box for confirmation.

Apply: Click Apply to apply the changes.

Firmware

Firmware Upgrade

This page allows you to upgrade the firmware of the ENH710EXT.

To Perform the Firmware Upgrade:

1. Click the Choose File button and navigate the OS file system to the location of the upgrade file.

2. Select the upgrade file. The name of the file will appear in the Upgrade File field.

3. Click the Upload button to commence the firmware upgrade.

Note: The device is unavailable during the Firmware upgrade process and must restart when the upgrade is completed. Any connections to or through the device will be lost.

Backup/Restore

Factory Setting

The funcon allows you to export the current device conguraons. When you export your conguraons, you also can reload the saved conguraons into the device through the Restore Saved Sengs from a le secon. If extreme problems occur, or if you have set the ENH710EXT incorrectly, you can use the Reset buon in the Revert to Factory Default Sengs secon to restore all the conguraons of the ENH710EXT to the original default sengs.

Backup Setting: Click Export to save the current congured sengs.

Restore New Setting : To restore seings that have been previously backed up, click Browse, select the le, and click Restore.

Restore to Default: Click Reset buon to restore the ENH710EXT to its factory default sengs.

User Setting

The funcon allows you to backup the current device conguraons into the ENH710EXT as the default value. If extreme problems occur, or if you have set the ENH710EXT incorrectly, you can push the Reset buon to revert all the conguraons of the ENH710EXT to the user default.

Back Up Setting as Default: Click Backup to backup the user sengs you would like to the device's memory for the default sengs.

Restore to User Default: Click Restore to restore user sengs to the factory standard sengs.

Note1: Aer seng the current sengs as the default, you should click the Restore to Default on the web interface for reverng the sengs into the factory default instead of pushing the reset buon.

Note2: Please write down your account and password before saving. The user sengs will now become the new default sengs at the next successful login.

Log

System Log

The ENH710EXT automacally logs (records) events of possible interest in its internal memory. To view the logged informaon, click the Log link under the System Manager menu. If there is not enough internal memory to log all events, older events are deleted from the log. When powered down or rebooted, the log will be cleared.

Remote Log

This page allows you to setup the Remote Log funcons for the ENH710EXT.

Syslog: Enables or disables the syslog funcon.

Log Server IP Address: Enter the IP address of the log server.

Remote Log: Enable or disable the remote log service.

Apply: Click Apply to apply the changes.

Logout

Click Logout in Management menu to logout.

Reset

In some circumstances, it may be required to force the device to reboot. Click on Reset to reboot the ENH710EXT.

Appendix

White EnGenius wireless router device with two leads (no visible text or symbols on body)

Appendix A

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help

FCC Caution:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

IMPORTANT NOTE:

Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body.

Appendix B - CE Interference Statement

Europe – EU Declaration of Conformity

This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:

• EN60950-1
Safety of Information Technology Equipment
• EN50385

Generic standard to demonstrate the compliance of electronic and electrical apparatus with the basic restrictions related to human exposure to electromagnetic fields (0 Hz - 300 GHz)

• EN 300328

Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive

• EN 301893

Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN; Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive

• EN 301489-1

Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements

• EN 301489-17

Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment

This device is a 5GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies.

In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services.

This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France.

CE0560①

Česky [Czech]	[Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a dalšími příslušnýmiustanoveními směrnice 1999/5/ES.
Dansk [Danish]	Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch [German]	Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti [Estonian]	Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele pätelete.
English	Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Español [Spanish]	Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική [Greek]	ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/EK.
Français [French]	Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian]	Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian]	Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment / iekārtas tips] atbilst Direktīvas 1999/ 5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių [Lithuanian]	Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlands [Dutch]	Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti [Maltese]	Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar [Hungarian]	Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvető követelményeknek és az 1999/5/EC irányelv egyéb előírásainak.
Polski [Polish]	Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português [Portuguese]	[Nome do fabricante] declara que este [tipo de equipamento] está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko [Slovenian]	[lme proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensky [Slovak]	[Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky a všetky prislušné ustanovenia Smernice 1999/5/ES.
Suomi [Finnish]	[Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen tyyppimerkintā] tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukajnen.

Appendix C - IC Interference Statement

Industry Canada statement

This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

High-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

Avertissement:

Radiation Exposure Statement

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Appendix D - Professional Installation Instruction

Installation Personal

This product is designed for specific application and needs to be installed by a qualified personal who has RF and related rule knowledge. The general user shall not attempt to install or change the setting.

Installation Location

The product shall be installed at a location where the radiating antenna can be kept 20cm from nearby person in normal operation condition to meet regulatory RF exposure requirement.

External Antenna

Use only the antennas which have been approved by the applicant. The non-approved antenna(s) may produce unwanted spurious or excessive RF transmitting power which may lead to the violation of FCC/IC limit and is prohibited.

Installation Procedure

Please refer to user's manual for the detail.

Warning:

Please carefully select the installation position and make sure that the final output power does not exceed the limit set force in relevant rules. The violation of the rule could lead to serious federal penalty.

This device has been designed to operate with an antenna having a maximum gain of 7 dB. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

This radio transmitter (IC: 10103A-ENH710EXT / Model: ENH710EXT) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

Approved Antenna(s) List

Type : Dipole

Gain : 5dBi for 2.4GHz / 7dBi for 5GHz
