Product Type	Countertop Microwave Oven
Brand	Avanti
Model	MO7003SST
Power Output	700 Watts
Power Consumption	1050 Watts, 120V ~ 60Hz
Operating Frequency	2450 MHz
Oven Capacity	0.7 cu. ft.
Unit Dimensions (H x W x D)	10.5 x 18.0625 x 14.375 inches
Oven Cavity Dimensions (H x W x D)	8.4 x 12.6 x 11.1875 inches
Net Weight	Approx. 23 lbs
Control Type	Electronic with digital display and touch pads
Cooking Uniformity	Turntable system
Pre-Programmed Modes	Baked Potato, Popcorn, Pizza, Beverage, Frozen Dinner, Reheat, Cook By Weight, Defrost By Weight, Speed Defrost
Additional Features	Clock (12/24 hour), Kitchen Timer, Child Lock, Auto Timer
Door Type	Pull-open with door release button
Interior Light	Yes (replaceable by qualified service)
Cleaning	Wipe interior with damp cloth; mild detergent for stubborn soils. Do not use abrasives.
Safety Features	Door safety lock system, child lock, auto shut-off
Warranty	1 year limited parts and labor; additional coverage on magnetron (see manual)

Frequently Asked Questions - MO7003SST Avanti

How do I set the clock on my Avanti MO7003SST?

Press the CLOCK pad. Press again to select 12 or 24 hour format. Use number pads to enter the time (e.g., 1:30 press 1,3,0). Press CLOCK to confirm.

What is the maximum cooking time?

The maximum cooking time that can be set is 99 minutes and 99 seconds.

Can I use metal containers in this microwave?

No, metal containers or dishes with metallic rims should not be used as they can cause arcing and damage the oven.

How do I defrost food by weight?

Press DEFROST BY WEIGHT, enter the weight in pounds and ounces (e.g., 1 lb 8 oz as 108), then press START/STOP. The oven automatically sets time and power.

Why does my microwave not start?

Check that it is plugged in, the door is fully closed, and the circuit breaker has not tripped. Ensure the timer is set and press START/STOP.

How do I clean the microwave interior?

Use a damp cloth with mild detergent. Avoid harsh abrasives. For odors, microwave a mixture of 1 cup water and lemon juice for 5 minutes then wipe.

What does 'END' mean on the display?

'END' indicates the cooking cycle is complete. Open the door or press RESET to clear it before starting another program.

How do I use the child lock feature?

Press and hold RESET for 3 seconds until 'LOCK' appears. To unlock, press and hold RESET again for 3 seconds.

Can I cook popcorn in this microwave?

Yes, use the POPCORN preset. Touch POPCORN, then select 1 (3 oz) or 2 (1.5 oz) using number pads, then press START/STOP.

What is the power consumption and voltage requirement?

The microwave requires 120V ~ 60Hz, 1050W power consumption. It must be plugged into a grounded 3-prong outlet.

USER MANUAL MO7003SST Avanti

Line drawing of a microwave oven with control knobs and a front panel (no text or symbols)

Line drawing of a microwave oven with control panel and door (no text or symbols)

Line drawing of a microwave oven with control panel and door (no text or symbols)

Line drawing of a microwave oven with control panel and door (no text or symbols)

Model / Modelo: MO7003SST Model / Modelo: MO9000TW / MO9001TB

Line drawing of a microwave oven with control panel (no text or symbols)

Model / Modelo: MO9003SST Model / Modelo: MO1108SST

Line drawing of a microwave oven with control panel and door (no text or symbols)

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

TABLE OF CONTENTS

Help Us Help You 3
Parts and Features 4 – 6
Important Safety Instructions 7
Installation Instructions 8
Before Using Your Microwave Oven 8
Installation of Your Microwave Oven 8
Safety Precautions 8 – 9
Electrical Connection 10
Operating Your Microwave Oven 10
Control Panel and Operating Instructions:Models MO7081MW / MO7082MB 11 – 12
Control Panels	Models: MO7191TW / MO7192TB /MO7003SST / MO9003SST / MO1108SST		13 – 15
OperationProcedure	Models: MO7191TW / MO7192TB /MO7003SST / MO9003SST / MO1108SST		15 – 19
Cooking Techniques 20
Care and Maintenance 20
Cleaning Your Microwave Oven 20
Problems with Your Microwave Oven? 21
Troubleshooting Guide 21
Service for Your Microwave Oven 21
Avanti Microwave Oven Warranty			22
Instructions en Español			23 – 38
Registration Information and Registration Card			39

HELP US HELP YOU...

Read this guide carefully.

It is intended to help you operate and maintain your new microwave oven properly.

Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call:

Avanti Customer Service 800-220-5570

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

Write down the model and serial numbers.

You'll find them on a label located on the rear wall of the microwave oven.

Please write these numbers here:

Date of Purchase

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your microwave oven.

If you received a damaged microwave oven, immediately contact the dealer (or builder) that sold you the microwave oven.

Save time and money. Before you call for service, check the Troubleshooting Guide. It lists causes of minor operating problems that you can correct yourself.

IF YOU NEED SERVICE

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further assistance.

FIRST, contact the people who serviced your microwave oven. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details, including your telephone number, and send it to:

Customer

Service

Avanti Products

10880 NW 30 Street

Miami, FL 33172 USA

Parts and Features

MO7081MW / MO7082MB

1	Door Safety Lock System
2	Oven Window
3	Oven Air Vent
4	Turntable Roller Assembly
5	Glass Tray
6	Control Panel
7	Door Release Button

Control Panel Detail – See Page 11.

Operating Instructions – See page 12.

MO7191TW / MO7192TB

1	Door Safety Lock System
2	Oven Window
3	Turntable Roller Assembly
4	Door Release Button
5	Control Panel
6	Oven Air Vent
7	Glass Tray

Control Panel Detail – See Page 13.

Operating Instructions – See pages 15 - 19.

Parts and Features

MO7003SST
	1 Door Safety Lock System2 Oven Window3 Turntable Roller Assembly4 Control Panel5 Oven Air Vent6 Glass TrayControl Panel Detail – See Page 13.Operating Instructions – See pages 15 - 19

1	Door Safety Lock System
2	Oven Window
3	Turntable Roller Assembly
4	Control Panel
5	Oven Air Vent
6	Glass Tray

MO9000TW
	1 Door Safety Lock System2 Oven Window3 Oven Air Vent4 Turntable Shaft5 Turntable Roller Ring6 Glass Tray7 Control Panel8 Door Release Button
	Control Panel Detail – See Page 14.Operating Instructions – See pages 15 - 19

Parts and Features

Important Safety Instructions

WARNING

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

Read all instructions before using the appliance.Precautions to avoid possible exposure to excessive microwave energy.This appliance must be grounded. Connect only to properly grounded outlet. See GROUNDING INSTRUCTIONS.Install or locate the appliance only in accordance with the provided installation instructions.When cleaning surfaces of door and oven that comes together on the closing door, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.Some products such as whole eggs and sealed containers-(for example, closed glass jars) may explode and should not be heated in microwave oven.Use this microwave oven only for its intended use as described in this manual.Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.As with any appliance, close supervision is necessary when used by children.Do not operate this microwave oven if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.To reduce the risk of fire in the oven cavity:Do not overcook food. Carefully attend microwave oven if paper, plastic, or combustible materials are placed inside the oven to facilitate cooking.Remove wire twist-ties from bags before placing bag in oven.If materials inside the oven should ignite, keep oven door closed, turn oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.Only qualified service personnel should service this appliance. Contact the nearest authorized service facility for examination, repair or adjustment.Do not cover or block any openings on this appliance.Do not use this microwave oven to heat corrosive chemicals (for example, sulfides and chlorides). Vapors from such corrosive chemicals may interact with the contact and springs of the safety interlock switches thereby rendering them inoperable.Do not immerse cord or plug in water.Keep cord away from heated surfaces.Do not let cord hang over edge of table or counter.Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.-Save these instructions-

INSTALLATION INSTRUCTIONS

• Remove the exterior and interior packing.
• Check to be sure you have all of the following parts:
• Glass Tray
• Turntable Roller Assembly (Roller or Roller Ring)
  • Instruction Manual

- Inspect the oven after unpacking for any visual damage such as:

• Misaligned Door
• Damaged Door
  • Dents or Holes in Door Window and Screen
• Dents in Cavity

If any of the above is visible, DO NOT use the oven.

• When positioning the microwave oven, it should be set on a flat, steady surface.
• Do not block air vents. If they are blocked during operation, the oven may overheat and eventually cause oven failure.
• Poor television reception and radio interference may result if the oven is located close to a TV, radio, antenna, or antenna wire. Position the oven as far from them as possible.
• Clean the interior surface with lukewarm water using a soft cloth.
• Keep the oven away from hot air, steam or splashing liquids when choosing a place to locate it, otherwise, the unit's operation may be adversely affected, causing it to break down.
• Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
• Plug the appliance into an exclusive properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and or grounding should be directed toward a certified electrician or an authorized Avanti Products service center.
• DO NOT place anything on the top of the oven.
• Keep the oven at least 5 inches away from both sidewalls and away from rear wall to ensure the proper ventilation.
• DO NOT remove the turn-table drive shaft.

> SAFETY PRECAUTIONS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door-open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the : (1) Door ( bent ), (2) Hinges and latches ( broken or loosened ), (3) Door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

• DO NOT attempt to tamper with or make any adjustments or repairs to door, control panel or any other part of the oven. Do NOT remove outer panel from oven. Repairs should only be done by qualified service personnel.
• DO NOT operate the oven empty. The microwave energy will reflect continuously throughout the oven if no food or water is present to absorb energy.
• If a fire occurs in the oven, touch the START/STOP pad and LEAVE THE DOOR CLOSED. Disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
• DO NOT attempt to dry clothes, newspapers or other materials in oven. They may catch on fire.
• DO NOT use recycled paper products, as they may contain impurities, which may cause sparks and/or fires when used.
• DO NOT hit or strike control panel. Damage to controls may occur.

• METAL CONTAINERS or dishes with metallic rims should not be used. Arcing may occur.

• METAL TWIST-TIES may not be used in the microwave oven.

- DO NOT use SEALED JARS or NARROW NECK bottles for cooking or reheating. They may shatter.

- DO NOT use CONVENTIONAL THERMOMETERS in the microwave oven. They may cause arcing. Use only those labeled “Microwave Safe” and follow all directions. Check the food in several places.

- Remove PLASTIC STORE WRAPS before cooking or defrosting in the oven. RECOMMENDED

- Microwave browning dish – Use to brown exterior of small items such as steaks, chops, or pancakes. Follow the directions provided with your browning dish.

- Microwaveable plastic wrap – Use to retain steam. Leave a small opening for some steam to escape and avoid placing it directly on the food.

- Paper towels and napkins – Use for short-term heating and covering; these absorb excess moisture and prevent splattering. Do not use recycled paper towels, which may contain metal and could ignite.

- Never use your microwave oven for HOME CANNING. The oven is not designed to permit proper canning. Improperly canned food may spoil and be dangerous to consume.

- COOKING TIMES are approximate. Factors that may affect cooking are starting temperature, altitude, volume, size and shape of food and utensils used. As you become familiar with the oven, you will be able to adjust for these factors.

- It is better to UNDERCOOK RATHER THAN OVERCOOK foods. If food is undercooked, it can always be returned to the oven for further cooking. If food is overcooked, nothing can be done. Always start with minimum cooking times.

- SMALL QUANTITIES of food or foods with LOW MOISTURE content can burn, dry out or catch on fire if cooked too long.

- DO NOT boil eggs in their shell. Pressure may build up and the eggs will explode.

- Potatoes, apples, egg yolks, whole acorn squash and sausage are examples of food with NONPOROUS SKINS. These must be pierced before cooking to prevent bursting.

- POPCORN must be popped in a microwave corn popper. Microwave popped corn produces a lower yield than conventional popping. DO NOT use oven for popcorn unless popped in a microwave approved popcorn utensil or unless it's commercially packaged and recommended especially for microwave ovens. DO NOT use oil unless specified by the manufacturer.

- DO NOT attempt to deep fat fry in your oven.

- HEATED LIQUIDS can ERUPT if not mixed with air. DO NOT heat liquids in your microwave oven without first stirring.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be inserted into an outlet that is properly installed and grounded.

Warning

Improper use of the grounded plug can result in the risk of electrical shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

Do not under any circumstances cut or remove the third ground prong from the power cord supplied.

Do not use the extension cord. If the power supply cord is too short, have a qualified electrician or serviceman to install an outlet near the appliance.

This appliance requires a standard 115/120 Volts A.C. \~/60Hz electrical outlet with three-prong ground.

The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.

Although your oven is provided with safety features, it is important to observe the following:

• It is important not to defeat or tamper with safety interlocks.
• Do not place any object between the oven front face and the door or allow residue to accumulate on sealing surfaces. Wipe the sealing area frequently with a mild detergent, rinse and wipe dry. Never use abrasive powders or pads.

• When opened, the door must not be subjected to strain, for example, a child hanging on an opened door or any load which could cause the oven to fall forward and cause injury and damage the door. Do not operate the oven if it is damaged, until it has been repaired by a qualified service person. It is particularly important that the oven closes properly and that there is no damage to the:

• Door (bent)
  • Hinges and latches (broken or loosened)
  • Door seals and sealing surfaces

- The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

CONTROL PANEL

OPERATION INSTRUCTIONS UNIT SPECIFICATIONS

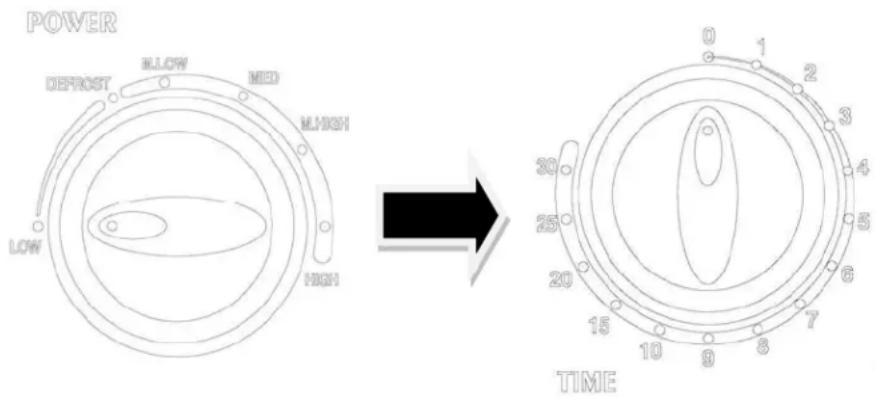

The control panel of your unit consists of two function selector knobs.

• POWER SELECTOR KNOB

Use this knob to select the power level at which you want to cook. Power levels increase when turning the knob in a clockwise direction as well as decrease when turned in a counter clockwise direction. Power levels are represented in the table below:

Power Setting Power	Output
LOW	17%
DEFROST	40%
M. LOW 48%
MED	66%
M. HIGH 85%
HIGH	100%

• TIME SELECTOR KNOB

Use this knob to select the appropriate cooking time desired. Cooking times can be set up to a maximum of 30 minutes per cooking session.

NOTE:

As soon as the timer is turned, the oven will start cooking. When setting the timer for less than two (2) minutes, turn the timer knob past the two (2) minute mark and then return to the correct time. When the cooking time has elapsed, a bell will ring and the unit will turn off automatically.

CAUTION:

POSITION, when food is removed from the oven prior to the end of the cooking cycle or when the oven is not in use.

Unit Specifications:

Power Consumption: 120V ~ 60Hz, 1200W
Output (Watts): 700W
Operation Frequency: 2450MHz
Unit Dimensions (HxWxD):	9^5/_8 × 17^13/_16 × 14^3/_8
Oven Cavity Dimensions (HxWxD):	8^11/_16 × 12^3/_8 × 12^3/_8
Oven Capacity: 0.7 cu. Ft.
Cooking Uniformity: Turntable
Net Weight: Approx. 23 Lbs

OPERATING YOUR MICROWAVE (MODELS: MO7081MW / MO7082MB ONLY)

• Plug the power supply cord into a standard 3-pronged 15 Amp, 120V AC 60 Hz.
• After placing the food in a suitable container, open the oven door and put it on the glass tray. The glass tray and roller guide must always be in place during cooking.
• Shut the door. Make sure that it is firmly closed.
• The oven door can be opened at any time during operation by pushing the door release button. The oven will automatically shut off. To restart the oven, close the door and the oven will start automatically.
  • The oven will automatically cook or defrost at the power as set on the Temperature Control Selector.
• The oven will not start cooking until the door is completely closed and the cooking time has been set on the Time Selector.

OPERATION:

Turn the POWER Selector to the desired power level.
Turn the TIME Selector to the desired cooking time (0 - 30 Min).

NOTE:

As soon as the timer is turned, the oven will start cooking. When setting the timer for less than two (2) minutes, turn the timer knob past the two (2) minute mark and then return to the correct time. When the cooking time has elapsed, a bell will ring and the unit will turn off automatically.

CAUTION:

ALWAYS RETURN THE TIMER BACK TO THE ZERO POSITION, when food is removed from the oven prior to the end of the cooking cycle or when the oven is not in use.

MODELS: MO7191TW / MO7192TB / MO7003SST / MO9000TW / MO9003SST / MO1108SST

CONTROL PANEL

Follow the applicable instructions for operation and control, which are given in "HOW TO SET THE OVEN CONTROLS" on page 17.

MO7191TW / MO7192TB UNIT FEATURES			UNIT SPECIFICATIONS
	Pre-Programmed Cooking Modes		Power Consumption:	120V~60Hz, 1050W
			Output (Watts):	700W
	Baked Potato		Operation Frequency:	2450MHz
	Popcorn
	Pizza		Unit Dimensions (HxWxD):	10^5/_16 × 17^13/_16 × 13^9/_16
	Beverage
	Frozen Dinner
	Reheat		Oven Cavity Dimensions (HxWxD):	8^11/_16 × 12^3/_8 × 11
	Cook By Weight
	Defrost By Weight
	Speed Defrost		Oven Capacity:	0.7 cu.ft.
	Clock: 12 Hour		Cooking Uniformity:	Turntable System
	Kitchen Timer		Net Weight: Approx. 23 lbs.
	See Page 17 for complete descriptions of Cooking Modes
MO7003SST UNIT FEATURES UNIT SPECIFICATIONS
	Pre-Programmed Cooking Modes		Power Consumption:	120V ~ 60Hz, 1050W
			Output (Watts):	700W
	Baked Potato		Operation Frequency:	2450MHz
	Popcorn
	Pizza		Unit Dimensions (HxWxD):	10^1/_2 × 18^1/_16 × 14^6/_16
	Beverage
	Frozen Dinner
	Reheat		Oven Cavity Dimensions (HxWxD):	8^2/_5 × 12^3/_5 × 11^3/_16
	Cook By Weight
	Defrost By Weight
	Speed Defrost		Oven Capacity:	0.7 cu. Ft.
	Clock: 12 Hour		Cooking Uniformity:	Turntable
	Kitchen Timer		Net Weight: Approx. 23 Lbs
	See Page 17 for complete descriptions of Cooking Modes

Pre-Programmed Cooking Modes

Baked Potato

Popcorn

Pizza

Beverage

Frozen Dinner

Reheat

Cook By Weight

Defrost By Weight

Speed Defrost

Clock: 12 Hour

Kitchen Timer

See Page 17 for complete descriptions of Cooking Modes

Power Consumption:	120V ~ 60Hz, 1350W
Output (Watts):	900W
Operation Frequency:	2450MHz
Unit Dimensions (HxWxD):	12 x 19 x16
Oven Cavity Dimensions (HxWxD):	8^1/_2 x 13 x 13
Oven Capacity:	0.9 cu. Ft.
Cooking Uniformity:	Turntable
Net Weight:	Approx. 34 Lbs

MO9003SST UNIT FEATURES UNIT SPECIFICATIONS

Pre-Programmed Cooking Modes

Baked Potato

Popcorn

Pizza

Beverage

Frozen Dinner

Reheat

Cook By Weight

Defrost By Weight

Speed Defrost

Clock: 12 Hour

Kitchen Timer

See Page 17 for complete descriptions of Cooking Modes

Power Consumption:	120V ~ 60Hz, 1350W
Output (Watts):	900W
Operation Frequency:	2450MHz
Unit Dimensions (HxWxD):	12 x 19 x16
Oven Cavity Dimensions (HxWxD):	8^1/_2 x 13 x 13
Oven Capacity:	0.9 cu.Ft.
Cooking Uniformity:	Turntable
Net Weight:	Approx. 34 Lbs

MO1108SST UNIT FEATURES UNIT SPECIFICATIONS

Pre-Programmed Cooking Modes

Baked Potato

Popcorn

Pizza

Beverage

Frozen Dinner

Reheat

Cook By Weight

Defrost By Weight

Speed Defrost

Clock: 12 Hour

Kitchen Timer

See Page 17 for complete descriptions of Cooking Modes

Power Consumption:	120V ~ 60Hz, 1450W
Output (Watts):	1000W
Operation Frequency:	2450MHz
Unit Dimensions (HxWxD):	12 × 21^9/_16 × 7^13/_16
Oven Cavity Dimensions (HxWxD):	9^10/_16 × 14^3/_16 × 14^5/_16
Oven Capacity:	1.1 cu. Ft.
Cooking Uniformity:	Turntable
Net Weight:	Approx. 36 Lbs

• Plug the power supply cord into a standard 3-pronged 15 Amps, 120Volts A.C.\~/60Hz.
• After placing the food in a suitable container, open the oven door and put it on the glass tray. The glass tray and roller guide must always be in place during cooking.
• Shut the door. Make sure that it is firmly closed.
• The oven door can be opened at any time during operation by pulling on the door handle or pushing the door release button. The oven will automatically shut off. To restart the oven, close the door and then touch START/STOP.
• Each time a pad is touched, a BEEP will sound to acknowledge the touch. One of the function pads must be touched before the number pads. Two BEEPS indicates the oven does not accept the entry, check and try again.
• The oven automatically cooks on high power and defrosts on low power.
• When the oven is first plugged in the display will show "HR 12", if you prefer to not have the clock displayed, touch reset or wait 15 seconds.
• When the START/STOP pad is touched during the oven operation, the oven stops cooking. If the oven door is opened during the oven operation, all information is retained.
• If the START/STOP pad is touched and the oven does not operate, check the area between the door and door seal for obstructions and make sure the door is closed securely. The oven will not start cooking until the door is completely closed and the program has been set.

CONTROL PANEL FEATURE DISPLAY	DESCRIPTIONElectronic display shows Cooking Time, Cooking Power, Time Remaining in Cooking Cycle, and the Present Time.
PRE-PROGRAMMED COOKING MODES	BAKED POTATO BEVERAGE/SOUP PIZZASEAFOOD POPCORN FROZEN DINNERFRESH VEGETABLES REHEATFROZEN VEGETABLESAllow you to reheat or cook food automatically without entering power level or time.
POWER	Use to set power level
DEFROST BY WEIGHT	Touch to set the weight of the food to be defrosted. The oven automatically sets the defrosting time and power level.
SPEED DEFROST	Touch to set defrosting time. The oven automatically divides the defrosting time into periods of alternating defrost and stand times by cycling on and off.
TIMER	You can use the TIMER function independently, even while a cooking program is going on in the oven.
NUMBER PADS (0-9)	Touch to set times or amounts.
CLOCK	Touch to set the clock.
RESET	Clears all previous settings if touched before cooking starts.
START/STOP	Touch to start or stop cooking.

SPEED DEFROST: Used to defrost frozen foods by time.

This cycle starts at medium – high power, then automatically reduces to medium – low and then to low as the food thaws. SPEED DEFROST indicator light and cook indicator light will both come on during the defrost cycle.

TIMER: Use for timing things without oven function. A long beep will sound at the end of the elapsed time.

AUTO TIMER: After a DEFROST or COOK PROGRAM has completed, the oven will automatically continue to sound four beeps every two minutes until the oven door is opened or the RESET pad is touched.

CHILD PROOF LOCK: Use to prevent unsupervised operation of the oven by children. The CHILD PROOF LOCK indicator will be lit on the display and the oven cannot be operated while the CHILD PROOF LOCK is set.

SETTING CHILD LOCK: To set, press and hold RESET for 3 seconds. LOCK is indicated on the display. To cancel, press and hold RESET for 3 seconds. LOCK indication disappears.

TIMER: Use to set cooking time. Allows you to set up to 99 minutes and 99 seconds

RESET: Touch to cancel the selected power level, cook or defrost times previously programmed. The time of day clock is not cancelled.

START/STOP: Touch to start the defrost or cook programs. The cook indicator light and the oven light will come on and the cooling fan will operate.

NOTE: END OF OPERATION- Display will show "END".

• Four beeps will sound, the cook indicator light will go out and will show "END" on display window until the door is opened and the time of day will return to the display window. The oven light and cooking fan will turn off.
• The oven will automatically continue to sound four beeps every two minutes until the oven door is opened or the RESET pad is touched.

NOTE: TO INTERRUPT OPERATION – Open the oven door.

• The oven immediately stops.
- If no further cooking is required, touch the RESET pad.
• To continue cooking, close the oven door and touch the START/STOP pad. The oven will restart.

HOW TO SET THE OVEN CONTROLS
AUDIBLE SIGNALSDURING OVEN SETTINGS	ONE SIGNAL: Oven accepts the entry.TWO SIGNALS: Oven does not accept the entry, check and try again.

SETTING THE CLOCK

1. Touch CLOCK pad. This is a 12 hour clock.
2. Touch CLOCK pad once more. This is a 24 hour clock.
3. Use the number pads to enter the correct time. If you selected 12 hour clock system, the digital clock allows you to set from 1:00 to 12:59. If you selected 24 hour clock system, the digital clock allows you to set from 0:00 to 23:59. You must touch at least three numbers to set the clock (one for hour and two for minutes).
4. Touch CLOCK pad again.
   NOTE: When the oven is first plugged in or when power resumes after a power interruption, the display will show "HR 12". If you prefer to not have the clock displayed, touch RESET.
   You can check the clock time while cooking is in progress by touching the CLOCK pad.

1. Touch TIMER.

2. Enter the amount of time by touching the number pads. Digit time is in minutes and seconds and set left to right. Set one digit (a 5 for 5 seconds) or up to four digits (2405 for 24 minutes, 5 seconds).

3. Touch START/STOP.

NOTE: Time countdown can be seen in display for 3 seconds before clock or cooking time is returned to display.

Touch TIMER and then touch RESET to cancel TIMER during timing process.

SETTING A COOKING PROGRAM

A. One-stage Cooking

1. Use the number pads to set a cooking time. You can set a cooking time from one second to 99 minutes and 99 seconds.
2. If you want to set a power level other than 100% power, touch POWER, then use the number pads to enter the power level. You can set the power level from 1 to 9. Use single digits to set a cooking power level:

Number pad	Cooking power
9	90%
8	80%
7	70%
6	60%
5	50%
4	40%
3	30%
2	20%
1	10%

1. Touch START/STOP to start cooking.

B. Multi-stage Cooking

You can program oven for 4 cooking stages. Each stage can be programmed with a different power level and time. To program 2-stage, 3-stage or 4-stage cooking, repeat the one-stage cooking steps 1 and 2 and touch START. The oven will automatically proceed to the end of cooking stages.

NOTE:

After stage 1 time has elapsed, one beep sound, signaling the beginning of stage 2. After total time has elapsed, 4 beeps sound and END appears in display. Touch RESET pad or open oven door to clear END before starting another cooking function.

SPEED DEFROST1. Touch SPEED DEFROST.2. Enter desired defrosting time by touching correct number pads. Digital timer sets minutes and seconds from left to right so a single digit can be set (5 for 5 seconds ) or up to 4 digits (2405 for 24 minutes 5 seconds).3. Touch START/STOP.NOTE:After time has elapsed four signals sound and END appears in display. Touch RESET pad or open door to clear END before starting another cooking function.

DEFROST BY WEIGHT1. Touch DEFROST BY WEIGHT pad.2. Enter weight.3. Touch START/STOP pad.Note:Weight must be in pounds and ounces.Ounce weights less than 10 must be preceded by a 0. If label gives weight in pounds only, change the fraction of a pound to ounces using the following chart (See page 19).

QUICK COOK (PRE-PROGRAMMED) SETTINGS
The QUICK COOK settings allow you to cook or reheat food automatically without entering power level or time.For smaller portions, simply touch the applicable pad and start. For larger portions, push the pad twice.FROZEN DINNER, BAKED POTATO and BEVERAGE allow you to cook multiple amounts of the same food. Simply touch pad once, and ENTER AMT
POPCORN1. Touch POPCORN.2. Touch NUMBER pads (1-2) to select the amount of food.AMOUNT COOKING TIME1 (3 oz.) 1 min. 45 sec.2 (1.5 oz.) 1 min. 35 sec.3. Touch START/STOP.	BAKED POTATOFor 3.5 to 5 oz. potatoes:1. Touch BAKED POTATO once.2. Enter number of potatoes by touching number pads from 1 to 4. Cooking times for small-medium potatoes are as follows:1 potato 3 min. 00 sec.2 potatoes 5 min. 40 sec.3 potatoes 8 min. 20 sec.4 potatoes 11 min. 20 sec.3. Touch START/STOP.
PIZZAReheating a slice (or two thin ones) of pizza:1. Touch PIZZA once. CODE and 0:55 (55 sec.) appears.2. Touch START/STOP.Heating a whole frozen pizza:1. Touch PIZZA twice. CODE and 4:30 (4 min. 30 sec.) appears.2. Touch START/STOP.	For the large 6 to 8 oz. potatoes:1. Touch POTATO twice.2. Enter number of potatoes by touching number pads from 1 to 4. Cooking times for large potatoes are as follows:1 potato 4 min. 30 sec.2 potatoes 8 min. 00 sec.3 potatoes 11 min. 40 sec.4 potatoes 15 min. 20 sec.3. Touch START/STOP.
CONTINUED NEXT PAGE

BEVERAGE

For 4 to 6 oz. coffee cups:

1. Touch BEVERAGE once.
2. Enter number of cups by touching number pads from 1 to 4. Cooking times are as follows:

1 cup. 1 min. 00 sec

2 cups. 2 min. 00 sec

3 cups. 2 min. 50 sec

4 cups. 3 min. 50 sec

1. Touch START/STOP.

For the larger 7 to 9 oz. coffee mugs:

1. Touch BEVERAGE twice.
2. Enter number of mugs by touching number pads from 1 to 4. Cooking times are as follows:

1 mug 1 min. 50 sec.

2 mugs 3 min. 10 sec.

3 mugs 4 min. 30 sec.

4 mugs 5 min. 40 sec.

1. Touch START/STOP.

REHEAT

1. Touch REHEAT.
2. Touch NUMBER pads (1-7) to select the amount (3 oz.) of food.

AMOUNT	COOKING TIME
1 0 min.	18 sec.
2 0 min.	35 sec.
3 0 min.	50 sec.
4 0 min.	55 sec.
5 1 min.	10 sec.
6 1 min.	30 sec.
7 2 min.	00 sec.

1. Touch START/STOP.

Note: place in dish or casserole slightly larger than the amount indicated. Continue to heat with variable power and time if at the end of sensor reheat the food is not sufficiently hot.

NOTE:

This setting lets you reheat a dinner plate of chilled leftovers with good results.

FROZEN DINNER

For one or two small (5-7 oz.) frozen dinners:

1. Touch FROZEN DINNER once.
2. For 1 entree, just touch START/STOP. For 2 entrees, touch the number pad "2". Cooking times for small-size entrees are as follows:

1 entree 4 min. 15 sec.

2 entrees 7 min. 30 sec.

1. Touch START/STOP pad.

Microwaving one large (8-10 oz.) frozen dinner :

1. Touch FROZEN DINNER twice.
2. For 1 entree, just touch START/STOP. For 2 entrees, touch the number pad "2". Cooking times for larger entrees are as follows:

1 entree 8 min. 00 sec.

2 entrees 13 min. 30 sec.

1. Touch START/STOP.

Converting Fractions of a Pound to Ounces

Fractions of a pound	Ounces
Less than .03 0
.03 to .09 1
.10 to .15 2
.16 to .21 3
.22 to .27 4
.28 to .34 5
.35 to .40 6
.41 to .46 7
.47 to .53 8
.54 to 59 9
.60 to .65 10
.66 to .71 11
.72 to .78 12
.79 to .84 13
.85 to .90 14
.91 to .97 15
above .97 go to next even

Maximum weight for defrosting is 5 lb 16 oz. Turn food over when oven signals twice. Touch START/STOP to resume defrosting. After total defrosting time, 4 signals sound and END appears in display. Touch RESET or open oven door to clear END before starting another cooking function.

COOKING TECHNIQUES

Your microwave makes cooking easier than conventional cooking, provided you keep these considerations in mind.

Stirring

Stir foods such as casseroles and vegetables while cooking to distribute heat evenly. Food at the outside of the dish absorbs more energy and heats more quickly, so stir from the outside to the center. The oven will turn off when you open the door to stir your food.

Arrangement

Arrange unevenly shaped foods, such as chicken pieces or chops, with the thicker, meatier parts toward the outside of the turntable where they receive more microwave energy. To prevent overcooking, place delicate areas, such as asparagus tips, toward the center of the turntable.

Turning

Turn foods over midway through cooking to expose all parts to microwave energy. This is especially important with large foods such as roasts.

Standing

Foods cooked in the microwave build up internal heat and continue to cook for a few minutes after heating stops. Let foods stand to complete cooking, especially foods such as cakes and whole vegetables. Roasts need this time to complete cooking in the center without overcooking the outer areas. All liquids, such as soup or hot chocolate, should be shaken or stirred when cooking is complete. Let liquids stand a moment before serving. When heating baby food, stir well at removal and test the temperature before serving.

Adding Moisture

Microwave energy is attracted to water molecules. Food that is uneven in moisture content should be covered or allowed to stand so that the heat disperses evenly. Add a small amount of water to dry food to help them cook.

CARE AND MAINTENANCE

CLEANING YOUR APPLIANCE

• Turn the oven off and remove the power plug from the wall socket before cleaning.
• Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. The use of harsh detergent or abrasives is not recommended.
• The outside oven surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
• Do not allow the control panel to become wet. Clean with a soft, damp cloth. Do not use detergents, abrasives or spray-on cleaners on the control panel. When cleaning the control Panel, leave oven door open to prevent oven from accidentally turning on.
• If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.
• It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
• The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring may be washed in mild sudsy water or dishwasher. Cooking vapors collect during repeated use but in no way affect the bottom surface or roller ring wheels. When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.
• Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwavable bowl. Microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
• When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.

PROBLEMS WITH YOUR APPLIANCE?

You can solve many common appliance problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE
Appliance does not operate.	Not plugged in.The circuit breaker tripped or a blown fuse.The door is not closed properly.
The light does not work.	The circuit breaker tripped or a blown fuse.The appliance is unplugged.The bulb has burned out (see the maintenance section for the replacement procedure).
Vibrations.	Check to assure that the appliance is level.

CAUSI

SERVICE FOR YOUR APPLIANCE

We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti appliances. With the purchase of your Avanti appliance, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. Just call us toll-free.

AVANTI PRODUCTS CUSTOMER SERVICES

Product Information800-323-5029	Whatever your questions are about our products, help is available.
Part Orders800-220-5570	You may order parts and accessories that will be delivered directly to your home by personal check, money order, Master Card, or Visa.
In-Home Repair Service800-220-5570	An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your appliance inside and out.

Avanti Microwave Ovens

LIMITED WARRANTY

LIMITED ONE-YEAR WARRANTY

Avanti Products will repair or replace, without charge, any part of your product, which proves to be defective in material or workmanship under normal use during the first year after the date of original purchase by a consumer. This warranty is good for the original purchaser during the warranty period and applies only in the continental United States. Transportation of this product to and from the designated service facility is the responsibility of the consumer.

LIMITED TWO-YEAR WARRANTY

During the second year of use, Avanti Products will furnish, as needed, a replacement part at no charge in exchange for any original part, which fails due to a defect in material or workmanship. All labor and transportation charges are the responsibility of the owner.

LIMITED SEVEN-YEAR WARRANTY-MAGNETRON TUBE

For an additional 6-year period beyond the first year of the general coverage of this warranty, Avanti Products will replace a magnetron tube, which fails due to a defect in material or workmanship. The consumer will be responsible for all labor, service charge and transportation.

This warranty is good for the original purchaser during the warranty period and applies only in the continental United States.

Implied warranties of the merchantability or, to the extent applicable, fitness for a particular purpose, are limited in duration to seven years, the same duration as the basic limited warranty provided hereby. Some states do not allow limitations on how long an implied warranty may last.

So, this limitation may not apply to you.

Avanti Products shall not be liable for any food loss or for any other incidental or consequential damages not for any special damages or any further loss which may arise in connection with its warranted appliance or any claims under this warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages. So the above exclusion or limitation may not apply to you.

To obtain service under this warranty, contact any of the Avanti Products service centers. A list of the service centers can be obtained from your dealer or from Avanti Products, 10880 N.W. 30 ^th Street, Miami, Fl 33172. The user must keep a copy of the bill of sale verifying the purchase date to validate the warranty.

THE ABOVE WARRANTIES DO NOT APPLY

1. To damages or problems, which result from improper installation or delivery.
2. To damages or problems, which result from misuse, abuse, accident, alteration, or incorrect electrical current or voltage.
3. To service calls. (Unit must be brought or shipped to and from applicable service centers)
4. To any other product used for anything other than normal private household use.
5. To light bulbs.

This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

AVANTI PRODUCTS, A DIVISION OF THE MACKLE CO., INC.

P.O. BOX 520604 - MIAMI, FLORIDA 33152 USA

Thank you for purchasing this fine Avanti product. Please fill out this form and return it within 100 days of purchase and receive these important benefits to the following address:

Avanti Products, A Division of The Mackle Co., Inc.

P.O. Box 520604 - Miami, Florida 33152 USA

Protect your product:

We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

➢ Promote better products:

We value your input. Your responses will help us develop products designed to best meet your future needs.

(detach here)

Avanti Registration Form

Name			Model #		Serial #
Address			Date	Purchased	Store/Dealer	Nan
City	State	Zip	Occupation

As Your Primary Residence, Do You:

Area Code Phone Number □Own □Rent

Did You Purchase An Additional Warranty: Your Age:

□Extended □None □under 18 □18-25 □26-30

Reason For Choosing This Avanti Product: □31-35 □36-50 □over 50

Please indicate the most important factors Marital Status:

that influenced your decision to purchase □Married □Single

this product. Is This Product Used In The:

□Price □Home □Business

How Did You Learn About This Product:

□Avanti Reputation □Advertising

□Product Quality □In Store Demo □Personal Demo

□Salesperson Recommendation □Other

□Friend/Relative Recommendation Comments

□Warranty

□Other

PRINTED IN CHINA
