MO7200TW - Microwaves Avanti - Free user manual and instructions
Find the device manual for free MO7200TW Avanti in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Countertop Microwave Oven |
| Brand | Avanti |
| Model | MO7200TW |
| Capacity | 0.7 cu ft (20 liters) |
| Power Output | 700 Watts |
| Power Consumption | 1050 Watts |
| Voltage | 120 V / 60 Hz |
| Dimensions (W x D x H) | 17.3 x 13 x 10.2 inches (44 x 33 x 26 cm) |
| Weight | 23.5 lbs (10.7 kg) |
| Cooking Functions | 10 power levels, auto defrost, express cook, timer |

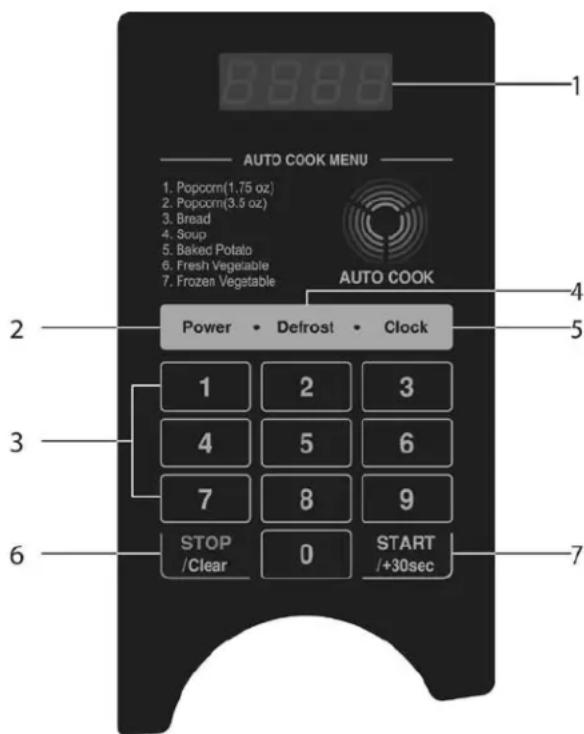

| Control Type | Digital keypad with LED display |
| Turntable | Glass turntable, 10.6 inch diameter |
| Door Type | Side-opening with handle |
| Interior Light | Yes |
| Child Lock | Yes, press and hold STOP/Reset for 3 seconds |
| Defrost | Defrost by weight or time |
| Color | White |
| Installation Type | Freestanding countertop |
| Warranty | 1 year limited parts and labor |
| Certifications | UL listed, FCC compliant |
Frequently Asked Questions - MO7200TW Avanti
How do I set the cooking time on my Avanti MO7200TW?
Press the Time Cook button, then use the number pad to enter the desired cooking time (up to 99 minutes and 99 seconds). Press Start to begin.
How do I clean the microwave?
Unplug the microwave and wipe the interior with a damp cloth and mild detergent. Do not use abrasive cleaners. Clean the turntable and support ring in warm soapy water.
Why is my microwave not heating food?
Ensure the door is fully closed. Check that the power cord is plugged in and the circuit breaker is not tripped. If the problem persists, the magnetron may need replacement.
How do I defrost food using the defrost function?
Press Defrost to select defrost by weight or time. If by weight, enter the weight in pounds (up to 6 lbs) and press Start. The microwave will automatically set the time.
Can I use metal containers in this microwave?
No, metal can cause arcing and damage the microwave. Use only microwave-safe dishes, such as glass, ceramic, or plastic labeled for microwave use.
How do I set the child lock?
Press and hold the Stop/Reset button for 3 seconds until a beep sounds and the display shows a lock icon. Repeat to unlock.
What is the power consumption of this microwave?
The power consumption is 1050 Watts (input) with an output of 700 Watts.
How do I change the cooking power level?
Press Time Cook, enter the time, then press Power and select a power level (1 to 10) using the number pad. Press Start.
What should I do if the display shows an error code?
Common error codes include 'E1' (magnetron issue) or 'E2' (sensor failure). Unplug the microwave for 30 seconds, then plug it back in. If the error persists, contact Avanti support.
How much clearance does the microwave need for ventilation?
Leave at least 3 inches (7.6 cm) of space on the top, sides, and rear of the microwave for proper airflow. Do not block the vents.
