RIO 2011 - Compact car KIA - Free user manual and instructions
Find the device manual for free RIO 2011 KIA in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product type | Compact car |
| Brand | KIA |
| Model | RIO 2011 |
| Dimensions (L x W x H) | 4045 x 1720 x 1455 mm |
| Wheelbase | 2570 mm |
| Front / rear track | 1521 mm / 1525 mm (depending on tires) |
| Gross vehicle weight | 1600 kg (M/T) / 1630 kg (A/T) |
| Trunk volume | 288 L (min) / 923 L (max) |
| Engine type | Gasoline 1.6 L, inline 4 cylinders |
| Displacement | 1591 cm³ |
| Fuel | Unleaded, octane rating 87 (R+M)/2 min. |
| Fuel tank capacity | 43 L |
| Transmission | Manual or automatic |
| Tires (size) | 185/65R15, 195/55R16, or 205/45R17 |
| Brakes | Disc brakes (front) / drum or disc (rear) with ABS |
| Safety equipment | Front, side and curtain airbags; pretensioner seat belts; ESC; tire pressure monitoring system |
| Air conditioning | Manual air conditioning system |
| Audio | Hi-fi system with steering wheel controls |
| Cruise control | Yes (depending on version) |
| Engine oil (change) | 3.3 L, API SM/ILSAC GF-4, SAE 5W-20 or 5W-30 |
| Coolant | 5.5 L (A/T) / 5.3 L (M/T) (ethylene glycol mixture) |
| Brake fluid | 0.7-0.8 L, DOT-3 or DOT-4 |
| Maintenance | Oil change every 12,000 km; regular checks according to maintenance schedule |
Frequently Asked Questions - RIO 2011 KIA
What fuel to use for the KIA RIO 2011?
Use only unleaded gasoline with an octane rating (R+M)/2 of 87 (research octane number 91) or higher. Avoid fuels containing more than 10% ethanol and do not use methanol.
How to properly install a child seat?
Place the child seat on the rear seat. Use the seat belt in automatic locking mode (pull the belt all the way out then let it retract). You can also use the LATCH anchors. Follow the seat manufacturer's instructions.
What to do if the airbag warning light stays on?
If the SRS warning light does not turn off after 6 seconds or comes on while driving, have the system checked by an authorized Kia dealer. This may indicate a fault in the supplemental restraint system.
How to adjust the headrest height?
To raise the headrest, pull it upward. To lower it, press the release button and push it down. Adjust so that the center of the headrest is at eye level.
What is the recommended tire pressure?
The recommended cold tire pressure is 220 kPa (32 psi) for front and rear tires under normal load. For the compact spare tire, 420 kPa (60 psi). Check the label on the driver's door pillar.
How to maintain the battery?
Regularly check the terminals to prevent corrosion. Clean them with a wire brush and apply grease. If the vehicle remains stationary for a long time, disconnect the negative terminal.
What to do in case of a flat tire?
Park on a flat surface, turn on hazard lights, place the warning triangle. Use the jack and spare tire (compact): loosen the nuts, lift the vehicle, replace the wheel, tighten the nuts in a star pattern to 9-11 kg·m.
How to use the air conditioning system?
Turn the mode selector to the desired position (window, face, feet). Set the temperature and fan speed. To defrost the windshield, use the defroster position with air conditioning.
What engine oil to use?
API SM/ILSAC GF-4 engine oil, SAE 5W-20 or 5W-30 viscosity recommended. Oil change volume: 3.3 L. Refer to the viscosity chart based on outside temperature.
How to activate cruise control?
Press the cruise control ON/OFF button, then accelerate to the desired speed and press SET. To deactivate, brake or press OFF. Use RES/+ or SET/- to adjust speed.
User questions about RIO 2011 KIA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Compact car in PDF format for free! Find your manual RIO 2011 - KIA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RIO 2011 by KIA.

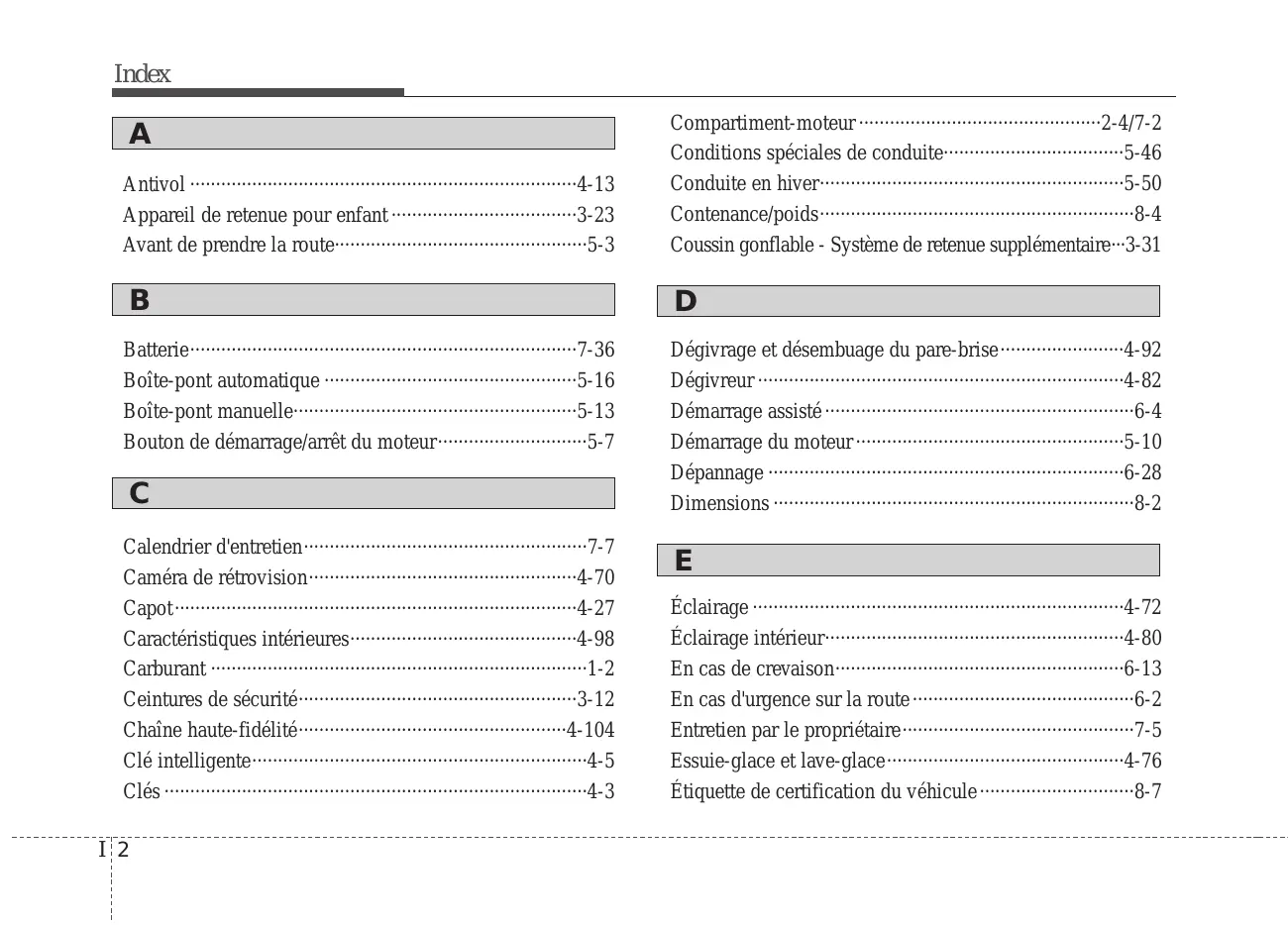

USER MANUAL RIO 2011 KIA
Contenance/poids 8-4
- Acquisition de signal (Acquiring Signal)
Bip Bip... (bip final)
