INN-799 - Deep fryer Innoliving - Free user manual and instructions

Product Type	Deep Fryer
Brand	Innoliving
Model	INN-799
Dimensions (W x D x H)	30 x 25 x 28 cm
Weight	2.5 kg
Power Supply	220-240 V, 50-60 Hz, 1800 W
Oil Capacity	2.0 L
Basket Capacity	1.0 L (approx. 600 g of food)
Temperature Range	150°C – 190°C
Timer	0 – 60 minutes with audible alarm
Control Type	Adjustable thermostat and timer knob
Safety Features	Overheat protection, auto shut-off, cool-touch handle, safety switch
Filtration	Removable oil filter (washable)
Cleaning and Maintenance	Removable oil tank and basket dishwasher safe; wipe exterior with damp cloth
Spare Parts Available	Basket, handle, thermostat, timer knob, oil filter – order through Innoliving support
Repairability	Modular design; replaceable components; repair manual available online
General Information	Compact home deep fryer for crispy frying; includes viewing window; cord storage

Frequently Asked Questions - INN-799 Innoliving

What is the maximum oil capacity of the Innoliving INN-799 deep fryer?

The oil tank holds up to 2.0 liters of oil. Do not exceed the MAX level indicated inside the tank.

How do I clean the deep fryer?

Allow the oil to cool completely, then remove the oil tank and basket. Both are dishwasher safe. Wipe the exterior with a damp cloth. Clean the oil filter regularly for best performance.

What type of oil should I use?

Use high-quality frying oil such as vegetable, sunflower, or peanut oil. Avoid olive oil or butter as they can smoke at high temperatures.

Can I adjust the temperature?

Yes, the thermostat allows you to set the temperature between 150°C and 190°C depending on the food you are frying.

Is the basket removable for serving?

Yes, the basket detaches from the handle for easy serving and draining. It also features a cool-touch handle for safe handling.

Does the deep fryer have an automatic shut-off?

Yes, the INN-799 includes overheat protection and auto shut-off for safety. It will turn off if the temperature exceeds safe limits or if the timer expires.

What is the maximum frying time I can set?

The timer can be set from 0 to 60 minutes. An audible alarm will sound when the set time is reached.

How loud is the deep fryer during operation?

The sound level is typical for home deep fryers, around 55-65 dB due to the heating element and slight sizzling of oil.

Where can I buy spare parts or accessories?

Spare parts such as baskets, handles, filters, and thermostats are available through Innoliving's official website or authorized service centers.

Is the deep fryer repairable?

Yes, the device is designed for repairability. The user manual includes a parts diagram. For complex repairs, contact Innoliving support or a qualified technician.

USER MANUAL INN-799 Innoliving

innoliving easy tech, easy life

FRIGGITRICE AD ARIA 4.5L

Black and white photo of an innoliving air fryer with French fries inside (no visible text or symbols on the device itself)

INN-799

MANUALE D'USO

USER MANUAL

Thank you for purchasing INNOLIVING electric air fryer INN-799.

Ready carefully use instructions and keep this manual for future references.

IMPORTANT SAFETY INSTRUCTION

When using electrical appliances, basic precautions should always be followed, which include the followings:

1. Please read this instruction manual carefully. Use the product only for the intended purpose, as described in this user manual. Make sure that the appliance is connected to a power outlet with an adequate power. Make sure that the socket has an earth connection. Do not use the appliance by connecting it to a multiple socket outlet. This can cause a short circuit.

2. Do not touch the hot surfaces of the appliance. Do not move the air fryer when in use.

3. Careful supervision is necessary if the appliance is used near children. Keep the product and its power cord out of the reach of children under 8 years old. Keep the product out of reach of animals during use. This product can be used by children older than 8 and persons with reduced physical, mental or sensory capabilities, or lack of experience and knowledge if under supervision or if they received instructions for safe use of the appliance and they understood the related dangers.

Make sure children do not play with the appliance. Cleaning and maintenance operations should not be carried out by children unless they are at least 8 years old and under

supervision.

1. To protect yourself from the risk of electric shock, avoid contact with water or other liquids. Do not place the product where it may fall in water or other liquid. Never immerse the wire, plug, or lid with panel controls in water or other liquid.

2. Avoid the cable hanging from the table or the worktop, or come into contact with hot surfaces. If it happens, disconnect the plug and verify the integrity of the cable. Use it on a safe and stable work surface, and do not place it near the edge of the worktop. Always make sure that both the air fryer and loose cables are out of the reach of children.

3. Do not use the appliance if the cable or plug are damaged. Regularly check the good condition of the cord and plug. If the power cord is damaged, it must be replaced by the manufacturer or its after sales service or, in any case, by a qualified person in order to prevent any risk.

4. When the air fryer is in use keep at least 10 cm of space for each side of the air fryer to allow a correct air circulation.

5. Disconnect the cable from the mains when the air fryer is not in use and before proceeding with any cleaning operation.

6. To disconnect the power cord, pull it out by plug.

7. Particular attention should be paid when moving a tool containing hot oil or other hot liquids inside it.

8. Do not cover the inside parts of the air fryer with

aluminum paper. This may cause the air fryer to overheat.

1. Use extreme caution when removing the tray inside the air fryer.

2. Do not clean the appliance with metal sponges. Follow this manual instruction indicated on CLEAN AND MAINTENANCE paragraph. Let cool before inserting or disconnecting part of the device before cleaning operations.

3. Never leave the appliance unattended during use.

4. Bulky food or metal utensils should not be placed in the appliance as it could create a fire or risk of electric shock.

5. Do not place any element over the air fryer or cover the air fryer with flammable material during operation as it may cause fire. Do not use accessories different than those recommended by the manufacturer. They may ignite, cause short circuits, or cause personal injury.

6. Extreme caution should be exercised when using containers whose composition is different from metal or glass.

7. Do not place any of the following materials in the air fryer: cardboard, plastic, paper.

8. When the product is not in use, do not store anything other than the accessories recommended by the manufacturer in the air fryer.

9. Always wear protective and insulating gloves when inserting or removing objects from the hot air fryer.

10. Do not use the appliance for purposes other than those that were intended in this instruction manual. Any other use is to be considered improper and dangerous.

11. This appliance has been conceived for household use only, but it can be used in cookery areas reserved for staff, shops, offices and other places of work, farms, hotels, motels, bed and breakfast and other professional premises and similar places.
12. Do not dismantle the product, try to repair or change the power plug in any way. Address to a customer assistance center in order to receive technical assistance.
13. This appliance must not be used with an external timer or separate remote control.
14. The temperature of accessible surfaces can be high during use.
15. This appliance must not be used with an external timer or separate remote control.
16. During frying, steam can escape at a high temperature. Keep your hands and face away from steam and hot air when removing the container from the appliance.
17. During operation, the surface of the appliance can become very hot.
18. If the product emits smoke, unplug it immediately. Once the smoke is gone, remove the basket from the fryer.
19. Before handling or cleaning the appliance, allow it to cool for 30 minutes.

31. The product cannot be supplied by external timer or separate remote systems.

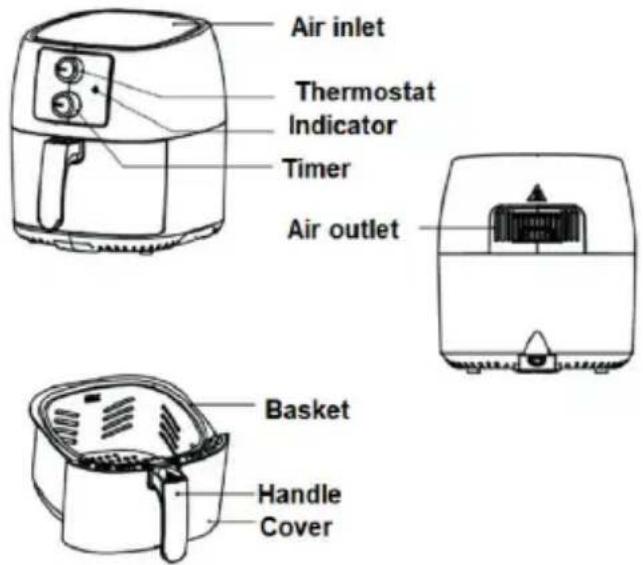

PRODUCT DESCRIPTION

The air fryer is useful for cooking the desired food and snack in a healthier way, using the principle of hot air protection with high-speed air cycles, using uniform all-round heating, for this reason for most foods there is no need to add cooking oil. With the additional plate, it is also possible to prepare small cakes and biscuits.

FIRST USE

Remove all packing material.

Clean the basket and the grill with hot water, detergent and a non-abrasive sponge.

Note: these components can be washed in the dishwasher.

Clean the inside and outside of the appliance with a damp cloth.

Place the appliance on a flat and stable surface, do not place it on a non-heat-resistant surface.

Put correctly the basket in the air fryer after drying

Pull out the cord at the bottom of the appliance and lay it out well.

Never put oil or other liquids into the deep fryer.

Never place objects on top of the appliance, as this would prevent the correct flow of air and reduce the correct functioning of the hot air.

OPERATION

The air fryer can be used to cook a variety of fat-free foods.

Connect the fryer to the mains by inserting the plug into the socket.

Carefully remove the inner grill from the air fryer and place the food in the basket, then put

the grill back into the fryer.

Never use the deep fryer if the basket is not inside.

Warning: do not touch the grill after use, as it gets very hot.

Remember to get the basket using the handle.

To switch on the appliance, turn the timer item and set it to the desired cooking time.

Remember that before starting it is necessary to preheat the appliance for 3 minutes, otherwise it is advisable to add 3 minutes to the cooking time. To adjust the cooking temperature, turn the thermostat knob.

While the fryer is in operation, the indicator light comes on and off continuously. This means that the heating components work constantly to maintain the set temperature.

Some foods need to be mixed while cooking. To do this, pull out and shake the basket using the handle, then put the basket back into the fryer.

The timer beep indicates that the set time has expired. Then, remove the basket and place it on a heat-resistant surface.

Check if the food is cooked.

Do not overturn the basket if it is still inserted in the fryer, as this will cause the excess oil accumulated on the bottom to leak out. After cooking, steam may escape from the fryer.

Pour the cooked food into the desired recipient

After a first cooking, you can immediately reuse the fryer to cook other foods.

Generally, small quantities of foods or small foods take less time to cook than large quantities or large foods.

FOOD MINIMUM	UM - MAXIMUM QUANTITY OF FOOD (g)	TIME (min)	TEMPERATURE (°C)	MIX WHEN COOKING	INFO
French fries	500 18-22 200	After 8		minutes	Add 1/2 spoons of oil
Vegetables	500 (2-3 pieces)	23-28 180	yes Add 1/2		spoons of oil
Shrimps 400	15-18 160 yes
Pies 450	(6 pieces)	15-20 160	yes
Fillet 500	(2 pieces)	20-25 160	yes Add 1/2		spoons of oil
Fish 320 15-18	18 180 yes
Meat 500 15-20	180 yes

CLEANING AND MAINTENANCE

- Disconnect the plug from the mains and let the fryer cool down completely.

- Do not immerse the product in water or other liquids. Surfaces can be cleaned using a soft, dry cloth.

• Do not use abrasive sponges or sharp tools to clean the appliance.
• For each use, clean the inside of the basket and the fryer with a damp cloth with hot water. The grill, the basket and the inside of the appliance are covered with a layer of non-stick paint. Do not use abrasive material for cleaning, as this will damage the non-stick coating.

TROUBLESHOOTING GUIDE

PROBLEMA POSSIBLE	CAUSE SOLUTION
The appliance doesn’t work	1. The product is not connected to the mains2. The timer is not set	1. Insert the plug into the electrical socket2. Use the timer knob to set the cooking time and to turn the fryer on
The food is not cooked enough	1. Too much food has been placed in the basket.2. The chosen temperature is not high enough3. The chosen cooking time is not enough	1. Place the food in small portions of the basket. Dosed in small quantities, the foods obtain an unfamiliar frying2. Set the thermostat to a more suitable temperature.3. Activate the timer with a more suitable time
Items are not cooked evenly	Some foods need to be stirred or turned during cooking	If some foods are undercooked, burnt, or stick to other foods during cooking, they need to be turned or stirred during cooking
Foods are not crunchy	Foods unsuitable for cooking with an air fryer have been used	it is necessary to choose foods suitable for cooking with an air fryer, otherwise use a little oil during cooking to obtain greater crunchiness
White smoke comes out of the air fryer	1. You are cooking high-fat foods2. There are residues of oil from the previous cooking inside the fryer	1. When cooking high fat foods, there may be a fair amount of smoke and the deep fryer may get hotter than normal, but this will not affect the final result2. White smoke can be caused by high cooking oil residues. Make sure the fryer is clean each time you use it

RATING LABEL

Innoliving Spa

Via Merloni 2/B 60131 Ancona - Italy

INN-799 FRIGGITRICE AD ARIA - AIR FRYER 220-240V\~50-60Hz 1400W

LOT n.

MADE IN CHINA

Rev.00_08.2021

This product complies with all applicable European directives.

Read carefully the instruction manual

Food Contact

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste.

The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 cm. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.
