Product Type	Multi-circuit Power Meter / Energy Analyzer
Measurement Parameters	Voltage (V), Current (A), Active Power (W), Reactive Power (var), Apparent Power (VA), Power Factor, Frequency (Hz), Active Energy (kWh), Reactive Energy (kvarh)
Wiring Configurations	1P2W, 1P3W, 3P3W, 3P4W; up to 5 loops (1P2W) or 2 loops (3P3W, 1P3W)
Measurement Accuracy	Voltage & Current: 0.2% of reading; Power & Energy: 0.5% of reading; Power Factor: 0.5%; Frequency: 0.2%
Display	LCD backlit, 2 lines x 6 digits each (top: 6.5mm, bottom: 9.6mm)
Communication	RS-485 (Modbus RTU) and PLC (Power Line Communication); Baud rate up to 38400 bps
Data Logging	Internal 1MB flash; stores up to 100,000 records; programmable interval (1-32767 seconds/minutes/hours/days)
Relay Outputs	5 programmable relays (SPST); configurable set points, hysteresis, delays, and modes (Lo, Hi, Latch)
Auxiliary Power Supply	ADH: 85-346 VAC, 50/60 Hz or 100-300 VDC; ADL: 20-56 VDC
Power Consumption	AC: 10 VA max; DC: 4 W max
Mounting	DIN rail (35 mm)
Weight	185 g
Operating Temperature	0 to 60 °C (32 to 140 °F)
Storage Temperature	-20 to 70 °C (-4 to 158 °F)
Safety Standards	EN 61010, EN 61326; Dielectric strength 2 kV; Surge 6 kV
Security	Two-level password (4 digits) for parameter setting and energy reset; function lock (None, User, Programming, All)
Warranty	2 years from date of purchase
Applications	Rental building electricity charging, market booth, dormitory, distributed generation management

Frequently Asked Questions - WISE-M502 Advantech

What wiring configurations does the WISE-M502 support?

The WISE-M502 supports single-phase two-wire (1P2W), single-phase three-wire (1P3W), three-phase three-wire (3P3W), and three-phase four-wire (3P4W). It can handle up to 5 loops in 1P2W or 2 loops in other configurations.

How do I set the communication parameters?

Access the Communication Group in the Programming Level. You can set the station address (1-255), baud rate (1200-38400 bps), parity (None, Even, Odd), and data format (High/Low word first). Default is Address 1, Baud 9600, N.8.2.

Can I log data over time?

Yes, the device has a 1MB internal flash memory for data logging. You can configure the recording interval (1-32767 units of seconds, minutes, hours, or days) and select which parameters to record. Up to 100,000 records can be stored.

How do I reset the energy counters?

To reset active/reactive energy, go to the Input Group in Programming Level and write the value 2100 to the register tL.rst (address 0050h). You may need the password (default 1000).

What is the accuracy of the voltage and current measurements?

Voltage and current measurements have an accuracy of 0.2% of reading. Active and reactive power accuracy is 0.5%, and frequency accuracy is 0.2%.

How do I configure the relay outputs?

In the Relay Group, you can assign each relay to a parameter (e.g., voltage, power), set the operation mode (Off, Lo, Hi, Lo.HLd, Hi.HLd, RO), set point, hysteresis, and delays. Default relay 1-5 set points are 1000, 2000, 3000, 4000, 5000.

What power supply options are available?

The WISE-M502 has two versions: ADH accepts 85-346 VAC (50/60 Hz) or 100-300 VDC, while ADL accepts 20-56 VDC. Power consumption is 10 VA (AC) or 4 W (DC).

How do I navigate the screen and configure parameters?

Use the front panel keys (not clearly labeled but described in the manual). Press and hold the ESC key to enter Programming Level. Use ENT to confirm, FUN to switch groups. The display shows measurement screens by default; you can scroll through voltage, current, power, energy, and relay settings.

Can I monitor neutral current?

Yes, in 3P4W wiring, the device measures neutral current (IN) with an accuracy of 1.0%. It is displayed as a parameter and can be logged or used for relay control.

What is the maximum voltage and current input?

The voltage input can handle up to 600 V continuous (1.2x rated). Current depends on the external CT; the CT primary setting can be up to 9999 A. The device measures current via clamp CTs (not included).

USER MANUAL WISE-M502 Advantech

Illustration of three kitchen appliances in green outline style (no text or symbols)

WISE-M502

The documentation and the software included with this product are copyrighted 2016 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. However, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringements of the rights of third parties, which may result from its use.

Acknowledgements

Intel and Atom are trademarks of Intel Corporation.

Microsoft Windows is registered trademark of Microsoft Corp.

All other product names or trademarks are properties of their respective owners.

Product Warranty (2 years)

Advantech warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years from the date of purchase.

This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by Advantech, or which have been subject to misuse, abuse, accident or improper installation. Advantech assumes no liability under the terms of this warranty as a consequence of such events.

Because of Advantech's high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. Please consult your dealer for more details.

If you think you have a defective product, follow these steps:

1. Collect all the information about the problem encountered. (For example, CPU speed, Advantech products used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages you get when the problem occurs.

2. Call your dealer and describe the problem. Please have your manual, product, and any helpful information readily available.

3. If your product is diagnosed as defective, obtain an RMA (return merchandize authorization) number from your dealer. This allows us to process your return more quickly.

4. Carefully pack the defective product, a fully-completed Repair and Replacement Order Card and a photocopy proof of purchase date (such as your sales receipt) in a shippable container. A product returned without proof of the purchase date is not eligible for warranty service.

5. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer.

Part No.2003M50200 Edition 1

Printed in China December 2016

Declaration of Conformity

CE

This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information.

Technical Support and Assistance

1. Visit the Advantech web site at http://support.advantech.com where you can find the latest information about the product.

2. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call:

– Product name and serial number
– Description of your peripheral attachments
– Description of your software (operating system, version, application software, etc.)
– A complete description of the problem
- The exact wording of any error messages

Safety Instructions

1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may cause damage.

7. The openings on the enclosure are for air convection. Protect the equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet.

9. Position the power cord so that people cannot step on it. Do not place anything over the power cord.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

■ The power cord or plug is damaged.
- Liquid has penetrated into the equipment.
■ The equipment has been exposed to moisture.
The equipment does not work well, or you cannot get it to work according to the user's manual.
■ The equipment has been dropped and damaged.
■ The equipment has obvious signs of breakage.

1. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE STORAGE TEMPERATURE MAY GO BELOW -40°C (-40°F) OR ABOVE 60°C (140°F). THIS COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT SHOULD BE IN A CONTROLLED ENVIRONMENT.

2. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER, DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS.

The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A).

DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.

Safety Precaution - Static Electricity

Follow these simple precautions to protect yourself from harm and the products from damage.

To avoid electrical shock, always disconnect the power from your PC chassis before you work on it. Don't touch any components on the CPU card or other cards while the PC is on.
■ Disconnect power before making any configuration changes. The sudden rush of power as you connect a jumper or install a card may damage sensitive electronic components.

Battery Information

Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.

Manual Conventions

Warning! Warnings indicate conditions, which if not observed, can cause personal injury!

Caution! Cautions are included to help you avoid damaging hardware or losing data. e.g.

There is a danger of a new battery exploding if it is incorrectly installed. Do not attempt to recharge, force open, or heat the battery. Replace the battery only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer's instructions.

Note! Notes provide optional additional information.

Contents

Chapter 1 Product Overview....1

1.1 Introduction 2
1.2 Application.... 2
1.3 Panel Description 2

Chapter 2 Product Specifications......3

2.1 Product Specifications....4

Table 2.1: Measurement and Wiring 4
Table 2.2: Accuracy & Resolutions....4
Table 2.3: Communication function 5
Table 2.4: Recording 5
Table 2.5: Display....5
Table 2.6: Power 5
Table 2.7: Security....5
Table 2.8: Operating environment 6
Table 2.9: Electrical Safety....6
Table 2.10:Mechanical 6

Chapter 3 Hardware Installation ....7

3.1 Wiring Diagram 8
3.2 Screen Function Key Operation 9

Chapter 4 System Configuration .....19

4.1 System Configuration.... 20

Appendix A I/O Modbus Mapping Table......25

A.1 I/O Modbus Mapping Table.... 26

Chapter 1

Product Overview

1.1 Introduction

Provides high accuracy measurement, display and remote communication of single phase & three phase parameters (V, A, P, Q, S, PF, Hz, Kwh). Multi-circuit design and relay output modular design decrease the overall cost and make the functionality more flexible. All monitored data is available via a RS485 serial, PLC communication for requirements in energy management, and remote control. Embedded flash memory for data logging avoids missing data once the communication is interrupted.

Moreover, its ultra compact size DIN-rail mounting makes itself mountable in virtually any panel, enclosure or indoor cabinet.

1.2 Application

■ Rental Building Electricity Charging Management
■ Market/Vender/Stand Electricity Charging Management
■ Rental Apartment Electricity Charging Management
■ Distributed Generation Electricity Charging Management
■ Booth Electricity Charging Management
■ Dormitory Electricity Charging Management

1.3 Panel Description

Key definition (from left to right)

Chapter 2

Product Specifications

2.1 Product Specifications

Table 2.1: Measurement and Wiring

Phase & Wiring Voltage Current Frequency
1P2W	50~500V depends on external CT 45~65Hz
1P3W
3P3W
3P4W

Table 2.2: Accuracy & Resolutions
PARAMETERS ACCURACY RESOLUTION INPUT RANGE

Voltage 0.2% 0.1V	0~9999
Current 0.2% 0.001A	0~9999
Neutral Current	1.0% 0.001A	0~9999
Active Power	0.5% 0.1W	-32768~32767
Reactive Power	0.5% 0.1var	-32768~32767
Apparent Power	0.5% 0.1VA	-32768~32767
Power factor	0.5% 0.001	±0.020~+1.000
Frequency	0.2% 0.01Hz	45.00~65.00
Active Energy	0.5% 0.1kWh	0~999999
Reactive Energy	0.5% 0.1kvarh	0~999999

* Current Specification 400A or more, because the instrument can not be calibrated with the accuracy required to add additional error of 0.5% *

Measurement	True RMS measuring Parameters
Display update period	0.5 Sec
Wiring	1P2W, 1P3W, 3P3W, 3P4W
Input range	Voltage: As metering and WiringPT Primary side unit: V or KVPT Primary setting: 50.0V~99.99KVPT Secondary setting:50.0~500.0VDirect Input: Primary = Secondary ≤ 500VCurrent: depends on external CTCT Primary setting: 1~9999AFrequency: 45~65Hz
Max. input withstand	Voltage: 1.2 X Rated voltage continuous(600Vmax)Current: Clamp CT Specification1.2X Rate voltage continuous

Table 2.3: Communication function

Port RS-485 PLC (power line communication) Half-duplex Transmission
Protocol Modbus RTU Mode
Address 1~255 selectable
Baud rate 1200, 2400, 4800, 9600, 19200 or 38400 bps selectable
Parity check N81, N82, odd, even selectable
Wire distance 1200M max
Terminal resistance 150Ω.
Variable Communication address	Customizing from 0100h to 0113h, 20 address parameters

Table 2.4: Recording

Memory: Internal 1MB
Capability:	Depends, i.e. saving up to 100,000 records with recording KWH parameters only. Recording interval:1~32767
Time units Second, minute, hour, day

Table 2.5: Display

LCD backlight 2-line, 6 digits for each. Top pane: 6.5mm high;
bottom pane 9.6mm high
Comm. status indication With Communication status display icon
Parameter indication	Show parameters and channels in words
Alarm status indication	R1~R5 with Relay contact status display icon

Table 2.6: Power

Aux Power	ADH: 85~346Vac, 50/60Hz, 100~300Vdc
ADL	20~56Vdc
Power consumption	AC:10VA, DC:4W
Temperature Coefficient	100 ppm/°C

Table 2.7: Security

Password	Two groups password in 4 digits for "parameter setting" & "reset to zero for WATT"
Parameter setting	Password is able to set
Reset to zero for WATT	Password is unable to set
Function Lock	There are 4 optionsUser Level: User Level lock. User can get into User Level only for checking but unable to change the settingProgramming Level: Programming Level lock. User can get into programming level only for checking but unable to change the settingALL: All lock. Lock both User Level & Programming Level. User can get into all level for checking but unable to change the settingNone: No Lock
Parameter storage methods	F-RAM (Ferroelectric RAM), a random-access memory

Table 2.8: Operating environment

Operation Temperature & Humidity	0~60°C;Display 0~60°C/0~80% RH, No-condensing
Storage Temperature & Humidity	-20~70°C/0~80% RH, Non condensing

Table 2.9: Electrical Safety

Surge test 6KV, 1.2x50usec Common mode & differential mode

Insulating resistance ≥ 100M ohm,DC500V

Dielectric strength AC 2KV,50/60Hz,Input/Output/Power/Case

Standard EN61010;EN61326

Table 2.10: Mechanical

Case material PC fireproof

Mounting DIN rail

Weight 185g

Chapter 3

Hardware Installation

3.1 Wiring Diagram

( Secondary output wire of CT must be wiring separately as protection. parallel or ground.DO NOT )

Power Supply

RS485 Communication Port

3.2 Screen Function Key Operation

Press the the button on the following version can review each phase line Circuit voltage and current measurement value, the flow picture Page 4 to 6 of process description

Press the the button on the following version can review each phase line The measured values of the circuit in the power, process screen 7 to 10 of process description

Press the the button on the following version can review each loop The measured values of the energy flow picture, such as Page 11 Process Description

Press the the button on the following version more than a second or more, Set the relay parameter values, Flow picture described processes such as Page 11

Before use, please understand the function of individual keys to achieve the best possible mode of operation.

Volt/Amp

(Voltage, Current)

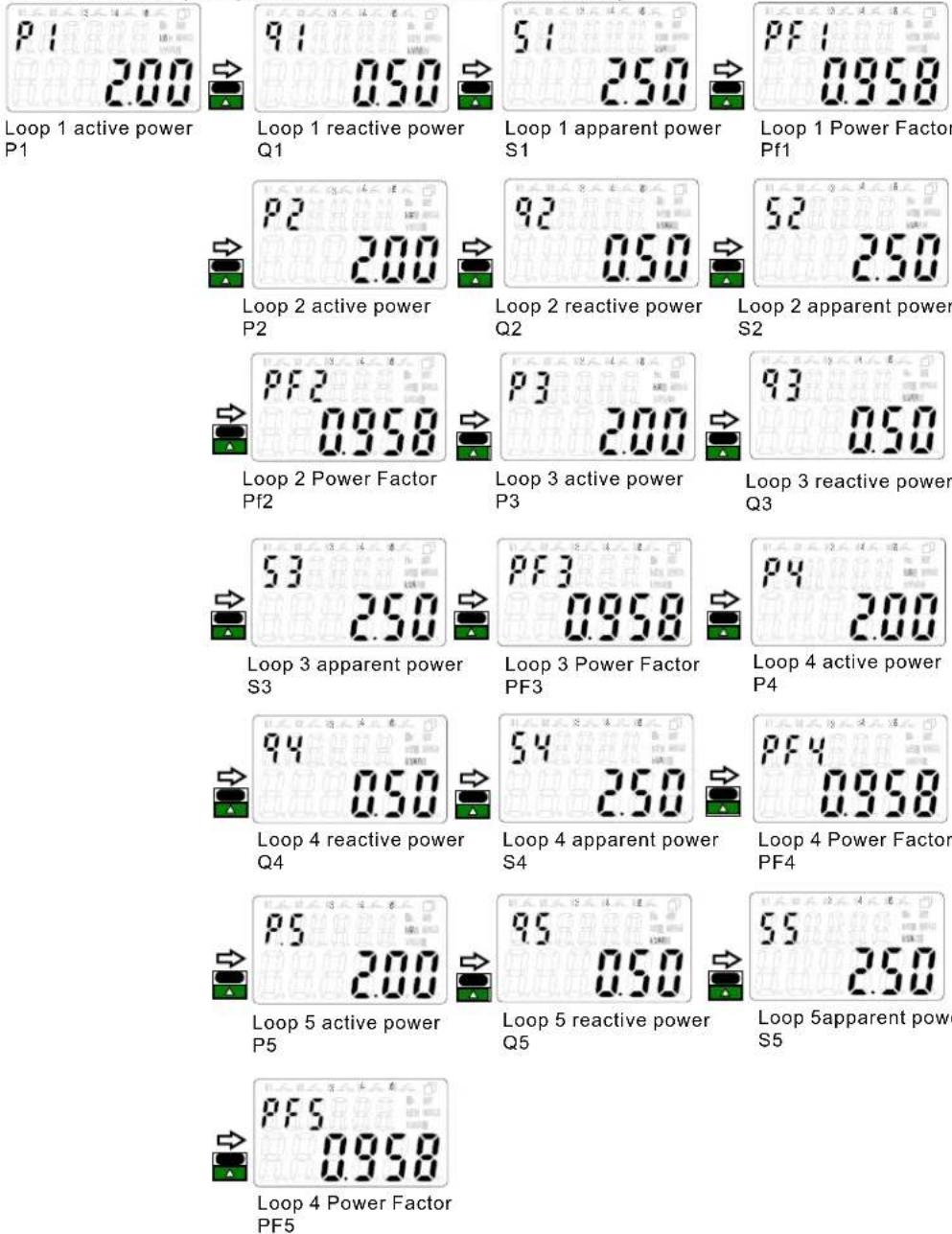

Measurement screen

● 1P2W 5Loop (Single-phase two-wire five-loop)

Frequency

L-N Voltage U1/V

Loop 1 Current I1

Loop 2 Current I2

Loop 3 Current I3

Loop 4 Current I4

Loop 5Current I5

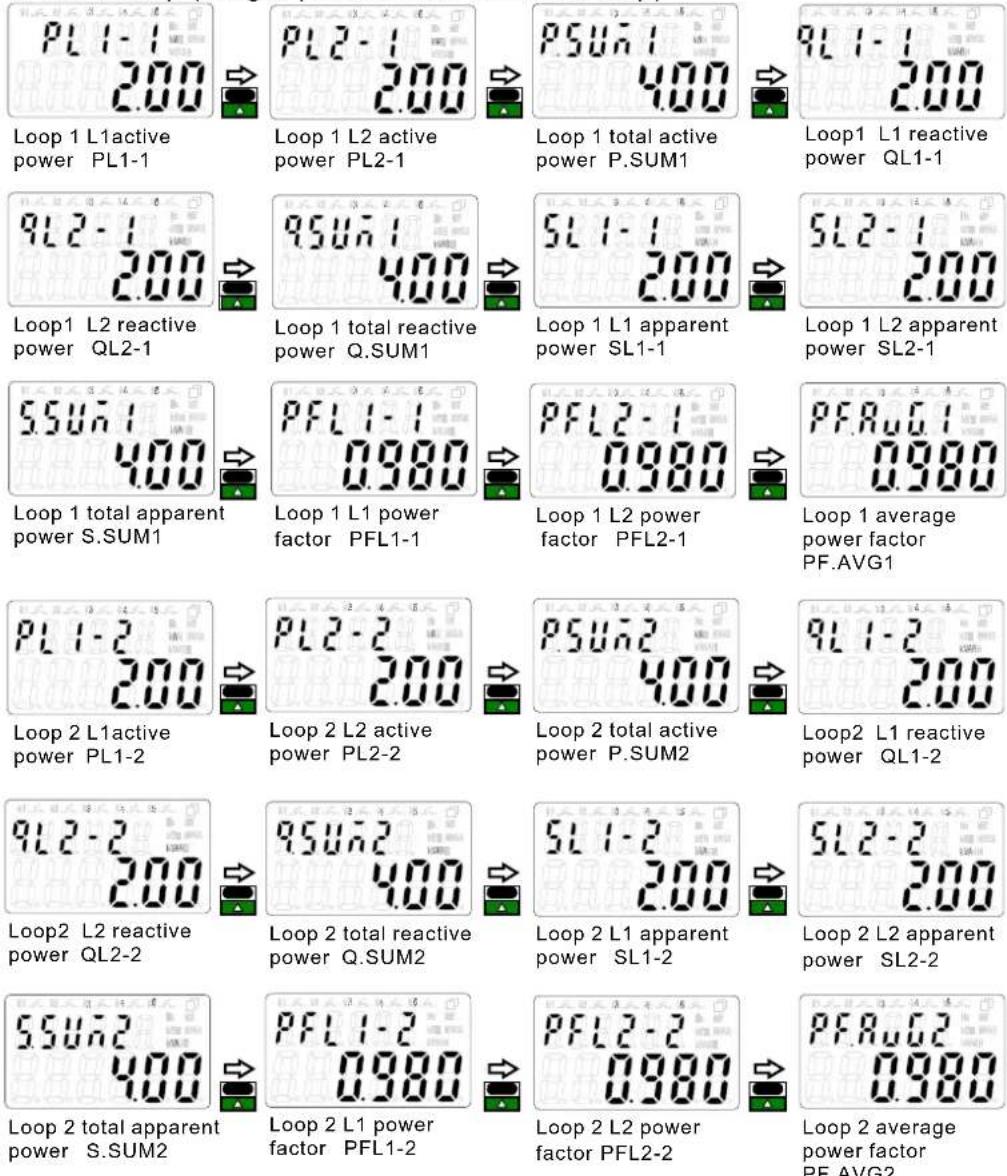

● 1P3W 2Loop (Single-phase three-wire two-loop)

Frequency

L1-N Voltage UL1/V

L2-N Voltage UL2/V

L1-L2 Voltage UL12

Loop1 L1 Current IL1-1

Loop 1 L2 Current IL2-1

Loop 2 L1 Current IL1-2

Loop 2 L2Current IL2-2

Volt/Amp

Voltage Current,)

Measurement screen

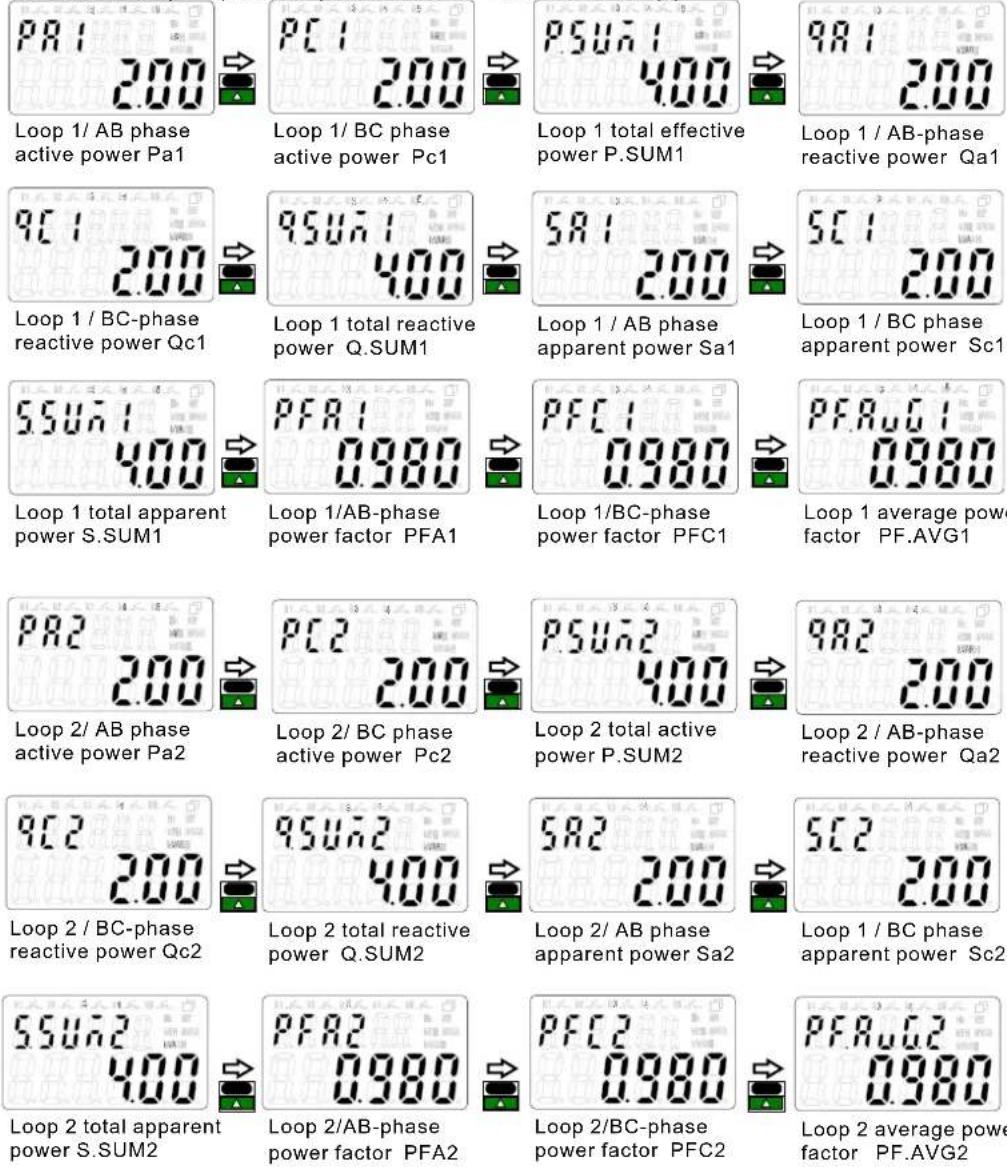

• 3P3W 2Loop (Three-phase three-wire two-loop)


Volt/Amp (Voltage, Current) Measurement screen

- 3P4W 1Loop (Three-phase four-wire single-loop)

Loop 1 average current I.AVG

Power

( POWER)

Measurement screen

● 1P2W 5Loop (Single-phase three-wire two-loop)

Power

( POWER)

Measurement screen

● 1P3W 2Loop (Single-phase three-wire two-loop)

Power

( POWER)

Measurement screen

• 3P3W 2Loop (Three-phase three-wire two-loop)


Power

( POWER)

Measurement screen

- 3P4W 1Loop (Three-phase four-wire two-loop)

( Energy )

Measurement screen

First loop total active energy A.E1

First loop total reactive energy R.E1

Second loop total active energy A.E2

Second loop total reactive energy R.E2

Third loop total active energy A.E3

Third loop total reactive energy R.E3

Fourth loop total active energy A.E4

Fourth loop total reactive energy R.E4

Fifth loop total active energy A.E5

Fifth loop total reactive energy R.E5

Date 12.01.01

Time 00.00.00

The display order of the total active energy and total reactive energy in the loop

1P2W 5Loop:AE1/RE1\~\~AE5/RE5

1P3W 1Loop:AE1/RE1

3P3W 1Loop:AE1/RE1

3P4W 1Loop:AE1/RE1

1P3W 2Loop:AE1/RE1\~\~AE2/RE2

3P3W 2Loop:AE1/RE1\~\~AE2/RE2

ESC (Leave)

( Press and hold for more than more than one second to enter the class

Relay 1 set point RY1.SP/1000 Range- 32768\~32767

Relay 2 set point RY2.SP/2000 Range- 32768\~32767

Relay 3 set point RY3.SP/3000 Range- 32768\~32767

Relay 4 set point RY4.SP/4000 Range- 32768\~32767

Relay 5 set point RY5.SP/5000 Range:-32768\~32767

Forced reset has been activated to maintain the relay N∅ YES

System wiring 1P2W

The number of loops 5 By SPEC shaw/1 /2 5

Software version AEM-RD/vxx.xx

FLASH remaining time 0\~65535 Units of the same recording interval units

Chapter 4

System Configuration

4.1 System Configuration

ENT

Enter(Confirm)/

FUN

Programming Level

INPUT Group

P.CODE/0000

key is pressed, the rightmost 0 starts blinking can move

Left moves to the nearest thousand,, Up set to 1, the display 1000.,

Enter can enter the the parameter setting class

    subgraph_Group1["Group 11: Input into into into into into into into"]
        F["ENT"] --> G["INTO INPUT GROUP (Page 11)"]
        H["ENT"] --> I["INTO RELAY GROUP (Page 12~13)"]
        J["ENT"] --> K["INTO COMM GROUP (Page 14)"]
        L["ENT"] --> M["INTO TIME GROUP (Page 14)"]
        N["ENT"] --> O["INTO INIT (Page 14)"]
    end

Programming Level

INPUT Group

PT primary voltage unit: U.UNIT/V

PT primary voltage: PT.PRI/500.0

PT secondary voltage: PT.SEC/500.0

CT primary current: CT.PRI/50

Voltage display resolution settings: V.UNT/0.1

Current display resolution setting: I.UNT / 0.01

Power display resolution setting: W.UNT/0.01k

Current display low cut:Lo.CUT/0

Active / reactive energy zeroing tlrst/0000

Modify the pass code P.CODE/1000

Back light time b.Light /1

Select Permanent screen disply/ A.E1

Parameter lock screen F. LOCK/NONE

Pulse output A E1\~A.E5/NONE.

Back toPT primary voltage

Programming Level

RELAY Group

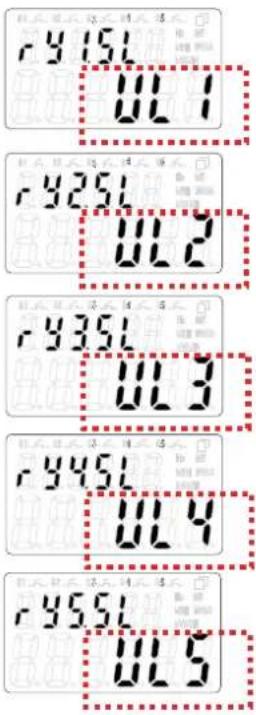

Relay 1 action parameter RY1.SL

Relay 1 operation mode RY1.MD / HI OFF/Lo/Hi/Lo.HLd/Hi.HLd/RO

Relay 1 set point RY1.SP/1000 Range 32768\~32767:-

Relay 2 action parameter RY2 SL

Relay 2 operation mode RY2.MD / HI OFF/Lo/Hi/Lo.HLd/Hi.HLd/RO

Relay 2 set point RY2.SP/2000 Range 32768\~32767:-

Relay 3 action parameter RY3 SL

Relay 3 operation mode RY3.MD / HI OFF/Lo/Hi/Lo.HLd/Hi.HLd/RC

Relay 3 set point RY3.SP/3000 Range 32768\~32767:-

Relay 4 action parameter RY4 SL

Relay 4 operation mode RY4.MD / HI OFF/Lo/Hi/Lo.HLd/Hi.HLd/RO

Relay 4 set point RY4.SP/4000 Range 32768\~32767:-

Relay 5 action parameter RY5 SL

Relay 5 operation mode RY5.MD / HI OFF/Lo/Hi/Lo.HLd/Hi.HLd/RO

Relay 5 set point RY5.SP/5000 Range 32768\~32767:-

General or advanced Function Select PROG/basic Range BASIC/ADVNC:

Relay 1 start band RY1. Sb/0 Range 0\~9999 counts:

Relay1start delay time RY1.Sd/0.00.0 Range: 0.00.0\~9.59.9

Relay 1 hysteresis time RY1.hy/0 Range 0\~9999 counts:

Relay 1 start delay time: RY1.rd/0.00.0 Range: 0.00.0\~9.59.9

Relay1 de-energizeddelay time:RY1.Fd/0.00.0 Range:0.00.0\~9.59.9

Relay 2 start band RY 2 Sb 0. / Range 0\~9999 counts:

Relay 2 start delay time RY2.Sd/0.00.0 Range: 0.00.0\~9.59.9

Relay 2 hysteresis time: RY2.hy/0 Range 0\~9999 counts:

Relay 2 start delay time: RY2.rd/0.00.0 Range: 0.00.0\~9.59.9

Programming Level parameters correspond

Select Permanent screen

	Loop 1	Loop 2
1P3W	Freq., UL1, UL2, UL12, IL1-1, IL2-1, PL1-1, PL2-1, P.SUM1, QL1-1, QL2-1, Q.SUM1, SL1-1, SL2-1, S.SUM1, PFL1-1, PFL2-1, PF.AVG1, A.E1, R.E1	Freq., UL1, UL2, UL12, JL1 4, JL2 4, JL1 2, IL2-2, PL1-1, PL2-1, P.SUM1, QL1-1, QL2-1, Q.SUM1, SL1-1, SL2-1, S.SUM1, PFL1-1, PFL2-1, PF.AVG1, PL1-2, PL2-2, P.SUM2, QL1-2, QL2-2, Q.SUM2, SL1-2, SL2-2, S.SUM2, PFL1-2, PFL2-2, PF.AVG2, A.E1, R.E1, A.E2, R.E2
3P3W	Freq., UAB, UBC, UCA, ULL.AVG, IA1, IB1, IC1, I.AVG1, PA1, PC1, P.SUM1, QA1, QC1, Q.SUM1, SA1, SC1, S.SUM1, PFA1, PFC1, PF.AVG1, A.E1, R.E1	Freq., UAB, UBC, UCA, ULL.AVG, IA1, IB1, IC1, I.AVG1, IA2, IB2, IC2, I.AVG2, PA1, PC1, P.SUM1, QA1, QC1, Q.SUM1, SA1, SC1, S.SUM1, PFA1, PFC1, PF.AVG1, PA2, PC2, P.SUM2, QA2, QC2, Q.SUM2, SA2, SC2, S.SUM2, PFA2, PFC2, PF.AVG2, A.E1, R.E1, A.E2, R.E2

3P4W Loop1	1P2W Loop5
Freq UA UB UC ULN AVG UAB UBC.UCA ULL AVG IA IB IC IN I AVG PA,PB, PC, P.SUM, QA, QB, QC, Q.SUM,SA, SB, SC, S.SUM, PFA, PFB, PFC, PF.AVG,A.E1, R.E1	Freq.,U1, I1, I2, I3, I4, I5, P1, Q1, S1, PF1,,P2,Q2 S2 PF2 P3 Q3 S3 PF3 P4.Q4S4, PF4, P5, Q5, S5, PF5, A.E1, R.E1, A.E2,R.E2, A.E3, R.E3, A.E4, R.E4, A.E5, R.E5

Relay parameters table

	Loop 1	Loop 2
1P3W	Freq.,UL1,UL2,UL12,IL1-1,IL2-1,PL1-1,PL2-1,P.SUM1,QL1-1,QL2-1,Q SUM1,SL1-1,SL2-1,S.SUM1,PFL1-1,PFL2-1,PF AVG1	Freq.,UL1,UL2,UL12,IL1 1,IL2-1,IL1-2,IL2-2,PL1-1,PL2-1,P SUM1,QL1-1,QL2-1,Q.SUM1,SL1-1,SL2-1,S SUM1,PFL1-1,PFL2-1,PF AVG1,PL1-2,PFL2-2,P.SUM2,QL1-2,QL2-2,Q SUM2,SL1 2,SL2-2,S.SUM2,PFL1-2,PFL2-2,PF AVG2
3P3W	Freq.UAB UBC UCA ULL A - VG JA1 JB1,IC1, I.AVG1,PA1,PC1,P.SUM1,QA1,QC1,Q.SUM1,SA1,SC1,S SUM1,PFA1,PFC1,PF AVG1	Freq.,UAB,UBC,UCA,ULL AVG JA1,IB1,IC1,I AVG1,IA2,IB2,IC2,I AVG2,PA1,PC1,P SUM1,QA1,QC1,Q SUM1,SA1,SC1,S.SUM1,PFA1,PFC1,PF AVG1,PA2,PC2,P.SUM2,QA2,QC2,Q SUM2,SA2,SC2,S.SUM2,PFA2,PFC2,PF AVG2

3P4W Loop1	1P2W Loop 5
Freq UA UB UC ULN AVG UAB UBÇUCA,ULL.AVG,IA,IB,IC,IN,I.AVG,PA,PB,PC,P.SUM,QA,QB,QC,Q SUM,SA,SB,SC,S SUM,PFA,PFB,PFC,PF AVG	Freq,U1,I1,I2,I3,I4,I5,P1,Q1,S1,PF1,P2 Q2 S2 PF2 P3 Q3 S3 PF3 P4 Q4S4,PF4,P5,Q5,S5,PF5

Programming Level

Communication Group

Station number Addr/001

Transmission rate: Baud/9600

Parity Check: Prity/N.8.2

Data Format: Forma /HI Hi/Lo (Data for the Double Word you can decide High Word or Low Word first previous)

General or advanced function selection: Prog/Basic

User-defined address buffer (Schedule 1)

User-defined address buffer (Schedule 1)

Programming Level

TimeGroup

Factory reset: Initialization 7170:

Appendix A

I/O Modbus Mapping Table

A.1 I/O Modbus Mapping Table

1P2W

Rs485 Communication

Name Address Range		Explain Initial R/W
Freq. 0000h	0.00~99.9	9 Frequency R
U1 0001h 0~9999 L-N voltage			R
I1	0002h 0~9999 Group 1 loop current			R
I2	0003h 0~9999 Group 2 loop current			R
I3	0004h 0~9999 Group 3 loop current			R
I4	0005h 0~9999 Group 4 loop current			R
I5	0006h 0~9999 Group 5 loop current			R
P1	0007h	-32768~32767	Group 1 loop active power		R
Q1	0008h	-32768~32767	Group 1 loop reactive power		R
S1	0009h	0~32767	Group 1 loop apparent power		R
PF1	000Ah	-1.000~1.000	Group 1 loop power factor		R
P2	000Bh	-32768~32767	Group 2 loop active power		R
Q2	000Ch	-32768~32767	Group 2 loop reactive power		R
S2	000Dh	0~32767	Group 2 loop apparent power		R
PF2	000Eh	-1.000~1.000	Group 2 loop power factor		R
P3	000Fh	-32768~32767	Group 3 loop active power		R
Q3	0010h	-32768~32767	Group 3 loop reactive power		R
S3	0011h	0~32767	Group 3 loop apparent power		R
PF3	0012h	-1.000~1.000	Group 3 loop power factor		R
P4	0013h	-32768~32767	Group 4 loop active power		R
Q4	0014h	-32768~32767	Group 4 loop reactive power		R
S4	0015h	0~32767	Group 4 loop apparent power		R
PF4	0016h	-1.000~1.000	Group 4 loop power factor		R
P5	0017h	-32768~32767	Group 5 loop active power		R
Q5	0018h	-32768~32767	Group 5 loop reactive power		R
S5	0019h	0~32767	Group 5 loop apparent power		R
PF5	001Ah	-1.000~1.000	Group 5 loop power factor		R
Reserved		001Bh~0026h
A.E1	0027h 0~99999.9kWh		Loop1 total active energy (High Word)		R
A.E1	0028h		Loop1 total active energy (Low Word)		R
R.E1	0029h 0~99999.9kVARh		Loop1 reactive power (High Word)		R
R.E1	002Ah		Loop1 reactive power (Low Word)		R
A.E2	002Bh	0~99999.9kWh	Loop2 total active energy (High Word)		R
A.E2	002Ch		Loop2 total active energy (Low Word)		R
R.E2	002Dh	0~99999.9kVARh	Loop2 reactive power (High Word)		R
R.E2	002Eh		Loop2 reactive power (Low Word)		R
A.E3	002Fh	0~99999.9kWh	Loop3 total active energy (High Word)		R
A.E3 0030h			Loop3 total active energy (Low Word)		R
R.E3 0031h	0~99999.9	kVARh	Loop3 reactive power (High Word)		R
R.E3 0032h			Loop3 reactive power (Low Word)		R
A.E4 0033h	0~99999.9	kWh	Loop4 total active energy (High Word)		R
A.E4 0034h			Loop4 total active energy (Low Word)		R
R.E4 0035h	0~99999.9	kVARh	Loop4 reactive power (High Word)		R
R.E4 0036h			Loop4 reactive power (Low Word)		R
A.E5 0037h	0~99999.9	kWh	Loop5 total active energy (High Word)		R
A.E5 0038h			Loop5 total active energy (Low Word)		R
R.E5 0039h	0~99999.9	kVARh	Loop5 reactive power (High Word)		R
R.E5 003Ah			Loop5 reactive power (Low Word)		R

Relay Status and Control (CODE: 01h, 05h):

	0000h		Relay 1 bit0~bit4 behalf relay 1~relay5state,1=on, 0=off;code 05 is relaycontrol, at register address write		R/W
	0001h		Relay 2
	0002h		Relay 3
	0003h		Relay 4
	0004h		Relay 5

General operating Level( CODE : 03h ):

WIRE 003Fh	0~5		0:1P2W1:1P3W2:3P3W3:3P4W4:3P3W-b5:3P4W-b		R
LOOP 0040h	0~1		Loop0: 5 Loop		R
FLASH 0041h	0~65535	FLASH remaining time R

Programming Level (CODE: 03h, 06h, 10h): Input function group

U.UNIT	0043h	0~1	PT primary voltage unit0:V1:kV	0	R/W
PT.PRI	0044h	0~10000	PT primary voltage	5000	R/W
PT.SEC	0045h		PT secondary voltage	5000	R/W
CT.PRI	0046h		CT primary current	50	R/W
V.UNT 0047h	0~4		Voltage display unit and resolution setting0:0.1(V)1:1(V)2:0.01k(V)3:0.1k(V)4:1k(V)	0	R/W
I.UNT 0048h	0~3		Current display units and resolution setting0:0.001(A)1:0.01(A)2:0.1(A)3:1(A)	0	R/W
W.UNT 0049h	0~7		Power display unit and resolution settings0:0.1(W)1:1(W)2:0.01k(W)3:0.1k(W)4:1k(W)5:0.01M(W)6:0.1M(W)7:1M(W)	2	R/W
Lo.CUT 004Ah	0~10000	Current display	low cut 40 R/W
P.CODE 004Bh	0~9999	Modify the P.C	OD 1000 R/W
b.Light	004Ch	0~15	Backlight time 0(Always lights)~15Min	1	R/W
dSPLY	004Dh	2 Loop 0~155 Loop 0~36	Select Permanent screen2 Loop==>0:Freq.1:U12:I13:I24:P15:Q16:S1 7:PF18:P29:Q210:S2 11:PF212:A.E1 13:R.E114:A.E2 15:R.E25 Loop==>0:Freq.1:U12:I13:I24:I35:I46:I57:P18:Q19:S110:PF111:P212:Q213:S214:PF215:P316:Q317:S318:PF319:P420:Q421:S422:PF423:P524:Q525:S526:PF527:A.E1 28:R.E1 29:A.E230:R.E2 31:A.E3 32:R.E3 33:A.E434:R.E4 35:A.E5 36:R.E5	0	R/W
F.LOCK	004Eh	0~3	0:NONE 1:USER 2.ENG. 3:ALL	0	R/W
EEP STS-TUS	004Fh	0~3	0:OK 1:EEPROMNG 2:FLASHING3:EEPROM & FLASHING	0	R
tL.rst	0050h		Clear Energy (Write 2100)	0	R/W

Relay output function group

RY1.SL 0051h		2 Loop0~115 Loop0~26	Relay 1 action parameters2 Loop==>0:Freq.1:U12:I13:I24:P15:Q16:S1 7:PF18:P29:Q210:S2 11:PF25 Loop==>0:Freq.1:U12:I13:I24:I35:I46:I57:P18:Q19:S110:PF111:P212:Q213:S214:PF215:P316:Q317:S318:PF319:P420:Q421:S422:PF423:P524:Q525:S526:PF5	2	R/W
RY1.MD 0052h 0~5			Relay 1 action mode0:OFF 1:Lo2:Hi 3:Lo.HLd4:Hi.HLd5:RO	2	R/W
RY1.SP 0053h -32768~32767		Relay 1 set point		1000	R/W
RY1.Sb 0054h 0~9999 Relay		1 start band 0 R/W
RY1.Sd 0055h		0000~5999(0.1second)	Relay1start delay time 0 R/W
RY1.Hy 0056h 0~9999 Relay		1 hysteresis time	0 R/W
RY1.rd	0057h	0000~5999(0.1second)	Relay 1 start delay time	0 R/W
RY1.Fd	0058h	0000~5999(0.1second)	Relay 1 de-energizeddelaytime	0	R/W
RY2.SL 0059h		2 Loop0~115 Loop0~26	Relay 2 action parameters2 Loop==>0:Freq.1:U12:I13:I24:P15:Q16:S1 7:PF18:P29:Q210:S2 11:PF25 Loop==>0:Freq.1:U12:I13:I24:I35:I46:I57:P18:Q19:S110:PF111:P212:O213:S214:PF215:P316:Q317:S318:PF319:P420:Q421:S422:PF423:P524:Q525:S526:PF5	2	R/W
RY2.MD 005Ah	0~5		Relay 2 action mode0:OFF 1:Lo2:Hi 3:Lo.HLd4:Hi.HLd5:RO	2	R/W
RY2.SP 005Bh	-327	68~32767 Relay 2	set point	2000	R/W
RY2.Sb 005Ch	0~99	99 Relay 2 start band 0 R/W
RY2.Sd 005Dh		0000~5999(0.1second)	Relay 2 start delay time	0 R/W
RY2.Hy 005Eh	0~99	99 Relay 2 hysteresis time 0 R/W
RY2.rd	005Fh	0000~5999(0.1second)	Relay 2 start delay time	0 R/W
RY2.Fd 0060h		0000~5999(0.1second)	Relay 2 de-energizeddelay time 0 R/W
RY3.SL 0061h		2 Loop0~115 Loop0~26	Relay 3 action parameters2Loop==>0:Freq.1:U12:I13:I24:P15:Q16:S1 7:PF18:P29:Q210:S2 11:PF25Loop==>0:Freq.1:U12:I13:I24:I35:I46:I57:P18:Q19:S110:PF111:P212:Q213:S214:PF215:P316:Q317:S318:PF319:P420:Q421:S422:PF423:P524:Q525:S526:PF5	2	R/W
RY3.MD 0062h 0~5			Relay 3 action mode0:OFF 1:Lo2:Hi 3:Lo.HLd4:Hi.HLd5:RO	2	R/W
RY3.SP 0063h -32768~32767 Relay 3 set point 3000 R/W
RY3.Sb 0064h 0~9999 Relay 3 start band 0 R/W
RY3.Sd 0065h		0000~5999(0.1second)	Relay 3 start delay time	0 R/W
RY3.Hy 0066h 0~9999 Relay 3 hysteresis time 0 R/W
RY3.rd	0067h	0000~5999(0.1second)	Relay 3 start delay time	0 R/W
RY3.Fd 0068h		0000~5999(0.1second)	Relay 3 de-energizeddelay time 0 R/W
RY4.SL 0069h		2 Loop0~115 Loop0~26	Relay 4 action parameters2 Loop==>0:Freq.1:U12:I13:I24:P15:Q16:S1 7:PF18:P29:Q210:S2 11:PF25 Loop==>0:Freq.1:U12:I13:I24:I35:I46:I57:P18:Q19:S110:PF111:P212:Q213:S214:PF215:P316:Q317:S318:PF319:P420:Q421:S422:PF423:P524;Q525:S526:PF5	2	R/W
RY4.MD 006Ah 0~5			Relay 4 action mode0:OFF 1:Lo2:Hi 3:Lo.HLd4:Hi.HLd5:RO	2	R/W
RY4.SP	006Bh	-32768~32767 Relay 4 set point 4000 R/W
RY4.Sb 006Ch 0~9999 Relay 4 start band 0 R/W
RY4.Sd 006Dh		0000~5999(0.1second)	Relay 4 start delay time	0 R/W
RY4.Hy 006Eh 0~9999 Relay 4 hysteresis time 0 R/W
RY4.rd	006Fh	0000~5999(0.1second)	Relay 4 start delay time	0 R/W
RY4.Fd 007	0h	0000~5999(0.1second)	Relay 1 de-energizeddelay time 0 R/W
RY5.SL 007	1h	2 Loop0~115 Loop0~26	Relay 5 action parameters2 Loop==>0:Freq.1:U12:I13:I24:P15:Q16:S1 7:PF18:P29:Q210:S2 11:PF25 Loop==>0:Freq.1:U12:I13:I24:I35:I46:I57:P18:Q19:S110:PF111:P212:Q213:S214:PF215:P316:Q317:S318:PF319:P420:Q421:S422:PF423:P524:Q525:S526:PF5	2	R/W
RY5.MD 007	72h 0~5		Relay 5 action mode0:OFF 1:Lo2:Hi 3:Lo.HLd4:Hi.HLd5:RO	2	R/W
RY5.SP 007	73h -32768	~32767 Relay 5 set point 5000 R/W
RY5.Sb 007	74h 0~9999	Relay 5 start band 0 R/W
RY5.Sd 007	75h	0000~5999(0.1second)	Relay 5 start delay time	0 R/W
RY5.Hy 007	76h 0~9999	Relay 5 hysteresis time 0 R/W
RY5.rd	0077h	0000~5999(0.1second)	Relay 5 start delay time	0 R/W
RY5.Fd 007	8h	0000~5999(0.1second)	Relay 5 de-energizeddelay time 0 R/W

Communication function group

Addr	007Bh	1~255	Station number	1	R/W
Baud	007Ch	0~5	Transmission rate0:12001:24002:48003:96004:192005:38400	3	R/W
Prity 007	Dh 0~3		Parity Check0:N.8.11:N.8.22:E.8.1 3:O.8.1	1	R/W
Format	007Eh	0~1	0:High 1:Lo	0	R/W

Date Time function group

Year 007	Fh 2000~	2099	Year	2012	R/W
Month	0080h	1~12		Month	1	R/W
Day	0081h	1~31		Date	1	R/W
Hour	0082h	0~23		Time	0	R/W
Minute	0083h	0~59		Minute	0	R/W
Second	0084h	0~59		Second	0	R/W

FLASH read(CODE: 03h, 06h)

	0200h The number of read items R		each record WORD R
	0201h Unread items R
	0202h		Read the next record, if no data returned error code 0020h		R
	0203h 0~2		Read status reports0:Clear all records1:Give up this read2:Read successfully		W
	0204H 0~1 Stop recording		0:Stop1:Restart	1	R

FLASH setting ( CODE : 03h , 06h , 10h )

	0210h 0~1	0:Full Record 1:	individual choice 0 R/ W
	0211h 1~32767		The value of the recording interval	15 R /W
	0212h 0~3		Recording interval time units0:sec 1:min2:hour3:day	1	R
	0213h 20	00~2099 Start recording time -Year	2012 R/ W
	0214h 1~12		Start recording time -Month	1 R/ W
	0215h 1~31		Start recording time -Day	1 R/ W
	0216h 0~23		Start recording time -Hour	0 R/ W
	0217h 0~59		Start recording time -Minute	0 R/ W
	0218h 0~59		Start recording time -Second	0 R/ W
	0219h 20	00~2099 Stop recording time- Year	2012 R/ W
	021Ah	1~12	Stop recording time- Month	1	R/ W
	021Bh	1~31	Stop recording time- Day	1	R/ W
	021Ch 0~23		Stop recording time- Hour	0 R/ W
	021Dh 0~59		Stop recording time- Minute	0 R/ W
	021Eh	0~59	Stop recording time- Second	0	R /W
	021Fh	0~1	Stop / Start recording0:Stop1:Start	0	R

Record	0220h			R/W
Record	0221h R/W
Record	0222h R/W		Record field, store the recorded content index
Record	0223h R/W
Record	0224h R/W		2 Loop==>
Record	0225h R/W		0:none1: Freq. 2: U1 3: I14: I25: P1
Record	0226h R/W		6:Q1 7:S1 8:PF1 9:P2 10:Q2 11:S2
Record	0227h R/W		12:PF2 13:A .E1 14:R .E1 15:A .E2 16:R .E2
Record	0228h R/W		5 Loop==>
Record	0229h R/W		0:none1: Freq. 2: U1 3: I14: I25: I3
Record	022Ah R/W		6:I4 7:I5 8:P1 9:Q1 10:S1 11:PF1
Record	022Bh R/W		12:P2 13:Q2 14:S2 15:PF2 16:P3 17:Q3
Record	022Ch R/W		18:S3 19:PF3 20:P4 21:Q4 22:S4
Record	022Dh R/W		23:PF4
Record	022Eh R/W		24:P5 25:Q5 26:S5 27:PF5 28:A .E1
Record	022Fh R/W		29:R .E1 30:A .E2 31:R .E2 32:A .E3
Record	0230h R/W		33:R .E3
Record	0231h R/W		34:A .E4 35:R .E4 36:A .E5 37:R .E5
Record	0232h
Record	0233h R/W			R/W
Record	0234h R/W	2 loop 0~16
Record	0235h R/W	5 loop 0~37
Record	0236h R/W
Record	0237h R/W
Record	0238h R/W
Record	0239h R/W
Record	023Ah R/W		initial(Full Record)
Record	023Bh R/W		2 loop==>Record field 01~Record field
Record	023Ch R/W		16 Sequence 1~16 ,Record
Record	023Dh R/W		field17~Record field 41 are all 0
Record	023Eh R/W		5 loop==>Record field 01~Record field37
Record	023Fh R/W		Sequence1~37, Record38~Record field41 are all 0
Record	0240h R/W		initial
Record	0241h R/W		Record field 01~Record field 41 are all 0
Record	0242h R/W
Record	0243h R/W
Record	0244h R/W
Record	0245h R/W
Record	0246h R/W
Record	0247h R/W
Record	0248h R/W

Name Address Range		Explain Initial R/W
Freq. 0000h	45.00~65.00 Frequency R
UL1 0001h 0~9999 L1-N Voltage R
UL2 0002h 0~9999 L2-N Voltage R
UL12	0003h 0~9999 L1-L2 Voltage		R
IL1-1	0004h 0~9999 Loop 1 L1 current		R
IL2-1	0005h 0~9999 Loop 1 L2 current		R
IL1-2	0006h 0~9999 Loop 2 L1 current		R
IL2-2	0007h 0~9999 Loop 2 L2 current		R
PL1-1	0008h	-32768~32767	Loop 1 L1-N phase active power		R
PL2-1	0009h	-32768~32767	Loop 1 L2-N phase active power		R
P.SUM1	000Ah	-32768~32767	Loop 1 total active power		R
QL1-1	000Bh	-32768~32767	Loop 1 L1-N phase reactive power		R
QL2-1	000Ch	-32768~32767	Loop 1 L2-N phase reactive power		R
Q.SUM1	000Dh	-32768~32767	Loop 1 total reactive power		R
SL1-1	000Eh	0~32767	Loop 1 L1-N apparent power		R
SL2-1	000Fh	0~32767	Loop 1 L2-N apparent power		R
S.SUM1	0010h	0~32767	Loop 1 total apparent power		R
PFL1-1	0011h	-1.000~1.000	Loop 1 L1-N Power Factor		R
PFL2-1	0012h	-1.000~1.000	Loop 1 L2-N Power Factor		R
PF.AVG	0013h	-1.000~1.000	Loop 1 average power factor		R
PL1-2	0014h	-32768~32767	Loop 2 L1-N phase active power		R
PL2-2	0015h	-32768~32767	Loop 2 L2-N phase active power		R
P.SUM2	0016h	-32768~32767	Loop 2 total active power		R
QL1-2	0017h	-32768~32767	Loop 2 L1-N apparent power		R
QL2-2	0018h	-32768~32767	Loop 2 L2-N apparent power		R
Q.SUM2	0019h	-32768~32767	Loop 2 total reactive power		R
SL1-2	001Ah	0~32767	Loop 2 L1-N apparent power		R
SL2-2	001Bh	0~32767	Loop 2 L2-N apparent power		R
S.SUM2	001Ch	0~32767	Loop 2 total apparent power		R
PFL1-2	001Dh	-1.000~1.000	Loop 2 L1-N Power Factor		R
PFL2-2	001Eh	-1.000~1.000	Loop 2 L2-N Power Factor		R
PF.AVG2	001Fh	-1.000~1.000	Loop 2 average power factor		R
A.E1	0027h 0~99999.9kWh		Loop 1 total active energy (High Word)		R
A.E1	0028h		Loop 1 total active energy (Low Word)		R
R.E1	0029h	0~99999.9kVAR h	Loop 1 total reactive energy (High Word)		R
R.E1	002Ah		Loop 1 total reactive energy (Low Word)		R
A.E2	002Bh	0~99999.9kWh	Loop 2 total active energy (High Word)		R
A.E2	002Ch		Loop 2 total active energy (Low Word)		R
R.E2	002Dh	0~99999.9kVAR h	Loop 2 total reactive energy (High Word)	)	R
R.E2 002Eh			Loop 2 total reactive energy (Low Word)		R

Relay Status and Control( CODE : 01h , 05h ):

	0000h		Relay 1 bit0~bit4 behalf relay1~relay 5state,1=on, 0=off;code05 is relaycontrol, at registeraddress write		R/W
	0001h		Relay 2
	0002h		Relay 3
	0003h		Relay 4
	0004h		Relay 5

General operating Level (CODE: 03h):

WIRE 003Fh 0~5		0:1P2W1:1P3W2:3P3W3:3P4W4:3P3W-b5:3P4W-b		R
LOOP 0040h 0~1	number of loop0: 1	LOOP 1: 2 LOOP R
FLASH 0041h 0~6	5535 FLASH remaining time R

Programming Level ( CODE: 03h, 06h, 10h ) Input function group

U.UNIT	0043h	0~1	PT primary voltage unit0:V 1:kV	0	R/W
PT.PRI	0044h		PT primary voltage	5000	R/W
PT.SEC	0045h		PT secondary voltage	5000	R/W
CT.PRI	0046h		CT primary current	50	R/W
V.UNT	0047h	0~4	Voltage display unit and resolution setting0:0 1(V)1:1(V)2:001k(V)3:01k(V)4: 1k(V)	0	R/W
I.UNT	0048h	0~3	Current display units and resolution setting0:0 001(A)1:001(A)2:01(A)31(A:)	0	R/W
W.UNT	0049h	0~7	Power display unit and resolution settings0:0 1(W )1:1(W )2:001k(W )3:01k(W )4: 1k(W )5:001M(W )6:01M(W )7: 1M(W )	2	R/W
Lo.CUT	004Ah	0~10000	Current display low cut	40	R/W
P.CODE	004Bh	0~9999	Modify the P.COD	1000	R/W
b Light	004Ch	0 ~ 15	Backlight time0 ( Always lights )~ 15Min	1	R/W
dSPLY 004Dh		1 Loop 0 ~ 192 Loop 0 ~ 35	Select Permanent screen1Loop==>0:Freq1:UL12:UL23:UL124:IL1-15:IL2-16:PL1-17:PL2-18:P SUM19:QL1-110:QL2-111:Q SUM112:SL1-113:SL2-114:S SUM115:PFL1-116:PFL2-117:PF AVG118:A E119:RE12Loop ==>0:Freq1:UL12:UL23:UL124:IL1-15:IL2-16:IL1-27:IL2-28:PL1-19:PL2-110:P.SUM111:QL1-112:QL2-113:Q.SUM114:SL1-115;SL2-116:S.SUM117:PFL1-118:PFL2-119;PF.AVG120:PL1-221:PL2-222:P.SUM223:QL1-224:QL2-225:Q.SUM226:SL1-227:SL2-228:S.SUM229:PFL1-230:PFL2-231:PF.AVG232:A E1 33:RE1 34:A E2 35:RE2	0	R
F.LOCK	004Eh	0~3	0:NONE 1:USER 2.ENG.3:ALL	0	R
EEP STS-TUS	004Fh 0~3		0:OK 1:EEPROMNG 2:FLASHING 3:EEPROM & FLASHING	0	R
tL.rst 0050h	Clear Energy (Write 2100)		0 R/W

Relay output function group

RY1.SL 0051h	1Loop 0~172Loop 0~31	Relay 1 action parameters1 Loop==>0: Freq. 1:UL1 2:UL2 3:UL124:IL1-1 5:IL2-1 6:PL1-1 7:PL2-18:P.SUM1 9:QL1-1 10:QL2-111:Q.SUM1 12:SL1-1 13:SL2-114:S.SUM1 15:PFL1-1 16:PFL2-117:PF.AVG12 Loop==>0:Freq. 1:UL1 2:UL2 3:UL124:IL1-1 5:IL2-1 6:IL1-2 7:IL2-28:PL1-1 9:PL2-1 10:P.SUM111:QL1-1 12:QL2-1 13:Q.SUM114:SL1-1 15;SL2-1 16:S.SUM117:PFL1-1 18:PFL2-1 19;PF.AVG120:PL1-2 21:PL2-2 22:P.SUM223:QL1-2 24:QL2-2 25:Q.SUM226:SL1-2 27:SL2-2 28:S.SUM229:PFL1-2 30:PFL2-2 31:PF.AVG2	4	R/W
RY1.MD	0052h	0~5	Relay 1 action mode0:OFF 1:Lo 2:Hi3:Lo.HLd4:Hi.HLd5:RO	2	R/W
RY1.SP	0053h	-32768~32767	Relay 1 set point	1000	R/W
RY1.Sb	0054h	0~9999	Relay 1 start band	0	R/W
RY1.Sd 0055h	0000~5999(0.1second)	Relay1start delay time	0	R/W
RY1.Hy	0056h	0~9999	Relay 1 hysteresis time	0	R/W
RY1.rd	0057h	0000~5999(0.1second)	Relay 1 start delay time	0	R/W

RY1.Fd 0058h	0000~5999(0.1second)	Relay 1 de-energizeddelay time 0 R/W
RY2.SL 0059h	1Loop 0~172 Loop 0~31	Relay 2 action parameters1 Loop==>0: Freq. 1:UL1 2:UL2 3:UL124:IL1-1 5:IL2-1 6:PL1-1 7:PL2-18:P.SUM1 9:QL1-1 10:QL2-111:Q.SUM1 12:SL1-1 13:SL2-114:S.SUM1 15:PFL1-1 16:PFL2-117:PF.AVG12 Loop==>0:Freq. 1:UL1 2:UL2 3:UL124:IL1-1 5:IL2-1 6:IL1-2 7:IL2-28:PL1-1 9:PL2-1 10:P.SUM111:QL1-1 12:QL2-1 13:Q.SUM114:SL1-1 15;SL2-1 16:S.SUM117:PFL1-1 18:PFL2-1 19:PF.AVG120:PL1-2 21:PL2-2 22:P.SUM223:QL1-2 24:QL2-2 25:Q.SUM226:SL1-2 27:SL2-2 28:S.SUM229:PFL1-2 30:PFL2-2 31:PF.AVG2	4	R/W

RY2.MD 00	5Ah 0~5		Relay 2 action mode0:OFF 1:Lo 2:Hi3:Lo.HLd4:Hi.HLd5:RO	2	R/W
RY2.SP 00	5Bh -327	68~32767 Relay 2	set point 2000 R/W
RY2.Sb	005Ch	0~9999	Relay 2 start band	0	R/W
RY2.Sd	005Dh	0000~5999(0.1second)	Relay 2 start delay time	0	R/W
RY2.Hy	005Eh	0~9999	Relay 2 hysteresis time	0	R/ W
RY2.rd	005Fh	0000~5999(0.1second)	Relay 2 start delay time	0	R/W
RY2.Fd	0060h	0000~5999(0.1second)	Relay 2 de-energizeddelay time	0	R/W
RY3.SL	0061h	1Loop 0~172Loop 0~31	Relay 3 action parameters1 Loop==>0: Freq. 1:UL1 2:UL2 3:UL124:IL1-1 5:IL2-1 6:PL1-1 7:PL2-18:P.SUM1 9:QL1-1 10:QL2-111:Q.SUM1 12:SL1-1 13:SL2-114:S.SUM1 15:PFL1-1 16:PFL2-117:PF.AVG12 Loop==>0:Freq. 1:UL1 2:UL2 3:UL124:IL1-1 5:IL2-1 6:IL1-2 7:IL2-28:PL1-1 9:PL2-1 10:P.SUM111:QL1-1 12:QL2-1 13:Q.SUM114:SL1-1 15:SL2-1 16:S.SUM117:PFL1-1 18:PFL2-1 19;PF.AVG120:PL1-2 21:PL2-2 22:P.SUM223:QL1-2 24:QL2-2 25:Q.SUM226:SL1-2 27:SL2-2 28:S.SUM229:PFL1-2 30:PFL2-2 31:PF.AVG2	4	R/W
RY3.MD 00	62h 0~5		Relay 3 action mode0:OFF 1:Lo 2:Hi3:Lo.HLd4:Hi.HLd5:RO	2	R/W
RY3.SP 00	63h -327	68~32767 Relay 3	action mode 3000 R/W
RY3.Sb 00	64h 0~99	99 Relay 3 start band 0 R/W
RY3.Sd 00	65h	0000~5999(0.1second)	Relay 3 start delay time 0 R/W
RY3.Hy 00	66h 0~99	99 Relay 3 hysteresis time 0 R/W
RY3.rd 00	67h	0000~5999(0.1second)	Relay 3 start delay time 0 R/W
RY3.Fd 00	68h	0000~5999(0.1second)	Relay 3 de-energized delay time 0 R/W

RY4.SL 00	69h	1 Loop0~172 Loop0~31	Relay 4 action parameters1 Loop==>0: Freq. 1:UL1 2:UL2 3:UL124:IL1-1 5:IL2-1 6:PL1-1 7:PL2-18:P.SUM1 9:QL1-1 10:QL2-111:Q.SUM1 12:SL1-1 13:SL2-114:S.SUM1 15:PFL1-1 16:PFL2-117:PF.AVG12 Loop==>0:Freq. 1:UL1 2:UL2 3:UL124:IL1-1 5:IL2-1 6:IL1-2 7:IL2-28:PL1-1 9:PL2-1 10:P.SUM111:QL1-1 12:QL2-1 13:Q.SUM114:SL1-1 15;SL2-1 16:S.SUM117:PFL1-1 18:PFL2-1 19;PF.AVG120:PL1-2 21:PL2-2 22:P.SUM223:QL1-2 24:QL2-2 25:Q.SUM226:SL1-2 27:SL2-2 28:S.SUM229:PFL1-2 30:PFL2-2 31:PF.AVG2	4	R/W
RY4.MD	006Ah	0~5	Relay 4 action mode0:OFF 1:Lo 2:Hi3:Lo.HLd4:Hi.HLd5:RO	2	R/W
RY4.SP	006Bh	-32768~32767	Relay 4 set point	4000	R/W
RY4.Sb	006Ch	0~9999	Relay 4 start band	0	R/W
RY4.Sd 00	6Dh	0000~5999(0.1second)	Relay 4 start delay time	0	R/W
RY4.Hy 00	6Eh 0~	9999 Relay 4 hysteresis time 0 R/ W
RY4.rd 00	6Fh	0000~5999(0.1second)	Relay 4 start delay time	0	R/W
RY4.Fd 00	70h	0000~5999(0.1second)	Relay 4 de-energizeddelay time	0	R/W

RY5.SL 0071h	1 Loop0~172 Loop0~31	Relay 5 action parameters1 Loop==>0: Freq. 1:UL1 2:UL23:UL124:IL1-1 5:IL2-1 6:PL1-17:PL2-18:P.SUM1 9:QL1-110:QL2-111:Q.SUM1 12:SL1-113:SL2-114:S.SUM1 15:PFL1-116:PFL2-117:PF.AVG12 Loop==>0:Freq. 1:UL1 2:UL23:UL124:IL1-1 5:IL2-1 6:IL1-27:IL2-28:PL1-1 9:PL2-110:P.SUM111:QL1-1 12:QL2-113:Q.SUM114:SL1-1 15:SL2-116:S.SUM1	4	R/W
RY5.MD 0072h 0~5		Relay 5 action mode0:OFF 1:Lo 2:Hi3:Lo.HLd4:Hi.HLd5:RO	2	R/W
RY5.SP 0073h -32768~32767 Relay 5 set point 5000 R/W
RY5.Sb 0074h 0~9999 Relay 5 start band 0 R/W
RY5.Sd 0075h	0000~5999(0.1second)	Relay 5 start delay time 0	R/W
RY5.Hy 0076h 0~9999 Relay 5 hysteresis time 0		R/W
RY5.rd	0077h	0000~5999(0.1second)	Relay 5 start delay time 0	R/W
RY5.Fd	0078h	0000~5999(0.1second)	Relay 5 de-energized-delay time	0

Communication function group

Addr	007Bh	1~255	Station number	1	R/W
Baud	007Ch	0~5	Transmission rate0:12001:24002:48003:96004:192005:38400	3	R/W
Prity	007Dh	0~3	Parity Check0:N.8.1 1:N.8.2 2:E.8.1 3:O.8.1	1	R/W
Format	007Eh	0~1	0:High 1:Lo	0	R/W
Date Time function group
Year	007Fh	2000~2099	Year	2012	R/W
Month	0080h	1~12	Month	1	R/W
Day	0081h	1~31	Date	1	R/W
Hour	0082h	0~23	Time	0	R/W
Minute	0083h	0~59	Minute	0	R/W

Second 0084h 0~59 Second 0 R/W

Date Time function group

Year 007Fh	2000~2099	Year 2012 R/W
Month 0080h	1~12 Month	1 R/W
Day	0081h 1~31	Date 1 R/W
Hour	0082h	0~23 Time	0 R/W
Minute	0083h	0~59 Minute	0 R/W
Second	0084h	0~59 Second	0 R/W

FLASHread( CODE : 03h , 06h )

	0200h		The number of each record WORD
	0201h		Unread items		R
	0202h		Read the next record, if no data returned error code 0020h		R
	0203h	0~2	Read status reports0:Clear all records1:Give up this read2:Read successfully		W
	0204H	0~1	Stop recording0:Stop1:Restart	1	R/W

FLASH setting ( CODE : 03h , 06h , 10h )

	0210h	0~1	0:Full Record 1:Individual choice	0	R/ W
	0211h	1~32767	The value of the recording interval	15 R /W
	0212h	0~3	Recording interval time units0:sec 1:min2:hour3:day	1	R/ W
	0213h	2000~2099	Start recording time -Year	2012	R/ W
	0214h	1~12	Start recording time -Month	1	R/ W
	0215h	1~31	Start recording time -Day	1	R/ W
	0216h	0~23	Start recording time -Hour	0	R/ W
	0217h	0~59	Start recording time -Minute	0	R/ W
	0218h	0~59	Start recording time -Second	0	R/ W
	0219h	2000~2099	Stop recording time- Year	2012	R/ W
	021Ah	1~12	Stop recording time- Month	1	R/ W
	021Bh	1~31	Stop recording time- Day	1	R/ W
	021Ch	0~23	Stop recording time- Hour	0	R/ W
	021Dh	0~59	Stop recording time- Minute	0	R/ W
	021Eh	0~59	Stop recording time- Second	0	R /W
	021Fh	0~1	Stop / Start recording0:Stop1:Start	0	R/ W

Record field01 0220h		1loop 0~202loop 0~36	Record field, store the recorded content index1 Loop==>0:none1: Freq. 2:UL1 3:UL2 4:UL125:IL1-1 6: IL2-1 7: PL1-1 8: PL2-1 9:P. SUM110:QL1-1 11: Q. SUM1 13:SL1-114:SL2-1 15: S. SUM1 16: PFL1- 117:PFL2- 118:PF.AVG1 19:A .E1 20:R .E12 Loop==>0:none1: Freq. 2:UL1 3:UL2 4:UL125:IL1-16: IL2-1 7: IL1-2 8: IL2- 29: PL1- 110:PL2-1 11: P. SUM1 12: QL1- 113:QL2- 114:Q.SUM1 15: SL1-1 16: SL2- 117: S. SUM118:PFL1-1 19: PFL2-1 20: PF. AVG121: PL1-222:PL2-2 23: P. SUM2 24: QL1- 225:QL2- 226:Q.SUM2 27: SL1-2 28: SL2- 229: S. SUM230:PFL1-2 31: PFL2-2 32: PF. AVG2 33:A. E134:R .E1 35:A .E2 36:R .E2	R/ W
Record field02 0221h R/ W
Record field03 0222h R/ W
Record field04 0223h R/ W
Record field05 0224h R/ W
Record field06 0225h R/ W
Record field07 0226h R/ W
Record field08 0227h R/ W
Record field09 0228h R/ W
Record field10 0229h R/ W
Record field11 022Ah R/ W
Record field12 022Bh R/ W
Record field13 022Ch R/ W
Record field14 022Dh R/ W
Record field15 022Eh R/ W
Record field16 022Fh R/ W
Record field17 0230h R/ W
Record field18 0231h R/ W
Record field19 0232h			initial(Full Record)1 loop==>Record field01~Record field20Sequence1 ~20 ,Record field21~ Record field41are all 02 loop==>Record field01~Recordfield36Sequence1 ~36 ,Record field37~ Record field41 are all 0initialRecord field01~Record field41 are all 0	R/ W
Record field20 0233h R/ W
Record field21 0234h R/ W
Record field22 0235h R/ W
Record field23 0236h R/ W
Record field24 0237h R/ W
Record field25 0238h R/ W
Record field26 0239h R/ W
Record field27 023Ah R/ W
Record field28 023Bh R/ W
Record field29 023Ch R/ W
Record field30 023Dh R/ W
Record field31 023Eh R/ W
Record field32 023Fh R/ W
Record field33 0240h R/ W
Record field34 0241h R/ W
Record field35 0242h R/ W
Record field36 0243h R/ W
Record field37 0244h R/ W
Record field38 0245h R/ W
Record field39 0246h R/ W
Record field40 0247h R/ W
Record field41 0248h R/ W

3P3W Measurement screen quickly read the information( CODE :03h):

Name Address Range Explain Initial R/W
Freq 0000h 4500~6500 Frequency R
UAB 0001h 0~9999 A-B phase line voltage R
UBC 0002h 0~9999 B-C phase line voltage R
UCA 0003h 0~9999 C-A phase line voltage R
ULL.AVG	0004h	0~9999	Average line voltage		R
IA1	0005h 0~9999 Loop 1 A phase line current R
IB1	0006h 0~9999 Loop 1 B phase line current R
IC1	0007h 0~9999 Loop 1 C phase line current R
I.AVG1)	0008h	0~9999	Loop 1 Average line current		R
IA2	0009h 0~9999 Loop 2 A phase line current R
IB2	000Ah	0~9999	Loop 2 B phase line current		R
IC2	000Bh	0~9999	Loop 2 C phase line current		R
I.AVG2	000Ch	0~9999	Loop 2 Average line current		R
PA1	000Dh	-32768~32767	Loop 1 A-B phase active power		R
PC1	000Eh	-32768~32767	Loop 1 C-B phase active power		R
P.SUM1	000Fh	-32768~32767	Loop 1 total active power		R
QA1	0010h	-32768~32767	Loop 1 A-B phase reactive power		R
QC1	0011h	-32768~32767	Loop 1 C-B phase reactive power		R
Q.SUM1	0012h	-32768~32767	Loop 1 total reactive power		R
SA1 0013h 0~32767 Loop 1 A-B apparent power R
SC1	0014h	0~32767	Loop 1 C-B apparent power		R
S.SUM1	0015h	0~32767	Loop 1 total apparent power		R
PFA1	0016h	-1 000~1.000	Loop 1 A-B phase Power Factor		R
PFC1 0017h -1 000~1.000 Loop 1 B-C phase Power Factor R
PF.AVG1	0018h	-1 000~1.000	Loop 1 average power factor		R
PA2	0019h	-32768~32767	Loop 2 A-B phase active power		R
PC2	001Ah	-32768~32767	Loop 2 C-B phase active power		R
P.SUM2	001Bh	-32768~32767	Loop 2 total active power		R
QA2	001Ch	-32768~32767	Loop 2 A-B phase reactive power		R
QC2 001Dh -32768~32767 Loop 2 C-B phase reactive power R
Q.SUM2	001Eh	-32768~32767	Loop 2 total reactive power		R
SA2	001Fh	0~32767	Loop 2 A-B apparent power		R
SC2	0020h	0~32767	Loop 2 C-B apparent power		R
S.SUM2	0021h	0~32767	Loop 2 total apparent power		R
PFA2	0022h	-1 000~1.000	Loop 2 A-B phase Power Factor		R
PFC2 0023h -1 000~1.000 Loop 2 B-C phase Power Factor R
PF.AVG2	0024h	-1 000~1.000	Loop 2 average power factor		R
A.E1	0027h 0~99999kWh		Loop 1 total active energy (High Word)		R
A.E1	0028h		Loop 1 total active energy (Low Word)		R
R.E1	0029h 0~99999kVARh		Loop 1 total reactive energy (High Word)		R
R.E1	002Ah		Loop 1 total reactive energy (Low Word)		R
A.E2	002Bh	0~999999kWh	Loop 2 total active energy (High Word)		R
A.E2 002Ch			Loop 2 total active energy (Low Word)		R
R.E2 002Dh	0~999999kVARh		Loop 2 total reactive energy (High Word)		R
R.E2 002Eh			Loop 2 total reactive energy (Low Word)		R

Relay Status and Control( CODE : 01h , 05h ):

	0000h		Relay 1 bit0~bit4 behalf relay1~relay 5state,1=on,0=off;code 05is relaycontrol, at registeraddress write		R/W
	0001h		Relay 2
	0002h		Relay 3
	0003h		Relay 4
	0004h		Relay 5

General operating Level( CODE : 03h , 06h , 10h ): Input Group

WIRE 00	3Fh 0~5		0:1P2W1:1P3W2:3P3W3:3P4W4:3P3W-b5:3P4W-b		R
LOOP 00	40h 0~1	number of loop 0: 1LOOP 1: 2LOOP R
FLASH 00	041h 0~6	5535 FLASH remaining time		R
U.UNIT	0043h 0~1		PT primary voltage unit 0:V 1:kV	0	R/W
PT. PRI	0044h		PT primary voltage	5000	R /W
PT. SEC	0045h		PT primary voltage	5000	R/W
CT.PRI	0046h		CT primary current	50	R/W
V.UNT	0047h 0~4		Voltage display unit and resolution setting0:0.1 1:1 2:0.01k 3:0.1k 4:1k (V)	0	R/W
I.UNT 00	48h 0~3		Current display units and resolution setting0:0.001 1:0.01 2:0.1 3:1 (A)	0	R/W
W.UNT 00	049h 0~7		Power display unit and resolution settings0:0.1 1:1 2:0.01k 3:0.1k 4:1k5:0.01M 6:0.1M 7:1M(W)	0	R/W
Lo.CUT	004Ah	0~10000	Current display low cut	40	R/W
P.CODE	004Bh	0~9999	Modify the P.COD	1000	R /W
b.Light	004Ch	0~15	Backlight time 0(Always lights)~15Min	1	R/W

dSPLY 004Dh	1Loop0~222Loop0~40	Select Permanent screen1Loop==> 0:Freq. 1:UAB 2:UBC3:UCA 4:ULL.AVG 5: IA1 6:IB17:IC1 8:I .AVG1 9:PA1 10:PC111:P.SUM1 12:QA1 13:QC114:Q.SUM1 15:SA1 16:SC117:S.SUM1 18:PFA1 19:PFC120:PF.AVG1 21:A.E1 22;R.E12Loop==> 0:Freq. 1:UAB 2:UBC3:UCA 4:ULL.AVG 5:IA1 6:IB17:IC1 8:I.AVG1 9:IA2 10:IB211:IC2 12:I .AVG2 13:PA1 14:PC115:P.SUM1 16:QA1 17:QC118:Q.SUM1 19:SA1 20:SC121:S.SUM1 22:PFA1 23:PFC124:PF.AVG1 25:PA2 26:PC227:P.SUM2 28:QA2 29:QC230:Q.SUM2 31:SA2 32:SC233:S.SUM2 34:PFA2 35:PFC236:PF.AVG2 37:A.E1 38:R.E139:A.E2 40:R.E2	0	R/W
F:LOCK 004Eh 0~3 0:NONE		1:USER 2.ENG. 3:ALL 0 R/W
EEP STA-TUS	004Fh 0~3	0:OK 1:EEPROMNG 2:FLASHING3:EEPROM & FLASHING	0	R
tL.rst 0050h Clear		Energy (Write 2100) 0 R/W

Relay output function group

RY1.SL	0051h	1Loop0~202Loop0~36	Relay 1 action parameters1 Loop==>0:Freq. 1:UAB 2:UBC 3:UCA4:ULL.AVG 5:IA1 6:IB1 7:IC18:I.AVG1 9:PA1 10:PC111:P.SUM1 12:QA1 13:QC114:Q.SUM1 15:SA1 16:SC117:S.SUM1 18:PFA1 19:PFC120:PF.AVG12 Loop==>0:Freq. 1:UAB 2:UBC 3:UCA4:ULL.AVG 5:IA1 6:IB1 7:IC18:I.AVG1 9:IA2 10:IB2 11:IC212:I.AVG2 13:PA1 14:PC115:P.SUM1 16:QA1 17:QC118:Q.SUM1 19:SA1 20:SC121:S.SUM1 22:PFA1 23:PFC124:PF.AVG1 25:PA2 26:PC227:P.SUM2 28:QA2 29:QC230:Q.SUM2 31:SA2 32:SC233:S.SUM2 34:PFA2 35:PFC236:PF.AVG2	8	R/W
RY1.MD	0052h	0~5	Relay 1 action mode0:OFF 1:Lo 2:Hi3:Lo.HLd4:Hi.HLd5:RO	2	R/W
RY1.SP	0053h	-32768~32767	Relay 1 set point	1000	R/W
RY1.Sb	0054h	0~9999	Relay 1 start band	0	R/W
RY1.Sd	0055h	0000~5999(0.1second)	Relay1start delay time	0 R/W

RY1.Hy 005	6h 0~9999	Relay 1 hysteresis time 0 R/W
RY1.rd 005	7h	0000~5999(0.1second)	Relay 1 start delay time 0 R/W
RY1.Fd 005	8h	0000~5999(0.1second)	Relay 1 de-energizeddelay time 0 R/W

RY2.SL 9h		1Loop 0~202Loop 0~36	Relay 2 action parameters1Loop==>0:Freq. 1:UAB 2:UBC 3:UCA4:ULL.AVG 5:IA1 6:IB1 7:IC18:I.AVG1 9:PA1 10:PC111:P.SUM1 12:QA1 13:QC114:Q.SUM1 15:SA1 16:SC117:S.SUM1 18:PFA1 19:PFC120:PF.AVG12 Loop==>0:Freq. 1:UAB 2:UBC 3:UCA4:ULL.AVG 5:IA1 6:IB1 7:IC18:I.AVG1 9:IA2 10:IB2 11:IC212:I.AVG2 13:PA1 14:PC115:P.SUM1 16:QA1 17:QC118:Q.SUM1 19:SA1 20:SC121:S.SUM1 22:PFA1 23:PFC124:PF.AVG1 25:PA2 26:PC227:P.SUM2 28:QA2 29:QC230:Q.SUM2 31:SA2 32:SC233:S.SUM2 34:PFA2 35:PFC236:PF.AVG2	8	R/W
RY2.MD	005Ah	0~5	Relay 2 action mode0:OFF 1:Lo 2:Hi3:Lo.HLd4:Hi.HLd5:RO	2	R/W
RY2.SP	005Bh	-32768~32767	Relay 2 set point	2000	R/W
RY2.Sb	005Ch	0~9999	Relay 2 start band	0	R/W
RY2.Sd 005	Dh	0000~5999(0.1second)	Relay 2 start delay time 0 R/W
RY2.Hy 005	Eh 0~9	9999 Relay 2 hysteresis time 0 R/W
RY2.rd 005	Fh	0000~5999(0.1second)	Relay 2 start delay time 0 R/W
RY2.Fd 006	0h	0000~5999(0.1second)	Relay 2 de-energizeddelay time 0	R/W
RY3.SL 006	1h	1Loop 0~202Loop 0~36	Relay 3 action parameters1 Loop==>0:Freq. 1:UAB 2:UBC 3:UCA4:ULL.AVG 5:IA1 6:IB1 7:IC18:I.AVG1 9:PA1 10:PC111:P.SUM1 12:QA1 13:QC114:Q.SUM1 15:SA1 16:SC117:S.SUM1 18:PFA1 19:PFC120:PF.AVG12 Loop==>0:Freq. 1:UAB 2:UBC 3:UCA4:ULL.AVG 5:IA1 6:IB1 7:IC18:I.AVG1 9:IA2 10:IB2 11:IC212:I.AVG2 13:PA1 14:PC115:P.SUM1 16:QA1 17:QC118:Q.SUM1 19:SA1 20:SC121:S.SUM1 22:PFA1 23:PFC124:PF.AVG1 25:PA2 26:PC227:P.SUM2 28:QA2 29:QC230:Q.SUM2 31:SA2 32:SC233:S.SUM2 34:PFA2 35:PFC236:PF.AVG2	8	R/W
RY3.MD 006	2h 0~5		Relay 3 action mode0:OFF 1:Lo 2:Hi3:Lo.HLd4:Hi.HLd5:RO	2	R/W
RY3.SP 006	3h -32768~32767 Relay 3 action mode 3000 R/W
RY3.Sb 006	4h 0~9999 Relay 3 start band 0 R/W
RY3.Sd 006	5h	0000~5999(0.1second)	Relay 3 start delay time	0 R/W
RY3.Hy 006	6h 0~9999 Relay 3 hysteresis time 0 R/W
RY3.rd	0067h	0000~5999(0.1second)	Relay 3 start delay time	0 R/W
RY3.Fd	0068h	0000~5999(0.1second)	Relay 3 de-energizeddelay time	0	R/W

RY4.SL 0069h	1Loop 0~202Loop 0~36	Relay 4 action parameters1 Loop==>0:Freq. 1:UAB 2:UBC 3:UCA4:ULL.AVG 5:IA1 6:IB1 7:IC18:I.AVG1 9:PA1 10:PC111:P.SUM1 12:QA1 13:QC114:Q.SUM1 15:SA1 16:SC117:S.SUM1 18:PFA1 19:PFC120:PF.AVG12 Loop==>0:Freq. 1:UAB 2:UBC 3:UCA4:ULL.AVG 5:IA1 6:IB1 7:IC18:I.AVG1 9:IA2 10:IB2 11:IC212:I.AVG2 13:PA1 14:PC115:P.SUM1 16:QA1 17:QC118:Q.SUM1 19:SA1 20:SC121:S.SUM1 22:PFA1 23:PFC124:PF.AVG1 25:PA2 26:PC227:P.SUM2 28:QA2 29:QC230:Q.SUM2 31:SA2 32:SC233:S.SUM2 34:PFA2 35:PFC236:PF.AVG2	8	R/W
RY4.MD 006Ah 0~5		Relay 4 action mode0:OFF 1:Lo 2:Hi3:Lo.HLd4:Hi.HLd5:RO	2	R/W
RY4.SP 006Bh -32768~32767 Relay 4 set point 4000 R/W
RY4.Sb 006Ch 0~9999 Relay 4 start band 0 R/ W
RY4.Sd 006Dh	0000~5999(0.1second)	Relay 4 start delay time	0	R/W
RY4.Hy	006Eh	0~9999	Relay 4 hysteresis time	0
RY4.rd	006Fh	0000~5999(0.1second)	Relay 4 start delay time	0
RY4.Fd	0070h	0000~5999(0.1second)	Relay 4 de-energizeddelay time	0
RY5.SL 0071h	1Loop 0~202Loop 0~36	Relay 5 action parameters1Loop==>0:Freq. 1:UAB 2:UBC 3:UCA4:ULL.AVG 5:IA1 6:IB1 7:IC18:I.AVG1 9:PA1 10:PC111:P.SUM1 12:QA1 13:QC114:Q.SUM1 15:SA1 16:SC117:S.SUM1 18:PFA1 19:PFC120:PF.AVG12 Loop==>0:Freq. 1:UAB 2:UBC 3:UCA4:ULL.AVG 5:IA1 6:IB1 7:IC18:I.AVG1 9:IA2 10:IB2 11:IC212:I.AVG2 13:PA1 14:PC115:P.SUM1 16:QA1 17:QC118:Q.SUM1 19:SA1 20:SC121:S.SUM1 22:PFA1 23:PFC124:PF.AVG1 25:PA2 26:PC227:P.SUM2 28:QA2 29:QC230:Q.SUM2 31:SA2 32:SC233:S.SUM2 34:PFA2 35:PFC236:PF.AVG2	8	R/W
RY5.MD 0072h 0~5		Relay 5 action mode0:OFF 1:Lo 2:Hi3:Lo.HLd4:Hi.HLd5:RO	2	R/W
RY5.SP 0073h -32768~32767 Relay 5 set point 5000 R/W
RY5.Sb 0074h 0~9999 Relay 5 start band 0 R/W
RY5.Sd 0075h	0000~5999(0.1second)	Relay 5 start delay time	0	R/W
RY5.Hy	0076h	0~9999	Relay 5 hysteresis time	0
RY5.rd	0077h	0000~5999(0.1second)	Relay 5 start delay time	0
RY5.Fd	0078h	0000~5999(0.1second)	Relay 5 de-energizeddelay time	0

Communication function group

Addr	007Bh	1~255	Station number	1	R/W
Baud 007	Ch 0~5		Transmission rate0:12001:24002:48003:96004:192005:38400	3	R/W
Prity	007Dh	0~3	Parity Check0:N.8.1 1:N.8.2 2:E.8.1 3:O.8.1	1	R/W
Format	007Eh	0~1	0:High 1:Lo	0	R/W

Date Time function group

Year	007Fh	2000~2099	Year	2012	R/W
Month 0080h		1~12	Month	1	R/W
Day	0081h	1~31	Date	1	R/W
Hour	0082h	0~23	Hour	0	R/W
Minute	0083h	0~59	Time	0	R/W

Second 0084h

0~59

Second 0

R/W

FLASH read( CODE : 03h , 06h )

	0200h		The number of each record WORD		R
	0201h Unread items R
	0202h		Read the next record, if no data returned error code 0020h		R
	0203h	0~2	Read status reports0:Clear all records1:Give up this read2:Read successfully		W
	0204h	0~1	Stop recording0:Stop1:Restart	1	R/W

FLASH setting( CODE : 03h , 06h , 10h )

	0210h	0~1	0:Full Record1:Individual choice	0	R/W
	0211h 1~32767		The value of the recording interval time	15	R/W
	0212h	0~3	Recording interval timeunits0:sec 1:min2:hour3:day	1	R/W
	0213h 2000~2099 Start recording time -Year			2012	R/W
	0214h	1~12	Start recording time -Month	1	R/W
	0215h	1~31	Start recording time -Day	1	R/W
	0216h	0~23	Start recording time -Hour	0	R/W
	0217h	0~59	Start recording time -Minute	0	R/W
	0218h	0~59	Start recording time -Second	0	R/W
	0219h 2000~2099 Stop recording time- Year			2012	R/W
	021Ah	1~12	Stop recording time-Month	1	R/W
	021Bh	1~31	Stop recording time-Day	1	R/W
	021Ch	0~23	Stop recording time-Hour	0	R/W
	021Dh	0~59	Stop recording time-Minute	0	R/W
	021Eh	0~59	Stop recording time-Second	0	R/W
	021Fh	0~1	Stop / Start recording0:Stop1:Start	0	R/W

Record field01 0220h	1Loop0~232Loop0~411Loop(Balanced)0~152Loop(Balanced)0~25	Record field, store the recorded content index1Loop==>0: none1: Freq. 2: UAB 3: UBC 4: UCA5: ULL. AVG 6: IA1 7: IB1 8: IC1 9: I. AVG110PA1 11:PC1 12: P. SUM1 13: QA1 14:QC115: Q. SUM1 16: SA1 17: SC1 18: S. SUM119: PFA1 20: PFC1 21: PF. AVG1 22: A. E123: R. E12Loop==>0: none1: Freq. 2: UAB 3: UBC 4: UCA5: ULL. AVG 6: IA1 7: IB1 8: IC1 9: I. AVG110: IA2 11: IB2 12: IC2 13: I. AVG2 14: PA115: PC1 16: P. SUM1 17: QA1 18: QC119: Q. SUM1 20: SA1 21: SC1 22: S. SUM123: PFA1 24: PFC1 25: PF. AVG1 26: PA227: PC2 28: P. SUM2 29: QA2 30: QC231: Q. SUM2 32: SA2 33: SC2 34: S. SUM235: PFA2 36: PFC2 37: PF. AVG2 38: A. E139: R. E1 40: A. E2 41: R. E21Loop(Balanced)==>0: none1: Freq. 2: UAB 3: UBC 4: UCA5: ULL. AVG 6: IA1 7: PA1 8: P. SUM1 9: QA110: Q. SUM1 11: SA1 12: S. SUM1 13: PFA114: A. E1 15: R. E12Loop(Balanced)==>0: none1: Freq. 2: UAB 3: UBC 4: UCA5: ULL. AVG 6: IA1 7: IA2 8: PA1 9: P. SUM110: QA1 11: Q. SUM1 12: SA1 13: S. SUM114: PFA1 15: PA2 16: P. SUM2 17: QA218: Q. SUM2 19: SA2 20: S. SUM2 21: PFA222: A. E1 23: R. E1 24: A. E2 25: R. E2	R/ W
Record field02 0221h R/ W
Record field03 0222h R/ W
Record field04 0223h R/ W
Record field05 0224h R/ W
Record field06 0225h R/ W
Record field07 0226h R/ W
Record field08 0227h R/ W
Record field09 0228h R/ W
Record field10 0229h R/ W
Record field11 022Ah R/ W
Record field12 022Bh R/ W
Record field13 022Ch R/ W
Record field14 022Dh R/ W
Record field15 022Eh R/ W
Record field16 022Fh R/ W
Record field17 0230h R/ W
Record field18 0231h R/ W
Record field19 0232h R/ W
Record field20 0233h R/ W
Record field21 0234h R/ W
Record field22 0235h R/ W
Record field23 0236h R/ W
Record field24 0237h R/ W
Record field25 0238h R/ W
Record field26 0239h R/ W
Record field27 023Ah R/ W
Record field28 023Bh R/ W
Record field29 023Ch R/ W
Record field30 023Dh R/ W
Record field31 023Eh R/ W
Record field21 023Fh initial(	Full Record)	1loop==>Record field 01Record field23 Sequence 1 ~23 ,Record field24~ Record field41 all 02loop==>Record field01~Record field 41Sequence 1 ~411loop(Balanced)==>Record field 01~Record field15Sequence1~15,Sequence16~ Sequence41all 02loop(Balanced)==>Record field01~Record field 25 Sequence1 ~25,Sequence26~ Sequence41all 0initialRecord field01~Record field 41 all 0	R/ W
Record field33 0240h R/ W
Record field34 0241h R/ W
Record field35 0242h R/ W
Record field36 0243h R/ W
Record field37 0244h R/ W
Record field38 0245h R/ W
Record field39 0246h R/ W
Record field40 0247h R/ W
Record field41 0248h R/ W

3P4W Measurement screen quickly read the information( CODE : 03h ):

Name Address Range Explain Initial R/W
Freq. 0000h	45.00~65.00	Frequency R
UA 0001h 0~9999 A phase voltage R
UB 0002h 0~9999 B phase voltage R
UC 0003h 0~9999 C phase voltage			R
ULN.AVG 0004h 0~9999 Average phase voltage R
UAB	0005h 0~9999 A-B phase line voltage R
UBC	0006h 0~9999 B-C phase line voltage R
UCA	0007h 0~9999 C-A phase line voltage R
ULL.AVG	0008h	0~9999	Average line voltage		R
IA	0009h 0~9999 A phase line current R
IB	000Ah	0~9999 B phase line current R
IC	000Bh	0~9999 C phase line current R
IN	000Ch	0~9999 Neutral current R
I.AVG	000Dh	0~9999	Average current		R
PA	000Eh	-32768~32767	A phase active power		R
PB	000Fh	-32768~32767	B phase active power		R
PC 0010h -32768~32767	C phase active power R
P.SUM	0011h	-32768~32767	total active power		R
QA 0012h -32768~32767	A phase reactive power R
QB 0013h -32768~32767	B phase reactive power R
QC	0014h	-32768~32767	C phase reactive power		R
Q.SUM	0015h	-32768~32767	total reactive power		R
SA	0016h 0~32767	A apparent power		R
SB	0017h 0~32767	B apparent power		R
SC 0018h 0~32767	C apparent power R
S.SUM	0019h	0~32767	total apparent power		R
PFA	001Ah	-1.000~1.000	A phase Power Factor		R
PFB	001Bh	-1.000~1.000	B phase Power Factor		R
PFC	001Ch	-1.000~1.000	C phase Power Factor		R
PF.AVG	001Dh	-1.000~1.000	average power factor		R
A.E1	0027h 0~9999.9kWh		Loop 1 total active energy(High Word)		R
A.E1	0028h		Loop 1 total active energy(Low Word)		R
R.E1	0029h 0~9999.9kVARh		Loop 1 total reactiveenergy (High Word)		R
R.E1	0030h		Loop 1 total reactiveenergy (Low Word)		R

Relay Status and Control( CODE : 01h , 05h ):

	0000h		Relay 1 bit0~bit4 behalf relay1~relay 5state,1=on, 0=off;code05 is relaycontrol, at registeraddress write		R/W
	0001h		Relay 2
	0002h		Relay 3
	0003h		Relay 4
	0004h		Relay 5

General operating Level( CODE : 03h , 06h , 10h ):

WIRE 003Fh 0~5		0:1P2W1:1P3W2:3P3W3:3P4W4:3P3W-b5:3P4W-b		R
LOOP 0040h 0		number of loop0: 1LOOP R
FLASH 0041h 0~6	5535 FLASH remaining time R

General operating Level( CODE : 03h , 06h , 10h ): Input Group

U.UNIT 0043h 0~1			PT primary voltage unit0:V 1:kV	0	R/W
PT.PRI	0044h		PT primary voltage	5000	R /W
PT.SEC	0045h		PT secondary voltage	5000	R/W
CT.PRI	0046h		CT primary current	50	R/W
V.UNT	0047h 0~4		Voltage display unit and resolution setting0:0.1(V) 1:1(V) 2:0.01k(V)3:0.1k(V) 4:1k(V)	0	R/W
I.UNT	0048h 0~3		Current display units and resolution setting0:0.001(A) 1:0.01(A) 2:0.1(A)3:1(A)	0	R/W
W.UNT	0049h 0~7		Power display unit and resolution settings0:0.1(W) 1:1(W)2:0.01k(W)3:0.1k(W)4:1k(W)5:0.01M(W)6:0.1M(W)7:1M(W)	2	R/W
Lo.CUT	004Ah	0~10000	Current display low cut	40	R/W
P.CODE	004Bh	0~9999	Modify the P.COD	1000	R /W
b.Light	004Ch	0~15	Backlight time0(Always lights)~15Min	1	R/W
dSPLY	004Dh	0~31	Select Permanent screen0:Freq. 1:UA 2:UB 3:UC4:ULN.AVG 5:UAB 6:UBC 7:UCA8:ULL.AVG 9:IA 10:IB 11:IC12:IN 13:I.AVG 14:PA 15:PB16:PC 17:P.SUM 18:QA 19:QB20:QC 21:Q.SUM 22:SA 23:SB24:SC 25:S.SUM 26:PFA 27:PFB28:PFC 29:PF.AVG 30:A.E131:R.E1	0	R/W
F.LOCK	004Eh	0~3	0:NONE 1:USER 2.ENG. 3:ALL	0	R/W
EEP STSTUS 004Fh 0~3			0:OK 1:EEPROMNG 2:FLASHING3:EEPROM & FLASHING	0	R
tL.rst	0050h		Clear Energy (Write 2100)	0	R/W

Relay Status and Control( CODE : 01h , 05h ):

	0000h Relay 1 status	bit0~bit4 behalf relay	1~relay 5state,1=on, 0=off;code 05is relaycontrol, at registeraddress writeFf00h or 0000hmake therelay on oroff? Be noted,relay modeis Rowrite FF00h or0000h,relay mode isLo.HLd or Hi.HLd write0000h, rest model is non-writable		R/W
	0001h Relay 2 status	R/W
	0002h Relay 3 status	R/W
	0003h Relay 4 status	R/W
	0004h Relay 5 status	R/W

Relay output function group

RY1.SL 005	1h 0~29		Relay 1 action parameters0:Freq. 1:UA 2:UB 3:UC4:ULN.AVG 5:UAB 6:UBC 7:UCA8:ULL.AVG 9:IA 10:IB 11:IC12:IN 13:I.AVG 14:PA 15:PB16:PC 17:P.SUM 18:QA 19:QB20:QC 21:Q.SUM 22:SA 23:SB24:SC 25:S.SUM 26:PFA 27:PFB28:PFC 29:PF.AVG	13 R/W
RY1.MD 005	52h 0~5		Relay 1 action mode0:OFF 1:Lo 2:Hi3:Lo.HLd4:Hi.HLd5:RO	2	R/W
RY1.SP 005	53h -3276	8~32767 Relay 1 set point	1000 R/W
RY1.Sb	0054h	0~9999	Relay 1 start band	0	R/W
RY1.Sd 005	55h	0000~5999(0.1second)	Relay1start delay time	0	R/W
RY1.Hy	0056h	0~9999	Relay 1 hysteresis time	0	R/W
RY1.rd	0057h	0000~5999(0.1second)	Relay 1 start delay time	0	R/W
RY1.Fd	0058h	0000~5999(0.1second)	Relay 1 de-energizeddelay time	0	R/W
RY2.SL 005	59h 0~29		Relay 2 action parameters0:Freq. 1:UA 2:UB 3:UC4:ULN.AVG 5:UAB 6:UBC 7:UCA8:ULL.AVG 9:IA 10:IB 11:IC12:IN 13:I.AVG 14:PA 15:PB16:PC 17:P.SUM 18:QA 19:QB24:SC 25:S.SUM 26:PFA 27:PFB28:PFC 29:PF.AVG	13 R/W
RY2.MD 005	5Ah 0~5		Relay 2 action mode0:OFF 1:Lo 2:Hi3:Lo.HLd4:Hi.HLd5:RO	2	R/W
RY2.SP	005Bh	-32768~32767	Relay 2 set point	2000	R/W
RY2.Sb	005Ch	0~9999	Relay 2 start band	0	R/W
RY2.Sd 005	Dh	0000~5999(0.1second)	Relay 2 start delay time	0	R/W

RY2.Hy 005	Eh 0~999	9 Relay 2 hysteresis time 0 R/ W
RY2.rd 005	Fh	0000~5999(0.1second)	Relay 2 start delay time 0 R/W
RY2.Fd 006	0h	0000~5999(0.1second)	Relay 2 de-energizeddelay time 0 R/W

RY3.SL 006	1h 0~29		Relay 3 action parameters0:Freq. 1:UA 2:UB 3:UC4:ULN.AVG 5:UAB 6:UBC 7:UCA8:ULL.AVG 9:IA 10:IB 11:IC12:IN 13:I.AVG 14:PA 15:PB16:PC 17:P.SUM 18:QA 19:QB20:QC 21:Q.SUM 22:SA 23:SB24:SC 25:S.SUM 26:PFA 27:PFB28:PFC 29:PF.AVG	13 R/W
RY3.MD 006	2h 0~5		Relay 3 action mode0:OFF 1:Lo 2:Hi3: Lo. HLD4:Hi.HLd5:DO	2	R/W
RY3.SP	0063h	-32768~32767	Relay 3 action mode	3000	R/W
RY3.Sb 006	4h 0~999	9 Relay 3 start band	0 R/W
RY3.Sd 006	5h	0000~5999(0.1second)	Relay 3 start delay time 0 R/W
RY3.Hy 006	6h 0~999	9 Relay 3 hysteresis time 0 R/W
RY3.rd	0067h	0000~5999(0.1second)	Relay 3 start delay time 0 R/W
RY3.Fd	0068h	0000~5999(0.1second)	Relay 3 de-energizeddelay time 0	R/W
RY4.SL 006	9h 0~29		Relay 4 action parameters0:Freq. 1:UA 2:UB 3:UC4:ULN.AVG 5:UAB 6:UBC 7:UCA8:ULL.AVG 9:IA 10:IB 11:IC12:IN 13:I.AVG 14:PA 15:PB16:PC 17:P.SUM 18:QA 19:QB24:SC 25:S.SUM 26:PFA 27:PFB28:PFC 29:PF.AVG	13 R/W
RY4.MD 006	6Ah 0~5		Relay 4 action mode0:OFF 1:Lo 2:Hi3: Lo. HLD4:Hi.HLd5:RO	2	R/W
RY4.SP	006Bh	-32768~32767	Relay 4 set point	4000	R /W
RY4.Sb	006Ch	0~9999	Relay 4 start band	0	R/ W
RY4.Sd 006	Dh	0000~5999(0.1second)	Relay 4 start delay time 0 R/W
RY4.Hy 006	Eh 0~9	999 Relay 4 hysteresis time 0 R/ W
RY4.rd	006Fh	0000~5999(0.1second)	Relay 4 start delay time	0	R/W
RY4.Fd	0070h	0000~5999(0.1second)	Relay 4 de-energizeddelay time 0	R/W
RY5.SL 007	1h 0~29		Relay 5 action parameters0:Freq. 1:UA 2:UB 3:UC4:ULN.AVG 5:UAB 6:UBC 7:UCA8:ULL.AVG 9:IA 10:IB 11:IC12:IN 13:I.AVG 14:PA 15:PB16:PC 17:P.SUM 18:QA 19:QB20:QC 21:Q.SUM 22:SA 23: SB24:SC 25:S.SUM 26:PFA 27:PFB28:PFC 29:PF.AVG	13 R/W
RY5.MD 007	72h 0~5		Relay 5 action mode0:OFF 1:Lo 2:Hi 3: Lo.HLd4:Hi.HLd5:RO	2	R/W
RY5.SP 007	73h -3276	8~32767 Relay 5 set point 5000 R/W
RY5.Sb 007	4h 0~999	99 Relay 5 start band 0 R/W
RY5.Sd 007	5h	0000~5999(0.1second)	Relay 5 start delay time	0	R/W
RY5.Hy 007	6h 0~999	99 Relay 5 hysteresis time 0 R/W
RY5.rd	0077h	0000~5999(0.1second)	Relay 5 start delay time	0	R/W
RY5.Fd	0078h	0000~5999(0.1second)	Relay 5 de-energizeddelay time 0	R/W

Communication function group

Addr	007Bh	1~255	Station number	1	R/W
Baud	007Ch	0~5	Transmission rate0:12001:24002:48003:96004:192005:38400	3	R/W
Prity	007Dh		Parity Check0:N.8.1 1:N.8.2 2:E.8.1 3:O.8.1	1	R/W
Format	007Eh	0~1	0:High 1:Lo	0	R /W

Date Time function group

Year	007Fh	2000~2099	Year	2012	R/W
Month	0080h	1~12	Month	1	R/W
Day	0081h	1~31	Date	1	R/W
Hour	0082h	0~23	Time	0	R/W
Minute	0083h	0~59	Minute	0	R/W
Second	0084h	0~59	Second	0	R/W

FLASH read( CODE : 03h , 06h )

	0200h		The number of each record WORD		R
	0201h		Unread items		R
	0202h		Read the next record, if no data returned error code 0020h		R
	0203h	0~2	Read status reports0:Clear all records1:Give up this read2:Read successfully		W

0204h 0~1

Stop recording0:Stop1:Restart

1

R/W

FLASH setting ( CODE : 03h , 06h , 10h )

	0210h 0~1	0:Full Record 1:	individual choice 0 R/ W
	0211h 1~32767		The value of the recording interval	15 R /W
	0212h 0~3		Recording interval time units0:sec 1:min2:hour3:day	1	R
	0213h 20	00~2099 Start rec	ording time -Year 2012 R/ W
	0214h 1~12 Start recording		time -Month 1 R/ W
	0215h 1~31 Start recording		time -Day 1 R/ W
	0216h 0~23 Start recording		time -Hour 0 R/ W
	0217h 0~59 Start recording		time -Minute 0 R/ W
	0218h 0~59 Start recording		time -Second 0 R/ W
	0219h 20	00~2099 Stop rec	ording time- Year 2012 R/ W
	021Ah	1~12 Stop rec	ding time- Month 1 R/ W
	021Bh	1~31 Stop rec	ding time- Day 1 R/ W
	021Ch 0~23 Stop recording		time- Hour 0 R/ W
	021Dh 0~59 Stop recording		time- Minute 0 R/ W
	021Eh	0~59 Stop rec	ding time- Second 0 R /W
	021Fh	0~1	Stop / Start recording0:Stop1:Start	0	R

Record	0220h			R/W
Record	0221h R/W
Record	0222h R/W		Record field, store the recorded content index
Record	0223h R/W
Record	0224h R/W		1Loop==>
Record	0225h R/W		0:none1: Freq. 2: UA 3: UB 4: UC
Record	0226h R/W		5:ULN.AVG 6:UAB 7:UBC 8:UCA
Record	0227h R/W		9:ULL.AVG 10:IA 11:IB 12: IC 13: IN
Record	0228h R/W		14:I.AVG 15:PA 16:PB 17: PC 18: P. SUM
Record	0229h R/W		19:QA 20:QB 21:QC 22: Q. SUM 23: SA
Record	022Ah R/W		24:SB 25:SC 26:S.SUM 27: PFA 28: PFB
Record	022Bh R/W		29:PFC 30:PF.AVG 31: A. E1 32: R. E1
Record	022Ch R/W		1 loop(Balanced)==>
Record	022Dh R/W		0:none1: Freq. 2: UA 3: UB 4: UC
Record	022Eh R/W		5:ULN.AVG 6:UAB 7:UBC 8:UCA
Record	022Fh R/W		9:ULL.AVG 10:IA 11:PA 12: P. SUM 13: QA
Record	0230h R/W		14:Q.SUM 15:SA 16: S. SUM 17: PFA
Record	0231h R/W		18:A.E1 19:R.E1
Record	0232h			R/W
Record	0233h R/W	1Loop0~32
Record	0234h R/W	1Loop(Bal-anced)
Record	0235h R/W	6~19
Record	0236h R/W
Record	0237h R/W
Record	0238h R/W
Record	0239h R/W		initial( Full Record)
Record	023Ah R/W		1loop==>
Record	023Bh R/W		Record field01~Record field20
Record	023Ch R/W		Sequence1~20,
Record	023Dh R/W		Record field21~Record field41all 0
Record	023Eh R/W		2loop==>
Record	023Fh R/W		Record field01~Record field36
Record	0240h R/W		Sequence1~36,
Record	0241h R/W		Record field37~ Record field41all 0
Record	0242h R/W		initial
Record	0243h R/W		Record field 01~Record field 41 all 0
Record	0244h R/W
Record	0245h R/W
Record	0246h R/W
Record	0247h R/W
Record	0248h R/W

Write this area To define the address, fill in the following table. Done memorandum For example, 0000h is written to address 1100h, read address 0100h will read the frequency

User-defined area ( CODE : 03h , 06h, 10h ) :

Defined position UI display	Defined parameter value Temporary Addresses	Read / Write	Predefined address	Defined address parameter temporary	Read / Write
U.DF01V 0100h	R 1100h R/W
U.DF02V 0101h	R 1101h R/W
U.DEF03 0102h	R 1102h R/W
U.DEF04 0103h	R 1103h R/W
U.DEF05 0104h	R 1104h R/W
U.DEF06 0105h	R 1105h R/W
U.DEF07 0106h	R 1106h R/W
U.DEF08 0107h	R 1107h R/W
U.DEF09 0108h	R 1108h R/W
U.DEF10 0109h	R 1109h R/W
U.DEF11 010Ah	R 110Ah R/W
U.DEF12 010Bh	R 110Bh R/W
U.DEF13 010Ch	R 110Ch R/W
U.DEF14 010Dh	R 110Dh R/W
U.DEF15 010Eh	R 110Eh R/W
U.DEF16 010Fh	R 110Fh	R/W
U.DEF17 0110h	R 1110h R/W
U.DEF18 0111h	R 1111h R/W
U.DEF19 0112h	R 1112h R/W
U.DEF20 0113h	R 1113h R/W

www.advantech.com

Please verify specifications before quoting. This guide is intended for reference purposes only.

All product specifications are subject to change without notice.

No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permission of the publisher.

All brand and product names are trademarks or registered trademarks of their respective companies.

© Advantech Co., Ltd. 2016
