Product Type	Microphone
Brand	Samson
Model	SADE50X
Microphone Type	Dynamic
Polar Pattern	Cardioid
Frequency Response	50 Hz – 15 kHz
Impedance	600 ohms
Sensitivity	-54 dBV/Pa
Connector	XLR (3-pin)
Dimensions (length x diameter)	185 mm x 50 mm
Weight	300 g
Power Requirement	Passive (no phantom power needed)
Housing Material	Zinc alloy die-cast
Finish	Matte black
Included Accessories	Microphone clip, carrying pouch, user manual
Compatibility	Standard XLR audio interfaces, mixers, PA systems
Warranty	1 year limited
Cleaning Instructions	Wipe exterior with a soft, dry cloth
Safety Precautions	Keep away from liquids and extreme temperatures
Repairability	Contact Samson customer support for service

Frequently Asked Questions - SADE50X SAMSON

How do I connect the Samson SADE50X microphone?

Connect the microphone to an audio interface, mixer, or PA system using a standard XLR cable. The microphone is dynamic and does not require phantom power.

What is the microphone's polar pattern?

The SADE50X features a cardioid polar pattern, which picks up sound from the front and rejects noise from the sides and rear, ideal for live vocals.

Does the SADE50X require phantom power?

No, the SADE50X is a dynamic microphone and operates passively, so it does not require phantom power.

What accessories are included with the microphone?

The package includes the microphone, a stand adapter (microphone clip), a carrying pouch, and a user manual.

Can I use the SADE50X for recording instruments?

Yes, the SADE50X's cardioid pattern and frequency response make it suitable for close-miking instruments like guitar amps, drums, and brass.

How do I clean and maintain the microphone?

Wipe the exterior with a soft, dry cloth. Avoid using liquids or abrasive cleaners. Store in a cool, dry place when not in use.

What is the frequency response of the SADE50X?

The frequency response ranges from 50 Hz to 15 kHz, tailored for clear vocal reproduction and rejection of low-frequency rumble.

Is the SADE50X compatible with wireless systems?

The microphone uses a standard XLR connector and can be used with any wireless transmitter that accepts XLR input via an adapter cable.

What is the warranty on the SADE50X?

The microphone comes with a 1-year limited warranty from Samson. Register your product online for warranty coverage.

Can I replace the microphone's grill or internal parts?

The grill is not user-serviceable. For servicing or replacement parts, contact Samson customer support or an authorized service center.

USER MANUAL SADE50X SAMSON

DE50x Headset Microphone

Product line of medical or laboratory equipment with coiled cables and connectors (no visible text or symbols)

Owner's Manual

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private household in the 28 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For Countries not mentioned above, please contact your local authorities for a correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Copyright 2019, Samson Technologies Corp.

v1.2

278-B Duffy Ave

Hicksville, New York 11801

Phone: 1-800-3-SAMSON (1-800-372-6766)

www.samsontech.com

Other trademarks and trade names are those of their respective owners.

Introduction

Congratulations on your purchase of the Samson DE50x Headset Microphone. The DE50x is a low profile, micro-miniature condenser headset microphone with a 2.5mm capsule. With its omnidirectional pick up pattern, the DE50x delivers linear off-axis frequency response, resulting in a clear and articulate sound perfect for house-of-worship, presentation, theater and fitness applications. The microphone has been specially treated with a water resistant coating providing extra protection from sweat and other moisture. In addition, there is a moisture guard drip-ring to further protect the capsule and ensure reliable performance.

The DE50x Headset Microphone is well-suited for use with Samson wireless systems and with four included adapter cables, the microphone can be used with most popular wireless systems. Other accessories included in the kit are a clothing collar clip, four windscreens and a carry case that holds the DE50x and all the accessories.

In the box, you'll find a registration card enclosed, don't forget to follow the instructions so that you can receive online technical support and so we can send you updated information about this and other Samson products in the future. We recommend you keep the following records for reference, as well as a copy of your sales receipt.

Serial number: ____ Date of purchase: ____

If you have any questions or comments regarding the DE50x Headset Microphone or any other products from Samson, do no hesitate to contact us at [e-mail].

With proper care and maintenance, your DE50x Headset Microphone will operate trouble-free for many years. Should your DE50x Headset Microphone ever require servicing, a Return Authorization (RA) number must be obtained before shipping your unit to Samson. Without this number, the unit will not be accepted. Please visit www.samsontech.com/ra for an RA number prior to shipping your unit. Please retain the original packing materials and, if possible, return the unit in its original carton. If your DE50x Headset Microphone was purchased outside of the United States, contact your local distributor for warranty details and service information.

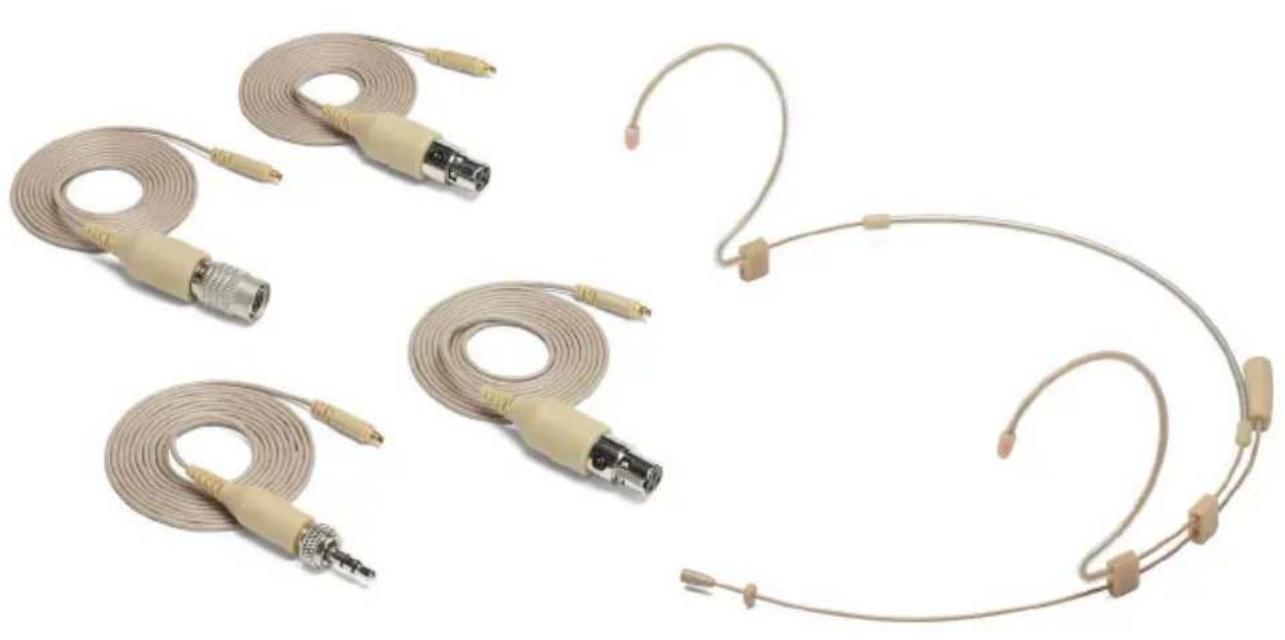

Features

Product photo of medical or laboratory equipment with coiled tubing and connectors (no visible text or symbols)

• Headset microphone with 2.5mm micro-miniature condenser mic capsule
• Low-profile, double ear design with adjustable frame and mic boom
• Ideal for live and broadcast vocal applications
• Omnidirectional pickup pattern
  • 20Hz–20kHz frequency response
  • Gold-plated connector, moisture-resistant coating and stainless steel mesh grille
  • Dust and water/sweat-resistant rated at IP65
• Includes four detachable adapter cables: 1/8" [3.5mm], Hirose® 4-Pin, Switchcraft® TA3F, Switchcraft® TA4F for compatibility with most popular wireless transmitters
• Four windscreens, collar clip and protective carry case included

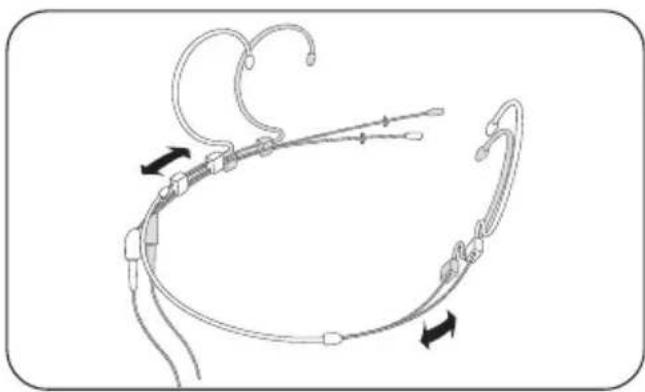

Fitting the DE50x Microphone

Diagram of a medical or surgical device with attached tubing and directional arrows indicating movement (no text or symbols)

The headset can be re-sized by sliding the ear hooks to fit snug around your head. If the DE50x is loose and will not stay in place, slide the ear hook wires back for a tighter fit.

Diagram of a medical or surgical device with attached tubing and connectors, showing no text or symbols.

Adjust the microphone position by holding the left ear hook wire and slide the boom forward or back. For optimum performance the microphone should be close to the skin and towards the corner of the mouth, approximately a half inch away.

Position the moisture guard ring as close to the capsule as possible.

For outdoor use and to help reduce p-popping, install one of the included windscreens.

Connector Cables

Four line drawings of a separate audio jack with cable, shown from different angles (no text or symbols)

The DE50x includes four cables with adapters for some of the most popular wireless microphone beltpack transmitters.

3.5mm Connector

Works with Sennheiser ^® wireless systems

Hirose® 4-Pin Connector

Works with most Audio-Technica® wireless systems

Switchcraft® TA3F Connector

Works with Samson AirLine ATX Series, Concert Series and most AKG ^® wireless systems

Switchcraft® TA4F Connector

Works with most Shure ^® wireless systems

Connector Cables

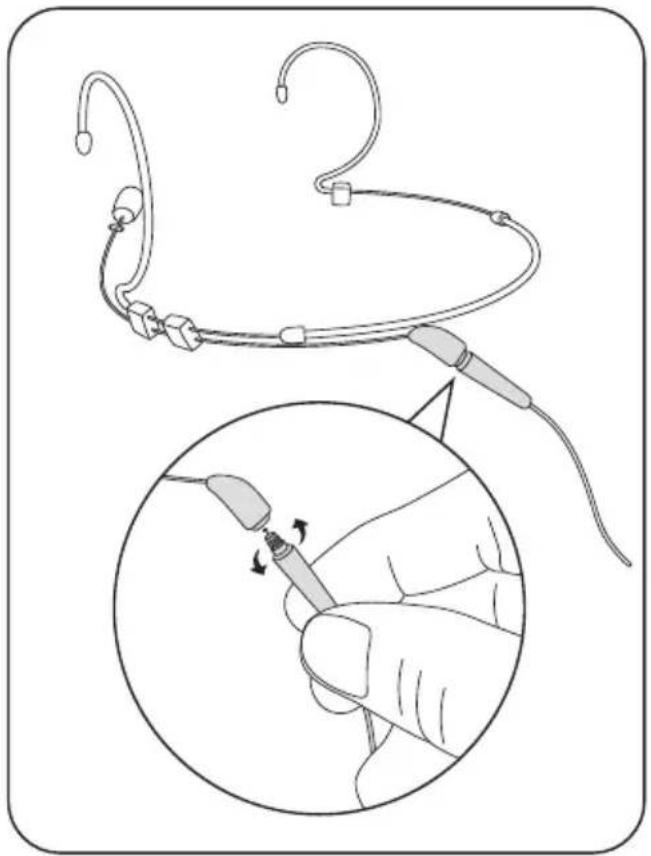

The DE50x includes four cables with connectors to use with the most popular wireless body pack systems. To connect the cable to the headset:

1. Choose the right cable and connector that works with your wireless system.
2. Line the cable up to the threaded terminal on the back of the DE50x and screw the cable into the headset. Do not over tighten the cable.
3. Attach the included collar clip on the back of your shirt collar and run the mic wire from the DE50x headset to the wireless body pack. Leave enough cable to allow you to turn your head from side to side.

Simple line drawing of a mechanical component or bracket with a handle and curved base (no text or symbols)

Illustration of a medical or surgical device with attached wires and a magnified inset showing a hand holding a tool (no text or symbols present)

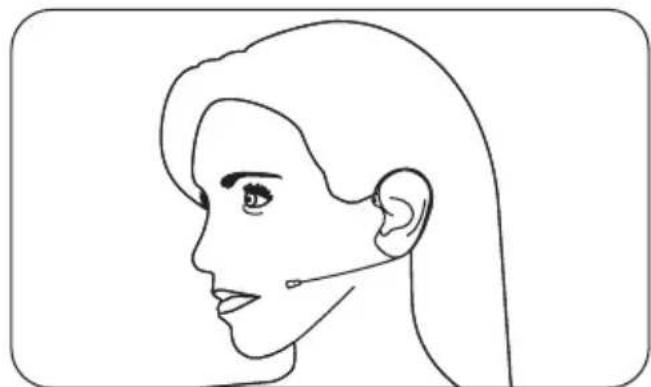

Mic Positioning

Line drawing of a human head profile with ear and earlobe (no text or symbols)

Position the DE50x microphone element about 0.25" – 1" behind the corner of your mouth. Since the DE50x is an omnidirectional capsule, the end of the microphone does not need to be facing your mouth. To avoid breath noise and p-pops, do not place the microphone directly in front of your mouth.

Side profile illustration of a human head and ear with a medical device marked, no text or symbols present

If the microphone is too far away from your mouth you will need to increase the gain and reduce isolation.

To minimize additional noise, do not locate the microphone tight against your cheek.

Specifications

Element Back electret condenser

Polar pattern Omnidirectional

Frequency Response 20Hz–20KHz

Sensitivity -35 ±3dB 1V/Pa/at1kHz

Output impedance 2kΩ ±30%

Maximum SPL 140dB

Self-Noise 30dB(A)

Dynamic Range 110dB

Operating voltage 1.5–12V DC

Cable: 1.4mm*1.2m

Weight: 13g

Dimension: ∅2.5mm

Included Adapter Cables 1/8" (3.5mm), Hirose ^® 4-Pin, Switchcraft ^® TA3F,

Switchcraft® TA4F

Accessories: (4) Windscreens, Clothing Collar Clip, Carry Case

At Samson, we are continually improving our products, therefore specifications and images are subject to change without notice.

Specifications

Polar Pattern

Frequency in Hz Frequency Response
