Product Type	Kitchen Sink
Brand	Smeg
Model	LYP401FD
Material	Stainless Steel
Number of Bowls	1
Bowl Dimensions (L x W)	480 x 380 mm
Cabinet Width Required	45 cm
Tap Hole Diameter	35 mm
Fixing Clips Quantity	6
Clip Type	Standard
Gasket Type	Sealing Paste
Included Accessories	Strainer, Siphon with dishwasher outlet connection, Fixing clips, Gasket
Waste Outlet Size	3 1/2 inches
Finish	Pre-polished
Series	Omni
Aesthetic	Universale
Ultra-Low Profile	Yes, flat edge height 1 mm
EAN Code	8017709287139
Installation Type	Under-mount or flush mount
Compatible Waste Disposal	0.5 HP, 0.75 HP, 1 HP (sold separately)

Frequently Asked Questions - LYP401FD SMEG

What material is the Smeg LYP401FD kitchen sink made of?

The sink is made of high-quality stainless steel with a pre-polished finish.

What are the bowl dimensions?

The single bowl measures 480 x 380 mm (length x width).

Does the sink come with a strainer and siphon?

Yes, it includes a strainer and a siphon with dishwasher outlet connection.

What cabinet width is required for installation?

The required cabinet width is 45 cm.

Can I install a garbage disposal unit?

Yes, it is compatible with 0.5 HP, 0.75 HP, and 1 HP waste disposal units (sold separately).

How many fixing clips are provided?

The sink includes 6 standard fixing clips for secure mounting.

What is the tap hole size?

The tap hole has a diameter of 35 mm, allowing direct installation of the tap on the sink.

Is the sink easy to clean?

Yes, the stainless steel surface is pre-polished and resists stains and fingerprints. Regular cleaning with mild soap is recommended.

What type of gasket is used?

The sink uses sealing paste as the gasket type to ensure a watertight fit.

Is the sink suitable for flush mount installation?

Yes, it features an ultra-low profile with a flat edge height of just 1 mm, ideal for flush or under-mount installation.

USER MANUAL LYP401FD SMEG

Sink material Sink material Stainless steel

No. of bow IsNo. of bow Is 1

EAN codeEAN code 8017709287139

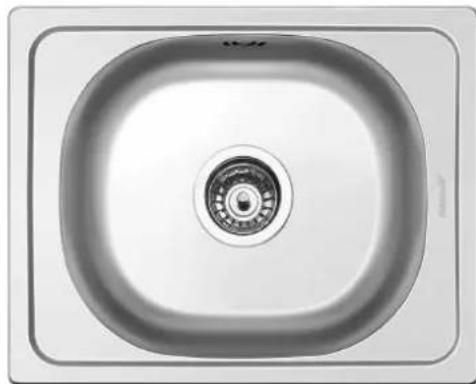

Top-down view of a modern stainless steel sink with a circular vent and central basin (no text or symbols visible)

Aesthetics

Ae stheticAe sthetic Universale

SeriesSeries Omni

Johlaur

Stainless steel

iFishinging

Pre-polished

Technical Laboratories

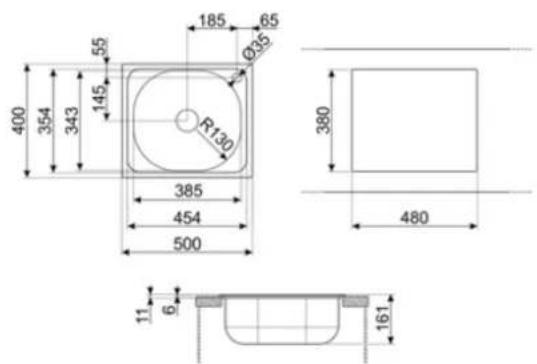

nDeimsionsofstbé the

161x400x500 mm

qohodu(ch(m)m)

t6utolmelnionsion

480*380 mm

popo#d(n(m)m)

démeubantout

10 mm

roobius

Heigbinköhtetop toß mm

Baseibsizeize

45 cm

Tüpphöble

1

TaTipahpolhebeidnionenterter

35 mm

G6skettype e

Sealing paste

NNofaflidips

6

Typpaeobfclipss

Standard

Aesserieidhuded

Accessories for Accessories for Strainer, Siphon with installa tioninstalla tion dishwasher outlet connection, Fixing clips, Gasket

Not included accessories Not included accessories

37123712

Siphon single bowl sinks (dishwasher connection included)

KIT FD 075KIT FD 075

Waste disposal 0,75 HP, Motor: 1/2 horsepower, Fits all sinks with 3 1/2" waste outlet

RND1 VRND1 V

Rondò waste kit 1 bowl with standard overflow

KIT FD 0 5 0KIT FD 0 5 0

Waste disposal 0,5 HP, Motor: 1/2 horsepower, Fits all sinks with 3 1/2" waste outlet

KIT FD 100KIT FD 100

Waste disposal 1 HP, Motor: 1/2 horsepower, Fits all sinks with 3 1/2" waste outlet

ST A BM IXST A BM IX

Tap stabiliser

Symbols glossarySymbols glossary

Cupboard width required for sink installation Ultra-low profile: Installation of product with flat edge - height of 1 mm.

Benefit (TT) Benefit (TT)

One bowl One bowl

A single bowl for greater adaptability, capacity and space optimisation

Tap holeTap hole

Possibility of having the tap hole for direct installation of the tap on the sink, for a larger and neater surface area
