Product Type	Rice Cooker
Brand	Panasonic
Model	SR-TP184
Power Supply	240 V ~ 50 Hz
Power Consumption (Cooking)	750 W
Power Consumption (Keep Warm)	33.4 W
Rice Cooking Capacity	0.54 – 1.8 L (3 – 10 cups)
Porridge Cooking Capacity	0.18 L (1 cup)
Net Weight	Approx. 3.1 kg
Accessories Included	Rice scoop, Porridge scoop, Measuring cup, Steaming basket
Functions	Rice cooking, Porridge cooking, Steaming, Keep warm
Inner Pan Coating	Non-stick coating
Steam Cap	Removable for cleaning
Dew Collector	Removable and washable
Cleaning Method	Wipe body with damp cloth; wash pan with soft sponge & detergent; clean heating plate with fine sandpaper if needed
Safety Features	Automatic keep warm, overheat protection, lid lock
Warm Time Limit	Maximum 5 hours
Minimum Rice for Best Results	3 cups (0.54 L)

Frequently Asked Questions - SR-TP184 PANASONIC

Why is my rice hard or half-cooked?

This is usually due to improper water-to-rice ratio. Ensure you use the measuring cup provided and add water up to the corresponding water level mark inside the pan. Also, rinse the rice until the water runs relatively clear before cooking.

What causes the rice to be too soft or water to overflow?

Too much water or inadequate rinsing can cause soft rice or overflow. Follow the water level indicators and rinse rice thoroughly. Additionally, avoid opening the lid during cooking.

Why is the rice scorched at the bottom?

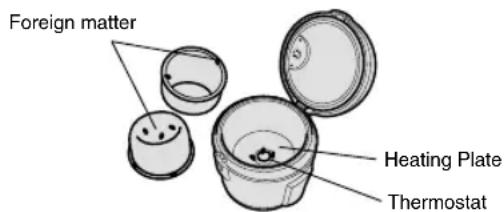

Scorching can occur if foreign matter is stuck between the pan and the heating plate, or if the pan has scratches. Ensure the pan bottom is clean and dry before use, and use the recommended water amount.

How do I steam food using the steaming basket?

Add 2 cups of water (using the measuring cup) to the pan, place the steaming basket inside, add food, close the lid, plug in, and press the switch to cook. The cooker will automatically switch to keep warm when water evaporates. For best results, do not cook more than 6 cups of rice simultaneously.

How do I cook porridge?

Use 1 cup of rice and 10 cups of water (measured with the provided cup). Place in pan, close lid, select 'Porridge' on the switch, and press down. The cooker will continue cooking until you manually switch it off (2-4 hours). Stir occasionally if desired.

How long can I keep rice warm?

The keep warm function should not exceed 5 hours. Longer warming can cause discoloration and bad smell. Also, do not keep warm small amounts of rice.

How do I clean the steam cap?

After the cooker cools down, pull off the steam cap. Turn the valve holder counterclockwise to remove it, wash with a damp cloth, and reassemble by aligning arrows and turning clockwise.

What should I do if the heating plate has stuck food?

Lightly polish the heating plate with fine sandpaper (#600) or steel wool to remove residue, then wipe with a damp cloth. Ensure pan bottom is always clean to prevent damage.

Why does the rice cooker make unusual noise?

Noise often occurs if there is water between the pan and heating plate. Dry the pan exterior and heating plate thoroughly before use to prevent damage.

Can I cook other foods besides rice?

Yes, you can steam food using the steaming basket, and cook porridge. However, do not warm other foods or reheat cold rice, as it may affect performance or cause odor.

USER MANUAL SR-TP184 PANASONIC

Contents Kandungan 目录

Safety Precautions 2-3

Usage Precautions 4

Parts Identifi cation 5

How to use (Rice Cooking) 6

To Keep Cooked Rice Warm and Tasty 7

How to Steam Food

(Using the Steaming Basket) 8

How to use (Porridge Cooking) ..... 9

How to Clean 10

Troubleshooting....11

Specifications 11

安全措施....12-13

使用注意事项....14

零件名称 15

使用方法（煮饭） 16

保持煮好的米饭温热美味....17

蒸煮食物的方法（使用蒸笼）……18

使用方法（煮粥） 19

清洁方法 20

故障排除 21

规格 21

Langkah-langkah Keselamatan .. 22-23

Safety Precautions Must be followed!

In order to prevent accidents or injury to the user, other people, and damage to property, please follow the instructions below.

■ The rust prevention paper located between the pan and the heating plate must be removed before using.
■ The following chart indicates the degree of damage caused by wrong operation.

WARNING:

Indicates hazard that may cause death or severe injury.

CAUTION:

Indicates hazard that may cause human injuries or property damage.

■ Classification of instructions that need to be strictly followed uses the following symbols to distinguish the instruction types.

These symbols mean prohibition.

These symbols indicate requirement that must be followed.

WARNING

Plug in tightly.

(Improper plugging may cause electrical shock or fire due to heat generation.)

Do not use a damage plug or warped outlet.

Do not plug or unplug the rice cooker with wet hands.

(It may cause electrical shock.)

Prohibited

Do not place your hands or face over or near the steam cap.

Do not touch

(To avoid injuries from burn hazard.)

Do not damage the power cord or power plug.

Following are extremely prohibited disassembling, bringing near hot surface, bending, twisting, pulling, placing heavy objects on top or tying a bundle.

(The damaged power cord could result in electrical shock or fire.)

If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

Do not insert metal objects such as pins and needles, or any other foreign objects in the exhaust outlets, or any other portion of the unit.

Especially clip, wire or any metal objects.

or malfunction.)

Clean the power plug regularly.

(A soiled power plug may cause insufficient insulation due to the moisture, and may result in fire.)

Unplug the power plug, and wipe with the clean cloth.

Do not operate the rice cooker with a damaged power cord or power plug.

(It may result in electrical shock or fire.)

Prohibited

Make sure the voltage supplying to the unit is the same as your local supply.

(It may cause electrical shock or fire.)

Do not use the rice cooker if the power cord or power plug is damaged or the power plug is loosely connected to the power outlet.

(It may result in electric shock, short circuit or fire)

Prohibited

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Safety Precautions

Must be followed!

WARNING

Close supervision is necessary when the rice cooker is used by or near children or persons handicapped in any manner.

(It may result in burning injuries)

Do not immerse the rice cooker in water or other liquids.

(It may result in electrical shock.)

If water leaks inside the rice cooker, please consult your nearest retailer or service center.

Prohibited

Do not attempt to disassemble any of the part or repair them by yourself.

(It may result in electrical shock or fire.)

The rice cooker must be repaired only by the authorized service center.

Do not disassemble.

CAUTION

Do not operate the rice cooker near water or fi re and do not put the pan directly to the open fl ame.

Prohibited (It may result in electrical shock or fire.)

Illustration of a cooking setup with a pot and a rice cooker on a stove (no text or symbols)

The rice cooker becomes hot when in use, especially the pan and lid heating plate.

Do not directly touch them with your hands.

Do not touch

Do not touch the pan.

Make sure the rice cooker is completely cool before touching or cleaning it.

(To avoid injuries from being burnt.)

Do not place the rice cooker on an unstable surface or on a carpet, electric carpet, table clothes (ethylene plastic) or other object that cannot resist high temperature.

(It may be overturned during use and results in fire.)

Prohibited

Do not press on the outer lid release button when the rice cooker is being carried or moved.

(If the outer lid is accidentally open, it may result in burning injuries.)

Do not touch

Be sure to grasp the power plug itself to disconnect it. Do not pull the cord.

(Also firmly grasp the rice cooker body before unplugging it.)

may result in electrical shock or electrocution.)

Do not substitute the pan with other containers.

(It may result in higher temperature and burning injuries.)

Prohibited

Always disconnect the rice cooker from the power supply outlet before taking the pan out or when the rice cooker is not in use.

(It may result in electrical shock.)

Unplug

Do not place the rice cooker near a wall or furniture.

(The steam may result in color changes or deformation of any objects.)

Always place it 30 cm or more away the wall and furniture. Watch out the steam coming off the rice cooker.

Do not use other than the provided power cord and do not use the power cord for other appliances.

Prohibited

(It may result in electrical shock or fire.)

Usage Precautions

Avoiding damages to the rice cooker.

Do not cover the outer lid with a cloth.

The outer lid may deform, crack or discolor and result in malfunction.

Do not place the rice cooker in direct sunlight.

Do not use the pan directly on an open flame, electric burner or in a heated oven.

Always keep the surface of the pan and the heating plate clean and dry.

It may result in malfunction.

Do not put the food directly into the body without using the pan.

Any foreign matter may cause malfunction.

Do not continue holding a switch button.

Avoiding damages to the pan.

Do not leave the rice scoop or any other objects inside the pan.

The pan should be cleaned immediately after cooking with seasonings or condiments.

Do not use the pan as mixing utility.

Do not use metal utensils that can scratch or crack the pan.

The coated surface of the pan will gradually wear away, so use with care.

Do not tap or rub the inner surface of the pan.

Clean only with a sponge.

(Do not use scouring pad.)

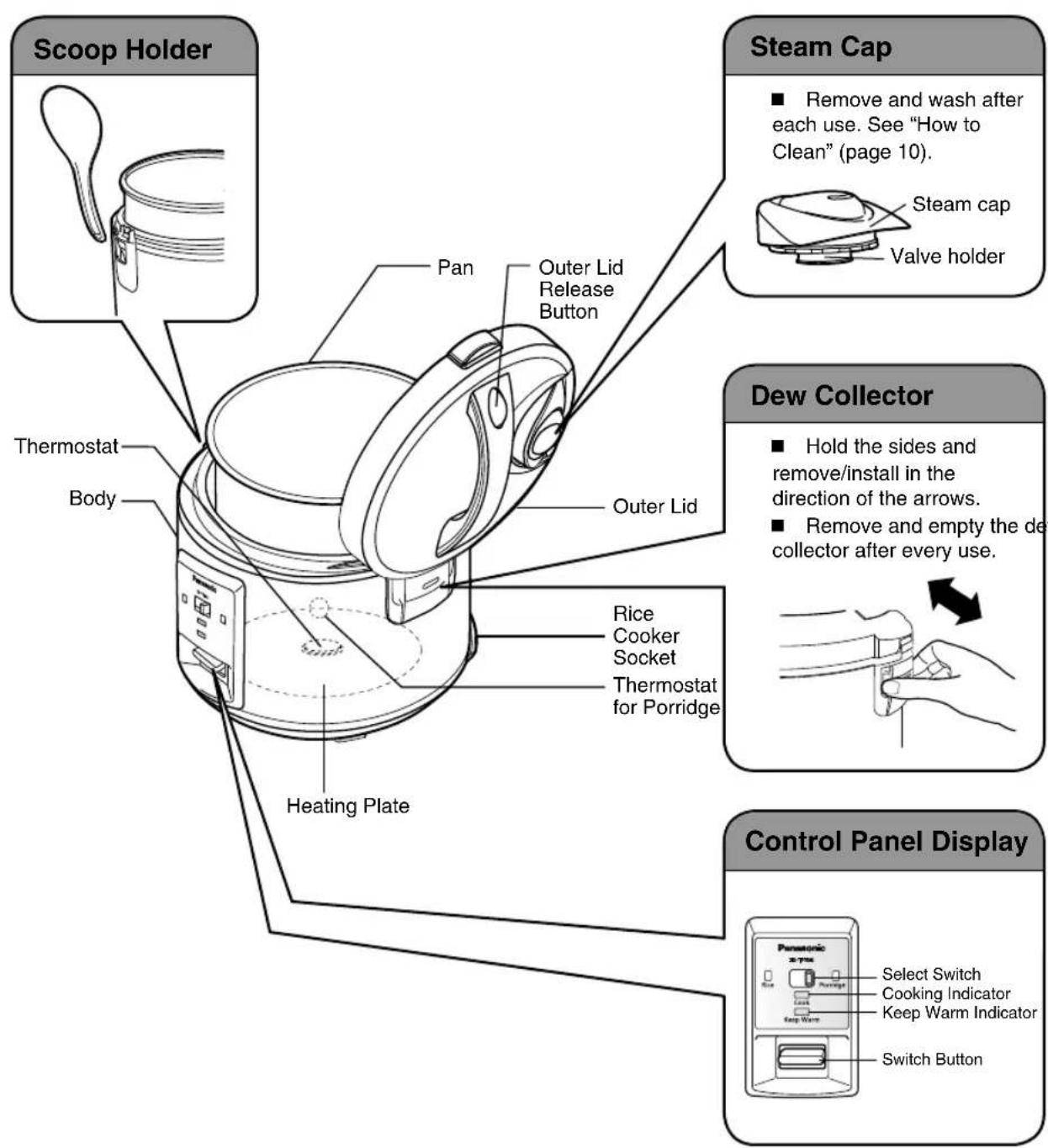

Parts Identifi cation

English

Accessories

Measuring Cup (Approx. 180 ml) (1 pc)

Rice Scoop (1 pc)

Porridge Scoop (1 pc)

Steaming Basket (1 pc)

Power Cord

5

HOW TO USE (Rice Cooking)

1. Measure rice with the measuring cup provided (refer to the specifications table on last page). Wash the rice in a separate bowl until water is relatively clear.

Bowl

1. Put the washed rice into the pan. Add water according to the water level indicator on the pan. For example, when cooking 5 cups of rice, pour water until water level indicator "5".

The water level indicator of the pan is for reference. Adjust the amount of water to your personal taste. Level the rice evenly after water adjustment is completed.

1. Place the pan into the body. Make sure that the pan is directly in contact with heating plate by turning it slightly to the right and to the left until it sits properly.

NOTE: If the outer surface of the pan is wet, it may cause a cracking noise when the rice cooker heats up. This may damage the rice cooker, so make sure that it is in dry condition before use.

Line drawing of a hand pouring liquid into a rice cooker (no text or symbols)

1. Close the outer lid until it clicks. Please make sure that the steam cap is properly attached.

NOTE: If the outer lid is not closed securely, the cooking effi ciency will be affected.

1. Attach the connector to the rice cooker socket and plug to the power supply source.

NOTE: Do not plug in until just before start to cook.

1. Press the select switch to 'Rice' and switch on the power supply source. The keeping warm indicator will light up when power supply source is 'ON'. To start cooking, press the switch button down. Cooking indicator will light up, indicating that rice cooking has been started.

NOTE: If the pan is not placed in body, the switch button cannot be engaged when press down. Be aware of the hot steam comes out from the steam cap on top of the outer lid during cooking. Do not cover the outer lid with a cloth or anything during cooking or keeping warm because deformation or discoloration may occur.

1. When the cooking is completed, the switch button will pop up. At the same time, the cooking indicator will goes off and the keeping warm indicator will light up indicating that the keep warm function has been taken place. The outer lid should remain closed even after the cooking process is completed for at least 15 minutes. Then mix the rice well with rice scoop to allow vapor to escape.

NOTE: • After the cooking process is completed, the keep warm process will take place automatically until the main supply is off.

- Open the outer lid slowly as to avoid water dripping out from the outer lid.

- The switch button should not be pressed into the cooking position during the keep warm cycle.

- Do not keep warm for more than 5 hours.

- Do not close the outer lid with the rice sticking to the rim of the pan. It will reduce the effectiveness of the keep warm operation.

1. When you do not wish to keep warm, switch off the power supply source and unplug.

To Keep Cooked Rice Warm and Tasty

• For better cooking performance and avoid burnt at the bottom, minimum rice cooking is 3 cups.
• Rinse the rice until it becomes relatively clear.
  • After the rice has been steamed and warmed, scoop and mix the rice gently.
• Do not leave the rice scoop inside the pan.
• Do not warm the rice for more than 5 hours. (It may result in color change and bad smell.)
• Do not use the rice cooker to warm other kinds of food.
• Do not warm cold rice.

Note:

Variations in the room temperature may cause the rice to discolor and lose its fresh smell.

Unplug the rice cooker when it is not used.

Clean the dew collector by pouring out the water and cleaning after every use.

HOW TO STEAM FOOD (Using the Steaming Basket)

1. With the measuring cup provided, put 2 cups of water into the pan.

2. Place the Steaming basket into the pan.

1. Place the pan into the body.

Place food into the steaming basket. (Place the food in separate dish if required)

- If the outer surface of the pan is wet, it may cause a cracking noise when the rice cooker heats up. This may damage the rice cooker, so make sure that it is in dry condition before use.

• Make sure that the steam cap is properly attached.

Line drawing of hands opening a cylindrical container with lid (no text or symbols)

1. Close the outer lid until it clicks.

Please make sure that the steam cap is properly attached. Attach the connector to the rice cooker socket and plug to the power supply source. Press the switch button to cooking function. The cooking indicator will light up.

- If outer lid is not securely closed, steaming efficiency will be affected.

- Do not plug in until just before start to steam.

- If the pan is not in the body, steaming will not begin.

- Press the select switch to 'Rice' before press the switch button to cooking function.

1. Steaming period is done manually by checking the condition of the food from time to time.

* This rice cooker will automatically switch to keeping warm when the water inside the pan becomes empty.

* Open the outer lid slowly as to avoid water dripping out from the outer lid.

1. When steaming is completed, turn off the rice cooker by switching off the power supply source and unplug,

- The keeping warm function continues until the power supply source is switched off.

Hand holding a plug connected to an electrical outlet with a downward arrow (no text or symbols)

1. Take the food out, followed by steaming basket, and finally pour out the water from the pan.

Remarks

Wait until the food cools down and no steam is coming from the steam cap before opening the outer lid.

Then check whether the food is cooked as desired.

When rice is cooked while steaming food, do not cook over 6 cups of rice and do not open the outer lid until the rice is cooked.

(It is better to select the food that has a steaming time similar to the time for cooking rice.)

HOW TO USE (Porridge Cooking)

1. Measure rice with the measuring cup provided (refer to the specifications table below). Wash the rice in a separate bowl until water is relatively clear.

1. Put the washed rice into the pan. Add water.

Servings 4 – 5 persons
Rice quantity 1 cup*
Water quantity 10 cups*
Cooking time 2-4 hours

*For porridge cooking, rice and water are measured with the measuring cup provided. Do not measure with the water level indicator on the pan. Above table is for reference only. Adjust amount of water to your personal taste.

1. Place the pan into the body. Make sure that the pan is directly in contact with the heating plate by turning it slightly to the right and to the left until it sits properly.

NOTE: If the outer surface of the pan is wet, it may cause a cracking noise when the rice cooker heats up. This may damage the rice cooker, so make sure that it is in dry condition before use.

Illustration of a hand pouring liquid into a rice cooker (no text or symbols)

1. Close the outer lid until it clicks. Please make sure that the steam cap is properly attached.

NOTE: If the outer lid is not closed securely, the porridge cooking effi ciency will be affected.

1. Attach the connector to the rice cooker socket and plug to the power supply source.

NOTE: Do not plug in until just before start to cook.

1. Press the select switch to 'Porridge' position. When the power supply source is switched on, the keeping warm indicator will light up. To cook, press the switch button down. The cooking indicator will light up indicating that porridge cooking has been started. NOTE: The porridge will continue cooking until power supply source is SWITCHED OFF MANUALLY.

Illustration of a hand inserting a device into a container with an arrow indicating direction (no text or symbols)

How to Clean

• Be sure to unplug and carry out these operations when the rice cooker is cooled down.
• DO NOT use objects such as benzene, thinner, cleansing powder or metal scrubbers.

Body / Outer Lid / Upper Rim

• Wipe with a damp cloth.
  * Remark : Clean after every use.

Pan

Wash with a dishwashing detergent or soft cloth. Wipe off any moisture on the outside.

Heating Plate / Thermostat / Thermostat for Porridge

If an object has stuck on the heating plate, lightly polish it off using fi ne sand paper (of about # 600) / steel wool. Then wipe with a damp cloth.

Technical line drawing of a kitchen appliance with directional arrows indicating motion (no text or symbols)

Dew Collector

Remove and clean after every use.

Accessories

Steaming Basket

Measuring Cup

Rice Scoop Porridge Scoop

Wash with sponge and dish washing liquid after use.

Steam Cap

■ How to remove and clean

1. Pull off the steam cap to remove it as shown in the figure.

1. Remove the valve holder by turning it counterclockwise. Wash and wipe with a damp cloth.

1. Wipe the inside of the hole and heating plate with a damp cloth.

• Please wipe it whenever you use it.
- Please do not remove the steam cap when the rice cooker is in use.

How to assemble the steam cap

1. Insert the valve holder into the steam cap by aligning arrow mark of the valve holder A with the steam cap B and turn it clockwise until it sets properly.
2. Put the steam cap into the hole of the outer lid.

Technical illustration of a mechanical assembly with labeled parts A and B (no text or symbols beyond labels)

Troubleshooting

Description Rice cooking	problem Warming problem								No electrical power	Unusual noise
Possible causes	Rice is hard	Rice is halfcooked	Rice is too soft	Water over flowing	Rice on the bottom is scorched.	Rice smells bad	Rice changes colour	Rice is too dry
Improper proportion of rice and water	●	●	●	●	●				No electrical power. Unplug and check the circuit breaker. If there is no problem at the breaker, take the rice cooker to the nearest service center.	Noise occurs if there is some water between the pan and heating plate. This may cause damage to the heating plate.
Rinsed rice inadequately				●	●	●	●
Scratches on the pan	●	●			●
Rice cooked with oil	●	●		●	●	●
Rice is not fl uffed after done	●		●		●
Rice was kept warm more than 5 hours or amount of rice being kept warm is too small						●	●	●
Foreign matters stuck on the bottom of the pan						●
Foreign matters stuck between the pan and heating plate	●	●	●		●	●	●
Warm the leftover cooked rice						●
Not closing the outer lid firmly						●		●
Wash the pan inadequately					●	●
Unplug of switch off		●	●
Warm being made with the scoop in it						●

English

Specifications

Model No.		SR-TP184
Power supply		240 V ~ 50 Hz
Power consumed	During cooking	750 W
	During warming	33.4 W
Capacity (Rice Cooking)		0.54-1.8 L (3-10 cup)
Capacity (Porridge)		0.18 L (1 cup)
Net weight (approx.)		3.1 kg
Accessories		Rice scoop, Porridge scoop, Measuring cup, Steaming basket

安全措施 必须遵守！

Illustration of a cooking setup with a steaming pot and a rice cooker on a stove (no text or symbols)

Illustration of a hand stirring a small bowl of food in a rice cooker (no text or symbols visible)

1. 接触到加热板后盖上外盖。请确保蒸汽帽正确安装。

Line drawing of a hand pouring liquid into a container with a lid (no text or symbols)

Line drawing of hands inserting a container into a larger cylindrical device (no text or symbols)

1. 接触到加热板后盖上外盖。

请确保蒸汽帽正确安装。

Hand holding a plug connected to an electrical outlet with a downward arrow (no text or symbols)

Line drawing of hands stirring a rice cooker with a lid and digital display (no text or symbols)

1. 接触到加热板后盖上外盖。请确保蒸汽帽正确安装。

Illustration of a hand pressing down on a computer monitor with an arrow indicating action (no text or symbols present)

清洁方法

Technical line drawing of a kitchen appliance with directional arrows indicating motion (no text or symbols)

加热盘/恒温器/ 煲粥温控器

Illustration of hands holding a mechanical component with an arrow indicating rotation (no text or symbols)

附件

蒸笼

量杯 饭勺 粥勺

使用后用海绵和洗碗液清洗。

蒸汽帽

■ 如何拆下和清洗

1. 如图所示拧开并拆下蒸汽帽。

故障排除

Simple line drawing of a cooking setup with a pot and a rice cooker (no text or symbols)

Illustration of a hand pouring liquid into a rice cooker (no text or symbols)

Line drawing of hands opening a cylindrical container with lid (no text or symbols)

Illustration of a hand holding an electrical outlet with a downward arrow indicating disassembly (no text or symbols present)

Line drawing of two hands washing a basin (no text or symbols)

Line drawing of a hand pouring liquid into a rice cooker (no text or symbols)

Technical line drawing of a kitchen appliance with directional arrows indicating motion (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols)

Aksesori

Bekas Mengukus

Cawan Penyukat

Senduk Nasi

Senduk Bubur
