Product Type	Range hood (Kitchen extractor hood)
Brand	Amica
Model	OKS 9541 S
Control Type	Touch controls
Fan Speeds	3 (Low, Medium, High)
Lighting	Independent lighting on/off (compatible with incandescent, halogen, or LED modules)
Off Timer	Yes, 15-minute delay
Operation Modes	Extraction (ducted) and Recirculation (with activated charcoal filter)
Grease Filter Material	Aluminium
Grease Filter Cleaning	Monthly; dishwasher safe or hand wash with mild detergent
Charcoal Filter	Activated charcoal; required for recirculation mode
Charcoal Filter Replacement	Every 2 months (or more frequently with heavy use)
Power Supply	220-240 V, 50 Hz (as per nameplate)
Installation Type	Wall-mounted over hob (ceiling for island models)
Safety Features	No flambé, disconnect before cleaning, ensure adequate ventilation with other appliances
Warranty	As per warranty card
Compliance	LVD 2014/35/EC, EMC 2014/30/EC, ErP 2009/125/EC, RoHS 2011/65/EC
Disposal	WEEE directive; do not dispose with household waste
Material	Stainless steel

Frequently Asked Questions - OKS 9541 S AMICA

How do I clean the grease filter?

Remove the aluminium grease filter as shown in Figure 5. Wash it in the dishwasher or by hand using mild detergent. Ensure it is completely dry before reinstalling. Clean at least once a month.

How do I replace the activated charcoal filter?

The charcoal filter is only used in recirculation mode. Replace it every 2 months (or more often if used intensively). Dismantling is shown in Figure 6. The filter cannot be washed or regenerated.

How do I use the off timer?

Touch the active speed sensor for at least 3 seconds. The sensor will flash, indicating the timer is activated. The hood will turn off after approximately 15 minutes. To cancel, touch the active speed sensor again.

How do I turn on the lighting?

The lighting operates independently of the fan. Touch the lighting sensor on the control panel to toggle it on/off.

What is the minimum installation height above an electric hob?

Refer to the product technical sheet for the exact distance. If the gas cooker manual specifies a greater distance, that must be followed (see Fig. 1 in the manual).

Can I use the hood without the grease filter?

No, the aluminium grease filter must always be installed. Operating without it can cause grease buildup and is a fire hazard.

What should I do if the lights stop working?

Use incandescent, halogen, or LED modules of the same specification as factory-installed. If there is no replacement figure in the manual, contact authorized service to replace the lighting module.

Is it safe to cook with an open flame under the hood?

No, it is strictly forbidden to flambé or leave open flames under the cooker hood. Always keep flames under pots and ensure they do not extend beyond the pot.

How often should I clean the hood?

Clean both the interior and exterior at least once a month. Failure to maintain the hood and filters increases the risk of fire.

What should I do if the power cord is damaged?

Disconnect the appliance immediately. The power cord must be replaced by a specialized service center. Do not attempt to repair it yourself.

USER MANUAL OKS 9541 S AMICA

Kitchen extractor hood / Kaminhaube / Okap

Simple line drawing of a kitchen chimney with steam rising (no text or symbols)

OKS6541S / OKS9541S

EN- Table of contents

NOTES ON SAFETY 8

UNPACKING 11

DISPOSAL OF OLD APPLIANCE 11

OPERATION 12

KITCHEN HOOD CONTROLS 12

CONTROL PANEL 12

OFF TIMER 12

OTHER IMPORTANT INFORMATION CONCERNING THE OPERATION OF THE HOOD 13

CLEANING AND MAINTENANCE 14

MAINTENANCE 14

GREASE FILTER 14

ACTIVATED CHARCOAL FILTER 14

LIGHT 14

WARRANTY AND AFTER SALES SERVICE 15

WARRANTY 15

GARANTIE, NACHVERKAUF-SERVICE 25

GARANTIE 25

PL- Spis treści

WSKAZÓWKI DOTYCZĄCE BEZPIECZEŃSTWA 27

ROZPAKOWANIE 31

USUWANIE ZUŻYTYCH URZĄDZEŃ 31

OBSŁUGA 32

STEROWANIE OKAPEM 32

PANEL STEROWANIA 32

TIMER (OPÓŻNIONE WYŁĄCZENIE OKAPU) 32

INNE WAŻNE INFORMACJE DOTYCZĄCE OBSŁUGI OKAPU 33

CZYSZCZENIE I KONSERWACJA 34

KONSERWACJA 34

From now on, your daily housework will be easier than ever before. Your appliance Aim exceptionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

Amica

NOTES ON SAFETY

• Before using the appliance, please carefully read this manual!
• The appliance is designed for household use only.
• The manufacturer reserves the right to introduce changes, which do not affect operation of the appliance.
• The manufacturer shall not be liable for any damage or fire caused by the appliance resulting from failure to follow instructions in this manual.
• Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.
• Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The length of the duct (usually a pipe of ∅ 120 or 150 mm) should not be longer than 4-5 m. An air extraction duct is also required for telescopic and furniture hoods in absorption mode.
• Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane (Mainly in chimney cooker hoods).
• The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.
• Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the

wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

• For details of the installation distance above an electric hob please refer to product technical sheet. If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1).
• Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not extend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.
• When cooking on fat, supervise the pans constantly, because overheated fat can ignite.
• Unplug the appliance before any cleaning, replacing the filter or repair work.
• Cooker hood grease filter should be cleaned at least once a month, because the filter saturated with fat is flammable.
• Ensure adequate ventilation (air flow) if other equipment such as liquid fuel stoves or heaters are operated in the room in addition the cooker hood. When the cooker hood is simultaneously operated with burning appliances requiring adequate fresh air from the room to work properly, their safe operation is possible if under pressure around these appliances is a maximum of 0.004 mbar (this does not apply when the cooker hood is used as an odour filter)
• Do not lean on the hood.
• The hood should be cleaned regularly both inside and out (AT LEAST ONCE A MONTH, following the indications concerning maintenance provided in this manual)..Failure to adhere to the rules concerning cleaning the hood and replacing filters results in a fire risk.
• If the power cord is damaged it should be replaced by a specialised service centre.
• Ensure that it is possible to disconnect the ap-

pliance from the mains by removing the plug or switching off the bi-polar switch.

• This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety.
• Particular attention should be paid not to allow unaccompanied children to use the appliance.
• Make sure voltage indicated on the nameplate corresponds to the local mains supply voltage.
• Before use, extend and straighten the power cord.
• Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.
• Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. Do not connect the appliance to the mains until assembly is complete.
• Do not operate your kitchen hood without the aluminium grease filters.
• It is strictly forbidden to cook dishes under on an open flame (flambé) under your kitchen hood.
• Always strictly adhere to regulations issued by the competent local authorities regarding the technical and safety requirements for fume extraction.
• Failing to tighten bolts and fasteners in accordance with these instructions may endanger life and health.
• Hanging kitchen hoods operate only in air circulation / odour absorber mode
• WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

UNPACKING

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

OPERATION

Kitchen hood controls

Control Panel is shown in Figure 4, for reference it is also shown below:

Control Panel

It is equipped with a touch controls. Touch one the sensors to enable the desired function:

1 Low speed (1). Use this speed when cooking a little food with hardly any fumes.
2 Medium speed (2). Use this speed when cooking multiple dishes at the same time with moderate amount of fumes.
3 High speed (3). Use this speed when frying or grilling, with large amount of fumes.
4 Lighting on/off The lighting operates independently of hood fan.

Touch sensor corresponding to the selected speed to turn off the kitchen hood.

Off Timer

Use off timer to turn off the hood after a specified time. Use off timer to filter the fumes out of the air after cooking. The delay time is about 15 minutes. To enable Off-Timer at any fan speed touch the active speed sensor for at least 3 seconds. Sensor flashes. Flashing indicates that Off-Timer has been enabled. To cancel Off-Timer touch the active speed sensor. The appliance will turn off. To turn on the appliance, touch the sensor corresponding to the desired fan speed. Cancelling the off-timer does not turn off the lighting.

Other important information concerning the operation of the hood

Operation in air circulation / odour filter mode. In this mode, the filtered air returns to the room through the outlets. Install activated charcoal filter in this setting. It is recommended to install the air guide (available depending on the model, mainly in chimney cooker hoods).

Air extraction operation: When cooker hood operates in extraction mode, air is discharged outside through an extraction duct. Remove activated charcoal filter in this setting. The cooker hood is connected to the air outlet opening using a rigid or flexible extraction duct with a diameter of 150 or 120 mm, and the appropriate clamps, which must be purchased at a hardware store. The appliance should be installed by a qualified installer.

Fan speed: Lowest and medium fan speed is used in normal conditions and less intense odours, while the highest speed is used only when cooking odours are very intense, such as during frying or grilling.

Note (applies to universal hoods only): Due to the design of universal hoods you need to manually change the mode of operation. See Figure 8 for instructions on how to change the mode.

Note (only applies to telescopic and in-built kitchen hoods): Furniture and telescopic cooker hoods operating in air recirculation mode require installation of the exhaust duct. The other end of the duct should be directed to the room as it will discharge filtered air.

Note: Hanging kitchen hoods operate only in air circulation / odour absorber mode

CLEANING AND MAINTENANCE

Maintenance

Regular maintenance and cleaning of the appliance will ensure trouble-free operation of the cooker hood and extend its life. Especially make sure that the grease filter and activated charcoal filter are replaced according to manufacturer's recommendations.

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.
• It is recommend to use a damp cloth and a neutral detergent.

Note: After several washes in the dishwasher, the colour of the aluminium filter may change. The change of colour does not indicate improprieties or the necessity to change it.

Grease filter

For normal hood operation, aluminium grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

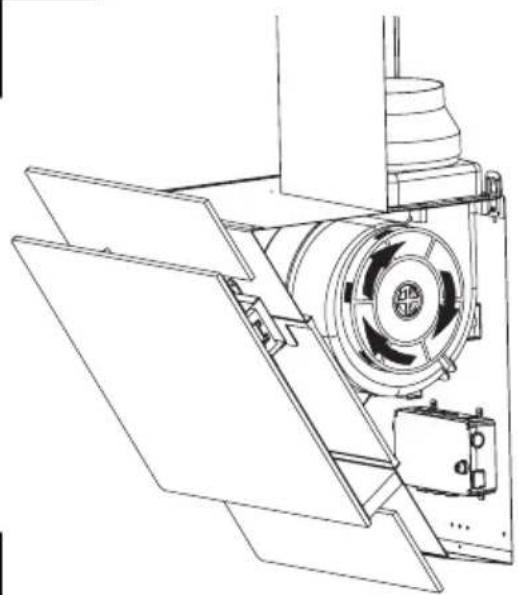

Dismantling of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Activated charcoal filter

Charcoal filter is used only when the cooker hood is not connected to the ventilation duct. Activated charcoal filter can absorb odours until saturated. Charcoal filter is not suitable for washing or regeneration and should be replaced at least once every two months or more frequently if the appliance is used intensively.

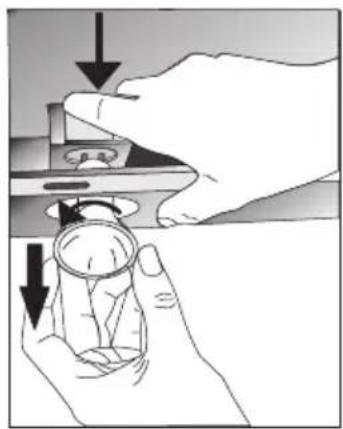

Dismantling of charcoal filter is shown on Figure 6.

Light

Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance. See Figure 7 for details how to replace lights. If there is no such figure in this manual, please contact authorised service to replace the lighting module.

WARRANTY AND AFTER SALES SERVICE

Warranty

Warranty service as stated on the warranty card. The manufacturer shall not be held liable for any damage caused by improper use of the product.

The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. Repairs should be carried out by a qualified technician only.

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

GARANTIE, NACHVERKAUFSERVICE

Garantie

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed with two crossed lines, representing waste or discharge (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed with two crossed lines, no text or labels present

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

* According to the model

	EN DE PL-CS SK	RO HU BG ES PT				Element de telen	Felso diszi- mascipal enement	L'open	Panel supe ror	Chamine superior
1	L'gthing	Mascownica guorna	Horri kryci iista	Horna krycia iista	Element de mascare element	Alsó dizto- elem	L'open	Felső diszi- mascipal enement	L'open	Chamine superior
2	Lower chim- ney cover	Mascownica dolna	Spondi kryci iista	Dolna krycia element	Element de mascare element	Alsó dizto- elem	L'open	Felső diszi- mascipal enement	L'open	Chamine inferior
3	Ligthing	Beleuchtung	Osvletnie	Osvletnie	System de luminaire	Világitas Occ	extréne l'ium	minácion l'ium	inagão
4	Control panel	Bedienfeld	Panel stero-wania	Ovladaci panel	Panou de comanda	Jranytópa-nei	Tahen 3a ynparshine	Panel de com-trol	Painel de com-mando
5	Screws and wall plugs	Scharuben und Spriz- dubel	Wkerty i koki rozpo- rove	Vruty a mozdinky	Skrutky a rozperne koliky	Sruburi si dibluri	Cavavorok ses tiplik	Aloeben u bintrobe	Tornillos y tacos	Parafusos e chamine superior
6	Upper chim- ney cover der oben holder	Alteerung maskaowicy gorenj	Uchyt horní nej krycej iisty	Držiak hor-roçatculi superior	Supportul capeculi superior	Felső fedeli	Fogantytja	Mango de panel supe ror	Fixagão da cammine superior
7	Air flaps	Ruckschlag- klappen	Klappi klappy	Zpěnte klap- kry	Placúte klapy	Visszacsapo szelepek	Bb3bpartn karni	Tapaş de retorno	Valvula aniti-retorno
8	Connecting piece	Anschluss-stutzen	Krócie przyfáce- nlowy	Prýpůlováci hardo	Spátne klapy	Spátne	Visszacsapo szelepek	Bb3bpartn reuter	Tapaş de retorno
