Product Type	Fully Automatic Washing Machine
Brand	Rasonic
Model	RW-H603PC
Washing Capacity	6.0 kg
Spinning Capacity	6.0 kg
Spin Speed	700 rpm
Rated Power (Wash)	380 W
Rated Power (Spin)	380 W
Dimensions (W x D x H)	530 x 530 x 915 mm
Net Weight	29 kg
Drainage Design	High/Low drainage
Water Level Settings	10 levels (22-55 L)
Wash Programs	Standard, Quick, Blanket, Gentle, Strong, Mini Wash, Child Wash, Clean Tub, Air-Dry, Water Recycling
Fuzzy Logic	Yes (automatic water level selection)
24-Hour Delay Start	Yes
Auto Shutdown	Yes (after cycle completion)
Air-Dry Function	Yes (30/45/60 min settings)
Child Lock	Yes
Sound Insulation Board	Included (bottom back mounting)
Filter System	Removable filter net; water inlet valve filter screen
Safety Features	Earth wire required; child lock; top cover interlock
Power Supply	220-240 V ~ 50 Hz (assumed based on region)
Accessories	Water inlet hose, drain pipe with spring clamp, sound insulation board

Frequently Asked Questions - RW-H603PC Rasonic

How do I start a standard wash cycle?

Press the Power ON/OFF key, then close the top cover. Press the Start/Pause key. The machine automatically selects water level and program (Standard).

What does error E1 indicate?

E1 indicates a water inlet problem, such as no water, water inlet overtime, or clogged water inlet valve. Check the water tap, hose, or filter.

How do I clean the filter net?

Turn off power and unplug. Remove the filter net upward, turn it over to remove dirt, rinse with fresh water, and reassemble it into the washing machine.

Why does the machine vibrate during spinning?

Vibration may be due to unevenly distributed clothes. Open the top cover and rearrange the clothes evenly. Also ensure the machine is on a level, solid surface.

Can I use hot water in the washing machine?

No, do not use hot water above 50°C. Hot water can damage plastic parts inside the machine.

How to set the delay start function?

After power on and selecting a program, press the Delay Start key. Each press increases the delay by 1 hour (default 1 hour). Close the top cover and press Start/Pause.

What is Child Lock and how do I activate it?

Child Lock prevents children from tampering with the settings. Press Program and Process keys simultaneously for 2 seconds to lock; repeat to unlock.

How does the water recycling function work?

After washing, the machine pauses before spinning and displays 'EE'. You can collect the water. To continue spinning, press Start/Pause. The machine auto-spins after 20 minutes of inactivity.

What is the maximum washing capacity?

The maximum washing capacity for model RW-H603PC is 6.0 kg. Do not overload to avoid vibration and damage.

What should I do if the machine has no power?

Check if the Power ON/OFF key is pressed, if the power plug is securely inserted, and if there is a power cut. Also ensure the socket is working.

USER MANUAL RW-H603PC Rasonic

Hong Kong Customer Service Centres:

19/F, Shun Hing Centre, 8 Shing Yiu Street, Kwai Chung, N.T

Tel: [phone] Fax: [phone]

澳門客戶服務中心

澳門雅廣訪大馬路56號A東方花園地舗

Avenida do Ouvidor Amiaga, No.56A, R/C, Edf. Tong Fong Garden, Macau

Tel: [phone] Fax: [phone]

For the latest information of customer service centres, please visit www.shunhing-service.com or call us at our hotline.

信興重工工程有限公司

SHUN HING ELECTRIC WORKS AND ENGINEERING CO., LTD.

Office: Room 909-912, 9/F. Peninsula Centre, 67 Mody Road, Tsim She Tsui East, Kln., H.K.

Tel:[phone] Fax:[phone]

Web Site: http://www.shew.com.hk E-mail: [e-mail]

保养及维修 Maintenance Repair Service

信服電器服務中心有限公司

SHUN HING ELECTRIC SERVICE CENTRE LTD

香港新界葵涌榜耀街8號信具中心18字樓

電話：2406 5666 图文傳真：2408 0316

Office: 18th Floor, Shun Hing Centre, 8 Shing Yiu Street, Kwai Chung, N.T.H.K.

Tel: [phone] Fax: [phone] Web Site: http://www.shunhing-service.com

Fully Automatic Washing Machine

RW-H603PC RW-H703PC

目錄 Content

產品特點	1
注意事項	2-3
各部件名稱	4
控制面板說明	5
安裝及洗衣前準備	6-8
洗滌操作	9-10
洗衣機保養	11
問題檢測	12-13
故障信息表	14
技術參考	15
Product features	16
Precautions	17

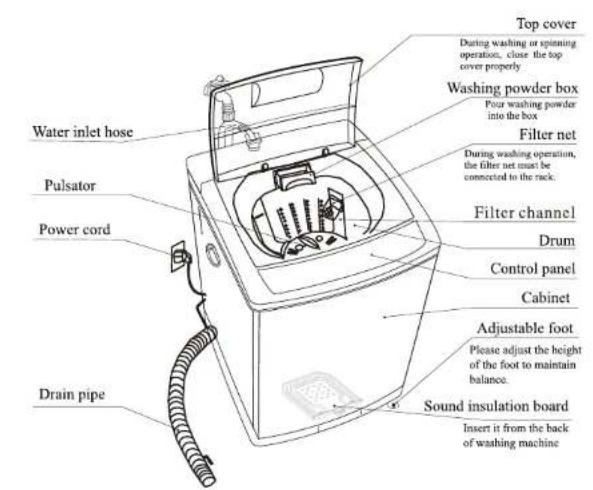

Name of parts	18
Control panel	19
Installation & Preparationsbefore washing	20-22
Washing operation	22-23
Maintenance	24
Trouble shooting	25-26
Error list	27
Specification	28

- 使用本產品前，請仔細閱讀本使用說明書，並妥善保存本說明書以備用戶日後查詢。 - Please carefully read this operation manual before using the product and please well keep this operation manual for your future reference.

Rasonic 樂信牌

Specification

Model No.	RW-H603PC	RW-H703PC
Maximum washing capacity	6.0kg	7.0kg
Maximum spinning capacity	6.0kg	7.0kg
Spin Speed	700rpm	700rpm
Rated power (Wash)	380W	420W
Rated power (Spin)	380W	420W
Dimensions(WxDxH)	530x530x915mm	550x550x935mm
Net weight	29kg	31kg
Drainage design	High/Low drainage	High/Low drainage

Remarks:
- The images shown in this manual are for illustrative purposes only. Some illustrations are presented as conceptual images and may be different from the actual products.
- The content in this Operation Manual has been checked. Our company reserves the right on final interpretation to any printing errors or misunderstanding on the content.
- If there are technical improvements on the appliance, the operation manual will be updated in new version without prior notice. The product appearance and specifications are subject to the manufacturer information.

Rasonic 樂信牌

產品特點

Error list
Trouble removal

Display Message	Indication	Reason
E1	trouble in water inlet	No water, water-inlet overtime, clogging water inlet valve.
E2	Water level trouble	Water level lower than lowest water level or sensor occurring problem
E3	Top cover opened	During spinning, the top cover is not closed; before appointed start up ,the top cover is not closed.
E4	Imbalance trouble	Imbalance occurs during spinning
E5	Drain trouble	Drain valve is clogged, trouble occurs in drain motor and drain overtime occurs.
E8	trouble in water -level sensor	Water level is higher than maximum water capacity
CL	Child lock alarm	Top cover is opened while child lock mode
Note: If trouble occurs, open/close the top cover or press the start /pause key so as to release trouble information. After the trouble information is released, the trouble may occur again in the coming procedure if the trouble is not removed.

• Do not over loads, under loads or unbalance loads in order to prevent the washing machine vibrating, this may cause danger and damage to washing machine.
• Do not leave an operating washing machine unattended.
• Valve off the water and unplug the washing machine after using
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Use an individual socket for the washer. Do not use a socket sharing the power source with other high power consumption machine.

Appendix

Program Reference

Course	Soak	Wash	Rinse	Spin	Required time	Water level
STANDARD		18 min	Full tub rinse 2 times	6 min	Approx. 53 min	22~55L
QUICK		6 min	Full tub rinse 1 times	6 min	Approx. 27 min	22~55L
BLANKET	15 min	20 min	Full tub rinse 2 times	7 min	Approx 70 min	22~55L
GENTLE		10 min	Full tub rinse 2 times	5 min	Approx 41 min	22~55L
STRONG		20 min	Full tub rinse 3 times	8 min	Approx 71 min	22~55L
MINI WASH		6 min	Full tub rinse 1 times	3 min	Approx 17 min	22~55L
CHILD WASH	5 min	20 min	Full tub rinse 2 times	7 min	Approx 72 min	20~55L
CLEAN TUB		10 min		7 min	Approx 23 min	50L
AIR-DRY				45 min	Approx 45 min	22~55L
WATER RECYCLING		15 min	Full tub rinse 2 times	8 min	Approx 50 min	22~55L

Above operation time is just for reference; actual working period will be affected by below issues:
Water level.
Water pressure, drainage conditions and the clothing materials

Rasonic 樂信牌

Trouble shooting

Trouble removal

No power supply

• Check if the [power ON/OFF] key is pressed.
• Check if the power plug is plugged.
• Check if it is a power cut.

Noise and vibration occur during

• Spinning operation
• Check if the clothes lean towards one side.
• Check if the washing machine is stably positioned
• Check if the
• Check if the sound insulation board is properly installed.
• Remove the foreign materials around the
  washing machine.
  Check if the washing machine is stably positioned.
• Remove the foreign materials around the
  washing machine.

of water inlet hose.
- Check if the connecting point with water tap is loosened.
- Check if the rubber ring of water inlet
hose is properly fixed.
- Check if water leak occurs in the water tap.
of water inlet hose.
- Check if the connecting point with water tap is loosened.
- Check if the rubber ring of water inlet
hose is properly fixed.
- Check if water leak occurs in the water tap.

The following phenomena do not indicate a trouble

Phenomena	Reason
The machine is abruptly switched to rinsing procedure from dewatering procedure	* If the clothes are unevenly placed, the machine will automatically be switched to rinsing procedure so as to adjust the uneven status of clothes, and then it will restore to carry out dewatering operation. * If the aforesaid modification is repeated for thrice, and the phenomenon cannot be corrected yet, the buzzer will gives out a sound; Just open the top cover to place the clothes evenly.
At the beginning of dewatering, the dewatering barrel rotates on off.	* At the beginning of dewatering operation, dewatering barrel will be gradually started up, and then it is accelerated. This is the intermittent dewatering procedure so as to avoid residual of soap foam.
Replenishing water when washing	* Microcomputer can frequently detect the water level during washing / rinsing procedure. When water level is lower, the machine will automatically replenish water.
Slight, consecutive and repeated rotation of wave wheel before drain operation	* To prevent clothes from leaning toward one side during dewatering operation, which leads to imbalance (if clothes lean toward one side during dewatering operation, abnormal noises may occur).
Slightly heat on the control panel	* It is normal for slightly heat on the control panel if the power plug plugged in socket for a long time. Please unplug the power when the product is not in use.

Water leakage occurs at connecting point
Water leakage occurs at connecting point

Rasonic 樂信牌

注意事項

電源線的安全

Key points for trouble locating

Cannot run
• Is the water tap opened?
- Is the plug plugged into the supply socket properly?
• Is power supply turned on?
• Is the water level enough?

Water inlet problem
• Is the water tap opened?
• Is the water supply ceased?
- Is the water inlet hose of connecting pipe clogged?

Cannot drain

• Is the drain pipe let down?
• Is the drain pipe clogged?
(Buzzer will prompt if the machine cannot drain for 5 minutes)

Cannot spin

• Is the clothes evenly put inside the washing drum?
• Is the washing machine positioned stably and
horizontally?
• Is the top cover of washing machine closed?

Cannot open/close

- Checking the power supply.

- Contact

Shun Hing Electric Service Centre Ltd. Tel: [phone]

Water leakage

- Contact Shun Hing Electric Service Centre Ltd. Tel: [phone]

Rasonic

樂信牌

Maintenance

- When washing operation has completed, unplug the power plug.

How to clean filter net

Firstly, take out the filter net upward, turn over the filter net and remove the dirt inside it. Rinse it by fresh water, restore it to its original state, and then reassemble it into the washing machine.

How to clean filter screen of water inlet valve

It is required to periodically clean filter screen of water inlet valve; draw the filter screen out of water inlet valve, use brush to remove dirt on the filter screen. Rinse it with fresh water, and place it into the water inlet valve.

Note:

1. Remove the water inlet hose according to the following procedures.

a. Close the water tap
b. Turn on "power".
C. Press the "start/pause" key.
d. Loose and remove adapter of water inlet hose in washing machine.
e. Press the "power" key to turn off the power.

1. Dirt in filter screen of water inlet valve may result in failure of water inlet or less water inflow etc.
2. After the filter is cleaned, it must be reassembled into the water inlet valve.

External cleaning

• Do not directly squirt water to the washing machine for cleaning.
• Use dry soft cloth to wipe the washing machine.

Rasonic

樂信牌

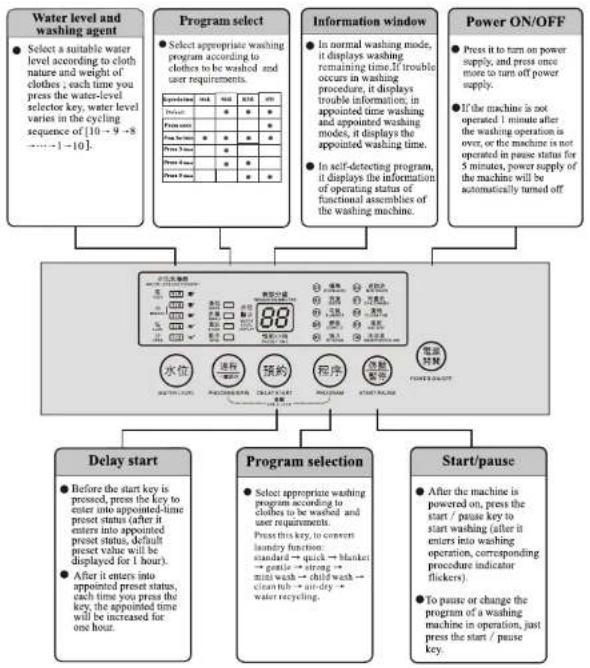

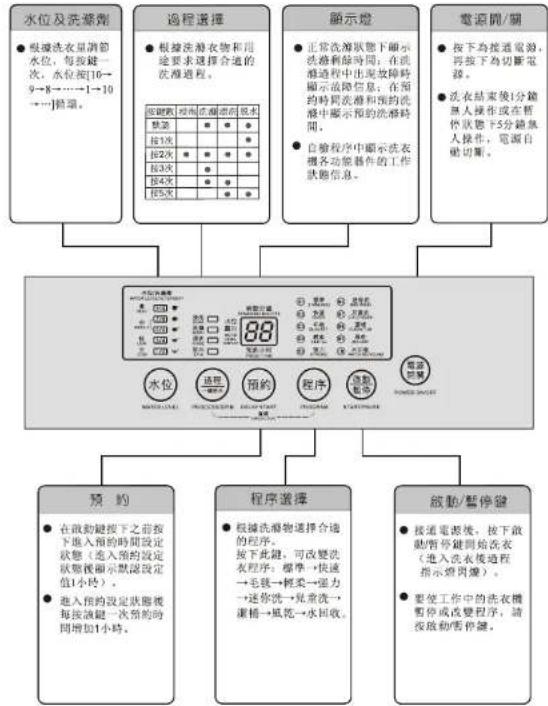

控制面板說明

1. Press the [Power ON/OFF] key.
2. Press the [program] key.

According to clothes to be washed, select a washing program [Standard quick, blanket, gentle, strong, mini wash, child wash, clean tub, air-dry, water recycling]

1. Press the [water level] selector key.
   The suitable water level is so according to cloth nature and clothes weight.
2. Press the [delay start] key

After it enters into appointed-time preset status, the information window displays appointed default value 1, i.e. 1 hour.

1. Press the [delay start] key.

In appointed preset status, each time you press the [delay start] key, the appointed time will be increased for 1 hour.

1. Close the top cover

Before pressing starts, the top cover must be closed; otherwise, fault E3 will be shown.

1. Press the [start/pause] key

Press the start key, and the machine enters into appointed start status, the appointed time in information window flickers while other indicator is off; when it reaches appointed time washing operation will be started.

Mini washing

1. Press the [Power ON/OFF] key.
2. Press the [program] key, select mini wash.

1. Close the top cover.
2. Press the [start/pause] key.

When washing operation is over, the buzzer gives out a prompt, and power will be automatically turned off.

Air-dry (inapplicable to wool washing)

1. Press the [Power ON/OFF] key.
2. Press the [program] key, select air-dry.
3. Press the [process] key, select time of air-dry:[30min-45min-60min-30min].

1. Close the top cover.
2. Press the [start/pause] key.

When washing operation is over, the buzzer gives out a prompt, and power will be automatically turned off.

Note: Only Power, Start/Pause and Delay Start function will be able to use while using air-dry function.

Rasonic

樂信牌

Washing operation

Before washing operation, please verify the following items: put the clothes into drum, and detergent into the washing powder box.

Standard washing program - Fuzzy Function

1. Press the [Power ON/OFF] key.

Washing machine auto-enter into standard function. “--” light on. Put cloth.

1. Close the top cover.

2. Press the [start/pause] key,

Washing machine automatically select water level and program mode. Normal Process is "wash→rinse→spin". Washing machine automatically start work.

When washing operation is completed, buzzer gives a prompt, and power supply is automatically turned off.

Selecting washing program

1. Press the [Power ON/OFF] key.

1. Close the top cover.

Before pressing start, the top cover must be closed; otherwise, fault E3 will be shown.

1. Press the [program] key. According to clothes to be washed, select a washing program [Standard quick, blanket, gentle, strong, mini wash, child wash, clean tub, air-dry, water recycling]

1. Press the [start/pause] key.

1. Press the [water level] selector key The suitable water level is selected according to cloth nature and clothes weight.

NATIRLEGI

Rasonic

樂信牌

安裝

進水管連接

How to install water inlet hose

• Two rubber seals are supplied with the water inlet hose in order to prevent leakage.
  • Make sure the hose connectors have been completely installed to the machine & tap.
• CAUTION: Do not connect to the hot water supply.

Note:

After being connected, if water leakage occurs, just repeat the aforesaid steps to connect water inlet hose again.

Do not use the old water inlet hose. Please install the new water inlet hose to replace the old one.

Special attention

• When washing machine revolving, please do not put in the clothing. Don't put your hand into tub to take the clothing out before the tub stops running.
  ● Big and light clothing easy to float in the water surface. Please enter it in the water, then starts to wash.
• If the barrel vibrates strongly, must stop running and put clothes evenly again.
  ● The clothes to be washed should not more than the washing machine capacity.
• Machine must not be placed on the carpet to obstruct the ventilation.
• Avoiding left the washing machine unattended.

Preparations before washing

Check the clothes

• Check if the clothes can be washed by the washing machine.
• Check if there are keys, coins, or pins etc. in the clothes.
• Check if the clothes must be classified for washing operation.

- Check if the water tap is opened.

- Check if the drain pipe is inserted into the floor drain.

- Check if the power plug has been inserted into the supply socket.

Rasonic 樂信牌

Installation

Washing machine should be positioned on level and solid ground.

• User must not place the packing foam under the washing machine.
• Positioned on level and solid ground
  ● A distance between the machine and wall should be at least 100mm, for easy thermolysis and noise reduction Machine must not be placed on the carpet to obstruct the ventilating opening.

Horizontal adjustment of washing machine

● The front right foot of the washing machine is the adjustable foot. If the washing machine cannot be positioned horizontally, just adjust the adjustable foot.

Installation of sound insulation board

- Insert the sound insulation board into the mounting groove at the bottom back of the washing machine.

How to install drain pipe

● Connect the drain pipe, to the drain outlet.

Spring clamp drain pipe

- Please note the drain pipe must not be twisted.

● Fasten it by a spring clamp.

2

- Orifice of drain pipe must not be placed 80cm higher above the ground, otherwise, normal drainage cannot be proceeded.

Rasonic 樂信牌

洗滌操作

將衣物放入洗衣桶內，並加入適量洗滌劑

標準洗衣程序 — 快思邏輯

1. 按 [電源開關] 鍵

- Select a suitable water level according to cloth nature and weight of clothes; each time you press the water-level selector key, water level varies in the cycling sequence of [10→ 9→ 8 → ... → 1 - 10] .
- Select appropriate washing program according to clothes to be washed and user requirements.
- In normal washing mode, it displays washing remaining time. If trouble occurs in washing procedure, it displays trouble information, in appointed time washing and appointed washing modes, it displays the appointed washing time. - In self-detecting program, it displays the information of operating status of functional assemblies of the washing machine.
- Press it to turn on power supply, and press once more to turn off power supply. - If the machine is not operated 1 minute after the washing operation is over, or the machine is not operated in pause status for 5 minutes, power supply of the machine will be automatically turned off
- Before the start key is pressed, press the key to enter into appointed-time preset status (after it enters into appointed preset status, default preset value will be displayed for 1 hour). - After it enters into appointed preset status, each time you press the key, the appointed time will be increased for one hour.
- Select appropriate washing program according to clothes to be washed and user requirements. Press this key, to convert laundry function: standard → quick → blanket → gentle → strong → mini wash → child wash → clean tub → air-dry → water recycling.
● After the machine is powered on, press the start / pause key to start washing (after it enters into washing operation, corresponding procedure indicator flickers).

Child Lock: Press the "Program" key and "Process" key at the same time for 2 seconds, it will enable the child lock function. To unlock, press "Program" key and "Process" key at the same time again.

Water recycle procedure:

When washes finished, procedure of spin will be on hold, buzzer will prompt and "EE" will be display. User can recycle the water in this stage. If wants to continue spinning, please press "Start/Pause" key, the washer enters the spinning procedure. If no instruction received afterwards for 20 minutes, the washer will enters the spin procedure automatically.

Rasonic

樂信牌

Name of parts

Accessory

Sound insulation board

Spring clamp / Drain pipe

Water inlet hose

Rasonic

樂信牌

洗衣機保養

- 洗衣完成後，請先拔掉電源插頭。

清洗過濾網

- Check if the washing machine is securely positioned.

● Washing machine should be positioned on solid level ground.

● During operation do not stretch your hands into the machine; do not allow children to access to the washing machine.

● Put the clothes evenly inside the washing machine, preventing any noises or vibration.

- Do not put anything into the machine with gasoline, kerosene, alcohol or solvent (for fear of fire).

- Do not use hot water (not higher than 50°C) in washing operation, it will damage the plastic parts inside the machine.

● Before washing operation, remove all objects in pockets, especially nails or needles, which may damage the machine or clothes.

● Do not allow any sharp object to put on the top of the machine.

Safety of power cord

• Do unplug the plug by holding the plug body instead of the power cord. Do not place any objects over the power cord or squeeze the power cord.
  ● To avoid hazard, if power cord is damaged, it must be replaced by Shun Hing Service Centre Ltd. Tel: [phone]
• Do not use broken plug or socket or unplug the power plug by wet hand, to avoid electrical shock.
• In case of town gas/ LPG leakage, to avoid explosion or fire, do not plug or unplug.
• When the washing machine is not in operation, unplug the power plug out of the socket.

Power connection and earthing

● Supply socket must be equipped with reliable earth wire.
● The power socket must be installed with fuse.

Warning:

● Never connect the earth wire to gas pipe, water supply pipe, telephone wire or the earth wire of lightning rod.
- If power cord is damaged, please stop using to avoid electric shock and catching fire.
● If power cord is damaged, please contact Shun Hing Electric Service Centre Ltd Tel:[phone]

Rasonic 樂信牌

Product features

Auto shutdown

In order to prevent any unpredictable accidents, it will automatically shut down after completed the washing cycle.

24 hours delay washing

Multiple falls dimensional water flow

Multiple circular falls dimensional water flow, improving the cleaning efficiency for large clothing.

Multiple washing flows and 10 water levels setting

The machine can automatically set up optimum washing flow and washing mode according to washing program and water level selected by user.

Air-dry function

Press Air-dry key, using high speed to generate enough wind to cloth. This will shorten the drying process.

Child lock protection

Prevent children from tampering the wash setting once it is locked.

Fuzzy mode

The washing machine will automatically select water level in order to save water & energy consumption.

Rasonic 樂信牌

問題檢測

沒有電源

無法運轉

脫水時有較大的噪音和振動

進水管的連接處漏水
