APPPB22EVBK - Power bank Approx - Free user manual and instructions

Product Type	Portable Power Bank
Brand	Approx
Model	APPPB22EVBK
Battery Capacity	22000 mAh / 81.4 Wh
Battery Type	Lithium-Polymer
Input Port	USB-C (5V/3A, 9V/2A)
Output Port(s)	2x USB-A (5V/2.4A each), 1x USB-C (5V/3A, 9V/2A, 12V/1.5A)
Total Output Power	Max 22.5W
Charging Time	Approx 6-8 hours (with 18W charger)
Dimensions	165 x 80 x 24 mm
Weight	450 g
LED Indicator	4 LEDs for battery level
Features	Fast charging, passthrough charging, short circuit protection
Safety Protections	Overcharge, overdischarge, overcurrent, short circuit, temperature protection
Material	ABS + PC flame retardant
Compatibility	Smartphones, tablets, cameras, and other USB devices
Maintenance	Keep dry, charge at least once every 3 months, avoid extreme temperatures
Repairability	Non-user serviceable; do not disassemble
Accessories Included	USB-C cable, user manual

Frequently Asked Questions - APPPB22EVBK Approx

How do I check the battery level of my Approx APPPB22EVBK power bank?

Press the power button once. The four LED indicators will light up to show the remaining battery level: 1 LED = 25%, 2 LEDs = 50%, 3 LEDs = 75%, 4 LEDs = 100%.

Can I charge my laptop with this power bank?

The Approx APPPB22EVBK supports a maximum output of 22.5W via USB-C PD. It can charge most laptops that accept charging via USB-C, but check your laptop's power requirements. For high-power laptops, it may only provide a slow charge or not work at all.

How long does it take to fully charge the power bank itself?

Using an 18W USB-C charger, it takes approximately 6 to 8 hours to fully charge the 22000 mAh battery. Using a lower power charger will take longer.

Can I use the power bank while it is charging?

Yes, the Approx APPPB22EVBK supports passthrough charging. You can charge the power bank and connected devices simultaneously. However, this may slow down the overall charging speed.

What devices are compatible with this power bank?

It is compatible with most USB-powered devices, including smartphones, tablets, Bluetooth earphones, cameras, and portable game consoles. It supports both Apple and Android devices.

How should I store the power bank when not in use?

Store the power bank in a cool, dry place away from direct sunlight and heat. Ideally, keep it at around 50% charge and recharge it every three months to maintain battery health.

What safety features does this power bank have?

It includes multiple protections: overcharge, overdischarge, overcurrent, short circuit, and temperature protection. The casing is made of flame-retardant material for added safety.

Can I take this power bank on an airplane?

Yes, the 22000 mAh (81.4 Wh) capacity is within the typical airline limit of 100 Wh for carry-on luggage. Check with your airline for specific regulations.

Why is my power bank not charging my device?

Ensure the USB cable is properly connected and functional. Try pressing the power button to activate output. If the power bank has low battery, charge it first. Also check if your device's charging port is clean. If the issue persists, test with another cable or device.

How do I clean the power bank?

Unplug all cables and turn off the power bank. Wipe the exterior with a soft, slightly damp microfiber cloth. Do not use any chemical cleaners, and avoid getting moisture into the ports.

USER MANUAL APPPB22EVBK Approx

Line drawing of a USB cable with a terminal connector (no text or symbols)

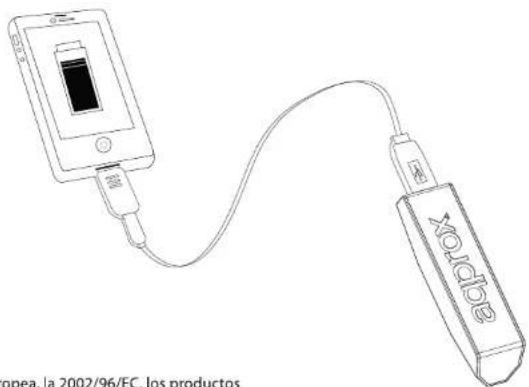

Line drawing of a smartphone connected to a cable with a USB port (no text or symbols)

AEE REI-RAEE 5548 in this manual, the container (bin) symbol indicates that the product is subject to the European directive 2002/96 / EC, electrical and electronic products, batteries, and batteries and other accessories must necessarily be subject to a selective collection.

At the end of the life of the device, make use of the recycling bins. This gesture will help reduce the health risks and preserve the environment.

Municipalities and distributors, will provide essential details on recycling your old device. If this device carries an internal battery, it must be removed and deposited separately for proper management.

user's guide

COMMUNICATIONS

approx

Pocket Universal Power Bank

SAFETY, MAINTENANCE AND RECYCLING INSTRUCTIONS

1. Caution: Never open the device, the internal parts have shock hazards.
2. Do not install this unit near water, for example, in a wet basement, in an unprotected outdoor installation or in any humid area.
3. Do not insert objects of any kind into this unit through its openings as they may touch voltage points and create shortcuts that could result in fire or electric shock. Do not spill any liquid on the unit.
4. Always use approved cables recommended by the manufacturer for connection between power supply and household electrical outlet.
5. Please fully charge the power bank at a voltage of SVDC / 1A peak before first use.
6. Always load devices that meet product specifications.
7. Observe the maximum power of each connector, danger of overloading!
8. Never throw the product to a heat source or fire.
9. Keep the product at room temperature, maximum 30
10. When not using the product for a period of time, charge it every three months.
    11 Clean the product with a soft dry cloth. Always with the device off!
11. Follow local regulations for disposing of the product.

aqprox

EC DECLARATION OF CONFORMITY

We declare under our sole responsibility that the product:

Brand name: APPROX IBERIA S.L.

Model no: APPPB26EVx, APPPB22EVx

Product description: Power Bank 2600mAh / Power Bank 2200mAh

The measurements shown in this test report were made in accordance with the procedures given in the:

- EMC DIRECTIVE: 2004/108/EC

- RoHS DIRECTIVE: 2011/65/EU

To which this declaration is based on with full conformance to the following European norms and standards:

• IEC62321:2008
• EN66024:2010
• EN 55022:2010
• EN 55024:2010
• EN 61000-3-2:2006 + A1:2009 + A2:2009
• EN 61000-3-3:2013

Gelves (Sevilla), Spain.

Website: www.approx.es

MADE IN PRC

THE CONTENT OF THIS USER'S GUIDE IS UNDER TIPOGRAPHICAL ERRORS
