UE55MU9000U - Television SAMSUNG - Free user manual and instructions
Find the device manual for free UE55MU9000U SAMSUNG in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | 4K UHD Curved Smart TV |
| Model Year | 2017 |
| Screen Size | 55 inches (diagonal) |
| Display Resolution | 3840 x 2160 (4K UHD) |
| HDR Support | HDR10+ |
| Smart Platform | Tizen OS |
| Processor | Quad-Core |
| Dimensions (with stand) | 1228.3 x 783.8 x 337.5 mm |
| Dimensions (without stand) | 1228.3 x 705.7 x 106.5 mm |
| Weight (with stand) | 18.3 kg |
| Weight (without stand) | 14.9 kg |
| Power Consumption (typical) | 165 W |
| Power Supply | AC 100-240V, 50/60Hz |
| HDMI Inputs | 3 (HDCP 2.2) |
| USB Ports | 2 (USB 2.0) |
| Wi-Fi | Built-in 802.11ac |
| Bluetooth | Version 4.0 |
| Audio Output | 20W (2.0ch) |
| VESA Mount Pattern | 400 x 400 mm |
| Remote Control | Samsung Smart Remote (battery included) |
| Cleaning Instructions | Use a soft, dry cloth; avoid harsh chemicals |
| Safety Rating | CE, ENERGY STAR |
| Repairability Index | 5.8/10 (based on similar models) |
| Stand Included | Yes, screw mount |
Frequently Asked Questions - UE55MU9000U SAMSUNG

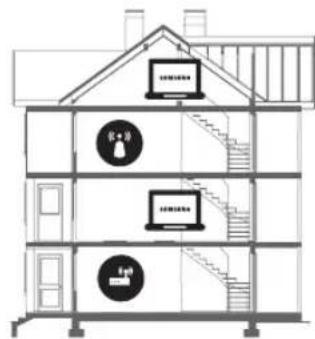

How do I connect the TV to Wi-Fi?
Press the Home button on the remote, go to Settings > General > Network > Open Network Settings. Select your Wi-Fi network and enter the password.

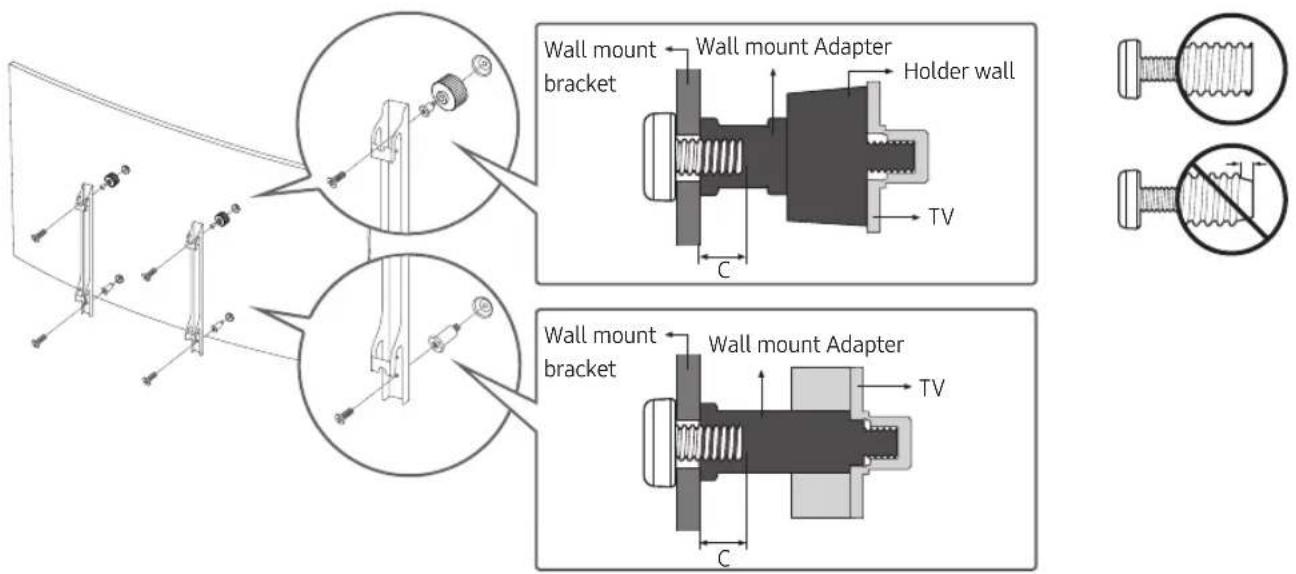

Can I mount this TV on a wall?
Yes, the TV supports VESA 400x400 mm wall mounts. Ensure the mount can support the TV's weight (approx. 15 kg without stand).
Why is the screen not turning on?
Check that the power cable is securely connected and the outlet works. Try pressing the power button on the TV itself. If still off, unplug for 30 seconds and try again.
How do I perform a factory reset?
Go to Settings > General > Reset (or Self Diagnosis > Reset). Enter PIN (default 0000) and confirm. All data will be erased.
The remote control is not working. What should I do?
Replace the batteries first. Then pair the remote by pressing and holding Return and Play/Pause buttons simultaneously for 3 seconds near the TV.
How do I enable HDR for games?
Connect your console to an HDMI port (1 or 2) and go to Settings > Picture > Expert Settings > HDMI UHD Color and enable the port. Then set Game Mode to on.
Can I use a USB drive to play media files?
Yes, insert the USB into one of the ports. Press Source and select the USB device. The TV supports video, music, and photo formats. Check the manual for compatible codecs.
How do I clean the TV screen safely?
Turn off the TV and unplug it. Use a soft microfiber cloth slightly dampened with water. Wipe gently in one direction. Do not use alcohol or abrasive cleaners.
Why is there no sound from the TV?
Check the volume level and mute status. Ensure external devices are properly connected. Go to Settings > Sound > Speaker Settings and select TV Speaker.
How can I connect Bluetooth headphones?
Put headphones in pairing mode. On TV, go to Settings > Sound > Speaker Settings > Bluetooth Audio Devices and select your headphones.
