Product Type	LED Signal Light
Model	SL15-M1KTN-Y
Brand	PATLITE
Color	Yellow
Light Source	LED
Voltage Rating	24 V DC
Power Consumption	Approx. 3 W
Protection Rating	IP65
Mounting Type	Direct mounting (base)
Dimensions (Diameter x Height)	100 mm x 200 mm
Weight	0.5 kg
Operating Temperature	-20°C to +50°C
Main Function	Visual signal indication (steady/flashing)
Cleaning Instructions	Wipe with a dry cloth; do not use solvents
Safety Standards	CE, RoHS compliant
Spare Parts Available	LED module, lens, base
Repairability	Modular design; components replaceable
Warranty	2 years

Frequently Asked Questions - SL15-M1KTN-Y PATLITE

What is the voltage requirement for the PATLITE SL15-M1KTN-Y?

The unit operates on 24 V DC power supply. Ensure your power source matches this specification.

Can the SL15-M1KTN-Y be used outdoors?

Yes, with an IP65 rating, it is dust-tight and protected against water jets, making it suitable for outdoor use.

What color does the 'Y' in the model number indicate?

The 'Y' stands for Yellow. This model emits a yellow light signal.

Does this light support flashing mode?

Yes, the SL15-M1KTN-Y can be set to steady or flashing modes depending on connection and configuration.

How do I clean the signal light?

Use a dry, soft cloth to wipe the lens and housing. Avoid chemical solvents or abrasive materials.

Is the LED module replaceable?

Yes, the LED module is a spare part that can be replaced if it fails. Refer to the manual for replacement instructions.

What is the expected lifespan of the LED?

The LED has a typical lifespan of 50,000 hours under normal operating conditions.

Can I mount this light on a wall?

The unit is designed for direct base mounting. A wall bracket may be required for wall installation (sold separately).

What temperature range can this light withstand?

It operates reliably in temperatures from -20°C to +50°C (-4°F to 122°F).

Does the product come with a warranty?

Yes, PATLITE provides a 2-year warranty against manufacturing defects. Check the warranty card for details.

USER MANUAL SL15-M1KTN-Y PATLITE

Multi-function Beacons

TYPE SF08 / SF10

Flashing Beacons

TYPE SL08 / SL10 / SL15

Notice to Customer

Thank you very much for purchasing our Patlite products.

- Request the installation and wiring be performed by a professional contractor if construction work is involved.

- Prior to installation, read this manual thoroughly before using this

product to ensure correct use. • In addition, please store this manual for future reference when

performing maintenance, repairs or inspections

- For options and repair parts, please visit our website (https://www.natlite.com)

(https://www.patite.com). - If there are any questions concerning this product, refer to the contact

information at the end of this document and contact your nearest BATUTE Sales Representative

PATLITE Sales Representative.

1 Read this First (Safety Precautions)

Warning Failure to observe the following may result in

Warning death or serious injury.

- To prevent from short-circuits or damage, observe the following: - Be sure the power is disconnected before replacement or repair

replacement of the fuse. Use this product in a property maintained condition. (Denise company if the

- Use this product in a properly maintained condition. (Replace of repair if the globe, case, etc. are damaged.)

- If installing this product requires construction work, ask a specialist in order to avoid fire or personal injury.

- avoid fire, or personal injury. - When this product is used for security purposes, it should be inspected daily.

In case a malfunction should occur, it is recommended that you use this product together with other security products.

- After installation, do not use this product to climb up onto the equipment with.

Failure to comply will result in product damage and/or falling off the machinery.

Caution Failure to comply with the following points may

A Caution result in injury, physical loss or damage.

- Be sure to put a fuse in the wiring circuit between the power source and equipment for protection. If a fuse is not added, it may result in product and/or

equipment not protection in a face is not necessary, if may result in product end-of equipment failure.

- Be sure to prevent electrostatic damage due to discharge when working with this product for wiring, exchanging units, setting up parameters, etc. by

this product for wiring, exchanging units, setting up parameters, etc. by discharging static electricity on your body, etc.

- Do not disassemble or detach during operation.

2 Model Number Configuration

■ SF·SL Models

RT 2-point Hole Type Mounting • Terminal block 3-point Hole Type Mounting • Terminal block (SL15 only)

(No text)

* KT only(SL15 : No Buzzer)

Model Number Example SF08-M1KTB-R

- ∅80 - 12 - 24 V DC - 2-point hole type mounting • Terminal block

■ SK Model

Model Number Example

SKH-M1JB-R

- ∅100 - 12 - 24 V DC - Cabtyre Cable - With buzzze - Red color

5--7--8--6

3 Part Names

■ Cable type J

Front view Terminal bl

Accessory List

	NameModel	QTY
SF□□-□□KT/SL□□-□□KT	Mounting Bracket, Waterproof Sheet	1
SF08-□□J/SL08-□□J/SKS Model	M4 Nut, Plain Washer	3
SF10-□□J/SL10-□□J/SKH Model	M5 Nut, Plain Washer	3
SL15-□□J/SKP Model	M8 Nut, Plain Washer	3

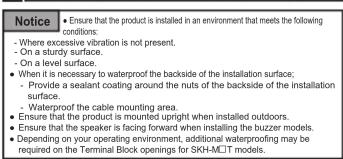

4 Installation

■ 3-Screw Mounting Type J T

(1) Insert the bolts of the beacon into

the holes of the mounting surface.

(2) Use the nuts and washer

(accessory) to secure in place.

Installation Example

Maximum Board Thickness of Mountin

Installation Dimensions

Refer to the "Installation Manual"

■ 2-point Hole Type Mounting (SF • SL Models)

3-point Hole Type Mounting (SL15 Model Only)

(1) Use the screws or bolts, nuts. to secure the mounting bracket

(accessory) to the mounting surface. (Installation screws and nuts are not included with this product

(Installation screws and nuts are not included with this product. Binding head screws or pan head screws are recommended.)

Model	Screw Hole Depth of Mounting Bracket	Nominal Diameter
SF08/SL08	4.4 mm	M4
SF10/SL10	5.7 mm	M5
SL15	4.8 mm	M8

(2) Check that the O-ring is not twisted.

(3) Align the main unit of product with the positioning Indicator and turn it clockwise to lock it.

Installation Example

2-point Hole Type Mounting 3-point Hole Type Mounting

Installation Dimensions

Defects the "Installation Manual"

Refer to the Installation Manual.

Caution Use a soft cloth moistened with water to clean the globe or soap. (Do not use thinner, boiling, saline or oil)

case. (Do not use trimmer, benzine, gasoline or oil.)

Note • The type with a buzzer, if the buzzer opening is splashed

with water, the Sound Pressure Level may drop.

5 Wiring

Caution • Make sure the power is OFF before wiring. A short circuit

■ Edition may damage internal circuits.

- Ensure the proper working voltage is used. Any mistake in wiring may result in damage

- Do not pull the wire, or stuff it inside of this case.

- Be sure the wiring is done properly. Any mistake in wiring may result in damage

- In the M2 model, do not perform blinking control by turning the power supply ON / OFF. Any mistake in wiring may result in damage.

- Do not apply a voltage to the common wire. (M1 type)

Do not apply a voltage to any wire other than the power supply wire. (M2 type)

Failure to comply will result in product damage.(except buzzer wire of SKH-M1) Do not expose the wiring from the device. If tension is applied to the wiring, the

- Do not expose the wiring from the device. If tension is applied to the wiring, the wiring may be disconnected, resulting in a short circuit or an electric shock.

- Use either a Contact Switch or Contact Relay for External Contact that power

supply wire of SF, SL, SK Models and buzzer wire of SK Model. Failure comply may result in fire, product malfunction.

(1) 2017年1月1日

Notice The protection rating does not include the Cabtyre Cable

If the ends of the it are in contact with water or exposed to dew or

In the ends of the it are in contact with water or exposed to dew of condensation, refer to the indications below to dress the wire ends for water

resistance.

- Connect the it ends in a location which will not expose the ends to water.

[ External contact capacity of power supply wire ]

M1 M2

Current Capacity (Is) 3A or more 1A or more

[ External contact capacity of signal wire and buzzer wire ]

[External contact SE • SI . Models

	M1	M2
Current Capacity (Is)	10 mA or more	10 mA or more
Withstand Voltage (Vs)	20 V or more	20 V or more
Leakage Current • (IL)	0.1 mA or less	0.1 mA or less

- When using an NPN open-collector transistor.

SK Model

M1 M2

Current Capacity (Is)	0.5 A or more	0.5 A or more
Withstand Voltage (Vs)	35 V or more	20 V or more

[ Fuse ]

Fuse Rating 250 V 1 A

Wire Type / Wire Gauge

Wire Type : UL2464

Wire Gauge : M1 AWG22

M2 Power Supply Wind

M2 Power Supply Wire AWG18 Excluding Power Supply Wire AWG24

Wiring Example

Refer to the "Installation Manual".

Terminal Block Wiring

■ Recommended lead wire specifications

Wire Type Wire Gauge (Solid Wire) Wire Gauge (Stranded Wire)

Wire Type Wire Gauge (Solid Wire) Wire Gauge (Stranded Wire) UI 1007 / UI 1430 0.13 \~ 1.5 mm ² AWG28 \~ 14

Temperature reading should be above 75°0 and the conductivity material should

• Temperature rating should be above 75°C, and the conductor material should be of copper wire.

Note

Note

Strip 8-9 mm of wire insulation from the lead wire to insert into the terminal block. Do not run on to the lead wire to campus, always unlock the lever before

Do not tug on to the lead wire to remove- always unlock the lever before removing the wires.

The tip of the flathead screwdriver should be no more than 2mm wide and

0.5 mm thick.

Do not put excessive force on the lever, as this may cause the lever to break.

Installation

(二)本次股东大会会议决议

to the groove of

ase the lock.

6 Specifications

• EMC Directive (EN61000-6-4, EN61000-6-2)

• ROHS Directive (EN5058) • UL 508, CSA-C22.2 No 14

• FCC Part 15 Subpart B Class A

(Conformity requirements for the CE Marking)

This product conforms to EN standards and shows the CE Marking

This product has been tested and found to comply with the limits for a Class A

device, pursuant to EMC DIRECTIVE. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a commercial environment. This product must not be used in residential areas.

a commercial environment. This product must not be used in residential areas.

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. The equipment generates uses and can

radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in aresidential area is likely to cause harmful interference in which one the year will be required to correct the interference at

interference in which case the user will be required to correct the interference at his own expense.

The OWN export

(Note) • Dimensions and specifications may change without notice due to

continual product improvement

- PATLITE and the PATLITE logo is a trademark, or registered trademark of the PATLITE Corporation of Japan and each country.

the PATELE Corporation of Japan and each country.

(Importer for EU)

PATLITE Europe GmbH Am Soeldnermoos 8, D-85399 Hallbergmoos, Germany
