Product Type	Built-in gas hob
Brand	Fagor
Model	3CFI-4GLSTB
Dimensions (W x D x H)	590 x 520 x 52 mm
Weight	10.3 kg
Number of Burners	4 (1 large, 2 medium, 1 small)
Burner Power	Large: 2.8 kW, Medium: 1.8 kW, Small: 1.0 kW
Gas Types Supported	Natural gas (G20 20 mbar), LPG (G30/31 28-30/37 mbar)
Gas Connection	G 1/2" threaded pipe
Electrical Supply	230 V ~ 50 Hz, 16 A fuse
Ignition Type	Automatic spark ignition with flame failure safety device
Safety Features	Flame failure cut-off, child safety (keep away <8 years), anti-tilt brackets
Material	Stainless steel (enamel surfaces on burners)
Cleaning	Remove burners and grids; wash with mild detergent; do not use abrasive cleaners or steam
Installation	Requires qualified installer; worktop cut-out; good ventilation; gas and electrical connection
Energy Efficiency	Up to 60% savings with proper cookware and flame adjustment
Warranty	Standard manufacturer warranty (details in manual)

Frequently Asked Questions - 3CFI-4GLSTB FAGOR

How do I ignite the burner on my Fagor gas hob?

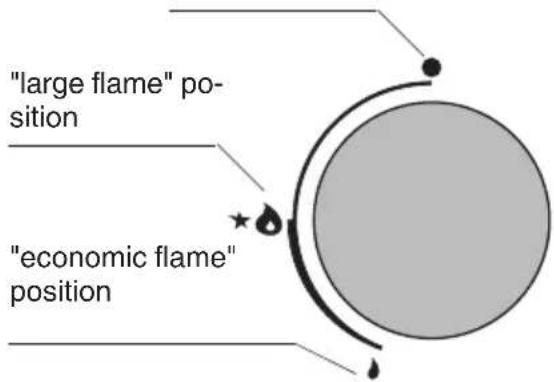

Push down the corresponding knob and turn it left to the large flame position. Hold it until the gas ignites (the igniter sparks). For models with flame failure device, keep the knob pushed for about 10 seconds after ignition to activate the safety cut-off.

What should I do if I smell gas?

Immediately close the gas shut-off valve and all burner knobs. Do not light matches, smoke, or operate any electrical switches. Ventilate the room and call a qualified gas fitter. Do not use the appliance until the leak is repaired.

How do I clean the hob burners?

Remove the burners and grids when cool. Wash them in warm water with mild dishwashing liquid. Dry thoroughly. Clean flame outlets with a thin copper wire (not steel). Ensure all parts are dry before reassembling. Do not use abrasive cleaners or steam.

Can I use any type of cookware on this hob?

Use pots with thick, flat bases. The pot diameter should be slightly larger than the burner crown (e.g., small burner: 100-140 mm; large burner: 200-260 mm). Always use a lid to save energy. Do not use oversized pans that extend beyond the hob edges.

How do I save energy when using the hob?

Use properly sized cookware with lids. Match pan size to burner. Clean burners and pan bases regularly. Turn off the hob 5-10 minutes before cooking finishes to use residual heat. Adjust flame to just below the pan base.

What gas types is this hob compatible with?

The hob is factory set for natural gas (G20 20 mbar). It can be converted to LPG (G30/31 28-30/37 mbar) by a qualified installer by replacing the burner nozzles and adjusting the valves.

Can I install the hob myself?

No, installation must be carried out by a qualified professional. The hob requires proper gas and electrical connections, ventilation, and a worktop cut-out of specified dimensions. Incorrect installation can be dangerous.

What should I do if the burner flame is yellow or uneven?

This indicates a dirty burner or incorrect gas pressure. Turn off the hob, remove the burner, and clean the flame outlets. If the problem persists, have a qualified technician check the gas pressure or convert the hob if needed.

Is it safe to leave the hob unattended while cooking?

No, never leave the hob unattended when cooking with oil or fat. Overheating can cause fires. In case of fire, do not use water; unplug the appliance and cover the flame with a lid or non-combustible blanket.

How do I replace the power cord if damaged?

The power cord must be replaced only by the manufacturer, its authorized service, or a qualified electrician to avoid hazard. Use a suitable replacement cord (e.g., H05VV-F 3x1.5 mm²) and ensure correct connection (L: brown, N: blue, PE: green/yellow).

USER MANUAL 3CFI-4GLSTB FAGOR

Simple black-and-white line drawing of a tree with two roots and a cloud-like shape at the top (no text or symbols)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

INSTALACIÓN

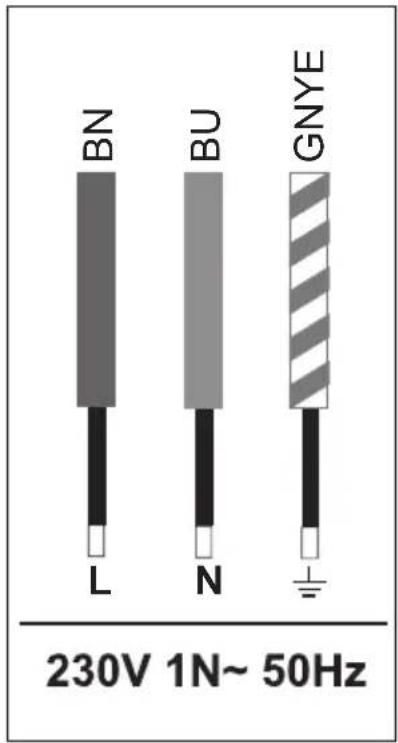

Cable de fase L: BN - marrón

Cable neutro N: BU - azul

Cable de tierra PE: GNYE - verde/amarillo

Pure technical diagram of a mechanical component with no text or symbols

Pure mechanical part diagram without any text, numbers, or symbols

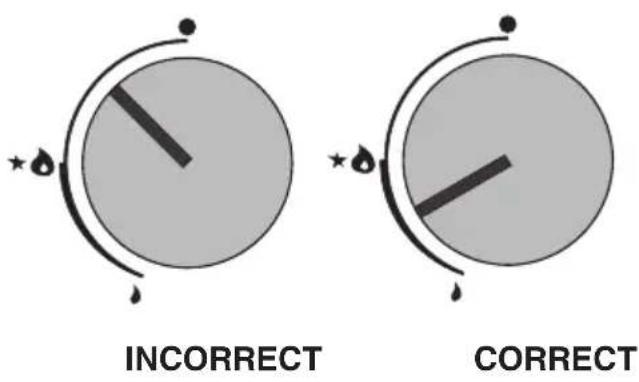

Simple circular diagram with a central vertical line and two curved arrows pointing outward (no text or symbols)

MAL

Simple diagram of a circular object with a horizontal line and arrows, no text or symbols present.

BIEN

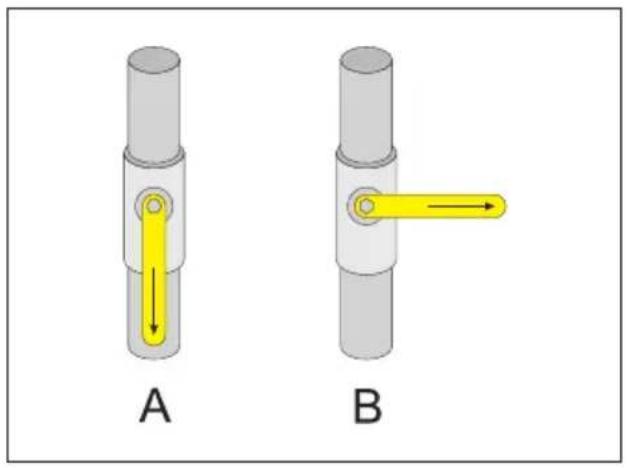

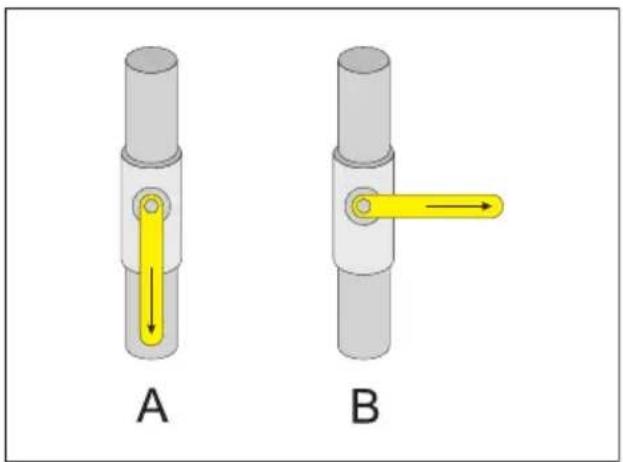

Two mechanical components labeled A and B, showing a yellow lever mechanism with directional arrows (no text or symbols beyond labels)

Diagram of a circular mechanical component with a central hub and base, no text or symbols present

Line drawing of a hand using a tool to cut or spread material, with no text or symbols present.

Your hob is exceptionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please read these Operating Instructions carefully

By following these instructions carefully you will be able to avoid any problems in using the appliance.

It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Important!

The appliance may only be operated when you have read and understood this manual thoroughly.

The appliance can be only used for the purpose for which it was designed. Any other use (eg. heating rooms) is improper and can be dangerous.

The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives and regulations:

• Low Voltage Directive 2014/35/EC
  • Electromagnetic Compatibility (EMC) Directive 2014/30/EC
  • ErP Directive 2009/125/EC
  • Regulation (EU) 2016/426 of the European Parliament and of the Council (from 21.04.2018)

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

CONTENTS

Basic Information....25

Safety instructions....27

Description of the appliance....32

Specification....32

Installation....33

Operation....41

Cleaning and maintenance....45

Troubleshooting....47

SAFETY INSTRUCTIONS

Note. The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.

Note. Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

NEVER attempt to extinguish fire with water. Unplug the appliance and cover flame with lid or non-combustible blanket.

Note. Risk of fire: do not store anything on the cooking surface.

SAFETY INSTRUCTIONS

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Do not use steam cleaning equipment to clean the hob.

Note. Use only hob covers designed or indicated by the appliance manufacturer as suitable or hob covers supplied with the appliance.

Use of inappropriate covers can cause accidents.

Caution. The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

Warning. Use only hob guards designed by manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

SAFETY INSTRUCTIONS FOR USE

● This appliance must be installed in accordance with the applicable regulations and used only in a well-ventilated room. Before you install and use the appliance, carefully read the operating instructions.
● Children shall not play with the appliance. Hot burners, grids, pots with hot liquids may cause burns to children.
● Make sure that the power cords of other equipment do not touch any hot surfaces of the appliance.
● The power cord wall plug should be accessible after appliance has been installed.
- Do not install the appliance near the cooling equipment.
- Do not leave the appliance unattended while cooking. Oils and fats may catch fire due to overheating.
● Make sure that liquids do not boil over onto the burners.
- If there is damage to the appliance it can be reused after the defect is repaired by a trained professional.
- Do not open the valve on the gas connection or the valve on the gas cylinder before you make sure that all valves are closed.
- Do not allow liquids to boil over onto the burners and avoid burner contamination. Soiled burners must be cleaned and dried immediately after cooling.
● Do not place pots directly on the burners.
- Do not place pots weighing more than 5 kg on the grid over one burner or more than 25 kg on the entire grid. Do not place one pot on two burners.
● Do not hit the knobs or burners.
● Persons without proper qualifications and training must not make any alterations or repair the appliance.
- Do not open the gas valves if you do not have a lighted match or an igniter in your hand.
- Do not extinguish the flame by blowing.
- Do not alter the appliance to allow it to be used with a different type of gas, or move the appliance to another place nor make any modifications in the gas supply system. These must be carried out by a qualified installer only.
- Do not allow young children and persons who have not read the operating instructions to use the appliance.
● IF YOU SUSPECT A GAS LEAK, DO NOT:

light matches, smoke, turn on or off any electrical devices (door bell, light switch, etc.) and use other electrical or mechanical equipment that can produce an electrical or impact spark. In such a case, immediately close the valve on the gas cylinder or the gas system shut-off valve, ventilate the room and call a qualified person to remove the cause of the leak.

- In the event of any technical fault, immediately unplug the appliance (following the above rule) and report the fault to the service centre to be repaired.

- Do not connect any antenna cables, e.g. radio receivers to the gas system

- In the event of ignition of gas escaping from a leaking system, immediately shut off the gas supply using the shut-off valve.

- In the event of ignition of gas escaping from a leaking gas cylinder valve: cover the cylinder with a wet blanket to cool it and close the valve on the cylinder. Once cooled, move the gas cylinder out to the open air. Do not reuse the damaged gas cylinder.

- If you do not use the appliance for a few days, close the gas system main valve, and after each use in case of a gas cylinder.

SAFETY INSTRUCTIONS FOR USE

• Important! If the power cord is damaged, it should be replaced by the manufacturer or specialist repair centre or a qualified person in order to avoid danger.
• Using the appliance for cooking and baking results in the emission of heat and moisture in the room in which it is installed. Make sure that kitchen is well ventilated. Natural ventilation openings or forced mechanical ventilation (exhaust hood) should be available.
• Prolonged intensive use of the appliance may require additional ventilation, for example, opening a window or a more effective ventilation, such as increasing efficiency of mechanical ventilation, if applicable.

HOW TO SAVE ELECTRICITY

Simple line drawing of a tree with cloud-like canopy and horizontal lines below (no text or symbols)

Using energy responsibly not only saves money but also helps the environment. So let's save energy! And this is how you can do it:

● Use proper pans for cooking.

Pans with thick, flat bases can save up to 1/3 on electric energy. Remember to cover pans if possible otherwise you will use four times as much energy!

● Match the size of the saucepan to the surface of the heating zone.

Cookware base should never be smaller than cooking zone.

● Ensure that heating zones and pan bases are clean.

Soils can prevent heat transfer – and repeatedly burnt-on spillages can often only be removed by products which cause damage to the environment.

- Do not uncover the pan too often (a watched pot never boils!)

● Turn off the appliance in time and use the residual heat.

For long cooking times, turn off heating zones 5 to 10 minutes before finishing cooking. This saves up to 20% on energy.

- Do not install the hob in the immediate vicinity of refrigerator / freezer.

Otherwise energy consumption increases unnecessarily.

UNPACKING

Simple line drawing of a three chasing recycling symbol (no text or labels)

The appliance was packed to protected it from damage during of transport. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Important! During unpacking, keep the packaging material (polyethylene bags, polystyrene pieces, etc.) out of reach of children.

DISPOSAL

In accordance with European Directive 2012/19/UE and Polish legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container.

This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

DESCRIPTION OF THE APPLIANCE

Description of hob

1,2,3,4 - top burners

5 - burner knobs with igniter switch

6 - grids

SPECIFICATION

- height 52 mm

- depth 520 mm

- width 590 mm

- weight of the appliance 10,3 kg

The appliance is equipped with burners:

1 - large burner, heat load - 2,8 kW

2 - medium large burners, heat load - 1,8 kW

3 - small burner, heat load - 1,0 kW

Class of the appliance PT,ES II

2H3+

The appliance has a pipe connection - G 1/2".

(*) colour of the appliance: Gw-white, Gs-black

INSTALLATION

The following instructions are intended for a qualified professional installer. These instructions are intended to provide the most professional installation and maintenance of the appliance.

● Before you install the appliance, make sure that the local distribution conditions (gas type and pressure) and the appliance configuration is appropriate.

● Configuration details are given on the appliance nameplate.

● This appliance is not connected to flues. The appliance must be installed and connected in accordance with the current regulations. In particular, consideration must be given to the applicable requirements for ventilation.

Requirements for the place of installation

• Kitchen should be dry, airy and well ventilated according to the applicable technical regulations.
  ● The room should be equipped with a ventilation system to extract the combustion gases outside the room. The ventilation system must include a ventilation grille or a hood. Hoods must be installed in accordance with the accompanying operating instructions.
• The room should also allow air supply which is necessary for the correct combustion of gas. The air supply should be not less than 2 ~m^3 / h per 1 kW of the burners power. Natural airflow from the outside may be provided or through a duct with a cross-section of at least 100 ~cm^2 , or indirectly from the adjacent rooms that have ventilation ducts leading outside.
  ● The distance between the burners and the chimney exhaust should be at least 750 mm.

INSTALLATION

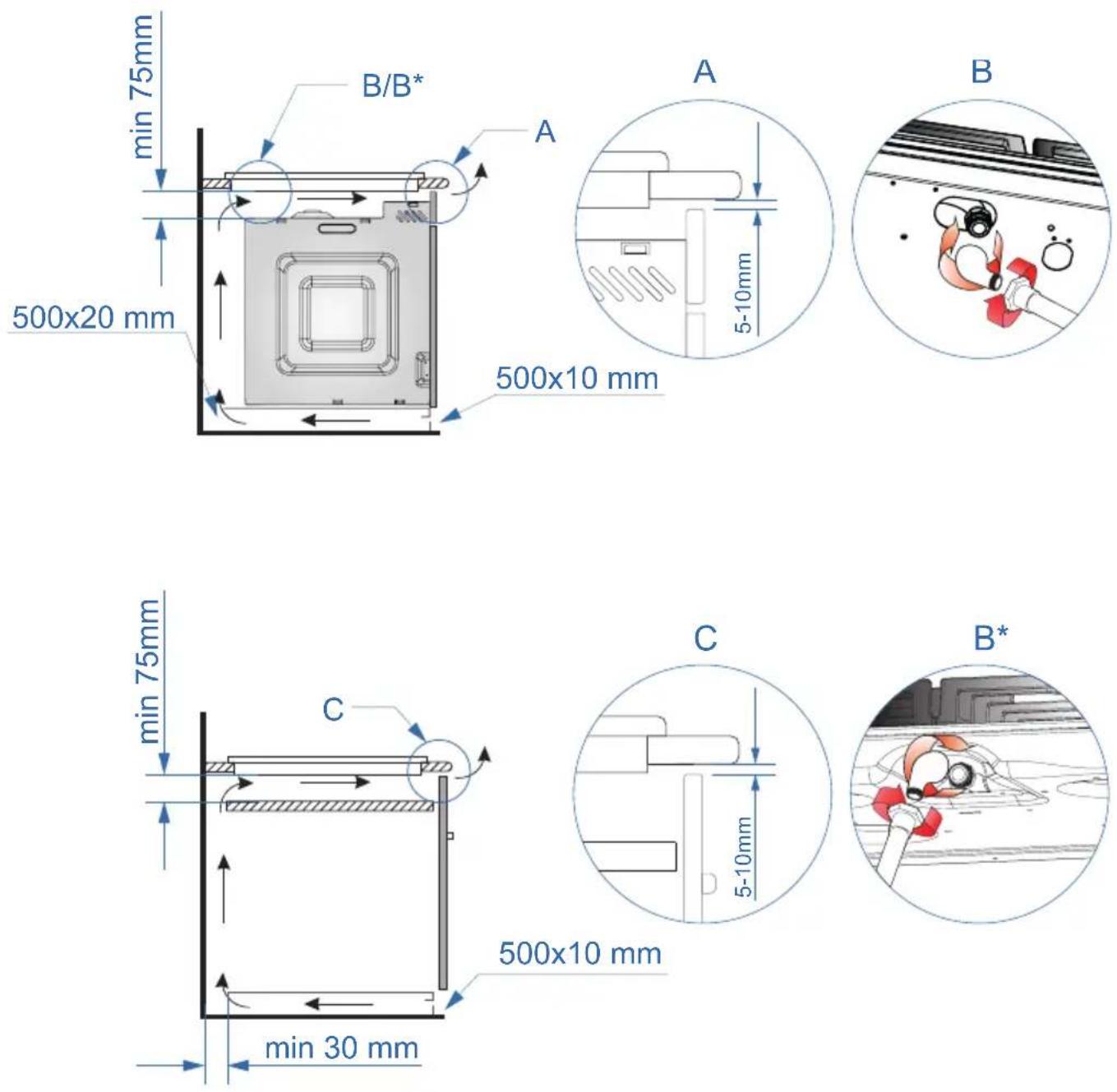

Install gas hob

*optional

INSTALLATION

● prepare an opening in the worktop of a kitchen cabinet, as per the installation drawing
● connect the hob to a gas and electrical system in accordance with the instructions supplied,
- loosely attach fixing brackets to the bottom of the hob,
- remove dust from the worktop, insert hob into the opening and press in firmly,
● position fixing brackets (Fig.) perpendicularly to the hob's edge and tighten firmly,
- once you install the hob in the worktop, check if it operates, especially the flame failure cut-off and igniter.

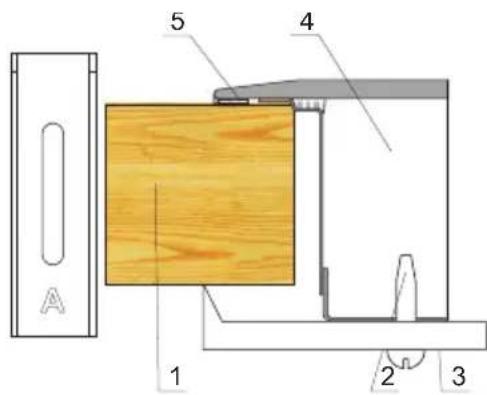

1 - Worktop

2 - Screw

3 - Bracket

4 - Hob

5 - Seal

INSTALLATION

Tips for the installer

The installer must:

● Have appropriate qualification
- Read the information on the nameplate or information sticker concerning the type of gas, for which the appliance is intended. This information must be compared with the gas supply specification at the place of installation.

- Check

• effectiveness of ventilation, i.e. exchange of air in the room.
• tightness of gas fittings.

• proper operation all the functional components.

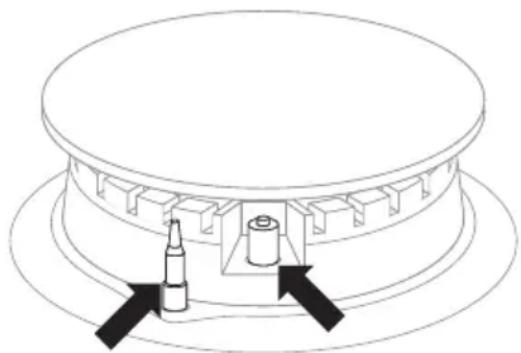

• For proper operation of igniters and flame failure cut-off device, adjust the position of the gas knobs with the supplied washers,

• check the operation of igniters and flame failure cut-off device,

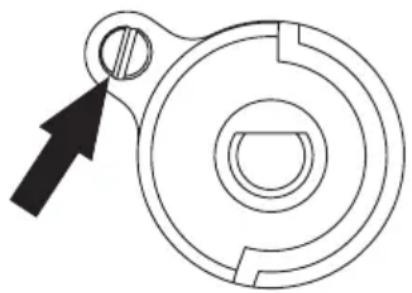

• In the event of faulty operation, remove the knob, make adjustments by inserting a washer (washers) on the valve pin,
• once adjusted, protect the system with a clamping washer and replace the knob.
  ● Provide the user with the gas hob installation certificate and give instructions on the appliance operation.

CAUTION!

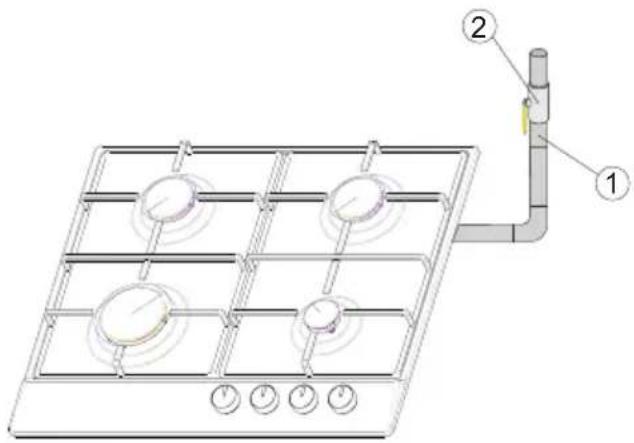

Only a qualified person must connect the appliance to a liquid gas cylinder or an existing system, following all safety regulations.

The appliance has an G 1/2" threaded pipe connector to connect it to the gas system. The LPG (propane-butane) hob version has the connector terminated with a hose tip ∅ 8 x 1 mm.

Gas supply hose should not touch the metal parts of the cover.

ENSURE the connections are tight.

Once you install the appliance, check all connections for leaks, for example using soapy water. Do not use fire to check the connections.

Carefully read the operating instructions supplied and follow all guidelines.

CAUTION!

You are dealing with gas. The appliance must be supplied with the type of gas specified by the manufacturer. Only a qualified person must install the appliance.

Information on the type of gas for which the appliance is designed is given on the nameplate.

INSTALLATION

Electrical connection

Warning!

All electrical work should be carried out by a suitably qualified and authorised electrician. No alterations or wilful changes in the electricity supply should be carried out.

The hob is manufactured to work with a one-phase alternating current (230V 1N\~50Hz) and is equipped with a 3 x 1,5 mm ^2 connection lead.

The electricity supply for the hob must have a safety switch which enables the power to be cut off in case of emergency. The distance between the working contacts of the safety switch must be at least 3 mm.

Before connecting the hob to the power supply it is important to read the information on the data plate and the connection diagram.

Caution! The installer is obliged to provide the user with “appliance electrical connection certificate” (enclosed with the warranty card).

Connection diagram

Caution! Voltage of heating elements 230V. Caution! In the event of any connection the safety wire must be connected to the ⏚ PE terminal.

Live L: BN - brown

Neutral N: BU - blue

Earth PE: GNYE -green/yellow

Power circuit should be protected with a 16A fuse.

Recommended type of connection lead: H05VV-F, 3 x 1,5mm².

Important!

If the fixed power supply cable is damaged, it should be replaced at the manufacturer or at an authorized servicing outlet, or by a qualified person to avoid danger.

INSTALLATION

Adapt the hob to a particular type of gas

This may be performed by an installer with the appropriate qualifications only.

If the gas, which the hob will be supplied with is different from the gas type specified by the manufacturer, i.e. G20 (2H) 20 mbar, replace the burner nozzles and adjust the flame.

CAUTION!

Hobs supplied by the manufacturer are fitted with burners designed for the gas specified on the nameplate and in the warranty.

Nameplate is located on the bottom of the housing and lists information on the type of gas the appliance is intended for.

In order to adapt the hob to another gas type:

• replace the nozzles (see table),
• adjust the valves for a reduced flow.

INSTALLATION

SOMIPRESS burner. (indicated "SOMIPRESS." on the burner body)

Type of gas	Burner
	auxiliarygas injector diameter[mm]	mediumgas injector diameter [mm]	largegas injector diameter [mm]
	nominalthermal power1,00 kW	nominalthermal power1,80 kW	nominalthermal power2,80 kW
G20 2H 20 mbar 0,72 0,98	1,17
G30/31 3+ 28-30/37 mbar 0	52 0,67 0,83

Once converted, place a sticker indicating the gas type for which the appliance is intended.

Pure technical diagram of a circular component with a central hexagonal hole and an arrow pointing to it (no text or symbols)

Replace burner nozzle: unscrew the nozzle using a special wrench no. 7 and replace with a new one suitable for the new gas type (see table above).

Adjust the valves for a reduced flow.

Burners	Flame	Convert the appliance from LPG to natural gas	Convert the appliance from natural gas to LPG
Top burners	Full flame	Replace burner nozzle with the appropriate nozzle according to the table.	Replace burner nozzle with the appropriate nozzle according to the table.
	Economic flame	Gently loosen the adjusting screw and adjust the flame.	Slightly tighten the adjusting screw, check the flame stability and size.

INSTALLATION

Adjust the valves

To adjust the valves turn the burner knob to "economic flame" position and ignite the flame.

For COPRECI valves, remove the hob and adjust the size of an economic flame with a screwdriver.

Pure mechanical part diagram without any text, numbers, or symbols

In order to check the flame, heat up the burner on a full flame for about 10 min., and then turn the burner knob to an economic flame position. The flame should not go out or jump on the nozzle. However, if it does, readjust of the valves.

Conversion of the appliance to a different gas type than specified by the manufacturer on the nameplate or purchasing an appliance that is intended for a different gas type than provided in the building, is entirely up to the user and installer.

OPERATION

Burner operation

To achieve significant energy savings, use the appliance as instructed in these operating instructions, make the appropriate adjustments and use suitable pots.

Potential energy savings:

● up to 60%, when using appropriate pots,
● up to 60%, when using the appliance according to the instructions and correctly adjusting the flame when cooking.

Keeping the burners clean is crucial to an efficient energy consumption by the appliance (especially the flame outlets and nozzles).

Choice of cookware

Make sure that the diameter of the bottom of the pot is always slightly larger than the crown of the burner flame, and the pot itself is covered with a lid. It is recommended that the pot diameter is approximately 2.5 - 3 times larger than the burner:

● small burner — pot diameter of 100 to 140 mm,
● medium burner — pot diameter of 140 to 220 mm,
● large burner — pot diameter of 200 to 240 mm
● large burner — pot diameter of 220 to 260 mm
● the pot height should not be greater than its diameter

Cookware lid:

Lid prevents heat from escaping and thus reduces heating time.

Do not use cookware that protrude over the edges of the hob.

Burner control knob

"burner off" position

OPERATION

Using the hob equipped with igniter knobs ("Zp" model)

• push down the knob of a selected burner until you feel resistance and turn left to the
  "large ame"position
  • hold the knob until gas ignites
• once ame ignites, release the knob and adjust ame size.

Using the hob equipped with a flame-failure cut-off device ("Zt" model)

Technical line drawing of a mechanical component with two arrows pointing to features (no text or symbols)

In hobs equipped with a ame-failure cut-o device, hold the pushed down knob in the "large ame" position for approximately 10 seconds to activate the a ame-failure device.

Repeat the above step if flame does not ignite.

If flame is extinguished, the flame-failure device will cut off gas supply within about 60 seconds.

You can open and control the gas supply to the burners using knobs with flame-failure cut-off device (Zt models).

OPERATION

Adjust flame

Flame from a properly adjusted burner is pale blue with a clearly outlined inner cone. You can adjust flame by setting the knob to different positions.

large flame

small flame ("economic")

Iburner off (no gas supply)

This example shows you and to operate the knob and adjust flame size.

To optimise cooking set the knob to ♦ "large flame" initially to boil your food, then set it to ♦ "small flame" to continue the cooking process. Adjust the flame size depending on your needs.

Do not place the knob between the I burner off and ♦ large flame position.

OPERATION

In the event a gas leak risk

1 gas system
2 gas system shut-off valve
A valve "open"
B valve "closed"

Two mechanical components labeled A and B, showing different directional arrows (no text or symbols beyond labels)

In the event of a fault

● turn off the burners
- close the gas system shut-off valve
● Ventilate the kitchen
● report the fault to a service centre or a qualified gas fitter to have it repaired
● do not use your gas hob until the fault has been repaired.

Some minor faults may be repaired by the user, according to the instructions supplied.

BURNER does not ignite, I can smell leaking gas

• close the burner valves
• close the gas system shut-off valve
  ● Ventilate the room
• remove the burner
  ● clean and purge the flame outlets
• replace the burner
  ● retry to ignite the burner

NO FLAME? HAVE THE APPLIANCE REPAIRED!

CLEANING AND MAINTENANCE

Proper routine maintenance and cleaning of the appliance can significantly extend its trouble-free operation.

Before cleaning or other maintenance work, always unplug the appliance or use the main electrical system circuit breaker to cut off power. Do not begin cleaning until the hob has cooled. Do not use abrasive scouring powders.

Do not use steam cleaning equipment for cleaning.

Burners, hob grid

If the burners and grid become soiled, remove them from the hob and wash in warm water with some dishwashing liquid. Wipe dry. Once the grid is removed, thoroughly clean the area under the burner and wipe it dry with a soft cloth. Flame outlets and burner head must be clean at all times, see figure below. Clean the gas nozzles using a thin copper wire. Do not use steel wire or ream the holes.

Diagram of a mechanical assembly with a central circular component and a black arrow pointing to a specific part (no text or symbols present)

All burner parts must be always dry. Water droplets may block the gas flow and cause the burner to operate incorrectly.

Make sure that burner is correctly re-assembled after cleaning.

CORRECT

INCORRECT

• Use mild detergents to wash enamel surfaces. When cleaning do not use abrasive cleaners such as scouring powders, pastes, abrasive stones, pumice, metal scrubbers, etc.
• Thoroughly clean the stainless steel hob before use. Especially make sure to remove any adhesive residue or self-adhesive tape applied when the appliance was packaged.
• Clean the hob after each use. Do not allow the hob to get heavily stained; particularly from burnt-on spillages from boiled over liquids.

Regular inspections

In addition to normal cleaning and maintenance:

● carry out periodic checks of touch controls and other elements. After the warranty expires, have authorised service inspect the appliance every two years,
● repair any operational faults,
● carry out periodic maintenance of the hob,

CLEANING AND MAINTENANCE

Cleaning the plate after every use

• Wipe off slight, not-burnt patches of dirt using damp cloth without cleaning agent. Washing liquid can cause blue di sco lo ra tion to appear on the plate. The stub born stains often cannot be re mo ved after first cleaning, even if special cleaning agents are used.
• Remove larger patches of dirt, strongly sticking to the plate using sharp scrap per and wipe off the sur face with a damp cloth.

Line drawing of a hand using a tool to cut or spread material from a rectangular block (no text or symbols)

Cleaning scraper

Special cleaning agents can be bought in supermarkets, special electromechanical shops, drugstores and shops with kitchen appliances. Sharp scrappers can be bought in DIY shops, shops with building tools and painting accessories.

Removal of stains

• Li ght pearly stains (aluminium re sidues) can be removed from cooled plate using special cleaning agents. Cal ca re ous re si du es (i.e. boiled over wa ter) can be re mo ved with vinegar or spec cial cle aning agents.
• Do not switch off the hotplate when re moving sugar, sugar-containing food, plastic or aluminium foil! Immediately scrape off the residuals (when still hot) from the hotplate using a sharp scrap per. When the dirt is removed you can switch off the plate and clean it again after cooling down using special cleaning agents.

TROUBLESHOOTING

In the event of any fault:

● turn off the appliance
● disconnect the power supply
● have the appliance repaired
- based on the instructions given in the table below, some minor issues can be corrected by the user. Please check the consecutive points in the table before you refer the repair to customer service.

PROBLEM POSSIBLE CAUSE REMEDY
1.The appliance does not work	- no power -check the fuse,	replace if blown
2.Burner does not ignite	- soiled flame outlet	- close the gas shut-off valve, close the burners valves, ventilate the room, remove the burner, clean and clear out the flame outlets
3.Igniter does not work	- no power	- check the fuse, replace if blown
	- no power - Open the gas supply valve
	- soiled (greasy) igniter - clean the igniter
	- burner knob pushed down not long enough	- hold down the knob until you see a full flame around the burner crown
4.The flame goes out when igniting the burner	- burner knob released too soon	- hold the knob down for longer in a "large flame" position

Electrodomésticos Iberia S.L.
