Product Type	Wine Cellar / Wine Cooler
Brand	Infiniton
Model	WCL-18T
Capacity	18 standard wine bottles
Dimensions (W x D x H)	595 mm x 530 mm x 840 mm
Net Weight	30 kg
Power Supply	220-240 V, 50 Hz
Energy Consumption	Approx. 0.5 kWh/24h
Temperature Range	5°C to 18°C (adjustable thermostat)
Cooling System	Compressor-based with vibration dampening
Interior Lighting	LED light with on/off switch
Glass Door	Double-pane tempered glass with UV protection
Shelving	5 chrome wire shelves, slide out
Lock	Yes, key lock for door security
Installation	Freestanding or built-in (ventilation required)
Climate Class	ST (temperate climate)
Noise Level	≤ 42 dB(A)
Defrost Type	Manual defrost (no frost-free)
Cleaning	Wipe with soft cloth and mild detergent; avoid abrasive cleaners
Safety Features	Stable base, anti-tip design, thermal overload protection
Spare Parts Availability	Shelves, door hinge, thermostat, LED lamp available
Repair Service	Authorized service centers; DIY not recommended for electrical parts
Warranty	2 years (standard) – check local regulations
User Manual	Available in PDF format at notice-facile.com

Frequently Asked Questions - WCL-18T Infiniton

What is the capacity of the Infiniton WCL-18T wine cellar?

The WCL-18T is designed to hold up to 18 standard 0.75L wine bottles. Shelves can be adjusted for larger bottles.

How do I set the temperature on my wine cellar?

Use the thermostat dial inside the cabinet. Turn clockwise for colder, counterclockwise for warmer. The recommended range for red wines is 12-18°C, for white wines 5-10°C.

Why is my wine cellar making noise?

Normal operation includes sounds from the compressor and fan. A slight humming or clicking is typical. If noise is excessive, ensure the unit is level and not in contact with walls or furniture.

Can I install the WCL-18T as a built-in unit?

Yes, it can be built-in, but requires adequate ventilation (at least 10 cm clearance at the back and sides). The front grille must remain unobstructed.

How do I clean the wine cellar?

Unplug the unit. Wipe interior and exterior with a soft damp cloth and mild detergent. Rinse with clean water and dry thoroughly. Do not use abrasive cleaners or sharp objects.

What should I do if the wine cellar is not cooling?

Check that the power cord is plugged in and the thermostat is set correctly. Ensure ventilation vents are not blocked. If the problem persists, contact an authorized service technician.

Does the wine cellar have a lock?

Yes, the door includes a key lock for security. The key is provided in the accessory kit.

How much electricity does the WCL-18T consume?

The energy consumption is approximately 0.5 kWh per 24 hours, depending on ambient temperature and usage. It is designed for energy efficiency.

What is the warranty for this wine cellar?

Infiniton offers a 2-year warranty against manufacturing defects. Check the user manual or contact the retailer for specific terms.

Can I store food or beverages other than wine?

This unit is optimized for wine storage at specific temperature and humidity levels. Storing other items may affect performance and is not recommended.

USER MANUAL WCL-18T Infiniton

Line drawing of a kitchen interior with four black wine cabinets and a microwave oven (no text or symbols)

WCL-6B

8436546197003

WCL-12L

8445639000519

WCL-18T

8436546197010

WCL-28T

8445639000526

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

1. Carcasa

2. Fondo de aluminio

1. Interruptor de luz
2. Selector de temperatura
   13.Aumentar temperatura
3. Disminuir temperatura

Line drawing of a multi-tiered industrial oven with circular compartments and a door open (no text or symbols)

Interior view of a kitchen with four black wine cabinets and a microwave oven, no text or symbols visible.

WCL-6B

8436546197003

WCL-12L

8445639000519

WCL-18T

8436546197010

WCL-28T

8445639000526

Before using your new Infiniton product, please read this user manual carefully to learn how to safely and efficiently use the features offered by this device.

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS....1

INSTALLATION INSTRUCTIONS.... 4

CLEANING AND MAINTENANCE. 5

PRODUCT DESCRIPTION 6

TECHNICAL SPECIFICATIONS 7

USE YOUR SEVICE CELLAR 8

BREAKDOWNS AND SOLUTIONS ....10

THIS PRODUCT IS FOR

HOUSEHOLD USE ONLY!

Please read these instructions

carefully before the first use of this

BEFORE USE, YOU SHOULD KNOW

What is the thermoelectric effect?

As its name suggests, it is the conversion of electrical voltage or vice versa through a thermocouple, we understand thermocouple as an electrical device consisting of two conductors (of different material) joined together, this produces a relationship between temperature and voltage which is called Seebeck effect.

When a voltage is applied, heat is transferred from one side of the thermocouple junction to the other producing a temperature difference.

Accordingly, the operation is based on the thermoelectric effect by means of a Peltier device. It will be able to function correctly as long as the ambient temperature does not exceed 28^ . Normally the ideal limit is 25^ . This is the first difference with compressor wine coolers, which are not affected by the outside temperature. If our wine cooler is going to be in a very hot place, it is better to choose a compressor model, even if it is more expensive.

As a direct consequence of the fact that the performance of the thermoelectric wine cooler depends on the outside temperature, it is necessary to have space around it, at the front, at the back and at the sides (minimum 8cm), so that the air circulates and does not heat up around the wine cooler. Therefore, they CANNOT BE INSERTED in any case.

Another aspect to consider is consumption. As they are less efficient, the electricity consumption of thermoelectric wine coolers is higher than that of compressor wine coolers.

What should we know?

Our wine cooler needs a period of 72-96 hours to regulate its initial temperature.

Due to the thermoelectric effect, we must always be aware that our product can cause a difference with the outside temperature of +- 15 degrees.

When temperatures are very high (summer) it will be more difficult to offer low temperature ranges.

Temperature range: 11 - 18 °C

It is recommended to always work at 17°C.

Tips for use

If we introduce a hot product, it will lower the temperature of the rest.

If we introduce a cold product inside, it will help to reach the required low temperature more easily.

IMPORTANT SAFETY INSTRUCTIONS

This warning is only for EUROPEAN market only!

When using an electrical appliance, basic precautions should always be followed, including the following:

1. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
2. WARNING: Do not locate multiple portable socket- outlets or portable power supplies at the rear of the appliance.
3. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
4. This product is only used to preserve wine.
5. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
6. This appliance is intended to be used in household and similar applications such as

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses and by clients in hotel, motels and other residential type environments;

1. Please keep the products away from the fire or similar glowing substance before you dispose the refrigerator.

2. Please remove the door before you dispose your refrigerator.

3. The appliance shall not be installed in the laundry.

4. The appliance must be positioned so that the plug is accessible.

5. The appliance shall be installed in accordance with national wiring regulations.

6. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

7. This appliance can be used by children aged from 8 years and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and use maintenance shall not be made by children without supervision.

8. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

9. To avoid contamination of food, please respect the following instructions:

-Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

-If the refrigerating appliance was left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance

1. DISPOSAL: Do not dispose this product as

Symbol of a trash bin crossed with no visible text or labels

unsorted municipal waste.Collection of such waste separately for special treatment is necessary.

1. This refrigerating appliance is not intended to be used as a built-in appliance.

2. This refrigerating appliance is not suitable for freezing foodstuffs.

3. This appliance is intended to be used exclusively for the storage of wine.

4. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

5. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

6. WARNING: Do not damage the refrigerant circuit.

7. Warning: Risk of fire / flammable materials. There are flammable materials at the back of appliance, please keep the product far away fire source.

INSTALLATION INSTRUCTIONS

Before putting your service cellar into service

• Remove all inner and outer packaging components.

• Check that none of the following parts are missing:

• 3 removable shelves

• 1 operating manual

- Before connecting your device to a power supply, allow it to stand upright for about 2 hours. This reduces the risk of malfunction of the refrigeration system due to handling during transport.

- Clean the inner surfaces of the unit with a soft cloth and warm water.

- Place your unit on a floor strong enough to support the weight of the fully filled unit.

- Make sure the unit is level by adjusting the front feet underneath the unit. Make sure that the cellar rests on its feet in a stable manner.

• Install the appliance away from direct sunlight and heat sources (radiator, hot plate, etc.).

Direct sunlight can damage the unit's coating and heat can increase its power consumption. If the ambient temperature is extremely cold or hot, this may prevent the unit from operating properly.

• The unit is not designed to be installed in a basement or cellar.
• This unit is designed exclusively for indoor use.

Caution: Make sure that the unit is kept away from any substance that may cause combustion.

- Check that the water tank is in place before connecting the unit.

CLEANING AND MAINTENANCE

Cleaning your service cellar

• Unplug your service cellar and take out all the bottles.
• Clean the outside of the unit with hot water and a mild detergent.
• Remove the water tank at the bottom of the unit, then was hit.

Moving your service cellar

• Remove all bottles and disconnect the service cellar.
• Tape all loose parts inside your service cellar.
• Turn the feet to adjust their height to the minimum to avoid damage.
• Tighten the door to keep it closed.
• Be sure to keep the service cellar upright during transport.

PRODUCT DESCRIPTION

WCL-6B

1. Lighting 5. Feet
2. Aluminum Plate
3. Water Tray
4. Wooden Shelf 7. Bottom Hinge
   4.Housing 8.Door Open Support
5. Glass Door 10. Upper Hinge

1. Lighting 5. Limited piece
2. Aluminum Plate 6. Door
3. Wooden Shelf 7. Ru
   4.Housing

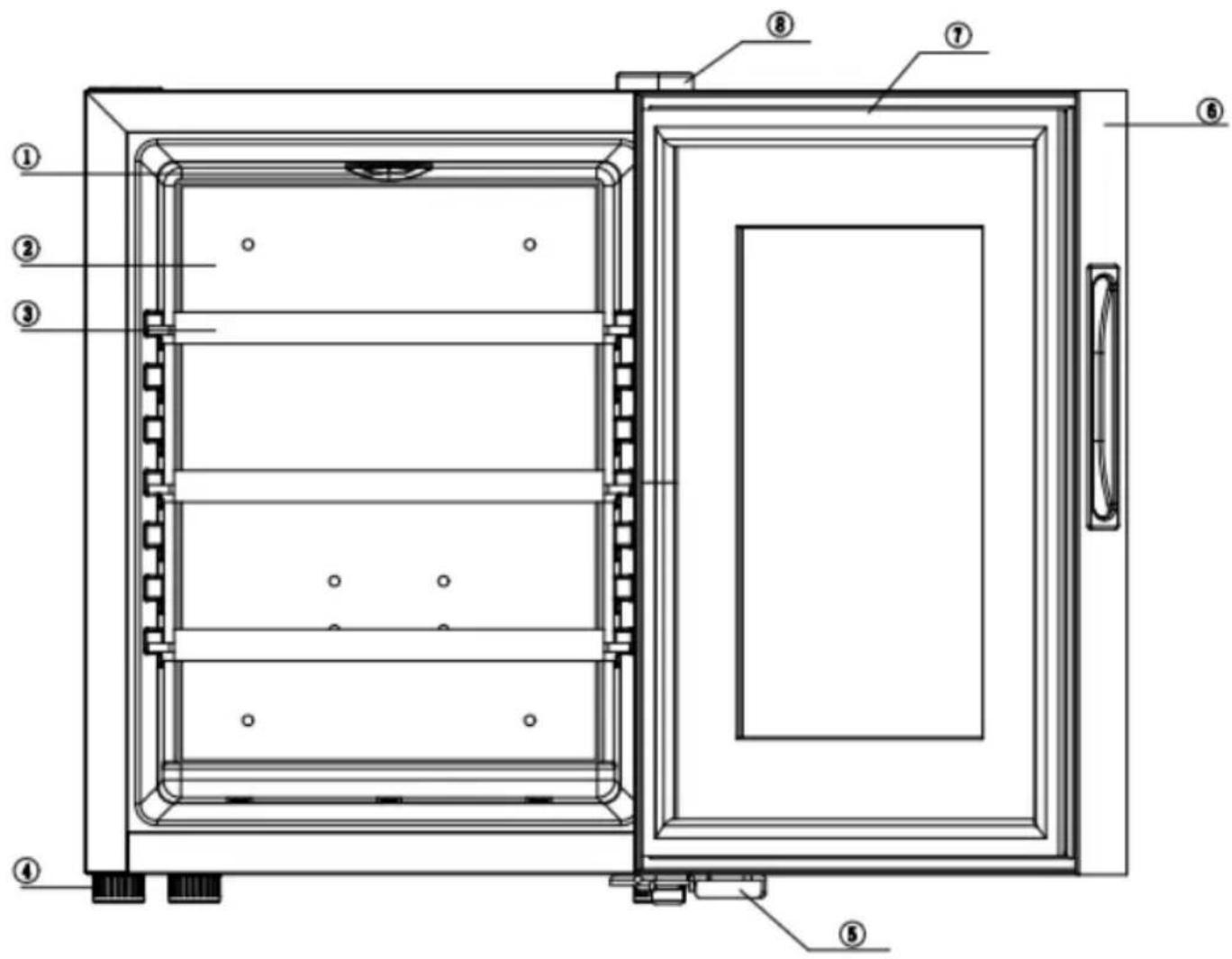

WCL-18T

1. Housing
2. Aluminum Plate
3. Wooden Shelf 4. Feet
4. Water tray
   6.Bottom Hinge
   7.Stainless steel handle 8.Glass door
5. Upper Hinge

1. Housing

2. Aluminum Plate

3. Wooden Shelf 4. Feet

4. Limited pieces handle

6.Stainless steel

1. Door 8. Rubber se

al

1. Upper Hinge

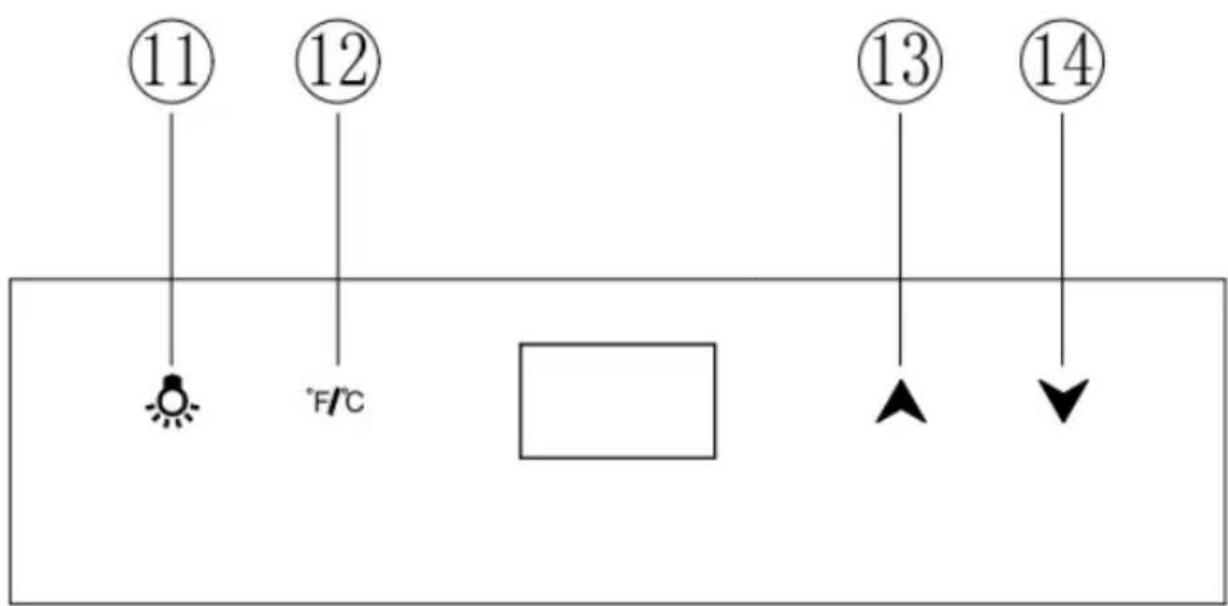

1. Lighting Switch
2. Temperature selector switch
3. Temperature up switch
4. Temperature down switch

TECHNICAL SPECIFICATIONS

Reference :	WCL-6B / WCL-12LWCL-18T/WCL-28T
Rated voltage :	220-240V~
Ampere :	0.42A/0.55A/0.55A/0.55A
Rated frequency :	50Hz
Climate class :	N
Refrigerant:	R600a 14g/27g/31g/60g
Protection against electrical shock :	I
Insulation foam :	CYCLOPENTANE

Climate class:

- Extended temperate(SN): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';

• Temperate(N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';
• Subtropical(ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';
• Tropical(T): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43°C';

Note: More data information, please scan the QR code on the energy label.

USE YOUR SERVICE CELLAR

The temperature setting allows you to adjust it according to your needs:

Setting temperature before tasting red wines: Temperature recommended 16-17°C.

If the ambient temperature is higher or lower than the recommended temperatures, this will have a negative impact on its performance. For example, placing the unit in an extremely cold or hot place can cause variations in the internal temperature of the unit.

The internal temperature may vary depending on the location of the bottles, at the top, middle or bottom.

Adjustment may be necessary depending on the ambient

temperature.

Do not hesitate to leave a thermometer inside the cellar in order to carry out regular monitoring.

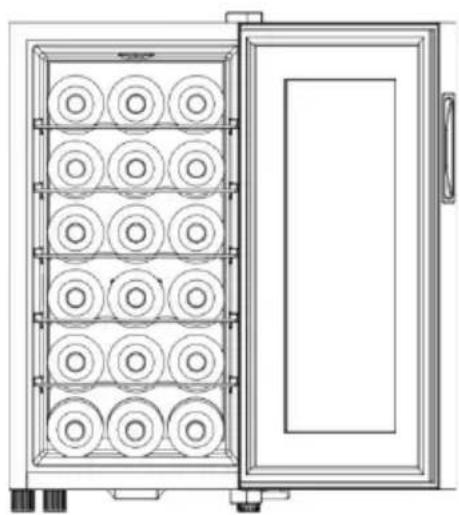

This service cellar is designed for the maximum storage of 18 standard size (75cl) bottles of wine.

Temperature setting:

• The keys <> and <> allow you to increase or decrease the temperature in increments of 1^ (the temperature range is 11 18^ )
• The button 🔊 > allows you to switch the interior lighting on and off.

Line drawing of a double boiler with rows of circular components and a door open (no text or symbols)

To minimize energy consumption, be sure to respect the filling capacity of your service cellar-18 « Bordeaux 75cl » size.

The combination of drawers, baskets and shelves that result in the most efficient use of energy for the appliance.

The chart indicates the ideal storage temperatures for different types of wines:

Red wines	15°C ~ 18±1°C
Dry/White Wines	10°C ~ 15°C
Vintage Wines	13°C

BREAKDOWNS AND SOLUTIONS

Some malfunctions can be easily resolved. Before calling customer service or a repairer, please consult the following table:

PROBLEM	POSSIBLE CAUSES & SOLUTIONS
The service cellar does not work.	Not connected.The circuit-breaker is tripped or the fuse is damaged.Check if the outlet is powered by connecting another electrical device.
The service cellar is not cold enough	Check the temperature setting.High ambient temperature may require setting the service cellar to a colder temperature.The door is being opened too often. The door is not completely closed.The door seal is not properly positioned.Not enough space around the service cellar to allow ventilation.
The device operates continuously	The room temperature is higher than the maximum supported.A large number of bottles inside the service cellar.The door is being opened too often. The door is not completely closed.Temperature control is not calibrated correctly.The door seal is not properly positioned.
The light doesn’t work.	The service cellar is not plugged in.The circuit-breaker has been tripped or a fuse is damaged.The LED lighting is out of order.The light button is set to «OFF».
Vibrations.	Check to make sure the service cellar is level.
The service cellar seems to be making too much noise.	The service cellar is not level, or a foot is incorrectly adjusted.
The door does not close properly.	The service cellar is not level.The shelves are out of position and blocking the door closure.
Water under the device	Water is being collected incorrectly in the water tank on the back of the unit.Check that the water tank is in place. Empty the water tank.

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

CORRECT DISPOSAL OF THIS PRODUCT

This marking indicates that this product should not be disposed with other household wastes throughout the EU.To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environment safe recycling.

INFINITON

Adega de serviço

ESTE PRODUTO É APENAS PARA USO DOMÉSTICO!

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Technical line drawing of a cabinet with circular components on the front panel and an open door (no text or symbols)

¿Necesitas ayuda?

Silhouette of a person wearing a headset with a crossed wrench icon (no text or symbols)

INFINITON

TÉRMINOS Y REGISTRO DE GARANTÍA
